Model Electrolux DECIFL1 DRYER – Common Parts & Diagrams

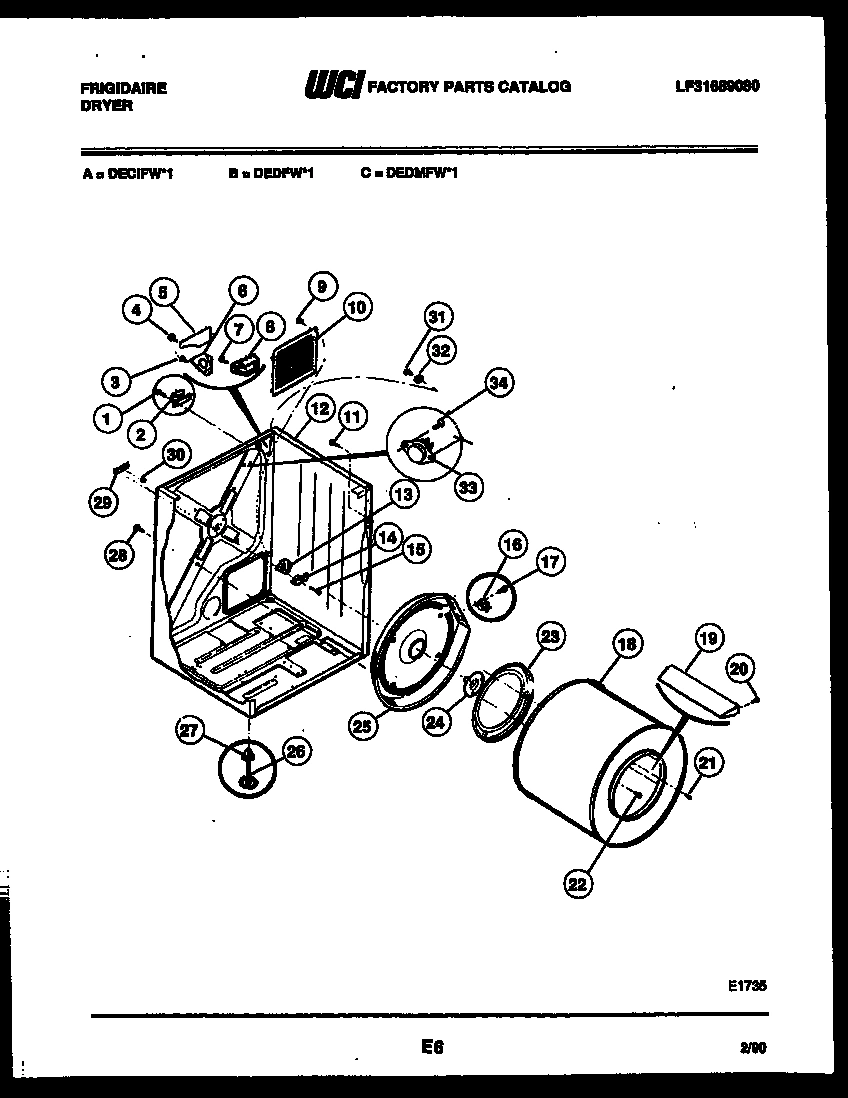

02 - CABINET AND COMPONENT PARTS

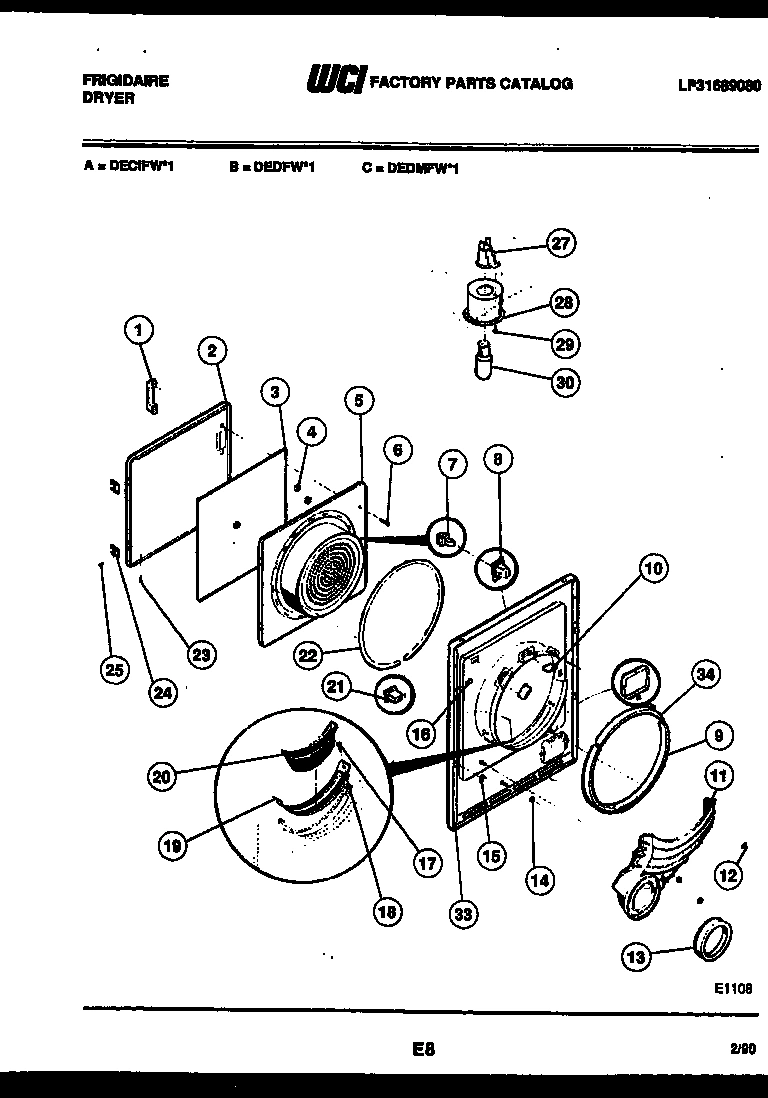

03 - DOOR PARTS

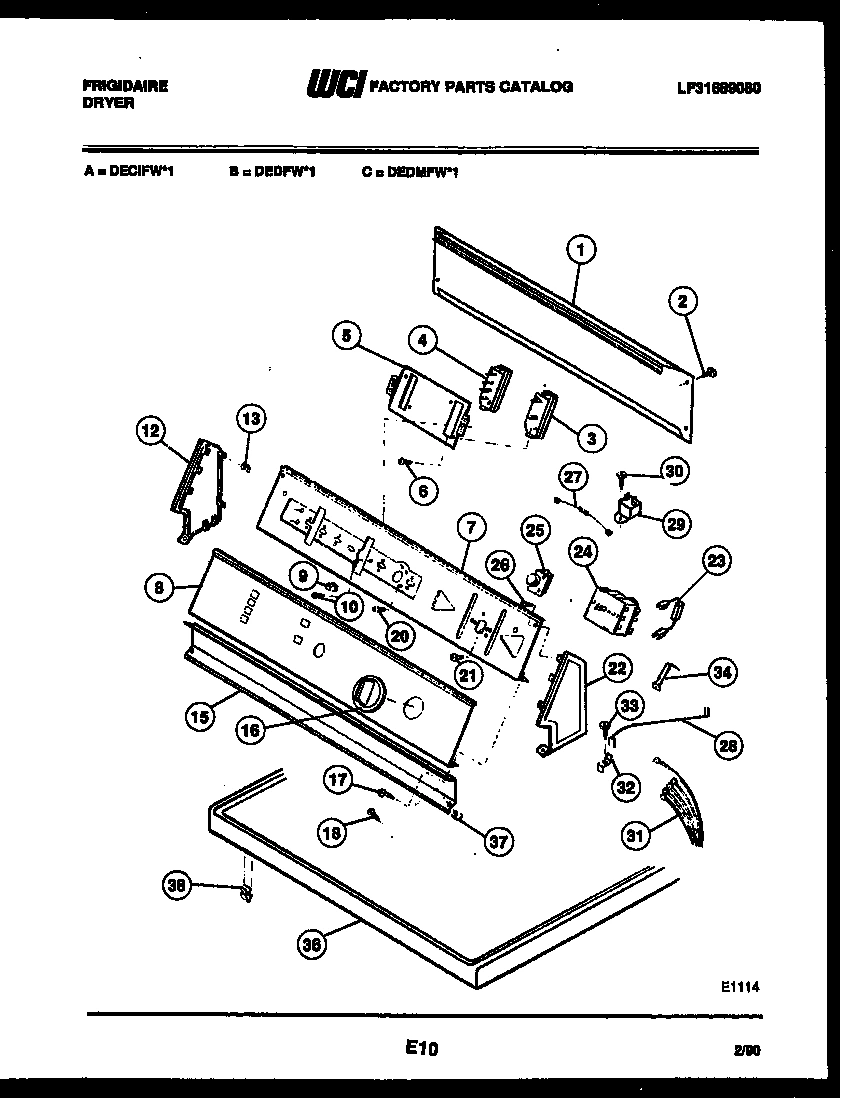

04 - CONSOLE AND CONTROL PARTS

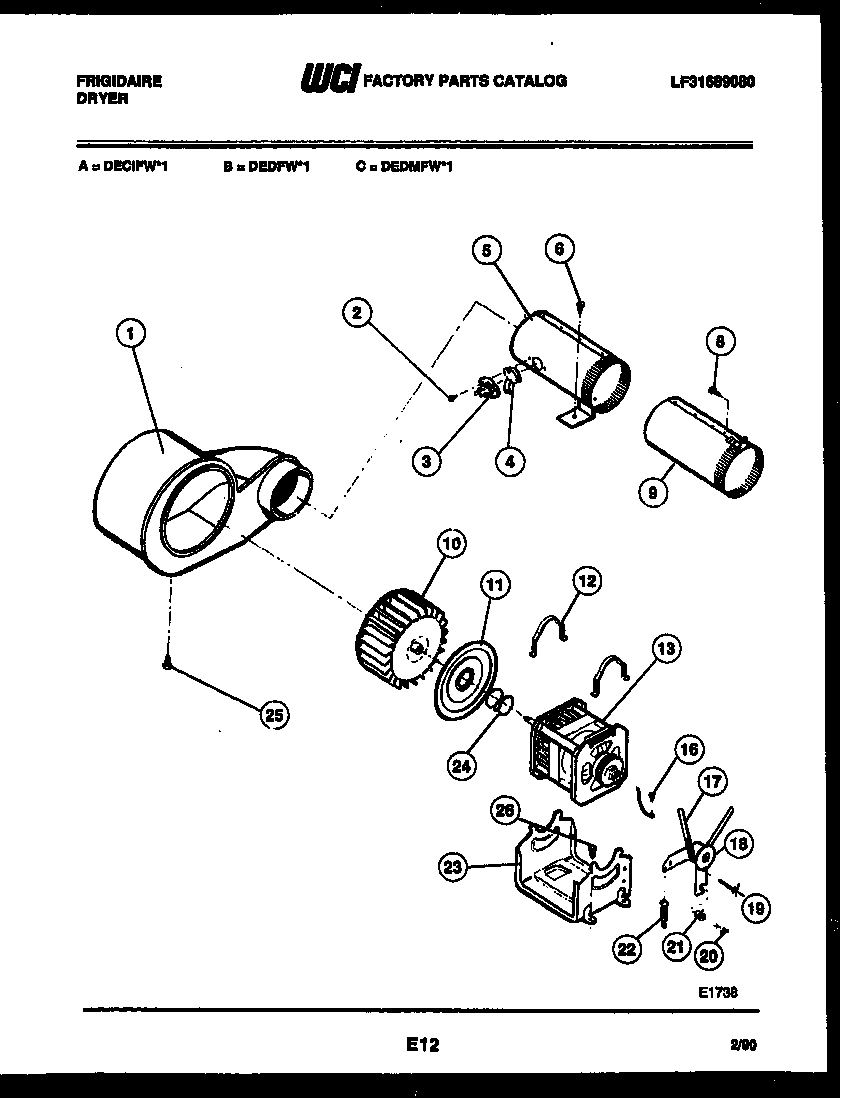

05 - MOTOR AND BLOWER PARTS
Common parts from model Electrolux DECIFL1 DRYER
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
BACK COVER WCI 3201322 Contact Us For Availability
1
FAN HOUSING ASSY WCI 3281014 Contact Us For Availability
2
WCI 3201204 WCI 3201204 Contact Us For Availability
2
SCREW (2) WCI 3261048 Contact Us For Availability
3
SCREW (2) WCI 3281041 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
WCI 08010818 WCI 08010818 Contact Us For Availability
4
WCI 3281043 WCI 3281043 Contact Us For Availability
4
WCI 3201205 WCI 3201205 Contact Us For Availability
4
SPACE (2) WCI 3281058 Contact Us For Availability
4
WCI 3201323 WCI 3201323 Contact Us For Availability
4
WCI F136777-000 WCI F136777-000 Contact Us For Availability
5
COVER-TERMINAL BLOCK WCI 3281042 Contact Us For Availability
5
WCI 3201207 WCI 3201207 Contact Us For Availability
5
WCI 3201324 WCI 3201324 Contact Us For Availability
5
TUBE ASSY THERMOSTAT WCI 3205671 Contact Us For Availability
6
BRACKET WCI 3281040 Contact Us For Availability
6
SCREW (2) WCI 3281035 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
7
WCI 3281024 WCI 3281024 Contact Us For Availability
7
WCI 3201325 WCI 3201325 Contact Us For Availability
8
WCI 3010202 WCI 3010202 Contact Us For Availability
8
WCI 3201327 WCI 3201327 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
WCI 08010807 WCI 08010807 Contact Us For Availability
9
DUCT-EXHAUST WCI 3201236 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
10
SCREW (3) WCI 08004660 Contact Us For Availability
10
BLOWER WHEEL WCI 3281079 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
TAN COVER WCI 3281080 Contact Us For Availability
12
WCI 3205658 WCI 3205658 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
WCI 3205874 WCI 3205874 Contact Us For Availability
12
MOTOR CLAMP WCI 3281084 Contact Us For Availability
13
CLIP, END CAP (8) WCI 08014350 Contact Us For Availability
13
WCI 3201237 WCI 3201237 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 3205875 WCI 3205875 Contact Us For Availability
16
THERMOSTAT WCI 3281113 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
WCI 08015693 WCI 08015693 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
17
WCI 08010782 WCI 08010782 Contact Us For Availability
18
WCI 3201199 WCI 3201199 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
SCREW (2) WCI 3205820 Contact Us For Availability
18
WCI 3201238 WCI 3201238 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 08001544 WCI 08001544 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
SCREW (3) WCI 3281029 Contact Us For Availability
21
DOOR SWITCH WCI 08015457 Contact Us For Availability
21
SCREW (2) WCI 3161188 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
SCREW (3) (PARTS CONTAINED IN REAR BEARING KI WCI 3281027 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
WCI 3205876 WCI 3205876 Contact Us For Availability
23
RESISTOR WCI 3281110 Contact Us For Availability
24
DOOR HINGE (2) WCI 3281050 Contact Us For Availability
24
WCI 3201674 WCI 3201674 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
PUSH TO START SWITCH WCI F135006-000 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
WCI 3281032 WCI 3281032 Contact Us For Availability
26
WCI 08010789 WCI 08010789 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
27
WCI 3201202 WCI 3201202 Contact Us For Availability
27
RECEPTACLE WCI 08015210 Contact Us For Availability
28
LIGHT HOLDER WCI 08015259 Contact Us For Availability
28
WCI 3201385 WCI 3201385 Contact Us For Availability
29
WCI 08004087 WCI 08004087 Contact Us For Availability
30
SCREW WCI 08010804 Contact Us For Availability
30
LAMP WCI 08027430 Contact Us For Availability
31
WCI 3206292 WCI 3206292 Contact Us For Availability
32
GROUND WASHER WCI 3281107 Contact Us For Availability
32
WCI F079171-000 WCI F079171-000 Contact Us For Availability
33
FRONT PANEL-ALMOND WCI 3205897 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
34
WCI 08014349 WCI 08014349 Contact Us For Availability
36
PANEL TOP-ALMOND WCI 3205825 Contact Us For Availability
37
CLIP (2) WCI 3281192 Contact Us For Availability
× ![]()
