Model Electrolux DEC310A3W DRYER – Common Parts & Diagrams

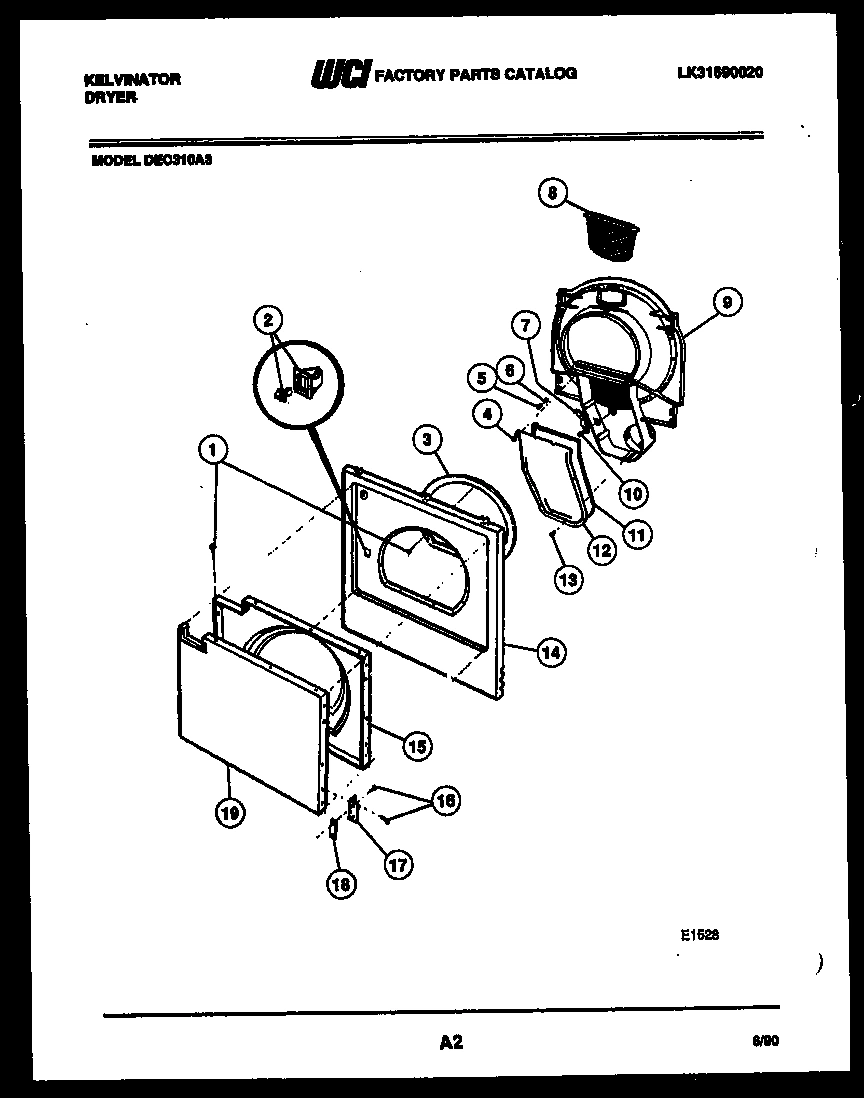

02 - COMPONENT PARTS

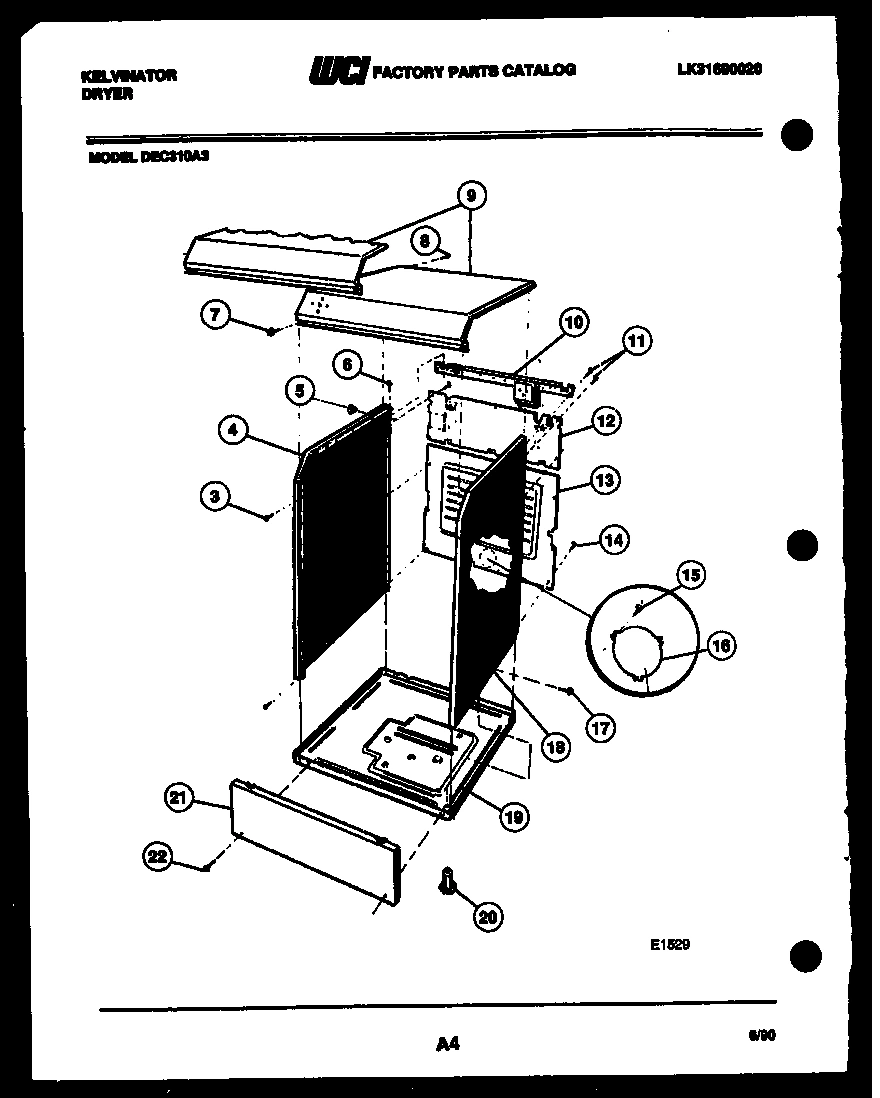

03 - CABINET PARTS

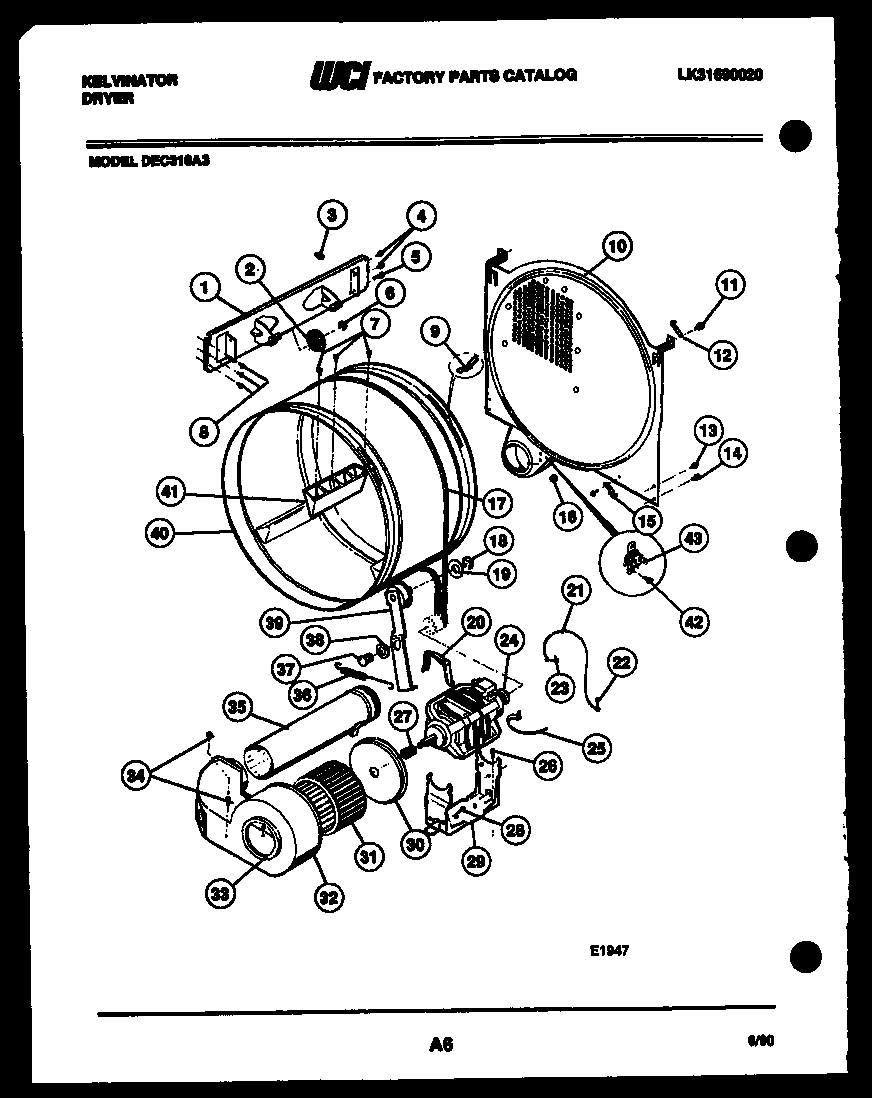

04 - DRUM AND BLOWER PARTS

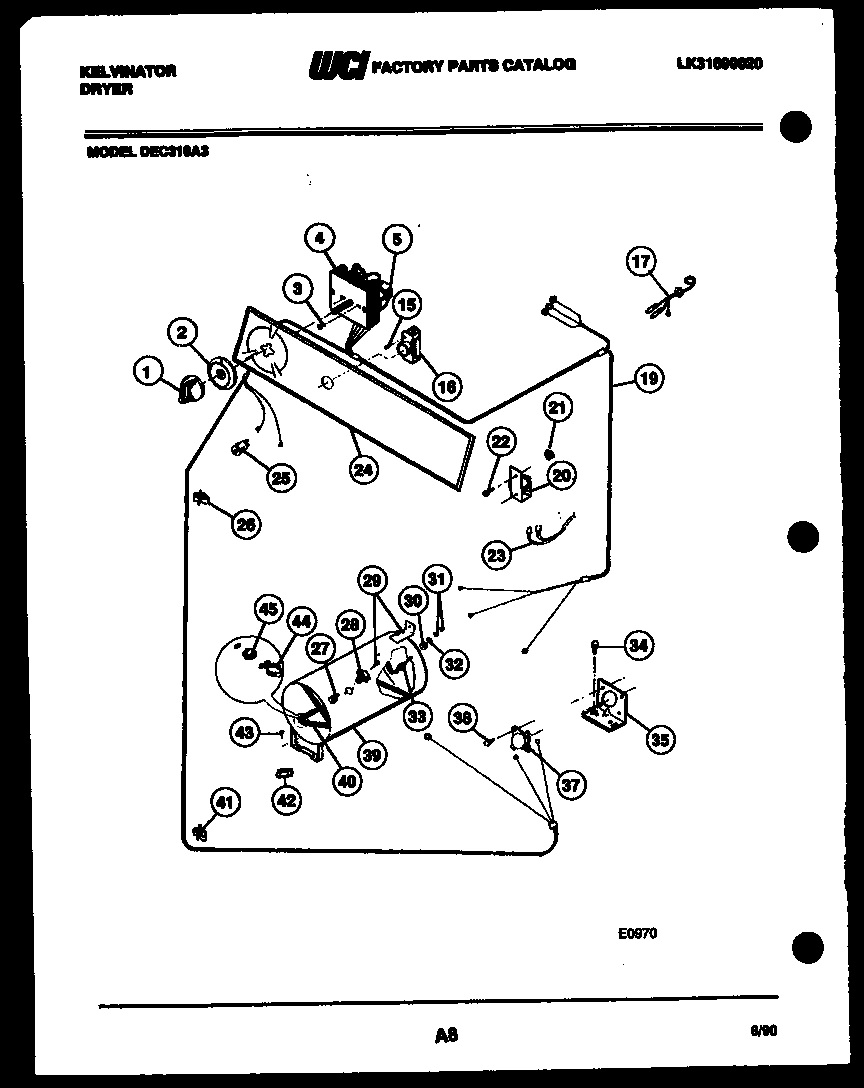

05 - CONSOLE AND CONTROL PARTS
Common parts from model Electrolux DEC310A3W DRYER
*16602
WCI F140648-000 WCI F140648-000 Contact Us For Availability
*16602
INSTALLATION INSTRUC. WCI F140683-000 Contact Us For Availability
*16602
WIRING DIAGRAM (REPAIR LOCALLY) WCI F140756-000 Contact Us For Availability
*16602
TECH SHEET WCI F140994-000 Contact Us For Availability
*16614
WCI F139540-000 WCI F139540-000 Contact Us For Availability
*16614
WCI F140144-000 WCI F140144-000 Contact Us For Availability
1
CHANNEL ASSY (2) WCI F078185-100 Contact Us For Availability
1
WCI F140766-000 WCI F140766-000 Contact Us For Availability
2
WCI F133006-000 WCI F133006-000 Contact Us For Availability
2
WCI F140767-000 WCI F140767-000 Contact Us For Availability
3
DOOR GASKET WCI 3203531 Contact Us For Availability
3
SCREW WCI F060796-000 Contact Us For Availability
4
SCREW (2) WCI F130140-000 Contact Us For Availability
4
PANEL LH (WHITE) WCI F140419-032 Contact Us For Availability
4
WCI 5300199074 WCI 5300199074 Contact Us For Availability
4
TIMER WCI F140779-000 Contact Us For Availability
4A
ENCLOSURE-TIMER (NON-ILLUSTRATED) WCI F138738-000 Contact Us For Availability
5
WCI 08027632 WCI 08027632 Contact Us For Availability
6
WCI F079528-000 WCI F079528-000 Contact Us For Availability
6
WCI F076978-000 WCI F076978-000 Contact Us For Availability
7
WCI F079990-000 WCI F079990-000 Contact Us For Availability
8
WCI 3203533 WCI 3203533 Contact Us For Availability
9
EXHAUST & LINT HSG W/ DRUM GASKET WCI 5303937011 Contact Us For Availability
9
CONTROL PNL (WHITE) WCI F140428-432 Contact Us For Availability
9
CLIP (6) WCI F131736-000 Contact Us For Availability
9A
DRUM GASKET KIT (NON-ILLUSTRATED) WCI F133009-000 Contact Us For Availability
10
SUPPORT-REAR CABINET WCI F138840-026 Contact Us For Availability
10
PLENUM ASSEMBLY WCI 5303209238 Contact Us For Availability
11
WCI F078861-000 WCI F078861-000 Contact Us For Availability
12
COVER-LINT HSG WCI F078197-026 Contact Us For Availability
12
REAR PANEL-UPPER WCI F078782-428 Contact Us For Availability
13
SCREW (5) WCI F066409-000 Contact Us For Availability
13
REAR PANEL-LOWER WCI F141073-528 Contact Us For Availability
14
PANEL-DOOR (WHITE) WCI F078858-232 Contact Us For Availability
15
PANEL-INNER WCI F140691-028 Contact Us For Availability
15
CLIP WCI F130354-000 Contact Us For Availability
15
WCI F000137505 WCI F000137505 Contact Us For Availability
16
SCREW (5) WCI F079999-000 Contact Us For Availability
16
WCI F139218-200 WCI F139218-200 Contact Us For Availability
16
CLIP WCI F131168-000 Contact Us For Availability
16
SWITCH - PUSH TO START WCI 5303207383 Contact Us For Availability
17
WCI 5308027638 WCI 5308027638 Contact Us For Availability
17
WCI F078228-000 WCI F078228-000 Contact Us For Availability
17
WCI F078231-000 WCI F078231-000 Contact Us For Availability
18
WCI F078176-000 WCI F078176-000 Contact Us For Availability
18
PANEL RH (WHITE) WCI F140418-032 Contact Us For Availability
19
PANEL-OUTER (WHITE) WCI F140692-032 Contact Us For Availability
19
WCI F140397-026 WCI F140397-026 Contact Us For Availability
19
WCI 3205909 WCI 3205909 Contact Us For Availability
20
WCI F137033-000 WCI F137033-000 Contact Us For Availability
20
MOTOR CLIP (2) WCI F002618-000 Contact Us For Availability
20
BUZZER WCI F133242-000 Contact Us For Availability
21
WCI F078173-032 WCI F078173-032 Contact Us For Availability
21
WIRE WCI F132353-000 Contact Us For Availability
21
WCI F002758-000 WCI F002758-000 Contact Us For Availability
22
SCREW (2) WCI F130139-000 Contact Us For Availability
22
WCI F135022-000 WCI F135022-000 Contact Us For Availability
23
SCREW WCI F132144-000 Contact Us For Availability
23
WCI F139152-000 WCI F139152-000 Contact Us For Availability
24
MOTOR WCI 3205912 Contact Us For Availability
24
WCI F140554-000 WCI F140554-000 Contact Us For Availability
25
DOOR SWITCH WCI F130791-000 Contact Us For Availability
26
SCREW WCI F133911-000 Contact Us For Availability
26A
CLIP-HARNESS (5) (NON-ILLUSTRATED) WCI F002751-000 Contact Us For Availability
27
WCI F064360-000 WCI F064360-000 Contact Us For Availability
27
WCI F132264-000 WCI F132264-000 Contact Us For Availability
28
WCI 5303206867 WCI 5303206867 Contact Us For Availability
29
WCI F078190-026 WCI F078190-026 Contact Us For Availability
30
WCI F064354-028 WCI F064354-028 Contact Us For Availability
30
FEMAL BUSHING (2) WCI F078254-000 Contact Us For Availability
31
WCI F140935-000 WCI F140935-000 Contact Us For Availability
31
HEX NUT (2) WCI F073340-000 Contact Us For Availability
32
WCI F078181-000 WCI F078181-000 Contact Us For Availability
32
WCI F063602-000 WCI F063602-000 Contact Us For Availability
33
WCI F076961-000 WCI F076961-000 Contact Us For Availability
33
WCI F078253-000 WCI F078253-000 Contact Us For Availability
34
SCREW WCI F130439-000 Contact Us For Availability
35
WCI F140414-000 WCI F140414-000 Contact Us For Availability
35
WCI F078680-000 WCI F078680-000 Contact Us For Availability
36
WCI F130396-000 WCI F130396-000 Contact Us For Availability
37
WCI F079485-000 WCI F079485-000 Contact Us For Availability
37
CONTROL THERMOSTAT WCI F078985-000 Contact Us For Availability
38
WCI F076822-000 WCI F076822-000 Contact Us For Availability
38
WCI F130220000 WCI F130220000 Contact Us For Availability
39
WCI F079499-000 WCI F079499-000 Contact Us For Availability
39
WCI 3205910 WCI 3205910 Contact Us For Availability
40
WCI F078183-032 WCI F078183-032 Contact Us For Availability
40
WCI F134266-000 WCI F134266-000 Contact Us For Availability
40A
SEAL KIT-REAR DRUM (NON-ILLUSTRATED) WCI F079436-000 Contact Us For Availability
41
WCI F078188-100 WCI F078188-100 Contact Us For Availability
41
CLIP WCI F131347-000 Contact Us For Availability
42
WCI 3204269 WCI 3204269 Contact Us For Availability
42
CLIP WCI F077094-000 Contact Us For Availability
43
WCI 5303209231 WCI 5303209231 Contact Us For Availability
44
CLIP WCI F131734-000 Contact Us For Availability
45
INSULATOR WCI F131735-000 Contact Us For Availability
× ![]()
