Model Accelerated Cooking Products DEC18E2-P1331243M Amana Menumaster DEC18E2 – Common Parts & Diagrams

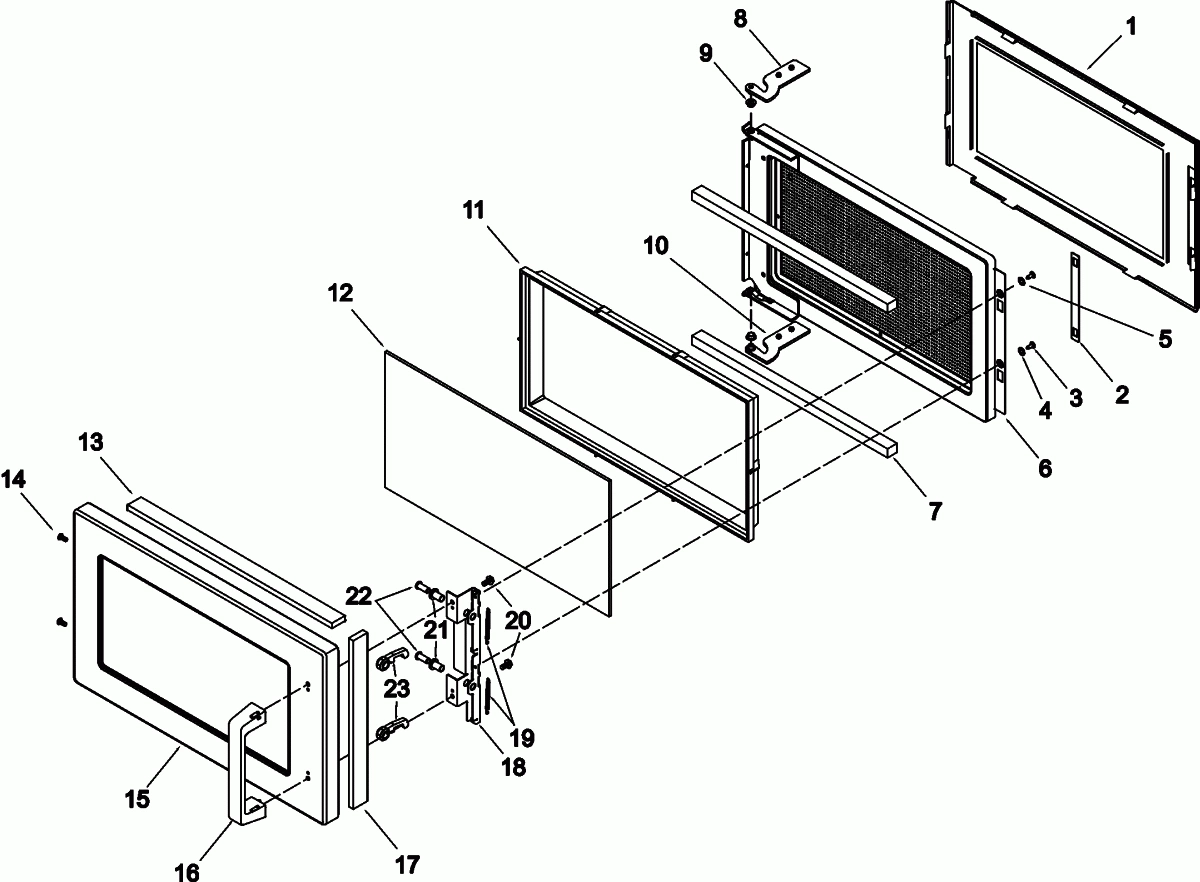

DOOR

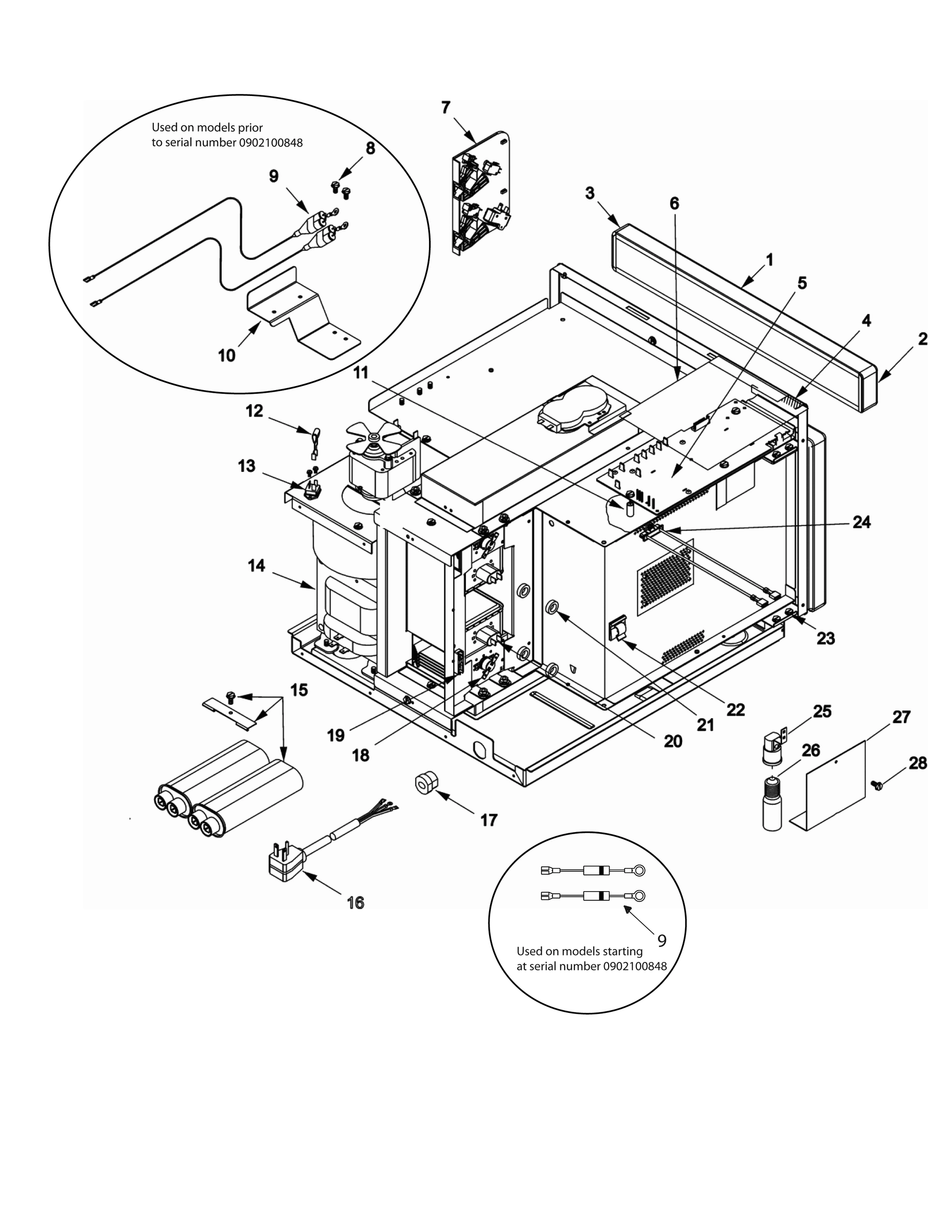

ELECTRICAL COMPONENTS
FUSES, ANTENNAS, BLOWER, DUCTS,
SUPPLEMENTAL INFORMATION
TRAY, GREASE SHIELD, CABINET,
Common parts from model Accelerated Cooking Products DEC18E2-P1331243M Amana Menumaster DEC18E2
1
TOUCH PANEL ASSY ACP 59174529 Contact Us For Availability
1
KIT, ANTENNA MOTOR- TOP ACP R0150197 Contact Us For Availability
1
WRAPPER-OC ACP 12408503Q Contact Us For Availability
2
ENDCAP-ESC RIGHT ACP 12131001 Contact Us For Availability
2
ACCESS PANEL-E CT ACP 12296806 Contact Us For Availability
3
ENDCAP-ESC LEFT ACP 12131002 Contact Us For Availability
3
DUCT-AIR ACP 12296601 Contact Us For Availability
4
SCREW-SM/HEX RoHS ACP 12990525 Contact Us For Availability
5
CLIP-GUIDE ACP M0118705 Contact Us For Availability
6
DOOR RING WELD-E CT ACP 13098101 Contact Us For Availability
6
SCREW-TF/OVAL RoHS ACP 13095201 Contact Us For Availability
6
CLIP-CORD ACP M0104106 Contact Us For Availability
6
HARNESS-OVEN ACP 13018101 Contact Us For Availability
6
COVER-LIGHT ACP 59174559 Contact Us For Availability
6
SPACER-RUBBER ACP M0274072 Contact Us For Availability
7
INTERLOCK SWITCH ASSY ACP 59114167 Contact Us For Availability
7
KIT, WINDOW ACP R9900114 Contact Us For Availability
7
FILTER, LINE ACP 59001893 Contact Us For Availability
7
HARNESS, HV ACP 59002065 Contact Us For Availability
8
DUCT, CAVITY EXHAUST ACP 14179127 Contact Us For Availability
8
HARNESS, LW ANTENNA ACP 13017801 Contact Us For Availability
9
ANTENNA SHIELD ACP 59124202 Contact Us For Availability
9
WASHER-NYLON SHOULDER ACP 5210001001 Contact Us For Availability
9
DIODE ACP 20057401 Contact Us For Availability
9
GASKET (PER FOOT) ACP 59002162 Contact Us For Availability
10
KIT, CERAMIC TRAY W/SEALER ACP 14159092 Contact Us For Availability
10
BRKT-DIODE ACP R9800022 Contact Us For Availability
10
BOTTOM HINGE PLATE WELD ACP 14179128 Contact Us For Availability
10
FLOW DIVIDER ACP 59002000 Contact Us For Availability
11
DUCT, MAG OUTLET ACP 12107407 Contact Us For Availability
11
BASEPAN & GASKET ASSY ACP 59184621 Contact Us For Availability
12
SNUBBER ASSY ACP 59002017 Contact Us For Availability
12
BARRIER-AIR ACP 12525701 Contact Us For Availability
12
SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability
13
KIT, TRIAC ACP 59174520 Contact Us For Availability
13
FILTER, AIR ACP 59001659 Contact Us For Availability
13
KIT, ANTENNA MOTOR- BOTTOM ACP R9900668 Contact Us For Availability
14
KIT, ANTENNA- BOTTOM ACP R9900585 Contact Us For Availability
14
TRIM ACP 59002068 Contact Us For Availability
14
SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability
15
DOOR, OUTER ACP 14119064 Contact Us For Availability
15
CAPACITOR- .85 ACP 59174540 Contact Us For Availability
15
KIT, ANTENNA- TOP ACP R0150185 Contact Us For Availability
15
BASE COVER-E CT ACP 20173001 Contact Us For Availability
15
SCREW-SM/HEX RoHS ACP 12990522 Contact Us For Availability
16
BLADE, FAN ACP B5706704 Contact Us For Availability
17
GASKET, BASEPAN- CUT ACP R0000413 Contact Us For Availability
17
MOTOR, BLOWER ACP 59174525 Contact Us For Availability
18
SEALER ACP 59002167 Contact Us For Availability
18
BRKT-BLOWER WSH ACP 12271103 Contact Us For Availability
19
SPRING-DOOR LATCH ACP C8893502 Contact Us For Availability
19
GASKET, PER FT ACP 59004077 Contact Us For Availability
20
MAGNETRON-2M229K ACP 59004013 Contact Us For Availability
20
WHEEL, BLOWER ACP 12138201 Contact Us For Availability
21
SCROLL, BLOWER ACP 12138302 Contact Us For Availability
22
RIVET-POP RoHS ACP A4539638 Contact Us For Availability
23
LATCH-DOOR ACP 12126901 Contact Us For Availability
23
SCREW-SM/PAN RoHS ACP 12990606 Contact Us For Availability
23
BLOCK-FUSE ACP 10091101 Contact Us For Availability
24
THERMAL CUTOUT, CAVITY ACP B5795319 Contact Us For Availability
24
FUSE-20A ACP M0805203 Contact Us For Availability
24
SCREW-TC/PAN RoHS ACP 13041505 Contact Us For Availability
25
CLIP ACP 20020502 Contact Us For Availability
27
BARRIER-LAMP ACP 59194649 Contact Us For Availability
28
SCREW-TF/HEX RoHS ACP 12992307 Contact Us For Availability
29
KIT, CAVITY- HDC18, 21 ACP 14159099 Contact Us For Availability
× ![]()
