Model Accelerated Cooking Products DEC11E2-P1333111M Amana Menumaster DEC11E2 – Common Parts & Diagrams
DOOR
ELECTRICAL COMPONENTS
FUSES, ANTENNAS, BLOWER, DUCTS,
SUPPLEMENTAL INFORMATION
TRAY, GREASE SHIELD, CABINET,
WIRING INFORMATION

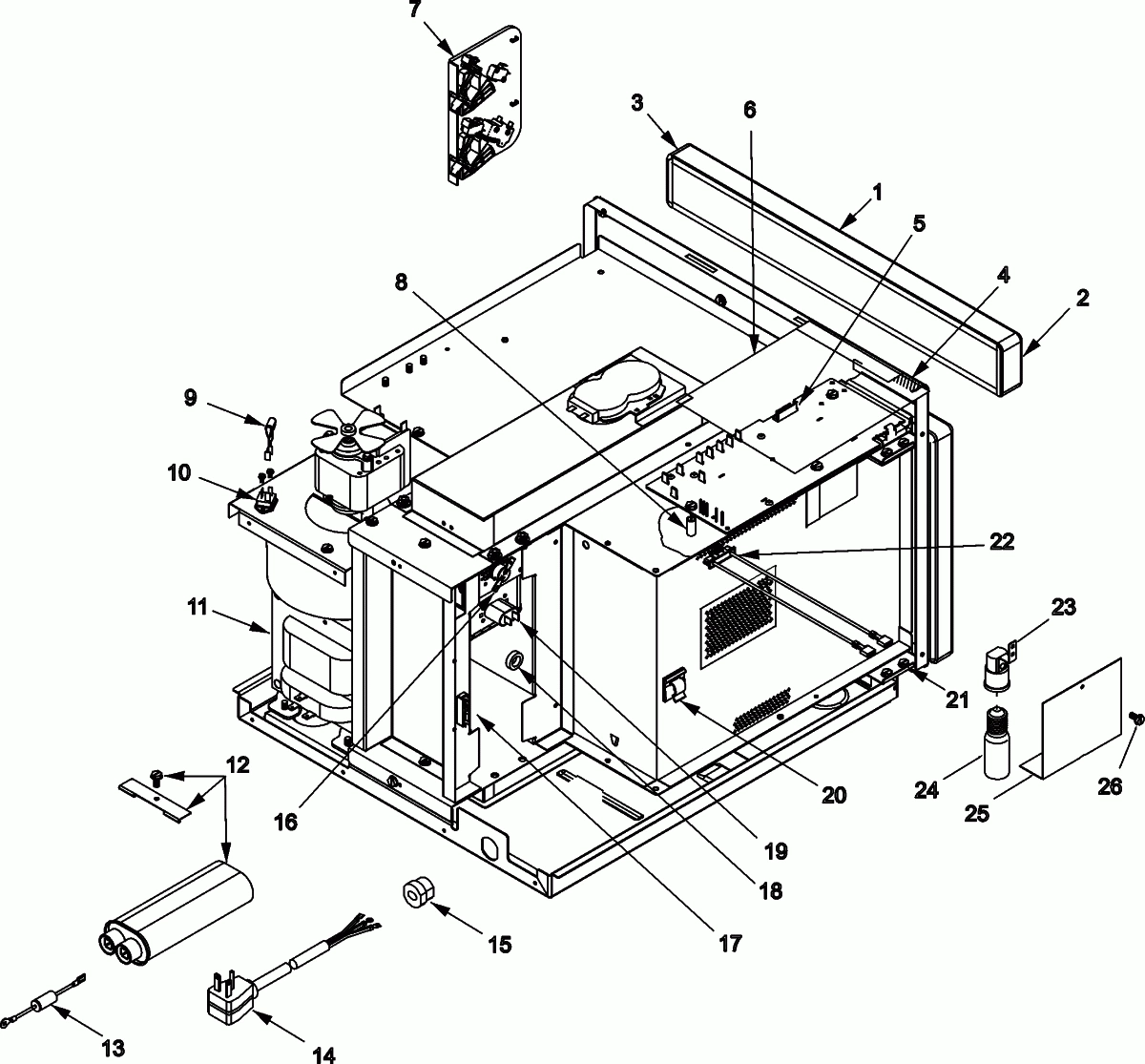

Common parts from model Accelerated Cooking Products DEC11E2-P1333111M Amana Menumaster DEC11E2
1
TOUCH PANEL ASSY ACP 59174529 Contact Us For Availability
1
KIT, ANTENNA MOTOR- TOP ACP R0150197 Contact Us For Availability
1
WRAPPER-OC ACP 12408503Q Contact Us For Availability
1
WIRING INFORMATION ACP 13064001 Contact Us For Availability
2
ENDCAP-ESC RIGHT ACP 12131001 Contact Us For Availability
2
ACCESS PANEL-E CT ACP 12296806 Contact Us For Availability
3
ENDCAP-ESC LEFT ACP 12131002 Contact Us For Availability
3
SCREW-SM/HEX RoHS ACP 12990525 Contact Us For Availability
4
CLIP-GUIDE ACP M0118705 Contact Us For Availability
5
BOARD, HV/LV ACP 59004111 Contact Us For Availability
5
SCREW-TF/OVAL RoHS ACP 13095201 Contact Us For Availability
5
SPACER-RUBBER ACP M0274072 Contact Us For Availability
5
COVER-LIGHT ACP 59174559 Contact Us For Availability
6
KIT, WINDOW ACP R9900114 Contact Us For Availability
6
DOOR RING WELD-E CT ACP 13098101 Contact Us For Availability
6
CLIP-CORD ACP M0104106 Contact Us For Availability
7
INTERLOCK SWITCH ASSY ACP 59114167 Contact Us For Availability
7
FILTER, LINE ACP 59001893 Contact Us For Availability
7
HARNESS, OVEN ACP 20026601 Contact Us For Availability
8
ANTENNA SHIELD ACP 59124202 Contact Us For Availability
8
RIVET-POP RoHS ACP A4539638 Contact Us For Availability
9
KIT, CERAMIC TRAY W/SEALER ACP 14159092 Contact Us For Availability
9
WASHER-NYLON SHOULDER ACP 5210001001 Contact Us For Availability
9
SNUBBER ASSY ACP 59002017 Contact Us For Availability
9
DUCT, CAVITY EXHAUST ACP 14179127 Contact Us For Availability
10
KIT, TRIAC ACP 59174520 Contact Us For Availability
10
BOTTOM HINGE PLATE WELD ACP 14179128 Contact Us For Availability
10
GASKET (PER FOOT) ACP 59002162 Contact Us For Availability
10
BASEPAN & GASKET ASSY ACP 59184621 Contact Us For Availability
11
FLOW DIVIDER ACP 59002000 Contact Us For Availability
11
SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability
12
FILTER, AIR ACP 59001659 Contact Us For Availability
12
DUCT ASSY ACP 12107304 Contact Us For Availability
13
DIODE ACP 20057401 Contact Us For Availability
13
BARRIER-AIR ACP 12525701 Contact Us For Availability
13
TRIM ACP 59002068 Contact Us For Availability
13
SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability
14
KIT, ANTENNA- TOP ACP R0150185 Contact Us For Availability
14
BASE COVER-E CT ACP 20173001 Contact Us For Availability
14
SCREW-SM/HEX RoHS ACP 12990522 Contact Us For Availability
15
DOOR, OUTER ACP 14119064 Contact Us For Availability
15
BLADE, FAN ACP B5706704 Contact Us For Availability
16
GASKET, BASEPAN- CUT ACP R0000413 Contact Us For Availability
16
MOTOR, BLOWER ACP 59174525 Contact Us For Availability
17
SEALER ACP 59002167 Contact Us For Availability
17
BLOCK-TERMINAL ACP B5677203 Contact Us For Availability
17
BRKT-BLOWER WSH ACP 12271103 Contact Us For Availability
18
TOROID ACP 44780P01 Contact Us For Availability
18
GASKET, PER FT ACP 59004077 Contact Us For Availability
19
MAGNETRON-2M248K ACP 59004013 Contact Us For Availability
19
SPRING-DOOR LATCH ACP C8893502 Contact Us For Availability
19
WHEEL, BLOWER ACP 12138201 Contact Us For Availability
20
SCROLL, BLOWER ACP 12138302 Contact Us For Availability
21
SCREW-SM/PAN RoHS ACP 12990606 Contact Us For Availability
21
SCREW-TF/HEX RoHS ACP 13048901 Contact Us For Availability
21
BLOCK-FUSE ACP 10091101 Contact Us For Availability
22
THERMAL CUTOUT, CAVITY ACP B5795319 Contact Us For Availability
22
SCREW-TC/PAN RoHS ACP 13041505 Contact Us For Availability
22
FUSE-15A ACP M0805202 Contact Us For Availability
23
LATCH-DOOR ACP 12126901 Contact Us For Availability
23
CLIP ACP 20020502 Contact Us For Availability
25
BARRIER-LAMP ACP 59194649 Contact Us For Availability
26
SCREW-TF/HEX RoHS ACP 12992307 Contact Us For Availability
× ![]()
