Model Electrolux DEA500F2T DRYER – Common Parts & Diagrams
02 - CABINET AND COMPONENT PARTS
03 - DOOR PARTS

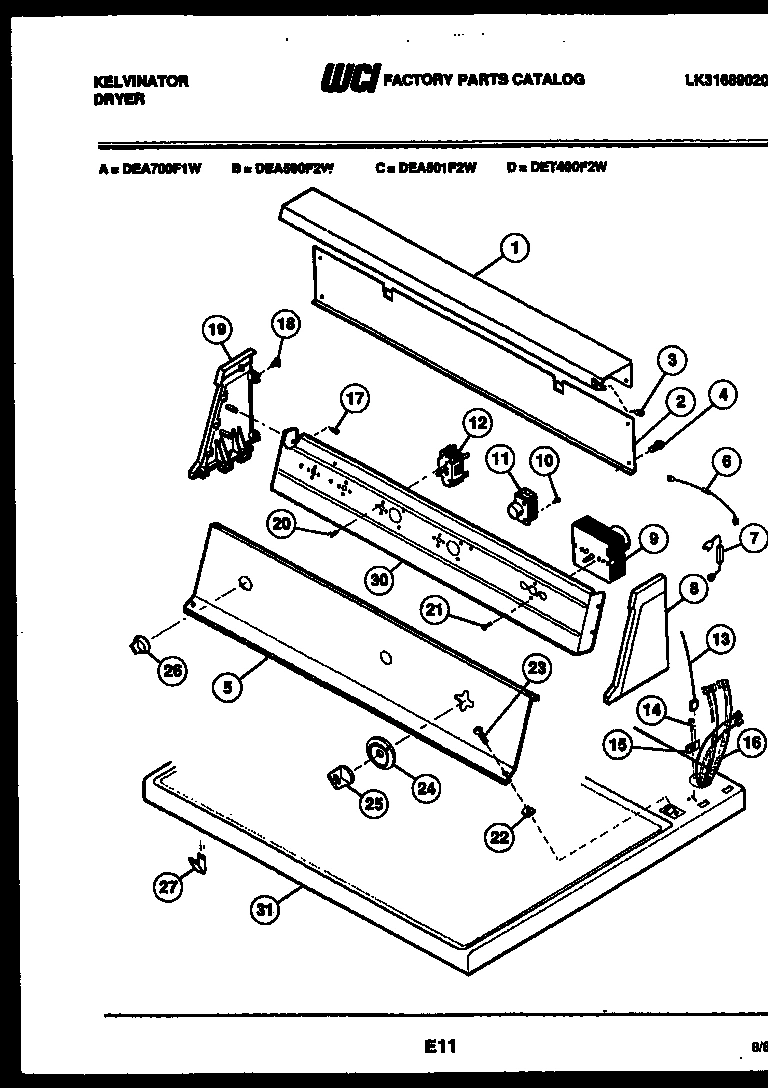

04 - CONSOLE AND CONTROL PARTS

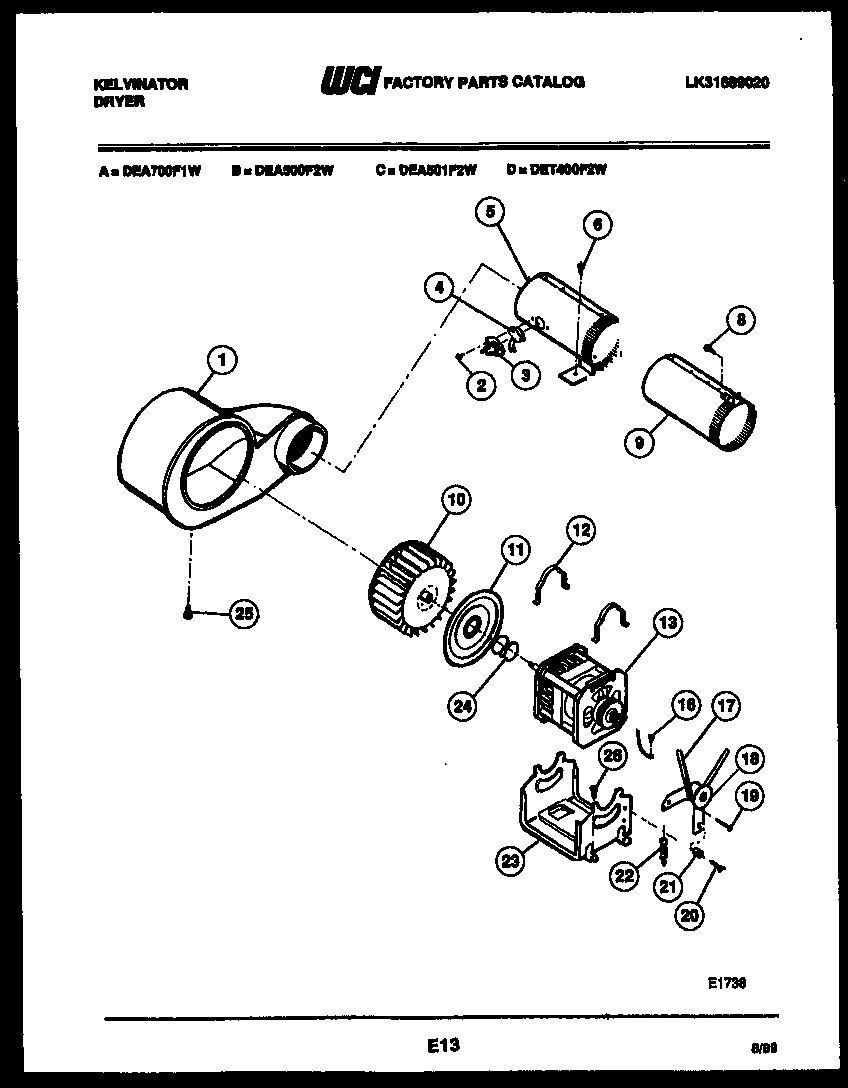

05 - BLOWER AND DRIVE PARTS
Common parts from model Electrolux DEA500F2T DRYER
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
TOP COVER WCI 3201609 Contact Us For Availability
1
FAN HOUSING ASSY WCI 3281014 Contact Us For Availability
2
WCI 3201204 WCI 3201204 Contact Us For Availability
2
COVER WCI 3201349 Contact Us For Availability
2
SCREW (2) WCI 3261048 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
WCI 08010825 WCI 08010825 Contact Us For Availability
4
WCI 3281043 WCI 3281043 Contact Us For Availability
4
WCI 3201205 WCI 3201205 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
WCI F136777-000 WCI F136777-000 Contact Us For Availability
5
TERMINAL BLOCK COVER WCI 3281042 Contact Us For Availability
5
WCI 3201207 WCI 3201207 Contact Us For Availability
5
WCI 3206002 WCI 3206002 Contact Us For Availability
5
TUBE ASSY THERMOSTAT WCI 3205671 Contact Us For Availability
6
BRACKET WCI 3281040 Contact Us For Availability
6
SCREW (2) WCI 3281035 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
RESISTOR WCI 3281110 Contact Us For Availability
7
WCI 3205877 WCI 3205877 Contact Us For Availability
7
WCI 3281024 WCI 3281024 Contact Us For Availability
8
WCI 3010202 WCI 3010202 Contact Us For Availability
8
END CAP & TRIM ASSY RH WCI 3206005 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
WCI 3201618 WCI 3201618 Contact Us For Availability
9
WCI 3201236 WCI 3201236 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
10
SCREW (2) WCI 08010804 Contact Us For Availability
10
BLOWER WHEEL WCI 3281079 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
WCI 01132293 WCI 01132293 Contact Us For Availability
11
FAN COVER WCI 3281080 Contact Us For Availability
12
WCI 3205658 WCI 3205658 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
MOTOR CLAMP (2) WCI 3281084 Contact Us For Availability
13
WCI 3201385 WCI 3201385 Contact Us For Availability
13
MOTOR & PULLEY ASSY WCI 3201237 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 3161198 WCI 3161198 Contact Us For Availability
16
THERMOSTAT WCI 3281113 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
WCI 3206009 WCI 3206009 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
18
WCI 3202753 WCI 3202753 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
CLIP (4) WCI 08010830 Contact Us For Availability
18
WCI 3201238 WCI 3201238 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
END CAP & TRIM ASSY LH WCI 3206007 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
SCREW (3) WCI 3281029 Contact Us For Availability
21
DOOR SWITCH WCI 3281044 Contact Us For Availability
21
SCREW (2) WCI 3161188 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
SCREW (3) (PART OF REAR BEARING KIT) WCI 3281027 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
CLIP (2) WCI 3281192 Contact Us For Availability
23
SCREW (2) WCI 3205820 Contact Us For Availability
24
DOOR HINGE (2) WCI 3281050 Contact Us For Availability
24
WCI 08015702 WCI 08015702 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
WCI 08015701 WCI 08015701 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
WCI 3281032 WCI 3281032 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
27
WCI 3201202 WCI 3201202 Contact Us For Availability
30
BRACKET-CONTROL MTG WCI 3205822 Contact Us For Availability
31
PANEL TOP-ALMOND WCI 3205825 Contact Us For Availability
32
GROUND WASHER WCI 3281107 Contact Us For Availability
33
WCI 3205815 WCI 3205815 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
× ![]()
