Model Electrolux DE650KDH2 DRYER – Common Parts & Diagrams

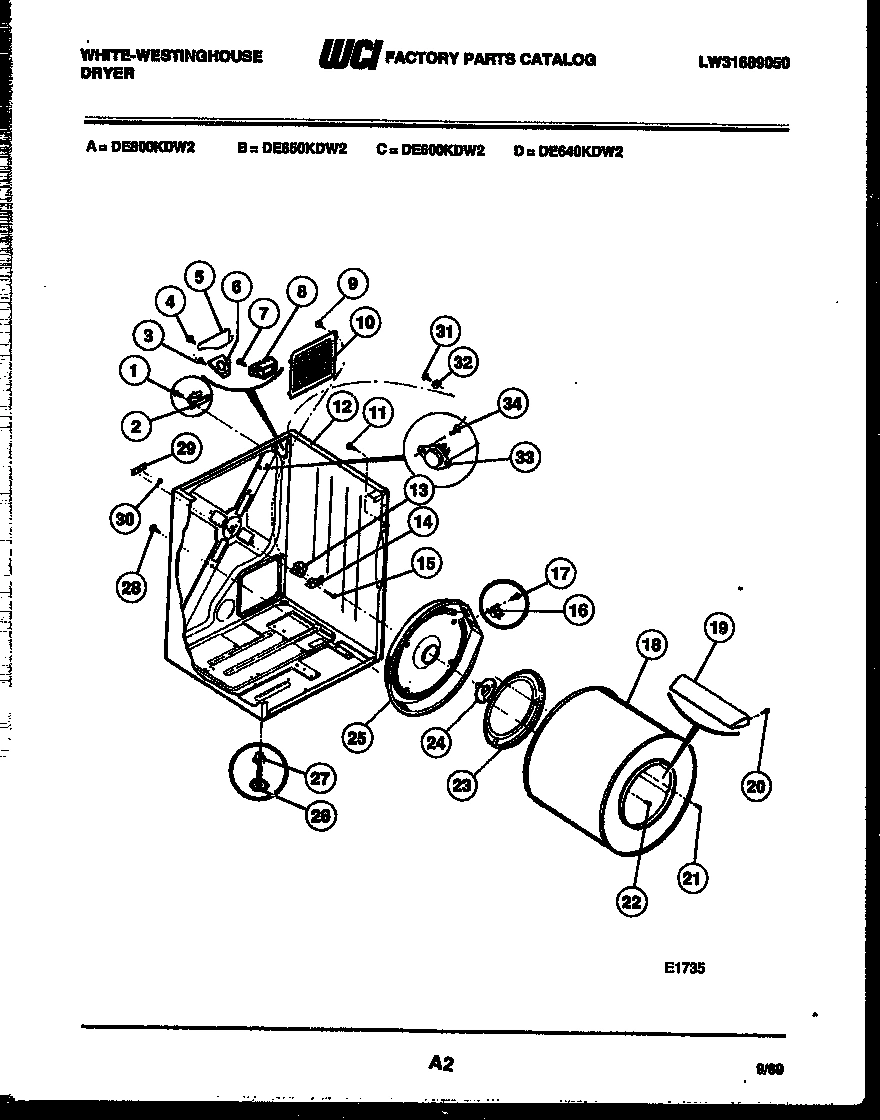

02 - CABINET AND COMPONENT PARTS

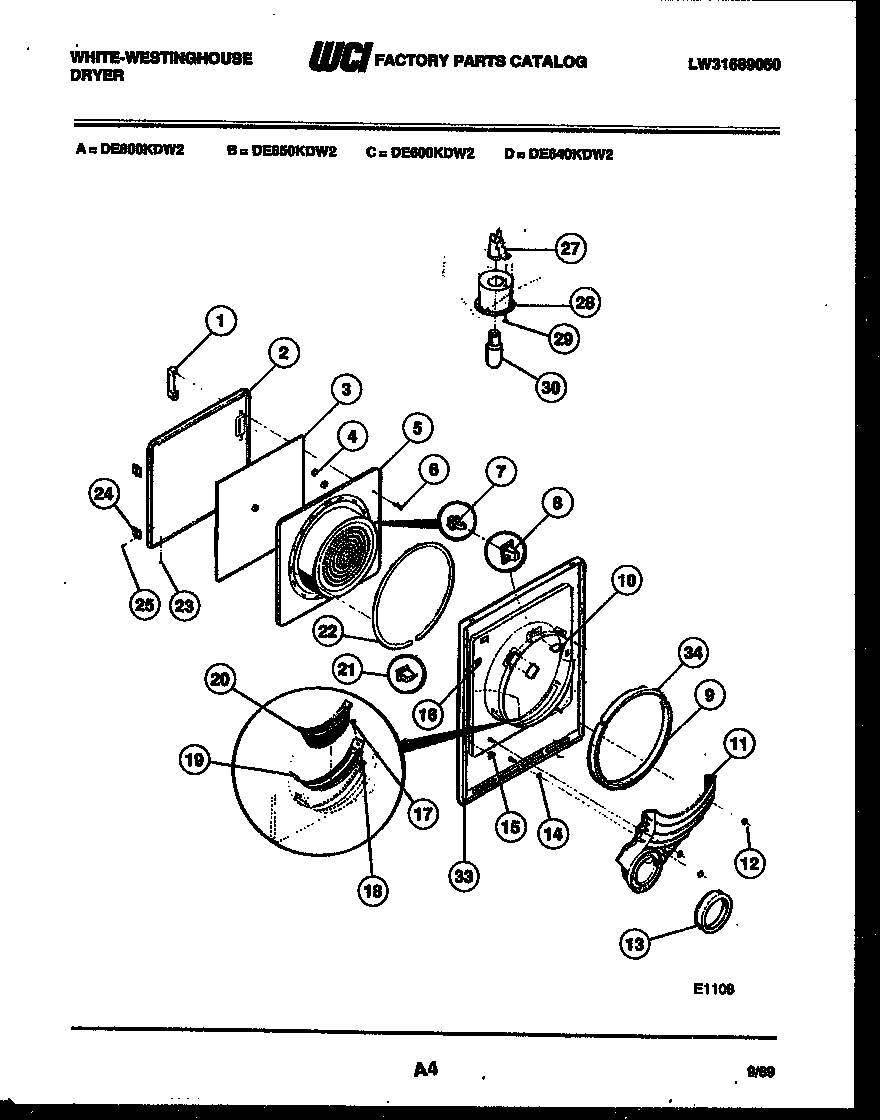

03 - DOOR PARTS

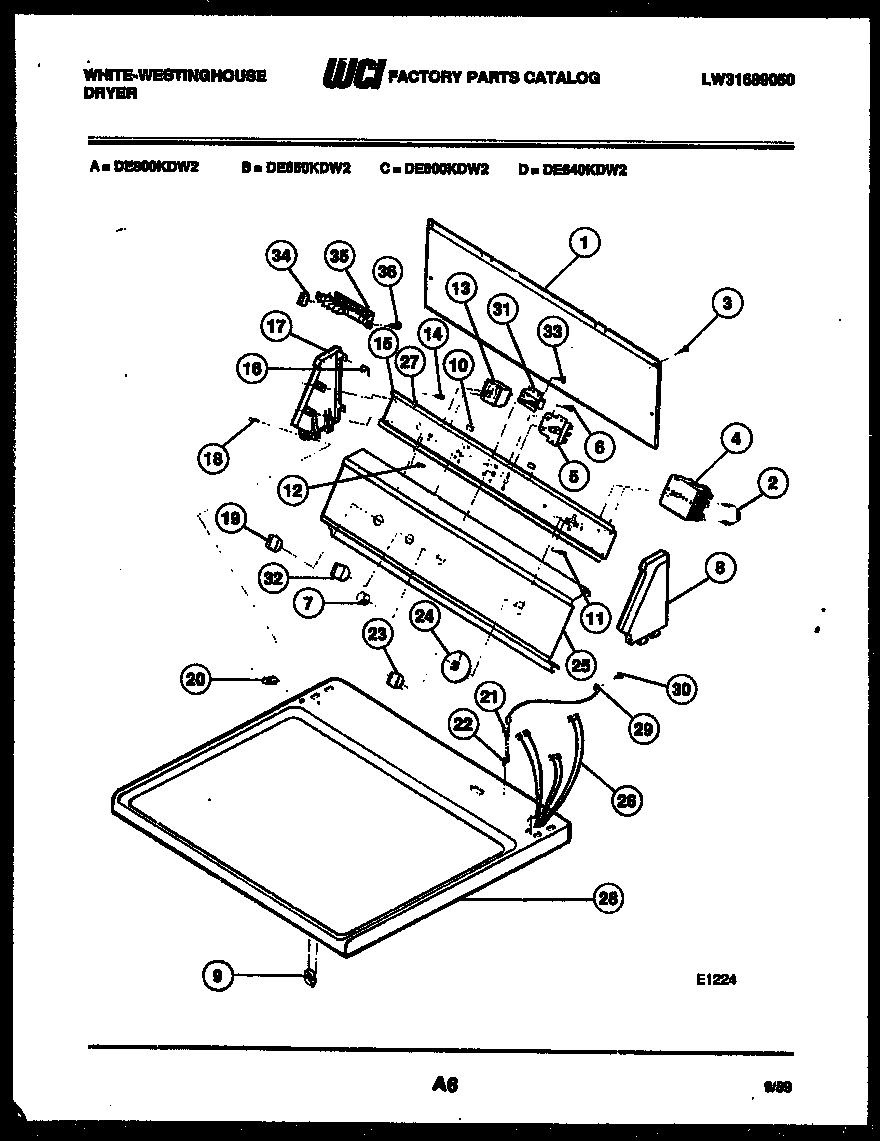

04 - CONSOLE AND CONTROL PARTS

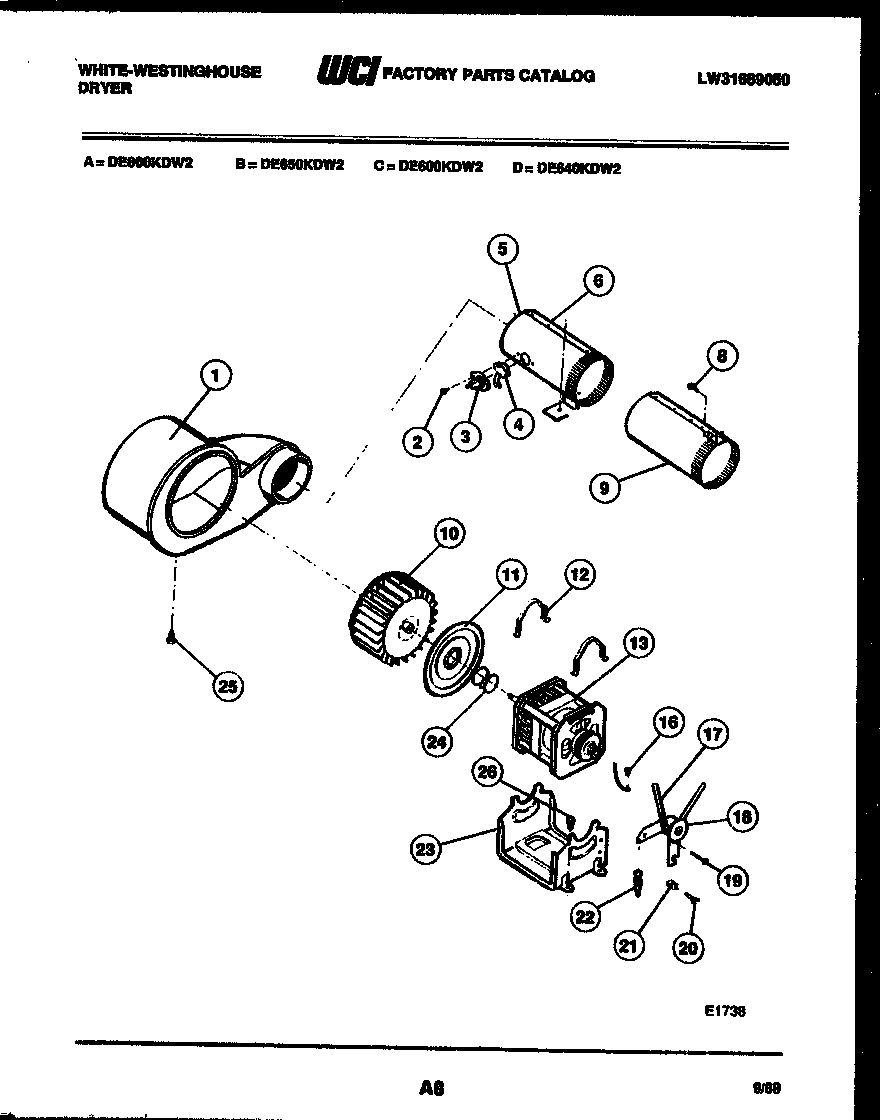

05 - MOTOR AND BLOWER PARTS
Common parts from model Electrolux DE650KDH2 DRYER
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
BACK COVER WCI 3205838 Contact Us For Availability
1
FAN HOUSING ASSEMBLY WCI 3281014 Contact Us For Availability
2
DOOR-OUTER-WHEAT WCI 3201317 Contact Us For Availability
2
RESISTOR WCI 3281110 Contact Us For Availability
2
SCREW (2) WCI 3261048 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
4
SCREW (1) WCI 3281043 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
WCI Q000630113 WCI Q000630113 Contact Us For Availability
4
WCI 08013214 WCI 08013214 Contact Us For Availability
4A
WCI 3201205 WCI 3201205 Contact Us For Availability
5
TERMINAL BLOCK COVER (1) WCI 3281042 Contact Us For Availability
5
DOOR-INNER-WHEAT WCI 3201318 Contact Us For Availability
5
SWITCH - START WCI 3201219 Contact Us For Availability
5
WCI 3205671 WCI 3205671 Contact Us For Availability
6
BRACKET (1) WCI 3281040 Contact Us For Availability
6
SCREW (2) WCI 3281035 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
WCI 08001544 WCI 08001544 Contact Us For Availability
7
WCI 3281024 WCI 3281024 Contact Us For Availability
7
WCI 3201221 WCI 3201221 Contact Us For Availability
8
WCI 3010202 WCI 3010202 Contact Us For Availability
8
WCI 3205840 WCI 3205840 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
WCI 3201236 WCI 3201236 Contact Us For Availability
10
COVER PLATE (1) WCI 3281018 Contact Us For Availability
10
WCI F142240-000 WCI F142240-000 Contact Us For Availability
10
BLOWER WHEEL WCI 3281079 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
SCREW (2) WCI 3281096 Contact Us For Availability
11
FAN COVER WCI 3281080 Contact Us For Availability
12
CABINET ASSY (WHEAT) (1) WCI 3205812 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
WCI 3281101 WCI 3281101 Contact Us For Availability
12
MOTOR CLAMP (2) WCI 3281084 Contact Us For Availability
13
SWITCH-SELECTOR WCI 3281187 Contact Us For Availability
13
MOTOR & PULLEY ASSY WCI 3201237 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 3205841 WCI 3205841 Contact Us For Availability
16
THERMOSTAT (1) WCI 3281113 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
WCI F140666-000 WCI F140666-000 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
17
WCI 3205842 WCI 3205842 Contact Us For Availability
18
DRUM (1) WCI 3202753 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
SCREW (2) WCI 3281203 Contact Us For Availability
18
IDLER ASSEMBLY WCI 3201238 Contact Us For Availability
19
WCI 3281060 WCI 3281060 Contact Us For Availability
19
WCI Q000633722 WCI Q000633722 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 3281192 WCI 3281192 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
SCREW (3) WCI 3281029 Contact Us For Availability
21
DOOR SWITCH WCI 3281044 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
SCREW (INCLUDED IN REAR BEARING KIT) (3) WCI 3281027 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
WCI F079171-000 WCI F079171-000 Contact Us For Availability
23
KNOB-TIMER WCI 08015435 Contact Us For Availability
24
DOOR HINGE (2) WCI 3281050 Contact Us For Availability
24
WCI 08015434 WCI 08015434 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
WCI 3206029 WCI 3206029 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
WCI 3281032 WCI 3281032 Contact Us For Availability
26
WCI 3205861 WCI 3205861 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
27
WCI 3201202 WCI 3201202 Contact Us For Availability
27
CLIP-GROUND WCI F142242-000 Contact Us For Availability
28
WCI 3205824 WCI 3205824 Contact Us For Availability
29
WCI 3201308 WCI 3201308 Contact Us For Availability
32
GROUND WASHER (1) WCI 3281107 Contact Us For Availability
33
WCI 3205814 WCI 3205814 Contact Us For Availability
33
WCI 3206033 WCI 3206033 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
34
SCREW WCI 08010804 Contact Us For Availability
× ![]()
