Model Whirlpool DE26D6A ELECTRIC DRYER – Common Parts & Diagrams
01 - CYLINDER & DRIVE
02 - DRIVE & MOTOR

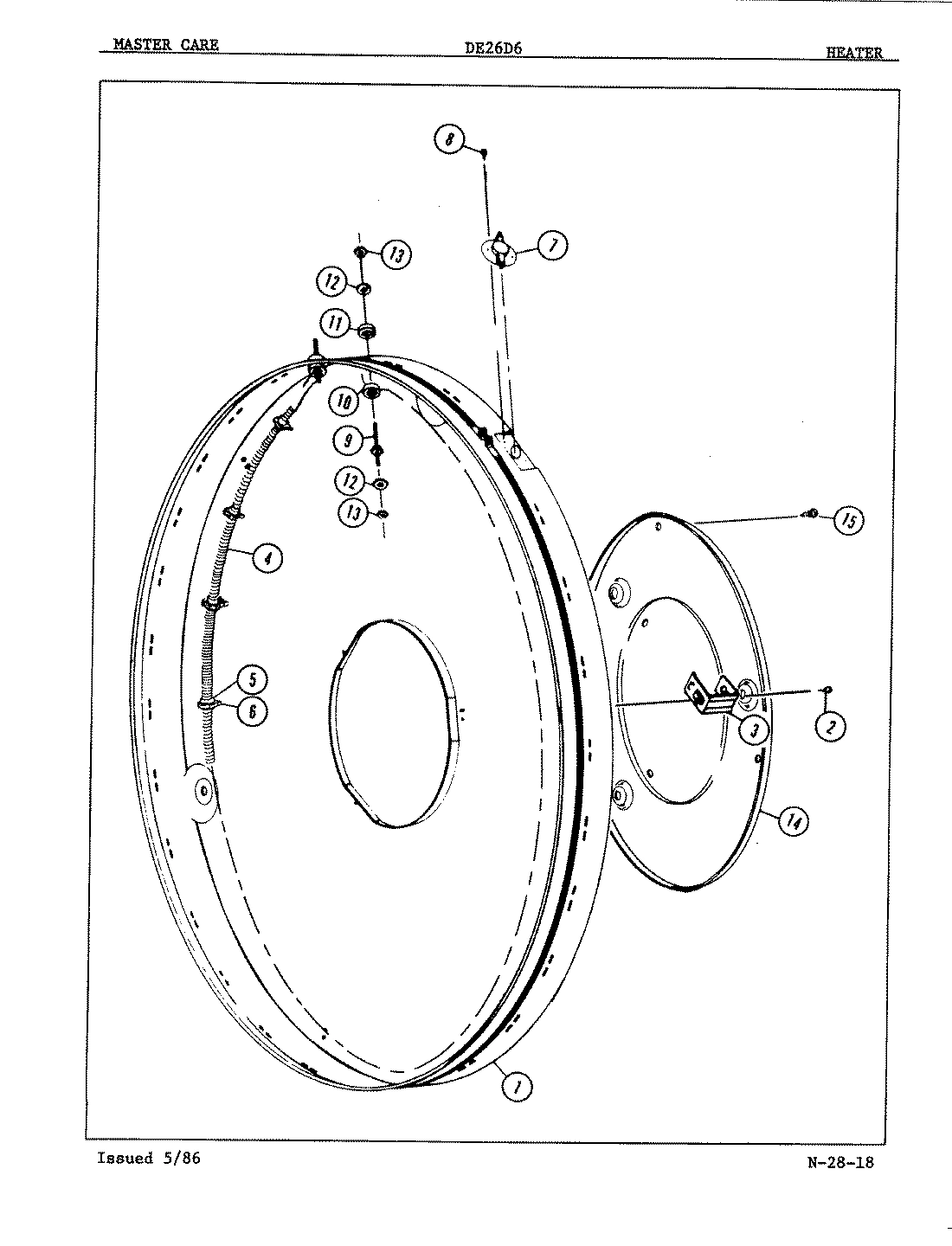

04 - HEATER

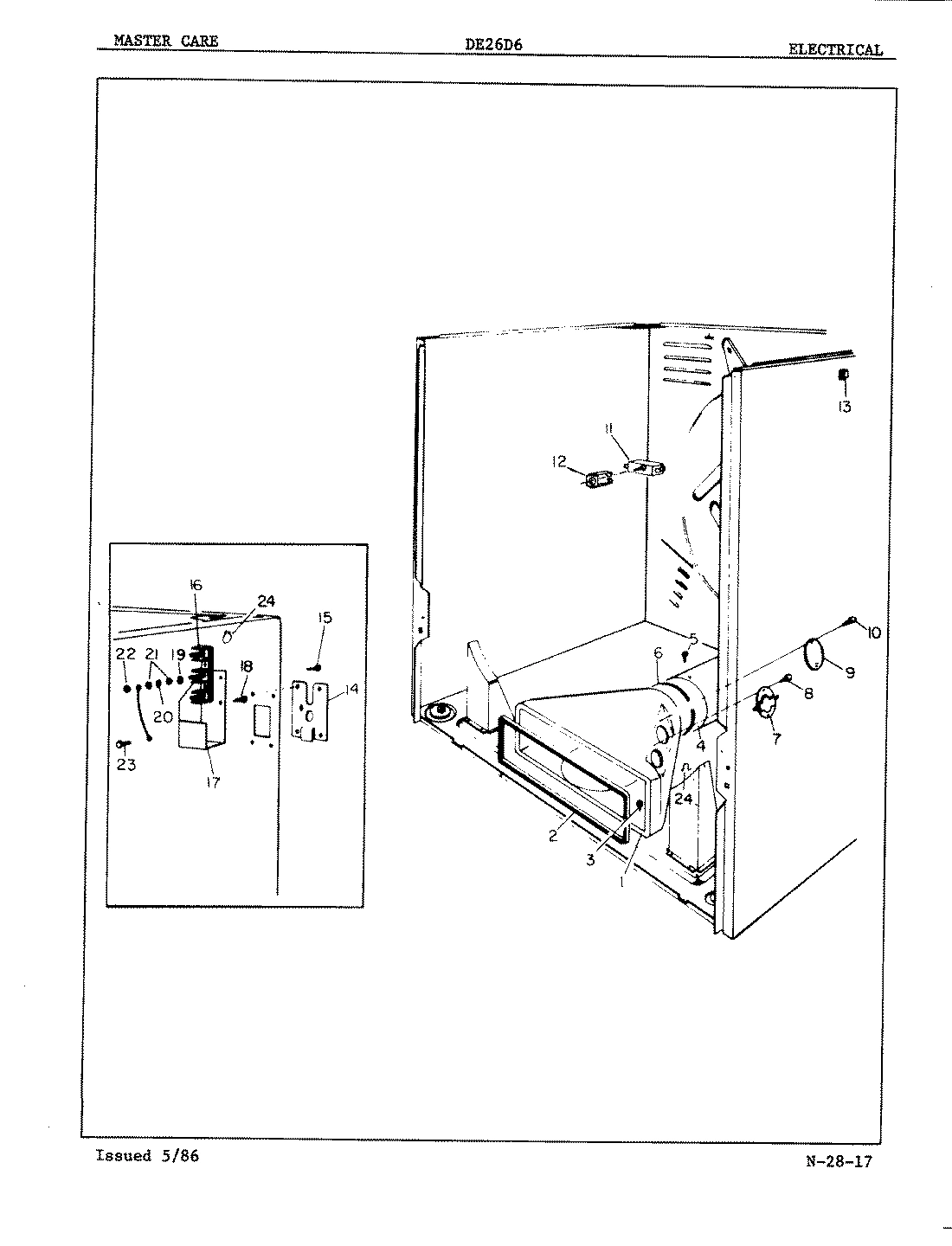

03 - ELECTRICAL
Common parts from model Whirlpool DE26D6A ELECTRIC DRYER
1
CYLINDER ASM WPL 635981 Contact Us For Availability
1
MOTOR&PULLY ASM WPL 636662 Contact Us For Availability
1
HEATER HOUSING WPL 636368 Contact Us For Availability
1
TRANSITION DUCT WPL 635114 Contact Us For Availability
2
HEX HD BOLT WPL 253682 Contact Us For Availability
2
SEMS SCREW WPL 257745 Contact Us For Availability
2
MOTOR SWITCH WPL 634210 Contact Us For Availability
2
DUCT GASKET WPL 632599 Contact Us For Availability
3
WASHER WPL 253382 Contact Us For Availability
3
WIRING CLAMP WPL 257265 Contact Us For Availability
3
SPACER WPL 635631 Contact Us For Availability
4
PLUG BUTTON WPL 635865 Contact Us For Availability
4
SCREW WPL 257111 Contact Us For Availability
4
HEATER ELEMENT WPL 636369 Contact Us For Availability
4
VENT DUCT WPL 635848 Contact Us For Availability
5
CYL BEARING WPL 631258 Contact Us For Availability
5
MOTOR MTG KIT WPL 632832 Contact Us For Availability
5
INSULATOR WPL 636362 Contact Us For Availability
6
CUSHION ASM WPL 632797 Contact Us For Availability
6
SCREW WPL 257785 Contact Us For Availability
6
CLIP WPL 636363 Contact Us For Availability
7
BEARING COVER WPL 631262 Contact Us For Availability
7
LOCKWASHER WPL 257071 Contact Us For Availability
7
THERMOSTAT WPL 636370 Contact Us For Availability
7
THERMOSTAT WPL 636142 Contact Us For Availability
8
SCREW WPL 253671 Contact Us For Availability
8
BOLT WPL 257681 Contact Us For Availability
8
SCREW WPL 253083 Contact Us For Availability
8
TRMNL INSL KIT WPL 632838N Contact Us For Availability
9
BLOWER FAN WPL 636258 Contact Us For Availability
9
LOCKWASHER WPL 253415 Contact Us For Availability
9
HEATER STUD WPL 633980 Contact Us For Availability
9
COVER PLATE WPL 631216N Contact Us For Availability
10
BLOWER HUB KIT WPL 632844N Contact Us For Availability
10
HUB ASM WPL 636030 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE (PURCHASE LOCAL WPL W10124350 Contact Us For Availability
10
RETAINER CLIP WPL 635611 Contact Us For Availability
10
INSULATOR WPL 633982 Contact Us For Availability
10
DOOR SWITCH KIT WPL 632837N Contact Us For Availability
11
DEFLECTOR STRAP WPL 636348 Contact Us For Availability
11
IDLER BRACKET WPL 633053 Contact Us For Availability
11
INSULATOR WPL 633981 Contact Us For Availability
11
DOOR SWITCH WPL 635991 Contact Us For Availability
12
IDLER PULLEY WPL 635753 Contact Us For Availability
12
WASHER WPL 256125 Contact Us For Availability
12
CLIP, SWITCH WPL 635990 Contact Us For Availability
13
SCREW WPL 257764 Contact Us For Availability
13
PIN WPL 633054 Contact Us For Availability
13
CLIP, WIRING WPL 253034 Contact Us For Availability
14
CYL SHAFT ASM WPL 636032 Contact Us For Availability
14
IDLER PLATE WPL 633819 Contact Us For Availability
14
REINFORCEMENT WPL 635852 Contact Us For Availability
14
SUPPORT WPL 631195 Contact Us For Availability
15
WASHER WPL 253109 Contact Us For Availability
15
SCREW WPL 252134 Contact Us For Availability
15
SCREW WPL 253092 Contact Us For Availability
15
TRMNL BLOCK KIT WPL 632836N Contact Us For Availability
16
RETAINING RING WPL 257175 Contact Us For Availability
16
CAPACITOR WPL 633199 Contact Us For Availability
16
TERMINAL BLOCK WPL 631244 Contact Us For Availability
17
SCREW WPL 253736 Contact Us For Availability
17
CLAMP WPL 633204 Contact Us For Availability
17
SHIELD WPL 635805 Contact Us For Availability
18
SCREW WPL 259103 Contact Us For Availability
19
CYL DRIVE BELT WPL 634664 Contact Us For Availability
19
WASHER, FLAT WPL 253122 Contact Us For Availability
20
REAR SEAL KIT WPL 632853N Contact Us For Availability
20
FAN BELT WPL 636333 Contact Us For Availability
20
WASHER, CUP WPL 253123 Contact Us For Availability
21
REAR SEAL WPL 636227 Contact Us For Availability
21
NUT (No.10-32) WPL 250027 Contact Us For Availability
22
CLAMP KIT WPL 6318161 Contact Us For Availability
22
NUT WPL 256124 Contact Us For Availability
23
HEATER HOUSING WPL 635794 Contact Us For Availability
23
SCREW TAP TY 10-32X3/8 WPL 253461 Contact Us For Availability
24
CLIP, WIRING WPL 257027 Contact Us For Availability
× ![]()
