Model Maytag DE1160 WASHER – Common Parts & Diagrams
01 - 234P3 STAND KIT
02 - 235P3 WALL MTG KIT

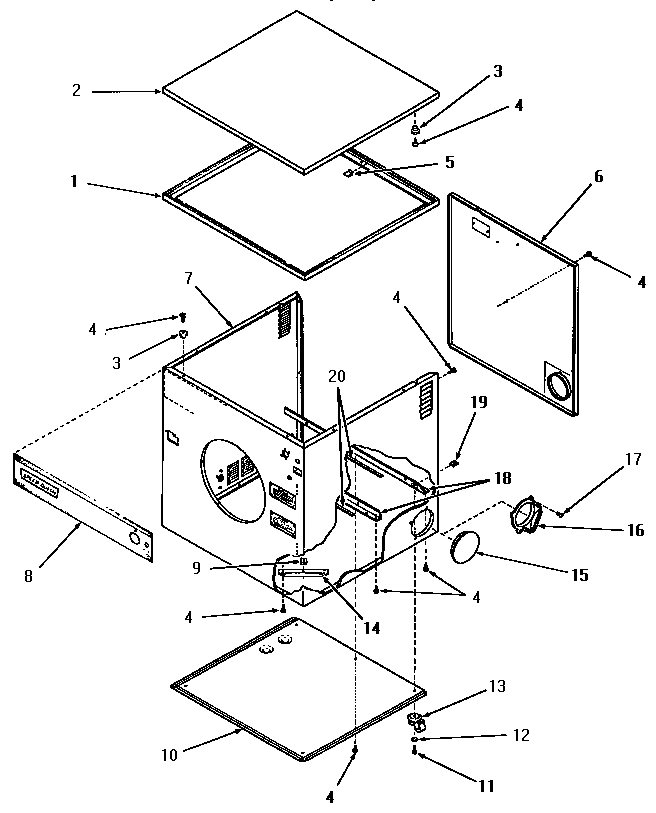

03 - CONTROL PANEL AND CABINET

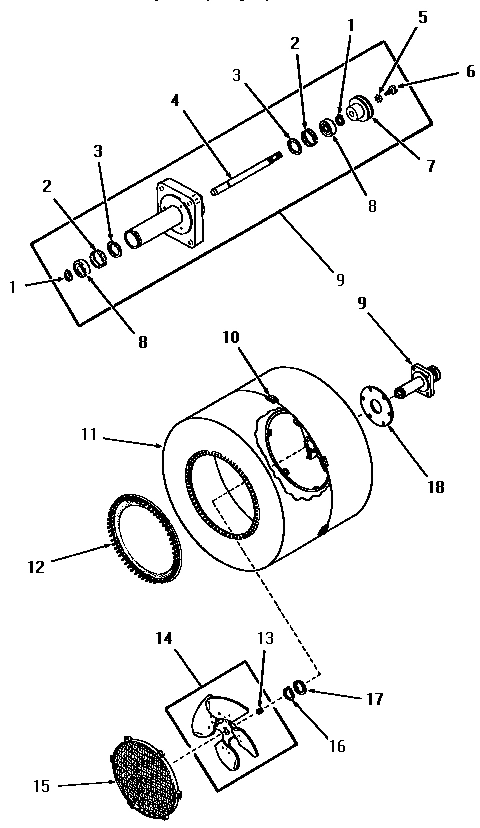

04 - DRUM, BEARING HOUSING AND BLOWER FAN

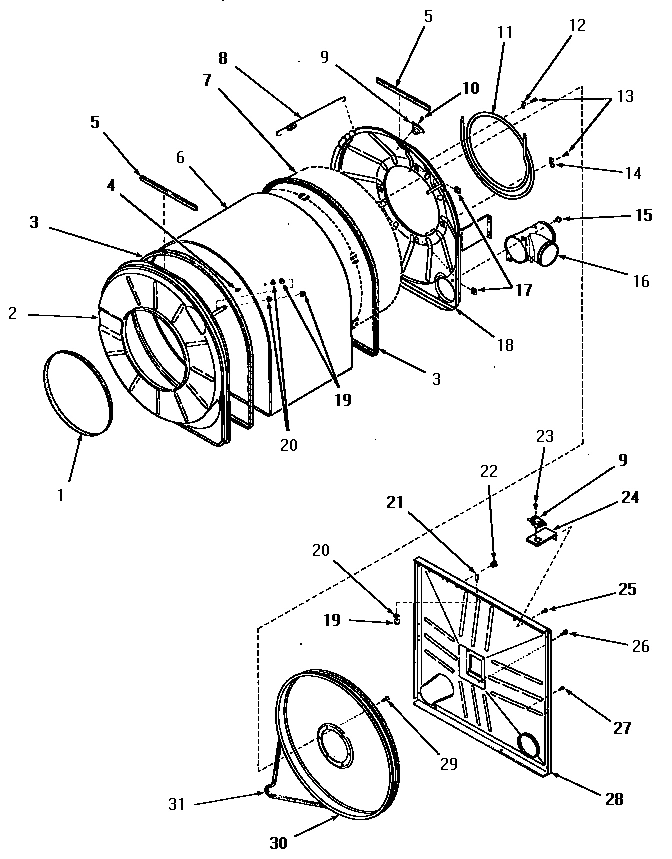

05 - JACKET, DRUM PULLEY, BELT AND REAR FRAME

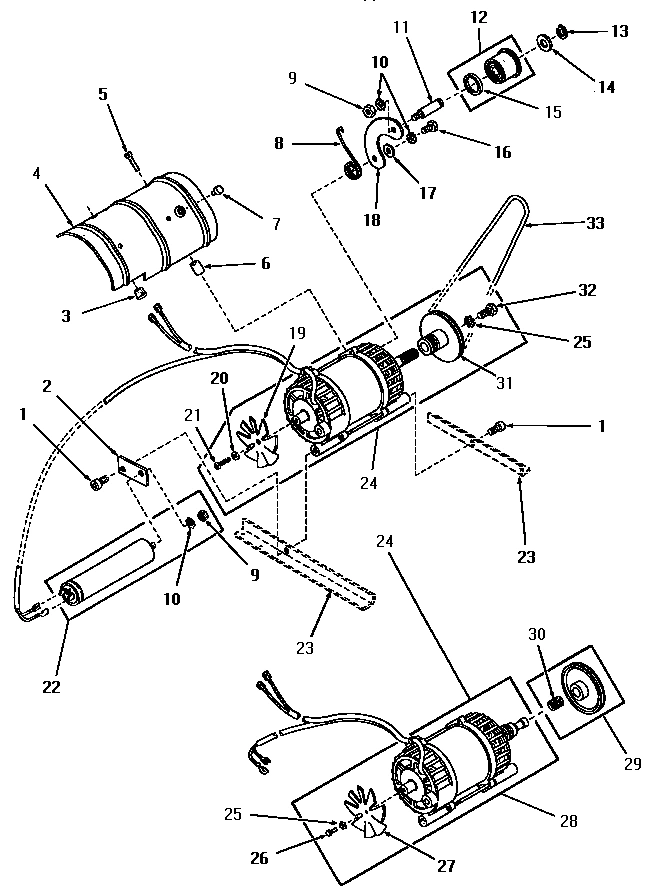

06 - MOTOR, IDLER AND CAPACITOR

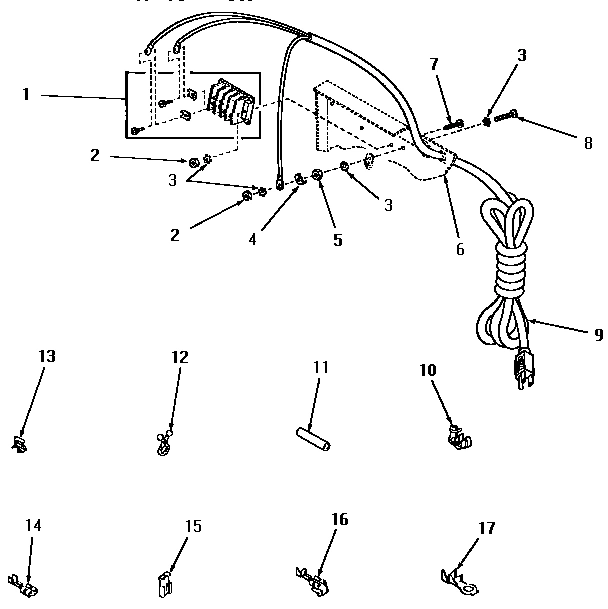

07 - POWER CORD, WIRE HARNESS, WIRE & TERM

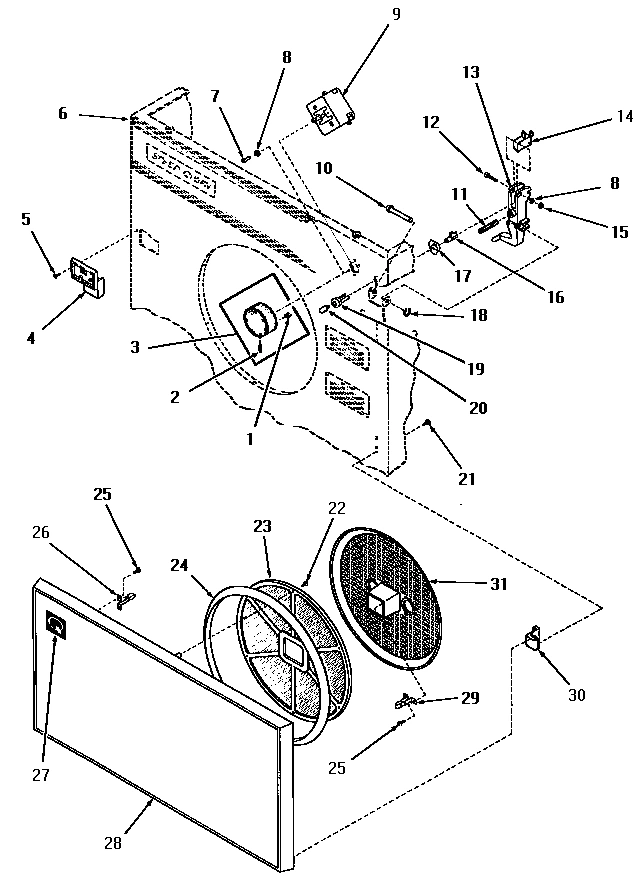

08 - TIMER, START SWITCH AND LOADING DOOR

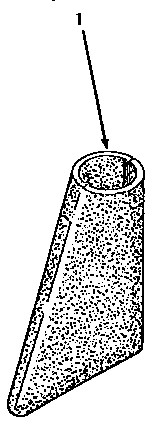

09 - TO VENT DRYER INDOORS

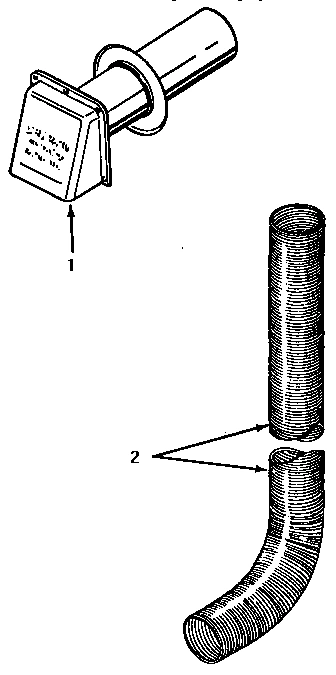

10 - TO VENT DRYER TO THE OUTDOORS

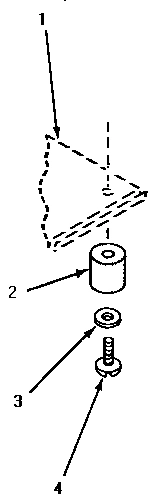

11 - USE IN PLACE OF CASTERS
Common parts from model Maytag DE1160 WASHER
NOTE: ORDER WIRE HARNESS, 55067 OR ORDER WIRE MAY NOTE: Contact Us For Availability
1
MAY 55128 MAY 55128 Contact Us For Availability
1
MAY 55160 MAY 55160 Contact Us For Availability
1
SEE NOTE CABINET BOTTOM -- (SEE PAGE 3) MAY Y00000000 Contact Us For Availability
1
MAY Y0055048 MAY Y0055048 Contact Us For Availability
1
MAY Y55073 MAY Y55073 Contact Us For Availability
1
MAY 55065 MAY 55065 Contact Us For Availability
1
MAY 0055078 MAY 0055078 Contact Us For Availability
1
MAY 55102 MAY 55102 Contact Us For Availability
1
MAY 55089 MAY 55089 Contact Us For Availability
1
MAY 55161 MAY 55161 Contact Us For Availability
1
MAY 20601 MAY 20601 Contact Us For Availability
2
MAY 55135 MAY 55135 Contact Us For Availability
2
MAY 55159 MAY 55159 Contact Us For Availability
2
MAY 55012A MAY 55012A Contact Us For Availability
2
MAY 55012C MAY 55012C Contact Us For Availability
2
MAY 55012H MAY 55012H Contact Us For Availability
2
MAY 55012W MAY 55012W Contact Us For Availability
2
MAY Y55082 MAY Y55082 Contact Us For Availability
2
MAY 0055018 MAY 0055018 Contact Us For Availability
2
MAY 55085 MAY 55085 Contact Us For Availability
2
MAY 0055026 MAY 0055026 Contact Us For Availability
2
MAY 55088 MAY 55088 Contact Us For Availability
2
MAY Y55148 MAY Y55148 Contact Us For Availability
2
MAY Y55116 MAY Y55116 Contact Us For Availability
3
MAY 55136 MAY 55136 Contact Us For Availability
3
MAY Y0055032 MAY Y0055032 Contact Us For Availability
3
MAY Y0055080 MAY Y0055080 Contact Us For Availability
3
MAY 55064 MAY 55064 Contact Us For Availability
3
MAY Y20278 MAY Y20278 Contact Us For Availability
3
MAY 55152 MAY 55152 Contact Us For Availability
3
MAY 55016 MAY 55016 Contact Us For Availability
3
MAY 80090 MAY 80090 Contact Us For Availability
4
MAY 55134 MAY 55134 Contact Us For Availability
4
MAY 55146 MAY 55146 Contact Us For Availability
4
MAY Y0055028 MAY Y0055028 Contact Us For Availability
4
MAY Y0055109 MAY Y0055109 Contact Us For Availability
4
MAY 55090 MAY 55090 Contact Us For Availability
4
MAY 55049 MAY 55049 Contact Us For Availability
4
MAY Y0055114 MAY Y0055114 Contact Us For Availability
5
MAY 55131 MAY 55131 Contact Us For Availability
5
MAY 55158 MAY 55158 Contact Us For Availability
5
MAY 55113 MAY 55113 Contact Us For Availability
5
MAY 03815 MAY 03815 Contact Us For Availability
5
MAY 55105 MAY 55105 Contact Us For Availability
5
MAY 55151 MAY 55151 Contact Us For Availability
5
MAY Y0055034 MAY Y0055034 Contact Us For Availability
5
MAY 55123 MAY 55123 Contact Us For Availability
6
MAY Y55133 MAY Y55133 Contact Us For Availability
6
MAY 55157 MAY 55157 Contact Us For Availability
6
MAY 0055022 MAY 0055022 Contact Us For Availability
6
MAY 55165 MAY 55165 Contact Us For Availability
6
MAY Y0055019 MAY Y0055019 Contact Us For Availability
6
MAY 55118 MAY 55118 Contact Us For Availability
7
MAY 55132 MAY 55132 Contact Us For Availability
7
MAY 55156 MAY 55156 Contact Us For Availability
7
MAY 55010A MAY 55010A Contact Us For Availability
7
MAY 55010C MAY 55010C Contact Us For Availability
7
MAY 55010H MAY 55010H Contact Us For Availability
7
MAY 55010W MAY 55010W Contact Us For Availability
7
MAY 55163A MAY 55163A Contact Us For Availability
7
MAY 55163C MAY 55163C Contact Us For Availability
7
MAY 55163H MAY 55163H Contact Us For Availability
7
MAY 55163W MAY 55163W Contact Us For Availability
7
MAY 0055035 MAY 0055035 Contact Us For Availability
7
MAY 55081 MAY 55081 Contact Us For Availability
7
MAY 53445 MAY 53445 Contact Us For Availability
7
MAY 55091 MAY 55091 Contact Us For Availability
8
MAY 55130 MAY 55130 Contact Us For Availability
8
MAY Y55068 MAY Y55068 Contact Us For Availability
8
MAY 55077 MAY 55077 Contact Us For Availability
8
MAY Y0055043 MAY Y0055043 Contact Us For Availability
8
MAY 0055039 MAY 0055039 Contact Us For Availability
8
MAY 55150 MAY 55150 Contact Us For Availability
8
MAY Y55083 MAY Y55083 Contact Us For Availability
9
MAY 55129 MAY 55129 Contact Us For Availability
9
MAY 55149 MAY 55149 Contact Us For Availability
9
MAY Y0055031 MAY Y0055031 Contact Us For Availability
9
MAY 55099 MAY 55099 Contact Us For Availability
9
MAY Y55086 MAY Y55086 Contact Us For Availability
9
MAY 55100 MAY 55100 Contact Us For Availability
9
MAY 55101 MAY 55101 Contact Us For Availability
10
MAY Y0055025 MAY Y0055025 Contact Us For Availability
10
MAY Y0055042 MAY Y0055042 Contact Us For Availability
10
MAY Y02424 MAY Y02424 Contact Us For Availability
10
MAY 02834 MAY 02834 Contact Us For Availability
10
MAY 10382 MAY 10382 Contact Us For Availability
10
MAY 55076 MAY 55076 Contact Us For Availability
11
MAY 55125 MAY 55125 Contact Us For Availability
11
MAY 0055040 MAY 0055040 Contact Us For Availability
11
MAY 55097 MAY 55097 Contact Us For Availability
11
MAY Y0055030 MAY Y0055030 Contact Us For Availability
11
MAY Y21365 MAY Y21365 Contact Us For Availability
11
MAY 0055047 MAY 0055047 Contact Us For Availability
12
MAY 55063 MAY 55063 Contact Us For Availability
12
MAY Y0055045 MAY Y0055045 Contact Us For Availability
12
MAY Y0055046 MAY Y0055046 Contact Us For Availability
12
MAY 10400 MAY 10400 Contact Us For Availability
12
MAY 55095 MAY 55095 Contact Us For Availability
13
MAY 55062 MAY 55062 Contact Us For Availability
13
MAY 55074 MAY 55074 Contact Us For Availability
13
MAY 22145 MAY 22145 Contact Us For Availability
13
MAY Y55071 MAY Y55071 Contact Us For Availability
13
MAY Y0055110 MAY Y0055110 Contact Us For Availability
13
MAY 55055 MAY 55055 Contact Us For Availability
13
MAY 55162 MAY 55162 Contact Us For Availability
14
MAY Y0055015 MAY Y0055015 Contact Us For Availability
14
MAY Y0055021 MAY Y0055021 Contact Us For Availability
14
MAY 0055044 MAY 0055044 Contact Us For Availability
14
MAY Y55093 MAY Y55093 Contact Us For Availability
14
MAY Y00119 MAY Y00119 Contact Us For Availability
14
MAY 55096 MAY 55096 Contact Us For Availability
15
MAY 55054 MAY 55054 Contact Us For Availability
15
MAY 55050 MAY 55050 Contact Us For Availability
15
MAY Y55070 MAY Y55070 Contact Us For Availability
15
MAY Y00120 MAY Y00120 Contact Us For Availability
15
MAY Y0055111 MAY Y0055111 Contact Us For Availability
16
MAY 55112 MAY 55112 Contact Us For Availability
16
MAY Y55072 MAY Y55072 Contact Us For Availability
16
MAY 55051 MAY 55051 Contact Us For Availability
16
MAY Y55084 MAY Y55084 Contact Us For Availability
16
MAY 00132 MAY 00132 Contact Us For Availability
16
MAY 55058 MAY 55058 Contact Us For Availability
17
MAY 03796 MAY 03796 Contact Us For Availability
17
MAY 55117 MAY 55117 Contact Us For Availability
17
MAY 55126 MAY 55126 Contact Us For Availability
17
MAY Y0055037 MAY Y0055037 Contact Us For Availability
17
MAY 00131 MAY 00131 Contact Us For Availability
17
MAY 55094 MAY 55094 Contact Us For Availability
18
MAY Y0055020 MAY Y0055020 Contact Us For Availability
18
MAY 0055023 MAY 0055023 Contact Us For Availability
18
MAY Y0055013 MAY Y0055013 Contact Us For Availability
18
MAY Y0055027 MAY Y0055027 Contact Us For Availability
18
MAY Y55092 MAY Y55092 Contact Us For Availability
19
MAY 55143 MAY 55143 Contact Us For Availability
19
MAY 55169 MAY 55169 Contact Us For Availability
19
MAY 55056 MAY 55056 Contact Us For Availability
20
MAY Y81327 MAY Y81327 Contact Us For Availability
20
MAY 55057 MAY 55057 Contact Us For Availability
21
MAY Y0055033 MAY Y0055033 Contact Us For Availability
21
MAY 53006 MAY 53006 Contact Us For Availability
21
MAY 55170 MAY 55170 Contact Us For Availability
22
MAY 55127 MAY 55127 Contact Us For Availability
22
MAY 55104 MAY 55104 Contact Us For Availability
22
MAY 55122 MAY 55122 Contact Us For Availability
23
MAY 55052 MAY 55052 Contact Us For Availability
24
MAY 0055024 MAY 0055024 Contact Us For Availability
24
MAY 55166 MAY 55166 Contact Us For Availability
24
MAY 55061 MAY 55061 Contact Us For Availability
25
MAY 55087 MAY 55087 Contact Us For Availability
25
MAY 02431 MAY 02431 Contact Us For Availability
25
MAY 55121 MAY 55121 Contact Us For Availability
26
MAY 55079 MAY 55079 Contact Us For Availability
26
MAY Y0055108 MAY Y0055108 Contact Us For Availability
26
MAY 55038 MAY 55038 Contact Us For Availability
27
MAY 55124 MAY 55124 Contact Us For Availability
27
MAY 55107 MAY 55107 Contact Us For Availability
27
MAY Y04827 MAY Y04827 Contact Us For Availability
28
MAY 55011 MAY 55011 Contact Us For Availability
28
MAY 55103 MAY 55103 Contact Us For Availability
28
MAY 55014A MAY 55014A Contact Us For Availability
28
MAY 55014C MAY 55014C Contact Us For Availability
28
MAY 55014H MAY 55014H Contact Us For Availability
28
MAY 55014W MAY 55014W Contact Us For Availability
29
MAY 52864 MAY 52864 Contact Us For Availability
29
MAY Y0055036 MAY Y0055036 Contact Us For Availability
29
MAY Y0055041 MAY Y0055041 Contact Us For Availability
30
MAY 0055017 MAY 0055017 Contact Us For Availability
30
MAY Y55075 MAY Y55075 Contact Us For Availability
30
MAY 55066 MAY 55066 Contact Us For Availability
31
MAY 55059 MAY 55059 Contact Us For Availability
31
MAY 55167 MAY 55167 Contact Us For Availability
31
MAY 55053 MAY 55053 Contact Us For Availability
32
MAY 55168 MAY 55168 Contact Us For Availability
33
MAY 55060 MAY 55060 Contact Us For Availability
NI
MAY 55155 MAY 55155 Contact Us For Availability
× ![]()
