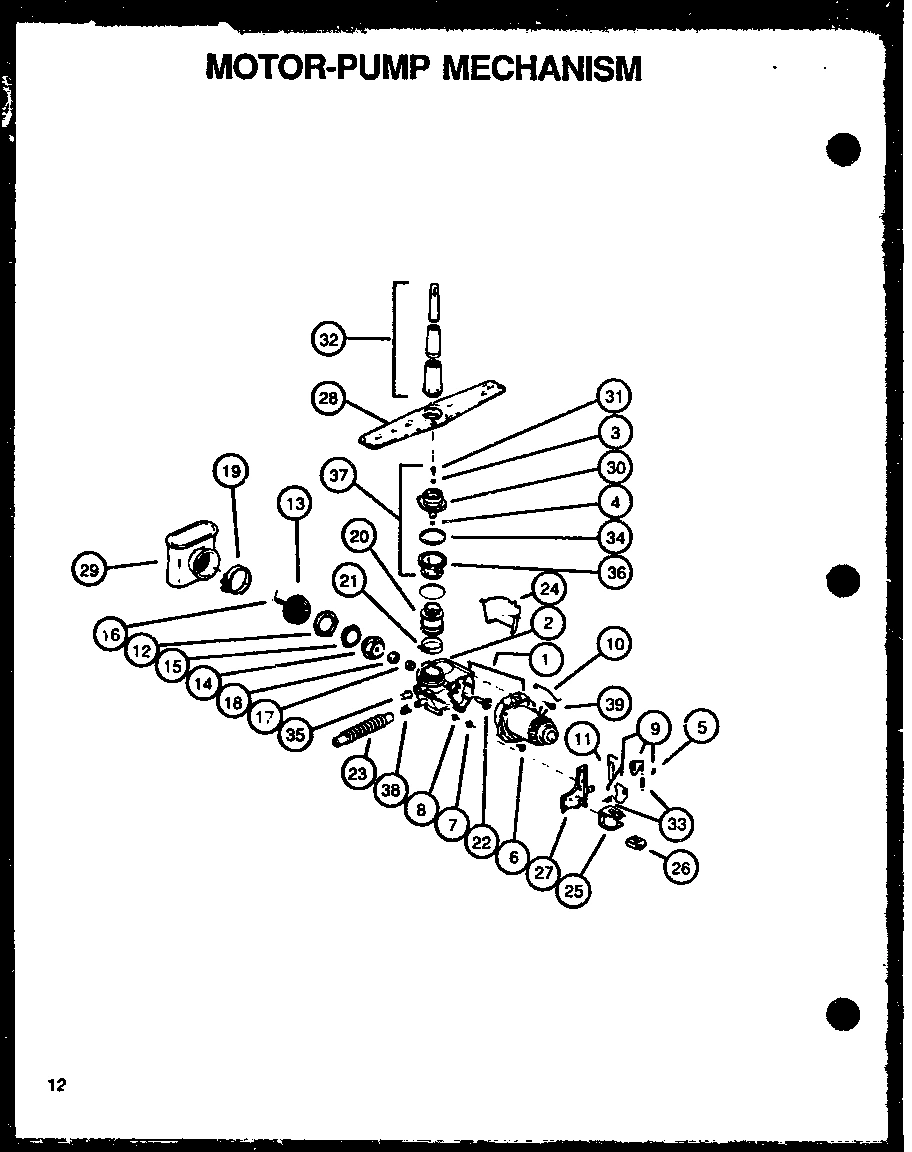

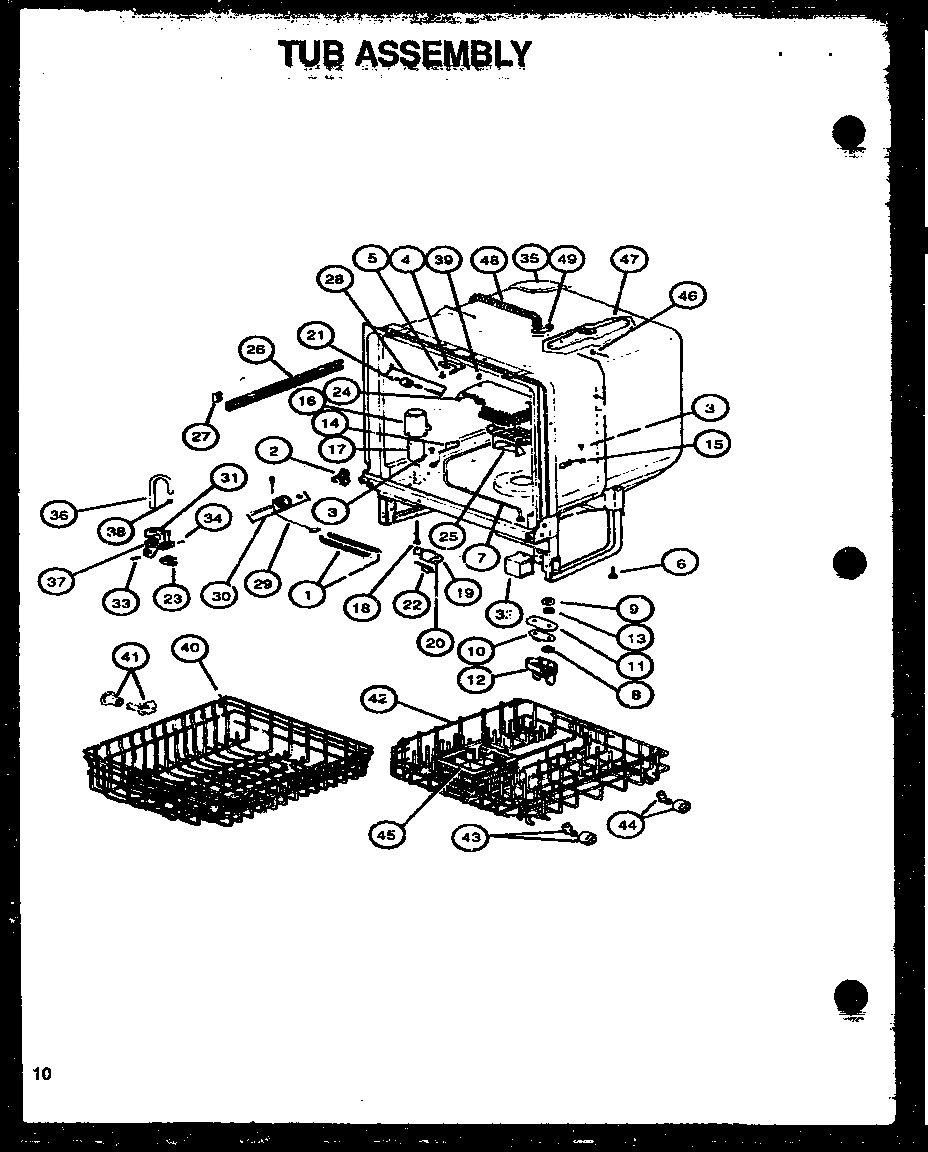

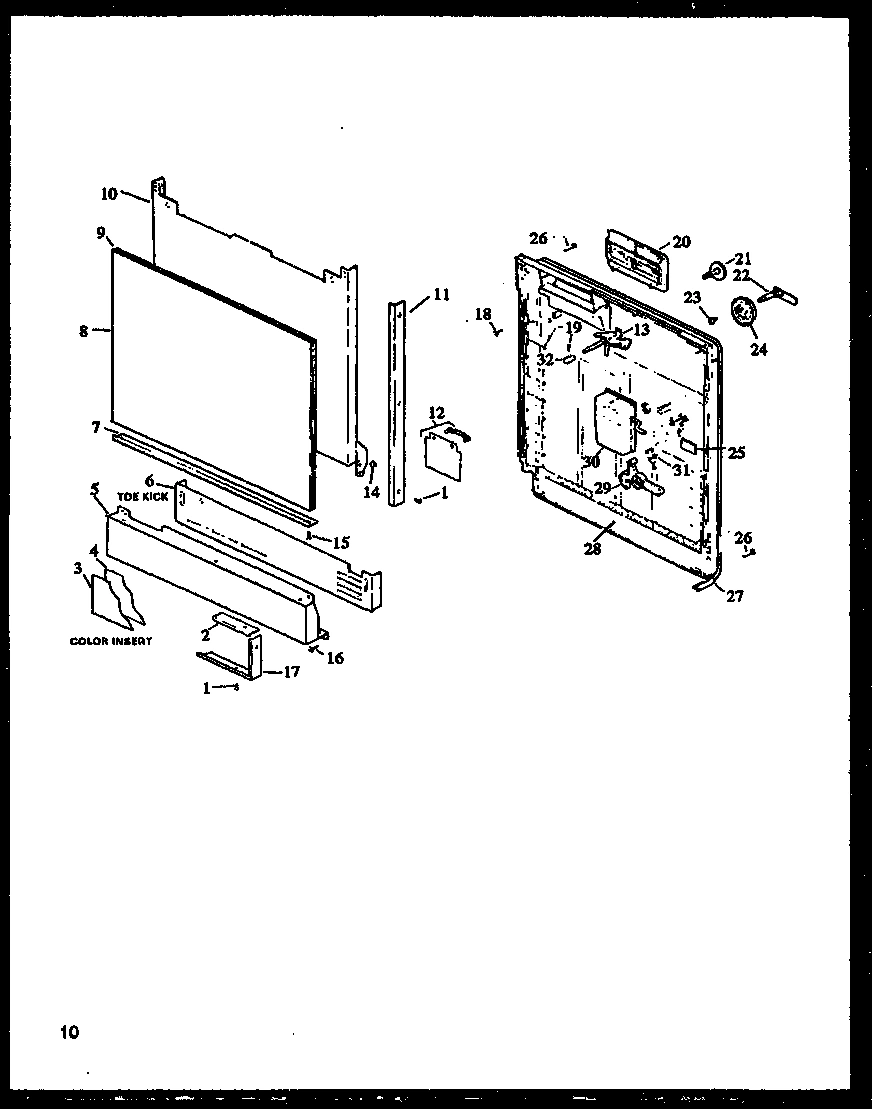

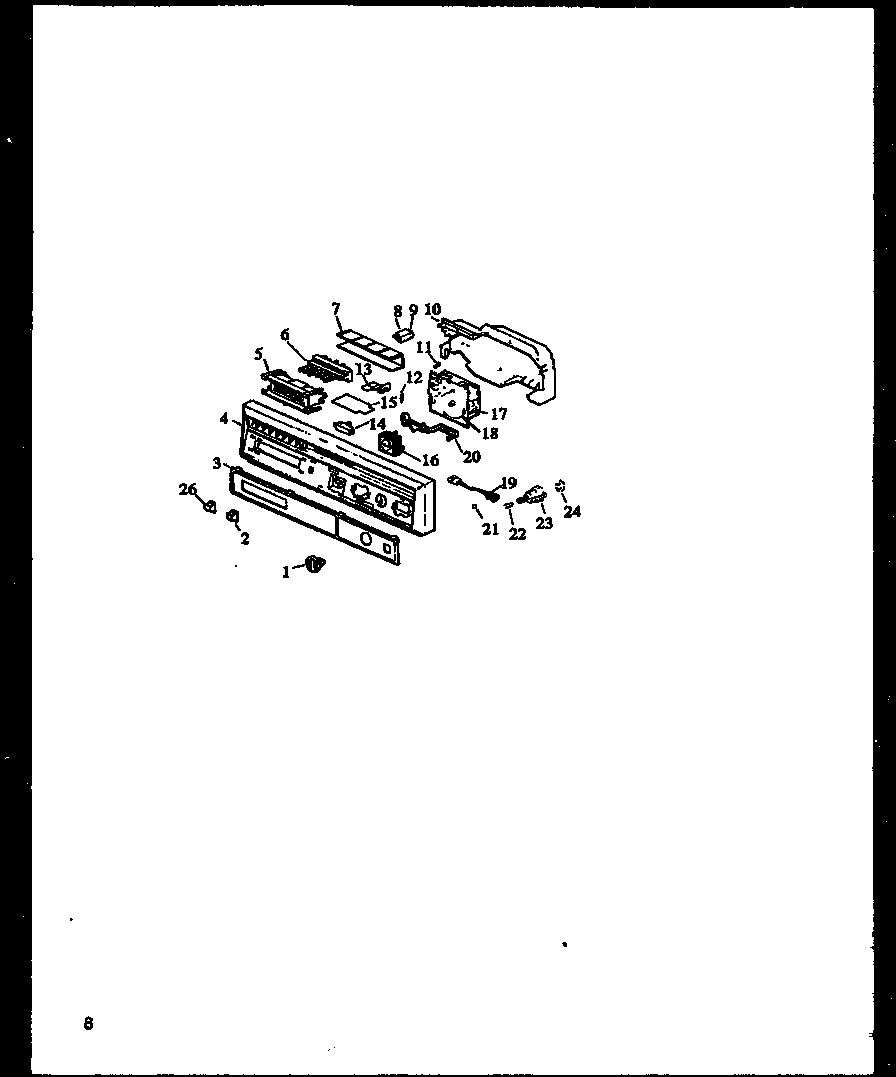

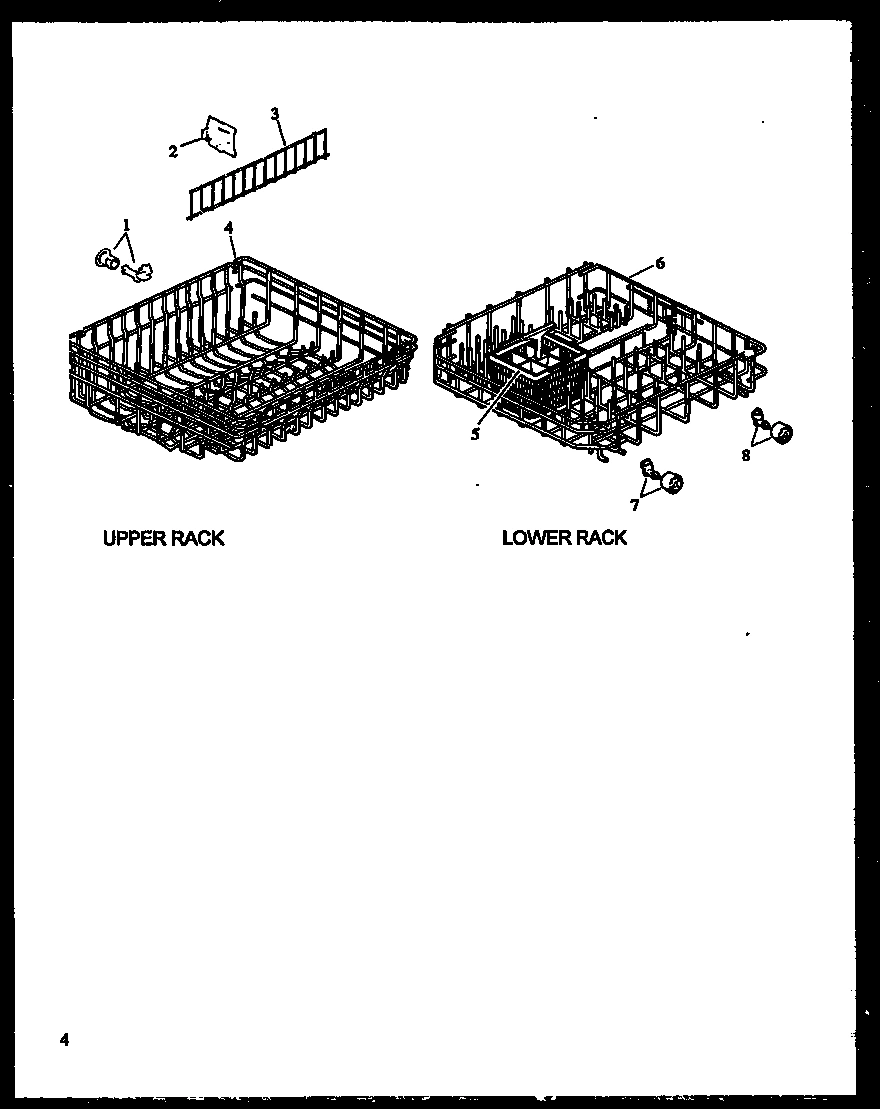

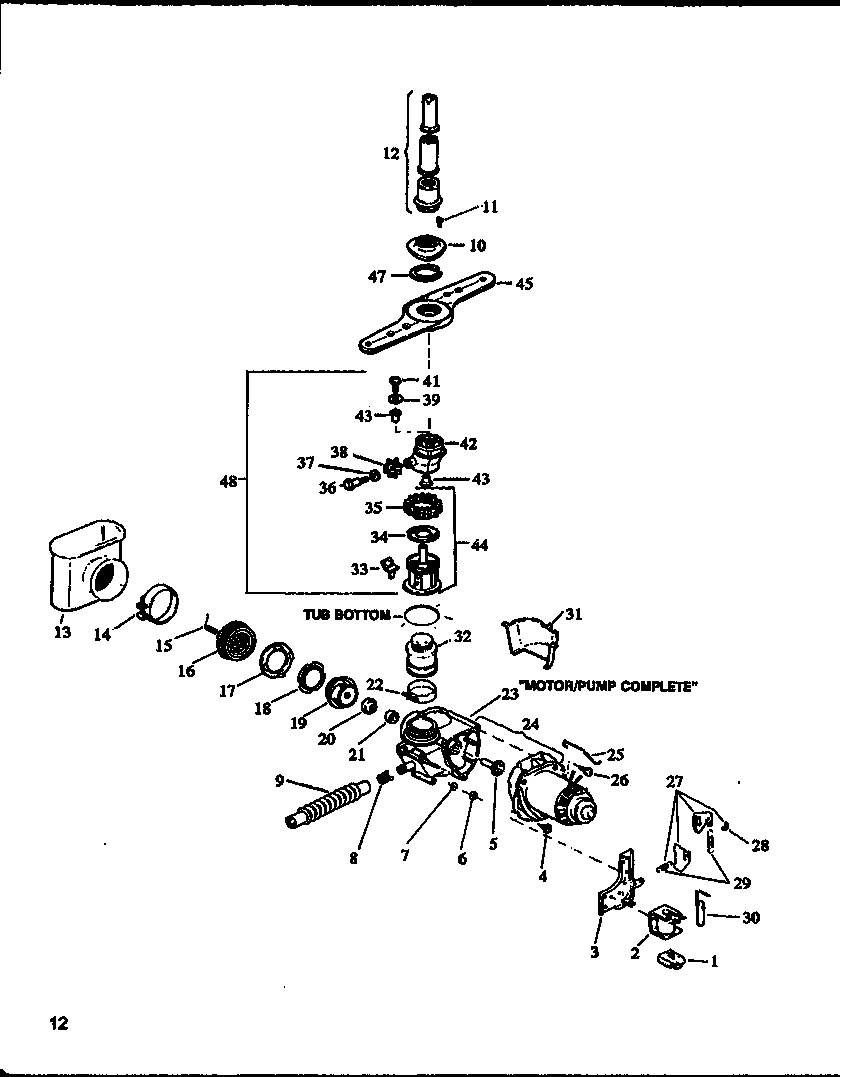

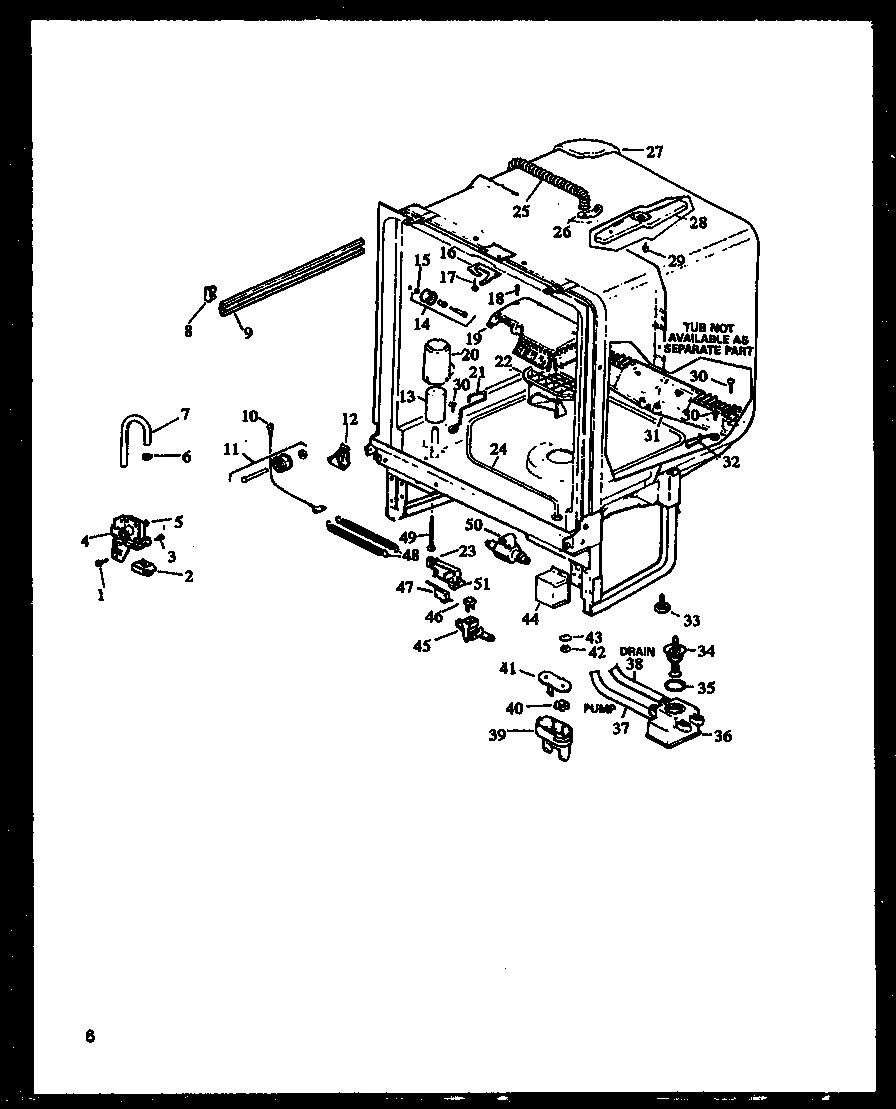

Model Whirlpool DDW550B DISHWASHER – Common Parts & Diagrams
01 - Page 1
04 - Page 4
03 - Page 3
05 - Page 5
02 - Page 2
Common parts from model Whirlpool DDW550B DISHWASHER
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
1
ASSY TIMER KNOB WPL R0903572 Contact Us For Availability
1
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
2
TRIM,ACCESS TOP WIDE {BL WPL R0905706 Contact Us For Availability
2
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
2
SOLENOID KIT WPL R0909003 Contact Us For Availability
3
INSERT, SERV. PANEL WPL R0905623 Contact Us For Availability
3
INSERT-ESCUTCHEON WPL R0905707 Contact Us For Availability
3
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
3
SCREW WPL R0900011 Contact Us For Availability
4
ASSY-UPPER RACK & ROLLER WPL R0910111 Contact Us For Availability
4
INSULATOR, INSERT PANEL WPL R0910036 Contact Us For Availability
4
ESCUTCHEON WPL R0903029 Contact Us For Availability
4
SCREW WPL R0900002 Contact Us For Availability
4
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
5
BASKET,SILVERWARE WPL R0910113 Contact Us For Availability
5
PANEL ACCESS WPL R0905714 Contact Us For Availability
5
RETAINER, SWITCH WPL R0905546 Contact Us For Availability
5
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
5
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
6
ASSY LOWER RACK & ROLLER WPL R0910112 Contact Us For Availability
6
TOE KICK ASSY WPL R0903022 Contact Us For Availability
6
SWITCH, PANEL BOTTOM WPL R0902510 Contact Us For Availability
6
NUT WPL R0906510 Contact Us For Availability
6
CLAMP WPL R0901510 Contact Us For Availability
7
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
7
TRIM-DOOR BOTTOM WPL R0905705 Contact Us For Availability
7
COVER, SWITCH WPL R0905547 Contact Us For Availability
7
SEAL, SHAFT WPL R0906504 Contact Us For Availability
7
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
8
ROLLER ASSY WPL R0910008 Contact Us For Availability
8
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
8
INSERT, DOOR PANEL WPL R0905620 Contact Us For Availability
8
END CAP WPL R0903517 Contact Us For Availability
9
INSULATOR WPL R0906002 Contact Us For Availability
9
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
9
DRAIN TUBE ASSY WPL R0906508 Contact Us For Availability
9
RACK SLIDE WPL R0905567 Contact Us For Availability
10
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
10
COVER ELECTRIC WPL R0905641 Contact Us For Availability
10
CABLE AND EYELET WPL R0905640 Contact Us For Availability
11
TRIM DOOR SIDE WIDE {BLA WPL R0905704 Contact Us For Availability
11
SCREW WPL R0900009 Contact Us For Availability
11
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
12
DRIP SHIELD WPL R0910011 Contact Us For Availability
12
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
12
ASSEMBLY-CENTER SPRAY WPL R0910057 Contact Us For Availability
12
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
12
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
13
LATCH ASM WPL R0910121 Contact Us For Availability
13
ASS`Y, SWITCH LEAF WPL R0905716 Contact Us For Availability
13
INLET, SUMP WPL R0905604 Contact Us For Availability
13
FLOOD FLOAT WPL R0903501 Contact Us For Availability
14
ADAPTER FAUCET WPL R0903562 Contact Us For Availability
14
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
14
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
15
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
15
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
16
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
16
NUT WPL R0905563 Contact Us For Availability
16
LATCH KEEPER WPL R0905505 Contact Us For Availability
17
TRIM-SIDE & BOT SERV PAN WPL R0905703 Contact Us For Availability
17
TIMER WPL R0904014 Contact Us For Availability
17
WEAR RING BASE WPL R0905518 Contact Us For Availability
17
SCREW WPL R0900025 Contact Us For Availability
18
CAM-TIMER WPL R0904007 Contact Us For Availability
18
WEAR RING WPL R0905520 Contact Us For Availability
18
SCREW WPL R0900008 Contact Us For Availability
19
ASSY PILOT LIGHT WPL R0912004 Contact Us For Availability
19
PUMP IMPELLER WPL R0905519 Contact Us For Availability
19
COVER INLET SUMP WPL R0905527 Contact Us For Availability
20
DOOR VENT WPL R0905536 Contact Us For Availability
20
INSULATOR HEATER WPL R0910020 Contact Us For Availability
20
SHAFT SEAL WPL R0903503 Contact Us For Availability
20
FLOAT WPL R0905511 Contact Us For Availability
21
CAP, FILL WPL R0905614 Contact Us For Availability
21
LENS WPL R0910061 Contact Us For Availability
21
SEAL WPL R0903502 Contact Us For Availability
21
SUPPORT, HEATER FRONT WPL R0905632 Contact Us For Availability
22
SHAFT HAND D CUP WPL R0905615 Contact Us For Availability
22
CAP, SUMP WPL R0905528 Contact Us For Availability
23
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
23
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
24
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
24
MOTOR/PUMP ASSY DISHWA WPL R0907005 Contact Us For Availability
24
HEATER WPL R0906001 Contact Us For Availability
25
DEFLECTER WPL R0905523 Contact Us For Availability
25
HANGER MECHANISM WPL R0905712 Contact Us For Availability
26
SCREW WPL R0900007 Contact Us For Availability
26
SCREW WPL R0900006 Contact Us For Availability
26
PUSHBUTTON WPL R0903585 Contact Us For Availability
27
DOOR GASKET WPL R0904507 Contact Us For Availability
27
DOOR GASKET WPL R0904501 Contact Us For Availability
27
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
27
INSULATION WPL R0904508 Contact Us For Availability
28
DOOR, INNER WPL R0903021 Contact Us For Availability
28
RETAINER WPL R0901503 Contact Us For Availability
29
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
29
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
30
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
30
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
31
TRIP SPRING WPL R0905542 Contact Us For Availability
31
GUARD WPL R0905522 Contact Us For Availability
32
KNOB- LATCH HANDLE WPL R0903573 Contact Us For Availability
32
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
32
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
33
CHECK VALVE WPL R0910037 Contact Us For Availability
33
LEG, LEVELING WPL R0905506 Contact Us For Availability
35
KIT SPRAY ASSY WPL R0903535 Contact Us For Availability
39
THRUST WASHER WPL R0900508 Contact Us For Availability
39
BARRIER, HTG ELEMENT WPL R0903581 Contact Us For Availability
40
NUT WPL R0901001 Contact Us For Availability
41
SCREW, HUB WPL R0900026 Contact Us For Availability
41
BASE BARRIER WPL R0903580 Contact Us For Availability
42
SPRAY ARM HUB WPL R0910056 Contact Us For Availability
42
GROMMET WPL R0906502 Contact Us For Availability
43
WASHER WPL R0900501 Contact Us For Availability
44
COVER, JCT. BOX WPL R0905553 Contact Us For Availability
45
ASSY SPRAY ARM SHIELD WPL R0910055 Contact Us For Availability
47
SWITCH FLOOD WPL R0902501 Contact Us For Availability
48
HUB & SUPPT. WPL R0903515 Contact Us For Availability
48
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
49
FLOAT STEM WPL R0905512 Contact Us For Availability
51
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
NI
SCREW WPL R0900017 Contact Us For Availability
NI
CAP, POWER SHOWER WPL R0903508 Contact Us For Availability
× ![]()
