Model GE DDP1280FAW Dryer Electric – Common Parts & Diagrams

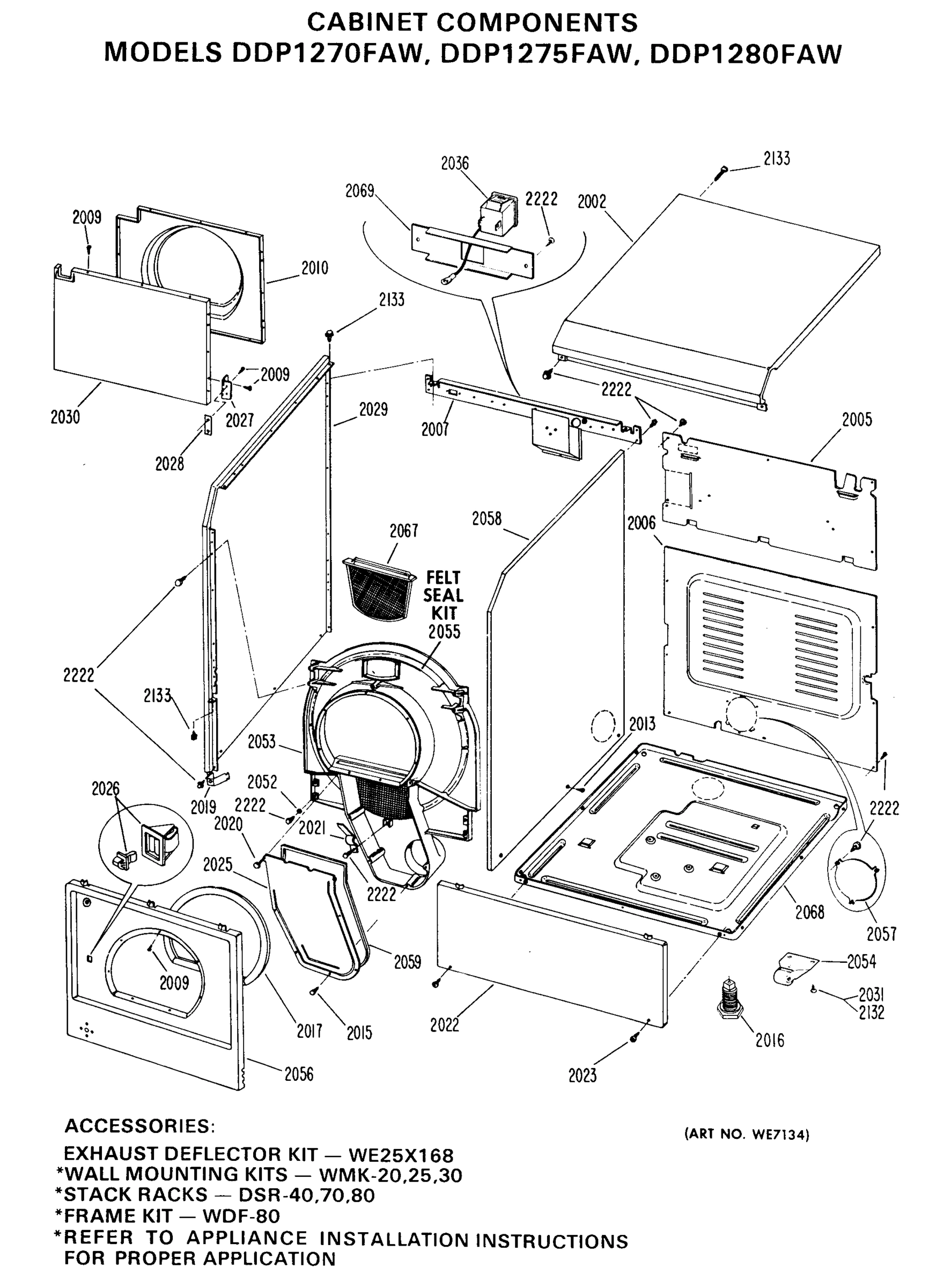

CABINET COMPONENTS

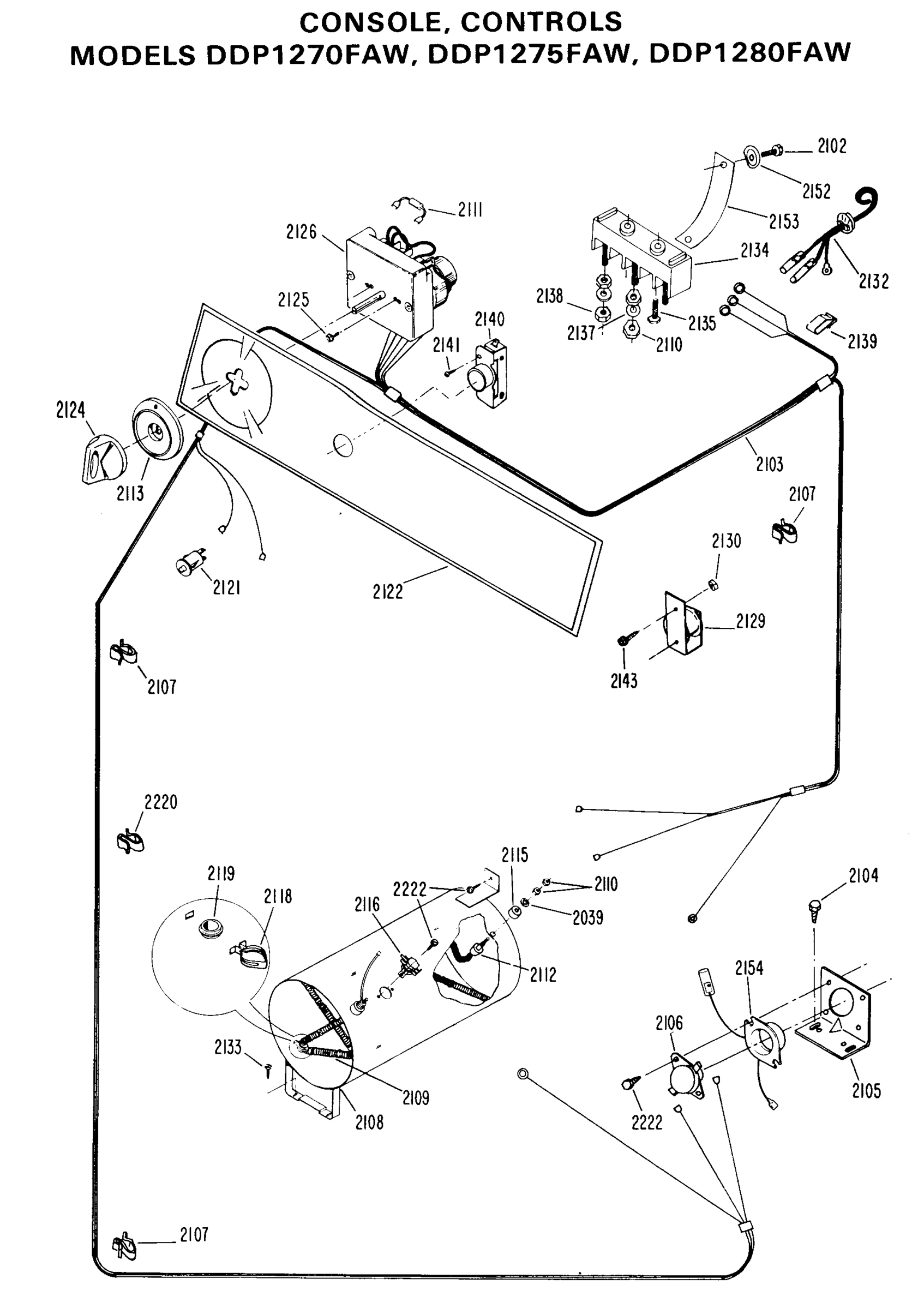

CONSOLE, CONTROLS
DRUM, MOTOR, BLOWER
Common parts from model GE DDP1280FAW Dryer Electric
2002
GEN WE20X0627 GEN WE20X0627 Contact Us For Availability
2002
GEN WE20X0629 GEN WE20X0629 Contact Us For Availability
2005
GEN WE20X0681 GEN WE20X0681 Contact Us For Availability
2006
GEN WE20X0615 GEN WE20X0615 Contact Us For Availability
2007
GEN WE13X0163 GEN WE13X0163 Contact Us For Availability
2009
GEN WH02X0979 GEN WH02X0979 Contact Us For Availability
2010
GEN WE10X0286 GEN WE10X0286 Contact Us For Availability
2016
GEN WH01X2293 GEN WH01X2293 Contact Us For Availability
2017
GEN WE09X0052 GEN WE09X0052 Contact Us For Availability
2019
GEN WH02X0978 GEN WH02X0978 Contact Us For Availability
2021
GEN WE02X0285 GEN WE02X0285 Contact Us For Availability
2022
GEN WE20X0630 GEN WE20X0630 Contact Us For Availability
2022
GEN WE20X0632 GEN WE20X0632 Contact Us For Availability
2025
GEN WE01X0985 GEN WE01X0985 Contact Us For Availability
2026
GEN WE01X0986 GEN WE01X0986 Contact Us For Availability
2027
GEN WH01X2337 GEN WH01X2337 Contact Us For Availability
2028
GEN WH02X0980 GEN WH02X0980 Contact Us For Availability
2029
GEN WE20X0677 GEN WE20X0677 Contact Us For Availability
2029
GEN WE20X0678 GEN WE20X0678 Contact Us For Availability
2030
GEN WE10X0273 GEN WE10X0273 Contact Us For Availability
2030
GEN WE10X0274 GEN WE10X0274 Contact Us For Availability
2036
GEN WE01X1066 GEN WE01X1066 Contact Us For Availability
2039
GEN WH02X0985 GEN WH02X0985 Contact Us For Availability
2052
GEN WZ10X0006 GEN WZ10X0006 Contact Us For Availability
2053
GEN WE14X0145 GEN WE14X0145 Contact Us For Availability
2055
GEN WE09X0054 GEN WE09X0054 Contact Us For Availability
2056
GEN WE10X0283 GEN WE10X0283 Contact Us For Availability
2056
GEN WE10X0285 GEN WE10X0285 Contact Us For Availability
2057
GEN WE01X1067 GEN WE01X1067 Contact Us For Availability
2058
GEN WE20X0679 GEN WE20X0679 Contact Us For Availability
2058
GEN WE20X0680 GEN WE20X0680 Contact Us For Availability
2059
GEN WE09X0053 GEN WE09X0053 Contact Us For Availability
2067
GEN WE18X0037 GEN WE18X0037 Contact Us For Availability
2068
GEN WE20X0682 GEN WE20X0682 Contact Us For Availability
2069
GEN WE13X0164 GEN WE13X0164 Contact Us For Availability
2103
GEN WE15X0016 GEN WE15X0016 Contact Us For Availability
2105
GEN WE01X0988 GEN WE01X0988 Contact Us For Availability
2106
GEN WE04X0670 GEN WE04X0670 Contact Us For Availability
2107
CLIP-HARNESS GEN WH02X0989 Contact Us For Availability
2108
HEAT HOUSING GEN WE11X0070 Contact Us For Availability
2109
HEAT ELEMENT 240V GEN WE11X0071 Contact Us For Availability
2111
RESISTOR (4.4K OHMS) GEN WE04X0638 Contact Us For Availability
2111
GEN WE04X0673 GEN WE04X0673 Contact Us For Availability
2111
GEN WE04X0674 GEN WE04X0674 Contact Us For Availability
2112
MALE BUSHING GEN WE02X0288 Contact Us For Availability
2113
GEN WH11X0118 GEN WH11X0118 Contact Us For Availability
2115
FEMALE BUSHING GEN WE02X0289 Contact Us For Availability
2116
SAFETY THERMOSTAT GEN WE04X0639 Contact Us For Availability
2118
INSULATOR CLIP GEN WE02X0290 Contact Us For Availability
2119
GEN WE01X0989 GEN WE01X0989 Contact Us For Availability
2121
DOOR SWITCH GEN WE04X0640 Contact Us For Availability
2122
GEN WE19X0843 GEN WE19X0843 Contact Us For Availability
2124
TIMER KNOB GEN WE01X0990 Contact Us For Availability
2126
GEN WE04X0672 GEN WE04X0672 Contact Us For Availability
2129
GEN WE01X0993 GEN WE01X0993 Contact Us For Availability
2130
NUT GEN WE02X0291 Contact Us For Availability
2134
TERMINAL BLOCK GEN WE04X0168 Contact Us For Availability
2137
GEN WE02X0294 GEN WE02X0294 Contact Us For Availability
2138
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
2139
CLIP GEN WE02X0296 Contact Us For Availability
2140
SWITCH PUSH TO START GEN WE04X0647 Contact Us For Availability
2152
GROUND WASHER GEN WE02X0292 Contact Us For Availability
2153
GROUND STRAP GEN WE01X0994 Contact Us For Availability
2154
GEN WE04X0671 GEN WE04X0671 Contact Us For Availability
2201
PLENUM ASSEMBLY GEN WE14X0146 Contact Us For Availability
2203
CLIP HRN TO R.H.SIDE PNL GEN WE02X0297 Contact Us For Availability
2204
CLIP GEN WE02X0298 Contact Us For Availability
2205
GEN WE12X0051 GEN WE12X0051 Contact Us For Availability
2206
SNAP RING GEN WE02X0299 Contact Us For Availability
2207
SPACER WASHER GEN WE02X0300 Contact Us For Availability
2209
CHANNEL ASSEMBLY GEN WE01X0996 Contact Us For Availability
2210
MOTOR CLIP GEN WE02X0301 Contact Us For Availability
2211
MOTOR SWITCH (G.E.) GEN WE04X0648 Contact Us For Availability
2211
MOTOR & PULLEY ASMY GEN WE17X0034 Contact Us For Availability
2214
CLIP-GASKET SUPT GEN WE02X0302 Contact Us For Availability
2215
GEN WE13X0141 GEN WE13X0141 Contact Us For Availability
2216
GEN WE01X0997 GEN WE01X0997 Contact Us For Availability
2217
GEN WE01X0998 GEN WE01X0998 Contact Us For Availability
2218
GEN WE01X0999 GEN WE01X0999 Contact Us For Availability
2219
BLOWER HOUSING GEN WE14X0147 Contact Us For Availability
2220
CLIP GEN WH02X0988 Contact Us For Availability
2223
GEN WE01X1000 GEN WE01X1000 Contact Us For Availability
2224
GEN WE02X0303 GEN WE02X0303 Contact Us For Availability
2225
GEN WE02X0304 GEN WE02X0304 Contact Us For Availability
2226
IDLER WHEEL ASMY GEN WE03X0045 Contact Us For Availability
2227
GEN WE01X1001 GEN WE01X1001 Contact Us For Availability
2228
REAR DRUM SEAL KIT GEN WE09X0056 Contact Us For Availability
2228
GEN WE21X0052 GEN WE21X0052 Contact Us For Availability
2229
WHEEL & TIRE ASMY GEN WE01X1002 Contact Us For Availability
2250
GEN WE09X0055 GEN WE09X0055 Contact Us For Availability
2252
GEN WE14X0170 GEN WE14X0170 Contact Us For Availability
2260
GEN WE02X0305 GEN WE02X0305 Contact Us For Availability
9999
GEN 49-9070 GEN 49-9070 Contact Us For Availability
9999
GEN 49-9463 GEN 49-9463 Contact Us For Availability
× ![]()
