Model Fisher & Paykel DD24SCX7-84683-A Dishdrawer Dishwasher – Common Parts & Diagrams

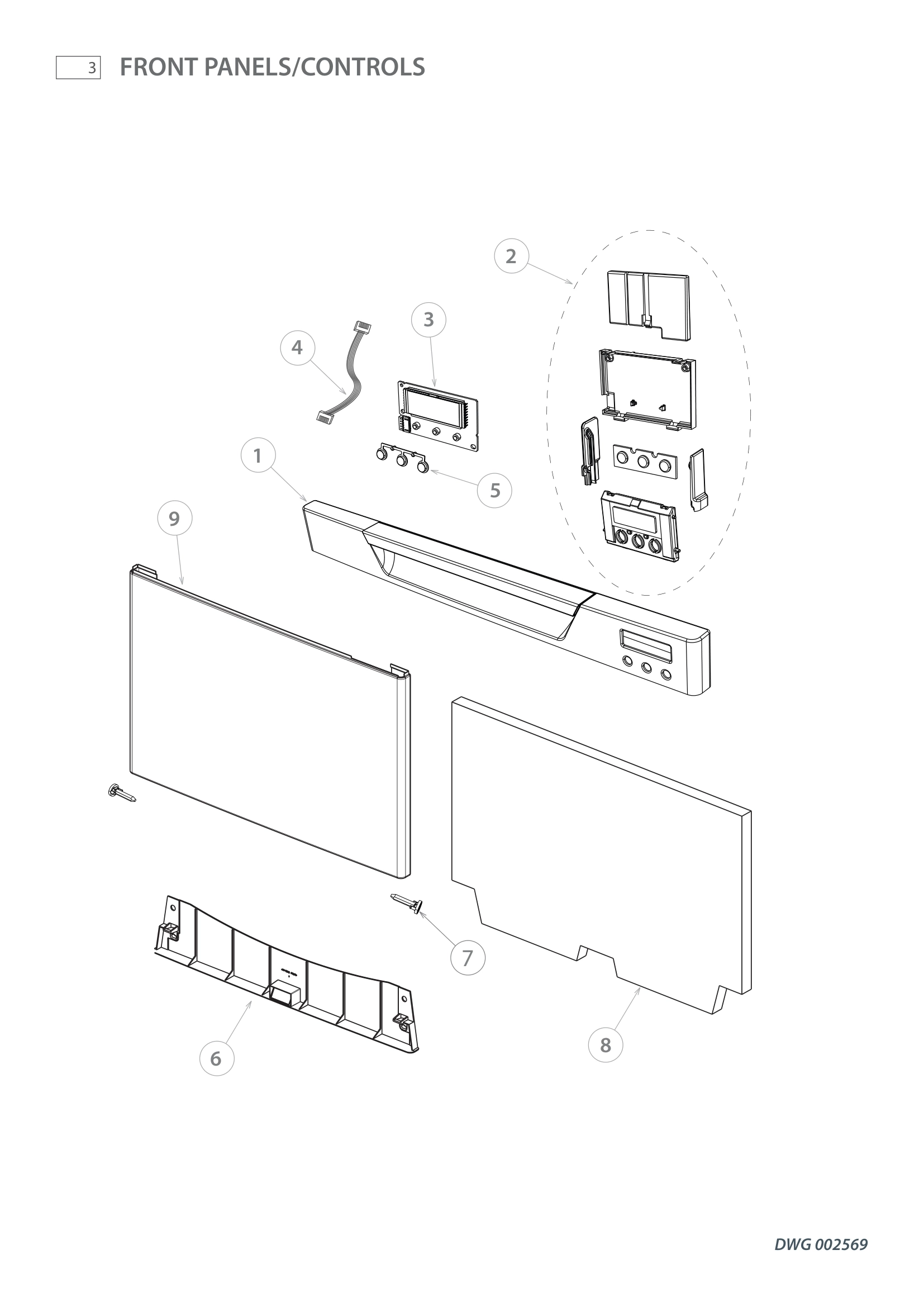

FRONT PANELS/CONTROLS

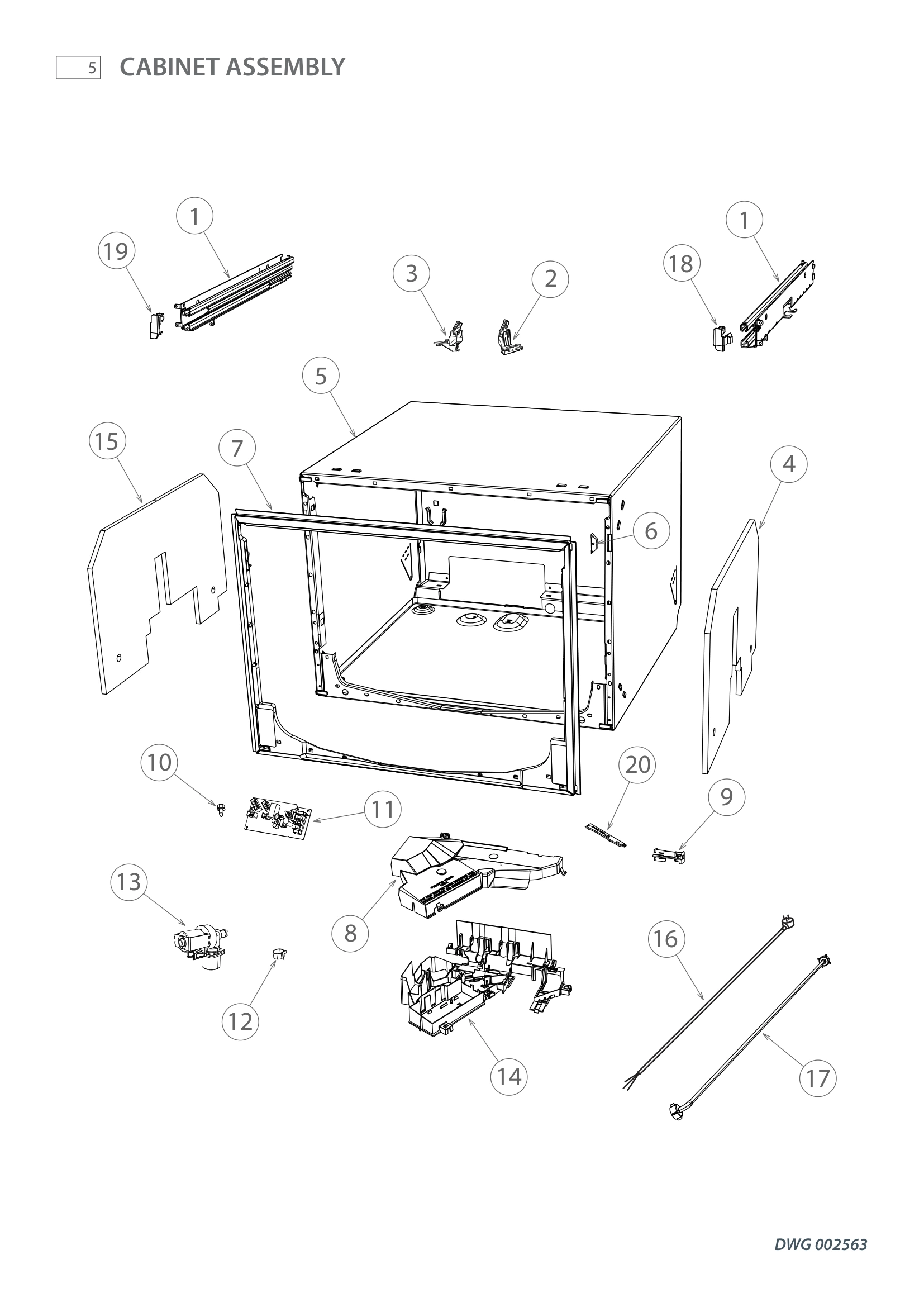

CABINET ASSEMBLY
CABINET ASSEMBLY
LID & LINK ASSEMBLY
TUB & COMPONENTS
TUB & COMPONENTS
BASKET & RACKS
INSTALLATION COMPONENTS
Common parts from model Fisher & Paykel DD24SCX7-84683-A Dishdrawer Dishwasher
1
KIT BRACKET SLIDE RH & LH ASSY FPA 524116P Contact Us For Availability
1
LID YOKE RIGHT FPA 529969 Contact Us For Availability
1
BASE RACK ASSY 606 FPA 522657 Contact Us For Availability
1
LOCKNUT FPLATE MID GREY FPA 524845 Contact Us For Availability
2
LATCH ASSY RH DD 606 FPA 522584 Contact Us For Availability
2
O RING 238 SILICONE 40 FPA 523049 Contact Us For Availability
2
LID YOKE LEFT FPA 529970 Contact Us For Availability
2
KIT LCD HOUSING DD 606 FPA 522899 Contact Us For Availability
2
CLAMP HOSE DIA 32-14 FPA 528690 Contact Us For Availability
3
KIT LID ACTUATORS 605 (PKT 2) FPA 522085 Contact Us For Availability
3
LATCH ASSY LH DD 606 FPA 522585 Contact Us For Availability
3
DRAIN FILTER ASSY FPOM 607 V2 FPA 524828 Contact Us For Availability
3
MODULE LCD 525CLASSIC BL NROHS FPA 522452P Contact Us For Availability
4
KIT FILTER PLATE OMOLD 60 MID FPA 524888 Contact Us For Availability
4
CROCK INS PA 60 ASSY FPA 523649 Contact Us For Availability
4
HARNESS BADGE ISOLATOR 605 FPA 529854 Contact Us For Availability
5
KIT CLIP FRONT/BACK PA FPA 524147 Contact Us For Availability
6
LID ASSY PH5 FPA 529964P Contact Us For Availability
6
TRAP DOOR 48MM PHASE 7 FPA 523665 Contact Us For Availability
6
KIT INSERT DOOR 606 CLSC FPA 522469P Contact Us For Availability
7
DRAIN HOSE JOINER SGL US FPA 529075 Contact Us For Availability
7
LIGHT PIPE TUB HOME 605 FPA 528276 Contact Us For Availability
7
HARNESS CHASSIS LOWER DD60 FPA 522536 Contact Us For Availability
7
WIRE SUPPORT CUP RACK STD FPA 522683 Contact Us For Availability
7
KIT TRIM UPPER COMOULD ASSY FPA 528455P Contact Us For Availability
8
BUNG ASSY DISPENSER R/AID MID GREY FPA 524837 Contact Us For Availability
8
CLAMP HOSE TYPE 12232-17-4 FPA 528674 Contact Us For Availability
8
CLIP CUPRACK SEMIFLEX (PKT 4) FPA 522694P Contact Us For Availability
8
COVER MAINS FILTER FPA 527732 Contact Us For Availability
9
KIT DISPENSER MID GREY FPA 524887 Contact Us For Availability
9
ROD LINK SUPPORT FPA 528095 Contact Us For Availability
9
CLIP WIRE DRAIN (PKT 2) FPA 525482P Contact Us For Availability
9
RACK CUP LH DD60 100MM ASSY FPA 524179 Contact Us For Availability
9
KIT DOOR UPPER ASSY SX FPA 522903 Contact Us For Availability
9
RETAINER LINK FPA 526250 Contact Us For Availability
10
RACK CUP RH DD60 80MM ASSY FPA 524180 Contact Us For Availability
10
BRACKET DISPENSER SHORT FPA 526789 Contact Us For Availability
10
SCREW ST M4X12 XTITE HXW (PKT 10) FPA 556082P Contact Us For Availability
11
HARNESS & FAN ASSY FPA 522006 Contact Us For Availability
11
CLIP LINK SUPPORT FPA 528162 Contact Us For Availability
12
MOD CTRL 525 P7 DD60 120V FPA 523725USP Contact Us For Availability
12
CLAMP HOSE HERBIE TYPE E FPA 525466 Contact Us For Availability
12
CLIP LINK TUB SIDE (PKT 10) FPA 528537P Contact Us For Availability
13
KIT MOTOR ASSY PH5 FPA 522088 Contact Us For Availability
14
HALL SENSOR PCB ASSY 605 ROHS FPA 528785P Contact Us For Availability
14
KIT HOUSING MAINS FILTER ASSY 605 FPA 522143 Contact Us For Availability
15
KIT FLAP VALVE/O RING 605 (PKT 2) FPA 522150 Contact Us For Availability
15
SUPPORT GLASS CLIPON (PKT 2) FPA 522691P Contact Us For Availability
15
INSULATION CHASSIS SINGLE FPA 528822 Contact Us For Availability
16
KIT HEATER PLATE 605 110V FPA 522091 Contact Us For Availability
16
FLEX MAINS 605 US FPA 529695 Contact Us For Availability
16
DD KNIFE CLIP COMBINED FPA 523326 Contact Us For Availability
17
HOSE INLET WIRSBO US FPA 525970 Contact Us For Availability
18
CLIP TUB RELEASE RH MID GREY FPA 524783 Contact Us For Availability
19
CLIP TUB RELEASE LH MID GREY FPA 524782 Contact Us For Availability
19
COVER WIRING CO-MOULD 605 FPA 529152 Contact Us For Availability
20
GROMMET 605 CHASSIS MODULE FPA 527727 Contact Us For Availability
21
KIT SEAL WASH 605 FPA 522089 Contact Us For Availability
22
HARNESS MOTOR PH5 FPA 529683 Contact Us For Availability
23
HARNESS DISPENSER PH3 FPA 526263 Contact Us For Availability
27
RETAINER FLAP FAN HOUSING 605 FPA 528064 Contact Us For Availability
28
KIT LOCKNUT INNER FPA 522163 Contact Us For Availability
NI
KIT DRAIN HOSE JOINER FPA 527394 Contact Us For Availability
NI
KIT DRAIN HOSE EXTENSION 3.6M FPA 525798 Contact Us For Availability
NI
KIT INSTAL DBL/SGL PH5/PH6 US FPA 522865 Contact Us For Availability
NI
WASHER WIRSBO US (PKT 10) FPA 525938P Contact Us For Availability
NI
ADAPTOR HOSE INLET US FPA 526161 Contact Us For Availability
NI
PANEL CONTROLLER 605 FPA 529041 Contact Us For Availability
× ![]()
