Model Whirlpool DCS550W DISHWASHER – Common Parts & Diagrams

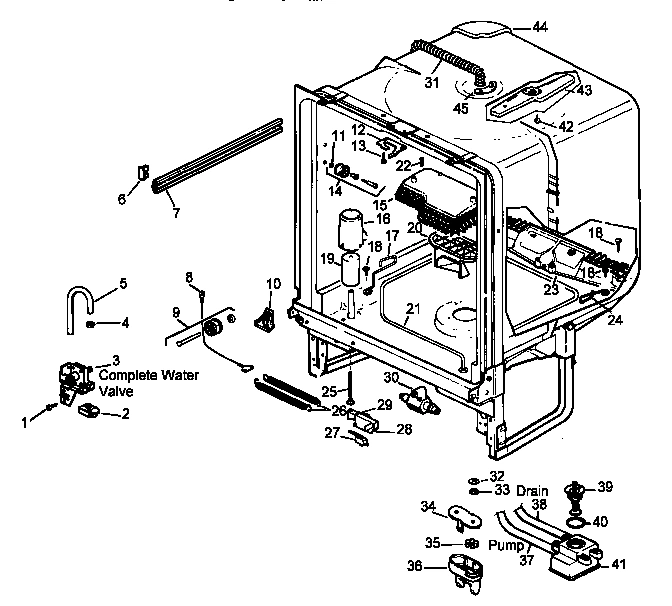

05 - TUB PARTS
01 - CONTROL PANEL ASSY

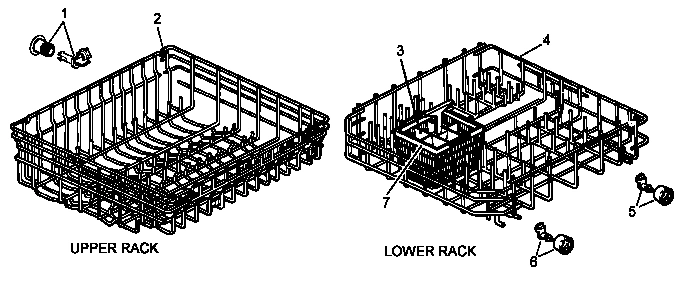

06 - UPPER/LOWER RACK PARTS

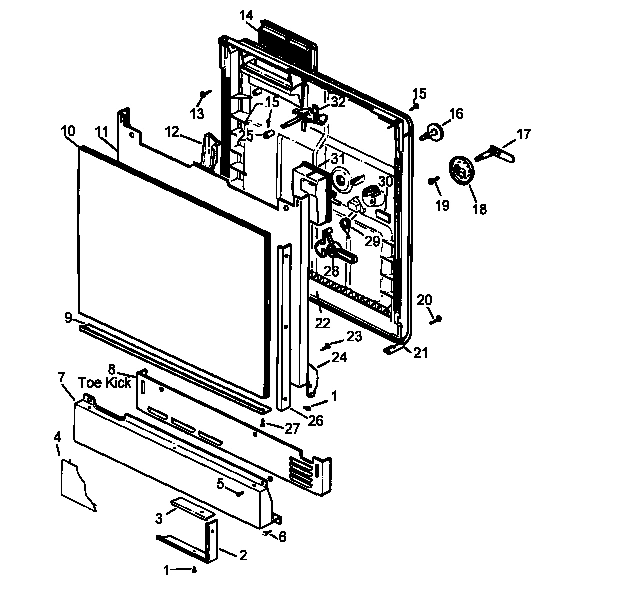

02 - DOOR/TRIM PARTS

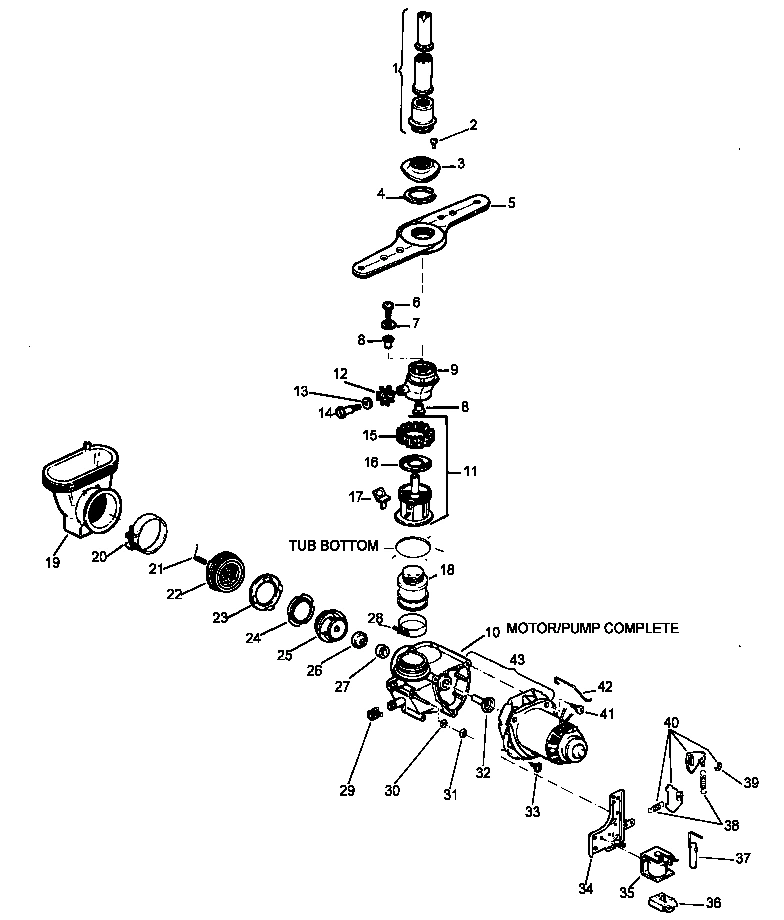

04 - PUMP & WATER DISTRIBUTION COMPONENTS

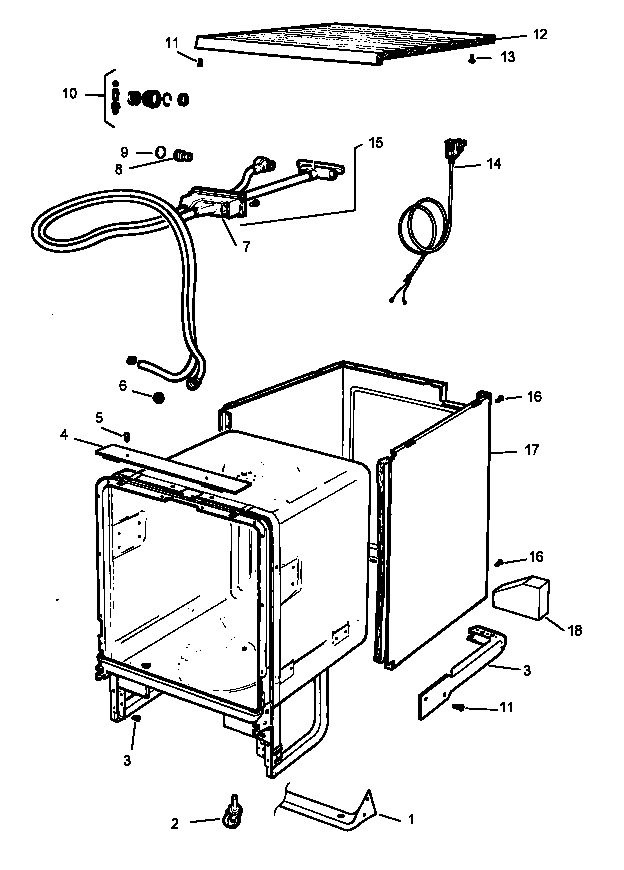

03 - MISCELLANEOUS PARTS
Common parts from model Whirlpool DCS550W DISHWASHER
1
SCREW (1=12) WPL R0900049 Contact Us For Availability
1
KNOB TIMER ASSY WPL R0903539 Contact Us For Availability
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
1
SCREW WPL R0900010 Contact Us For Availability
1
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability
1
BRACE, FRONT WPL R0905729 Contact Us For Availability
2
PUSH BUTTON WPL R0903542 Contact Us For Availability
2
RACK, UPPER WPL R0910126 Contact Us For Availability
2
TRIM-SIDE/BOT SERV PANEL WPL R0905653 Contact Us For Availability
2
CASTER WPL R0910142 Contact Us For Availability
3
VALVE, WATER INLET WPL R0910140 Contact Us For Availability
3
PUSHBUTTON WPL R0903540 Contact Us For Availability
3
LID, SILVERWARE BSKT WPL R0910136 Contact Us For Availability
3
TRIM-TOP SERV PANEL WPL R0905648 Contact Us For Availability
3
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
3
BRACE, REAR WPL R0905728 Contact Us For Availability
4
INSERT- ESUTCHEON WPL R0905649 Contact Us For Availability
4
RACK, LOWER WPL R0910127 Contact Us For Availability
4
INSERT, SVC PANEL WPL R0905602 Contact Us For Availability
4
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability
4
CROSS, PIECE WPL R0910143 Contact Us For Availability
5
HOSE, WATER INLET WPL R0903589 Contact Us For Availability
5
ESCUTCHEON WPL R0903025 Contact Us For Availability
5
ROLLER ASSY WPL R0910008 Contact Us For Availability
5
SCREW WPL R0900017 Contact Us For Availability
5
SPRAY ARM WPL R0910051 Contact Us For Availability
5
SCREW WPL R0900050 Contact Us For Availability
6
END CAP WPL R0903517 Contact Us For Availability
6
RETAINER, SWITCH WPL R0905546 Contact Us For Availability
6
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
6
SCREW, HUB WPL R0900045 Contact Us For Availability
6
WASHER, 19/32 IDX1.031 WPL R0900513 Contact Us For Availability
7
RACK SLIDE WPL R0905567 Contact Us For Availability
7
SWITCH-PUSHBUTTON WPL R0902517 Contact Us For Availability
7
BASKET, SILVERWARE WPL R0910137 Contact Us For Availability
7
PANEL, SERVICE WPL R0903034 Contact Us For Availability
7
WASHER WPL R0900502 Contact Us For Availability
7
POCKET UNICOUPLE WPL R9819133 Contact Us For Availability
8
CABLE AND EYELET WPL R0910139 Contact Us For Availability
8
COVER, SWITCH WPL R0905547 Contact Us For Availability
8
ASSY, TOE KICK WPL R0910138 Contact Us For Availability
8
BEARING WPL R0905556 Contact Us For Availability
8
ADAPTER, ASSY FAUCET WPL R0910135 Contact Us For Availability
9
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
9
HOUSING, TERMINAL WPL R0910130 Contact Us For Availability
9
TRIM, BOTTOM DOOR WPL R0905723 Contact Us For Availability
9
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
9
WASHER WPL R0900517 Contact Us For Availability
10
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
10
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
10
TERMINAL, SPECIAL WPL R0910129 Contact Us For Availability
10
DOOR PANEL INSERT WPL R0905559 Contact Us For Availability
10
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
10
KIT, REPAIR UNICOUPLE WPL R0910132 Contact Us For Availability
11
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
11
COVER, ELECTRICAL WPL R0903033 Contact Us For Availability
11
ASSY, OUTER DOOR WPL R0910145 Contact Us For Availability
11
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
11
SCREW (1=12) WPL R0900051 Contact Us For Availability
12
LATCH KEEPER WPL R0905505 Contact Us For Availability
12
CONDUIT, HARNESS WPL R0905726 Contact Us For Availability
12
PINION GEAR WPL R0910016 Contact Us For Availability
12
TOP, WOOD (LAMINATED) WPL R0910141 Contact Us For Availability
13
SCREW WPL R0900025 Contact Us For Availability
13
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
13
WASHER WPL R0900504 Contact Us For Availability
13
SCREW WPL R0900048 Contact Us For Availability
14
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
14
SWITCH LEAF WPL R0905533 Contact Us For Availability
14
DOOR VENT WPL R0905536 Contact Us For Availability
14
SCREW WPL R0900015 Contact Us For Availability
14
CORD, POWER WPL R0906012 Contact Us For Availability
15
COVER INLET SUMP WPL R0905527 Contact Us For Availability
15
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
15
NUT WPL R0901004 Contact Us For Availability
15
UNICOUPLE & HOSE COMPLETE WPL R0910134 Contact Us For Availability
16
FLOAT WPL R0905511 Contact Us For Availability
16
SCREW WPL R0900009 Contact Us For Availability
16
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
16
CAP, FILL WPL R0905727 Contact Us For Availability
16
SEAL LOWER WPL R0910029 Contact Us For Availability
17
SUPPORT, HEATER FRONT WPL R0905632 Contact Us For Availability
17
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
17
SHAFT HAND D CUP WPL R0905538 Contact Us For Availability
17
CHECK VALVE WPL R0910037 Contact Us For Availability
17
NOT AVAILABLE WPL ARI2498A16 Contact Us For Availability
18
LEVER, TIMER WPL R0905545 Contact Us For Availability
18
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
18
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
18
COUNTER WEIGHT WPL R0910144 Contact Us For Availability
19
FLOOD FLOAT WPL R0903501 Contact Us For Availability
19
CAM, TIMER WPL R0905544 Contact Us For Availability
19
SUMP, INLET WPL R0905719 Contact Us For Availability
20
CAP, SUMP WPL R0905718 Contact Us For Availability
20
TIMER WPL R0904005 Contact Us For Availability
20
SCREW WPL R0900006 Contact Us For Availability
21
HEATER WPL R0906001 Contact Us For Availability
21
ASSY, PILOT LIGHT WPL R0912005 Contact Us For Availability
21
GASKET, DOOR WPL R0904526 Contact Us For Availability
21
SPRING, CUTTER WPL R0905521 Contact Us For Availability
22
SCREW WPL R0900008 Contact Us For Availability
22
RETAINER WPL R0901502 Contact Us For Availability
22
DOOR, INNER WPL R0910131 Contact Us For Availability
22
NUT WPL R0905563 Contact Us For Availability
23
ASSY, FILTER FRAME WPL R0910122 Contact Us For Availability
23
THERMOSTAT, WATER WPL R0911001 Contact Us For Availability
23
SCREW, HINGE WPL R0900052 Contact Us For Availability
23
WEAR RING BASE WPL R0905518 Contact Us For Availability
24
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
24
SPRING WPL R0901501 Contact Us For Availability
24
ARM, HINGE L.H. WPL R0905724 Contact Us For Availability
24
ARM, HINGE R.H. WPL R0905725 Contact Us For Availability
24
WEAR RING WPL R0905520 Contact Us For Availability
25
FLOAT STEM WPL R0905512 Contact Us For Availability
25
LENS, INDIC. LIGHT WPL R0910128 Contact Us For Availability
25
KNOB, LATCH WPL R0903532 Contact Us For Availability
25
PUMP IMPELLER WPL R0905519 Contact Us For Availability
26
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
26
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
26
TRIM, SIDE DOOR WPL R0905722 Contact Us For Availability
26
SHAFT SEAL WPL R0903503 Contact Us For Availability
27
SWITCH FLOOD WPL R0902501 Contact Us For Availability
27
SEAL WPL R0903502 Contact Us For Availability
28
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
28
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
29
CLAMP WPL R0901510 Contact Us For Availability
29
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
29
TRIP SPRING WPL R0905542 Contact Us For Availability
30
CHECK VALVE WPL R0910053 Contact Us For Availability
30
DEFLECTER WPL R0905523 Contact Us For Availability
30
SEAL, SHAFT WPL R0906504 Contact Us For Availability
31
HOSE, SHOWER ASSY WPL R0903527 Contact Us For Availability
31
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
31
NUT WPL R0906510 Contact Us For Availability
32
WASHER WPL R0900501 Contact Us For Availability
32
LATCH ASM WPL R0910121 Contact Us For Availability
32
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
33
GROMMET WPL R0906502 Contact Us For Availability
33
SCREW WPL R0900002 Contact Us For Availability
34
BASE BARRIER WPL R0903580 Contact Us For Availability
34
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
35
NUT WPL R0901001 Contact Us For Availability
35
SOLENOID KIT WPL R0909003 Contact Us For Availability
36
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
36
BARRIER, HTG ELEMENT WPL R0903581 Contact Us For Availability
37
HOSE, CHAMBER WPL R0906506 Contact Us For Availability
37
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
38
HOSE, CHAMBER WPL R0906505 Contact Us For Availability
38
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
39
PISTON & NUT ASSY WPL R0903586 Contact Us For Availability
39
RETAINER WPL R0901503 Contact Us For Availability
40
GASKET WPL R0904503 Contact Us For Availability
40
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
41
COLL. CHAMBER WPL R0910054 Contact Us For Availability
41
SCREW WPL R0900007 Contact Us For Availability
42
HANGER MECHANISM WPL R0905712 Contact Us For Availability
43
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
43
MOTOR/PUMP ASSY DISHWA WPL R0907005 Contact Us For Availability
44
INSULATION WPL R0904523 Contact Us For Availability
45
NUT WPL R0901003 Contact Us For Availability
NI
KIT, CONVERSION DISHWASHER WPL R0910125 Contact Us For Availability
× ![]()
