Model Whirlpool DCR22501FOS DISHWASHER – Common Parts & Diagrams

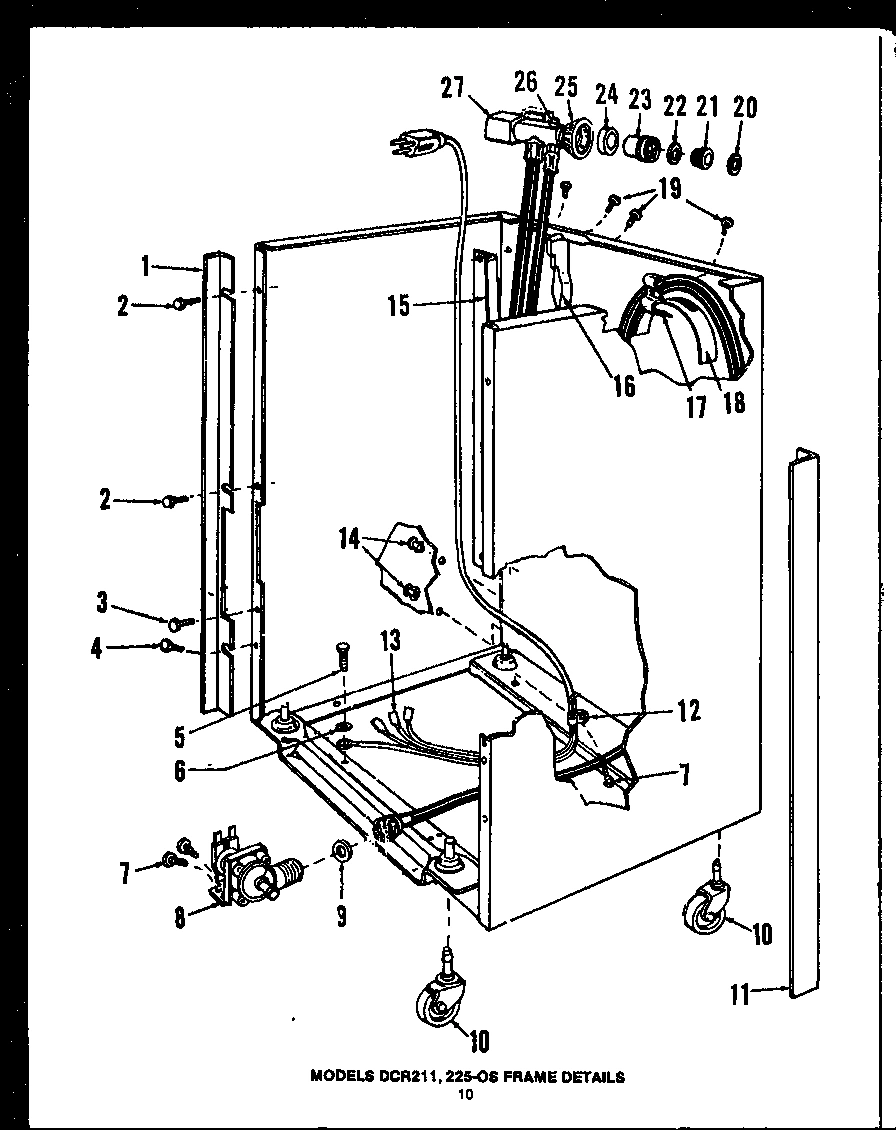

03 - Page 5

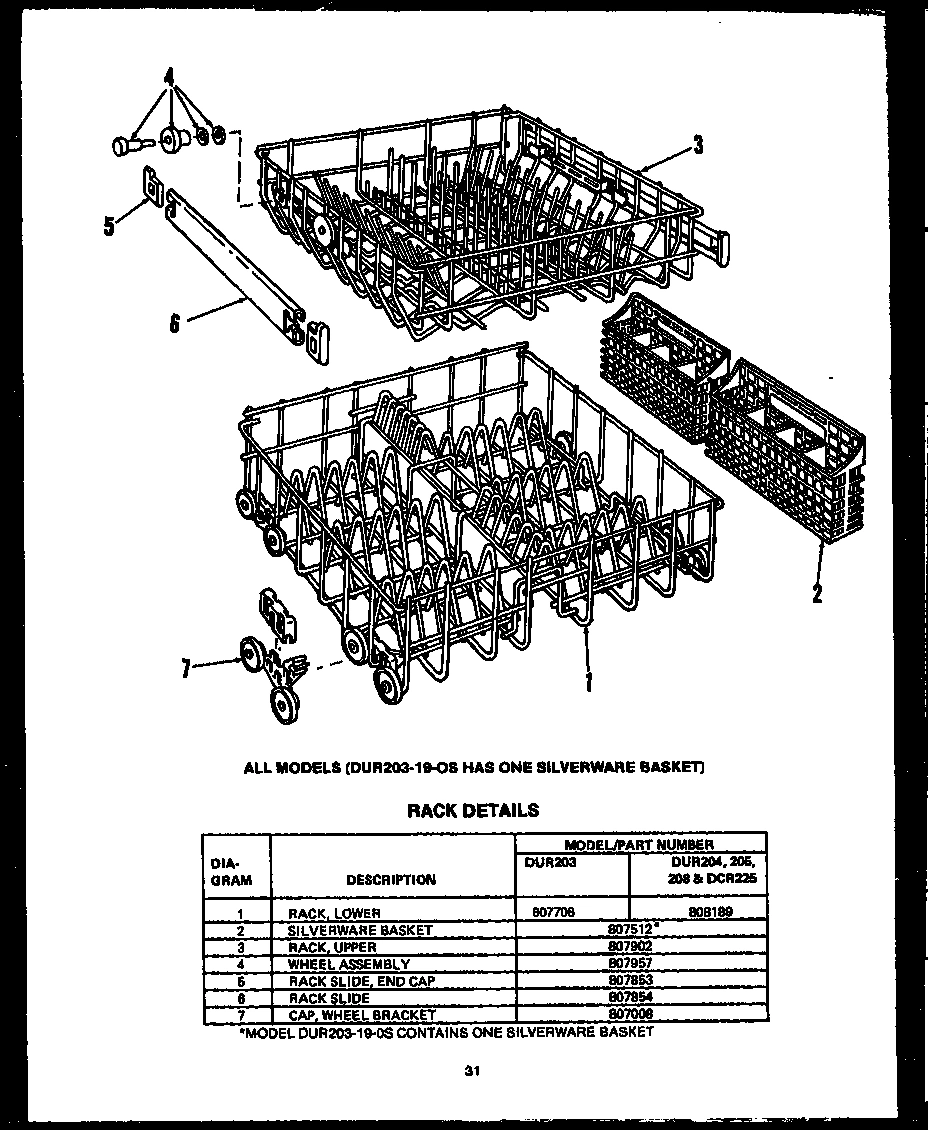

04 - RACK DETAILS

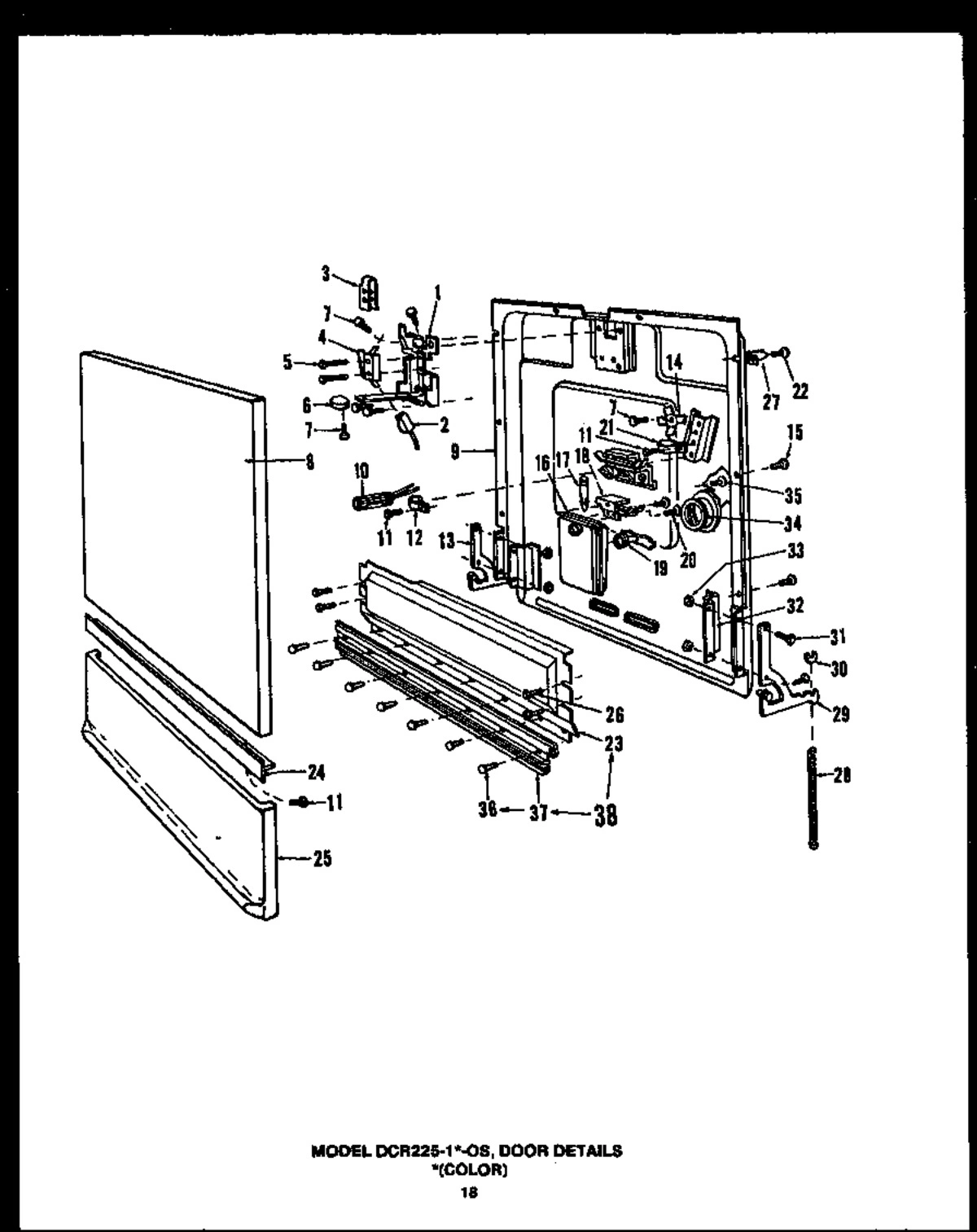

01 - DOOR DETAILS

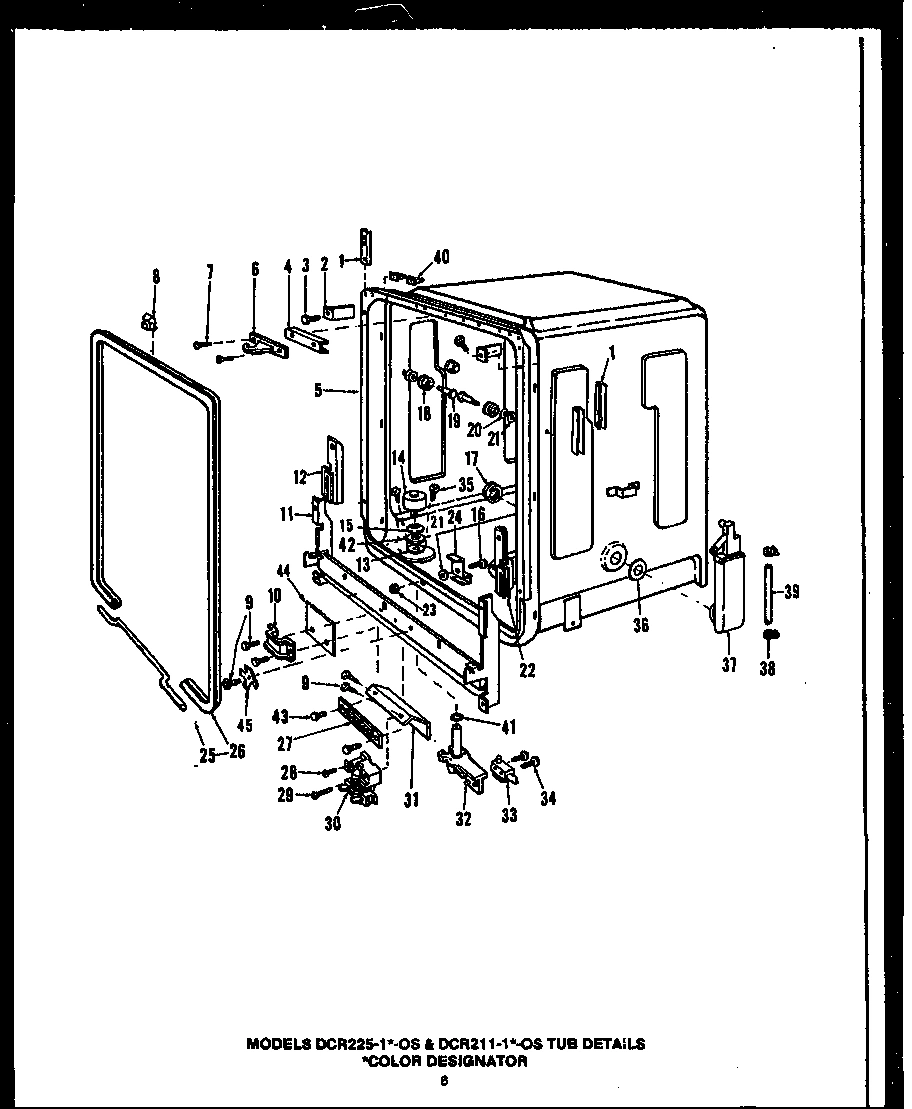

02 - Page 3

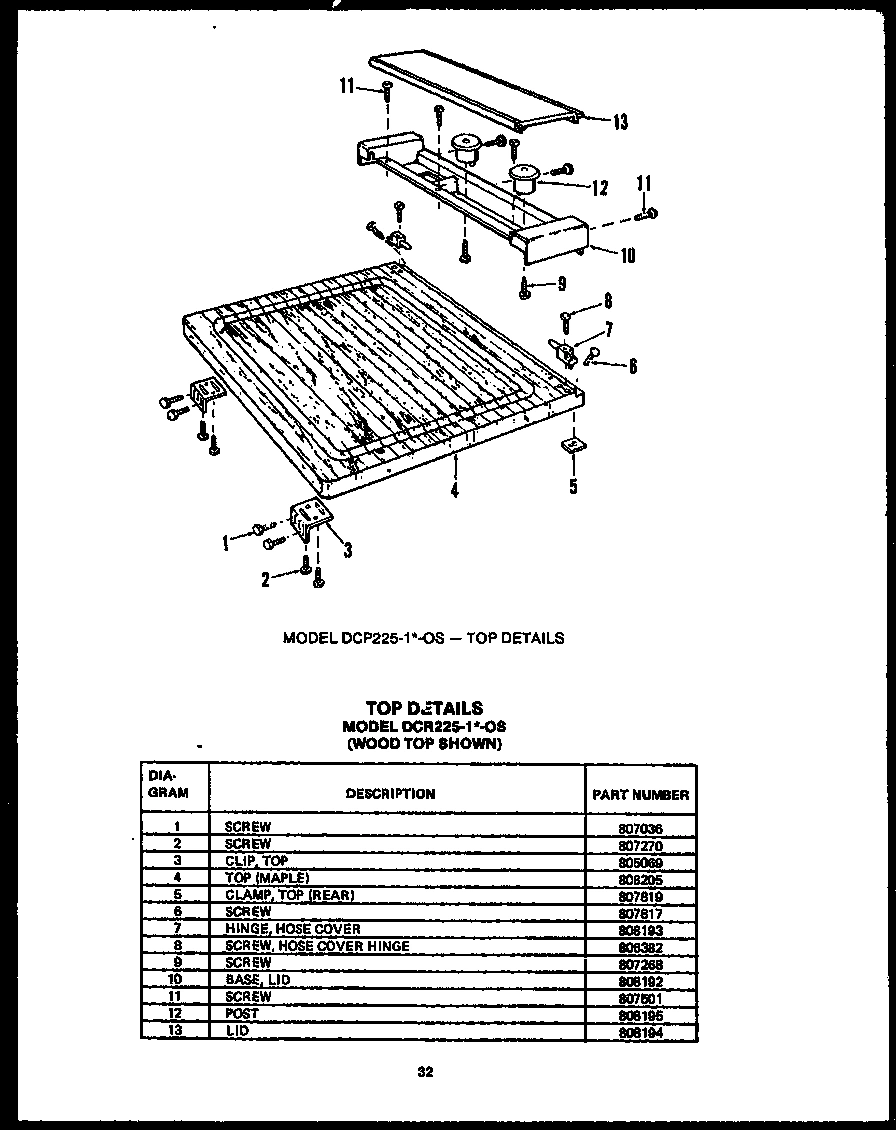

05 - TOP DETAILS
Common parts from model Whirlpool DCR22501FOS DISHWASHER
1
CABINET TRIM - L.H. WPL 0806902 Contact Us For Availability
1
SUB 808946, RACK, LOWER WPL 0808189 Contact Us For Availability
1
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
1
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
1
SCREW WPL 0807036 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
TERMINAL INSULATOR WPL 0806846 Contact Us For Availability
2
TUB PAD WPL 807454 Contact Us For Availability
2
SCREW WPL 0807270 Contact Us For Availability
3
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
3
SCREW WPL 0806663 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
SWITCH COVER WPL 0807450 Contact Us For Availability
3
CLIP WPL 805069 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
4
SHIM STRIKE WPL 0807073 Contact Us For Availability
4
TOP, MAPLE WPL Y0808205 Contact Us For Availability
5
SCREW WPL 0807951 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
SCREW, FLOAT SWITCH WPL 0803051 Contact Us For Availability
5
SUB 809261, TUB & GASKET ASSY. WPL 0808187 Contact Us For Availability
5
CLAMP, TOP WPL Y0807819 Contact Us For Availability
6
WASHER WPL 0807373 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
SCREW WPL Y0807817 Contact Us For Availability
7
SUB 807004 SCREW WPL 0804518 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
HINGE, HOSE COVER WPL Y0808193 Contact Us For Availability
8
SUB 808667, WATER VALVE WPL Y0804982 Contact Us For Availability
8
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
8
DOOR PANEL, AVOCADO WPL 0807642 Contact Us For Availability
8
DOOR PANEL, GOLD WPL 0807643 Contact Us For Availability
8
DOOR PANEL WPL 807595 Contact Us For Availability
8
DOOR PANEL WPL 807641 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
SCREW ASSY WPL 0806382 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL Y0800787 Contact Us For Availability
9
SCREW WPL 0806830 Contact Us For Availability
9
INNER DR. ASSY. WPL 0807194 Contact Us For Availability
9
SCREW WPL Y0807268 Contact Us For Availability
10
SUB 808972, CASTER WPL 0806171 Contact Us For Availability
10
THERMOSTAT KIT WPL 0807464 Contact Us For Availability
10
TUB CUSHION WPL 805723 Contact Us For Availability
10
BASE, LID WPL Y0808192 Contact Us For Availability
11
USE M0217224 WPL Y0803416 Contact Us For Availability
11
CABINET TRIM - R.H. WPL 0806903 Contact Us For Availability
11
WELD ASSEMBLY, HINGE WPL Y0807885 Contact Us For Availability
12
RELIEF, STRAIN WPL Y0804426 Contact Us For Availability
12
CLAMP WPL Y0805340 Contact Us For Availability
12
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
12
POST WPL Y0808195 Contact Us For Availability
13
CORD, POWER WPL 0805046 Contact Us For Availability
13
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
13
GASKET WPL Y0808063 Contact Us For Availability
13
LID WPL 0808194 Contact Us For Availability
14
PLUG BUTTON WPL Y0807883 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
15
HOSE GUARD WPL 0808120 Contact Us For Availability
15
SCREW WPL 0806967 Contact Us For Availability
15
COLLAR WPL 0804149 Contact Us For Availability
16
GUIDE, HOSE WPL 0805859 Contact Us For Availability
16
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
17
BRACKET RETAINING WPL 0806142 Contact Us For Availability
17
PLUNGER WPL 0806757 Contact Us For Availability
17
NUT PLASTIC WPL 0805669 Contact Us For Availability
18
SUPPORT, HOSE WPL 0806143 Contact Us For Availability
18
BRACKET ASSEMBLY WPL 0806756 Contact Us For Availability
18
ROLLER WPL 0807180 Contact Us For Availability
19
SUB 807673 FILL PLUG WPL Y0806843 Contact Us For Availability
19
SUB 808564, KIT, SCREW & WSR. WPL 0807181 Contact Us For Availability
20
WASHER, COUPLER WPL Y0803393 Contact Us For Availability
20
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
21
ADAPTER WPL Y0800782 Contact Us For Availability
21
CLAMP WPL Y0807212 Contact Us For Availability
21
USE 0809044 WPL 0805776 Contact Us For Availability
22
WASHER, ADAPTER WPL Y0803392 Contact Us For Availability
22
SCREW WPL 0806976 Contact Us For Availability
22
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
23
UPPER RACK ASSY WPL 0809056 Contact Us For Availability
23
USE M0281003 WPL 0803346 Contact Us For Availability
24
DOOR BOTTOM TRIM WPL 0806912 Contact Us For Availability
24
CLIP, GASKET WPL 0808115 Contact Us For Availability
25
SUB 809139, COLLAR WPL Y0807499 Contact Us For Availability
25
ACCESS PANEL ASSY., WHITE WPL 0808069 Contact Us For Availability
25
ACCESS PANEL ASSY., ALMOND WPL 0808081 Contact Us For Availability
25
ACCESS PANEL ASSY, DARK COPPER WPL 0808082 Contact Us For Availability
25
ACCESS PANEL ASSY, AVOCADO WPL 0808083 Contact Us For Availability
25
ACCESS PANEL ASSY., GOLD WPL 0808084 Contact Us For Availability
25
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
26
KIT, PRESSURE RELIEF WPL 0807498 Contact Us For Availability
26
USE 0806976 WPL 0806810 Contact Us For Availability
26
SUB 808959, GASKET & WIRE ASSY WPL Y0808345 Contact Us For Availability
27
FAUCET COUPLER ASSEMBLY WPL Y0807496 Contact Us For Availability
27
DOOR GUIDE WPL 0807449 Contact Us For Availability
27
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
28
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
29
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
29
SCREW WPL 0804672 Contact Us For Availability
30
SPRING PAD WPL 0805884 Contact Us For Availability
30
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
31
SCREW WPL 0803311 Contact Us For Availability
31
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
32
ARM BRACKET WPL Y0806717 Contact Us For Availability
32
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
33
NUT WPL 0800928 Contact Us For Availability
33
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
34
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
34
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
35
SCREW WPL 0806863 Contact Us For Availability
36
RIVET, PLASTIC, PKG. OF 7 WPL Y0808330 Contact Us For Availability
36
WASHER WPL Y0803573 Contact Us For Availability
37
SEAL, BAFFLE WPL Y0808331 Contact Us For Availability
37
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
38
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
38
CLAMP WPL Y0807813 Contact Us For Availability
39
TUBE, INLET WPL 0807891 Contact Us For Availability
40
PLASTIC NUT WPL 0807018 Contact Us For Availability
41
``0`` RING WPL Y0807759 Contact Us For Availability
42
RING WPL Y0808064 Contact Us For Availability
44
WIRE SHIELD WPL 0808013 Contact Us For Availability
45
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
NI
SUB 808928, CONVERSION KIT WPL 0090896 Contact Us For Availability
× ![]()
