Model Whirlpool DCR2111COM DISHWASHER – Common Parts & Diagrams

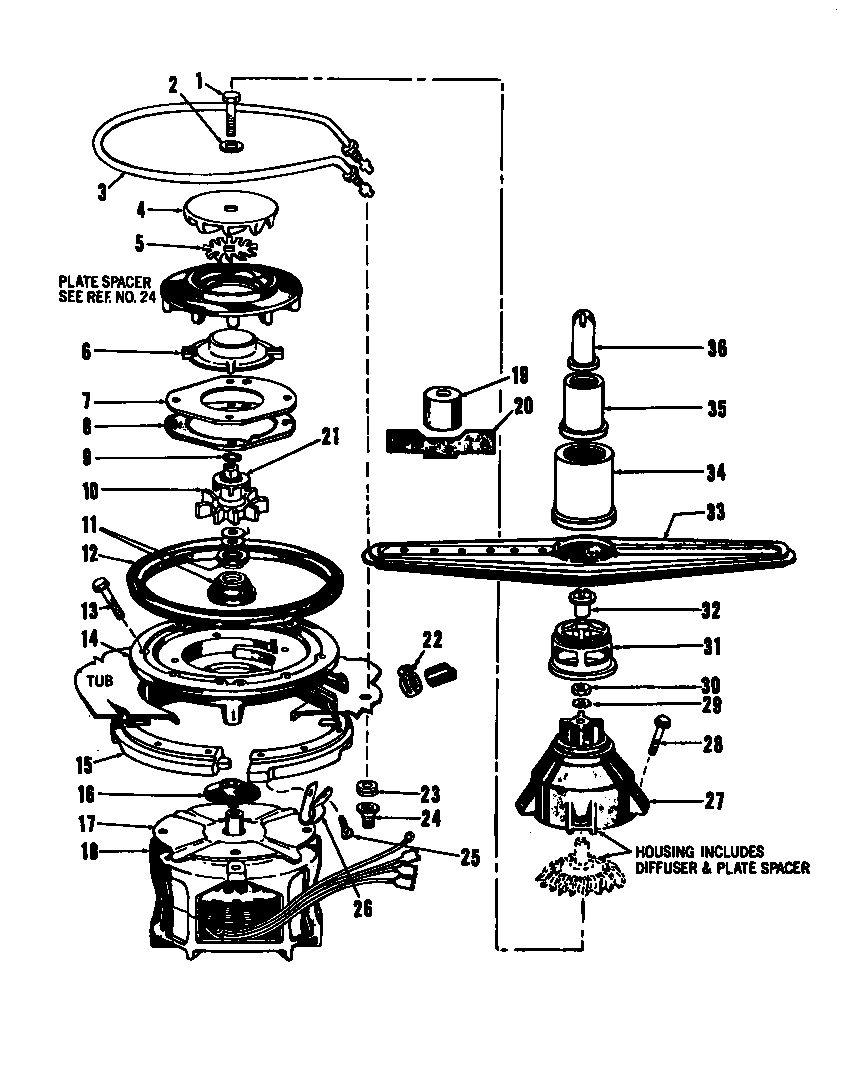

05 - MOTOR

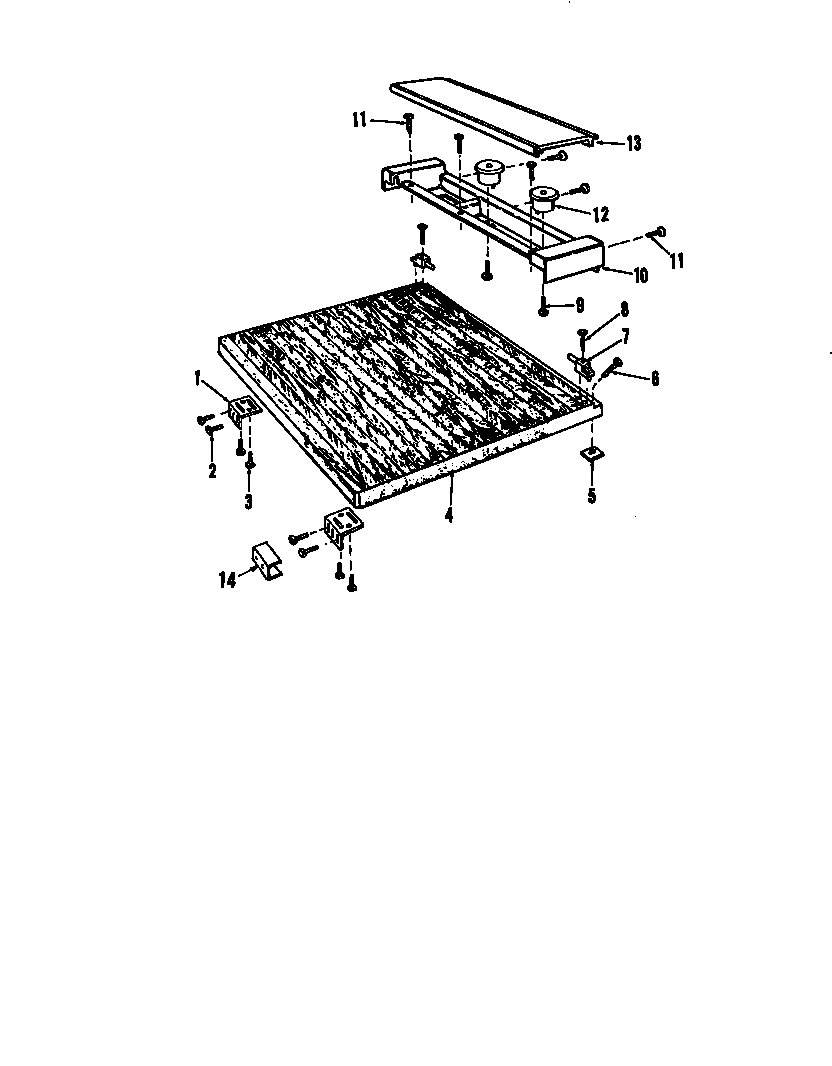

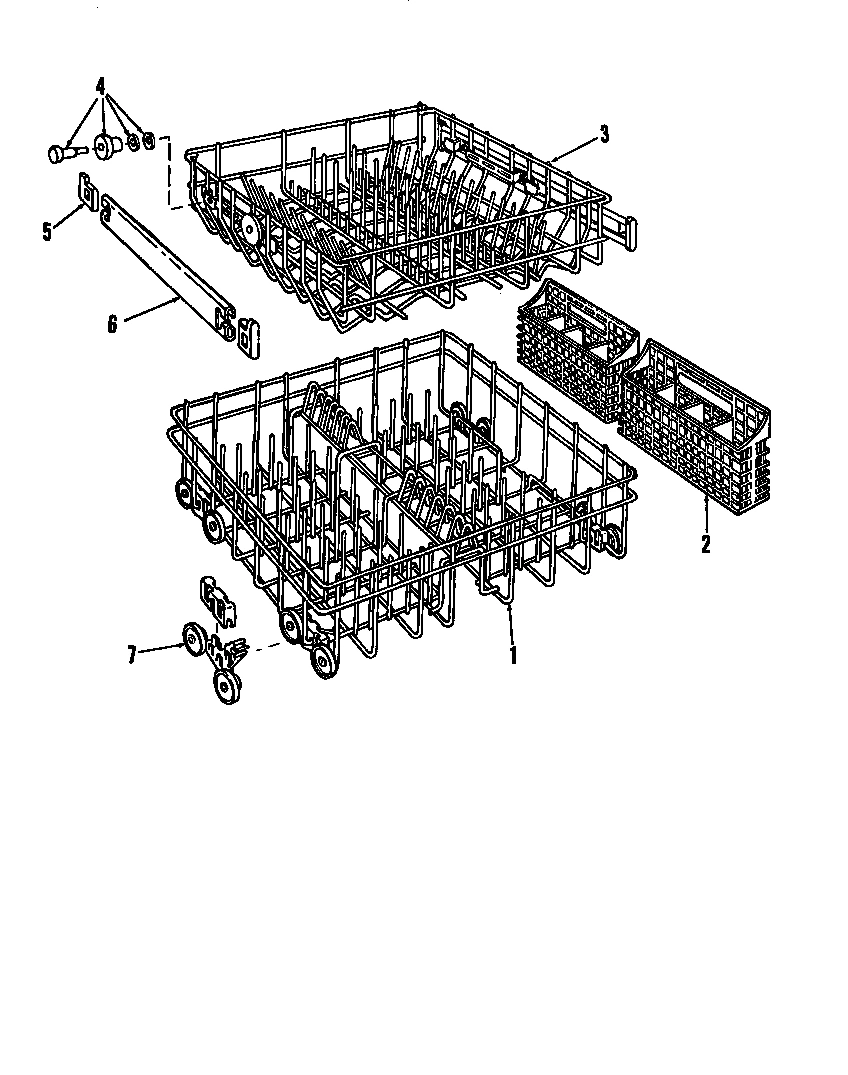

07 - RACK DETAILS

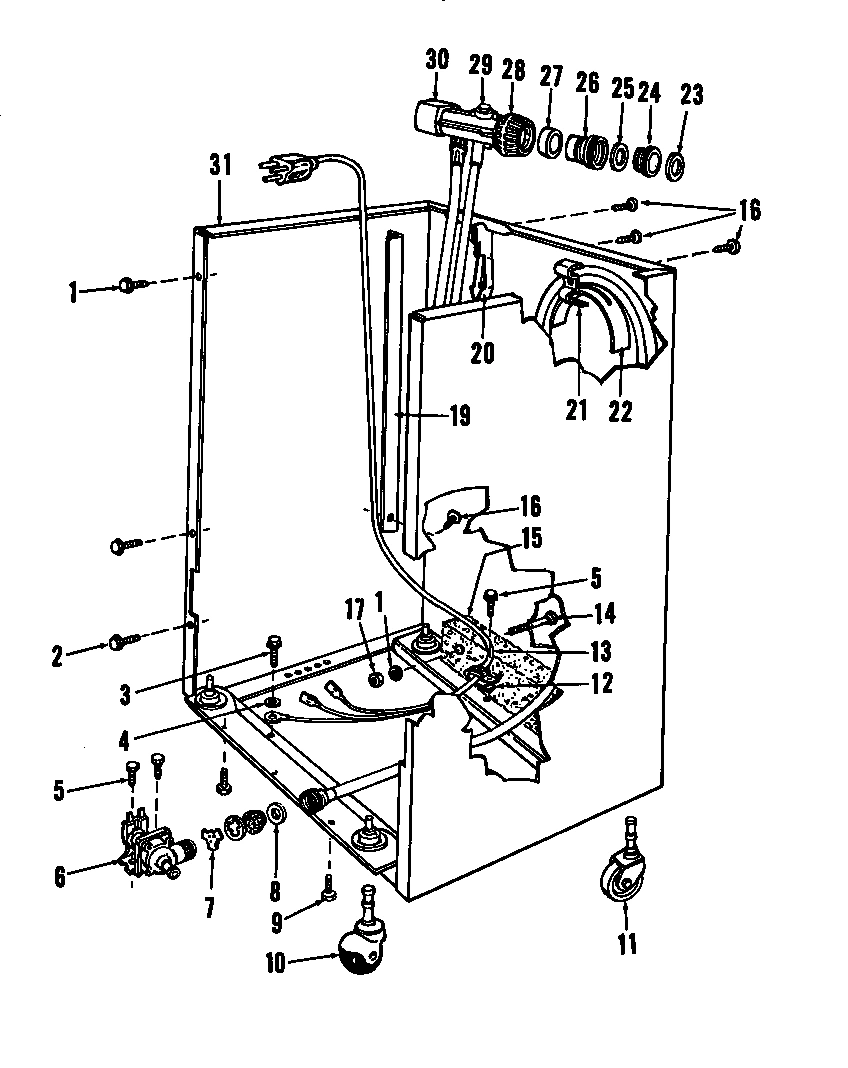

04 - FRAME DETAILS
06 - Page 4

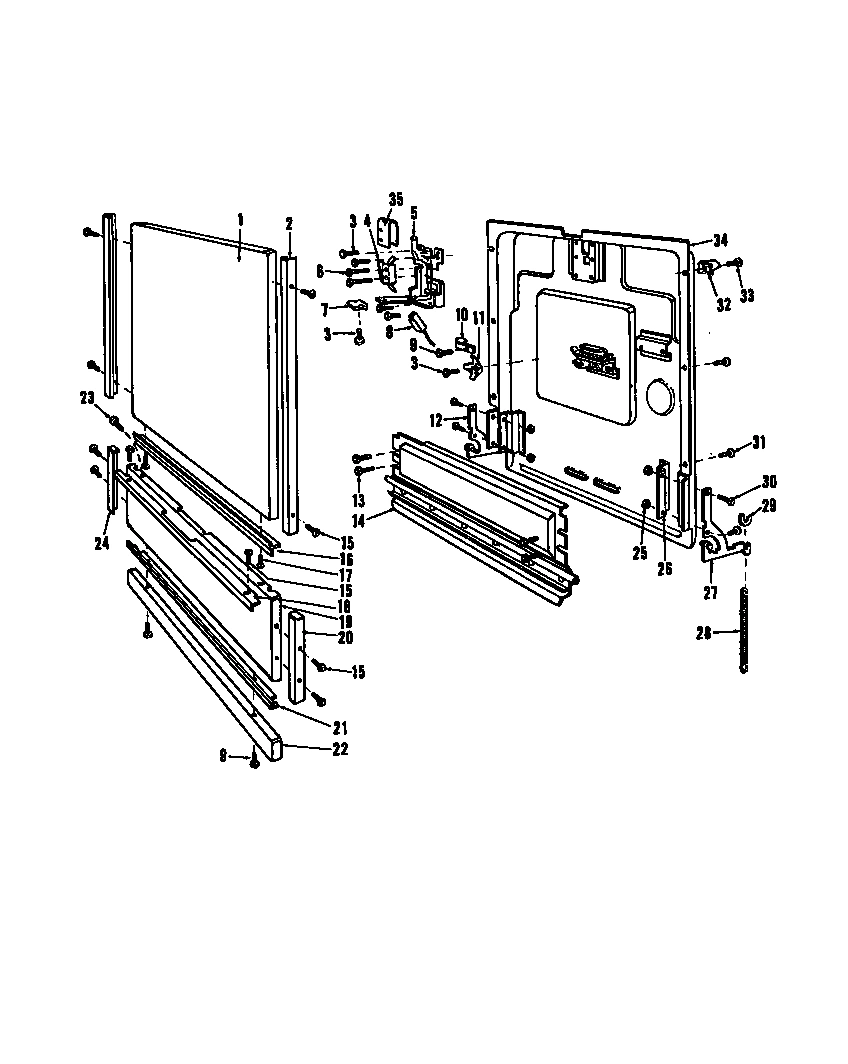

03 - DOOR DETAILS
02 - DETERGENT CUP
01 - CONTROL PANEL

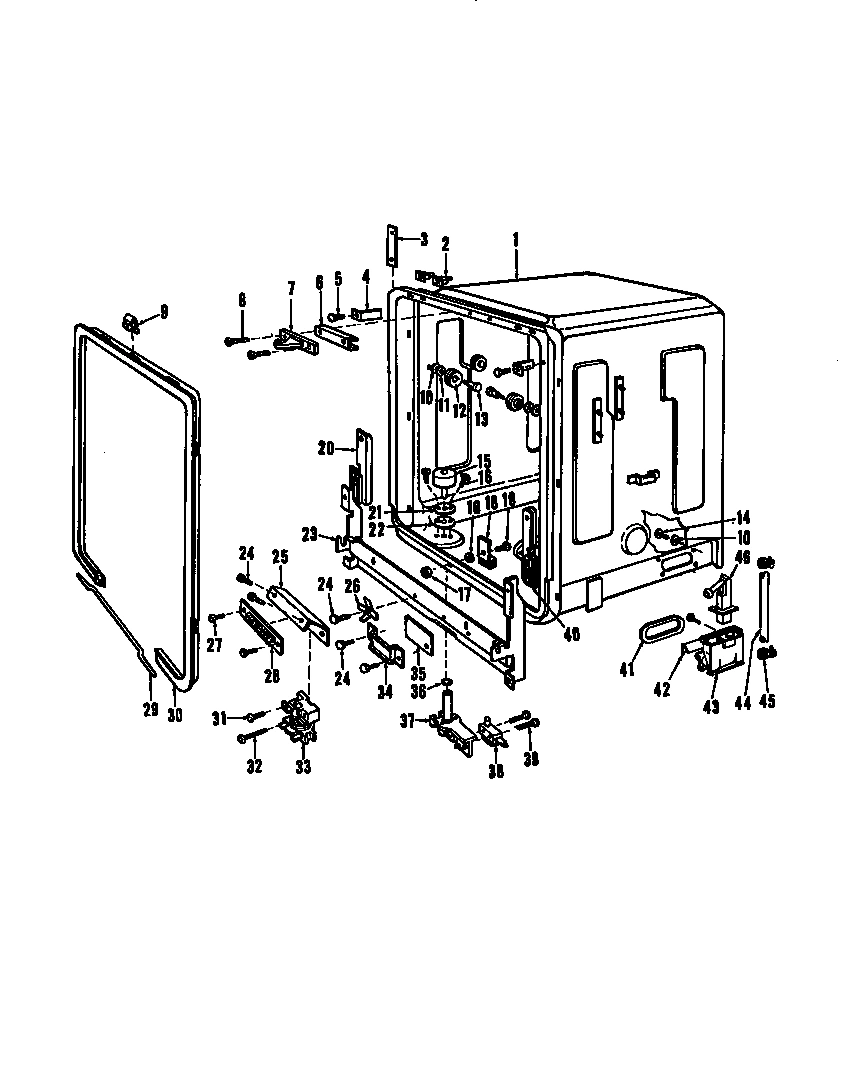

08 - TOP DETAILS
Common parts from model Whirlpool DCR2111COM DISHWASHER
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
SUB 808946,RACK LOWER WPL 0808684 Contact Us For Availability
1
SUB 808372, TUB & GASKET ASSY. WPL 0808725 Contact Us For Availability
1
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
1
DOOR PANEL, ALMOND WPL Y0808523 Contact Us For Availability
1
DOOR PANEL, GOLD WPL Y0808524 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
1
SCREW WPL 0806943 Contact Us For Availability
1
CLIP WPL 805069 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
SCREW WPL 0806663 Contact Us For Availability
2
PLASTIC NUT WPL 0807018 Contact Us For Availability
2
DOOR TRIM, SIDE WPL 0808026 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
END CAP, RH WPL 0806402 Contact Us For Availability
2
SCREW WPL 0807036 Contact Us For Availability
3
SUB 806864 HEATER SERVICE KIT WPL Y0806836 Contact Us For Availability
3
SCREW WPL 0807270 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
SCREW WPL 0807951 Contact Us For Availability
3
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
3
SCREW WPL 0806830 Contact Us For Availability
3
SUB 806565, SCREW WPL 0808209 Contact Us For Availability
3
TUB & GASKET ASSEMBLY WPL 0807901 Contact Us For Availability
4
IMPELLER, UPPER WPL 0808041 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
WASHER WPL 0807373 Contact Us For Availability
4
TUB PAD WPL 807454 Contact Us For Availability
4
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
SPEED NUT WPL Y0808475 Contact Us For Availability
4
TOP WPL Y0808191 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
5
SCREW WPL Y0807950 Contact Us For Availability
5
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
5
SUB 808827, ROLL PIN WPL Y0804734 Contact Us For Availability
5
VENT GRILLE WPL Y0808477 Contact Us For Availability
5
CLAMP, TOP WPL Y0807819 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SUB 808667, VALVE WPL Y0808431 Contact Us For Availability
6
SHIM STRIKE WPL 0807073 Contact Us For Availability
6
SCREW WPL 0808618 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
KNOB, TIMER WPL Y0808198 Contact Us For Availability
6
SCREW WPL Y0807817 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
FLOW WASHER WPL 0808432 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
7
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
SCREW, No.10-32 X 1 7/64 WPL 0808422 Contact Us For Availability
7
HINGE, HOSE COVER WPL Y0808193 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
WASHER, 19/32 IDX1.031 WPL Y0800787 Contact Us For Availability
8
TERMINAL INSULATOR WPL 0806846 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
SWITCH ROCKER WPL Y0807718 Contact Us For Availability
8
SCREW ASSY WPL 0806382 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
SCREW WPL Y0807268 Contact Us For Availability
9
FASTENER GASKET WPL Y0805763 Contact Us For Availability
9
SUB 808507, TRIGGER ASSY WPL Y0806569 Contact Us For Availability
9
LENS WPL 0805664 Contact Us For Availability
10
KIT, IMPELLER WPL 0808722 Contact Us For Availability
10
CASTER,FRONT WPL 0808542 Contact Us For Availability
10
USE 0809044 WPL 0805776 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
CONSOLE PANEL WPL 808625 Contact Us For Availability
10
BASE, LID WPL Y0808192 Contact Us For Availability
11
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
CASTER, REAR WPL Y0808543 Contact Us For Availability
11
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
SUB 806407, END CAP, LH WPL 0806401 Contact Us For Availability
12
SUB 809008, GASKET, PUMP WPL Y0807710 Contact Us For Availability
12
RELIEF, STRAIN WPL Y0804426 Contact Us For Availability
12
ROLLER WPL 0807180 Contact Us For Availability
12
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
LIGHT ASSY. WPL 0808711 Contact Us For Availability
12
POST WPL Y0808195 Contact Us For Availability
13
CLAMP WPL Y0808442 Contact Us For Availability
13
CORD, POWER WPL 0805046 Contact Us For Availability
13
SUB 808564, KIT, SCREW & WSR. WPL 0807181 Contact Us For Availability
13
USE 0806976 WPL 0806810 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
LID WPL 0808194 Contact Us For Availability
14
PUMP HOUSING WPL 0808700 Contact Us For Availability
14
SUB 806967 SCREW WPL 0806812 Contact Us For Availability
14
SCREW WPL Y0806901 Contact Us For Availability
14
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
14
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
14
COVER, TOP CLIP WPL 0808743 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
15
WEIGHT WPL 0808615 Contact Us For Availability
15
FLOAT WPL Y0804630 Contact Us For Availability
15
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
16
SLINGER WPL 0808561 Contact Us For Availability
16
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
16
SPACER WPL 0808424 Contact Us For Availability
17
WATER SHIELD ASSY WPL 0808435 Contact Us For Availability
17
NUT WPL 0808661 Contact Us For Availability
17
USE M0281003 WPL 0803346 Contact Us For Availability
17
TIMER WPL 0808681 Contact Us For Availability
18
MOTOR ASSEMBLY WPL Y0806300 Contact Us For Availability
18
WASHER WPL 0808613 Contact Us For Availability
18
CLIP, GASKET WPL 0808115 Contact Us For Availability
18
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
18
HOUSING, TIMER B WPL Y0808231 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
HOSE GUARD WPL 0808120 Contact Us For Availability
19
SUB 809108, ACCESS PANEL WPL 0807257 Contact Us For Availability
19
ACCESS PANEL, GOLD WPL Y0808525 Contact Us For Availability
19
ACCESS PANEL, ALMOND WPL Y0808526 Contact Us For Availability
19
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
GUIDE, HOSE WPL 0805859 Contact Us For Availability
20
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
20
TRIM, R.H. WPL 0808028 Contact Us For Availability
20
TERMINAL END WPL 0808334 Contact Us For Availability
21
RING, IMPELLER WPL 0808699 Contact Us For Availability
21
BRACKET RETAINING WPL 0806142 Contact Us For Availability
21
RING WPL Y0808064 Contact Us For Availability
21
USE M0217224 WPL Y0803416 Contact Us For Availability
21
TRIM, ACCESS, BOTTOM WPL Y0808521 Contact Us For Availability
22
CLAMP, HOSE WPL 0806090 Contact Us For Availability
22
SUPPORT, HOSE WPL 0806143 Contact Us For Availability
22
GASKET WPL Y0808063 Contact Us For Availability
22
TOE PLATE WPL Y0808522 Contact Us For Availability
22
PLATE ASSEMBLY, PUMP WPL 0806849 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
23
WASHER, COUPLER WPL Y0803393 Contact Us For Availability
23
HINGE WELD ASSY. WPL 0808739 Contact Us For Availability
23
SPLASH PAN WPL 0807425 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
ADAPTER WPL Y0800782 Contact Us For Availability
24
TRIM-ACCESS PANEL L.H. SIDE WPL 800829 Contact Us For Availability
24
SWITCH WPL Y0807281 Contact Us For Availability
25
WASHER, ADAPTER WPL Y0803392 Contact Us For Availability
25
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
25
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
26
ARM BRACKET WPL Y0806717 Contact Us For Availability
26
BRACKET, SWITCH MOUNTING WPL 0806594 Contact Us For Availability
27
HOUSING WPL Y0806978 Contact Us For Availability
27
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
27
SCREW WPL 807147 Contact Us For Availability
28
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
28
SUB 809139, COLLAR WPL Y0807499 Contact Us For Availability
28
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
28
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
29
LOCKWASHER WPL 0804526 Contact Us For Availability
29
KIT, PRESSURE RELIEF WPL 0807498 Contact Us For Availability
29
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
29
LENS LIGHT (RED) WPL 0805844 Contact Us For Availability
30
NUT WPL 0804527 Contact Us For Availability
30
FAUCET COUPLER ASSEMBLY WPL Y0807496 Contact Us For Availability
30
SUB 808959, GASKET & WIRE ASSY WPL Y0808345 Contact Us For Availability
30
SCREW WPL 0803311 Contact Us For Availability
31
BEARING WPL Y0808175 Contact Us For Availability
31
SEE NOTE WRAPPER WPL Y00000000 Contact Us For Availability
31
SCREW WPL 0806967 Contact Us For Availability
32
NUT WPL Y0808176 Contact Us For Availability
32
SCREW WPL 0804672 Contact Us For Availability
32
DOOR GUIDE WPL 0807449 Contact Us For Availability
33
SPRAY ARM WPL 0808177 Contact Us For Availability
33
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
33
TRUSS HD. CAD. PL. WPL 806926 Contact Us For Availability
34
TOWER BASE WPL Y0808178 Contact Us For Availability
34
WIRING CLAMP WPL 0806723 Contact Us For Availability
34
SUB 809288, INNER DOOR PANEL WPL 0807191 Contact Us For Availability
35
TOWER SECTION WPL Y0808179 Contact Us For Availability
35
WIRE SHIELD WPL 0808013 Contact Us For Availability
35
SWITCH COVER WPL 0807450 Contact Us For Availability
36
TOWER TIP WPL Y0808180 Contact Us For Availability
36
``0`` RING WPL Y0807759 Contact Us For Availability
37
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
38
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
39
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
40
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
41
GASKET WPL Y0806797 Contact Us For Availability
42
TAPPING PLATE WPL 0808705 Contact Us For Availability
43
VENT STACK WPL 0808706 Contact Us For Availability
44
TUBE, INLET WPL 0807891 Contact Us For Availability
45
CLAMP WPL Y0807813 Contact Us For Availability
46
INLET NOZZLE WPL 0808707 Contact Us For Availability
NI
SUB 808928, CONVERSION KIT WPL 0090896 Contact Us For Availability
× ![]()
Login and Registration Form
