Model Whirlpool DCP226-11OR DISHWASHER – Common Parts & Diagrams

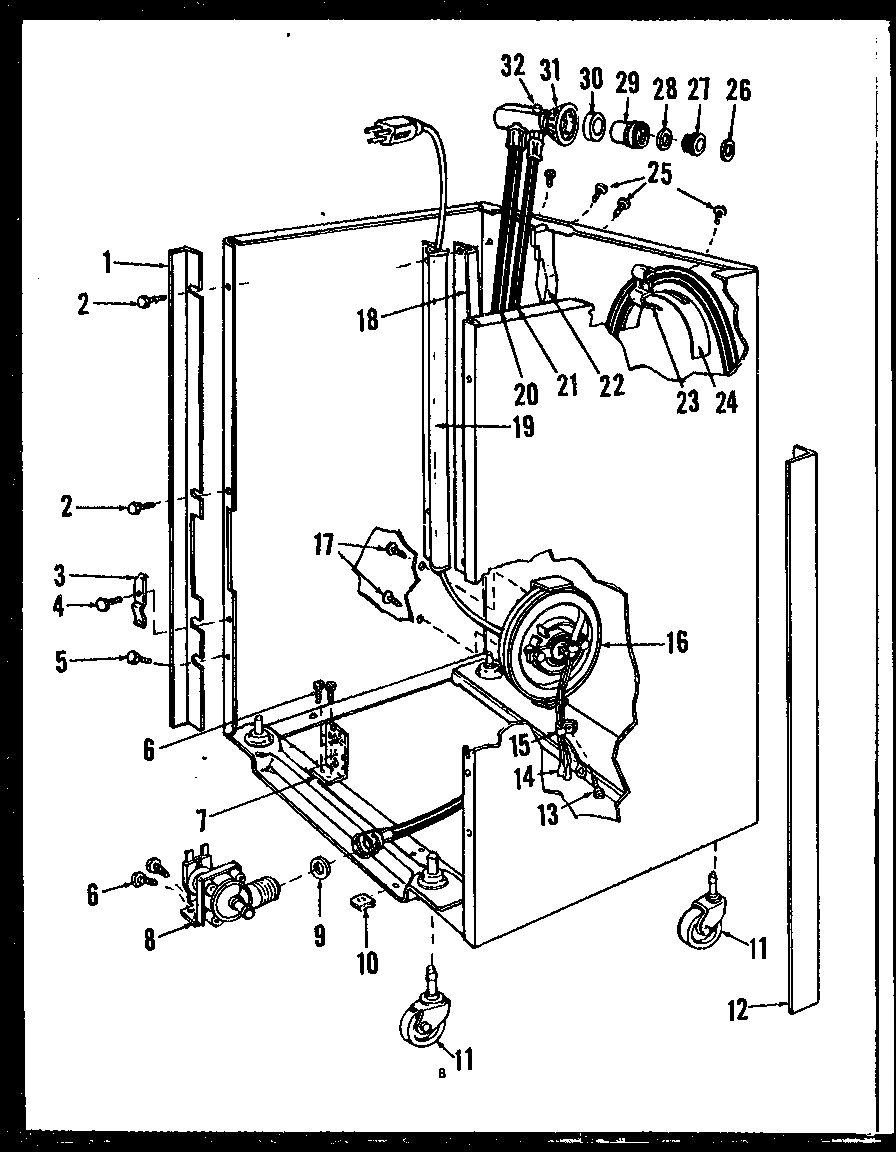

02 - Page 4

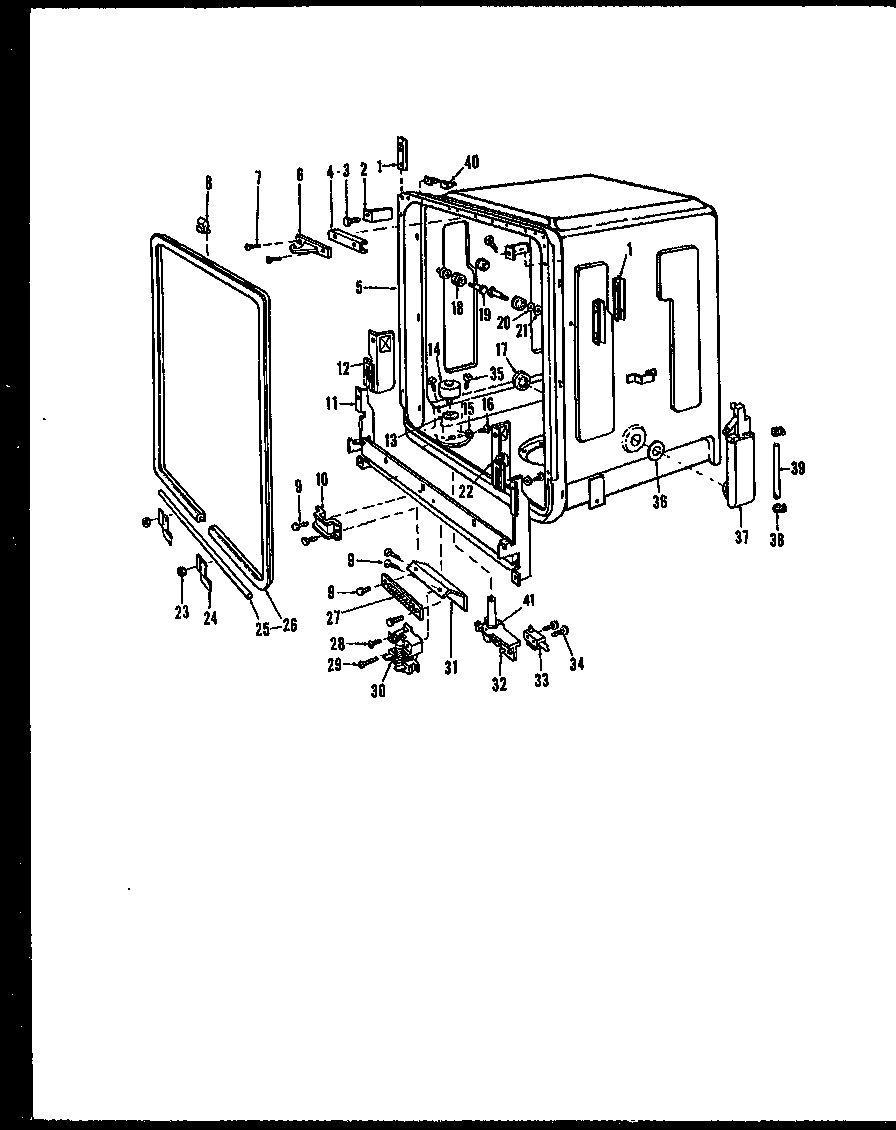

01 - Page 2
05 - Page 7
04 - Page 6
06 - Page 8
07 - Page 9
03 - Page 5
Common parts from model Whirlpool DCP226-11OR DISHWASHER
1
CABINET TRIM - L.H. WPL 0806902 Contact Us For Availability
1
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
1

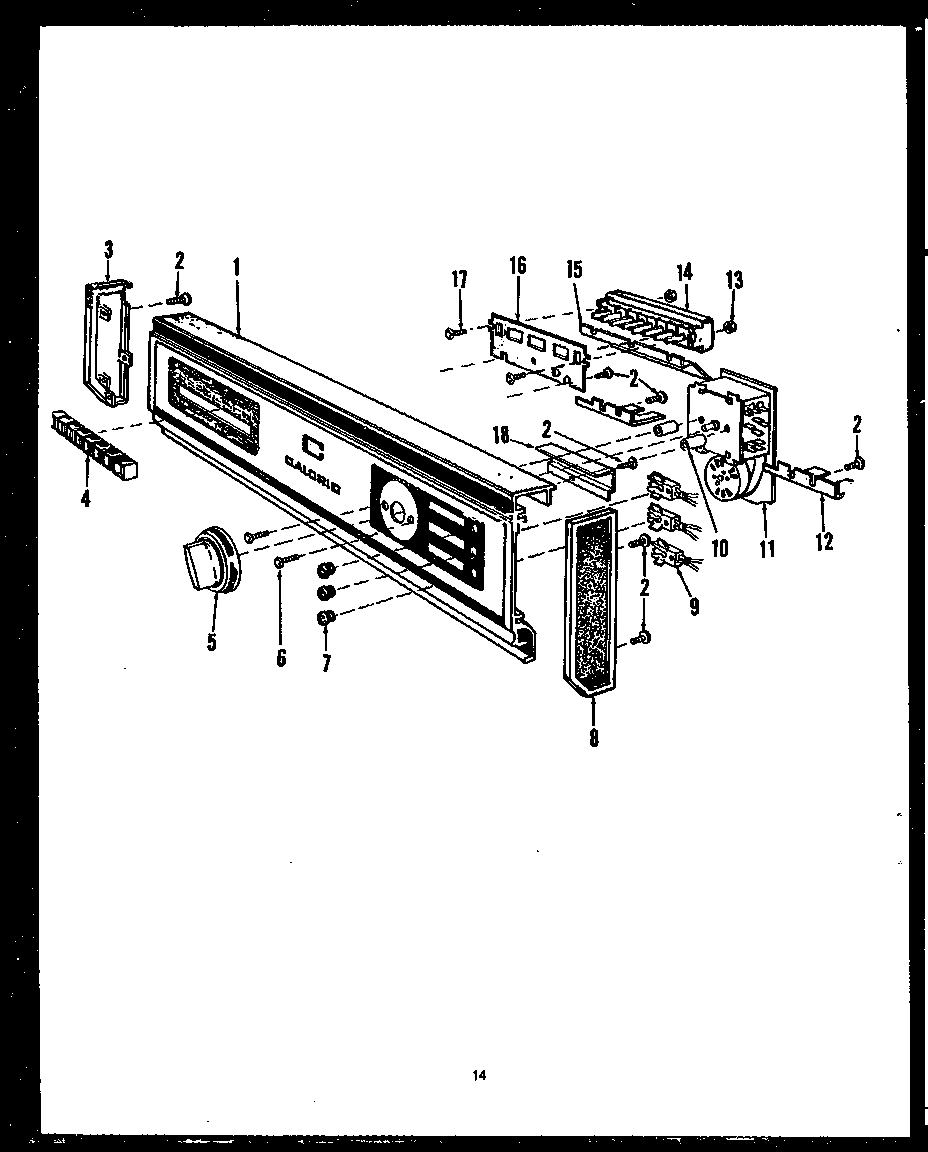

CONTROL PANEL WPL 0807272 Contact Us For Availability
1
SUB 808507, TRIGGER ASSY WPL Y0806564 Contact Us For Availability
1

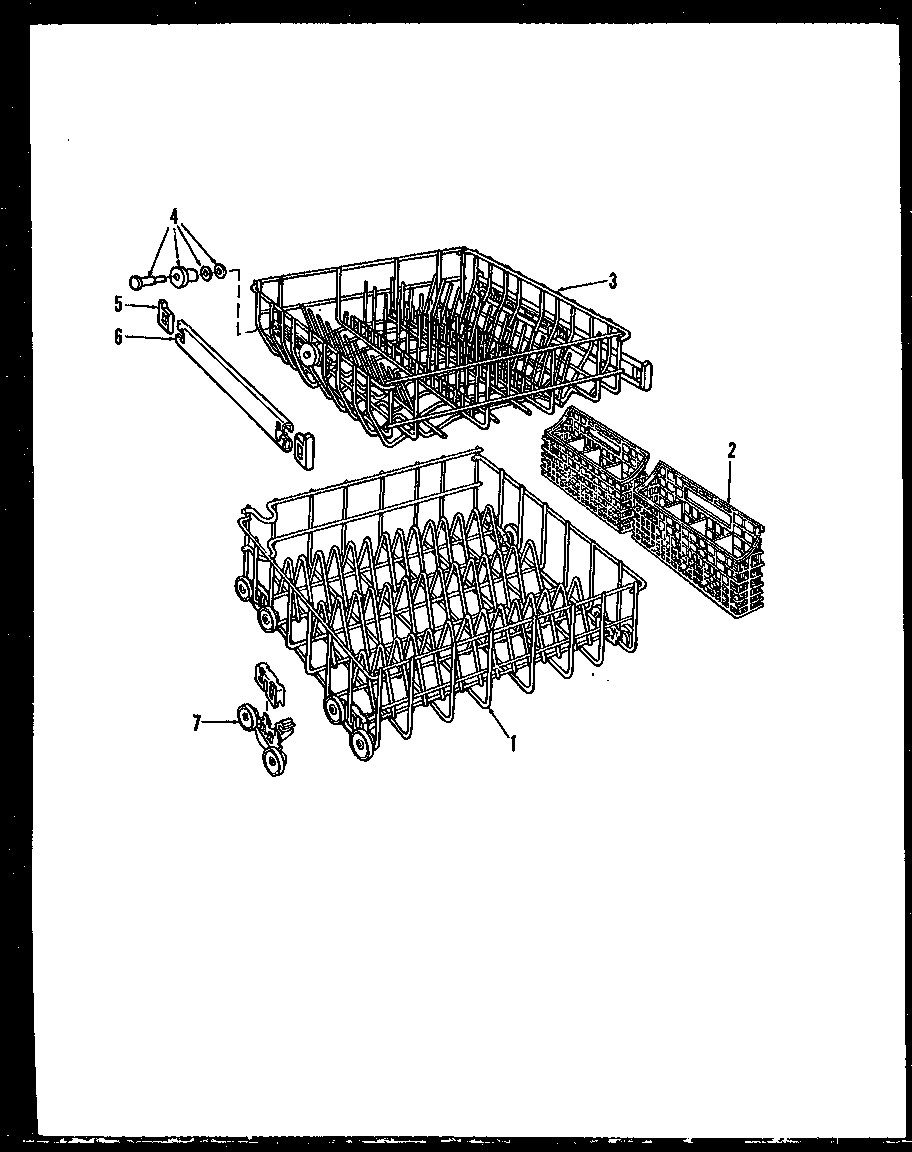

SUB 807708, KIT, LOWER RACK WPL Y0807692 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
2
TUB PAD WPL 807454 Contact Us For Availability
2
SCREW WPL 0806943 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
SUB 806864 HEATER SERVICE KIT WPL Y0806836 Contact Us For Availability
2
TERMINAL INSULATOR WPL 0806846 Contact Us For Availability
3
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
3
CLIP, ACCESS PANEL WPL 0806235 Contact Us For Availability
3
LH END CAP WPL 806407 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3

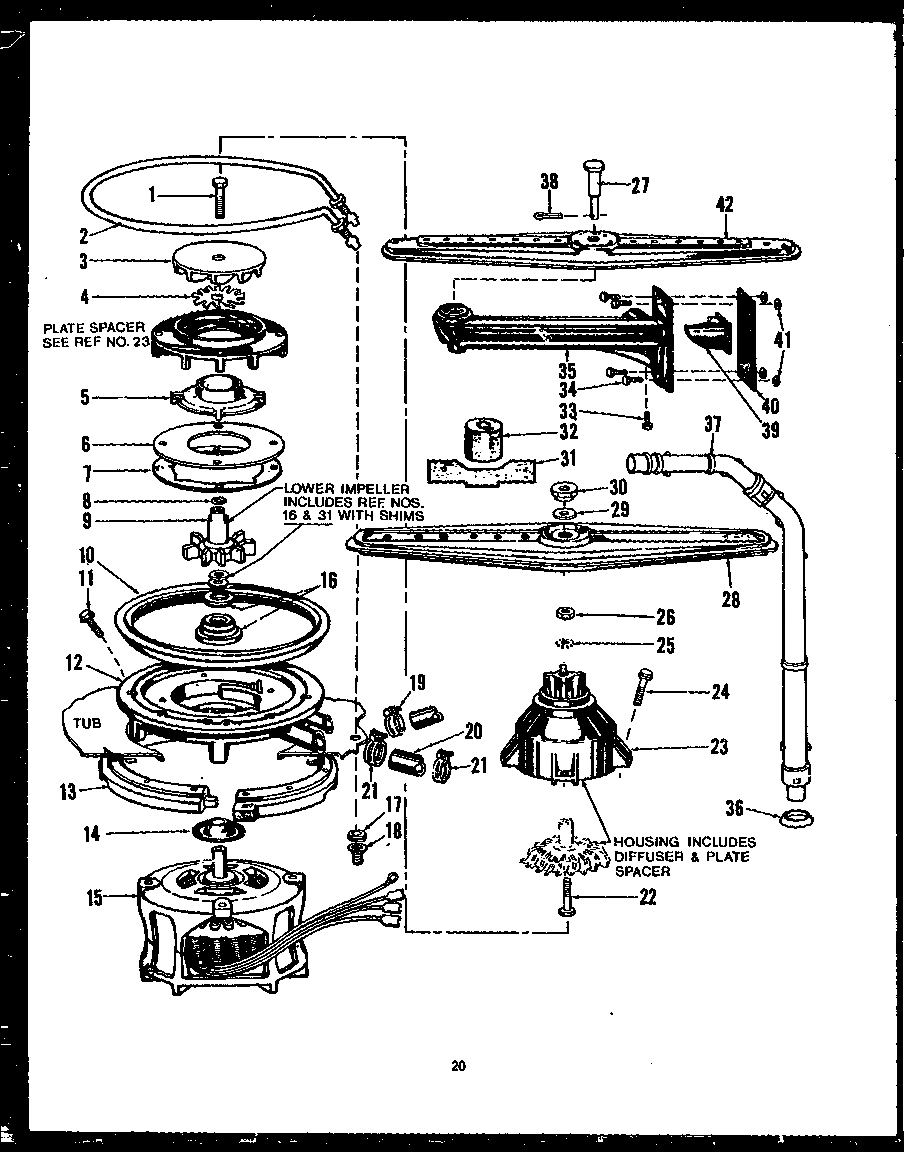

IMPELLER, UPPER WPL 0807075 Contact Us For Availability
4
SCREW WPL 0806663 Contact Us For Availability
4
SHIM STRIKE WPL 0807073 Contact Us For Availability
4
PUSH BUTTON WPL 0807273 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
MACERATOR BLADE WPL 0804910 Contact Us For Availability
4
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
5
TUB & GASKET ASSEMBLY WPL 0807901 Contact Us For Availability
5
USE 0807277 WPL 0807274 Contact Us For Availability
5
SUB 808827, ROLL PIN WPL Y0804734 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
5
SCREW, FLOAT SWITCH WPL 0803051 Contact Us For Availability
6
SUB 807004 SCREW WPL 0804518 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
SCREW WPL 0805324 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SUB 807884, PUMP PLATE WPL 0806390 Contact Us For Availability
6
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
7
BRACKET WPL 0807218 Contact Us For Availability
7
SCREW WPL 0806830 Contact Us For Availability
7
LENS WPL 0805664 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
SUB 808667, WATER VALVE WPL Y0804982 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
END CAP R.H. WPL 0806406 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
``O`` RING WPL Y0806521 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL Y0800787 Contact Us For Availability
9
LIGHT ASSEMBLY (WHITE) WPL 0805866 Contact Us For Availability
9
SUB 808507, TRIGGER ASSY WPL Y0806569 Contact Us For Availability
9
SUB 808722, KIT, IMPELLER WPL 0807074 Contact Us For Availability
9

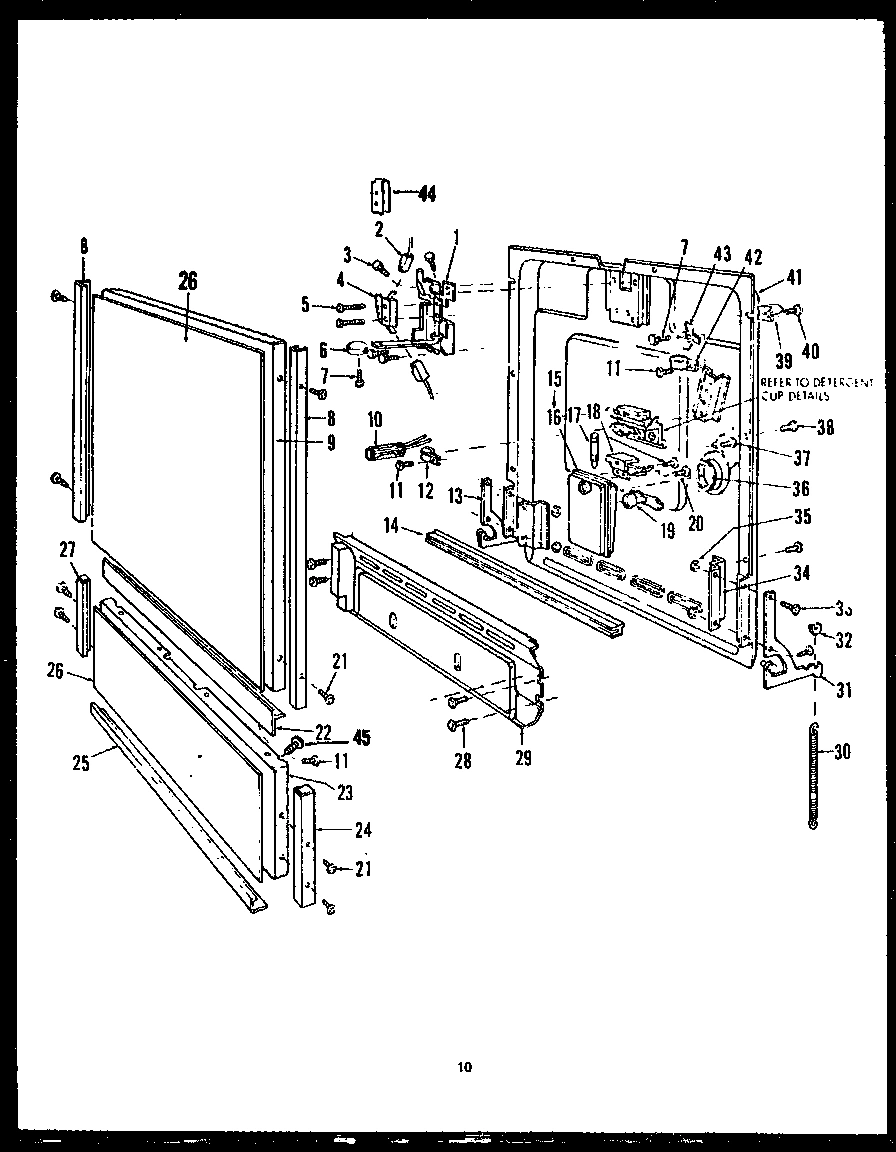

DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
9
DOOR PANEL, AVOCADO WPL 0807642 Contact Us For Availability
9
DOOR PANEL, GOLD WPL 0807643 Contact Us For Availability
9
DOOR PANEL WPL 807595 Contact Us For Availability
9
DOOR PANEL WPL 807641 Contact Us For Availability
10
SPEED NUT WPL 0806243 Contact Us For Availability
10
WIRING CLAMP WPL 0806723 Contact Us For Availability
10
SPACER WPL 0805323 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
SUB 809008, GASKET, PUMP WPL Y0807710 Contact Us For Availability
10
SUB 807464 THERMOSTAT KIT WPL 0806854 Contact Us For Availability
11
USE M0217224 WPL Y0803416 Contact Us For Availability
11
SUB 808972, CASTER WPL 0806171 Contact Us For Availability
11
WELD ASSEMBLY, HINGE WPL Y0807885 Contact Us For Availability
11
SCREW WPL Y0807268 Contact Us For Availability
11
SUB 807479 TIMER WPL 0807099 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
12
CABINET TRIM - R.H. WPL 0806903 Contact Us For Availability
12

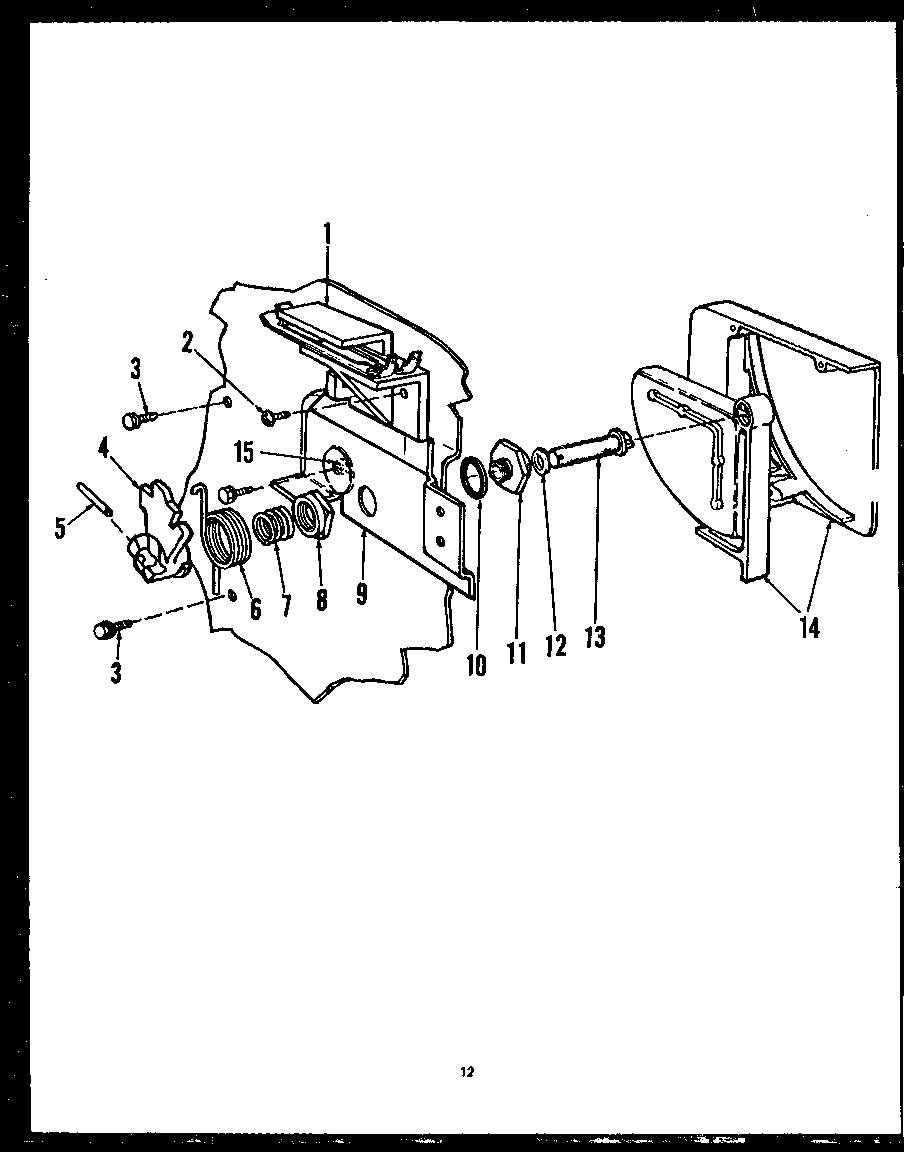

GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
12
TIMER GUARD WPL 0806972 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
SUB 809102, PUMP HSG. WPL Y0807711 Contact Us For Availability
12
CLAMP WPL Y0805340 Contact Us For Availability
13
SCREW WPL 0806480 Contact Us For Availability
13
COLLAR, FLOAT TUBE WPL 0807676 Contact Us For Availability
13
USE M0281003 WPL 0803346 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
CLAMP RING WPL Y0807712 Contact Us For Availability
13
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
14
CORD, POWER WPL 0805046 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
14
SWITCH WPL 0807275 Contact Us For Availability
14
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
14
SLINGER WPL 0800062 Contact Us For Availability
14
VENT GASKET WPL Y0806436 Contact Us For Availability
15
GUARD, SWITCH WPL 0807221 Contact Us For Availability
15
MOTOR ASSEMBLY WPL Y0806300 Contact Us For Availability
15
WETTING AGENT DISPENSER ASSY. WPL 0806842 Contact Us For Availability
16
SUB 808020, REEL ASM CORD WPL 0806126 Contact Us For Availability
16
BRACKET, SWITCH WPL 0807276 Contact Us For Availability
16
WATER SEAL WPL Y0803903 Contact Us For Availability
16
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
17
NUT PLASTIC WPL 0805669 Contact Us For Availability
17
SCREW WPL 0807103 Contact Us For Availability
17
GROMMET WPL Y0806833 Contact Us For Availability
17
PLUNGER WPL 0806757 Contact Us For Availability
18
HOSE GUARD WPL 805746 Contact Us For Availability
18
ROLLER WPL 0807180 Contact Us For Availability
18
WIRE RETAINER WPL 0807197 Contact Us For Availability
18
NUT WPL 0806834 Contact Us For Availability
18
BRACKET ASSEMBLY WPL 0806756 Contact Us For Availability
19
GUIDE, POWER CORD WPL 0805351 Contact Us For Availability
19
SUB 808564, KIT, SCREW & WSR. WPL 0807181 Contact Us For Availability
19
CLAMP, HOSE WPL 0806090 Contact Us For Availability
19
SUB 807673 FILL PLUG WPL Y0806843 Contact Us For Availability
20
SUB 807496 FAUCET COUPLER ASSY WPL Y0806005 Contact Us For Availability
20
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
20
HOSE, PUMP (TO TUB) WPL Y0805923 Contact Us For Availability
21
SUB 807496 COUPLER ASSEMBLY WPL Y0805357 Contact Us For Availability
21
USE 0809044 WPL 0805776 Contact Us For Availability
21
CLAMP WPL 0805495 Contact Us For Availability
22
GUIDE, HOSE WPL 0805859 Contact Us For Availability
22
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
22
SCREW WPL 0806945 Contact Us For Availability
22
DOOR BOTTOM TRIM WPL 0806912 Contact Us For Availability
23
BRACKET RETAINING WPL 0806142 Contact Us For Availability
23
HOUSING WPL Y0806978 Contact Us For Availability
23
ACCESS PANEL, GOLD WPL 0807704 Contact Us For Availability
23
ACCESS PANEL, ALMOND WPL 0807705 Contact Us For Availability
23
ACCESS PANEL WPL 806904 Contact Us For Availability
23
ACCESS PANEL WPL 807702 Contact Us For Availability
23
ACCESS PANEL WPL 807703 Contact Us For Availability
24
SUPPORT, HOSE WPL 0806143 Contact Us For Availability
24
GASKET CLIP WPL 0806698 Contact Us For Availability
24
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
25
WIRE GASKET JUNCTION WPL 0805815 Contact Us For Availability
25
LOCKWASHER WPL 0804526 Contact Us For Availability
26
WASHER, COUPLER WPL Y0803393 Contact Us For Availability
26
SUB 808071 WPL 807475 Contact Us For Availability
26
NUT WPL 0804527 Contact Us For Availability
27
ADAPTER WPL Y0800782 Contact Us For Availability
27
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
27
KIT, SPINDLE SPRAY WPL Y0806963 Contact Us For Availability
28
SUB 803392 WASHER, ADAPTER WPL Y0803390 Contact Us For Availability
28
LWR SPRAY ARM WPL Y0805577 Contact Us For Availability
28
USE 0806976 WPL 0806810 Contact Us For Availability
29
SCREW WPL 0804672 Contact Us For Availability
29
WASHER WPL 0807590 Contact Us For Availability
29
SUB 809243, VENT PLATE ASSY. WPL Y0807044 Contact Us For Availability
30
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
30
NUT WPL 0804473 Contact Us For Availability
30
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
31
COLLAR REPAIR KIT WPL 0806583 Contact Us For Availability
31
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
31
SHIM GAUGE WPL 0807077 Contact Us For Availability
31
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
32
VALVE KIT WPL 806582 Contact Us For Availability
32
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
32
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
32
SPRING PAD WPL 0805884 Contact Us For Availability
33
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
33
SCREW WPL 0803311 Contact Us For Availability
34
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
34
ARM BRACKET WPL Y0806717 Contact Us For Availability
35
DELIVERY ARM WPL Y0807067 Contact Us For Availability
35
NUT WPL 0800928 Contact Us For Availability
36
WASHER WPL Y0803573 Contact Us For Availability
36
COLLAR WPL 0804149 Contact Us For Availability
36
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
37
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
37
SUPPLY TUBE WPL Y0807487 Contact Us For Availability
37
SCREW WPL 0806863 Contact Us For Availability
38
CLAMP WPL Y0807813 Contact Us For Availability
38
COTTER PIN K WPL Y0807386 Contact Us For Availability
38
SCREW WPL 0806967 Contact Us For Availability
39
TUBE, INLET WPL 0807891 Contact Us For Availability
39
PLUG DELIVERY ARM WPL 0805781 Contact Us For Availability
39
DOOR GUIDE WPL 0807449 Contact Us For Availability
40
PLASTIC NUT WPL 0807018 Contact Us For Availability
40
GASKET DELIVERY ARM WPL 0805782 Contact Us For Availability
40
SCREW WPL 0806976 Contact Us For Availability
41
``0`` RING WPL Y0807759 Contact Us For Availability
41
``0`` RING WPL Y0805370 Contact Us For Availability
41
INNER DR. ASSY. WPL 0807194 Contact Us For Availability
42
SUB 809182, SPRAY ARM WPL 0805786 Contact Us For Availability
42
CLAMP WPL Y0807212 Contact Us For Availability
43
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
44
SWITCH COVER WPL 0807450 Contact Us For Availability
NI
SUB 808928, CONVERSION KIT WPL 0090896 Contact Us For Availability
NI
FILL KIT WPL 806741 Contact Us For Availability
× ![]()
Login and Registration Form
