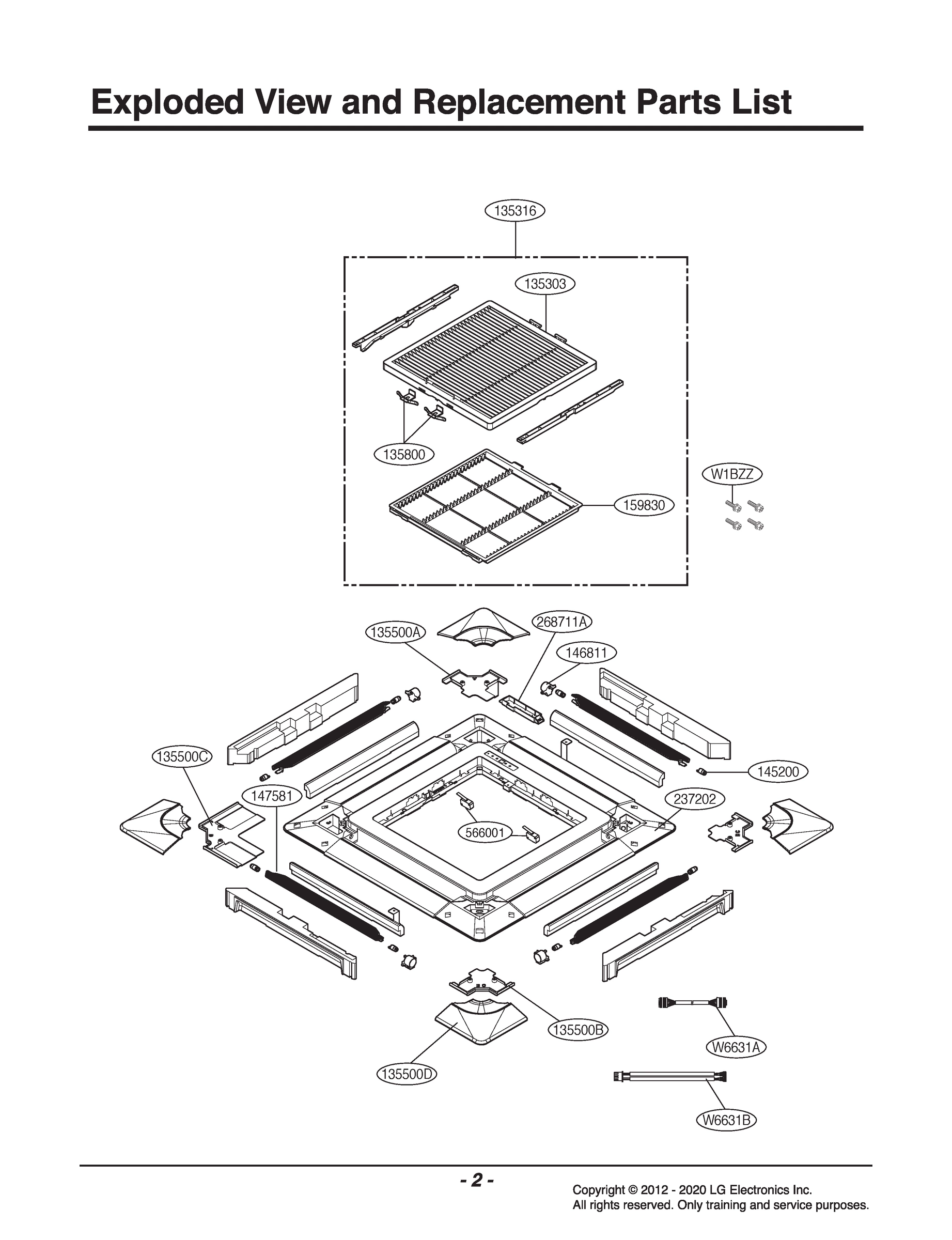

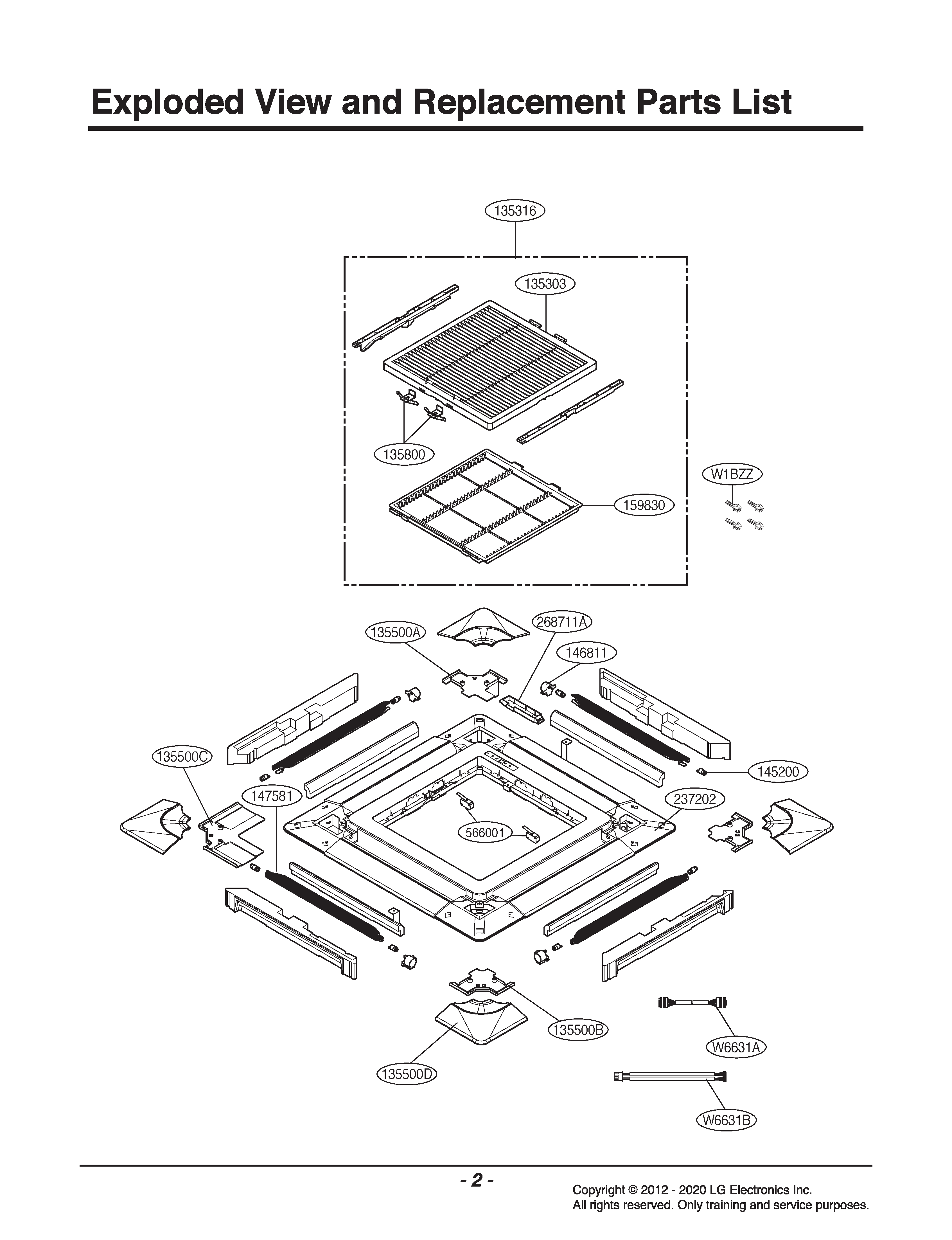

Model LG DCG1218.ENCXFRD Air Conditioners – Common Parts & Diagrams

135303
Grille,Inlet
Grille,Inlet LGE MDX42285201 Contact Us For Availability
View on Model
135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE AEB49588801 Contact Us For Availability
View on Model
135500A
Cover
Cover LGE MCK42284701 Contact Us For Availability
View on Model
135500B
Cover
Cover LGE MCK42284901 Contact Us For Availability
View on Model
135500C
Cover
Cover LGE MCK42285101 Contact Us For Availability
View on Model
135800
Door
Door LGE MCV42285601 Contact Us For Availability
View on Model
145200
Link
Link LGE MFF36533201 Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042G Contact Us For Availability
View on Model
147581
Louver,Horizontal
Louver,Horizontal LGE MFH42284501 Contact Us For Availability
View on Model
159830
Filter Assembly,Air Cleaner
Filter Assembly,Air Cleaner LGE ADQ36677901 Contact Us For Availability
View on Model
159830
Filter Assembly,Air Cleaner
Filter Assembly,Air Cleaner LGE ADQ36677902 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC42283205 Contact Us For Availability
View on Model
268711A
PCB Assembly,Display
PCB Assembly,Display LGE 6871A20096R Contact Us For Availability
View on Model
566001
Switch,Micro
Switch,Micro LGE 6600K000011 Contact Us For Availability
View on Model
W6631A
Harness,Single
Harness,Single LGE EAD54838701 Contact Us For Availability
View on Model
W6631B
Harness,Multi
Harness,Multi LGE EAD54839001 Contact Us For Availability
View on Model
