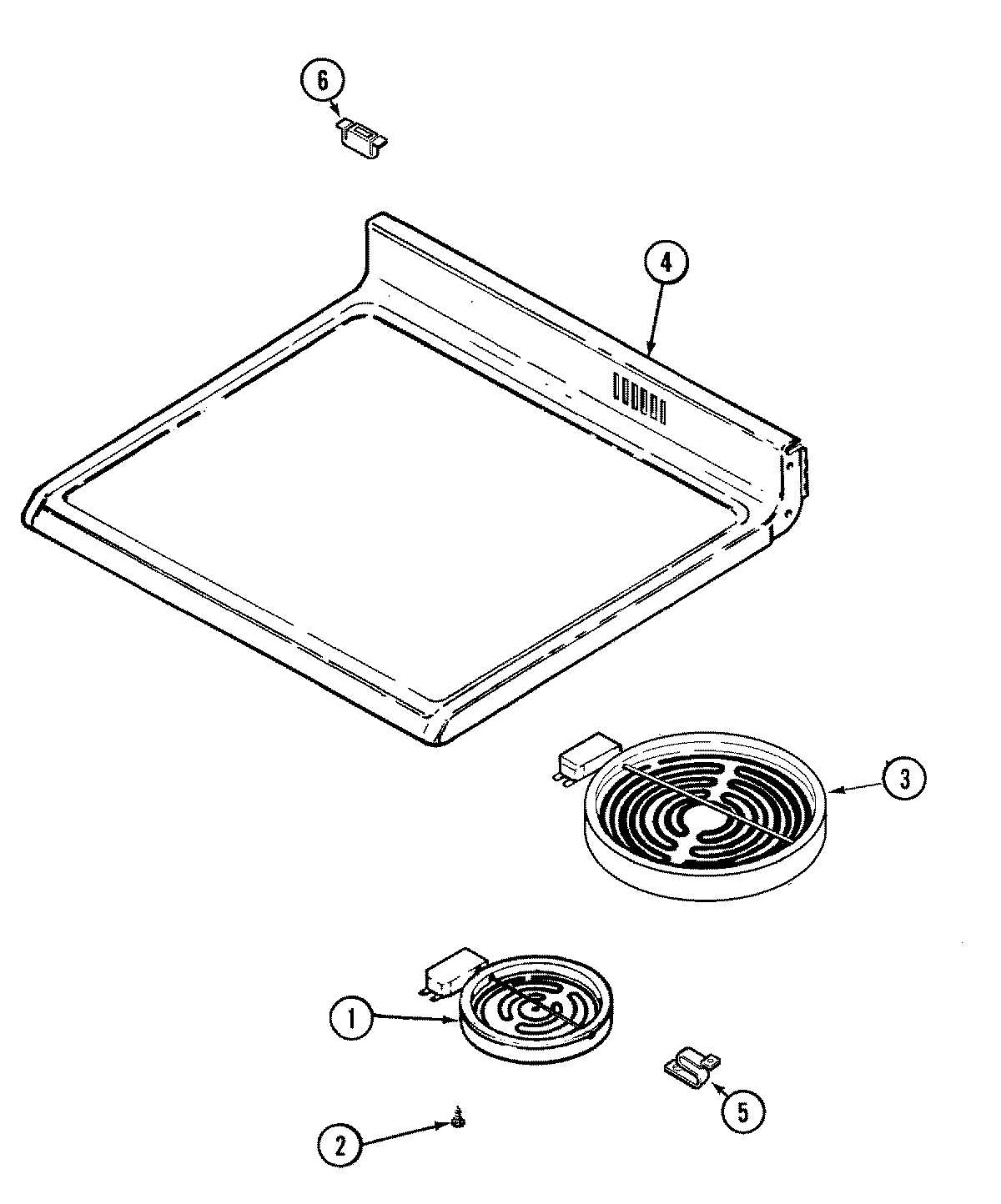

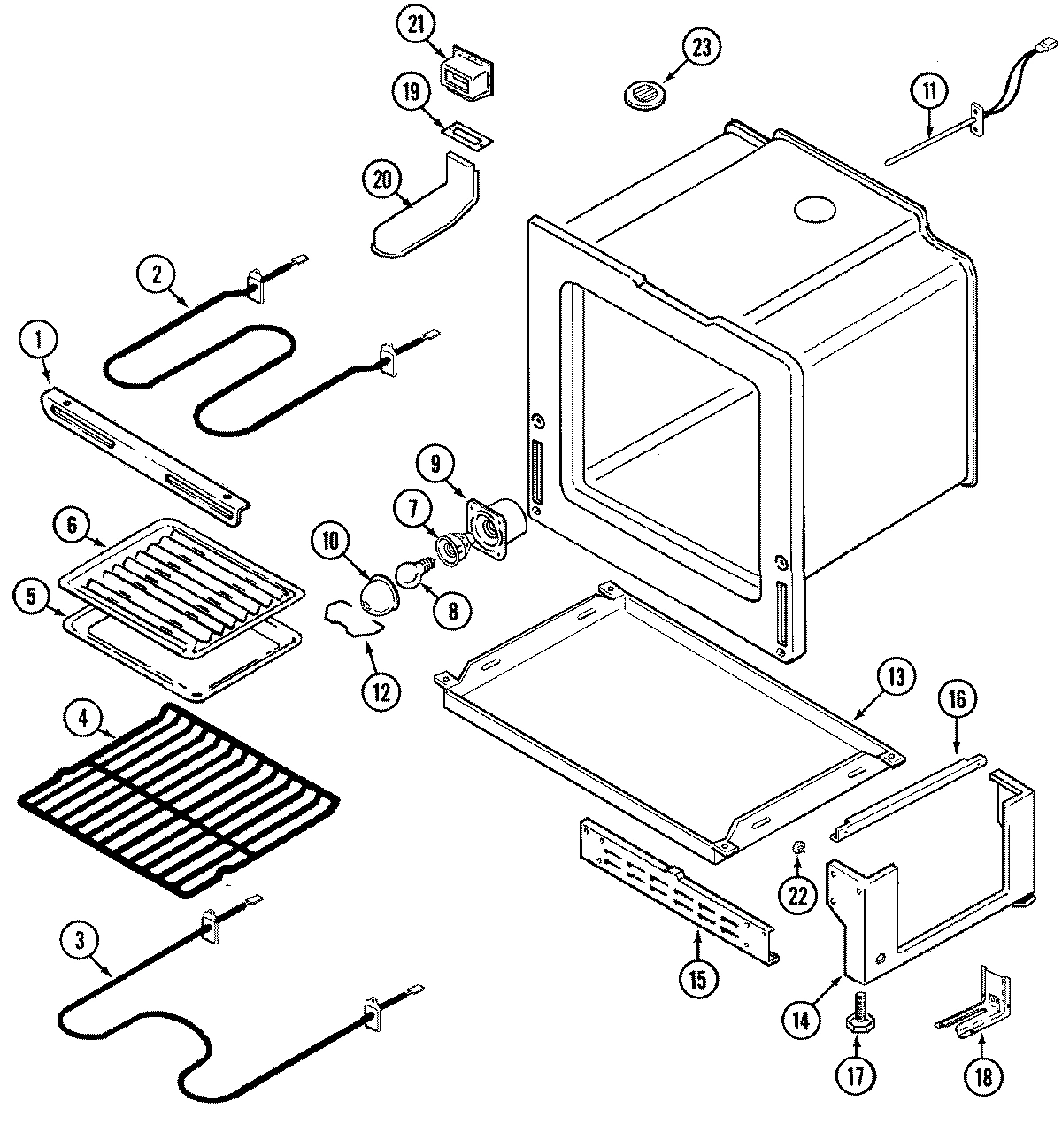

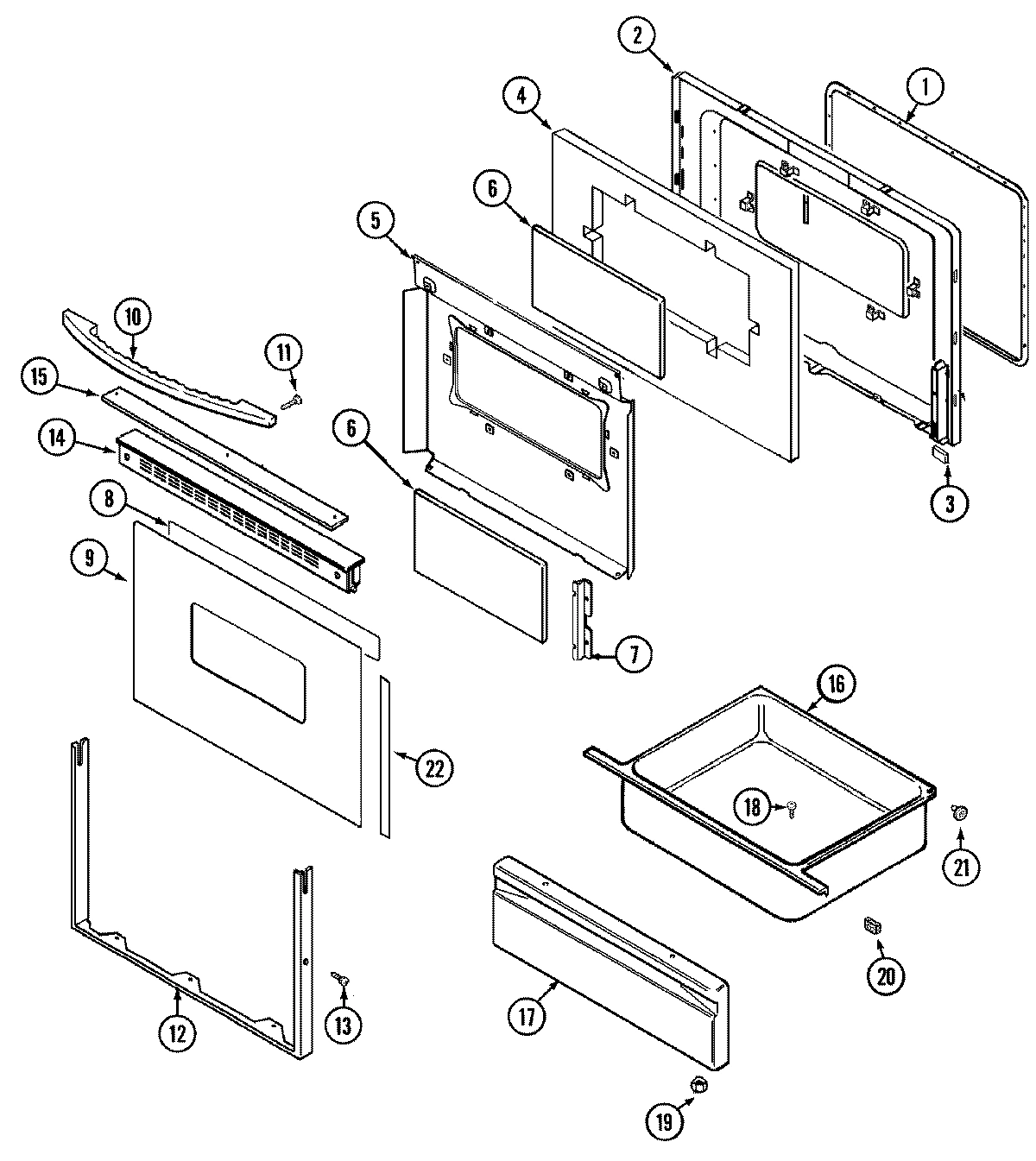

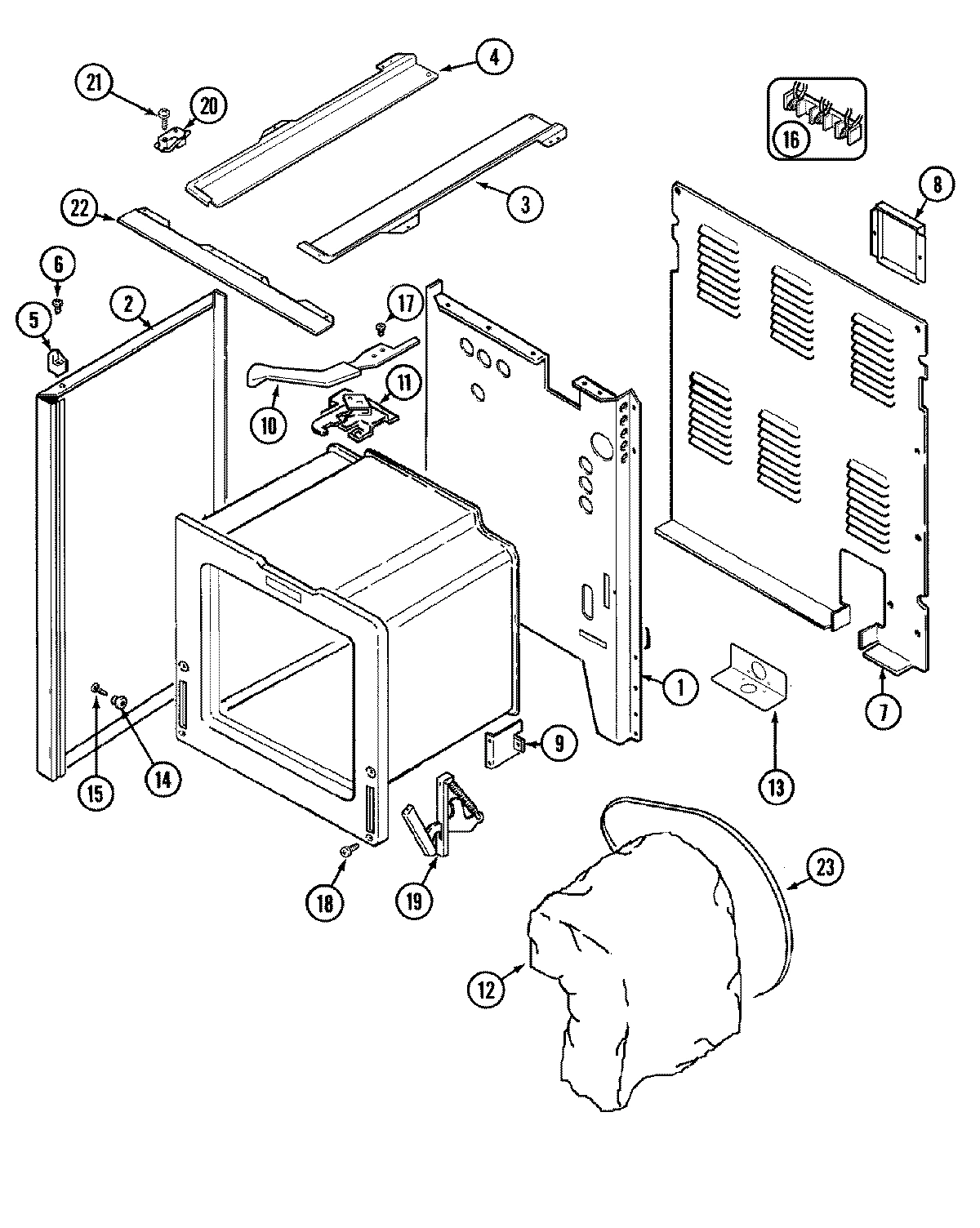

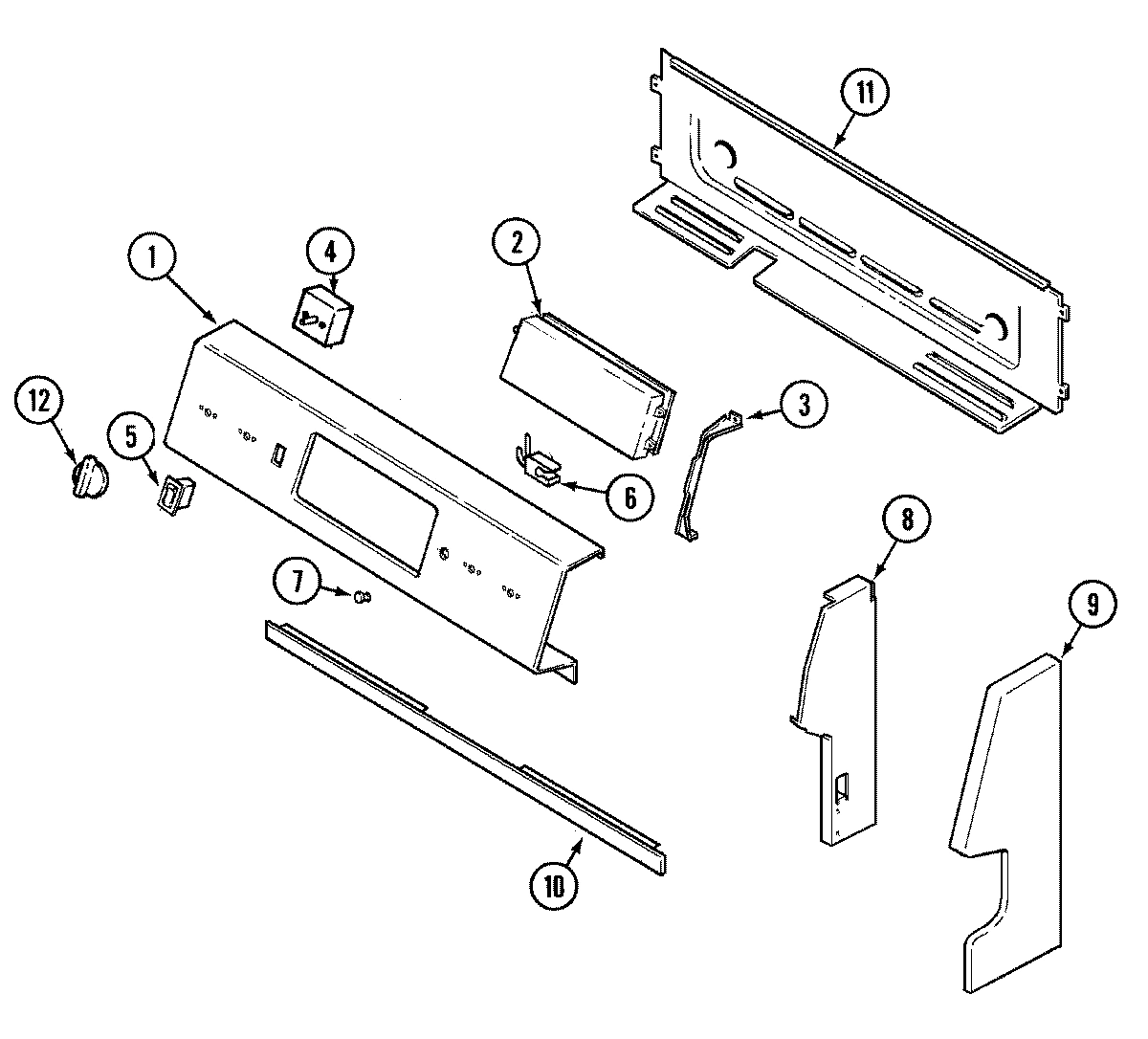

Model Whirlpool DCF4215AW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

1

SCREW WPL 7101P29060 Contact Us For Availability

1

BACK, MAIN WPL 74006322 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 74006871 Contact Us For Availability

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.60

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.60

2

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.75

2

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

2

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

2

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

2

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

CLOCK W/OVERLAY (WHT) WPL 74007517 Contact Us For Availability

2

CLOCK W/OVERLAY (WHT) WPL 74009375 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $135.81

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $24.38

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

3

BRACKET, CLOCK WPL 74004913 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $7.05

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $48.36

4

INSULATION, DOOR WPL 74001842 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

TOP, MAIN (WHT) WPL 74006991 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $35.64

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.84

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

GLASS, INNER WPL 74003320 Contact Us For Availability

6

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

7

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

7

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

8

BULB-OVEN WPL 7407P10360 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

9

HOUSING, BULB WPL 74003388 Contact Us For Availability

9

GLASS, OUTER DOOR (WHT) WPL 74006874 Contact Us For Availability

9

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability

10

COVER, BULB WPL 74003389 Contact Us For Availability

10

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

10

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.96

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $2.60

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74006342 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

12

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

12

FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability

12

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.93

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

HARNESS, ELEMENT WPL 74006863 Contact Us For Availability

HARNESS, TOP WPL 74006993 Contact Us For Availability

HARNESS, MAIN WPL 74009446 Contact Us For Availability

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

TRIM, TOP DOOR (WHT) WPL 74003864 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

MANUAL, USE & CARE WPL 74006979 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.42

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

17

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.89

17

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

17

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.60

SCREW WPL 7101P35260 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

19

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $90.30

19

GASKET, VENT WPL 74003285 Contact Us For Availability

19

NUT, LOCK WPL 7103P13960 Contact Us For Availability

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

INSULATOR, SWITCH WPL 74004031 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.19

EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

22

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

22

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 $9.82

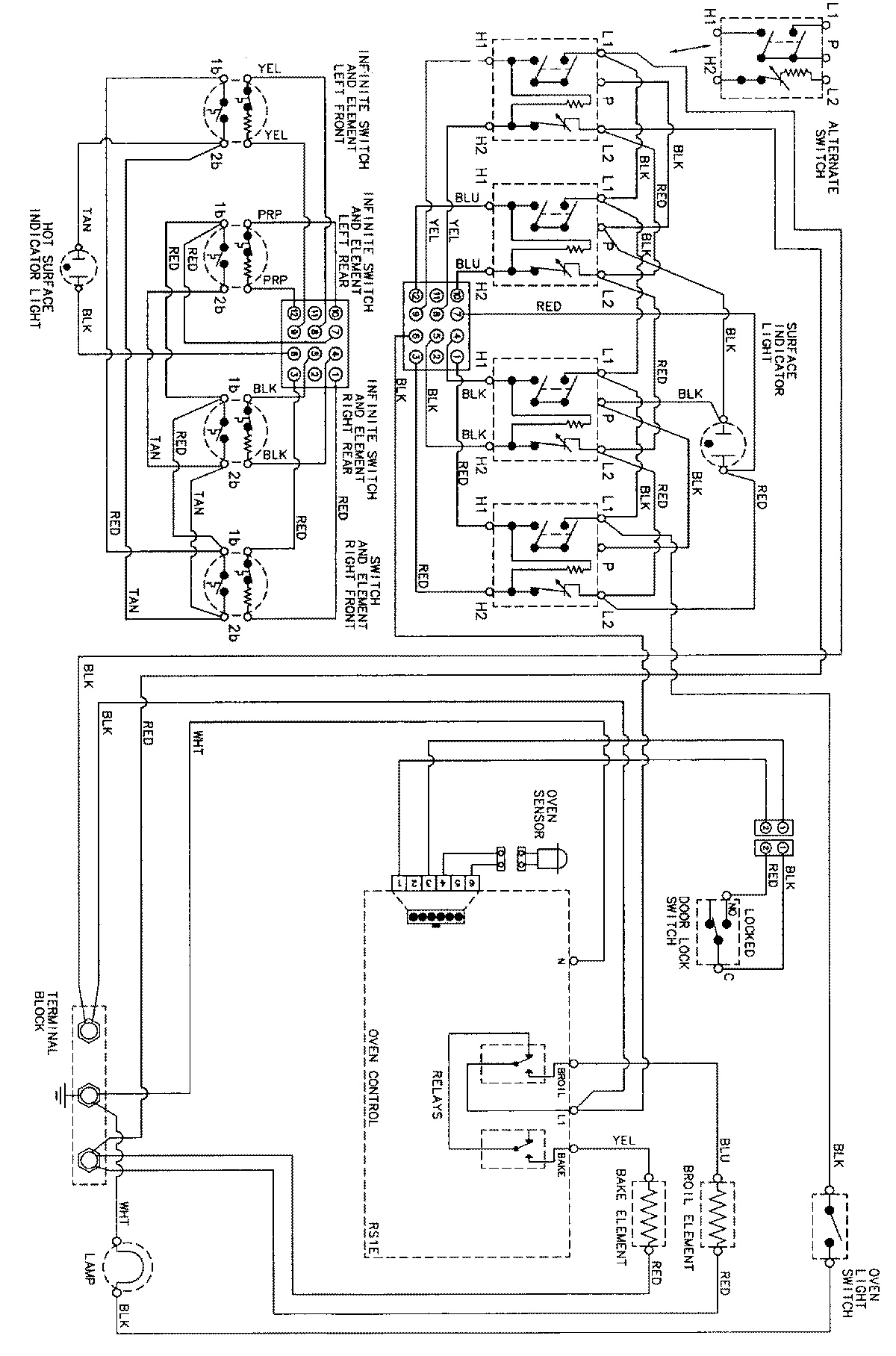

WIRING INFORMATION WPL 15002273 Contact Us For Availability

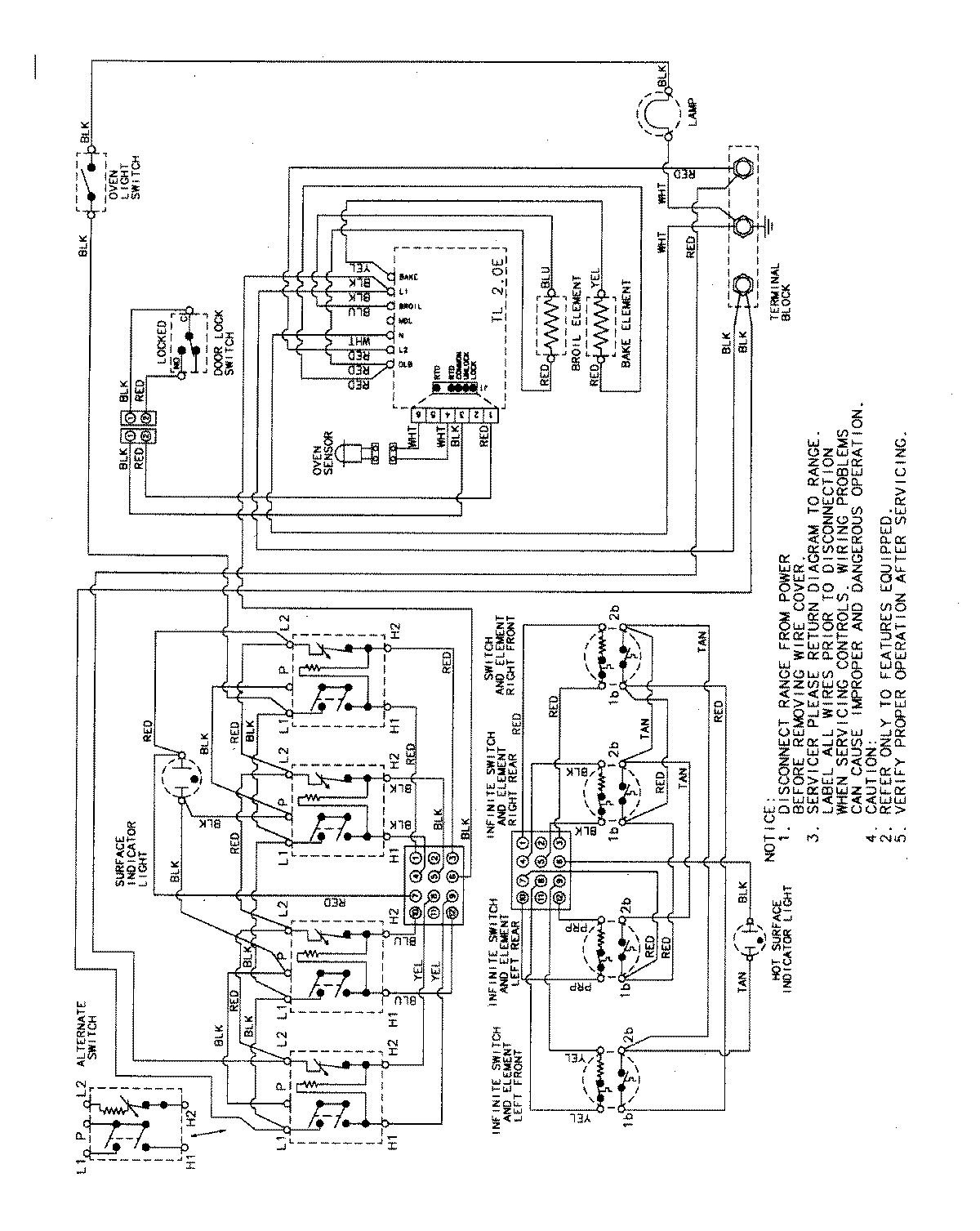

WIRING INFORMATION WPL 15003394 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability
