Model GE DCD330GY0AC – Common Parts & Diagrams

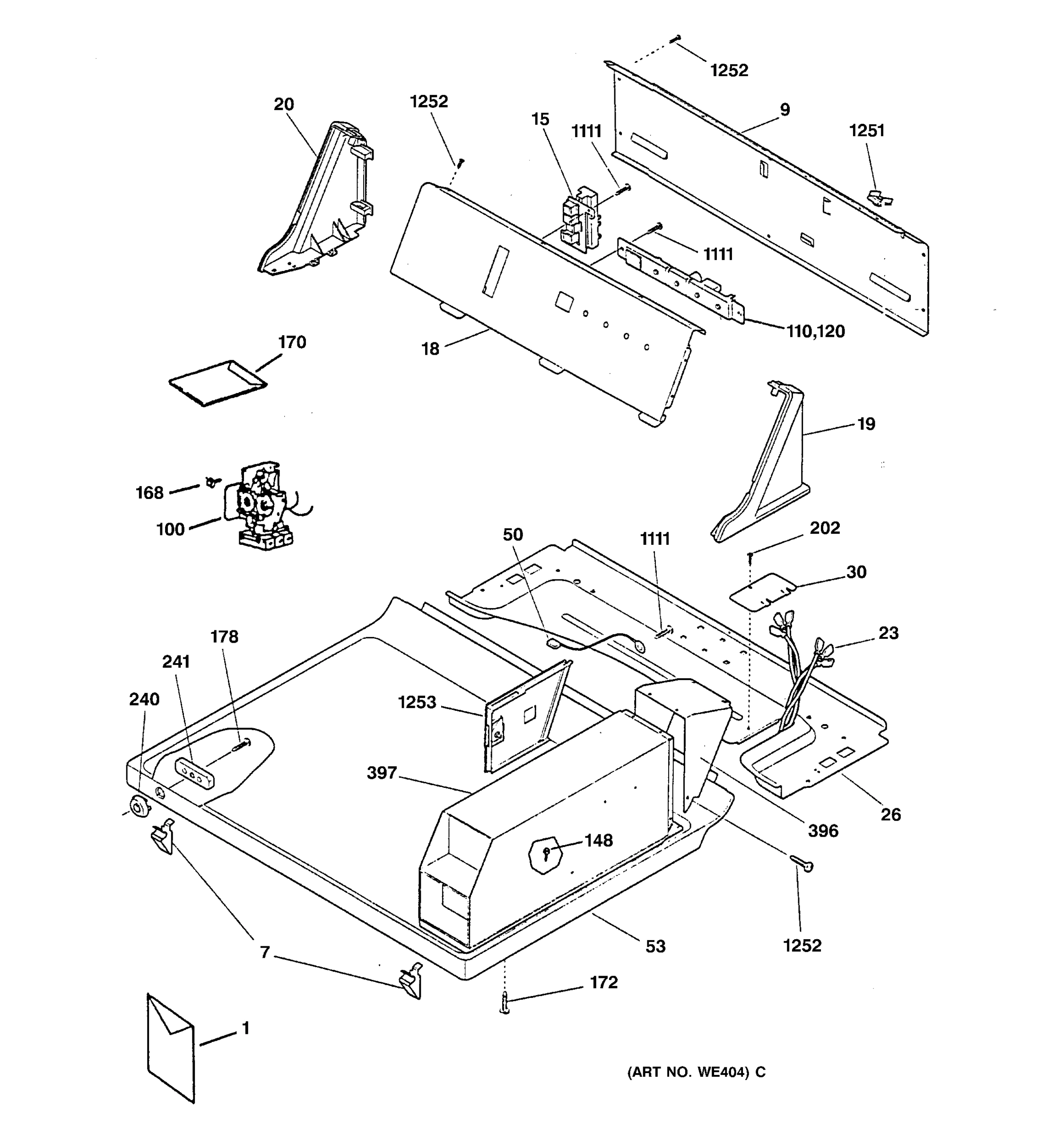

BACKSPLASH & TOP

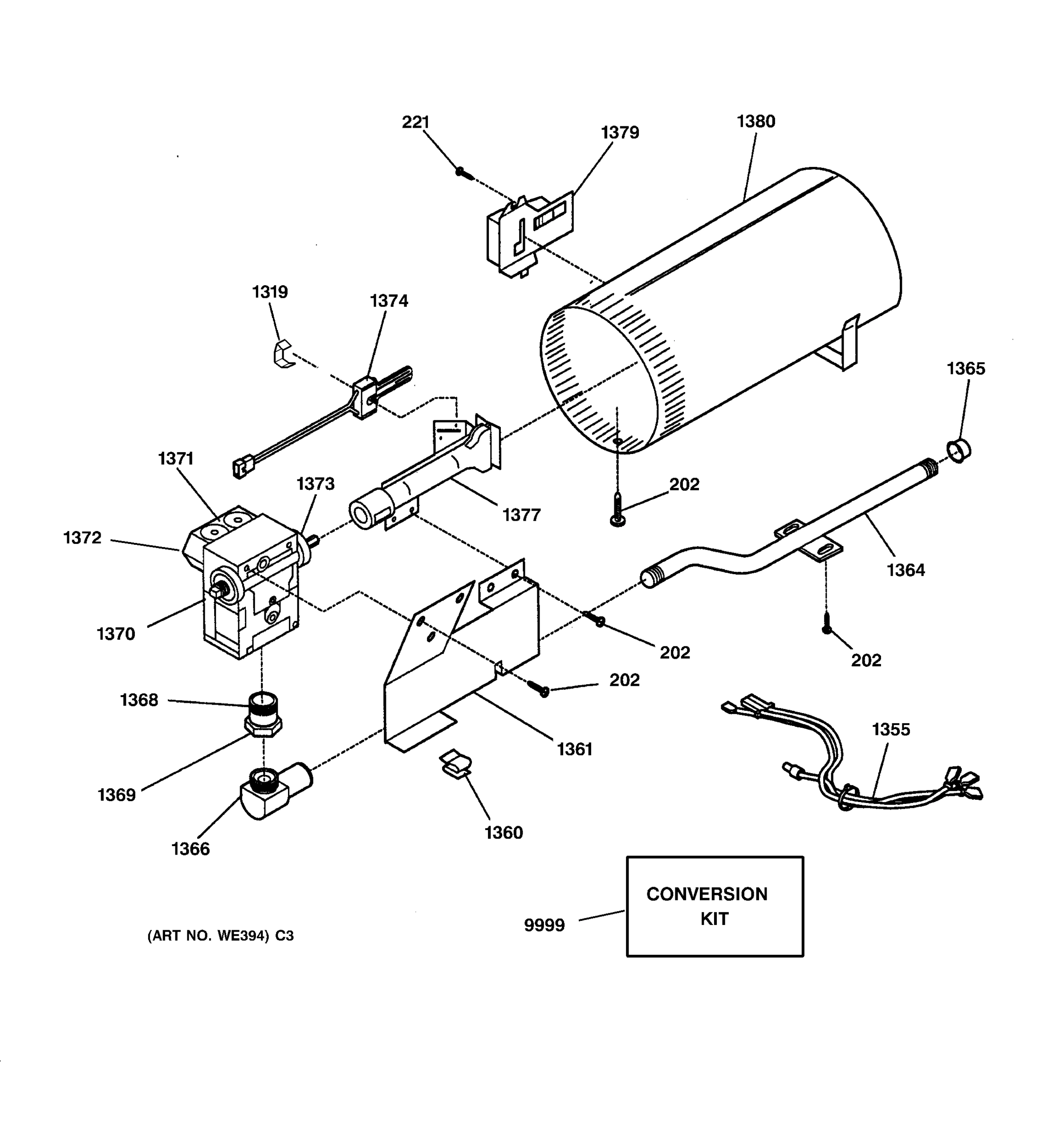

BURNER

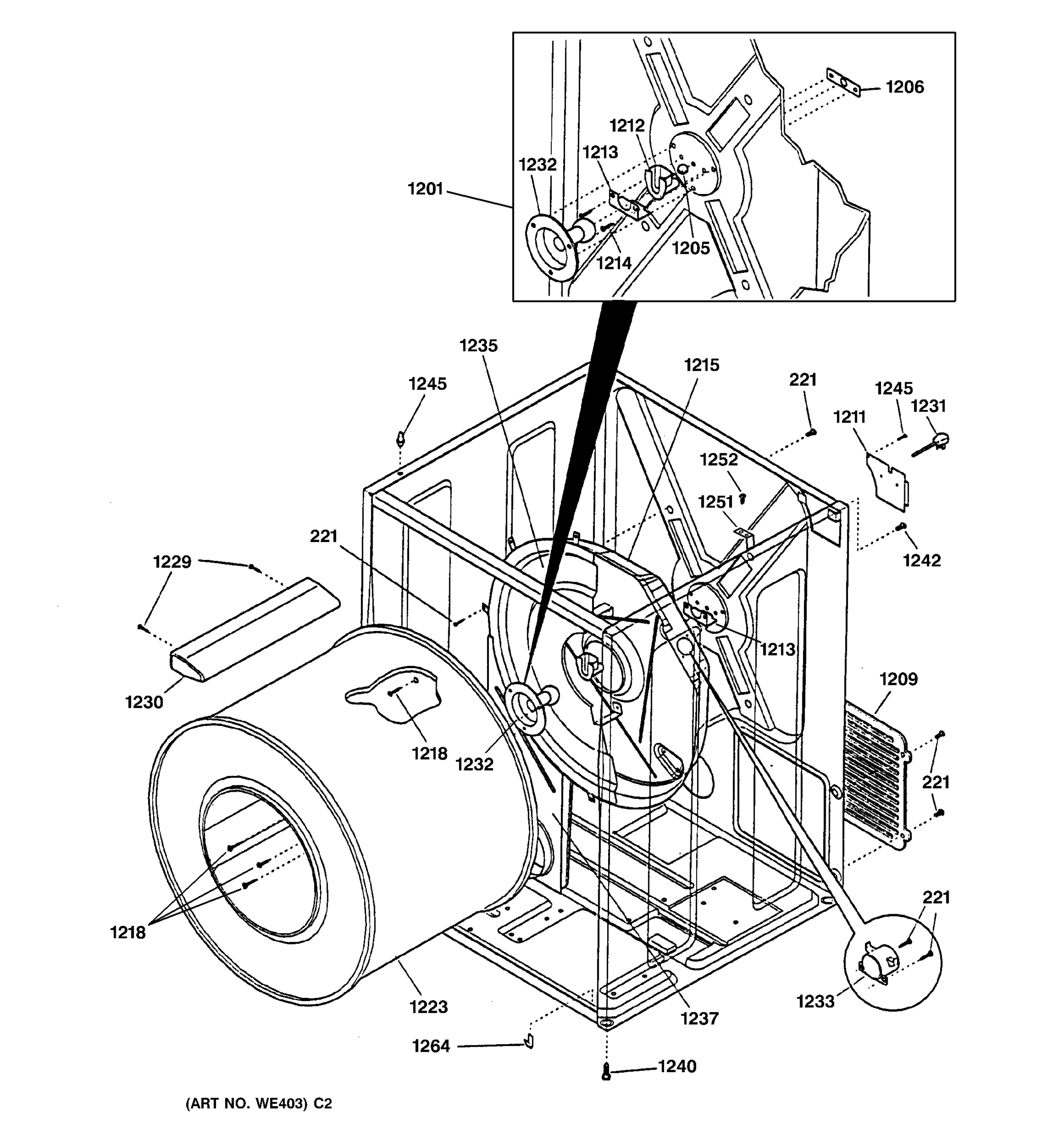

CABINET & DRUM

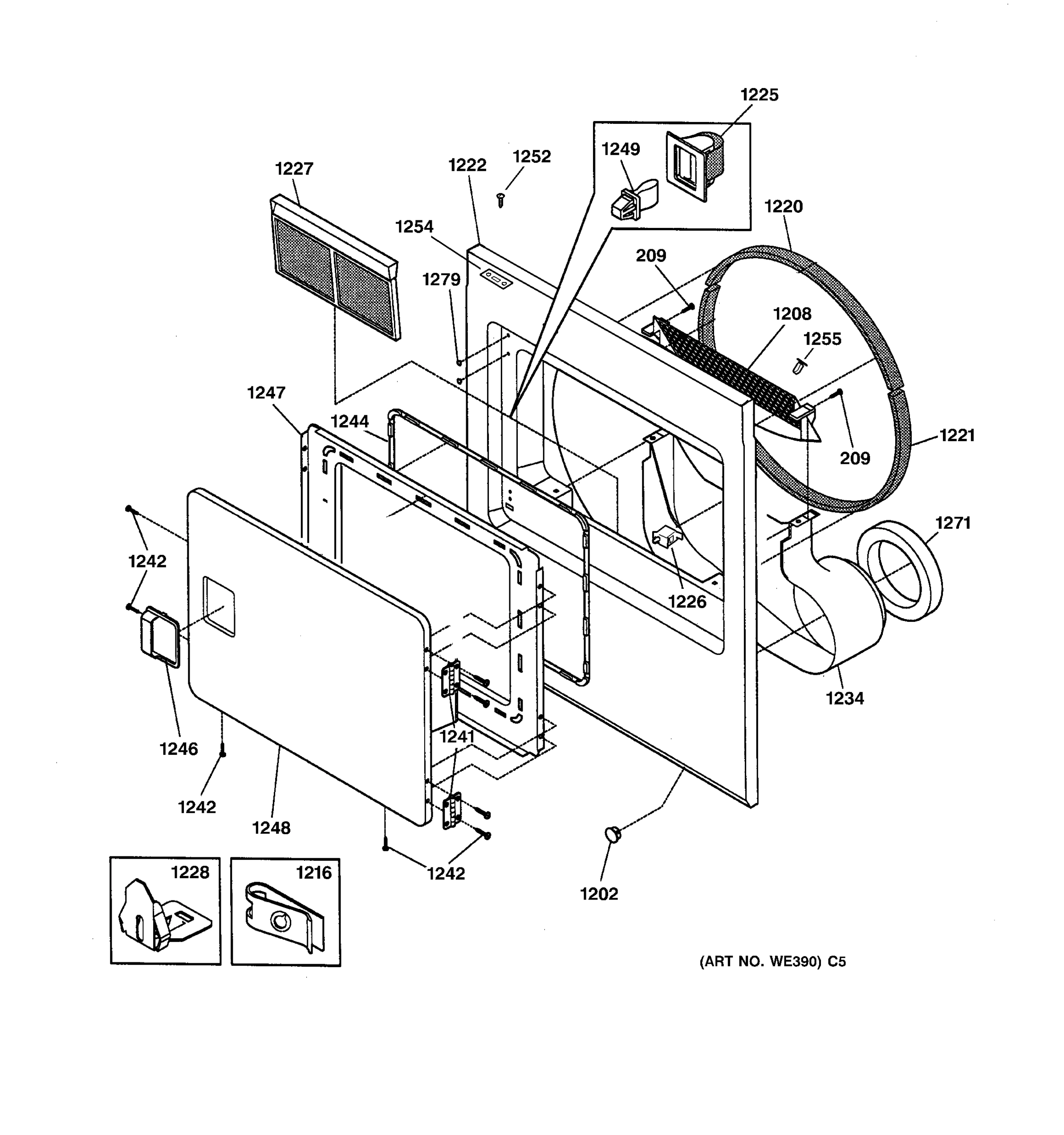

FRONT PANEL & LINT FILTER

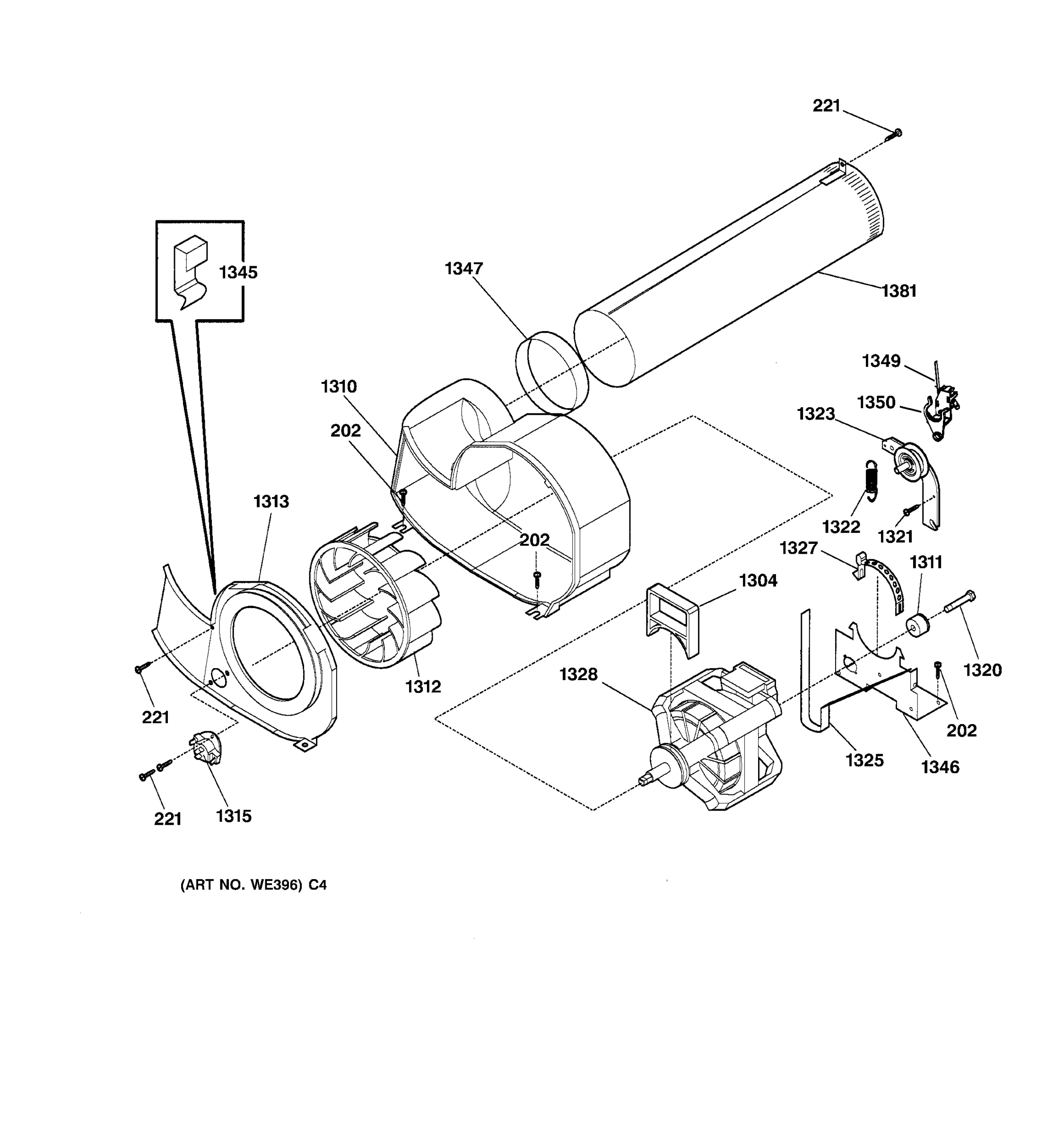

MOTOR
Common parts from model GE DCD330GY0AC
120
GEN WH01X10072 GEN WH01X10072 Contact Us For Availability
202
SCREW,8-18 X 0.31 GEN WR02X9494 Contact Us For Availability
209
SCREW 10-16 X .5 GEN WH02X10009 Contact Us For Availability
221
SCREW GEN WH01X10004 Contact Us For Availability
1202
PLUG-DOME AD GEN WE01X10040 Contact Us For Availability
1205
GEN WE01X1152 GEN WE01X1152 Contact Us For Availability
1206
CLIP-BALL GEN WE02X0358 Contact Us For Availability
1208
COVER-LINT TRAP GEN WE18X10001 Contact Us For Availability
1209
PANEL-ACCESS GEN WE20X10009 Contact Us For Availability
1211
COVER-TERM BLOCK GEN WE20X10004 Contact Us For Availability
1212
BEARING-SHAFT GEN WE03X10002 Contact Us For Availability
1213
GEN WE13X10009 GEN WE13X10009 Contact Us For Availability
1214
SCREW 10-16B X 1.375 GEN WE02X10005 Contact Us For Availability
1215
GEN WE14X10016 GEN WE14X10016 Contact Us For Availability
1216
GEN WE02X10010 GEN WE02X10010 Contact Us For Availability
1218
SCREW 10-16 X .375 GEN WE02X10006 Contact Us For Availability
1221
SEAL-BASKET LOWER GEN WE09X0105 Contact Us For Availability
1222
PANEL-FRONT AD GEN WE20X10014 Contact Us For Availability
1223
GEN WE21X10005 GEN WE21X10005 Contact Us For Availability
1225
CATCH-DOOR GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10034 GEN WE04X10034 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
SCREW 10-14 X 1.00 GEN WE02X10007 Contact Us For Availability
1230
GEN WE21X0069 GEN WE21X0069 Contact Us For Availability
1231
GEN WE08X10002 GEN WE08X10002 Contact Us For Availability
1233
GEN WE04X10017 GEN WE04X10017 Contact Us For Availability
1234
GEN WE14X10022 GEN WE14X10022 Contact Us For Availability
1235
SHIELD-HEATER PAN GEN WE11X10003 Contact Us For Availability
1237
GEN WE14X10021 GEN WE14X10021 Contact Us For Availability
1240
FOOT-CABINET GEN WE02X10012 Contact Us For Availability
1241
HINGE-DOOR GEN WE01X10012 Contact Us For Availability
1242
SCREW 8-18AB X .44 GEN WH02X10038 Contact Us For Availability
1244
GEN WE09X0107 GEN WE09X0107 Contact Us For Availability
1245
GEN WE01X10035 GEN WE01X10035 Contact Us For Availability
1246
HANDLE-DOOR AD GEN WE01X10041 Contact Us For Availability
1247
GEN WE10X10010 GEN WE10X10010 Contact Us For Availability
1248
GEN WE10X10011 GEN WE10X10011 Contact Us For Availability
1249
STRIKE-DOOR GEN WE01X1158 Contact Us For Availability
1251
GEN WE02X10027 GEN WE02X10027 Contact Us For Availability
1252
GEN WE02X10028 GEN WE02X10028 Contact Us For Availability
1253
GEN WE20X10025 GEN WE20X10025 Contact Us For Availability
1254
GEN WE01X10055 GEN WE01X10055 Contact Us For Availability
1255
GEN WE01X10056 GEN WE01X10056 Contact Us For Availability
1264
CLIP,CABINET BOTTOM GEN WE02X10013 Contact Us For Availability
1271
SEAL-AIR DUCT GEN WE09X10002 Contact Us For Availability
1279
PLUG WH GEN WE01X10042 Contact Us For Availability
1304
LOCK-FAN HOUSING GEN WE01X10016 Contact Us For Availability
1310
HOUSING-FAN GEN WE14X10008 Contact Us For Availability
1311
GEN WE01X10029 GEN WE01X10029 Contact Us For Availability
1312
WHEEL-BLOWER GEN WE16X10001 Contact Us For Availability
1313
COVER-FAN GEN WE14X10009 Contact Us For Availability
1315
GEN WE04X10018 GEN WE04X10018 Contact Us For Availability
1319
GEN WE02X10023 GEN WE02X10023 Contact Us For Availability
1320
SCREW 1/4-20T X 1.25 GEN WE02X10014 Contact Us For Availability
1321
GEN WE02X10022 GEN WE02X10022 Contact Us For Availability
1322
SPRING-IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10057 GEN WE01X10057 Contact Us For Availability
1327
CLAMP-MOTOR GEN WE01X10003 Contact Us For Availability
1345
CLIP-BLOWER HSG GEN WE02X10015 Contact Us For Availability
1346
BRACKET-MOTOR GEN WE13X10006 Contact Us For Availability
1347
SEAL-EXHAUST TUBE GEN WE09X10003 Contact Us For Availability
1349
SWITCH-BELT GEN WE04X10030 Contact Us For Availability
1350
BRACKET-BELT SWITCH GEN WE13X10008 Contact Us For Availability
1355
GEN WE08X10012 GEN WE08X10012 Contact Us For Availability
1361
GEN WE14X10010 GEN WE14X10010 Contact Us For Availability
1364
GEN WE01X10019 GEN WE01X10019 Contact Us For Availability
1365
GEN WE01X10020 GEN WE01X10020 Contact Us For Availability
1366
GEN WE14X10011 GEN WE14X10011 Contact Us For Availability
1368
UNION-MALE CONNECTOR GEN WE01X1166 Contact Us For Availability
1369
NUT-UNION HEX GEN WE02X0371 Contact Us For Availability
1370
VALVE-GAS GEN WE14X0207 Contact Us For Availability
1371
COIL-SECONDARY GEN WE04X10020 Contact Us For Availability
1372
GEN WE04X10031 GEN WE04X10031 Contact Us For Availability
1373
ORIFICE, NATURAL GAS GEN WE01X10022 Contact Us For Availability
1377
ASMY-BURNER GEN WE14X10018 Contact Us For Availability
1379
GEN WE04X0751 GEN WE04X0751 Contact Us For Availability
1380
ASMY-BURNER TUBE GEN WE14X10013 Contact Us For Availability
1381
TUBE-EXHAUST GEN WE14X10007 Contact Us For Availability
9999
KIT-GAS LP CONVERSION GEN WE25X10003 Contact Us For Availability
× ![]()
