Model GE DCB330EB0WC – Common Parts & Diagrams

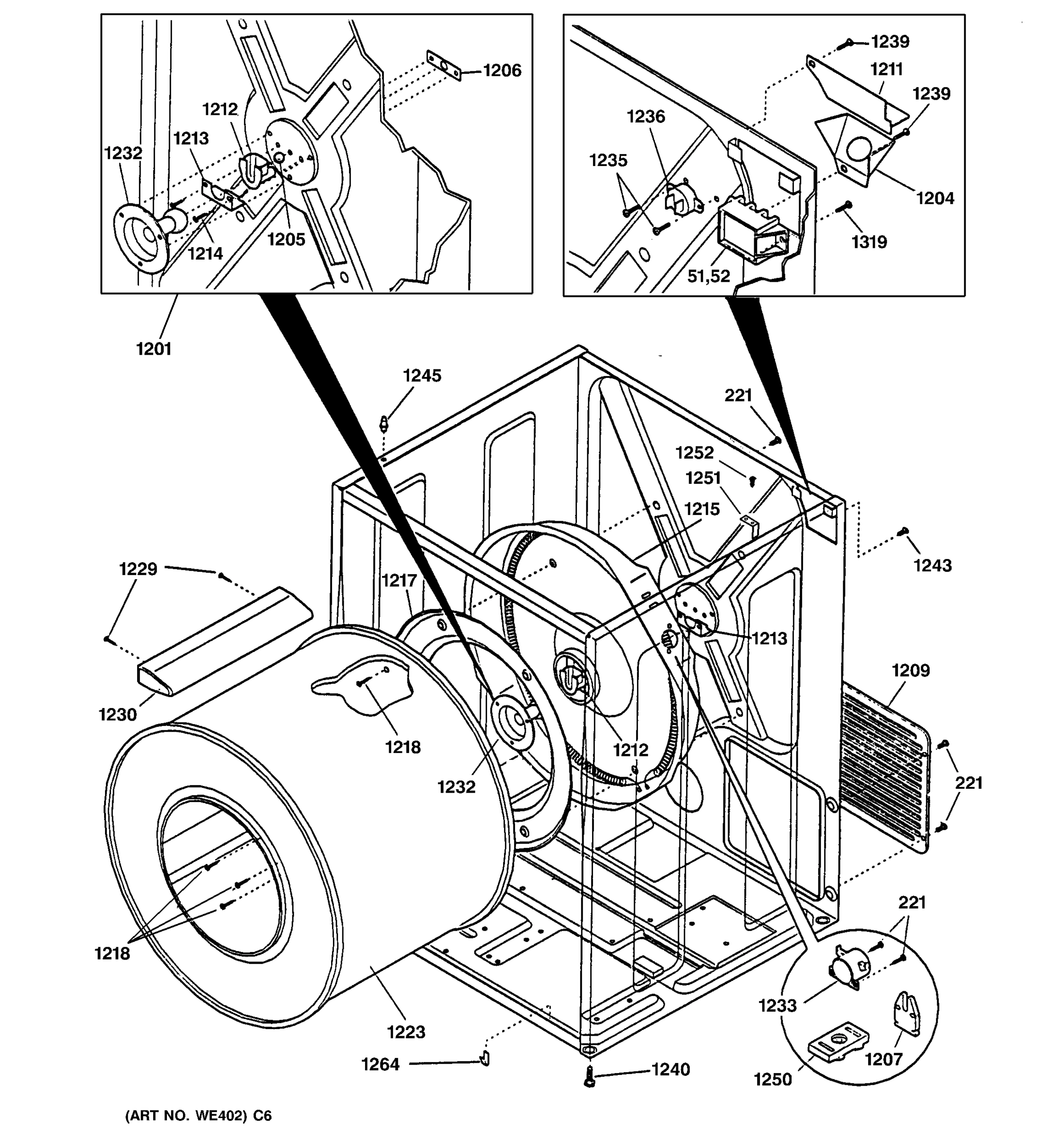

CABINET & DRUM

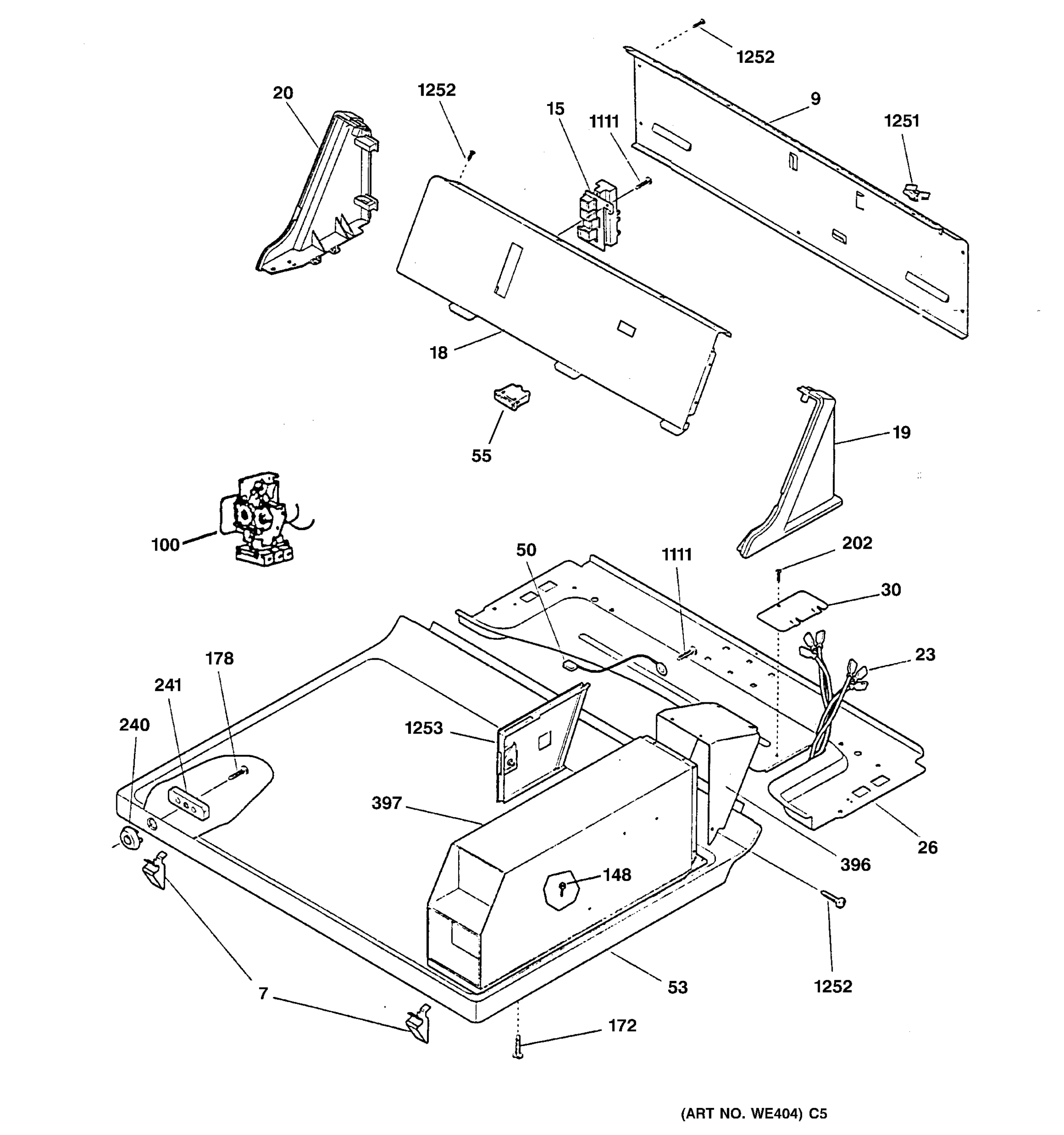

CONTROLS & TOP PANEL

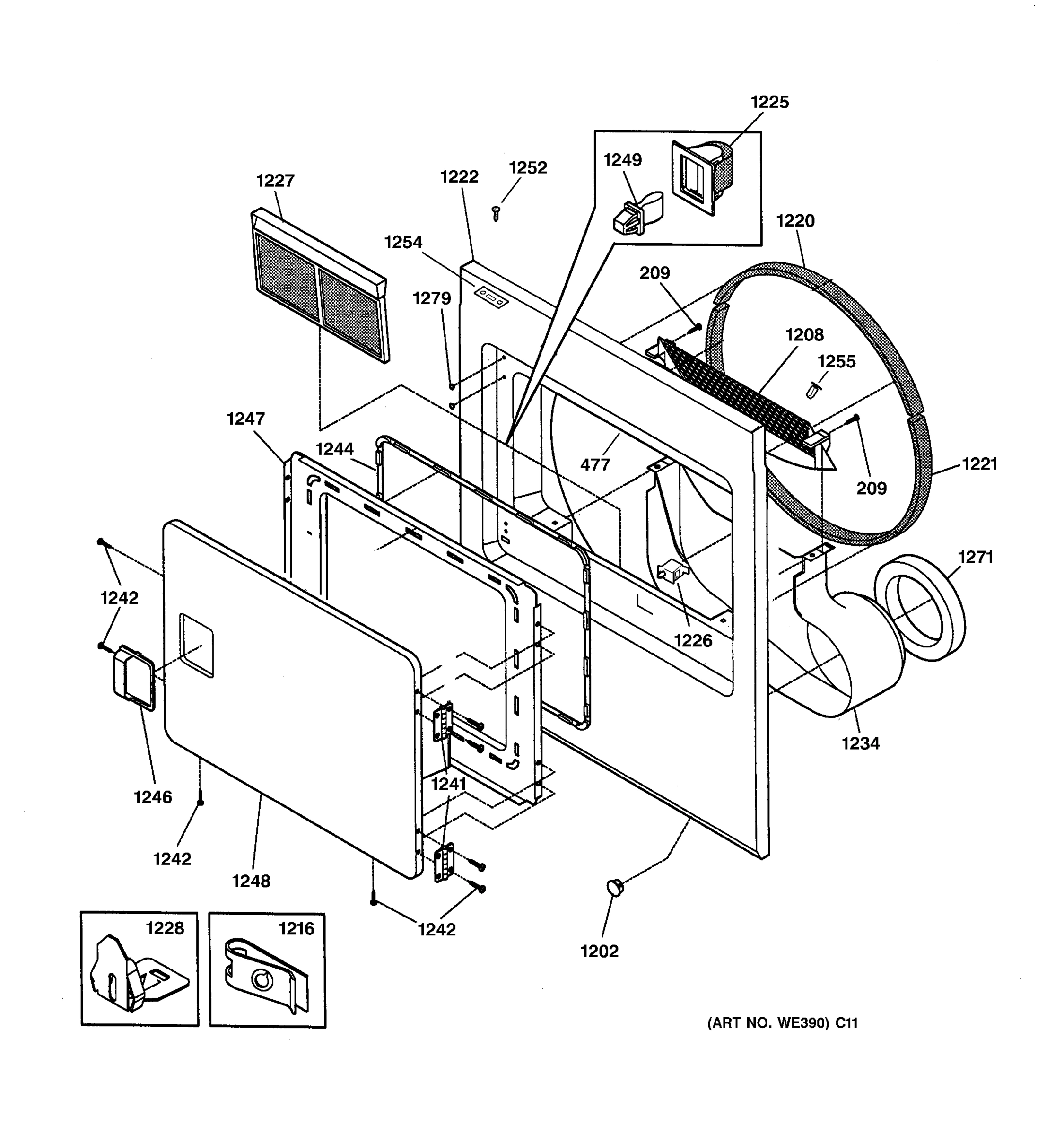

FRONT PANEL & LINT FILTER

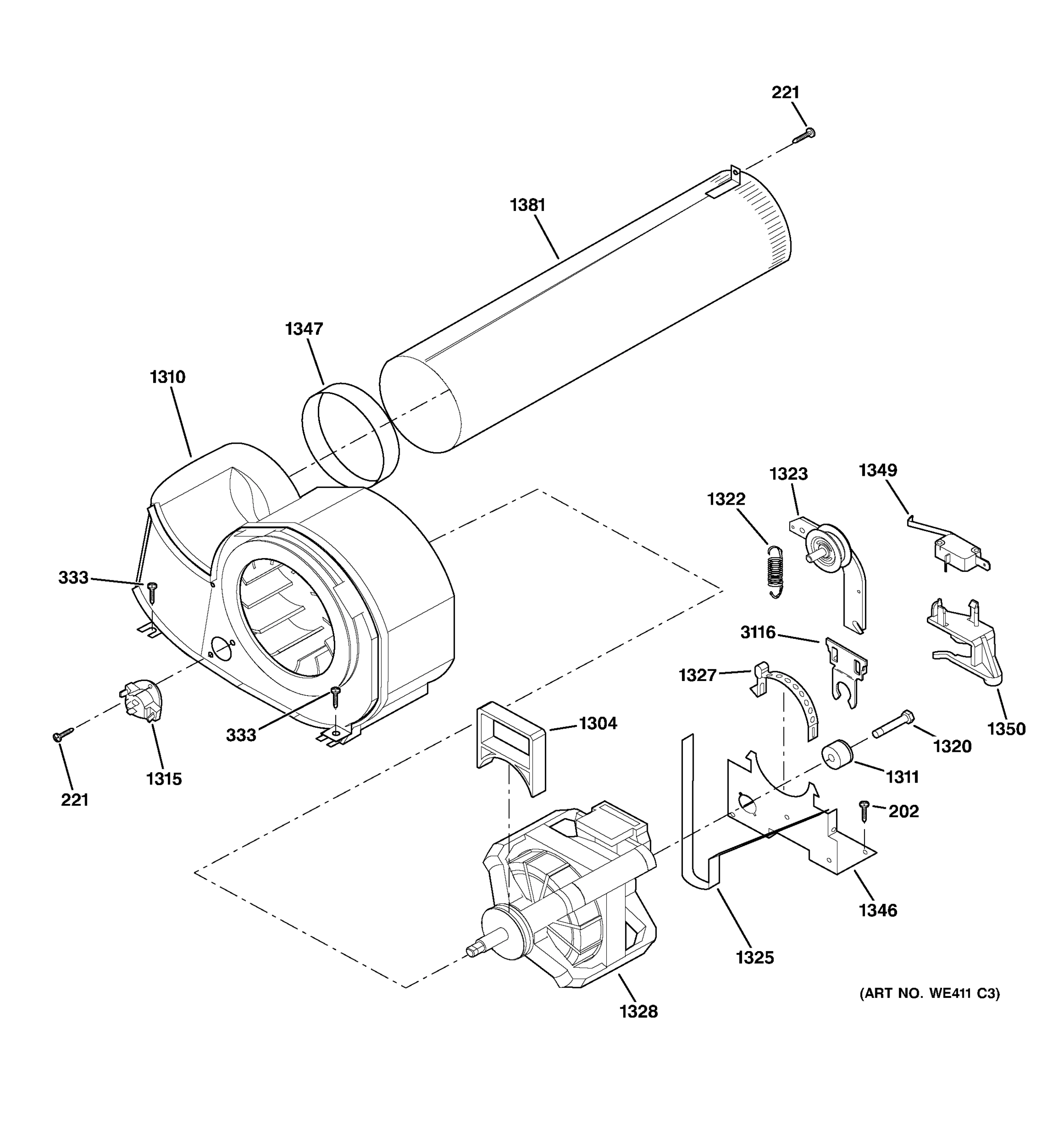

MOTOR
Common parts from model GE DCB330EB0WC
172
GEN WE02X10025 GEN WE02X10025 Contact Us For Availability
178
GEN WE02X10026 GEN WE02X10026 Contact Us For Availability
202
SCREW PANEL GEN WR02X9494 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
SCREW 8-18 AB X .375 GEN WH01X10004 Contact Us For Availability
240
GEN WE01X10052 GEN WE01X10052 Contact Us For Availability
241
GEN WE01X10053 GEN WE01X10053 Contact Us For Availability
333
GEN WH02X10028 GEN WH02X10028 Contact Us For Availability
396
GEN WE20X10021 GEN WE20X10021 Contact Us For Availability
397
GEN WE20X10022 GEN WE20X10022 Contact Us For Availability
477
GEN WE01X10137 GEN WE01X10137 Contact Us For Availability
1111
GEN WE02X10050 GEN WE02X10050 Contact Us For Availability
1202
PLUG WH GEN WE01X10010 Contact Us For Availability
1204
BRACKET CORD GEN WE13X10010 Contact Us For Availability
1207
INSULATOR, HEATER HSNG GEN WE04X10026 Contact Us For Availability
1208
GEN WE18X10005 GEN WE18X10005 Contact Us For Availability
1211
GEN WE20X10005 GEN WE20X10005 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1215
HEATER-HOUSING ASS'Y GEN WE14X10015 Contact Us For Availability
1216
GEN WE02X10010 GEN WE02X10010 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1220
GEN WE03X0073 GEN WE03X0073 Contact Us For Availability
1221
GEN WE09X0105 GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10042 GEN WE20X10042 Contact Us For Availability
1223
GEN WE21X10003 GEN WE21X10003 Contact Us For Availability
1225
GEN WE01X10023 GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10034 GEN WE04X10034 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
SCREW-VANE GEN WE02X10007 Contact Us For Availability
1234
GEN WE14X10022 GEN WE14X10022 Contact Us For Availability
1239
SCREW, 8-18 X .375 GEN WE02X10011 Contact Us For Availability
1240
FOOT-CABINET GEN WE02X10012 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
SCREW, 8-18 AB X .44 GEN WH02X10038 Contact Us For Availability
1244
GASKET DOOR GEN WE09X0107 Contact Us For Availability
1246
HANDLE-DOOR WH GEN WE01X10013 Contact Us For Availability
1247
PANEL-INNER DOOR WH GEN WE10X10008 Contact Us For Availability
1248
DOOR-OUTER WH GEN WE10X10009 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1251
GEN WE02X10027 GEN WE02X10027 Contact Us For Availability
1252
GEN WE02X10028 GEN WE02X10028 Contact Us For Availability
1253
GEN WE20X10023 GEN WE20X10023 Contact Us For Availability
1254
GEN WE01X10055 GEN WE01X10055 Contact Us For Availability
1255
GEN WE01X10056 GEN WE01X10056 Contact Us For Availability
1264
CLIP CABINET BTM GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10011 GEN WE09X10011 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1319
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10152 GEN WE01X10152 Contact Us For Availability
1327
CLAMP MOTOR GEN WE01X10003 Contact Us For Availability
1328
GEN WE17X10002 GEN WE17X10002 Contact Us For Availability
1346
BRACKET MOTOR GEN WE13X10006 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1349
SWITCH-BELT GEN WE04X10030 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
3116
GEN WE02X10053 GEN WE02X10053 Contact Us For Availability
× ![]()
