Model Accelerated Cooking Products DCA2000-P1194105M Amana Menumaster DCA2000 – Common Parts & Diagrams
BLOWER ASSY & MTG

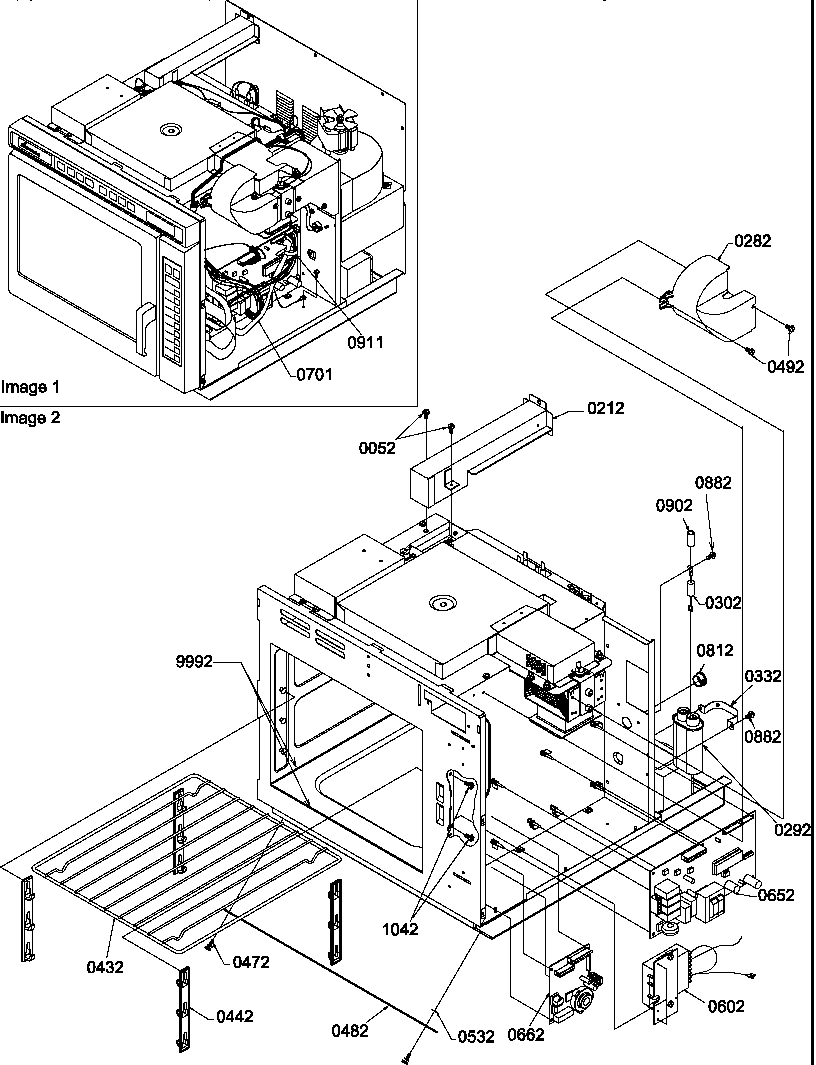

CIRCUIT BOARD/HIGH VOLT/OVEN RACK ASSY
CONTROL & TRIAC ASSEMBLIES
DOOR ASSY/REMOVAL & OUTER CASE
HEATER BOX & LIGHT ASSEMBLIES
OVEN CAVITY & STIRRER SYSTEM ASSEMBLIES
OVEN CAVITY ASSY
REAR ACCESS PANEL ASSY
Common parts from model Accelerated Cooking Products DCA2000-P1194105M Amana Menumaster DCA2000
1
DOOR ASSY ACP R0156922 Contact Us For Availability
11
WELD, HEATER BOX ACP 12020001 Contact Us For Availability
42
BOTTOM ACCESS-E CT ACP 20172101 Contact Us For Availability
51
RETAINER, GLASS ACP 12022401 Contact Us For Availability
51
HEATER ASSY ACP 12000104 Contact Us For Availability
51
HEATER ASSY ACP 12000103 Contact Us For Availability
52
SCREW ACP M0216716 Contact Us For Availability
52
SCREW ACP M0213815 Contact Us For Availability
61
GLASS-OVEN LIGHT ACP 12047501 Contact Us For Availability
71
MOTOR, BLOWER ACP 10999701 Contact Us For Availability
71
RETAINER-LT GLASS ACP 10978201 Contact Us For Availability
92
DUCT-BLOWER/MAG ACP 10978601 Contact Us For Availability
101
WINDOW, INNER ACP C8960501 Contact Us For Availability
101
BLADE, STIRRER ACP 12004601 Contact Us For Availability
111
HINGE-DOOR ACP C8961805 Contact Us For Availability
111
BLADE, STIRRER ACP 10825902Q Contact Us For Availability
131
OUTER DOOR ASSY ACP R0150113 Contact Us For Availability
131
RETAINER, TRAY ACP 12188901 Contact Us For Availability
141
SCREW ACP 13041505 Contact Us For Availability
151
THERMAL CUTOUT ACP B5684120 Contact Us For Availability
162
SCREW ACP M0218118 Contact Us For Availability
181
COVER, CHOKE W/GSKT ACP 12022601 Contact Us For Availability
182
COVER-MAG INLET ACP 10978701 Contact Us For Availability
191
TRANSFORMER, HV 230V 50 HZ ACP 10788609 Contact Us For Availability
192
SCREW, T F ACP 13042001 Contact Us For Availability
201
BRKT-TCO MTG ACP 10999501 Contact Us For Availability
202
ACCESS PAN WLD-E CT ACP 12002804 Contact Us For Availability
212
THERMAL CUTOUT ACP B5684119 Contact Us For Availability
221
SCREW-SM ACP M0238420 Contact Us For Availability
222
THERMAL CUTOUT - TCO ACP B5684102 Contact Us For Availability
231
BASE PAN & GASKET ASSY ACP R0150116 Contact Us For Availability
261
BRACKET,HINGE SUPPORT ACP 10772402 Contact Us For Availability
262
TOUCH PANEL ASSY- TOP ACP R0156991 Contact Us For Availability
272
TOUCH PANEL ASSY- SIDE ACP R0156993 Contact Us For Availability
292
SOCKET-LIGHT ACP B8376801 Contact Us For Availability
302
RETAINER-LIGHT ACP 10978501 Contact Us For Availability
312
BRKT-LAMP COVER ACP 10999602 Contact Us For Availability
342
BRKT-LIGHT ACP B8376701 Contact Us For Availability
351
BOLT-SHOULDER ACP 12030101 Contact Us For Availability
361
NUT ACP 13045502 Contact Us For Availability
411
SCREW-SM ACP M0213802 Contact Us For Availability
432
RACK, OVEN ACP 12000301 Contact Us For Availability
442
HOOK, RACK ACP 12029301 Contact Us For Availability
491
SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability
491
SCREW-TC ACP 20095801 Contact Us For Availability
532
SCREW ACP 12990609 Contact Us For Availability
602
SWITCH, INTERLOCK ASSY ACP 10985002 Contact Us For Availability
652
BOARD, HV ACP 12028708 Contact Us For Availability
682
BOARD, DISPLAY ACP 12040201 Contact Us For Availability
691
HARNESS, LVB/DISPLAY ACP 12029401 Contact Us For Availability
701
HARNESS, LVB/HVB ACP 12029501 Contact Us For Availability
711
HARNESS, WIRE ACP 12036903 Contact Us For Availability
761
HARNESS, OVEN LAMP ACP 12004302 Contact Us For Availability
812
BUSHING-SNAP ACP M0571001 Contact Us For Availability
822
BUSHING-SNAP ACP A3293501 Contact Us For Availability
902
SLEEVE-WIRE ACP M0322602 Contact Us For Availability
932
SHIELD, TRIAC ACP 12084501 Contact Us For Availability
972
CLIP,CORD ACP M0104106 Contact Us For Availability
1031
NUT, KEPS ACP M0282021 Contact Us For Availability
1042
SCREW ACP 12990523 Contact Us For Availability
× ![]()
