Model LG DC596M – Common Parts & Diagrams

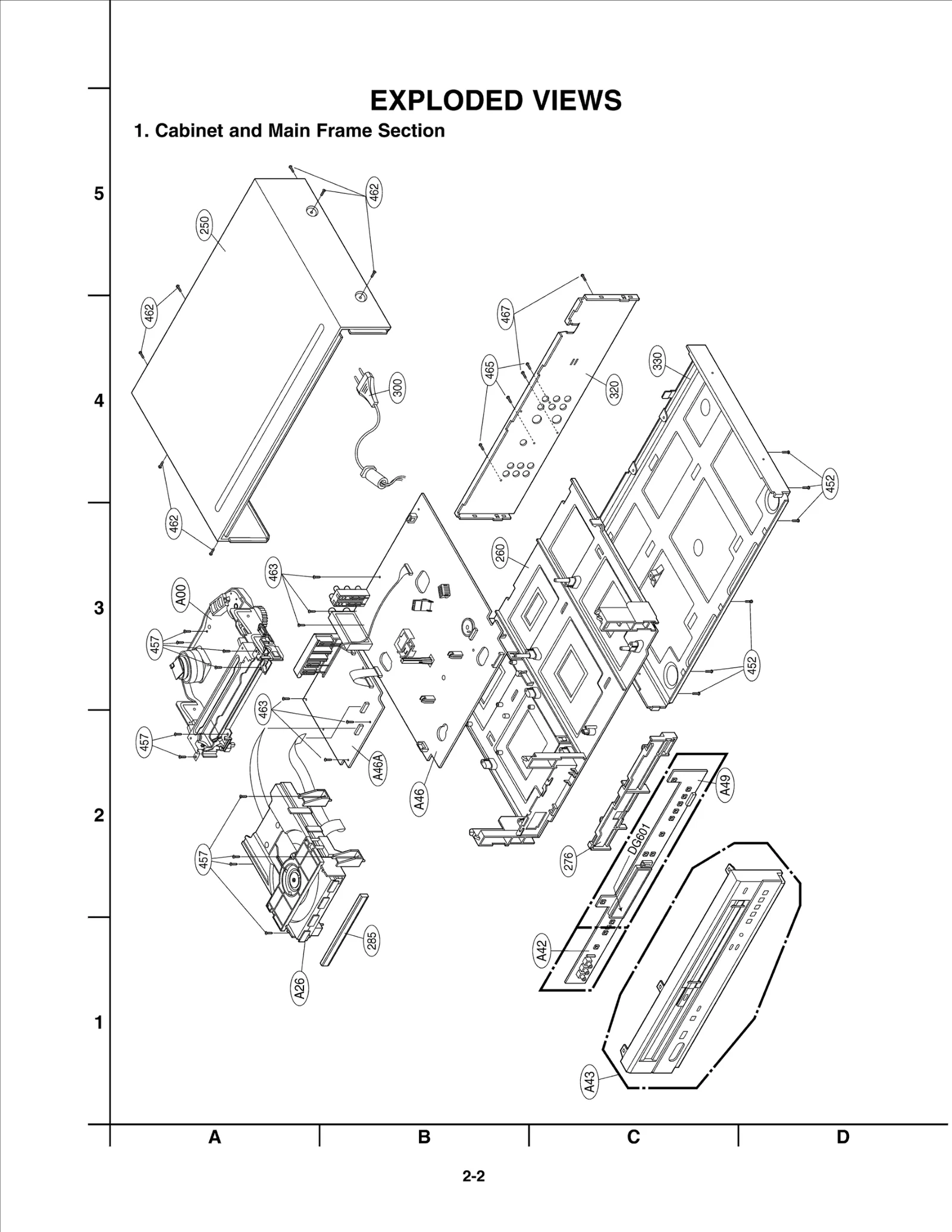

Diagram 0

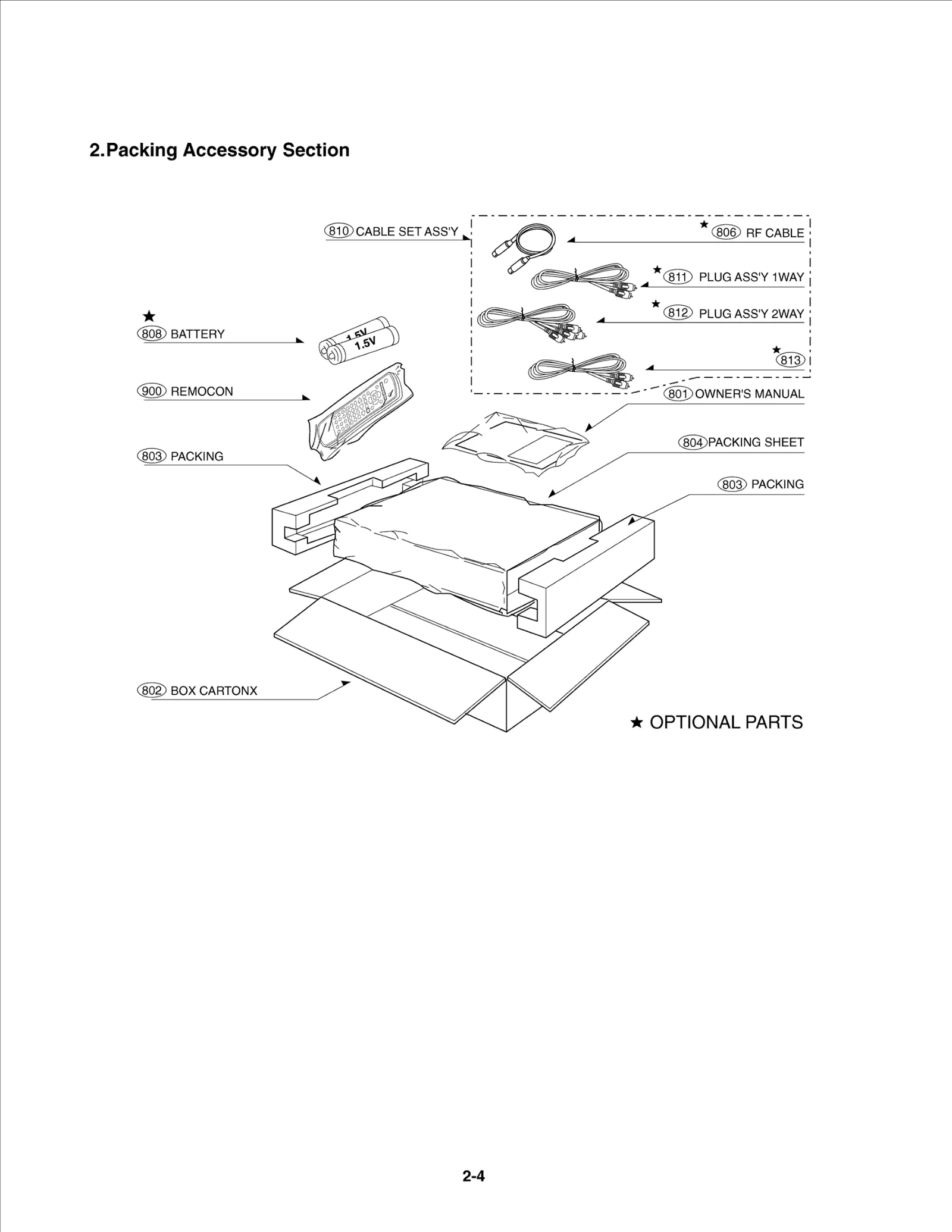

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Common parts from model LG DC596M
001
PLATE LGE 3300R-0547A Contact Us For Availability
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
LGE 4860R-0013A LGE 4860R-0013A Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
008
GEAR LGE 4470R-0047A Contact Us For Availability
009
GEAR LGE 4470R-0053A Contact Us For Availability
011
CHASSIS ASSY LGE 3210R-0036A Contact Us For Availability
013
BELT LGE 4400R-0006A Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,TO LGE 6871R-4415D Contact Us For Availability
016
GEAR LGE 4470R-0050A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
026
TRAY LGE 3390R-0005A Contact Us For Availability
026
LGE 3390RK0010A LGE 3390RK0010A Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A006A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A007A Contact Us For Availability
052
LGE 4680R-A008A LGE 4680R-A008A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
250
CASE LGE 3110R-P009A Contact Us For Availability
276
HOLDER,SHELF LGE 4930R-0298B Contact Us For Availability
285
DOOR,CASE LGE 3580R-T049A Contact Us For Availability
300
POWER CORD LGE 6410RAHX02A Contact Us For Availability
320
PANEL,FRONT LGE 3720R-D069U Contact Us For Availability
330
CHASSIS LGE 3140R-0042A Contact Us For Availability
405
SCREW,DRAWING LGE 1SZZR-0031B Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
432
SCREW, LGE 1SZZR-0011A Contact Us For Availability
462
SCREW,DRAWING LGE 353-085E Contact Us For Availability
463
SCREW,DRAWING LGE 353-051G Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RM0053H Contact Us For Availability
802
LGE 3890R-H524W LGE 3890R-H524W Contact Us For Availability
803
LGE 3920R-E058A LGE 3920R-E058A Contact Us For Availability
806
CABLE SET ASSY RF-CABLE, NTSC LGE 861-012C Contact Us For Availability
808
BATTERY,MN LGE 841-0021 Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0023A Contact Us For Availability
811
PLUG ASSY PHONO CORD 1WAY (YL) LGE 564-017B Contact Us For Availability
812
PLUG ASSY PHONO CORD 2WAY (RD/ LGE 564-018B Contact Us For Availability
813
CABLE LGE 683-002B Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1P042J Contact Us For Availability
A00
LGE 6721RF0740C LGE 6721RF0740C Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A01
LGE 4861R-0013B LGE 4861R-0013B Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-0030C Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-0029E Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RH0324B Contact Us For Availability
A42
BOARD ASSEMBLY LGE 3501R-3312C Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721R-F289U Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-4970G Contact Us For Availability
A46A
SUB PWB(PCB) ASSEMBL LGE 6885R-0203N Contact Us For Availability
A49
BOARD ASSEMBLY LGE 3501R-3311C Contact Us For Availability
BD01
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C2B4
LGE 0CH4561K512 LGE 0CH4561K512 Contact Us For Availability
C2C2
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C2C9
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C2E1
Capacitor,Ceramic,Chip LGE 0CH1182K562 Contact Us For Availability
C2M3
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C2N2
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C3K2
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C3K3
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
C103
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C122
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE477BH630 Contact Us For Availability
C126
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C133
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C154
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C162
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C163
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C318
LGE 0CN1510K518 LGE 0CN1510K518 Contact Us For Availability
C321
TUBULA(T.C) 47P 50V J SL (*NSP LGE 0CX4700K408 Contact Us For Availability
C343
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C351
LGE 0CN4720F668 LGE 0CN4720F668 Contact Us For Availability
C371
LGE 0CN6810K518 LGE 0CN6810K518 Contact Us For Availability
C383
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C390
LGE 0CQ1522K409 LGE 0CQ1522K409 Contact Us For Availability
C407
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C409
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C417
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C502
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C510
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C510
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C514
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C518
LGE 0CC2700K415 LGE 0CC2700K415 Contact Us For Availability
C519
LGE 0CC3600K415 LGE 0CC3600K415 Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C524
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C574
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C597
LGE 0CC1800K415 LGE 0CC1800K415 Contact Us For Availability
C708
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C713
Capacitor,Ceramic,Axial LGE 0CX5600K408 Contact Us For Availability
C716
CAPACITOR CERAMIC(TEMP COMP) 1 LGE 0CC1000K015 Contact Us For Availability
C819
Capacitor,Ceramic,Axial LGE 0CN6820F668 Contact Us For Availability
C822
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
CS501
LGE 6600M000002 LGE 6600M000002 Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D102
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D102
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D111
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D117
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D119
Diode,Rectifier LGE 0DR202000AB Contact Us For Availability
D122
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
DG601
LGE 6302RCV118A LGE 6302RCV118A Contact Us For Availability
DG601
DIGITRON LGE 6302R-V121A Contact Us For Availability
F102
IC,ROHM LGE GIRH200000B Contact Us For Availability
F607
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FL301
LGE 633-032N LGE 633-032N Contact Us For Availability
FT2A2
LGE 0TF700209AB LGE 0TF700209AB Contact Us For Availability
FT2A2
LGE 0TFPH80002B LGE 0TFPH80002B Contact Us For Availability
IC2A1
IC LGE 0ITI333721A Contact Us For Availability
IC2A3
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC2M1
LGE 0ILNRFA004A LGE 0ILNRFA004A Contact Us For Availability
IC7A1
IC,PERIPHERALS LGE 0IPRPSA007A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC102
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC104
IC,SHARP LGE 0ISH313000C Contact Us For Availability
IC105
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC106
IC,POWER MANAGEMENT LGE 0IPMGKE008B Contact Us For Availability
IC201
IC LGE 0IHY258010C Contact Us For Availability
IC204
LGE 0ISTLKE009A LGE 0ISTLKE009A Contact Us For Availability
IC204
LGE DITO453000C LGE DITO453000C Contact Us For Availability
IC301
IC,C-CUBE LGE 0ICU410000A Contact Us For Availability
IC301
IC,HITACHI LGE 0IHI118717A Contact Us For Availability
IC301
IC,C-CUBE LGE 0ICU410000B Contact Us For Availability
IC401
LGE 0IBB171600A LGE 0IBB171600A Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
LGE 0IMCRHY044C LGE 0IMCRHY044C Contact Us For Availability
IC501
IC,HITACHI LGE 0IHI641703C Contact Us For Availability
IC502A
LGE 6957R-252AA LGE 6957R-252AA Contact Us For Availability
IC503
LGE 0IGL440164C LGE 0IGL440164C Contact Us For Availability
IC503
LGE 0IMMREB001A LGE 0IMMREB001A Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
LGE 0ITI743740K LGE 0ITI743740K Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC505
LGE 0ISTLON003A LGE 0ISTLON003A Contact Us For Availability
IC506
LGE 0IHY602002A LGE 0IHY602002A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPMT002A Contact Us For Availability
IC602
LGE 0IPRPMT003A LGE 0IPRPMT003A Contact Us For Availability
IC751
LGE 0ILNRMN002A LGE 0ILNRMN002A Contact Us For Availability
IC751
LGE 0ILNRMN002B LGE 0ILNRMN002B Contact Us For Availability
IC801
IC LGE 0IPH960500A Contact Us For Availability
IC802
IC,MITSUMI LGE 0IMT144300A Contact Us For Availability
JK601
JACK,RCA LGE 6612R-C006Z Contact Us For Availability
JK601
JACK,RCA LGE 6612JH003AC Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK801
JACK,RCA LGE 6612R-C012B Contact Us For Availability
JK801
LGE 6612R-C012A LGE 6612R-C012A Contact Us For Availability
JW01
LGE 0WR0910K059 LGE 0WR0910K059 Contact Us For Availability
L102
Filter,Line Noise LGE 616-145E Contact Us For Availability
L102
FILTER(CIRC) LGE 616-145L Contact Us For Availability
L124
COIL,CHOKE LGE 633-088G Contact Us For Availability
L303
LGE 0LA1800K018 LGE 0LA1800K018 Contact Us For Availability
L306
INDUCTOR AXIAL LEAD 12M K 2.3X LGE 0LA0122K018 Contact Us For Availability
L506
LGE 635-027C LGE 635-027C Contact Us For Availability
L508
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L601
INDUCTOR RADIAL LEAD LGE 0LR8200J025 Contact Us For Availability
L704
LGE 0LR0102J0N5 LGE 0LR0102J0N5 Contact Us For Availability
L801
Inductor,Wire Wound,Radial LGE 0LR1000J025 Contact Us For Availability
LED601
Optic Element,Unclassified LGE 0DL112000AJ Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
Q2A1
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q2A1
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q2M1
TR,Bipolar LGE 0TR124009AP Contact Us For Availability
Q111
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q114
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q116
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q117
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q301
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q301
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q303
LGE 0TR100009BM LGE 0TR100009BM Contact Us For Availability
Q307
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q307
LGE 0TR200309AA LGE 0TR200309AA Contact Us For Availability
Q505
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q607
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q701
TRANSISTOR LGE 0TR100309AA Contact Us For Availability
Q801
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
Q802
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q802
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q802
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
R2B7
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R2B9
Resistor,Chip LGE 0RH1503C622 Contact Us For Availability
R2C0
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R2D7
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R2M3
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R2M6
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R2M7
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R2N2
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R2P6
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R2Q8
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R2S1
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R3K1
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R115
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R116
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R217
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R274
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R295
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R303
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R304
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R305
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R308
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R309
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R310
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R316
Filter,Bead LGE 0LC0200001B Contact Us For Availability
R317
LGE 0RD7501F608 LGE 0RD7501F608 Contact Us For Availability
R321
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R333
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R338
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R340
LGE 0RH1181C422 LGE 0RH1181C422 Contact Us For Availability
R395
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R411
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R413
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R511
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R513
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R514
LGE 0RD1803F608 LGE 0RD1803F608 Contact Us For Availability
R516
LGE 0RD5603F608 LGE 0RD5603F608 Contact Us For Availability
R520
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R524
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R526
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R529
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R533
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R535
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R537
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R541
LGE 0RD4703F608 LGE 0RD4703F608 Contact Us For Availability
R553
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R554
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R563
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R565
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R568
LGE 0RD6803F608 LGE 0RD6803F608 Contact Us For Availability
R579
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R604
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R606
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R612
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R613
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R614
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R615
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R617
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R619
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R620
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R622
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R715
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R801
LGE 0RD3304F608 LGE 0RD3304F608 Contact Us For Availability
R807
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
R857
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R879
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
RC601
REMOTE CONTROLLER RECEIVER LGE 6712R0838GA Contact Us For Availability
RS501
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW12A Contact Us For Availability
TU701
TUNER LGE 6700NFNL03D Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X3K1
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X3K1
RESONATOR,CRYSTAL LGE 6212AA2271F Contact Us For Availability
X201
LGE 6202R-BM04C LGE 6202R-BM04C Contact Us For Availability
X201
LGE 6202R-BM04D LGE 6202R-BM04D Contact Us For Availability
X301
LGE 6202R-AJ04C LGE 6202R-AJ04C Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AA2357F Contact Us For Availability
X501
LGE 6202R31001E LGE 6202R31001E Contact Us For Availability
X501
LGE 6202R31001F LGE 6202R31001F Contact Us For Availability
X501
LGE 6212R-L002A LGE 6212R-L002A Contact Us For Availability
X502
Crystal LGE 6212AC2327E Contact Us For Availability
X502
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X751
LGE 529-021Q LGE 529-021Q Contact Us For Availability
ZD101
LGE 0DZ330009BF LGE 0DZ330009BF Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZ332609FB Contact Us For Availability
ZD101
LGE 0DZ330009CD LGE 0DZ330009CD Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ130009AA Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ132609AB Contact Us For Availability
ZD105
Diode,Zener LGE 0DZ560009CB Contact Us For Availability
ZD105
Diode,Zener LGE 0DZ562609BA Contact Us For Availability
ZD502
LGE 0DZ510009JA LGE 0DZ510009JA Contact Us For Availability
ZD503
ZENER DIODE LGE 0DZ680009CA Contact Us For Availability
ZD503
LGE 0DZ682609AB LGE 0DZ682609AB Contact Us For Availability
ZD503
LGE 0DZ682609BA LGE 0DZ682609BA Contact Us For Availability
× ![]()
Login and Registration Form
