Model Whirlpool DC5610 DISHWASHER – Common Parts & Diagrams
02 - ACCESSORY KITS

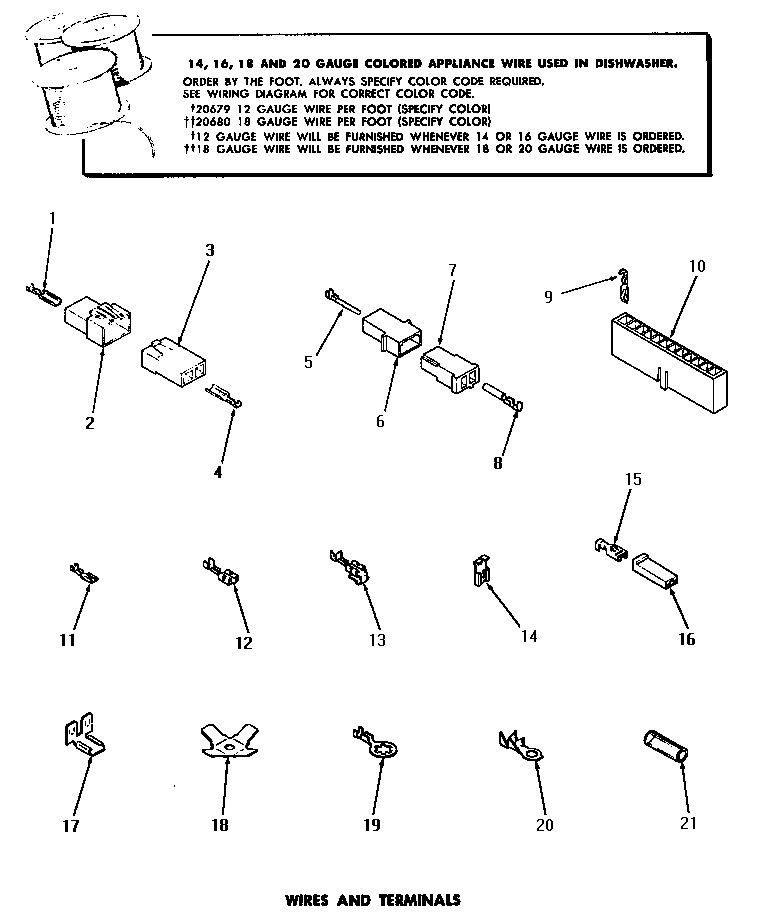

17 - WIRES & TERMINALS

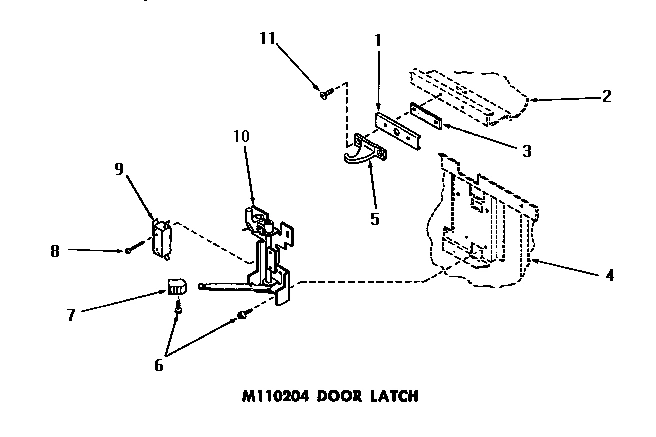

10 - M110204 DOOR LATCH

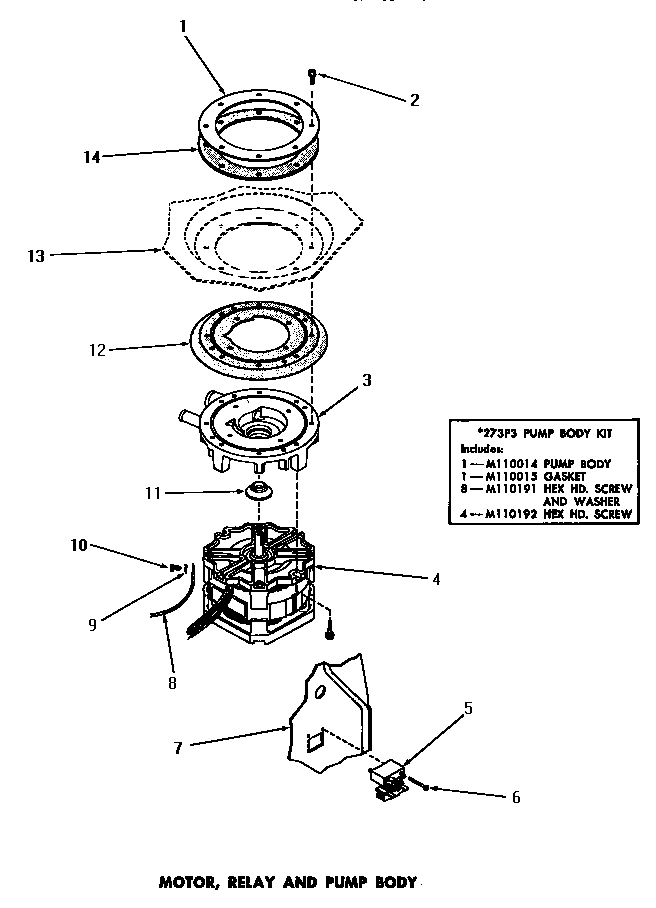

11 - MOTOR, RELAY & PUMP BODY

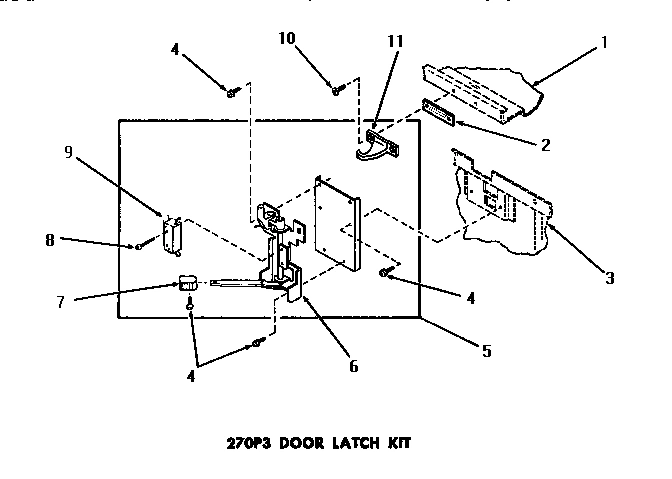

01 - 270P3 DOOR LATCH KIT

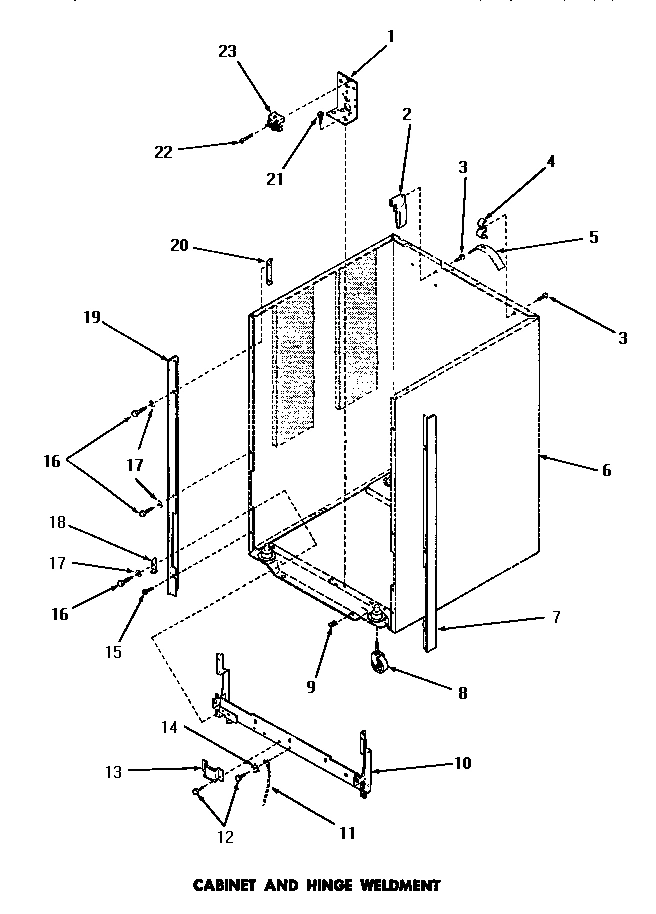

03 - CABINET & HINGE WELDMENT

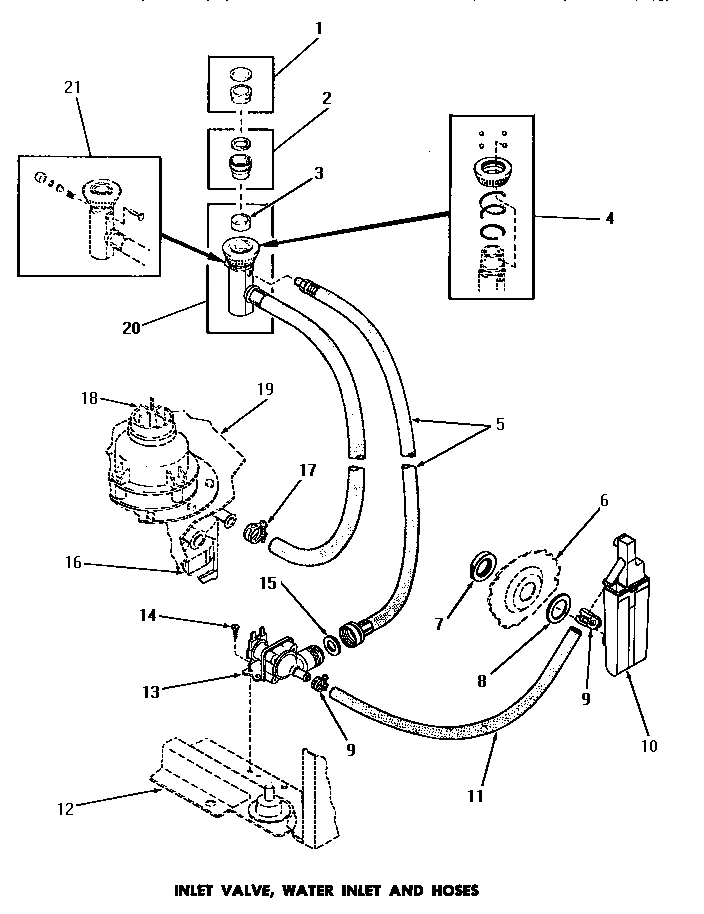

07 - INLET VALVE, WATER INLET & HOSES

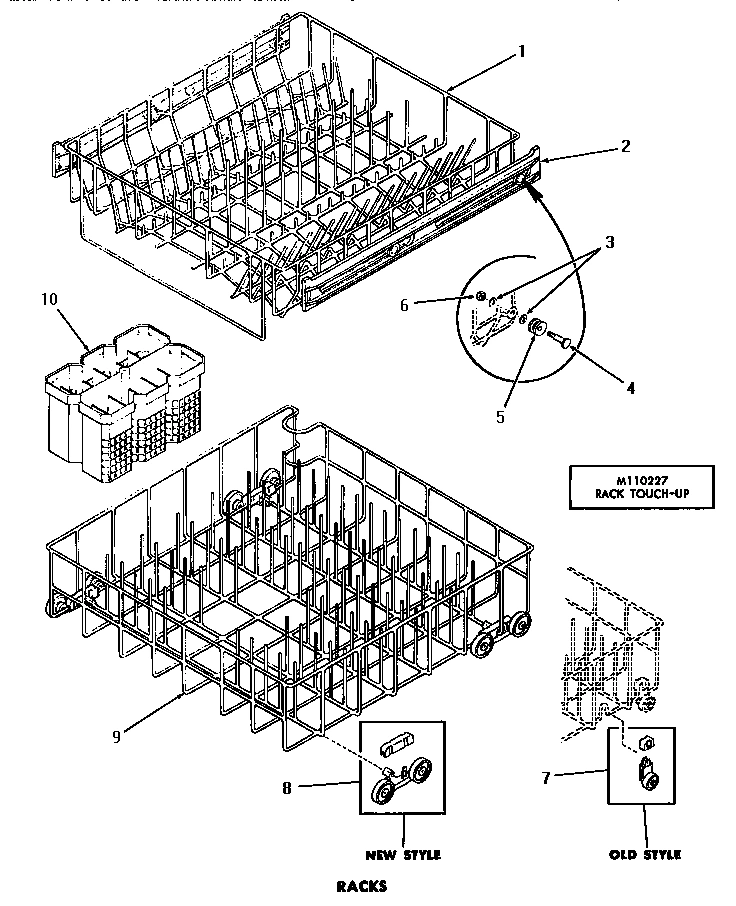

14 - RACKS

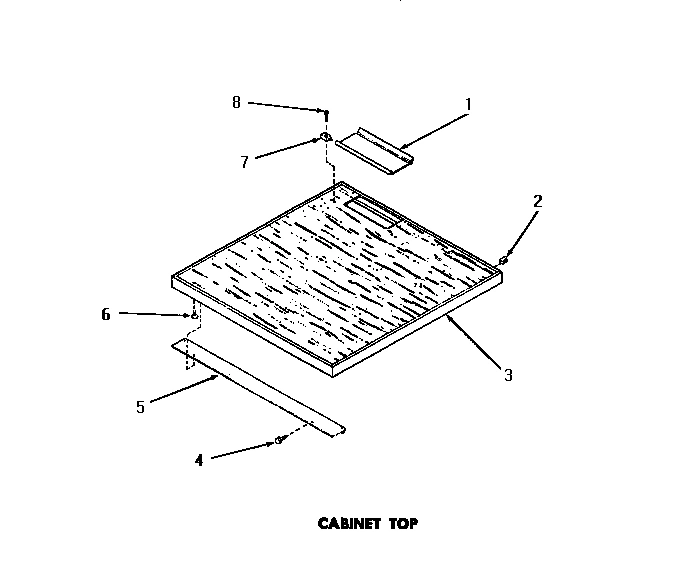

04 - CABINET TOP

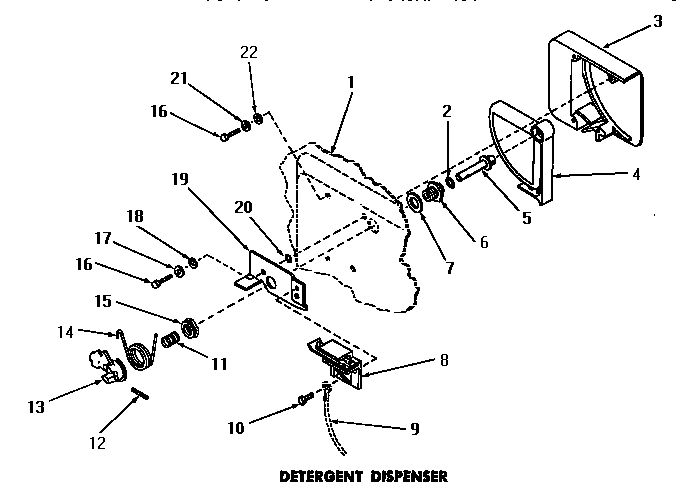

06 - DETERGENT DISPENSER

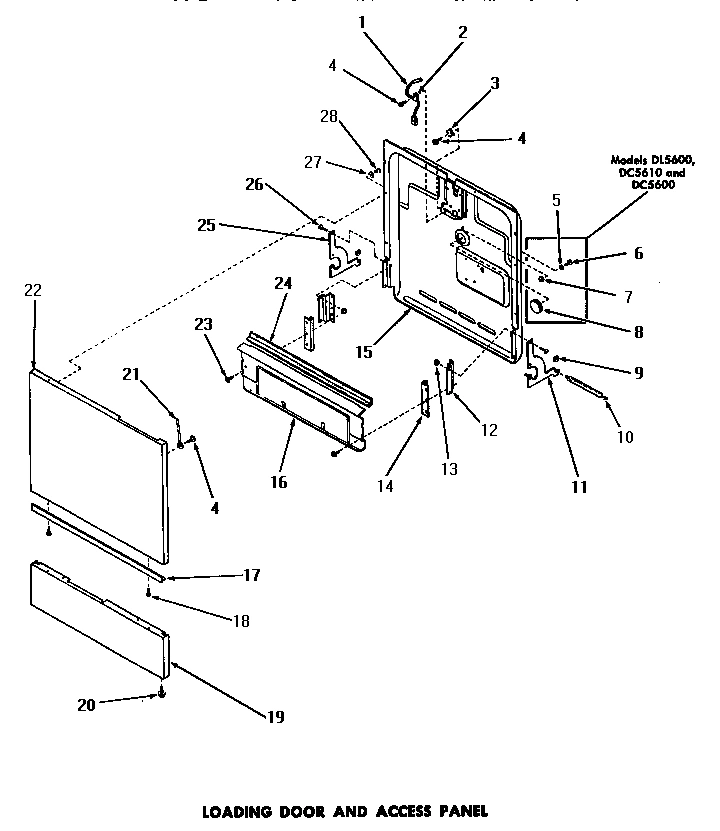

08 - LOADING DOOR & ACCESS PANEL

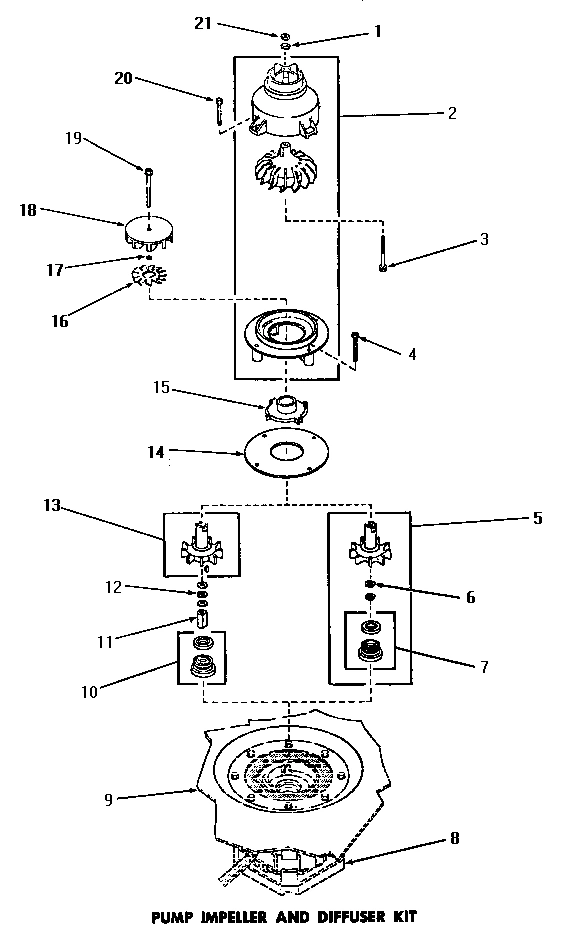

13 - PUMP IMPELLER & DIFFUSER KIT

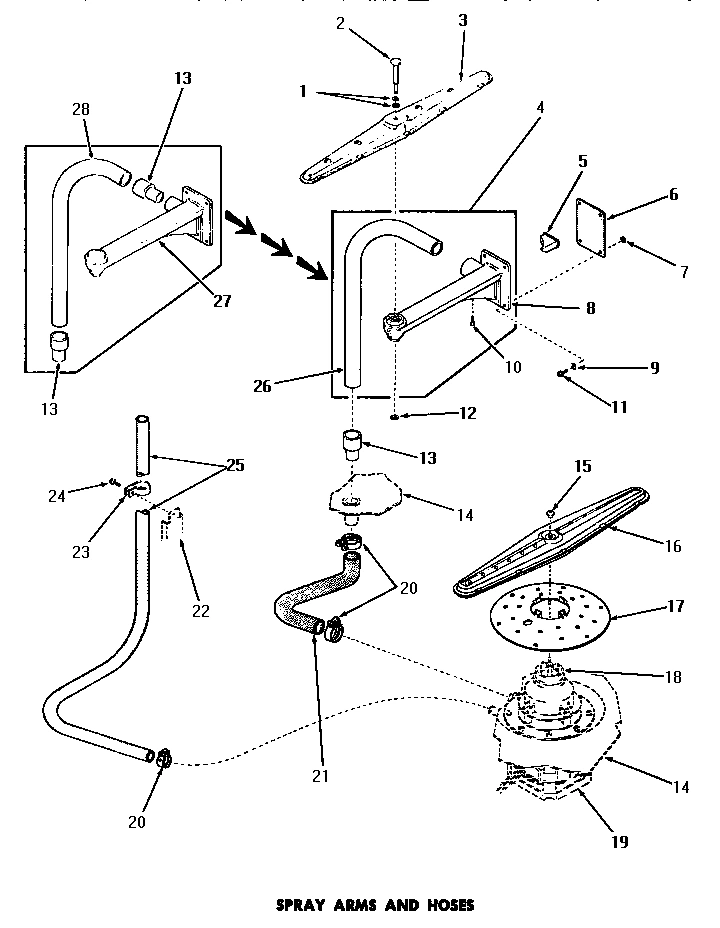

15 - SPRAY ARMS & HOSES

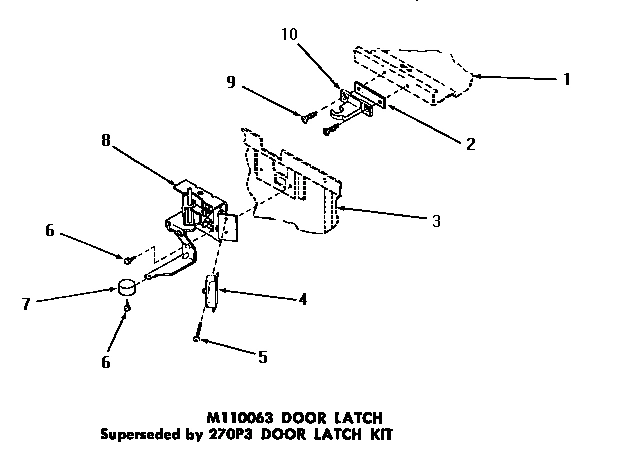

09 - M110063 DOOR LATCH

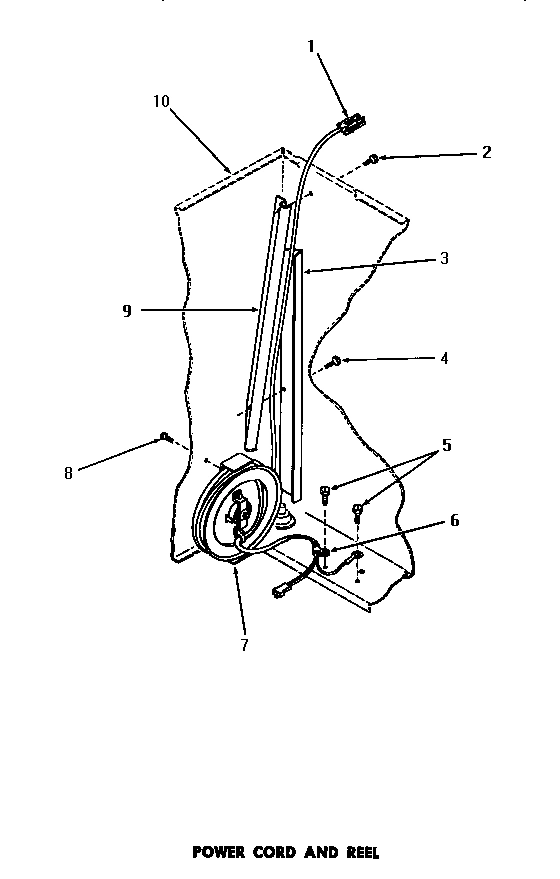

12 - POWER CORD & REEL

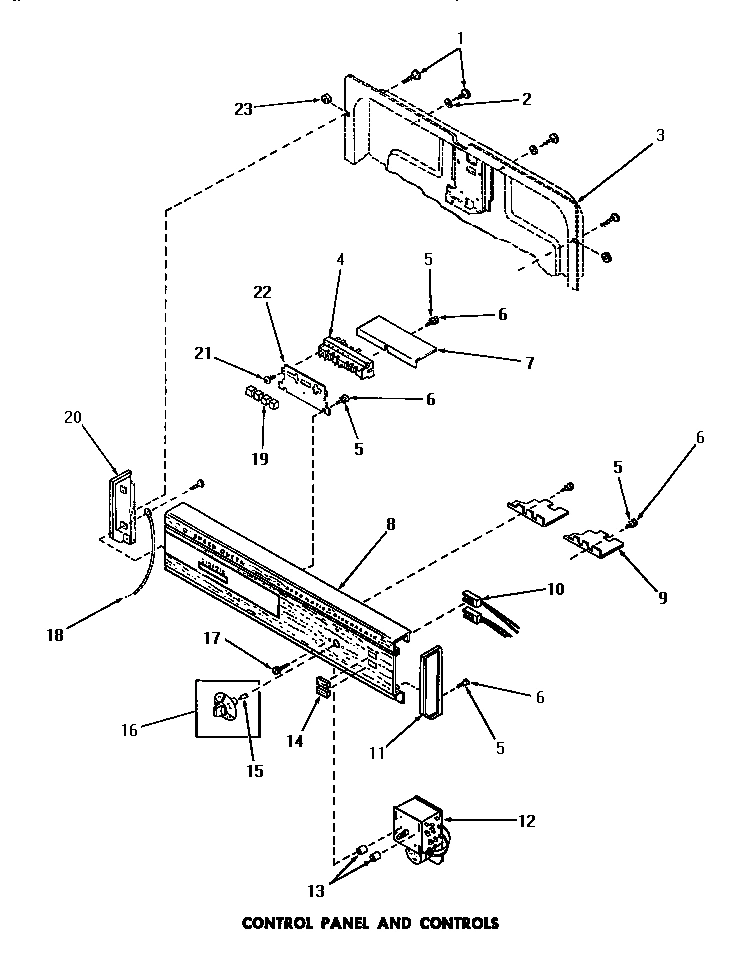

05 - CONTROL PANEL & CONTROLS

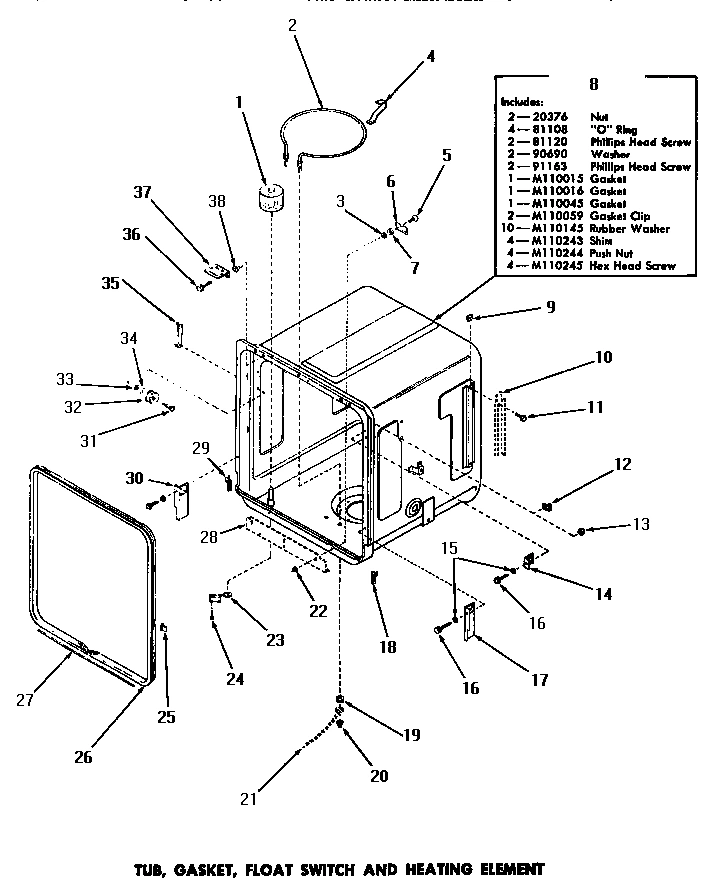

16 - TUB, GASKET, FLOAT SWITCH & HEATING ELEM
Common parts from model Whirlpool DC5610 DISHWASHER
TUB INC 20376 NUT(2), 81108 O-RING(4), 81120 WPL NOTE Contact Us For Availability
1
SMALL ITEMS BASKET WPL M110262 Contact Us For Availability
1
SHIM WPL M110243 Contact Us For Availability
1
COVER xREPLACE WPL M110017 Contact Us For Availability
1
RELAY BRACKET WPL M110159 Contact Us For Availability
1
ADAPTER WPL 65067 Contact Us For Availability
1
RACK,UPPER xREPLACE WPL M110113 Contact Us For Availability
1
ACCESS COVER WPL M110150 Contact Us For Availability
1
THERMOSTAT xREPLACE WPL M110079 Contact Us For Availability
1
SCREW,PHILLIPS HEAD WPL 65022 Contact Us For Availability
1
LOCKWASHER,1/4 INTSHKP WPL 21456 Contact Us For Availability
1
WASHER,BRASS xREPLACE WPL M110143 Contact Us For Availability
1
POWER CORD WPL M110241 Contact Us For Availability
1
FLOAT xREPLACE WPL M110048 Contact Us For Availability
2
TERMINAL BLOCK, 2 CIRCUIT WPL M110193 Contact Us For Availability
2
TERMINAL BLOCK, 4 CIRCUIT WPL M110195 Contact Us For Availability
2
SHIM xREPLACE WPL M110061 Contact Us For Availability
2
SCREW & WASHER-HX HD xREPLACE WPL M110044 Contact Us For Availability
2
SCREW & WASHER-HX HD xREPLACE WPL M110191 Contact Us For Availability
2
GUIDE,HOSE xREPLACE WPL M110153 Contact Us For Availability
2
NIPPLE,SNAP WPL 65069 Contact Us For Availability
2
RACK,SLIDE xREPLACE WPL M110114 Contact Us For Availability
2
CLIP WPL M110149 Contact Us For Availability
2
O-RING WPL M110095 Contact Us For Availability
2
WASHER,11/64IDX1/16ODX WPL 21147 Contact Us For Availability
2
DIFFUSER KIT WPL 272P3 Contact Us For Availability
2
SPINDLE,SPRAY ARM xREPLACE WPL M110038 Contact Us For Availability
2
ELEMENT,HEATER xREPLACE WPL M110190 Contact Us For Availability
3
TERMIANL BLOCK, 2 CIRCUIT WPL M110194 Contact Us For Availability
3
TERMINAL BLOCK, 4 CIRCUIT WPL M110196 Contact Us For Availability
3
KIT,PUMP WPL 273P3 Contact Us For Availability
3
KIT,PUMP xREPLACE WPL M110014 Contact Us For Availability
3
SLEEVE,RUBBER xREPLACE WPL M110161 Contact Us For Availability
3
CABINET TOP WPL M110148 Contact Us For Availability
3
CUP,DETERGENT xREPLACE WPL M110098 Contact Us For Availability
3
ARM,SPRAY-UPPER xREPLACE WPL M110037 Contact Us For Availability
3
HOSE GUARD WPL M110166 Contact Us For Availability
4
TERMINAL WPL Y00151 Contact Us For Availability
4
MOTOR xREPLACE WPL M110010 Contact Us For Availability
4
HOSE CLAMP WPL M110154 Contact Us For Availability
4
KIT,COLLAR REPAIR WPL 255P3 Contact Us For Availability
4
CUP,DETERGENT xREPLACE WPL M110097 Contact Us For Availability
4
SCREW xREPLACE WPL M110192 Contact Us For Availability
4
ARM & TUBE xREPLACE WPL 286P3 Contact Us For Availability
4
KIT,DOOR LATCH xREPLACE WPL M110065 Contact Us For Availability
4
SELECTOR SWITCH WPL M110138 Contact Us For Availability
4
CLAMP,ELEMENT xREPLACE WPL M110043 Contact Us For Availability
5
TERMINAL WPL Y00152 Contact Us For Availability
5
SCREW WPL 10398 Contact Us For Availability
5
LOCKWASHER WPL Y20278 Contact Us For Availability
5
KIT,DOOR LATCH xREPLACE WPL 270P3 Contact Us For Availability
5
HOSE SUPPORT WPL M110155 Contact Us For Availability
5
HOSE,INLET xREPLACE WPL M110163 Contact Us For Availability
5
ROLLER xREPLACE WPL M110115 Contact Us For Availability
5
TOP HOLD-DOWN BRACKET WPL M110152 Contact Us For Availability
5
BAG,PARTS xREPLACE WPL M110096 Contact Us For Availability
5
KIT,IMPELLER WPL 281P3 Contact Us For Availability
5
DELIVERY ARM PLUG WPL M110035 Contact Us For Availability
5
PHILLIPS HEAD SCREW WPL 81120 Contact Us For Availability
6
TERMINAL BLOCK WPL M110197 Contact Us For Availability
6
LATCH,DOOR xREPLACE WPL M110204 Contact Us For Availability
6
NUT WPL 21080 Contact Us For Availability
6
BUSHING xREPLACE WPL M110094 Contact Us For Availability
6
WIRE CLIP WPL Y20308 Contact Us For Availability
6
SCREW,8-32 X 1/4 PAN HEAD WPL 70209 Contact Us For Availability
6
SHIM WPL M110246 Contact Us For Availability
6
GASKET xREPLACE WPL M110036 Contact Us For Availability
6
SCREW,8B-18 X 1/2 RD H WPL 51778 Contact Us For Availability
6
CLIP,GASKET xREPLACE WPL M110059 Contact Us For Availability
7
TERMINAL BLOCK WPL M110198 Contact Us For Availability
7
KNOB xREPLACE WPL M110206 Contact Us For Availability
7
CABINET TRIM, RIGHT WPL M110157 Contact Us For Availability
7
NUT WPL M110111 Contact Us For Availability
7
WHEEL & CAP xREPLACE WPL M110117 Contact Us For Availability
7
HINGE xREPLACE WPL M110151 Contact Us For Availability
7
WASHER xREPLACE WPL M110093 Contact Us For Availability
7
NUT WPL Y20276 Contact Us For Availability
7
O-RING WPL Y81108 Contact Us For Availability
7
KNOB xREPLACE WPL M110064 Contact Us For Availability
7
POWER CORD AND REEL ASSEMBLY WPL M110164 Contact Us For Availability
7
SWITCH GUARD WPL M110128 Contact Us For Availability
8
TERMINAL WPL Y00153 Contact Us For Availability
8
BUTTON, PUSH, START WPL Y0055108 Contact Us For Availability
8
CASTER xREPLACE WPL M110158 Contact Us For Availability
8
WASHER xREPLACE WPL M110112 Contact Us For Availability
8
ROLLER,TANDEM xREPLACE WPL M110229 Contact Us For Availability
8
TRIGGER,SWITCH xREPLACE WPL M110086 Contact Us For Availability
8
COVER PLUG WPL M110078 Contact Us For Availability
8
ARM,DELIVERY xREPLACE WPL M110267 Contact Us For Availability
8
KIT,DOOR LATCH xREPLACE WPL M110063 Contact Us For Availability
8
CONTROL PANEL WPL M110001 Contact Us For Availability
8
TUB WPL M110047 Contact Us For Availability
9
TERMINAL WPL Y00154 Contact Us For Availability
9
SWITCH xREPLACE WPL M110205 Contact Us For Availability
9
PHILLIPS HEAD SCREW WPL 91163 Contact Us For Availability
9
NUT,SPEED WPL 21297 Contact Us For Availability
9
CLAMP WPL 24904 Contact Us For Availability
9
RACK,LOWER xREPLACE WPL M110116 Contact Us For Availability
9
SPRING PAD WPL M110077 Contact Us For Availability
9
POWER CORD GUIDE WPL M110165 Contact Us For Availability
9
TIMER GUARD WPL M110127 Contact Us For Availability
9
SPEED NUT WPL Y81061 Contact Us For Availability
10
TERMINAL BLOCK WPL M110199 Contact Us For Availability
10
HINGE WELDMENT WPL M110119 Contact Us For Availability
10
INLET,WATER xREPLACE WPL M110110 Contact Us For Availability
10
BASKET,SILVERWARE xREPLACE WPL M110118 Contact Us For Availability
10
SPRING,COUNTERBALANCE xREPLACE WPL M110075 Contact Us For Availability
10
SEAL xREPLACE WPL M110026 Contact Us For Availability
10
SCREW xREPLACE WPL M110266 Contact Us For Availability
10
STRIKE,LATCH xREPLACE WPL M110062 Contact Us For Availability
10
INDICATOR LIGHT WPL M110137 Contact Us For Availability
11
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
11
LATCH STRIKE WPL M110203 Contact Us For Availability
11
SLINGER xREPLACE WPL M110012 Contact Us For Availability
11
TUBE,INLET xREPLACE WPL M110109 Contact Us For Availability
11
SPRING,CAM COMPRESSIONxREPLACE WPL M110090 Contact Us For Availability
11
ARM,COUNTERBALANCE-R.HxREPLACE WPL M110074 Contact Us For Availability
11
SPACER WPL M110013 Contact Us For Availability
11
END CAP, RIGHT WPL M110123 Contact Us For Availability
11
SCREW,1/4-20 X 1/2 HEX WPL 02422 Contact Us For Availability
12
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
12
GASKET xREPLACE WPL M110015 Contact Us For Availability
12
PIN,ROLL 1/8 X 3/4 WPL 51161 Contact Us For Availability
12
BRACKET,ARM xREPLACE WPL M110076 Contact Us For Availability
12
SHIM WPL M110018 Contact Us For Availability
12
RING,RETAINING xREPLACE WPL M110042 Contact Us For Availability
12
TIMER xREPLACE WPL M110125 Contact Us For Availability
13
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
13
CLAMP WPL M110101 Contact Us For Availability
13
INLET VALVE WPL 65012 Contact Us For Availability
13
CAM xREPLACE WPL M110087 Contact Us For Availability
13
LOCKNUT WPL 23605 Contact Us For Availability
13
KIT,IMPELLER xREPLACE WPL M110019 Contact Us For Availability
13
ADAPTER xREPLACE WPL M110040 Contact Us For Availability
13
SPACER WPL M110136 Contact Us For Availability
14
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
14
GASKET xREPLACE WPL M110016 Contact Us For Availability
14
SPRING,CAM xREPLACE WPL M110089 Contact Us For Availability
14
GASKET xREPLACE WPL M110070 Contact Us For Availability
14
PLATE,PUMP xREPLACE WPL M110021 Contact Us For Availability
14
LENS WPL M110133 Contact Us For Availability
14
DOOR GUIDE WPL M110055 Contact Us For Availability
15
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
15
WASHER,13/64IDX3/8ODX1 WPL 21643 Contact Us For Availability
15
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
15
NUT xREPLACE WPL M110091 Contact Us For Availability
15
DOOR PANEL, INNER WPL M110072 Contact Us For Availability
15
SHROUD,IMPELLER xREPLACE WPL M110022 Contact Us For Availability
15
NUT,SPRAY ARM xREPLACE WPL M110031 Contact Us For Availability
15
CLIP xREPLACE WPL M110202 Contact Us For Availability
16
CONNECTOR WPL 90789 Contact Us For Availability
16
SCREW,10-24 X 1/2 HEX WPL 51924 Contact Us For Availability
16
SCREW,10-24X5/8 RD HD WPL 03873 Contact Us For Availability
16
PLATE,VENT xREPLACE WPL M110069 Contact Us For Availability
16
BLADE,MACERATOR xREPLACE WPL M110024 Contact Us For Availability
16
ARM,SPRAY-LOWER xREPLACE WPL M110030 Contact Us For Availability
16
KNOB,TIMER xREPLACE WPL M110121 Contact Us For Availability
17
TMNL ADAPTER WPL 51383Z Contact Us For Availability
17
DOOR TRIM WPL M110068 Contact Us For Availability
17
RING,O xREPLACE WPL M110020 Contact Us For Availability
17
COVER,SUMP xREPLACE WPL M110029 Contact Us For Availability
17
SCREW AND LOCKWASHER WPL M110146 Contact Us For Availability
17
DOOR GUIDE, RIGHT WPL M110240 Contact Us For Availability
18
FOUR-WAY CONNECTOR TERMINAL WPL Y00150 Contact Us For Availability
18
CLIP xREPLACE WPL M110160 Contact Us For Availability
18
PHILLIPS HEAD SCREW WPL 55087 Contact Us For Availability
18
IMPELLER-UPPER xREPLACE WPL M110025 Contact Us For Availability
18
GUIDE,R.H. xREPLACE WPL M110053 Contact Us For Availability
19
EYELET TERMINAL WPL Y00148 Contact Us For Availability
19
CABINET TRIM, LEFT WPL M110156 Contact Us For Availability
19
BRACKET xREPLACE WPL M110092 Contact Us For Availability
19
ACCESS PANEL, AVOCADO WPL M110120A Contact Us For Availability
19
ACCESS PANEL, HARVEST GOLD WPL M110120H Contact Us For Availability
19
ACCESS PANEL, WHITE WPL M110120W Contact Us For Availability
19
SCREW xREPLACE WPL M110142 Contact Us For Availability
19
BUTTON,PUSH xREPLACE WPL M110126 Contact Us For Availability
19
GROMMET xREPLACE WPL M110050 Contact Us For Availability
20
EYELET TERMINAL, 1/2`` RING WPL Y00149 Contact Us For Availability
20
HOSE CLAMP WPL 80478 Contact Us For Availability
20
HOSE,COUPLER & DRAIN xREPLACE WPL M110162 Contact Us For Availability
20
RING,O xREPLACE WPL M110099 Contact Us For Availability
20
HEX HEAD SCREW WPL 21933 Contact Us For Availability
20
SCREW,HEX HEAD xREPLACE WPL M110141 Contact Us For Availability
20
END CAP, LEFT WPL M110122 Contact Us For Availability
20
NUT,ELEMENT xREPLACE WPL M110051 Contact Us For Availability
21
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
21
RELIEF VALVE REPAIR KIT WPL 256P3 Contact Us For Availability
21
NUT WPL Q6163 Contact Us For Availability
21
HOSE WPL M110247 Contact Us For Availability
21
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
22
PHILLIPS HEAD SCREW WPL M110139 Contact Us For Availability
22
DOOR PANEL, OUTER, AVOCADO WPL M110066A Contact Us For Availability
22
DOOR PANEL, OUTER, HARVEST GOL WPL M110066H Contact Us For Availability
22
DOOR PANEL, OUTER, WHITE WPL M110066W Contact Us For Availability
22
MOUNTING BRACKET WPL M110129 Contact Us For Availability
22
NO LONGER AVAILABLE WPL 20376 Contact Us For Availability
23
RELAY xREPLACE WPL M110011 Contact Us For Availability
23
HOSE CLAMP WPL M110144 Contact Us For Availability
23
GROMMET WPL M110134 Contact Us For Availability
23
SWITCH,FLOAT xREPLACE WPL M110049 Contact Us For Availability
24
GASKET,VENT PLATE xREPLACE WPL M110071 Contact Us For Availability
24
HEX HEAD SCREW WPL M110147 Contact Us For Availability
25
ARM,COUNTERBALANCE-L.HxREPLACE WPL M110073 Contact Us For Availability
25
DRAIN HOSE WPL M110041 Contact Us For Availability
25
FASTENER,GASKET xREPLACE WPL M110054 Contact Us For Availability
26
PHILLIPS HEAD SCREW WPL Y80245 Contact Us For Availability
26
TUBE,SUPPLY xREPLACE WPL M110268 Contact Us For Availability
26
GASKET,INCLUDE M110046xREPLACE WPL M110045 Contact Us For Availability
27
ARM & TUBE xREPLACE WPL M110034 Contact Us For Availability
27
WIRE,GASKET xREPLACE WPL M110046 Contact Us For Availability
28
SEE NOTE HINGE WELDMENT WPL Y00000000 Contact Us For Availability
28
TUBE,SUPPLY xREPLACE WPL M110032 Contact Us For Availability
29
GUIDE,L.H. xREPLACE WPL M110052 Contact Us For Availability
30
DOOR GUIDE, LEFT WPL M110239 Contact Us For Availability
31
SCREW,SHOULDER xREPLACE WPL M110056 Contact Us For Availability
32
ROLLER xREPLACE WPL M110057 Contact Us For Availability
33
WASHER,RUBBER xREPLACE WPL M110145 Contact Us For Availability
34
WASHER WPL 90690 Contact Us For Availability
35
PLATE,TAPPING xREPLACE WPL M110058 Contact Us For Availability
36
HEX HEAD SCREW WPL M110245 Contact Us For Availability
37
TOP HOLD-DOWN BRACKET WPL M110060 Contact Us For Availability
38
PUSH NUT WPL M110244 Contact Us For Availability
NI
KIT,POSITIVE FILL xREPLACE WPL 253P3 Contact Us For Availability
NI
CONVERSION KIT WPL 254P3 Contact Us For Availability
NI
RACK TOUCH-UP WPL M110227 Contact Us For Availability
× ![]()
Login and Registration Form
