Model Maytag DC24H6A DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DETERGENT CUP

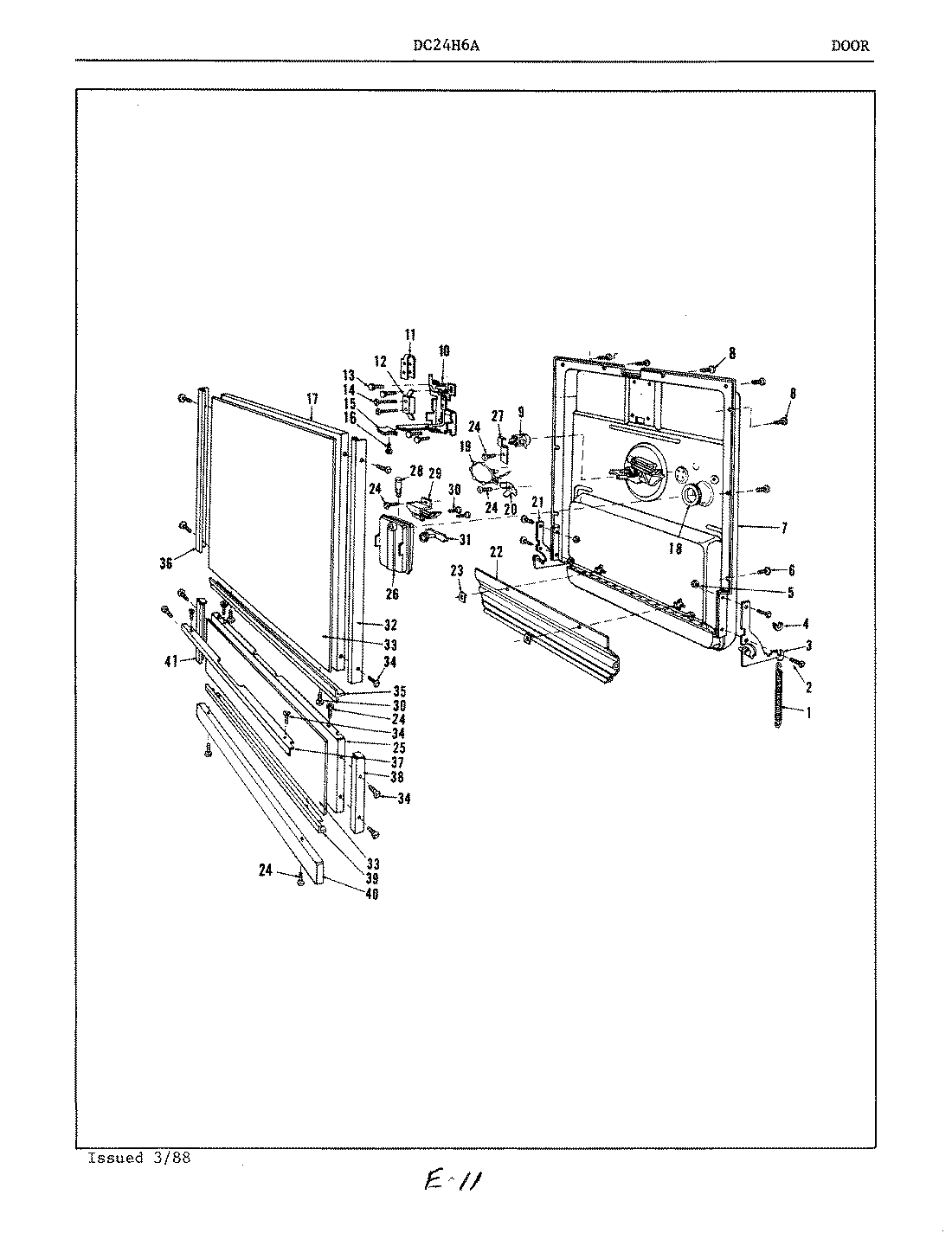

03 - DOOR
04 - FRAME
05 - MOTOR & PUMP

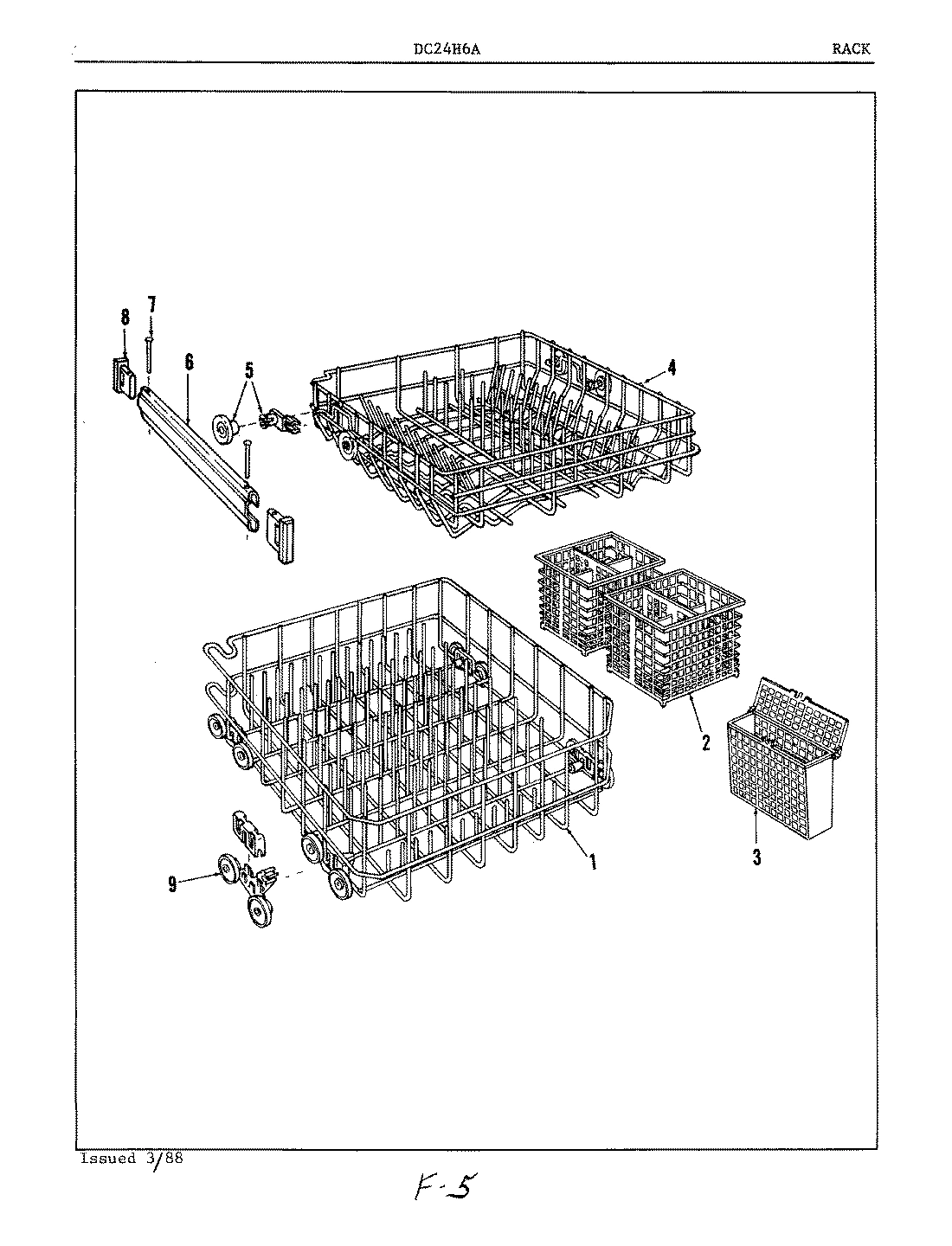

06 - RACKS
07 - TUB
08 - WOOD TOP
Common parts from model Maytag DC24H6A DISHWASHER
1
MAY 809349 MAY 809349 Contact Us For Availability
1
ROLL PIN MAY 808827 Contact Us For Availability
1
DOOR SPRING MAY 809360 Contact Us For Availability
1
MAY 809055 MAY 809055 Contact Us For Availability
1
MAY 806539 MAY 806539 Contact Us For Availability
1
MAY 806353 MAY 806353 Contact Us For Availability
1
LOWER RACK ASM MAY 809346 Contact Us For Availability
1
TAPPING PLATE MAY 808868 Contact Us For Availability
2
MAY 809323 MAY 809323 Contact Us For Availability
2
MAY 806566 MAY 806566 Contact Us For Availability
2
MAY 803311 MAY 803311 Contact Us For Availability
2
WHITE FRAME MAY 808533 Contact Us For Availability
2
COFFEE FRAME MAY 808534 Contact Us For Availability
2
AVOCADO FRAME MAY 808535 Contact Us For Availability
2
GOLD WHT FRAME MAY 808536 Contact Us For Availability
2
FRAME ASM AM MAY 808537 Contact Us For Availability
2
MAY 803367 MAY 803367 Contact Us For Availability
2
SLVRWARE BASKET MAY 808845 Contact Us For Availability
2
TAPPING PLATE MAY 807038 Contact Us For Availability
2
CLIP SHIM MAY 809199 Contact Us For Availability
3
MAY 809324 MAY 809324 Contact Us For Availability
3
MAY 809325 MAY 809325 Contact Us For Availability
3
MAY 809326 MAY 809326 Contact Us For Availability
3
SPRING MAY 805227 Contact Us For Availability
3
RH ARM MAY 805681 Contact Us For Availability
3
MAY 807951 MAY 807951 Contact Us For Availability
3
HEATER MAY 809004 Contact Us For Availability
3
MAY 807270 MAY 807270 Contact Us For Availability
3
MAY 806760 MAY 806760 Contact Us For Availability
3
MAY 807454 MAY 807454 Contact Us For Availability
4
MAY 809485 MAY 809485 Contact Us For Availability
4
SPRING MAY 806567 Contact Us For Availability
4
SPRING PAD MAY 805884 Contact Us For Availability
4
MAY 807373 MAY 807373 Contact Us For Availability
4
UPPER IMPELLER MAY 809005 Contact Us For Availability
4
UPPER RACK ASM MAY 809497 Contact Us For Availability
4
MAY 809446 MAY 809446 Contact Us For Availability
4
TOP CLIP MAY 809088 Contact Us For Availability
5
MAY 809335 MAY 809335 Contact Us For Availability
5
LOCKNUT MAY 808470 Contact Us For Availability
5
MAY 807950 MAY 807950 Contact Us For Availability
5
MACERATOR BLADE MAY 808075 Contact Us For Availability
5
RACK WHEEL ASM MAY 809500 Contact Us For Availability
5
SHIM MAY 809214 Contact Us For Availability
5
MAY 809130 MAY 809130 Contact Us For Availability
6
MAY 809036 MAY 809036 Contact Us For Availability
6
DET CUP TRIGGER MAY 809072 Contact Us For Availability
6
INLET VALVE KIT MAY 808667 Contact Us For Availability
6
SHROUD MAY 806267 Contact Us For Availability
6
MAY 809501 MAY 809501 Contact Us For Availability
6
STRIKE MAY 807015 Contact Us For Availability
6
MAY 807819 MAY 807819 Contact Us For Availability
7
MAY 809331 MAY 809331 Contact Us For Availability
7
DISPENSER LID MAY 809028 Contact Us For Availability
7
DOOR ASSEMBLY MAY 809054 Contact Us For Availability
7
FLOW WASHER MAY 808432 Contact Us For Availability
7
PUMP PLATE MAY 809006 Contact Us For Availability
7
SLIDE CAP PIN MAY 809502 Contact Us For Availability
7
MAY 806890 MAY 806890 Contact Us For Availability
7
MAY 807817 MAY 807817 Contact Us For Availability
8
MAY 805324 MAY 805324 Contact Us For Availability
8
O RING MAY 806647 Contact Us For Availability
8
MAY 808749 MAY 808749 Contact Us For Availability
8
HOSE WASHER MAY 800787 Contact Us For Availability
8
PUMP GASKET MAY 809007 Contact Us For Availability
8
MAY 809503 MAY 809503 Contact Us For Availability
8
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
8
MAY 809131 MAY 809131 Contact Us For Availability
9
LIGHT ASSEMBLY MAY 809332 Contact Us For Availability
9
THERMOSTAT MAY 808956 Contact Us For Availability
9
MAY 807501 MAY 807501 Contact Us For Availability
9
O RING MAY 806521 Contact Us For Availability
9
WHEEL ASM MAY 807008 Contact Us For Availability
9
LH GUIDE MAY 807470 Contact Us For Availability
10
LIGHT ASSEMBLY MAY 809317 Contact Us For Availability
10
LATCH ASM MAY 807016 Contact Us For Availability
10
FRONT CASTER MAY 808542 Contact Us For Availability
10
PUMP SEAL KIT MAY 809110 Contact Us For Availability
10
MAY 809044 MAY 809044 Contact Us For Availability
10
MAY 809132 MAY 809132 Contact Us For Availability
11
SWITCH COVER MAY 807450 Contact Us For Availability
11
MAY 808944 MAY 808944 Contact Us For Availability
11
MAY 808543 MAY 808543 Contact Us For Availability
11
MAY 803803 MAY 803803 Contact Us For Availability
11
ROLLER MAY 807180 Contact Us For Availability
11
HINGE PIN MAY 808530 Contact Us For Availability
12
MAY 809175 MAY 809175 Contact Us For Availability
12
MAY 807043 MAY 807043 Contact Us For Availability
12
MAY 804426 MAY 804426 Contact Us For Availability
12
PUMP GASKET MAY 809008 Contact Us For Availability
12
HARDWARE KIT MAY 808564 Contact Us For Availability
12
MAY 809133 MAY 809133 Contact Us For Availability
13
MAY 809460 MAY 809460 Contact Us For Availability
13
MAY 809029 MAY 809029 Contact Us For Availability
13
POWER CORD MAY 805046 Contact Us For Availability
13
MAY 805669 MAY 805669 Contact Us For Availability
13
MAY 809134 MAY 809134 Contact Us For Availability
14
MAY 807103 MAY 807103 Contact Us For Availability
14
MAY 808618 MAY 808618 Contact Us For Availability
14
MAY 808612 MAY 808612 Contact Us For Availability
14
MAY 809009 MAY 809009 Contact Us For Availability
14
MAY 804630 MAY 804630 Contact Us For Availability
15
TERMINAL HOUSING MAY 809296 Contact Us For Availability
15
MAY 806398 MAY 806398 Contact Us For Availability
15
MAY 808615 MAY 808615 Contact Us For Availability
15
MAY 807268 MAY 807268 Contact Us For Availability
15
CLAMP RING MAY 807712 Contact Us For Availability
16
MAY 808333 MAY 808333 Contact Us For Availability
16
MAY 809163 MAY 809163 Contact Us For Availability
16
WATERSHIELD ASM MAY 809366 Contact Us For Availability
16
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
17
MAY 809333 MAY 809333 Contact Us For Availability
17
OUTER PANEL MAY 807262 Contact Us For Availability
17
MAY 808661 MAY 808661 Contact Us For Availability
17
SPACER PLATE MAY 809020 Contact Us For Availability
17
GASKET MAY 808063 Contact Us For Availability
18
GROMMET MAY 805631 Contact Us For Availability
18
MAY 808613 MAY 808613 Contact Us For Availability
18
MOTOR MAY 809100 Contact Us For Availability
18
MAY 803319 MAY 803319 Contact Us For Availability
19
MAY 808483 MAY 808483 Contact Us For Availability
19
HOSE GUARD MAY 808120 Contact Us For Availability
19
SEAL TOOL MAY 803923 Contact Us For Availability
19
GASKET ASM MAY 809035 Contact Us For Availability
20
BRACKET MAY 809334 Contact Us For Availability
20
HOSE GUIDE MAY 805859 Contact Us For Availability
20
SHIM GAUGE MAY 807077 Contact Us For Availability
20
JUNCTION ROD MAY 809320 Contact Us For Availability
21
LH ARM MAY 805682 Contact Us For Availability
21
HOSE CLAMP MAY 806142 Contact Us For Availability
21
MAY 808186 MAY 808186 Contact Us For Availability
21
MAY 808115 MAY 808115 Contact Us For Availability
22
MAY 809025 MAY 809025 Contact Us For Availability
22
HOSE SUPPORT MAY 806143 Contact Us For Availability
22
HOSE CONNECTOR MAY 808174 Contact Us For Availability
22
O RING MAY 807759 Contact Us For Availability
23
MAY 809026 MAY 809026 Contact Us For Availability
23
MAY 803393 MAY 803393 Contact Us For Availability
23
GROMMET MAY 806833 Contact Us For Availability
23
FLOAT ASM MAY 807677 Contact Us For Availability
24
ADAPTOR MAY 800782 Contact Us For Availability
24
NUT MAY 806834 Contact Us For Availability
24
FLOAT SWITCH MAY 807680 Contact Us For Availability
25
ACCESS PANEL MAY 809108 Contact Us For Availability
25
MAY 803392 MAY 803392 Contact Us For Availability
25
BOLT MAY 804594 Contact Us For Availability
26
WIRE CLAMP MAY 808442 Contact Us For Availability
26
DISPENSER MAY 806753 Contact Us For Availability
26
AERATOR MAY 803149 Contact Us For Availability
26
WIRE SHIELD MAY 809144 Contact Us For Availability
27
RETAINER MAY 809097 Contact Us For Availability
27
U PACKING MAY 806584 Contact Us For Availability
27
MAY 809022 MAY 809022 Contact Us For Availability
27
CLAMP MAY 806723 Contact Us For Availability
28
MAY 808658 MAY 808658 Contact Us For Availability
28
MAY 806757 MAY 806757 Contact Us For Availability
28
COLLAR KIT MAY 807499 Contact Us For Availability
28
O RING MAY 809016 Contact Us For Availability
29
GROUND TERMINAL MAY 807213 Contact Us For Availability
29
BI-METAL ASM MAY 809109 Contact Us For Availability
29
RELIEF KIT MAY 807498 Contact Us For Availability
29
MAY 809073 MAY 809073 Contact Us For Availability
30
HOSE ASM MAY 807496 Contact Us For Availability
30
MAY 809014 MAY 809014 Contact Us For Availability
30
MAY 807849 MAY 807849 Contact Us For Availability
31
FILL PLUG MAY 806755 Contact Us For Availability
31
O RING MAY 809015 Contact Us For Availability
31
HINGE ASM MAY 808739 Contact Us For Availability
32
DOOR TRIM MAY 808976 Contact Us For Availability
32
MAY Y809011 MAY Y809011 Contact Us For Availability
33
PANEL KIT, DOOR & ACCESS MAY 808908 Contact Us For Availability
33
ACCESS DR PANEL MAY 808909 Contact Us For Availability
33
DOOR TRIM MAY 808910 Contact Us For Availability
33
DOOR TRIM MAY 808911 Contact Us For Availability
33
DOOR INSERT MAY 808912 Contact Us For Availability
33
DOOR TRIM MAY 808913 Contact Us For Availability
33
ACC PNL INSERT MAY 808914 Contact Us For Availability
33
DOOR TRIM MAY 808916 Contact Us For Availability
33
MAY 809012 MAY 809012 Contact Us For Availability
33
INLET TUBE MAY 807891 Contact Us For Availability
34
MAY 807293 MAY 807293 Contact Us For Availability
34
MAY 809046 MAY 809046 Contact Us For Availability
34
MAY 807813 MAY 807813 Contact Us For Availability
35
DOOR TRIM MAY 807347 Contact Us For Availability
35
SPRAY ARM BOLT MAY 809018 Contact Us For Availability
35
MAY 807486 MAY 807486 Contact Us For Availability
36
DOOR TRIM MAY 808977 Contact Us For Availability
36
MAY 808177 MAY 808177 Contact Us For Availability
36
MAY 806593 MAY 806593 Contact Us For Availability
37
ACC PNL TRIM MAY 808346 Contact Us For Availability
37
TOWER BASE MAY 808178 Contact Us For Availability
37
MAY 804672 MAY 804672 Contact Us For Availability
38
RH TRIM MAY 808028 Contact Us For Availability
38
MAY 808179 MAY 808179 Contact Us For Availability
38
RELAY MAY 805255 Contact Us For Availability
39
MAY 803346 MAY 803346 Contact Us For Availability
39
ACCESS PNL TRIM MAY 808521 Contact Us For Availability
39
MAY 808180 MAY 808180 Contact Us For Availability
40
KICKPLATE MAY 808522 Contact Us For Availability
40
MAY 808181 MAY 808181 Contact Us For Availability
40
RH GUIDE MAY 807471 Contact Us For Availability
41
LH TRIM MAY 808029 Contact Us For Availability
41
SPRAY ARM MAY 809021 Contact Us For Availability
41
WASHER MAY 803573 Contact Us For Availability
42
MAY 808183 MAY 808183 Contact Us For Availability
42
MAY 806470 MAY 806470 Contact Us For Availability
43
MAY 808184 MAY 808184 Contact Us For Availability
43
TUB & GASKET ASM MAY 809347 Contact Us For Availability
44
MAY 809418 MAY 809418 Contact Us For Availability
44
ELBOW & TUBE MAY 808185 Contact Us For Availability
× ![]()
