Model Maytag D3167XRWLT GAS RANGE – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DOOR/DRAWER

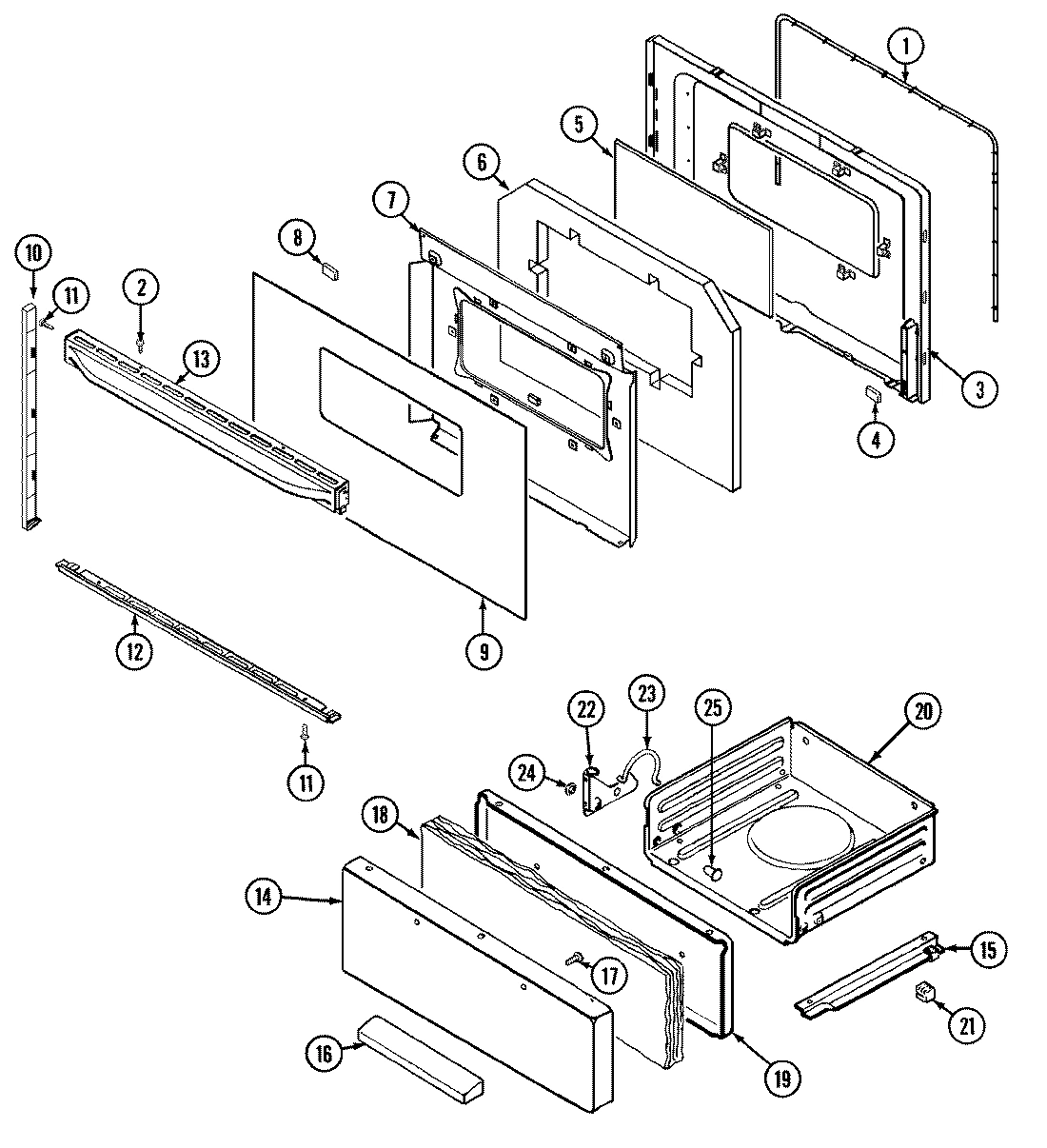

03 - DOOR/DRAWER (SER. PRE. 20)

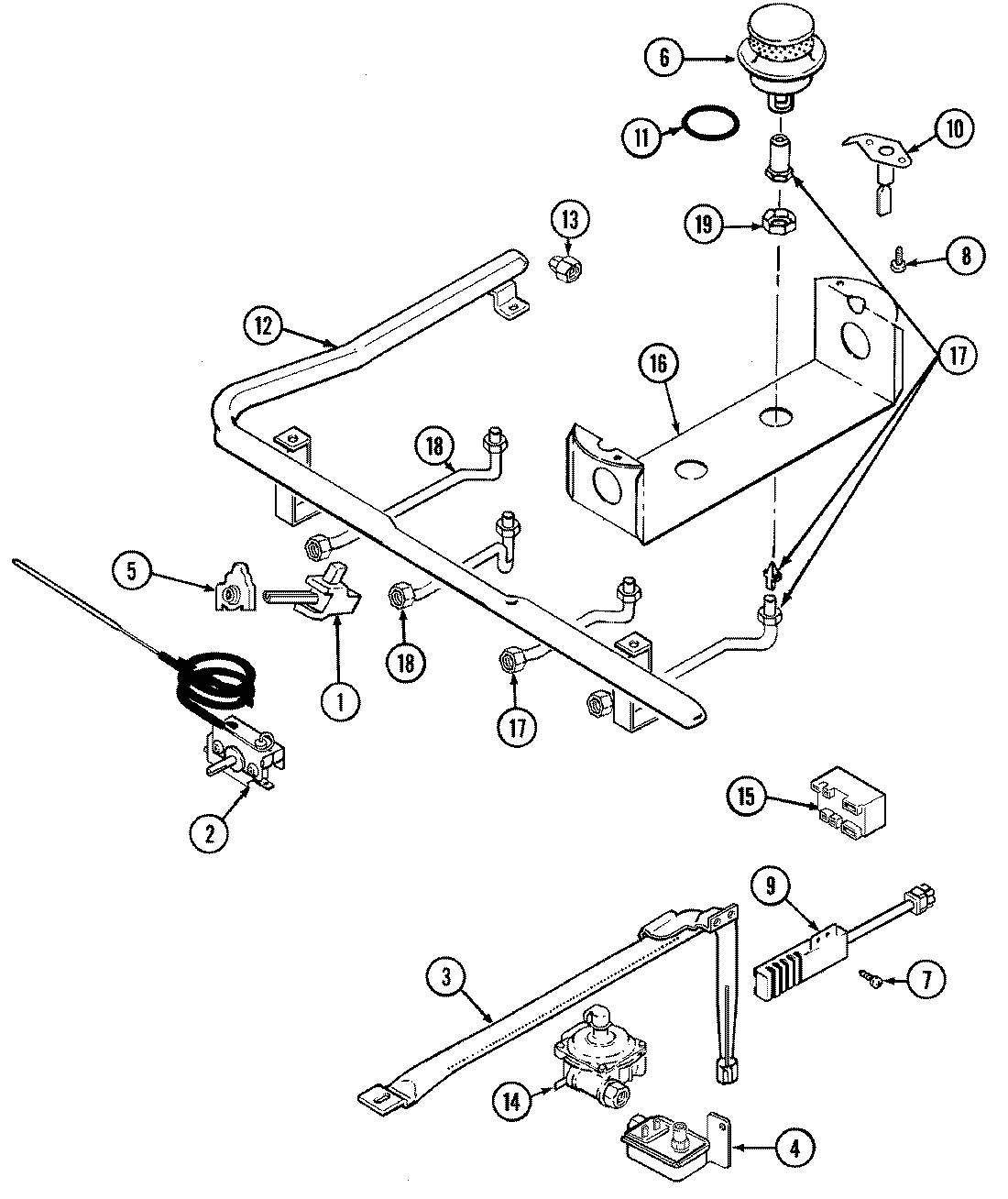

04 - GAS CONTROLS

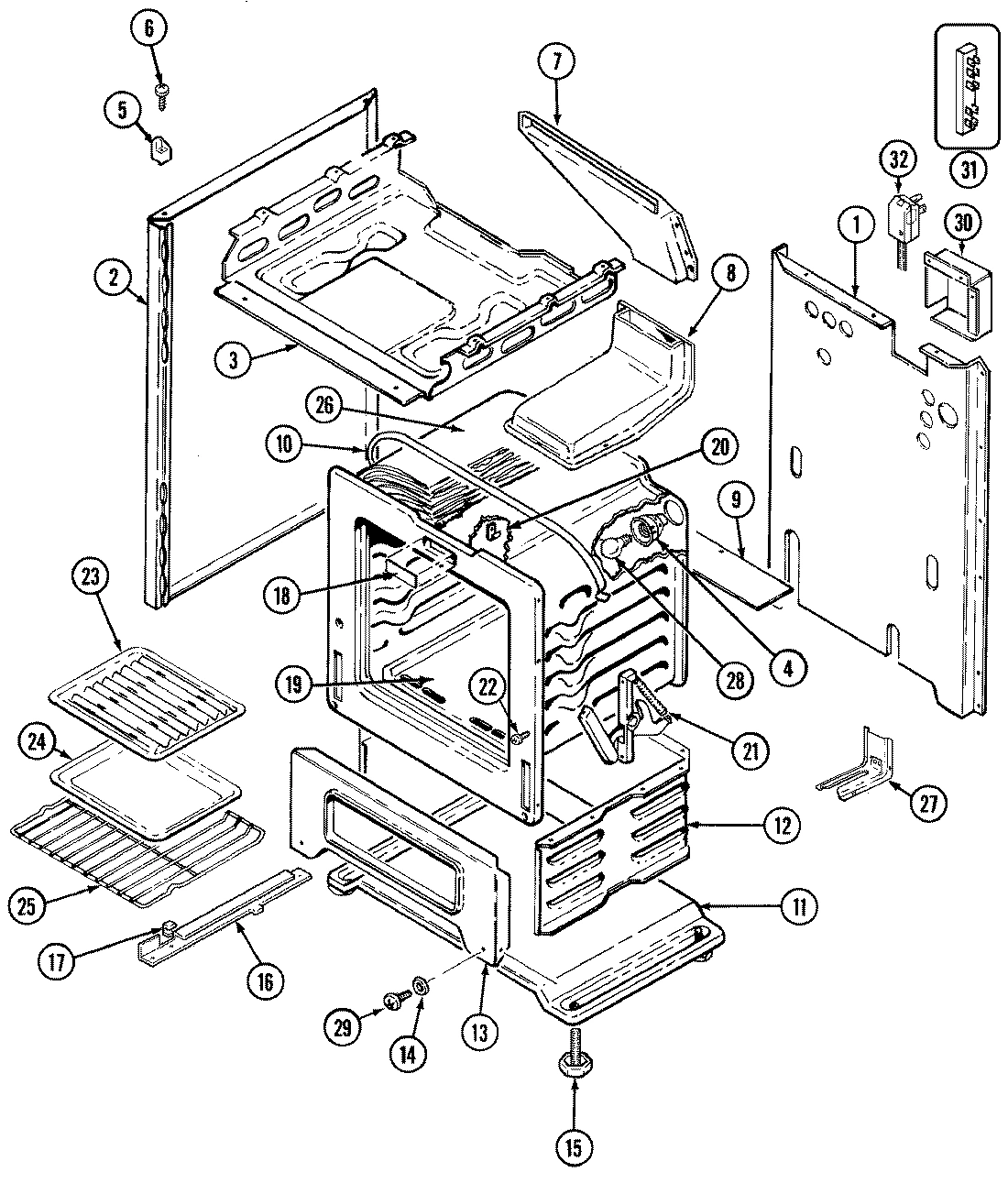

05 - OVEN/BODY

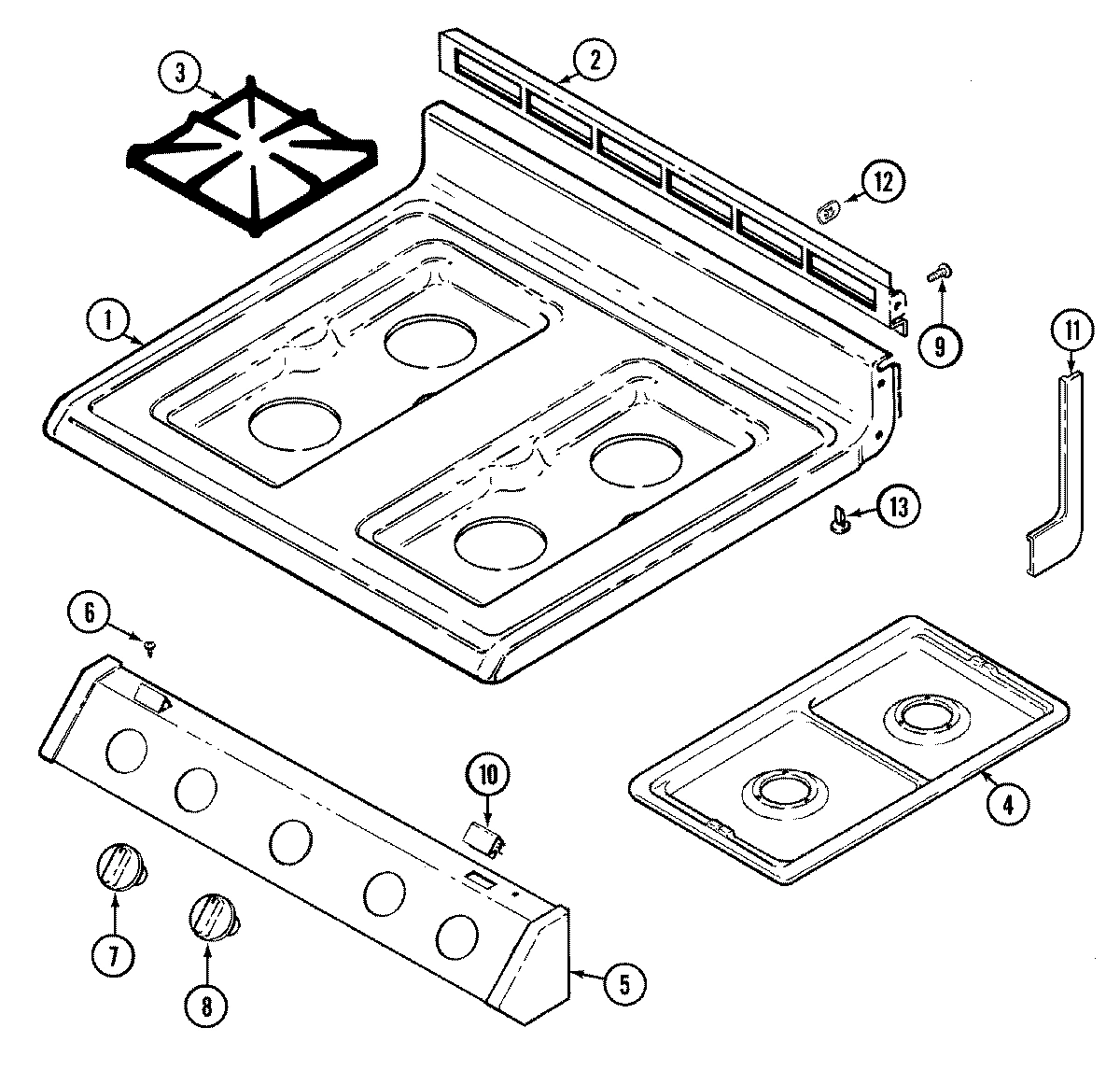

06 - TOP ASSEMBLY

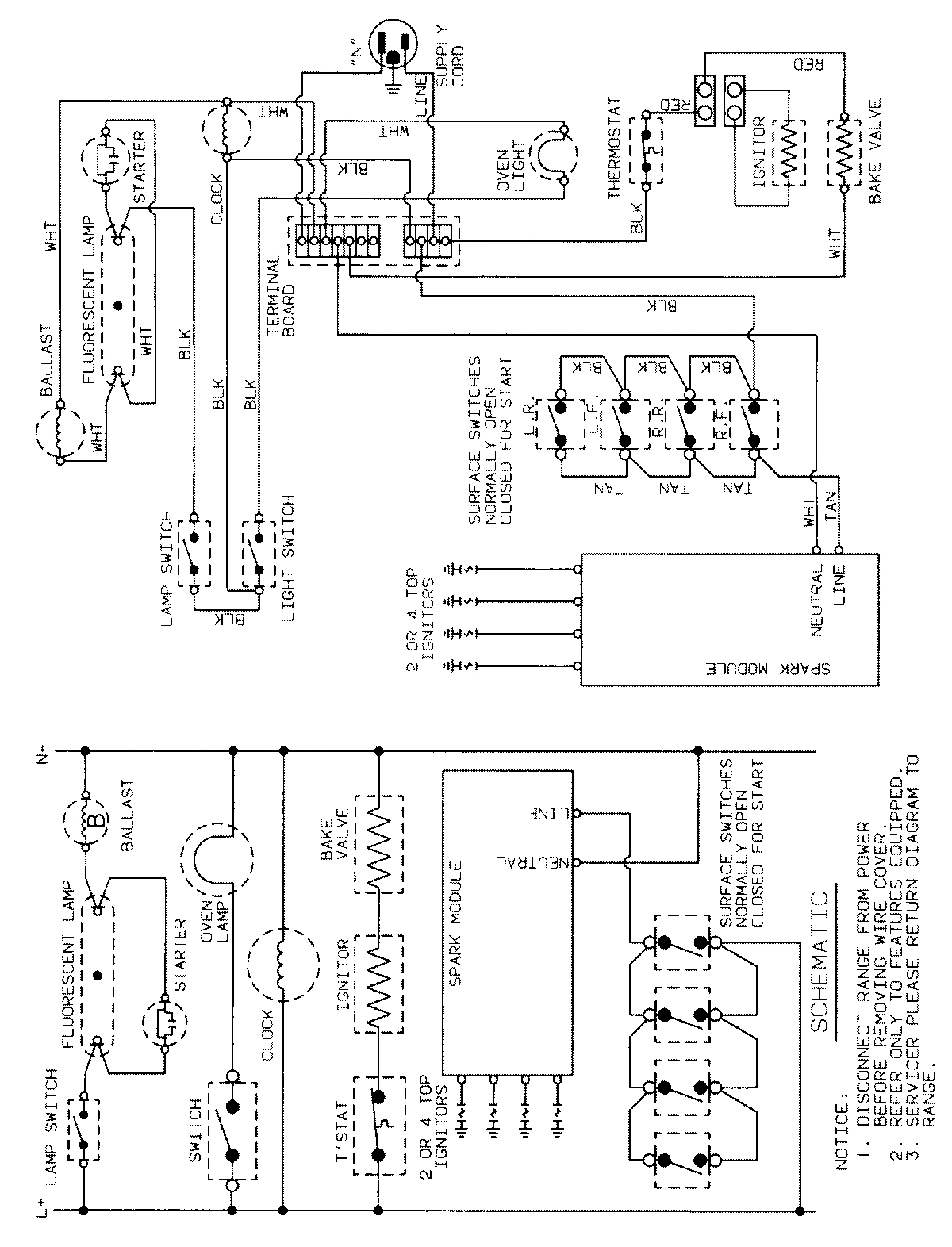

07 - WIRING INFORMATION
Common parts from model Maytag D3167XRWLT GAS RANGE
1
MAY 7502P217-60 MAY 7502P217-60 Contact Us For Availability
1
MAY 7502P250-60 MAY 7502P250-60 Contact Us For Availability
1
MAY 74002364 MAY 74002364 Contact Us For Availability
1
MAY 2001W082-81 MAY 2001W082-81 Contact Us For Availability
2
MAY 7404P087-60 MAY 7404P087-60 Contact Us For Availability
2
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
2
MAY 7701P096-60 MAY 7701P096-60 Contact Us For Availability
2
MAY 3604F177-51 MAY 3604F177-51 Contact Us For Availability
2
MAY 2618F099-71 MAY 2618F099-71 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 2402W213-19 MAY 2402W213-19 Contact Us For Availability
3
MAY 3403D023-45 MAY 3403D023-45 Contact Us For Availability
3
MAY 4011F209-80 MAY 4011F209-80 Contact Us For Availability
3
MAY 2003W026-00 MAY 2003W026-00 Contact Us For Availability
3
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
4
MAY 7212P034-60 MAY 7212P034-60 Contact Us For Availability
4
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
4
MAY 4005F334-51 MAY 4005F334-51 Contact Us For Availability
4
MAY 7501P138-60 MAY 7501P138-60 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 7902P319-60 MAY 7902P319-60 Contact Us For Availability
5
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
5
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
5
MAY 7712P134-60 MAY 7712P134-60 Contact Us For Availability
6
MAY 7101P291-60 MAY 7101P291-60 Contact Us For Availability
6
MAY 7002P158-60 MAY 7002P158-60 Contact Us For Availability
6
MAY 3412D017-09 MAY 3412D017-09 Contact Us For Availability
6
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
6
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
7
MAY 8010P075-60 MAY 8010P075-60 Contact Us For Availability
7
MAY 3601F240-80 MAY 3601F240-80 Contact Us For Availability
7
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
7
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
7
MAY 4022W005-19 MAY 4022W005-19 Contact Us For Availability
7
MAY 7733P065-60 MAY 7733P065-60 Contact Us For Availability
8
MAY 7731P071-60 MAY 7731P071-60 Contact Us For Availability
8
MAY 3601F232-45 MAY 3601F232-45 Contact Us For Availability
8
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
8
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
9
MAY 7726P050-60 MAY 7726P050-60 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 7432P067-60 MAY 7432P067-60 Contact Us For Availability
9
MAY 3807F416-45 MAY 3807F416-45 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
10
MAY 7711P172-60 MAY 7711P172-60 Contact Us For Availability
10
MAY 4804F033-60 MAY 4804F033-60 Contact Us For Availability
10
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
10
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
10
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
11
MAY 3801F236-45 MAY 3801F236-45 Contact Us For Availability
11
MAY 7907P016-60 MAY 7907P016-60 Contact Us For Availability
11
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
11
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
11
MAY 4003W028-80 MAY 4003W028-80 Contact Us For Availability
11
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
11
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
12
MAY 7602P095-60 MAY 7602P095-60 Contact Us For Availability
12
MAY 8004P035-60 MAY 8004P035-60 Contact Us For Availability
12
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
12
MAY 2402W203-19 MAY 2402W203-19 Contact Us For Availability
12
MAY 3414F104-44 MAY 3414F104-44 Contact Us For Availability
12
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
12
MAY 4016F039-45 MAY 4016F039-45 Contact Us For Availability
12
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
13
MAY 7711P171-60 MAY 7711P171-60 Contact Us For Availability
13
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
13
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
13
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
13
MAY 2201F073-19 MAY 2201F073-19 Contact Us For Availability
14
MAY 5180D138-60 MAY 5180D138-60 Contact Us For Availability
14
MAY 2403F028-71 MAY 2403F028-71 Contact Us For Availability
14
MAY 2403F028-62 MAY 2403F028-62 Contact Us For Availability
14
MAY 7510P064-60 MAY 7510P064-60 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
15
MAY 3404F022-51 MAY 3404F022-51 Contact Us For Availability
15
MAY 3404F023-51 MAY 3404F023-51 Contact Us For Availability
15
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
15
MAY 7431P023-60 MAY 7431P023-60 Contact Us For Availability
15
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
16
MAY 7701P012-60 MAY 7701P012-60 Contact Us For Availability
16
MAY 3807F444-45 MAY 3807F444-45 Contact Us For Availability
16
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
16
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
17
MAY 7507P120-60 MAY 7507P120-60 Contact Us For Availability
17
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
18
MAY 4804F025-60 MAY 4804F025-60 Contact Us For Availability
18
MAY 7507P118-60 MAY 7507P118-60 Contact Us For Availability
18
MAY 8114P335-60 MAY 8114P335-60 Contact Us For Availability
19
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
19
MAY 2404F035-19 MAY 2404F035-19 Contact Us For Availability
19
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
19
MAY 3804F010-50 MAY 3804F010-50 Contact Us For Availability
19
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
20
MAY 3407F012-19 MAY 3407F012-19 Contact Us For Availability
21
MAY 8016P011-60 MAY 8016P011-60 Contact Us For Availability
21
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
21
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
22
MAY 3418F079-51 MAY 3418F079-51 Contact Us For Availability
22
MAY 3418F080-51 MAY 3418F080-51 Contact Us For Availability
22
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
23
MAY 7803P064-60 MAY 7803P064-60 Contact Us For Availability
23
MAY 7803P065-60 MAY 7803P065-60 Contact Us For Availability
23
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
24
MAY 7103P022-60 MAY 7103P022-60 Contact Us For Availability
24
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
25
MAY 7113P012-60 MAY 7113P012-60 Contact Us For Availability
25
MAY 7801P036-60 MAY 7801P036-60 Contact Us For Availability
26
MAY 4804F017-60 MAY 4804F017-60 Contact Us For Availability
26
MAY 4804F018-60 MAY 4804F018-60 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
28
MAY 7407P067-60 MAY 7407P067-60 Contact Us For Availability
29
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
30
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
31
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
32
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
NI
MAY 16000329 MAY 16000329 Contact Us For Availability
NI
MAY 8113P012-60 MAY 8113P012-60 Contact Us For Availability
NI
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
NI
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
NI
MAY 15001339 MAY 15001339 Contact Us For Availability
× ![]()
