Model LG D2342P-PN – Common Parts & Diagrams

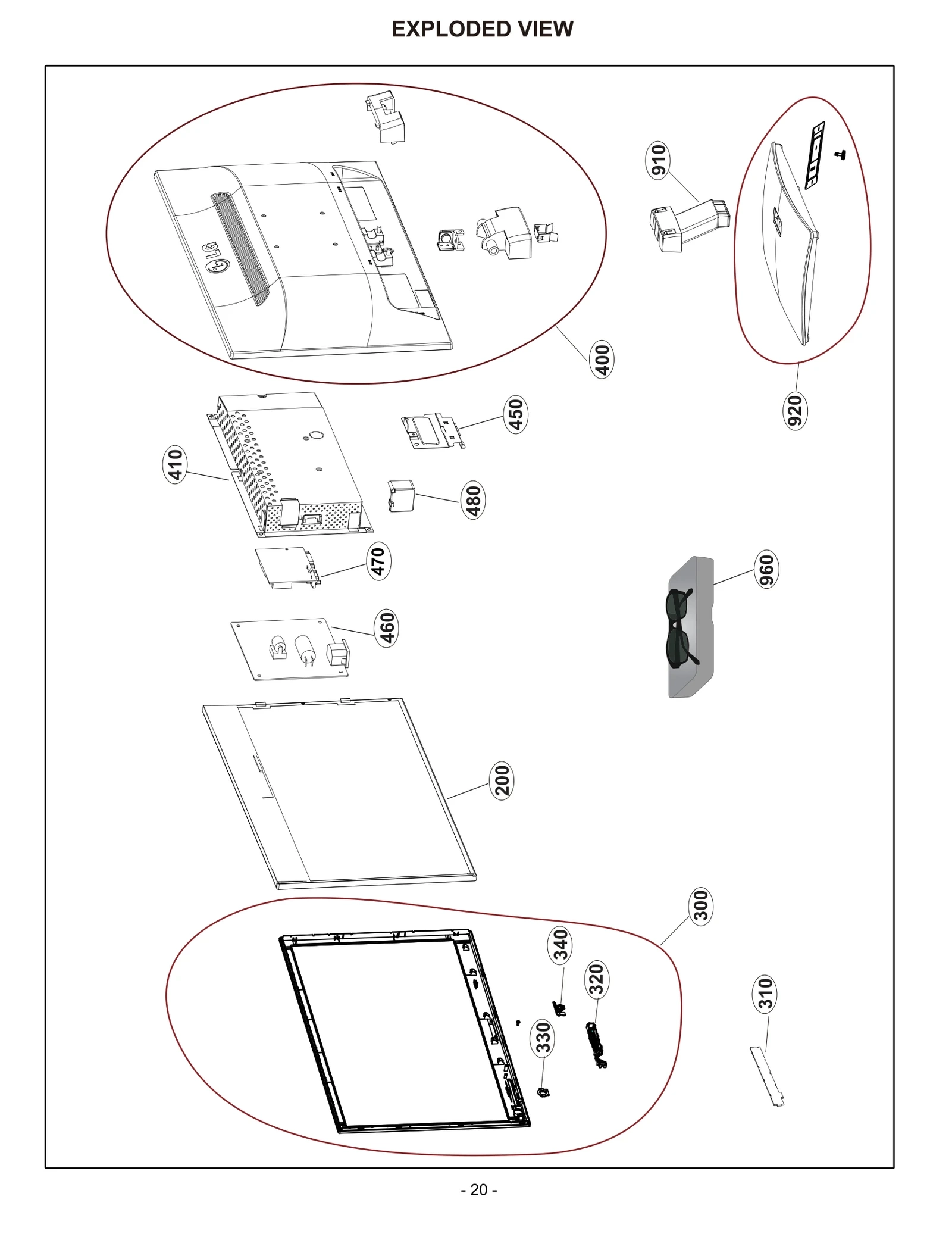

Diagram 0
Diagram 1
Common parts from model LG D2342P-PN
200
LCD,Module-TFT LGE EAJ61828901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61928701 Contact Us For Availability
310
PCB Assembly LGE EBR72726305 Contact Us For Availability
320
Button,Control LGE MBG63983801 Contact Us For Availability
330
Ring LGE MGZ62327301 Contact Us For Availability
340
Bracket Assembly LGE ABA73930001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85289205 Contact Us For Availability
410
Frame Assembly LGE ADV73867334 Contact Us For Availability
450
Frame Assembly LGE ADV74086305 Contact Us For Availability
460
Power Supply Assembly LGE EAY62208902 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269429 Contact Us For Availability
470
Main Total Assembly LGE EBU61371702 Contact Us For Availability
910
Base Assembly LGE AAN73628801 Contact Us For Availability
920
Base Assembly LGE AAN73629001 Contact Us For Availability
960
Accessory,3D Glasses LGE EBX61588301 Contact Us For Availability
A1
S/W Package LGE SAB34639221 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A6
Cable,Assembly LGE EAD57760001 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C208
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C212
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE 0CH1683K566 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C313
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C525
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C534
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C536
C ELECTROLYTIC 10UF KME 16V M LGE 0CE106BF618 Contact Us For Availability
C542
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C543
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C604
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE42452201 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE62505801 Contact Us For Availability
D101
Diode,Rectifier LGE EAH39173101 Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D106
Diode,Rectifier LGE EAH61274201 Contact Us For Availability
D106
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D304
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D304
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D615
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D615
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D627
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
EL7
Eyelet LGE 4014900002A Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
IC201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
IC201
IC KEC KIA431 (TP) CQ465,CS556 LGE 0IKE431000B Contact Us For Availability
IC501
IC Assembly LGE EAN61981202 Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
J37
Wire,Jump LGE 971-0016 Contact Us For Availability
J37
Wire,Jump LGE EAD60796901 Contact Us For Availability
J37
Wire,Jump LGE EAD60905001 Contact Us For Availability
JK500
Jack,Phone LGE 6612F00001B Contact Us For Availability
LB101
Filter,Bead LGE 125-155K Contact Us For Availability
LB301
Filter,Bead LGE 6210TCE003H Contact Us For Availability
LV2
Cable,FFC LGE EAD57188345 Contact Us For Availability
LV2
Cable,FFC LGE EAD61466512 Contact Us For Availability
P304
Connector,FFC/FPC/PIC LGE EAG62790001 Contact Us For Availability
P500
Connector,Wafer LGE 6630V90220L Contact Us For Availability
PG2
CASE TERMINAL EARTH CM-770 CS- LGE 302-987A Contact Us For Availability
Q201
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q201
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q503
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R109
Resistor,Metal Oxide Film LGE 0RS0470K607 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0221Q609 Contact Us For Availability
R120
Resistor,Carbon Composition LGE 0RC2204A609 Contact Us For Availability
R201
Resistor,Metal Oxide Film LGE 0RX0102K607 Contact Us For Availability
R207
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R213
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R302
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R303
Resistor,Chip LGE EBC00768103 Contact Us For Availability
R307
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R564
Resistor,Metal Oxide Film LGE EBC01402305 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R649
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
SK101
Jack,DC Power LGE 6620K00020B Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
X500
Crystal LGE 6212AA2001H Contact Us For Availability
X500
Crystal LGE EAW60658001 Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ510009AK Contact Us For Availability
ZD103
Diode,Zener LGE 0DZPT51009A Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BJ Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BB Contact Us For Availability
× ![]()
