Model LG D2000N-PN – Common Parts & Diagrams

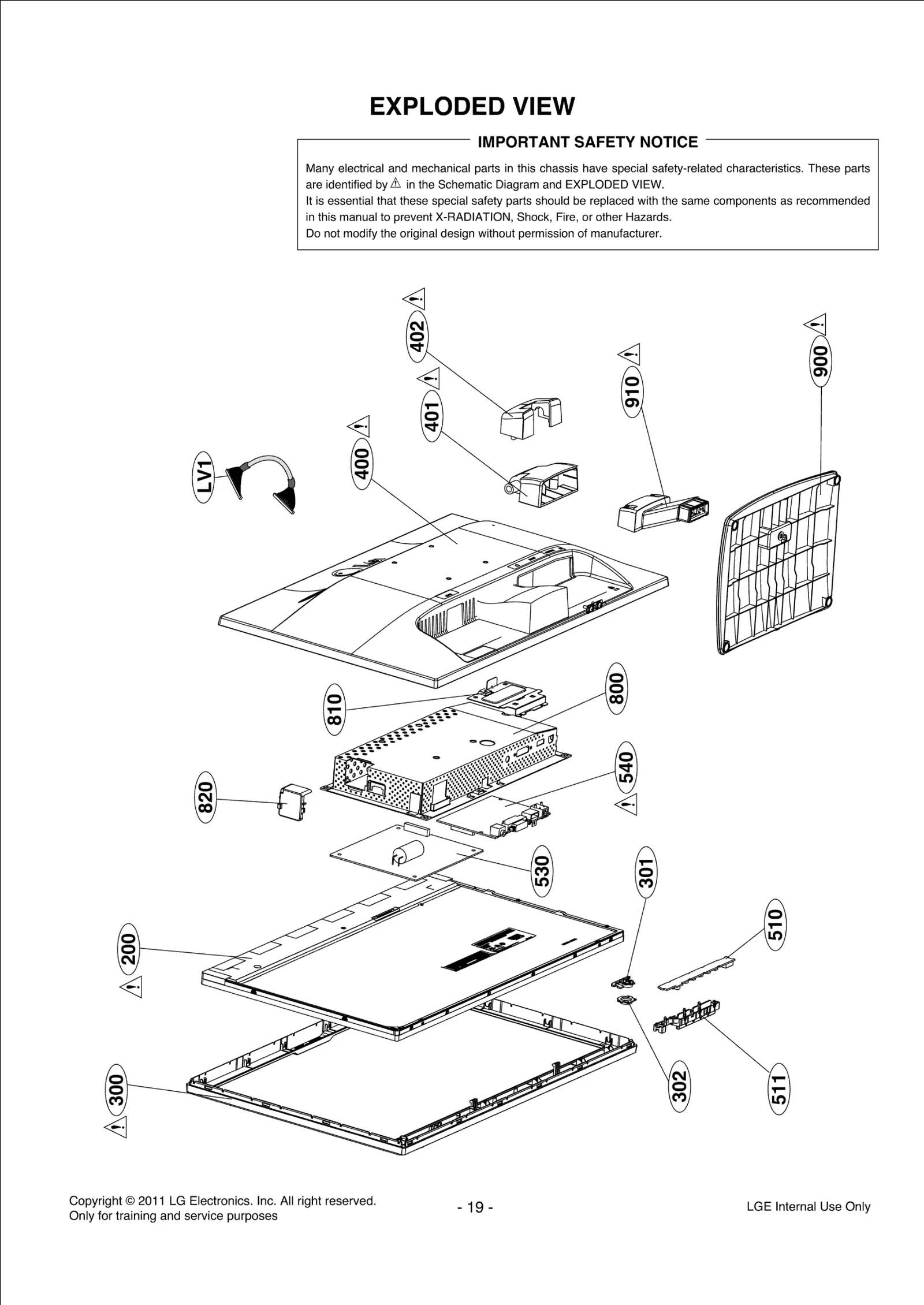

Diagram 0
Diagram 1
Common parts from model LG D2000N-PN
200
LCD Module LGE EAJ61968301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73607501 Contact Us For Availability
301
Bracket Assembly LGE ABA73930002 Contact Us For Availability
302
Ring LGE MGZ62327302 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85289021 Contact Us For Availability
401
Base Assembly LGE AAN73628902 Contact Us For Availability
402
Cover LGE MCK66250001 Contact Us For Availability
510
PCB Assembly,Keypad LGE EBR74018601 Contact Us For Availability
511
Button,Control LGE MBG63983803 Contact Us For Availability
530
Power Supply Assembly LGE EAY62168702 Contact Us For Availability
540
Main Total Assembly LGE EBU61521801 Contact Us For Availability
800
Frame Assembly LGE ADV74105601 Contact Us For Availability
820
Cover,Rear LGE MCK66017405 Contact Us For Availability
900
Base Assembly LGE AAN73628711 Contact Us For Availability
A1
Title LGE SAC35393401 Contact Us For Availability
A4
Cable,Assembly LGE EAD57760001 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C122
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C123
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C138
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C139
Capacitor,AL,Chip LGE EAE38362601 Contact Us For Availability
C146
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C204
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C206
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C207
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D107
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D218
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
Display SOC,Monitor LGE EAN61327401 Contact Us For Availability
IC102
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC103
IC,Voltage Regulator LGE EAN60918501 Contact Us For Availability
IC104
IC Assembly LGE EAN62166101 Contact Us For Availability
IC105
IC,DC,DC Converter LGE EAN61868801 Contact Us For Availability
IC106
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC203
IC,TTL LGE EAN62187601 Contact Us For Availability
JK101
Jack,Phone LGE 6612F00001B Contact Us For Availability
JK201
Jack,DIN LGE EAG39323102 Contact Us For Availability
L102
Filter,Bead LGE EAM38769502 Contact Us For Availability
L103
Inductor,Wire Wound,Chip LGE EAP38274508 Contact Us For Availability
LD1
LED,DIP LGE 0DLAU0340AA Contact Us For Availability
LV1
Cable,FFC LGE EAD61217835 Contact Us For Availability
P1
WAFER LGE 6602T20009E Contact Us For Availability
P2
Connector,BtoB LGE EAG63090401 Contact Us For Availability
P103
Connector,Wafer LGE 6630V90220L Contact Us For Availability
P201
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P203
Connector,USB LGE 6630SK00804 Contact Us For Availability
P204
Connector,FFC/FPC/PIC LGE EAG61090201 Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q102
FET LGE EBK38029201 Contact Us For Availability
Q103
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q202
FET LGE EBK42767801 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ1301D477 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R225
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
S1
Camera Module LGE EBP54826002 Contact Us For Availability
S2
Harness,Single LGE 6631900011M Contact Us For Availability
S3
Harness,Single LGE EAD61946801 Contact Us For Availability
S4
PCB Assembly,Sub LGE EBR74158101 Contact Us For Availability
S5
Cable,FFC LGE EAD61486410 Contact Us For Availability
SW5
Switch,Tact LGE EBF60694801 Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
× ![]()
