Model Whirlpool D146W ELECTRIC RANGE – Common Parts & Diagrams

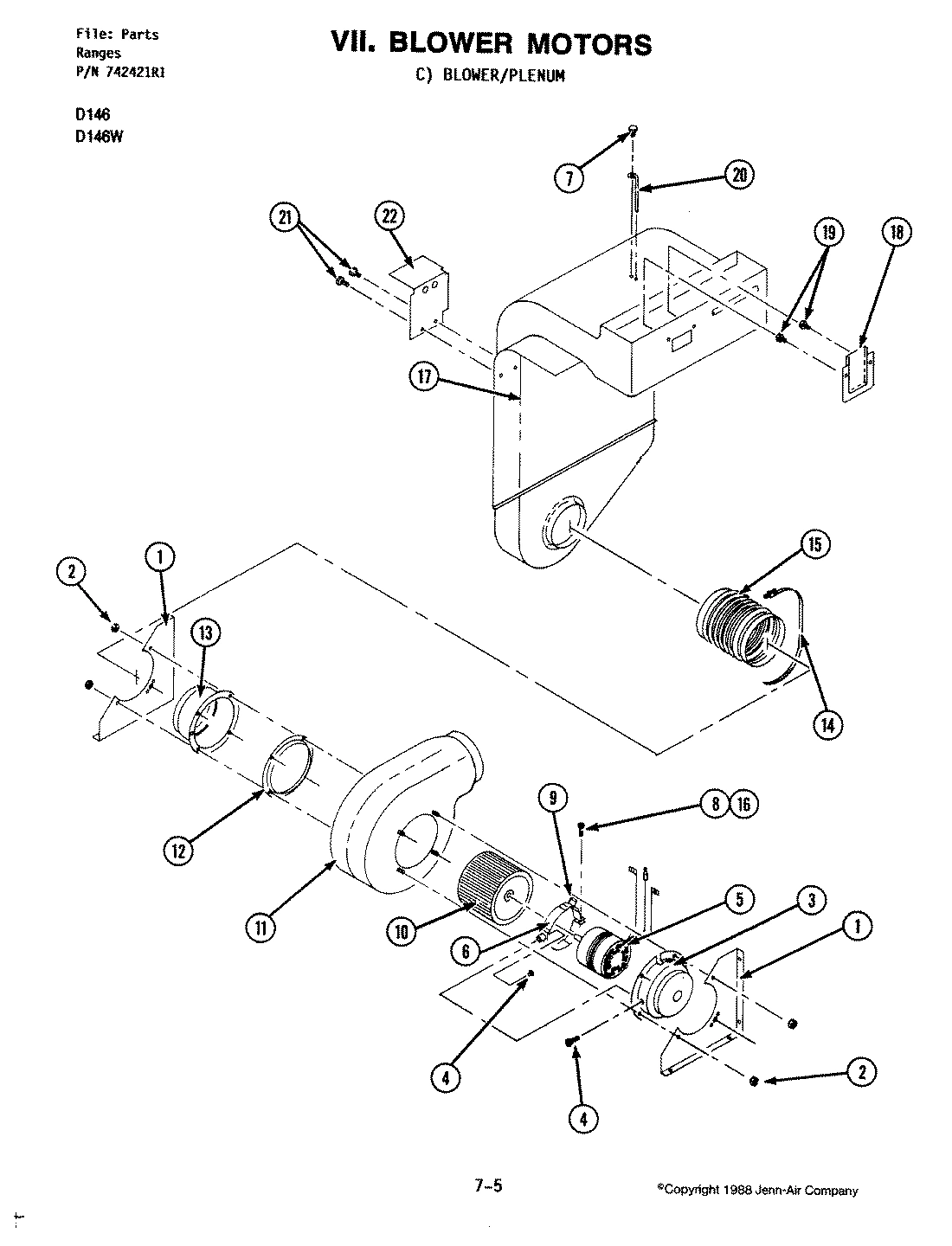

02 - BLOWER MOTOR

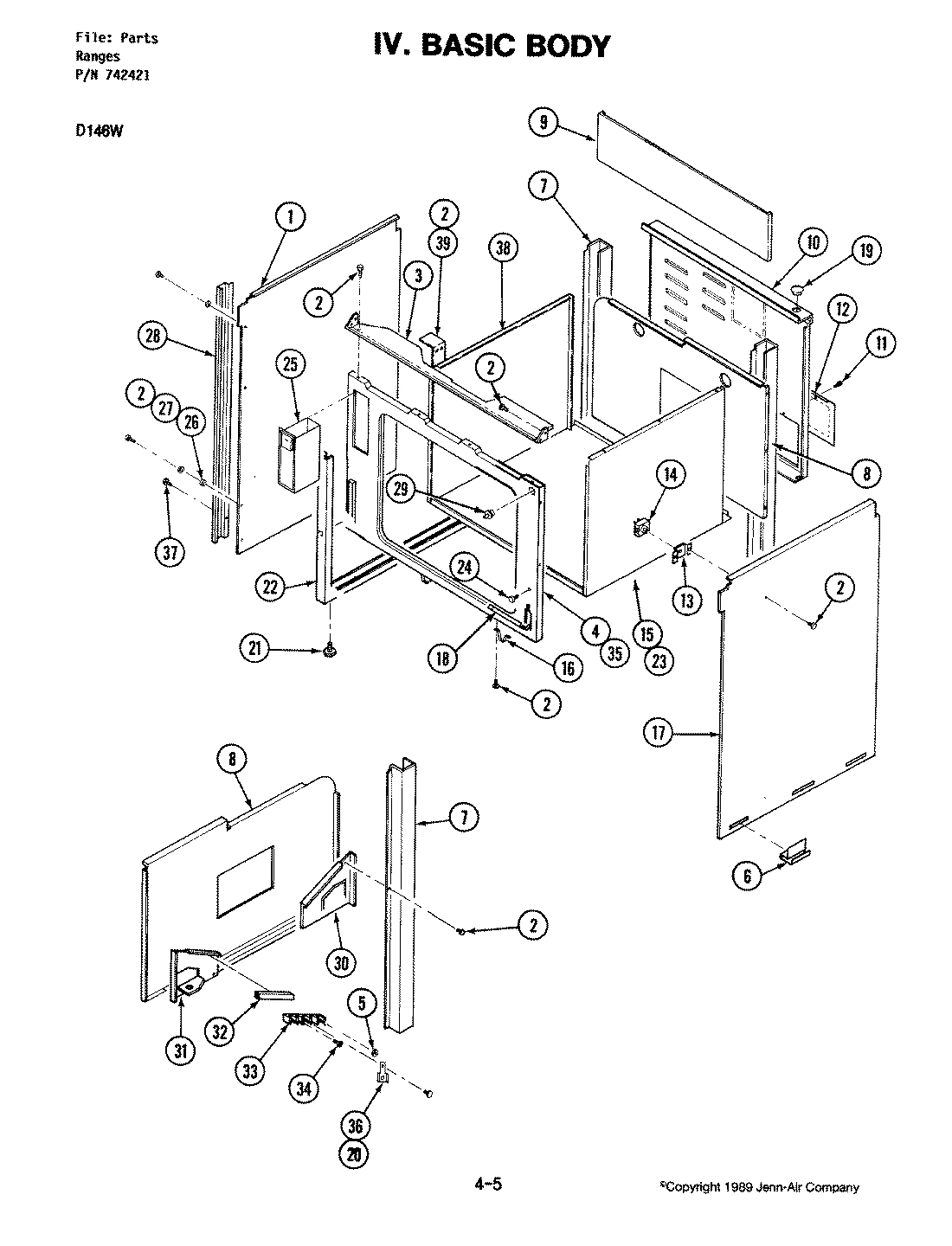

04 - BODY (D146W)

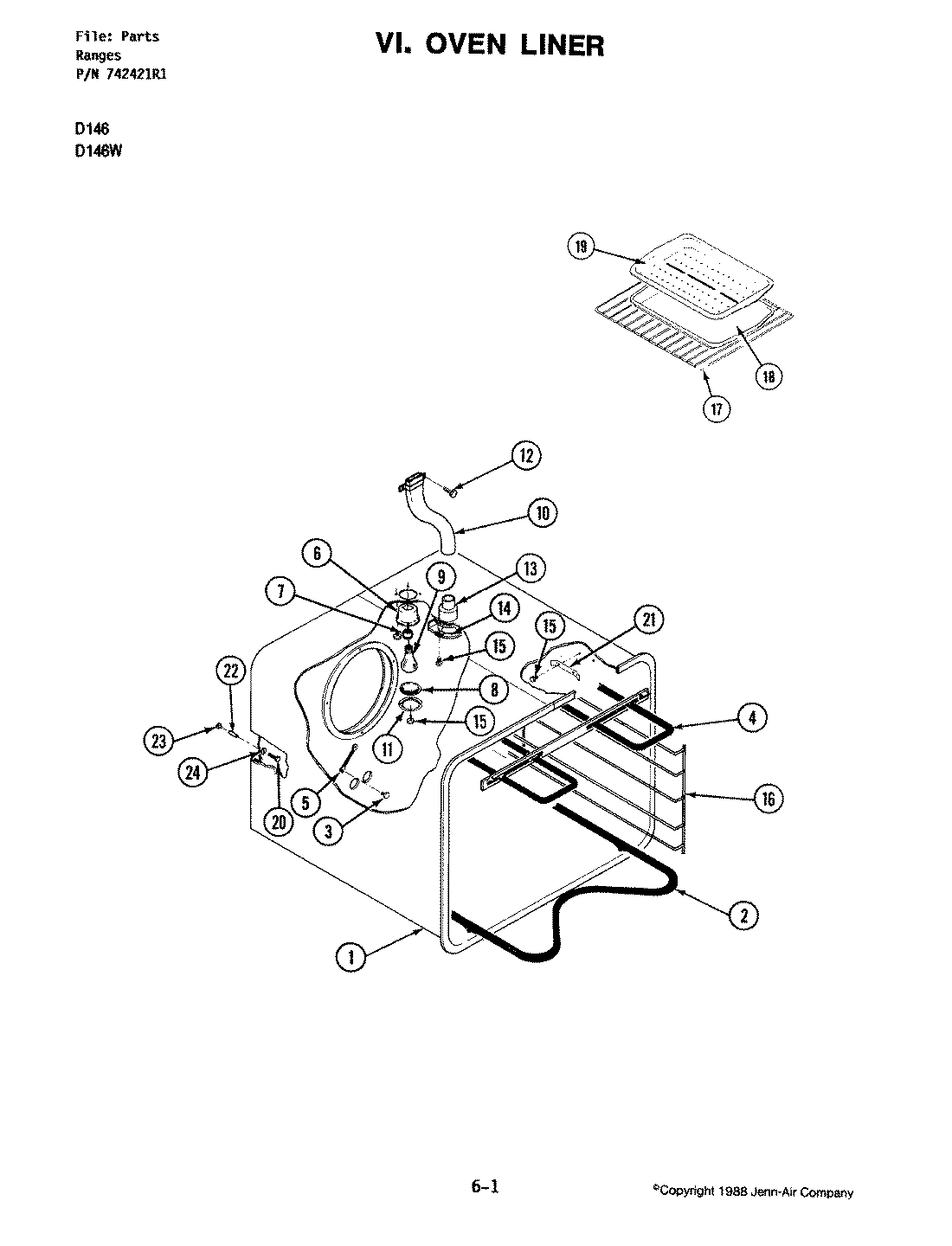

06 - OVEN

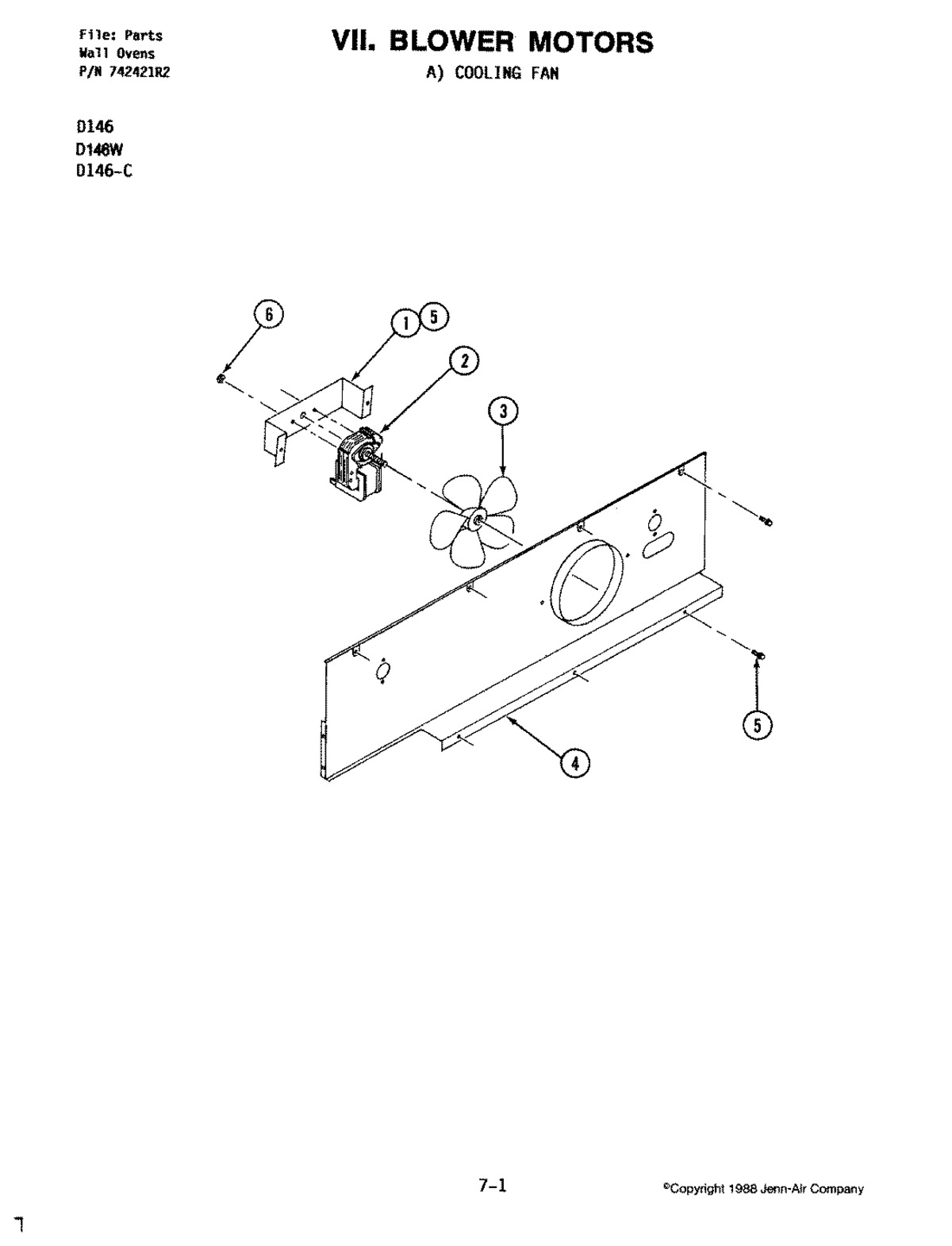

01 - BLOWER MOTOR

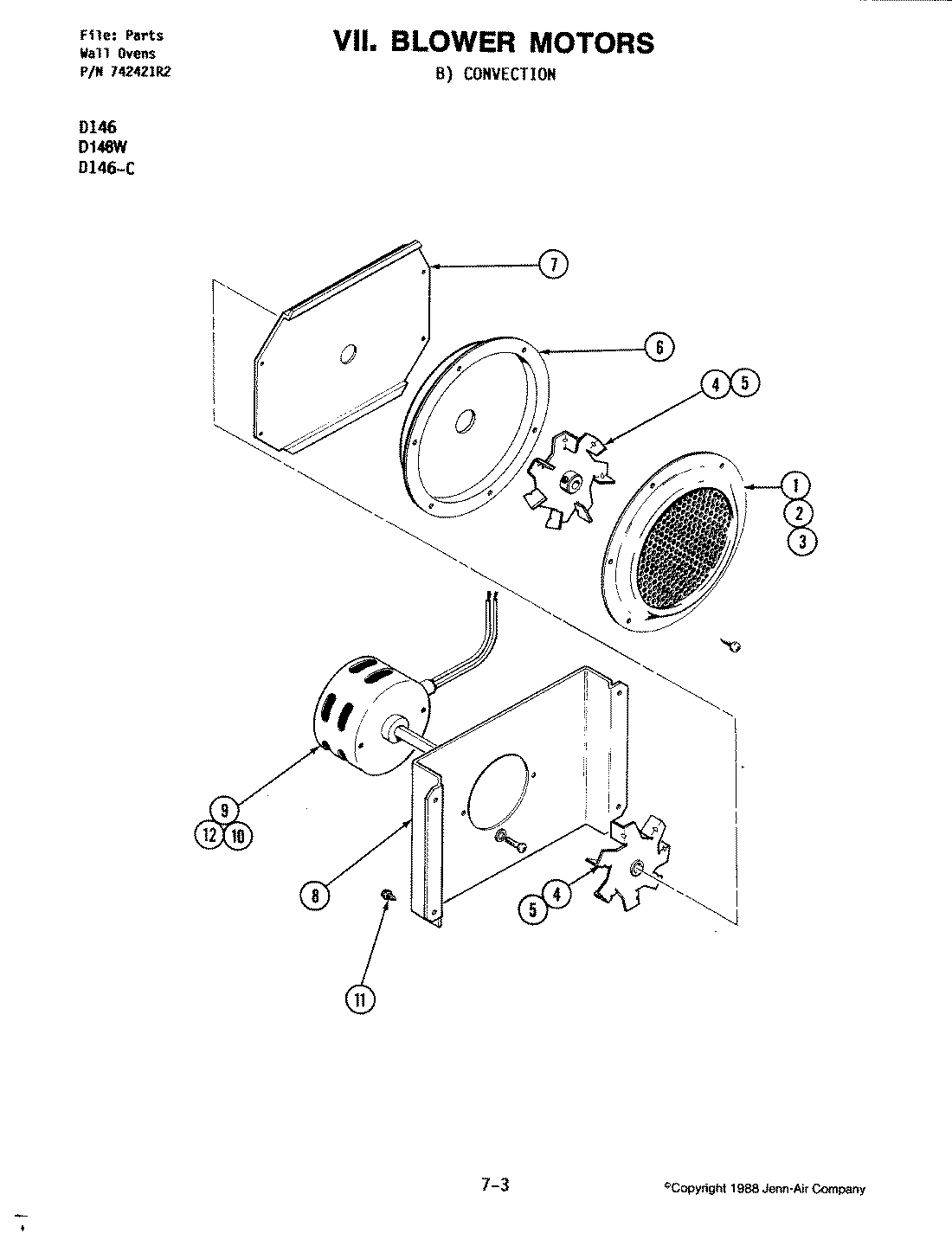

03 - BLOWER MOTOR (CONVECTION)

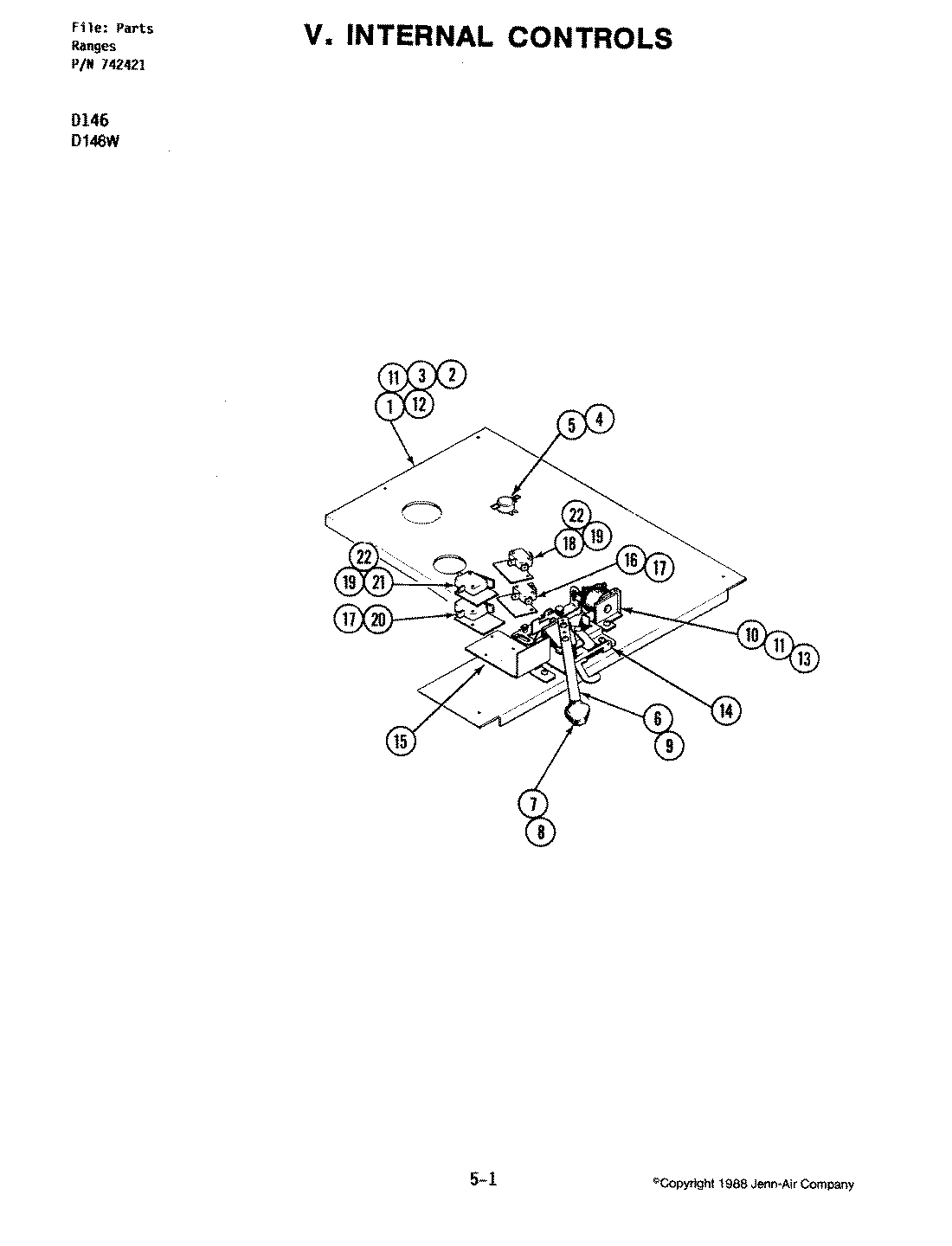

05 - INTERNAL CONTROLS

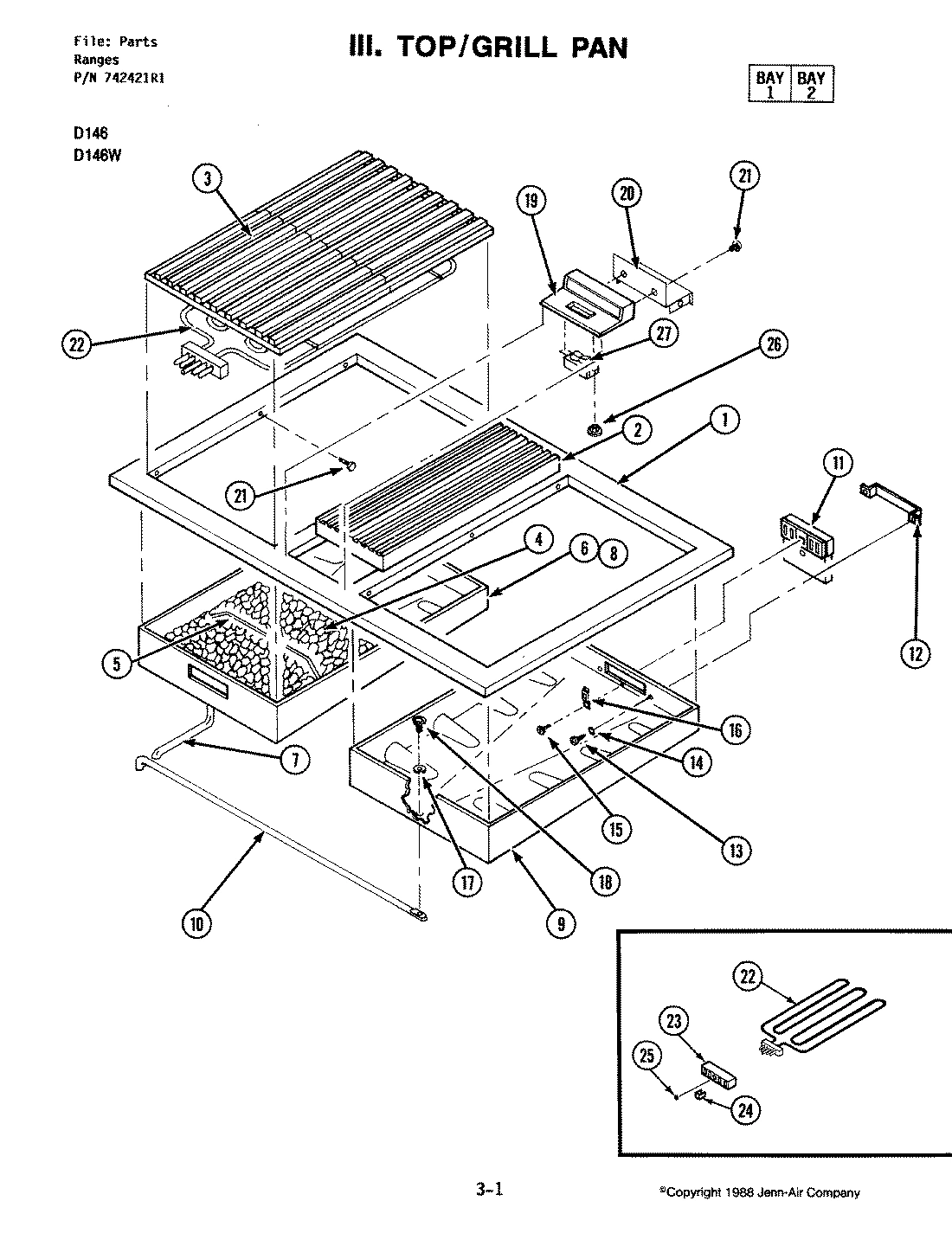

07 - TOP
Common parts from model Whirlpool D146W ELECTRIC RANGE
1
PANEL, SIDE (LT) WPL 703484 Contact Us For Availability
1
LINER WPL 712375 Contact Us For Availability
1
BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability
1
PANEL, TOP WPL 704154 Contact Us For Availability
1
TOP WPL 701853 Contact Us For Availability
2
ELEMENT, BAKE (208V) WPL 712247 Contact Us For Availability
2
MOTOR, FAN WPL Y702549 Contact Us For Availability
2
GRILL, AIR WPL 704479 Contact Us For Availability
2
GRILL, AIR BLK WPL Y704228 Contact Us For Availability
3
COVER, MOTOR WPL Y702734 Contact Us For Availability
3
ANGLE, MOUNT WPL 712002 Contact Us For Availability
3
BLADE, FAN WPL Y702525 Contact Us For Availability
3
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
3
GRATE, GRILL WPL 703905 Contact Us For Availability
4
CLOSURE, FRONT WPL 702329 Contact Us For Availability
4
ELEMENT, BROIL 208V WPL 712125 Contact Us For Availability
4
PLATE, BACK WPL Y702345 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
PLATE, ROCK WPL 708929 Contact Us For Availability
5
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
5
MOTOR WPL 702650 Contact Us For Availability
5
FOAM, URETHANE WPL Y715957 Contact Us For Availability
5
NUT, HEX WPL 712081 Contact Us For Availability
5
WIRE, GROUND WPL 702643 Contact Us For Availability
5
SCREW, SET WPL 701709 Contact Us For Availability
6
BAND, MOTOR WPL Y707393 Contact Us For Availability
6
CLIP, SPRING WPL Y702476 Contact Us For Availability
6
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
6
HARNESS, BACKSPLASH WPL 703648 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
6
LEVER, LATCH (WHT) WPL Y703848 Contact Us For Availability
6
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
6
WIRE, BROWN WPL Y712197 Contact Us For Availability
6
WIRE, YELLOW WPL Y712200 Contact Us For Availability
6
WIRE, VIOLET WPL Y712203 Contact Us For Availability
7
SUPPORT,TUBE WPL 704296 Contact Us For Availability
7
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
KNOB (WHT) WPL 704460 Contact Us For Availability
7
TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability
8
SCREW WPL Y707402 Contact Us For Availability
8
BACK, INNER WPL Y702306 Contact Us For Availability
8
LENS, LIGHT WPL Y704143 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
SPRING, KNOB WPL 701671 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
BACK, UNIT WPL 704293 Contact Us For Availability
9
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
9
WIRE, BLUE WPL Y712227 Contact Us For Availability
9
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
9
WIRE, BROWN WPL Y712199 Contact Us For Availability
10
COVER, REAR WPL 704294 Contact Us For Availability
10
TUBE, VENT WPL 702290 Contact Us For Availability
10
SOLENOID WPL Y702526 Contact Us For Availability
10
TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability
11
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
11
SCREW WPL 703958 Contact Us For Availability
11
RETAINER, LENS WPL Y704144 Contact Us For Availability
12
RING, INLET WPL Y702295 Contact Us For Availability
12
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
12
BRACKET,STIFFENER WPL 702697 Contact Us For Availability
12
BRACKET WPL Y702698 Contact Us For Availability
13
ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability
13
BRACKET WPL 704337 Contact Us For Availability
13
TUBE, VENT WPL 701738 Contact Us For Availability
13
PIN, COTTER WPL Y701686 Contact Us For Availability
14
CLAMP, HOSE WPL Y702331 Contact Us For Availability
14
SCREW WPL 704335 Contact Us For Availability
14
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
14
SHIELD, VENT WPL Y702632 Contact Us For Availability
14
LATCH ASSY. WPL Y703357 Contact Us For Availability
14
WASHER WPL Y707664 Contact Us For Availability
15
DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability
15
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
15
PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability
15
SHIELD, SWITCH WPL 701706 Contact Us For Availability
16
NUT WPL 707161 Contact Us For Availability
16
BRACKET, HAT WPL 702658 Contact Us For Availability
16
SUPPORT, RACK WPL 702701 Contact Us For Availability
16
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
17
PLENUM, UPPER WPL 712025 Contact Us For Availability
17
PANEL,SIDE (RT) WPL 703485 Contact Us For Availability
17
RACK, OVEN WPL Y702339 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
17
WASHER, TEFLON WPL 702747 Contact Us For Availability
18
COVER, VENT WPL Y702475 Contact Us For Availability
18
HINGE WPL Y703419 Contact Us For Availability
18
SWITCH, LATCH WPL Y703732 Contact Us For Availability
18
NUT, DRAIN TUBE WPL 702748 Contact Us For Availability
19
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
19
INSULATOR WPL 703264 Contact Us For Availability
19
ESCUTCHEON (WHT) WPL Y704477 Contact Us For Availability
20
STOP, FILTER WPL Y702656 Contact Us For Availability
20
SCREW WPL 701744 Contact Us For Availability
20
SWITCH, SOLENOID MICRO WPL Y702359 Contact Us For Availability
20
BRACKET, FILLER WPL Y704233 Contact Us For Availability
21
CLIP, BULB WPL Y701541 Contact Us For Availability
21
SWITCH, DOOR WPL 702806 Contact Us For Availability
22
ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability
22
CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability
22
CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability
22
RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability
22
SPACER, OVEN WPL 701741 Contact Us For Availability
22
SCREW WPL 702807 Contact Us For Availability
22
WIRE, GREY WPL 703750 Contact Us For Availability
23
BAFFLE, INNER WPL 704466 Contact Us For Availability
23
INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability
23
INSULATION-BACK WPL 702283 Contact Us For Availability
23
NUT, TEE WPL 715294 Contact Us For Availability
24
SCREW WPL 715870 Contact Us For Availability
24
WASHER WPL 701736 Contact Us For Availability
24
CLIP, SHUNT WPL Y700450 Contact Us For Availability
25
CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability
26
WASHER, CONICAL WPL 702462 Contact Us For Availability
27
WASHER, FLAT WPL 712005 Contact Us For Availability
27
SWITCH, FAN (GRY) WPL 704478 Contact Us For Availability
28
TRIM, SIDE WPL 703486 Contact Us For Availability
29
SWITCH, DOOR WPL 701666 Contact Us For Availability
30
GUSSETT (LT) WPL 702557 Contact Us For Availability
31
GUSSETT (RT) WPL 702556 Contact Us For Availability
32
INSULATOR WPL 702898 Contact Us For Availability
36
STRAP, GROUND WPL Y702335 Contact Us For Availability
38
PANEL, L.H. INNER WPL 704032 Contact Us For Availability
38
KIT,BACKSPLASH ADAPTOR WPL 712239 Contact Us For Availability
39
HARNESS, SUPPLY WPL 704307 Contact Us For Availability
39
HARNESS, CONTROL WPL 704309 Contact Us For Availability
39
BRACKET, DRAIN TUBE WPL 704312 Contact Us For Availability
× ![]()
