Model Maytag CWE9000CDE ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

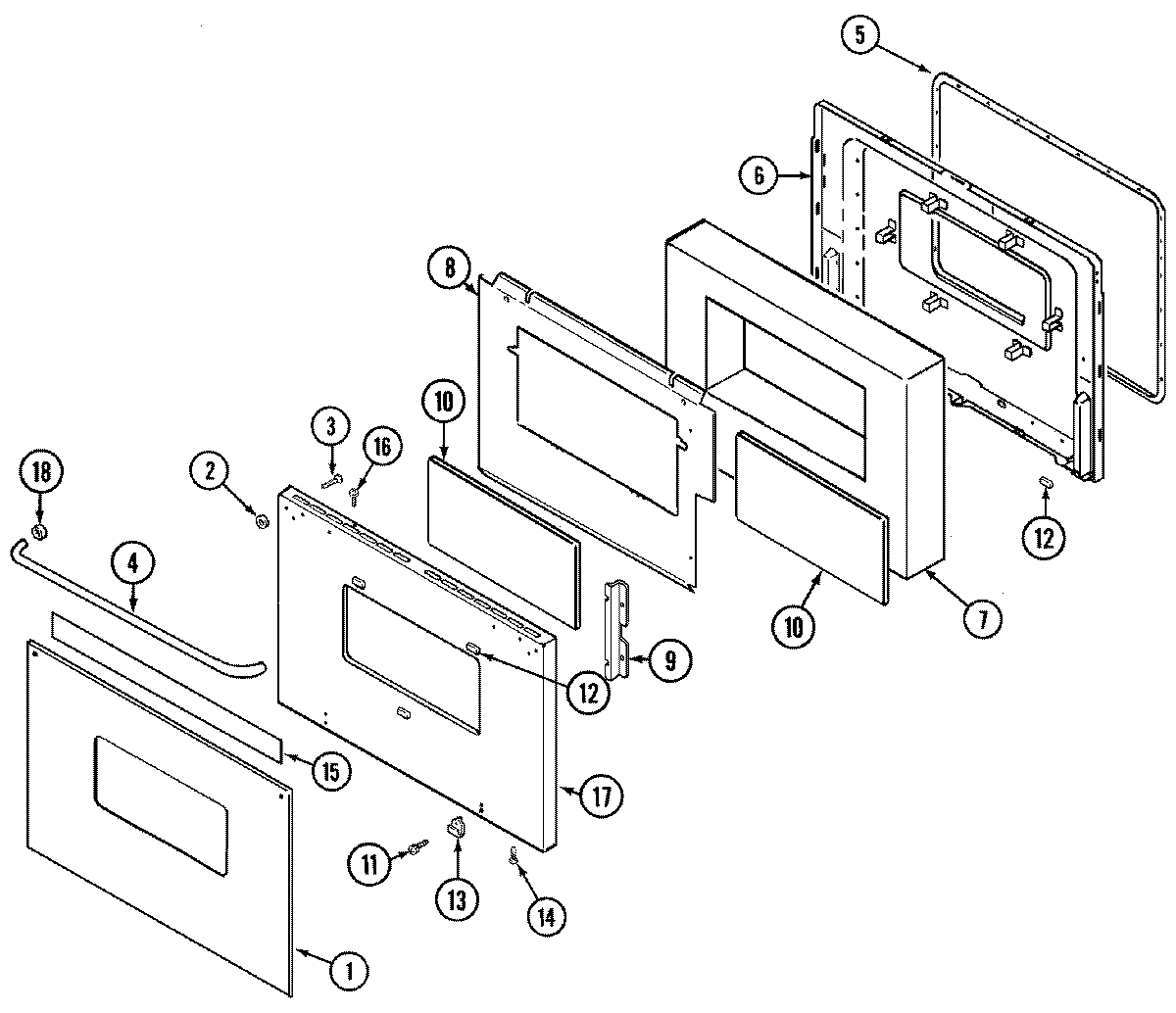

03 - DOOR (SER. PRE. 15)

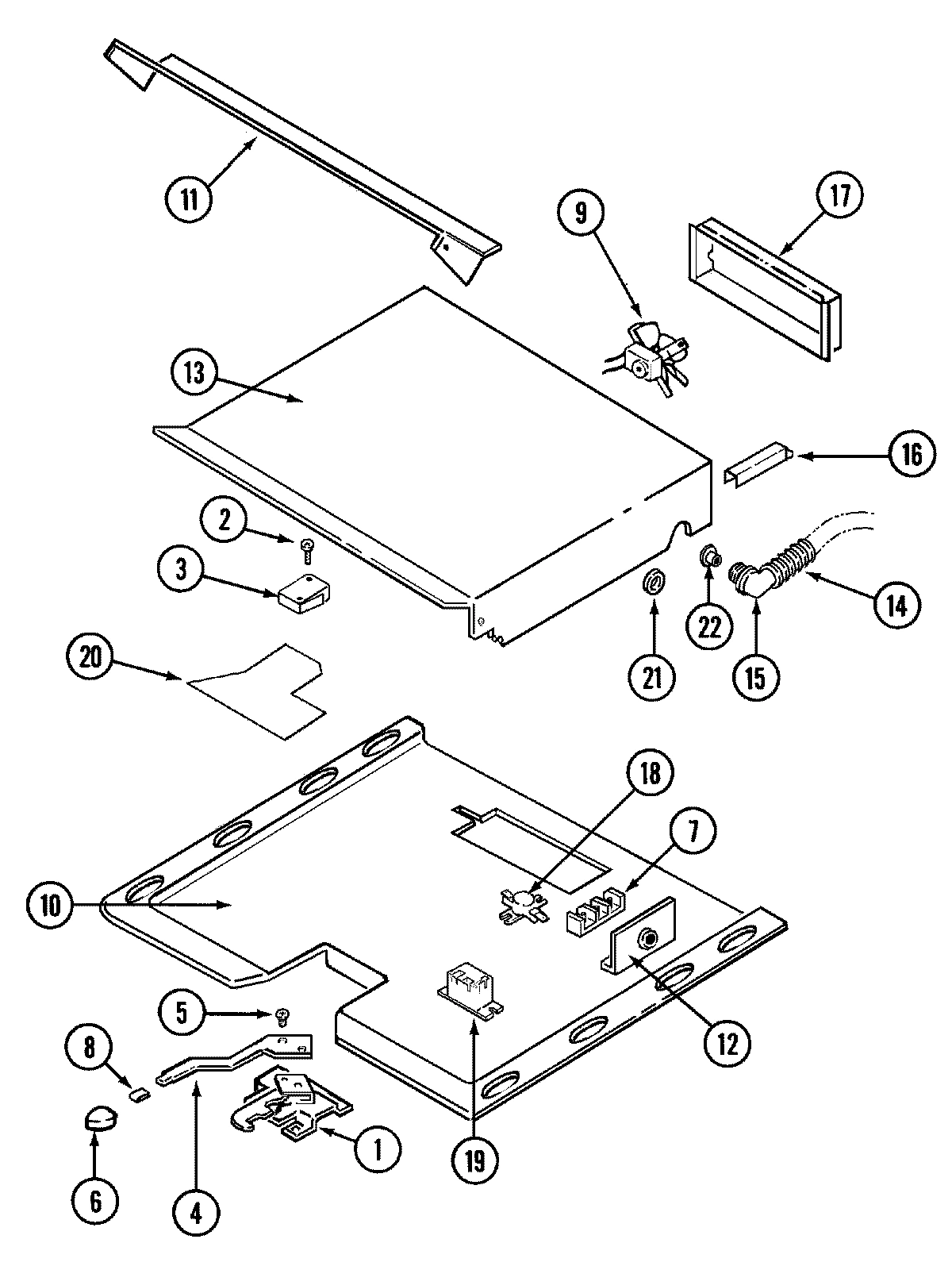

04 - INTERNAL CONTROLS

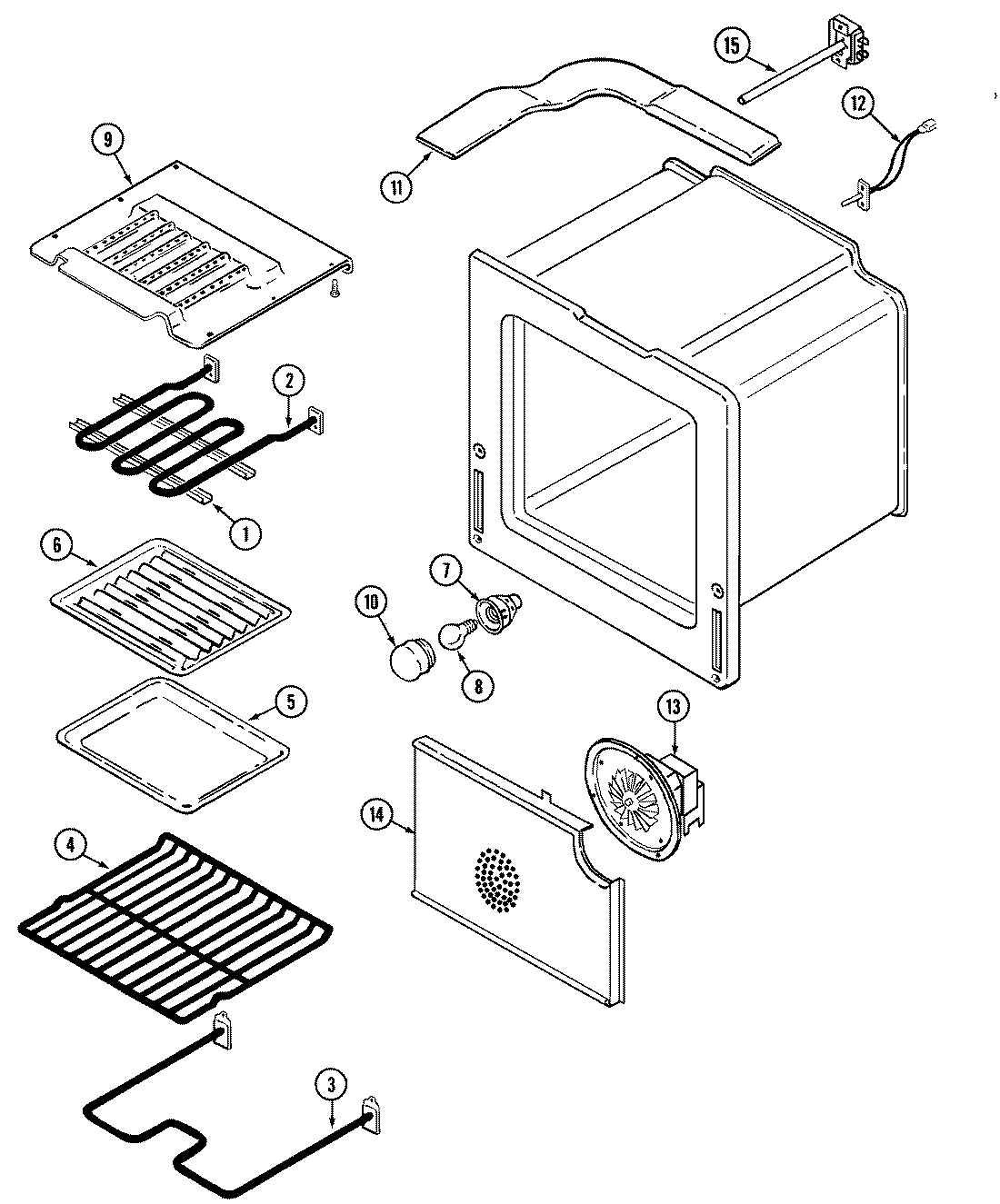

05 - OVEN

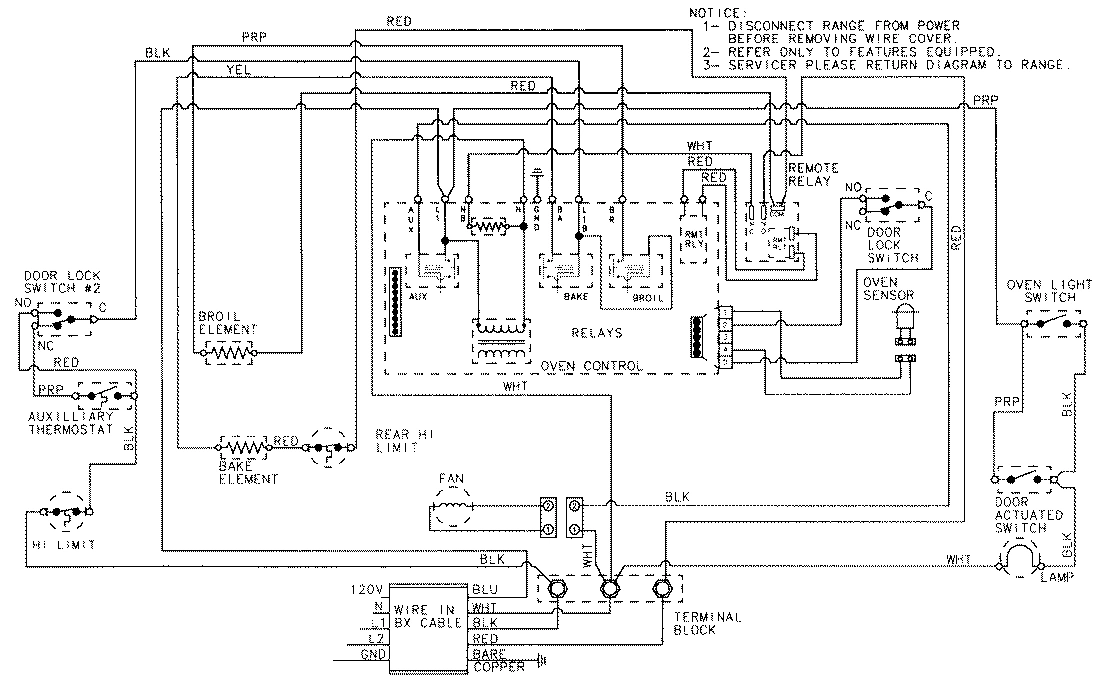

06 - WIRING INFORMATION
Common parts from model Maytag CWE9000CDE ELECTRIC WALL OVEN
1
MAY 7756P099-60 MAY 7756P099-60 Contact Us For Availability
1
MAY 7902P370-60 MAY 7902P370-60 Contact Us For Availability
1
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
2
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
2
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
2
MAY Y04000072 MAY Y04000072 Contact Us For Availability
3
MAY 7101P325-60 MAY 7101P325-60 Contact Us For Availability
3
MAY 7003P051-60 MAY 7003P051-60 Contact Us For Availability
3
MAY 7403P326-60 MAY 7403P326-60 Contact Us For Availability
3
MAY Y04000071 MAY Y04000071 Contact Us For Availability
4
MAY 7720P164-60 MAY 7720P164-60 Contact Us For Availability
4
MAY 7701P131-60 MAY 7701P131-60 Contact Us For Availability
4
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
4
MAY 7801P046-60 MAY 7801P046-60 Contact Us For Availability
5
MAY 3604F189-51 MAY 3604F189-51 Contact Us For Availability
5
MAY 7756P101-60 MAY 7756P101-60 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 74001424 MAY 74001424 Contact Us For Availability
6
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
6
MAY 7701P153-60 MAY 7701P153-60 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
7
MAY 7106P057-60 MAY 7106P057-60 Contact Us For Availability
7
MAY 7601P231-60 MAY 7601P231-60 Contact Us For Availability
7
MAY 74001842 MAY 74001842 Contact Us For Availability
7
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
8
MAY 74001843 MAY 74001843 Contact Us For Availability
8
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
8
MAY 7407P095-60 MAY 7407P095-60 Contact Us For Availability
9
MAY 4804F029-60 MAY 4804F029-60 Contact Us For Availability
9
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
9
MAY 7752P014-60 MAY 7752P014-60 Contact Us For Availability
9
MAY 74001844 MAY 74001844 Contact Us For Availability
9
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
9
MAY 3601F202-45 MAY 3601F202-45 Contact Us For Availability
9
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
10
MAY 3604F181-71 MAY 3604F181-71 Contact Us For Availability
10
MAY 7003P056-60 MAY 7003P056-60 Contact Us For Availability
10
MAY 74001841 MAY 74001841 Contact Us For Availability
10
MAY 3804F111-51 MAY 3804F111-51 Contact Us For Availability
11
MAY 74001436 MAY 74001436 Contact Us For Availability
11
MAY 5170P207-60 MAY 5170P207-60 Contact Us For Availability
11
MAY 74001615 MAY 74001615 Contact Us For Availability
11
MAY 4005F431-51 MAY 4005F431-51 Contact Us For Availability
11
MAY 4005F403-51 MAY 4005F403-51 Contact Us For Availability
11
MAY 7506P125-60 MAY 7506P125-60 Contact Us For Availability
12
MAY 74001801 MAY 74001801 Contact Us For Availability
12
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
12
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
12
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
13
MAY 7112P094-60 MAY 7112P094-60 Contact Us For Availability
13
MAY 4011F217-51 MAY 4011F217-51 Contact Us For Availability
13
MAY 74001393 MAY 74001393 Contact Us For Availability
13
MAY 4001F092-51 MAY 4001F092-51 Contact Us For Availability
13
MAY 74001805 MAY 74001805 Contact Us For Availability
14
MAY 7750P099-60 MAY 7750P099-60 Contact Us For Availability
14
MAY 7750P100-60 MAY 7750P100-60 Contact Us For Availability
14
MAY 74001388 MAY 74001388 Contact Us For Availability
14
MAY 5150A055-60 MAY 5150A055-60 Contact Us For Availability
14
MAY 7434P010-60 MAY 7434P010-60 Contact Us For Availability
14
MAY 74001806 MAY 74001806 Contact Us For Availability
15
MAY 3801F354-51 MAY 3801F354-51 Contact Us For Availability
15
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
15
MAY 8111P011-60 MAY 8111P011-60 Contact Us For Availability
15
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
15
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
15
MAY 7404P057-60 MAY 7404P057-60 Contact Us For Availability
15
MAY W10124350 MAY W10124350 Contact Us For Availability
16
MAY 4874F001-60 MAY 4874F001-60 Contact Us For Availability
16
MAY 74001628 MAY 74001628 Contact Us For Availability
16
MAY 16000327 MAY 16000327 Contact Us For Availability
16
MAY 3830F008-51 MAY 3830F008-51 Contact Us For Availability
17
MAY 7003P062-60 MAY 7003P062-60 Contact Us For Availability
17
MAY 74001872 MAY 74001872 Contact Us For Availability
17
MAY 2401F123-71 MAY 2401F123-71 Contact Us For Availability
17
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
18
MAY 8010P091-60 MAY 8010P091-60 Contact Us For Availability
18
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
18
MAY 7403P313-60 MAY 7403P313-60 Contact Us For Availability
19
SPRING, DOOR SWITCH WPL 74001629 No Longer Available
19
MAY 7803P067-60 MAY 7803P067-60 Contact Us For Availability
19
MAY 7428P023-60 MAY 7428P023-60 Contact Us For Availability
20
MAY 74001627 MAY 74001627 Contact Us For Availability
20
MAY 74001804 MAY 74001804 Contact Us For Availability
21
MAY 7109P020-60 MAY 7109P020-60 Contact Us For Availability
21
MAY 74001630 MAY 74001630 Contact Us For Availability
21
MAY 7809P023-60 MAY 7809P023-60 Contact Us For Availability
21
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
22
MAY 74001631 MAY 74001631 Contact Us For Availability
22
MAY 8003P012-60 MAY 8003P012-60 Contact Us For Availability
22
MAY 8008P017-60 MAY 8008P017-60 Contact Us For Availability
NI
MAY 15001327 MAY 15001327 Contact Us For Availability
× ![]()
