Model Maytag CWE6230ADE ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BLOWER MOTOR (CONVECTION)
02 - BLOWER MOTOR (COOLING)

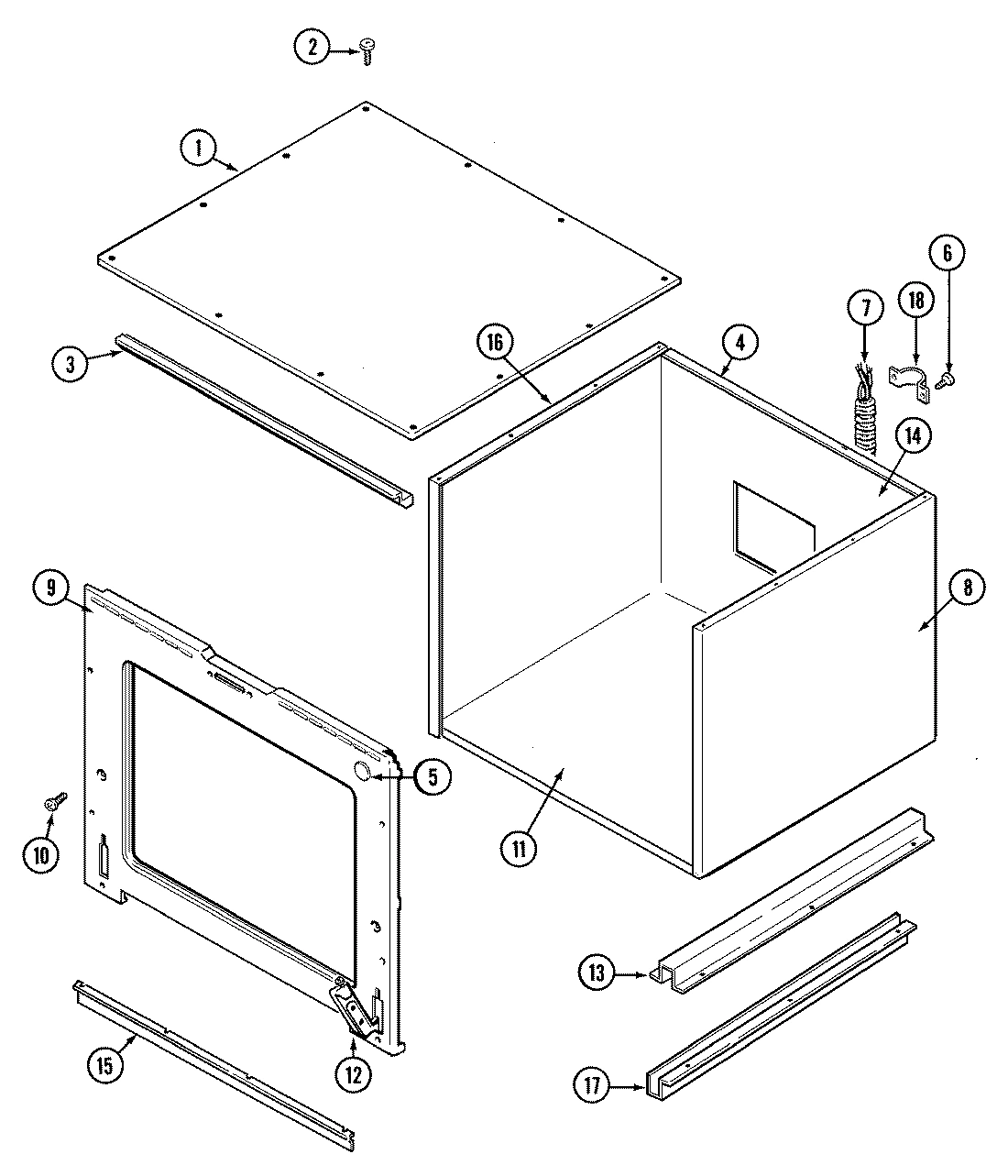

03 - BODY

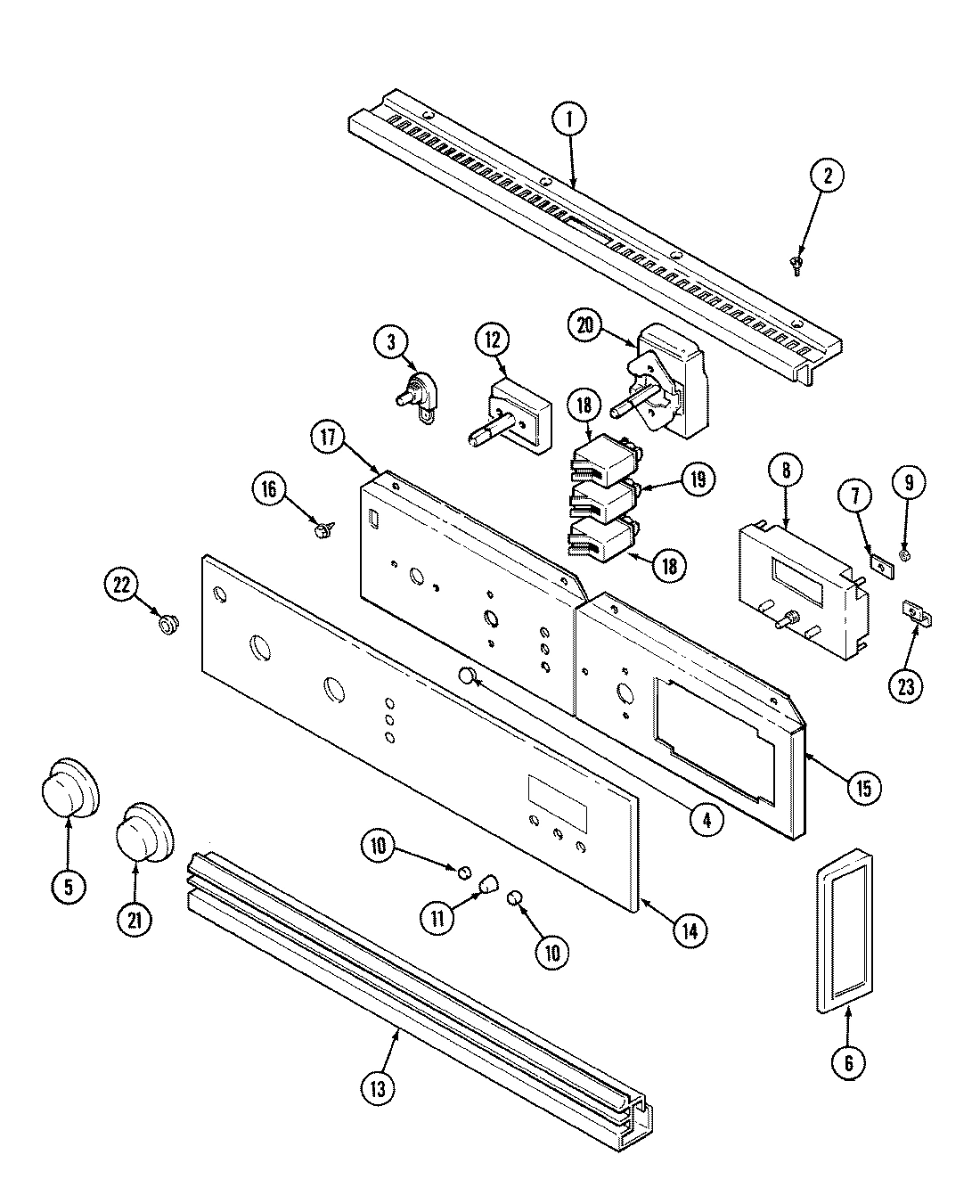

04 - CONTROL PANEL

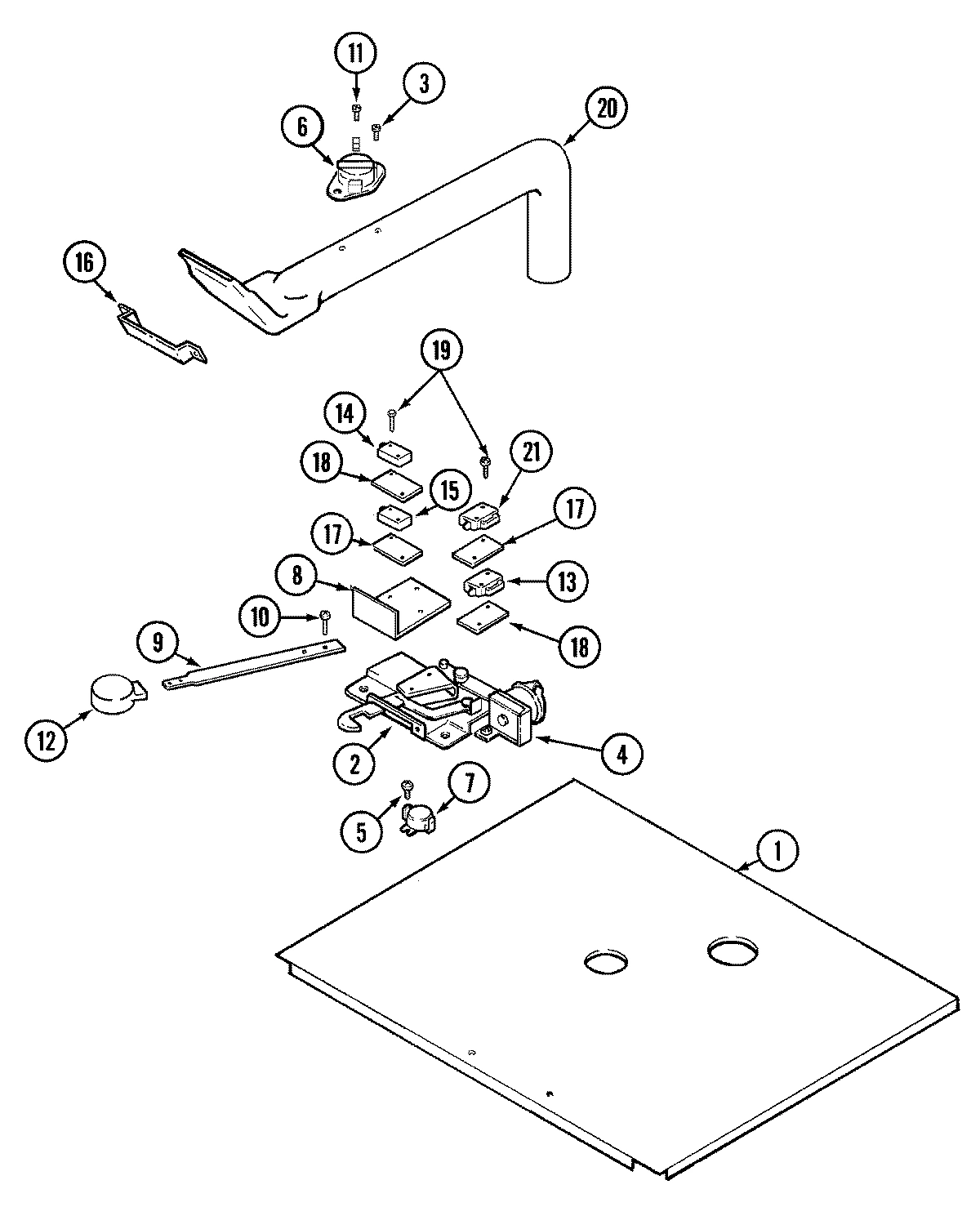

05 - INTERNAL CONTROLS

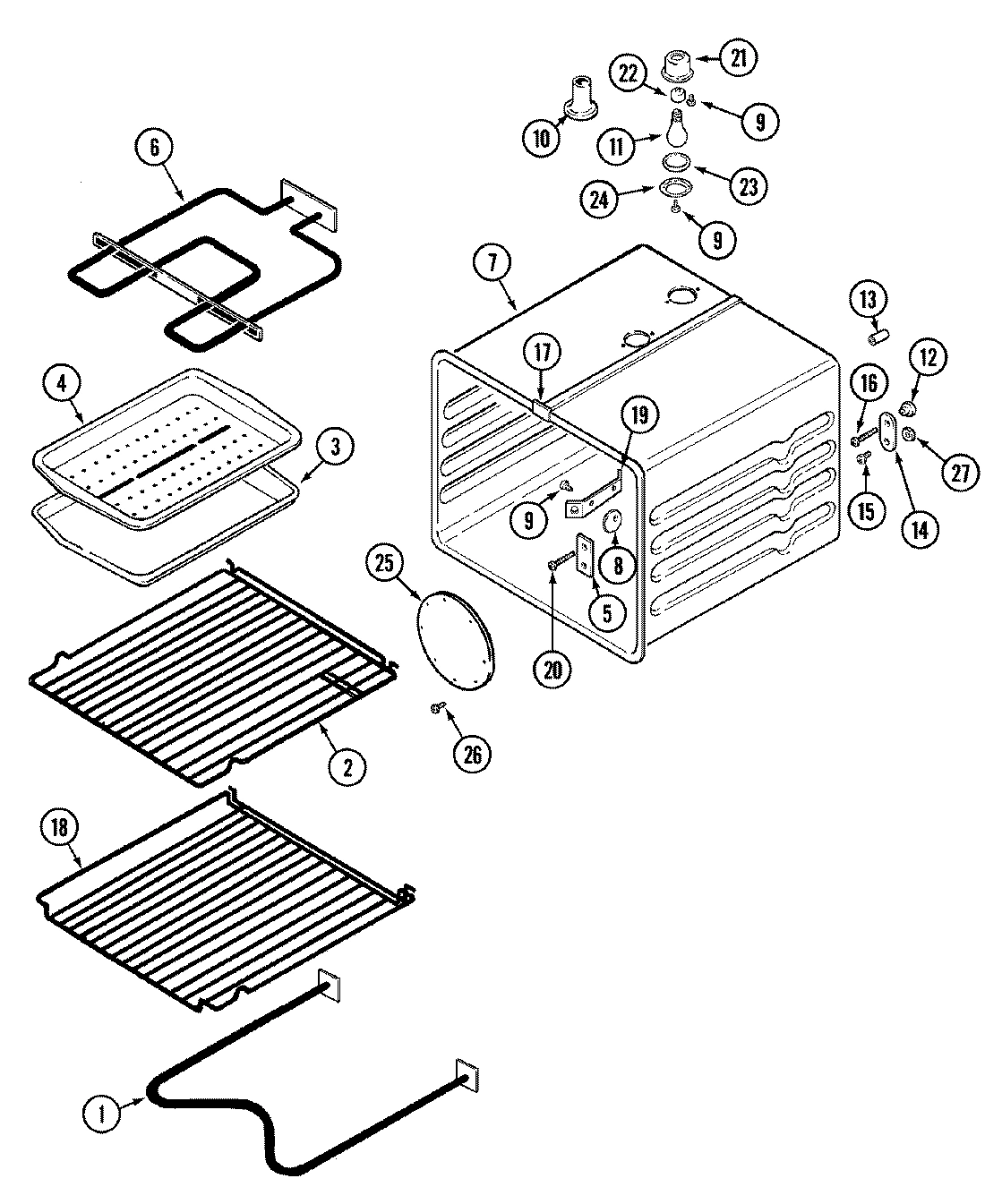

06 - OVEN

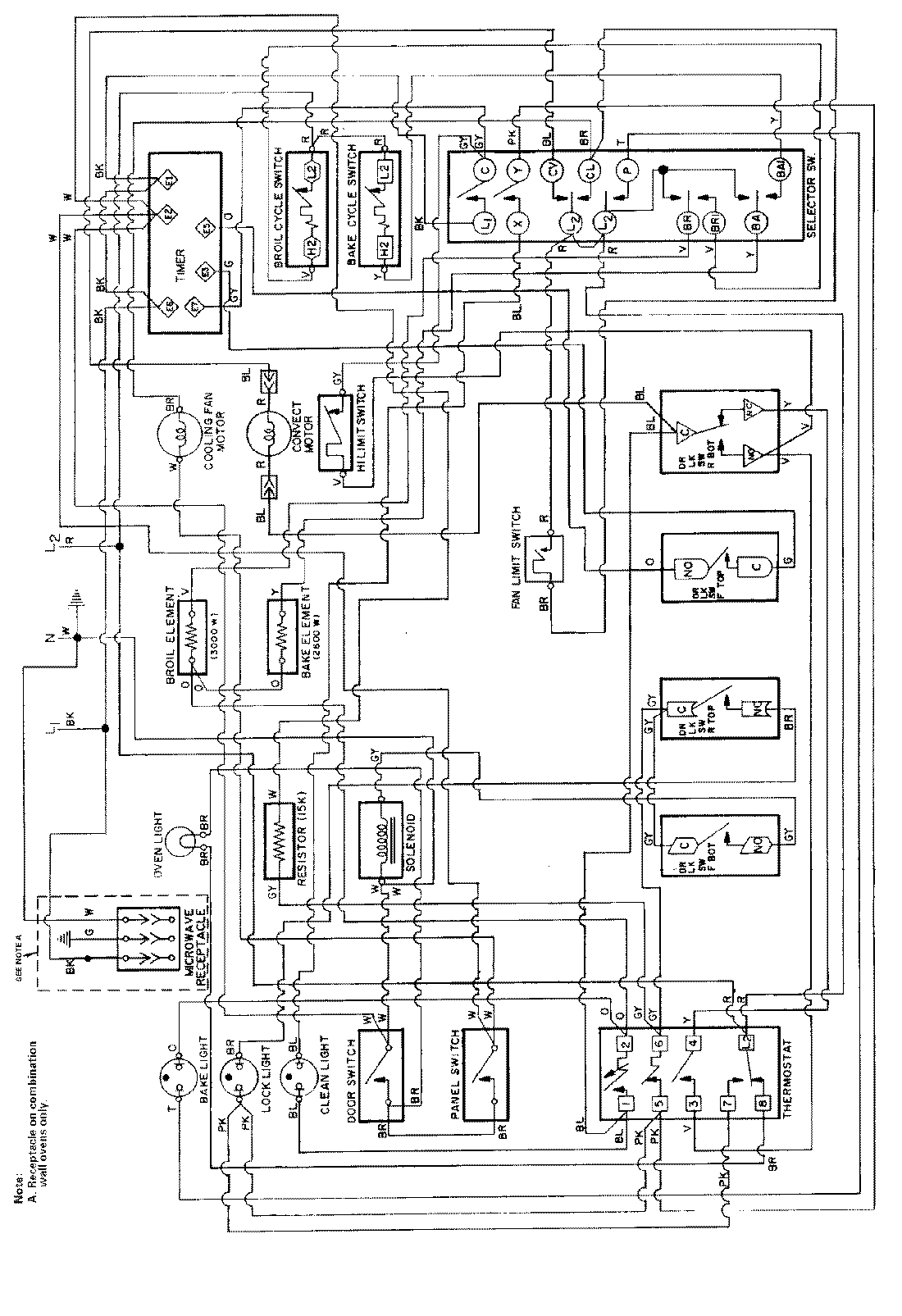

07 - WIRING INFORMATION
Common parts from model Maytag CWE6230ADE ELECTRIC WALL OVEN
1
MAY 04100560 MAY 04100560 Contact Us For Availability
1
MAY 04100567 MAY 04100567 Contact Us For Availability
1
MAY 04100680 MAY 04100680 Contact Us For Availability
1
MAY 04100559 MAY 04100559 Contact Us For Availability
1
MAY Y04100387 MAY Y04100387 Contact Us For Availability
2
MAY 702944 MAY 702944 Contact Us For Availability
2
MAY Y04100363 MAY Y04100363 Contact Us For Availability
2
MAY Y701686 MAY Y701686 Contact Us For Availability
2
MAY Y703357 MAY Y703357 Contact Us For Availability
2
MAY Y704660 MAY Y704660 Contact Us For Availability
3
MAY Y704732 MAY Y704732 Contact Us For Availability
3
MAY 703095 MAY 703095 Contact Us For Availability
3
MAY Y705011 MAY Y705011 Contact Us For Availability
3
MAY Y703817 MAY Y703817 Contact Us For Availability
3
MAY 703164 MAY 703164 Contact Us For Availability
4
MAY 715910 MAY 715910 Contact Us For Availability
4
MAY 04100564 MAY 04100564 Contact Us For Availability
4
MAY Y700630 MAY Y700630 Contact Us For Availability
4
MAY 703767 MAY 703767 Contact Us For Availability
4
MAY Y702526 MAY Y702526 Contact Us For Availability
4
MAY 703165 MAY 703165 Contact Us For Availability
5
MAY Y704972 MAY Y704972 Contact Us For Availability
5
MAY Y701721 MAY Y701721 Contact Us For Availability
5
MAY 701666 MAY 701666 Contact Us For Availability
5
MAY Y705342 MAY Y705342 Contact Us For Availability
6
MAY 701711 MAY 701711 Contact Us For Availability
6
MAY Y708310 MAY Y708310 Contact Us For Availability
6
MAY 703136 MAY 703136 Contact Us For Availability
6
MAY 703137 MAY 703137 Contact Us For Availability
6
MAY Y702750 MAY Y702750 Contact Us For Availability
7
MAY 704355 MAY 704355 Contact Us For Availability
7
MAY 71001792 MAY 71001792 Contact Us For Availability
7
MAY 703895 MAY 703895 Contact Us For Availability
7
MAY 701687 MAY 701687 Contact Us For Availability
7
MAY 04100572 MAY 04100572 Contact Us For Availability
8
MAY 701713 MAY 701713 Contact Us For Availability
8
MAY 04100558 MAY 04100558 Contact Us For Availability
8
MAY Y04100133 MAY Y04100133 Contact Us For Availability
8
MAY 701706 MAY 701706 Contact Us For Availability
8
MAY 702929 MAY 702929 Contact Us For Availability
8
MAY 703007 MAY 703007 Contact Us For Availability
9
MAY Y700601 MAY Y700601 Contact Us For Availability
9
MAY 704335 MAY 704335 Contact Us For Availability
9
MAY 704354 MAY 704354 Contact Us For Availability
9
MAY 04100566 MAY 04100566 Contact Us For Availability
9
MAY 04100571 MAY 04100571 Contact Us For Availability
9
MAY Y700582 MAY Y700582 Contact Us For Availability
9
MAY 703679 MAY 703679 Contact Us For Availability
9
MAY Y703848 MAY Y703848 Contact Us For Availability
9
MAY Y04100134 MAY Y04100134 Contact Us For Availability
10
WPL 707407 No Longer Available
10
MAY 701716 MAY 701716 Contact Us For Availability
10
MAY Y708733 MAY Y708733 Contact Us For Availability
10
MAY Y704484 MAY Y704484 Contact Us For Availability
10
MAY Y700862 MAY Y700862 Contact Us For Availability
10
MAY 701738 MAY 701738 Contact Us For Availability
11
MAY 04100562 MAY 04100562 Contact Us For Availability
11
MAY Y704485 MAY Y704485 Contact Us For Availability
11
MAY Y707172 MAY Y707172 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY 04100577 MAY 04100577 Contact Us For Availability
12
MAY Y04100336 MAY Y04100336 Contact Us For Availability
12
MAY Y703419 MAY Y703419 Contact Us For Availability
12
MAY 703077 MAY 703077 Contact Us For Availability
12
MAY 701671 MAY 701671 Contact Us For Availability
12
MAY 705118 MAY 705118 Contact Us For Availability
12
MAY 715294 MAY 715294 Contact Us For Availability
13
MAY Y702360 MAY Y702360 Contact Us For Availability
13
MAY 04100563 MAY 04100563 Contact Us For Availability
13
MAY 704458 MAY 704458 Contact Us For Availability
13
MAY 701741 MAY 701741 Contact Us For Availability
14
MAY 04100561 MAY 04100561 Contact Us For Availability
14
MAY 04100565 MAY 04100565 Contact Us For Availability
14
MAY 71001787 MAY 71001787 Contact Us For Availability
14
MAY 702806 MAY 702806 Contact Us For Availability
14
MAY 701742 MAY 701742 Contact Us For Availability
15
MAY 04100551 MAY 04100551 Contact Us For Availability
15
MAY 71001456 MAY 71001456 Contact Us For Availability
15
MAY 71001457 MAY 71001457 Contact Us For Availability
15
MAY 712066 MAY 712066 Contact Us For Availability
15
MAY 705336 MAY 705336 Contact Us For Availability
15
MAY 702805 MAY 702805 Contact Us For Availability
15
MAY 71001395 MAY 71001395 Contact Us For Availability
16
MAY 04100557 MAY 04100557 Contact Us For Availability
16
PAD, SPACER MAY 705331 Contact Us For Availability
16
MAY 701680 MAY 701680 Contact Us For Availability
16
MAY 701702 MAY 701702 Contact Us For Availability
16
MAY 701703 MAY 701703 Contact Us For Availability
16
MAY 701744 MAY 701744 Contact Us For Availability
17
MAY Y700556 MAY Y700556 Contact Us For Availability
17
MAY 700596 MAY 700596 Contact Us For Availability
17
MAY 705337 MAY 705337 Contact Us For Availability
17
MAY Y702350 MAY Y702350 Contact Us For Availability
17
MAY 701662 MAY 701662 Contact Us For Availability
17
MAY 71001170 MAY 71001170 Contact Us For Availability
18
MAY 701692 MAY 701692 Contact Us For Availability
18
MAY 702336 MAY 702336 Contact Us For Availability
18
MAY Y702394 MAY Y702394 Contact Us For Availability
18
MAY 703264 MAY 703264 Contact Us For Availability
18
MAY Y704662 MAY Y704662 Contact Us For Availability
19
MAY Y702393 MAY Y702393 Contact Us For Availability
19
MAY 702807 MAY 702807 Contact Us For Availability
19
MAY Y701541 MAY Y701541 Contact Us For Availability
20
MAY Y04100575 MAY Y04100575 Contact Us For Availability
20
MAY 04100677 MAY 04100677 Contact Us For Availability
21
MAY Y04100686 MAY Y04100686 Contact Us For Availability
21
MAY Y703732 MAY Y703732 Contact Us For Availability
21
MAY 704142 MAY 704142 Contact Us For Availability
22
MAY 04100688 MAY 04100688 Contact Us For Availability
22
MAY Y704145 MAY Y704145 Contact Us For Availability
23
MAY 701609 MAY 701609 Contact Us For Availability
23
MAY Y704143 MAY Y704143 Contact Us For Availability
24
MAY Y704144 MAY Y704144 Contact Us For Availability
25
MAY 701712 MAY 701712 Contact Us For Availability
26
MAY 708764 MAY 708764 Contact Us For Availability
27
MAY 701736 MAY 701736 Contact Us For Availability
NI
MAY 702007 MAY 702007 Contact Us For Availability
NI
MAY 702008 MAY 702008 Contact Us For Availability
NI
MAY 704165 MAY 704165 Contact Us For Availability
NI
MAY Y04100827 MAY Y04100827 Contact Us For Availability
NI
MAY Y702124 MAY Y702124 Contact Us For Availability
NI
MAY 04100826 MAY 04100826 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 702746 MAY 702746 Contact Us For Availability
NI
MAY 703738 MAY 703738 Contact Us For Availability
NI
MAY 703752 MAY 703752 Contact Us For Availability
NI
MAY 71001788 MAY 71001788 Contact Us For Availability
NI
MAY 71001789 MAY 71001789 Contact Us For Availability
NI
MAY Y702107 MAY Y702107 Contact Us For Availability
NI
MAY Y702711 MAY Y702711 Contact Us For Availability
NI
MAY 15001520 MAY 15001520 Contact Us For Availability
× ![]()
