Model Maytag CWE4800ACE27 ELECTRIC WALL OVEN – Common Parts & Diagrams

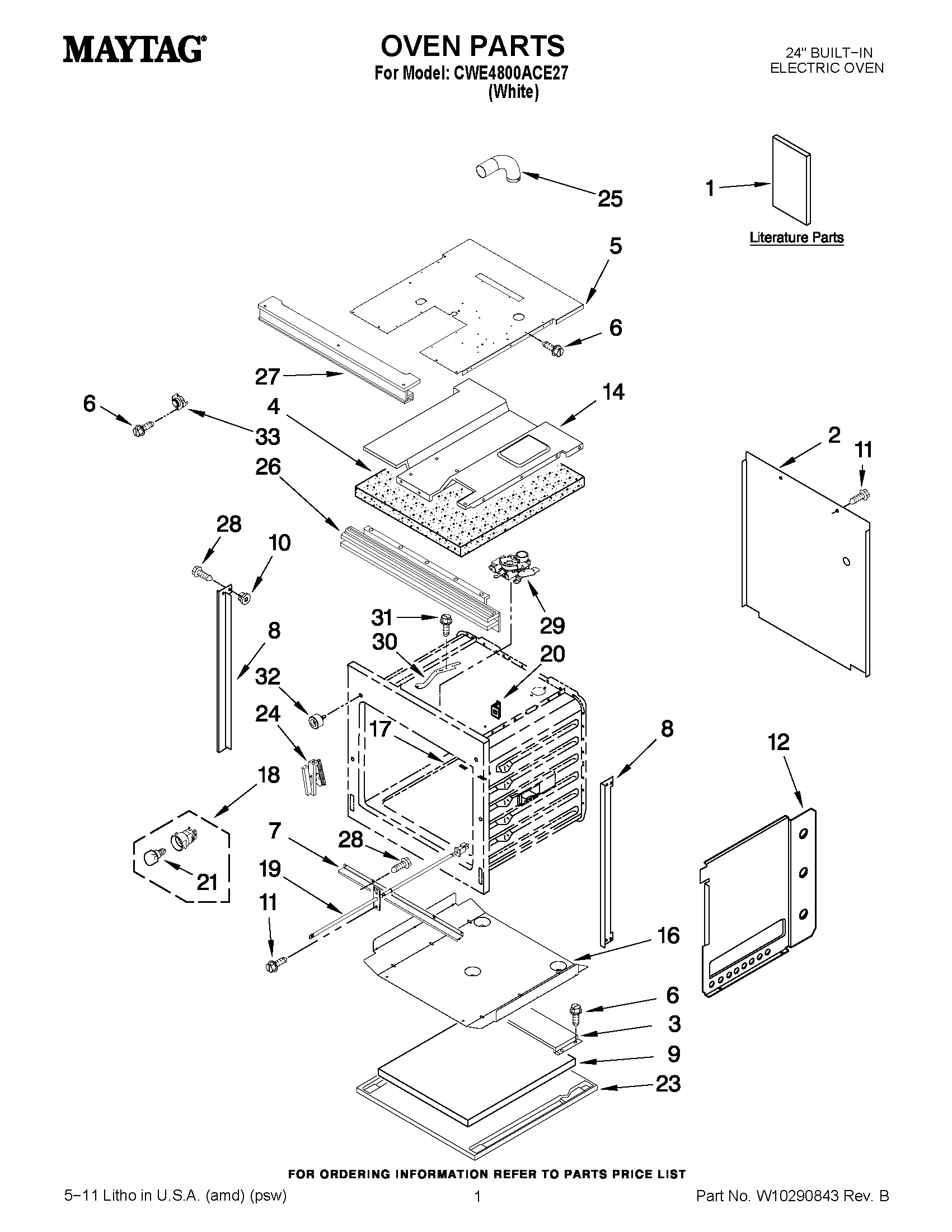

01 - OVEN PARTS

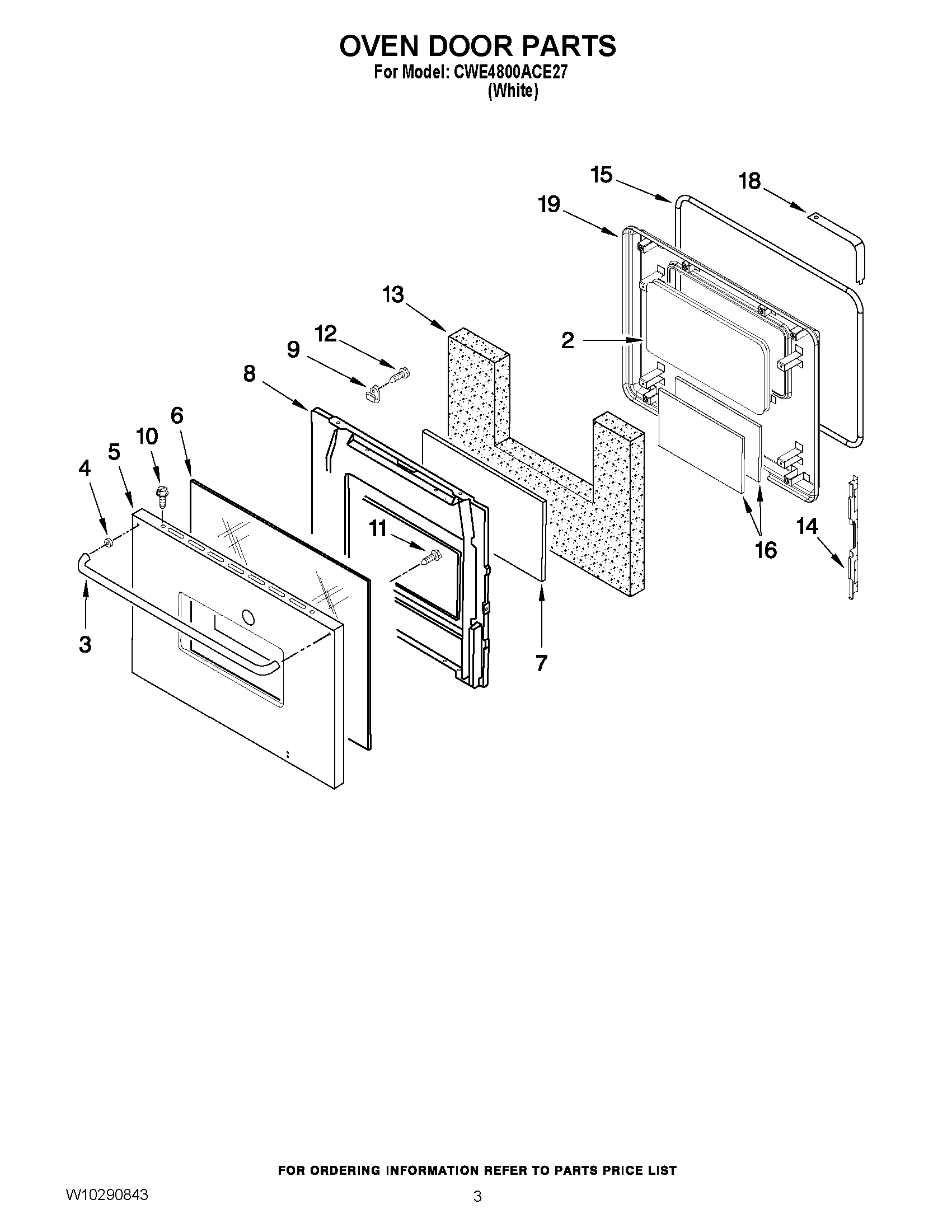

02 - OVEN DOOR PARTS

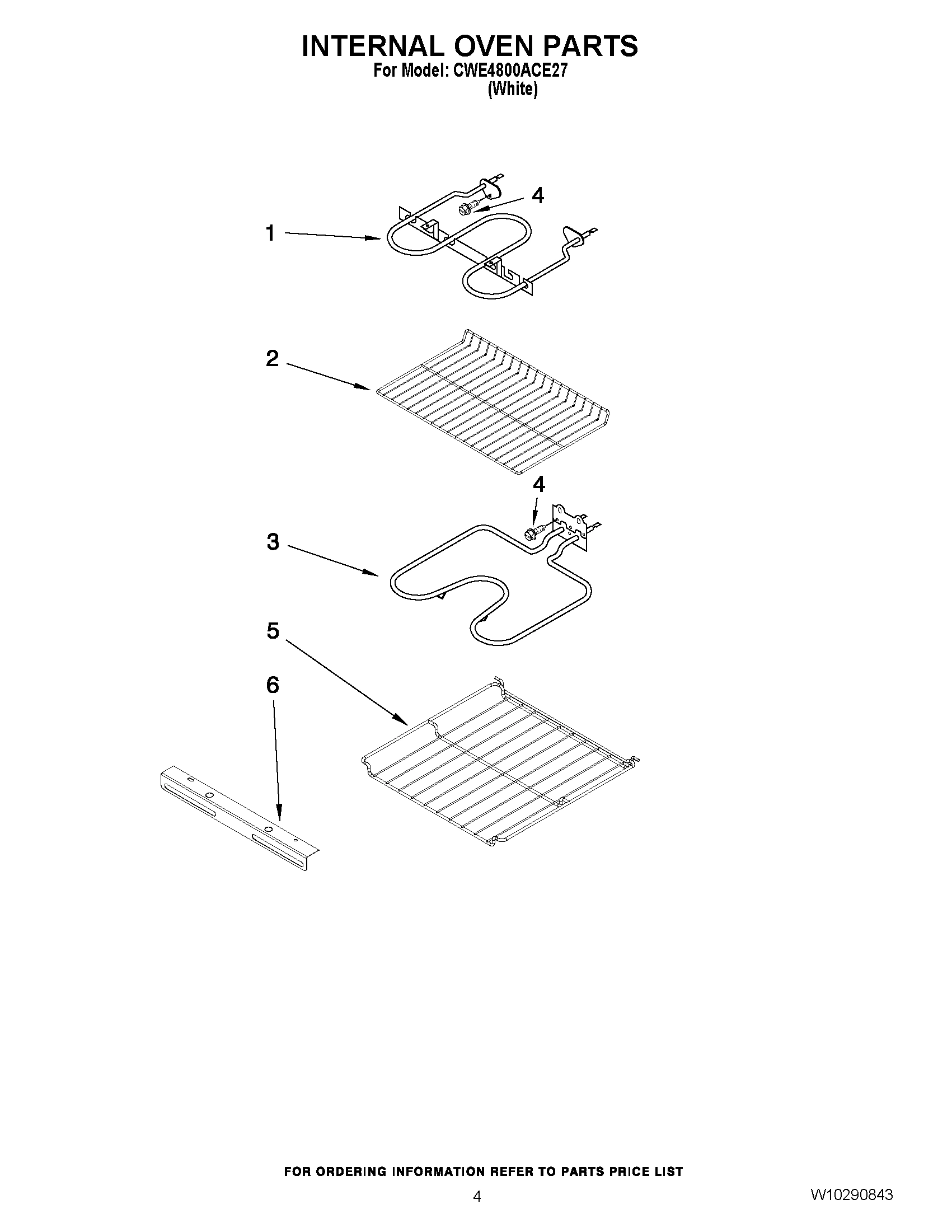

03 - INTERNAL OVEN PARTS

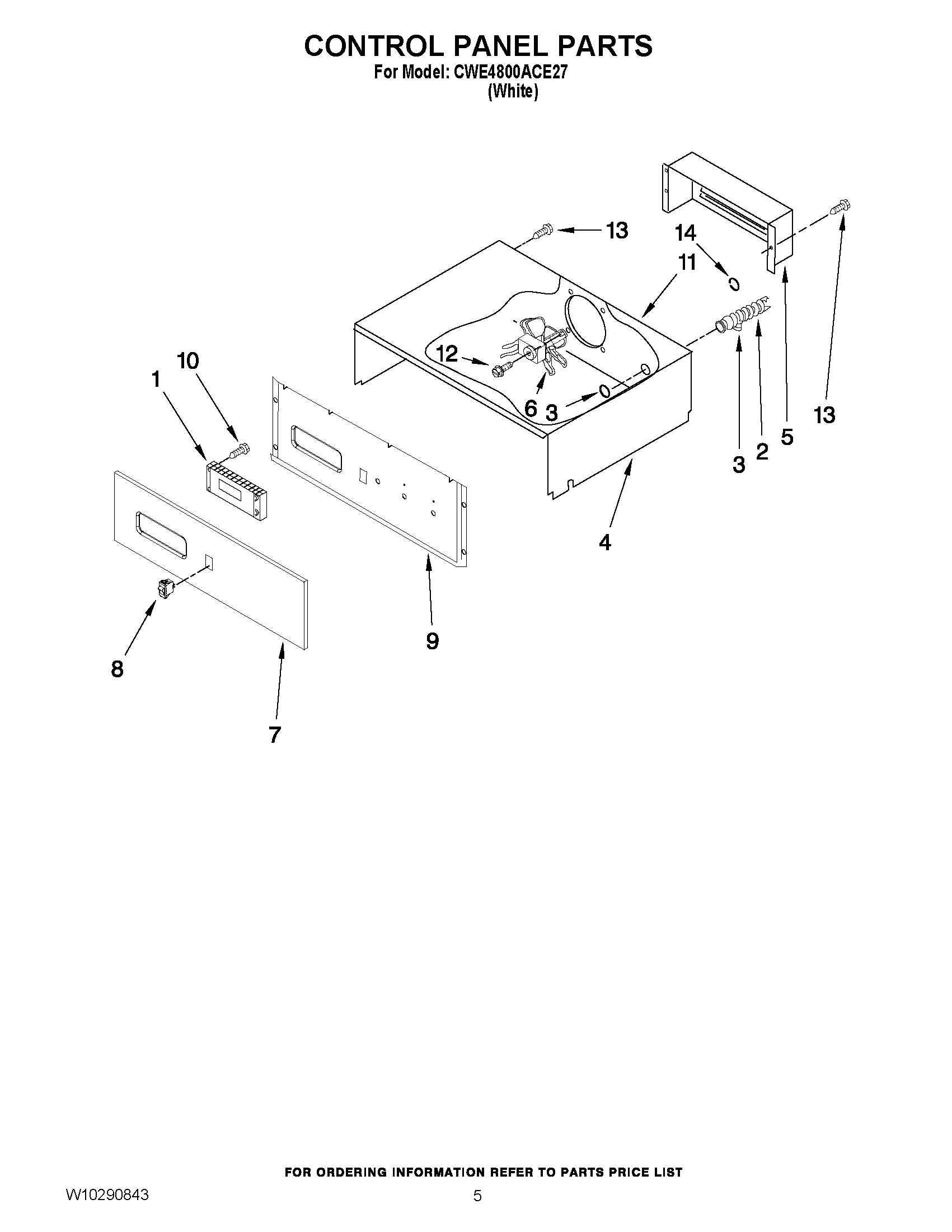

04 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag CWE4800ACE27 ELECTRIC WALL OVEN
1
MAY W10203506 MAY W10203506 Contact Us For Availability
1
MAY W10314683 MAY W10314683 Contact Us For Availability
1
MAY W10201917 MAY W10201917 Contact Us For Availability
2
MAY 4002F121-51 MAY 4002F121-51 Contact Us For Availability
2
SPACER, WINDOW MAY 8002P011-60 Contact Us For Availability
2
MAY 7801P153-60 MAY 7801P153-60 Contact Us For Availability
2
MAY 5700P367-60 MAY 5700P367-60 Contact Us For Availability
3
HANDLE, DOOR MAY 7701P137-60 Contact Us For Availability
3
MAY 3601F005-61 MAY 3601F005-61 Contact Us For Availability
3
MAY W10310269 MAY W10310269 Contact Us For Availability
3
MAY 7417P017-60 MAY 7417P017-60 Contact Us For Availability
4
MAY 7002P153-60 MAY 7002P153-60 Contact Us For Availability
4
SPACER, DOOR HANDLE MAY 8010P128-60 Contact Us For Availability
4
MAY W10214294 MAY W10214294 Contact Us For Availability
5
MAY W10214296 MAY W10214296 Contact Us For Availability
5
PANEL, OVEN DOOR MAY 2401F103-71 Contact Us For Availability
5
MAY W10273818 MAY W10273818 Contact Us For Availability
5
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
6
MAY 7902P600-60 MAY 7902P600-60 Contact Us For Availability
6
SUPPORT, BROIL SUPPORT MAY 3807F749-45 Contact Us For Availability
6
MAY 7427P031-60 MAY 7427P031-60 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
MAY 7754P006-60 MAY 7754P006-60 Contact Us For Availability
7
MAY W10196424 MAY W10196424 Contact Us For Availability
8
MAY 7750P150-60 MAY 7750P150-60 Contact Us For Availability
8
MAY 7750P151-60 MAY 7750P151-60 Contact Us For Availability
8
MAY 2402W218-19 MAY 2402W218-19 Contact Us For Availability
8
SWITCH, ROCKER MAY 7403P842-60 Contact Us For Availability
9
CLIP, GLASS RETAINER MAY 7112P094-60 Contact Us For Availability
9
MAY 7002P163-60 MAY 7002P163-60 Contact Us For Availability
9
MAY W10196355 MAY W10196355 Contact Us For Availability
10
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
10
NUT, SNAP MAY 7103P039-60 Contact Us For Availability
11
SCREW MAY 7101P326-60 Contact Us For Availability
11
MAY 3605F164-51 MAY 3605F164-51 Contact Us For Availability
12
MAY 2618F149-51 MAY 2618F149-51 Contact Us For Availability
12
MAY 2618F150-51 MAY 2618F150-51 Contact Us For Availability
12
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
12
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
INSULATION, DOOR PAD MAY 7002P021-60 Contact Us For Availability
14
MAY 3804F118-51 MAY 3804F118-51 Contact Us For Availability
14
RETAINER, GLASS DOOR MAY 3804F051-80 Contact Us For Availability
14
MAY 8008P004-60 MAY 8008P004-60 Contact Us For Availability
15
GASKET, OVEN DOOR MAY 7201P053-60 Contact Us For Availability
16
MAY 7902P349-60 MAY 7902P349-60 Contact Us For Availability
16
RETAINER, BOTTOM MAY 3804F104-51 Contact Us For Availability
17
MAY 2205F003-19 MAY 2205F003-19 Contact Us For Availability
18
RECEPTACLE, LAMP MAY 7407P181-60 Contact Us For Availability
18
RETAINER, DOOR GASKET MAY 3804F021-45 Contact Us For Availability
19
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
19
PAD, OVEN DOOR MAY 2410W042-19 Contact Us For Availability
20
MAY 7112P020-60 MAY 7112P020-60 Contact Us For Availability
23
MAY 4003F049-80 MAY 4003F049-80 Contact Us For Availability
24
MAY 7106P063-60 MAY 7106P063-60 Contact Us For Availability
25
MAY 8026P070-60 MAY 8026P070-60 Contact Us For Availability
26
MAY 7756P167-60 MAY 7756P167-60 Contact Us For Availability
27
MAY 7756P116-60 MAY 7756P116-60 Contact Us For Availability
29
MAY 8002P072-60 MAY 8002P072-60 Contact Us For Availability
30
MAY 8009P054-60 MAY 8009P054-60 Contact Us For Availability
32
MAY W10105790 MAY W10105790 Contact Us For Availability
NI
INSULATION, WINDOW MAY 7002P050-60 Contact Us For Availability
NI
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
NI
MAY 7706P128-60 MAY 7706P128-60 Contact Us For Availability
NI
MAY 31552 MAY 31552 Contact Us For Availability
NI
MAY 31605 MAY 31605 Contact Us For Availability
NI
CLEANER, APPLIANCE MAY 31682 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (PRIMER, GRAY) MAY 350938 Contact Us For Availability
NI
STONE, BRICK BAKING MAY 4378577 Contact Us For Availability
NI
MAY 4396096RB MAY 4396096RB Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAN, PORCELAIN BROILER MAY W10123240 Contact Us For Availability
NI
MAY W10196376 MAY W10196376 Contact Us For Availability
× ![]()
