Model Whirlpool CW22B5M WASHER – Common Parts & Diagrams

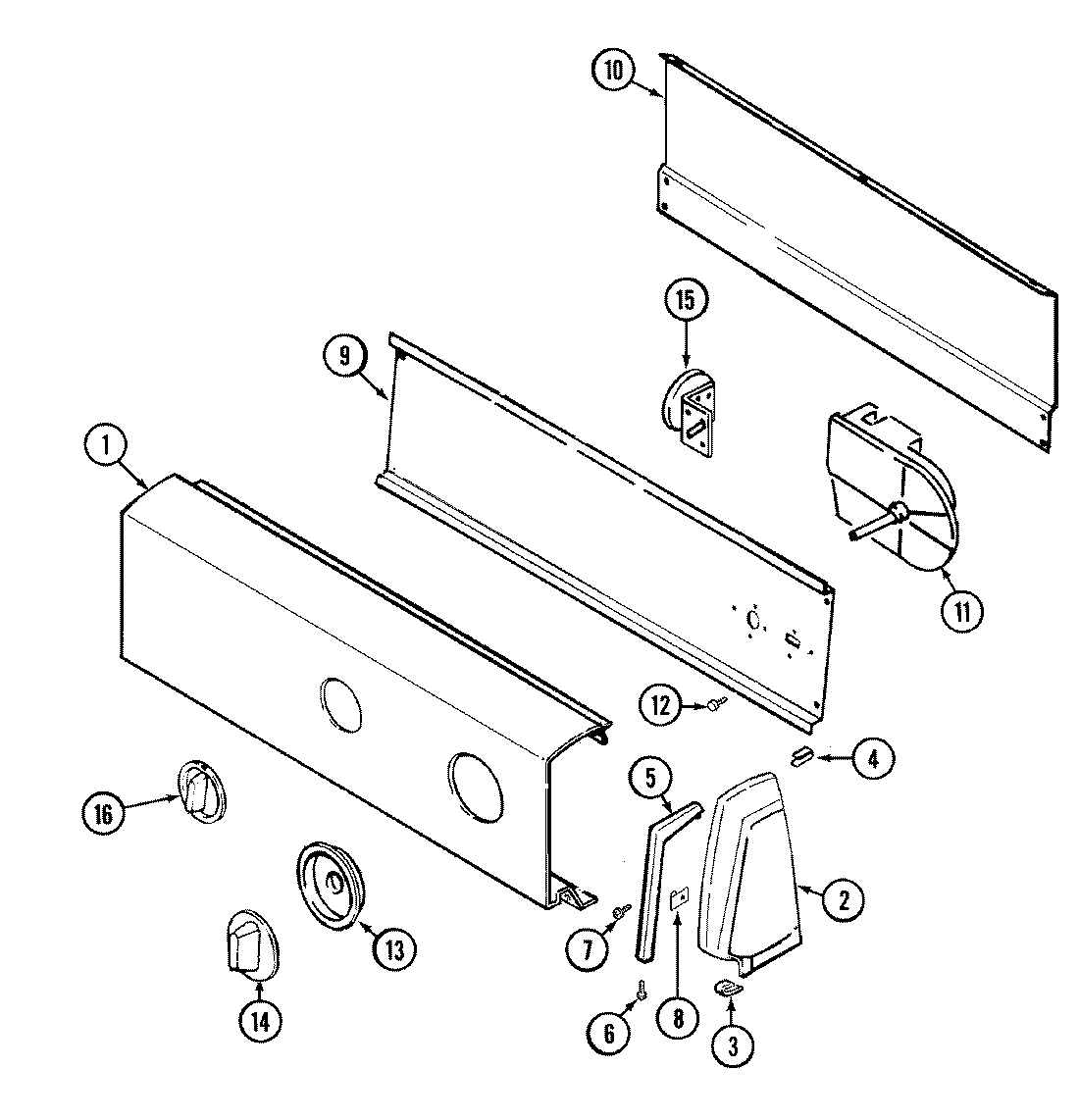

02 - CONTROL PANEL

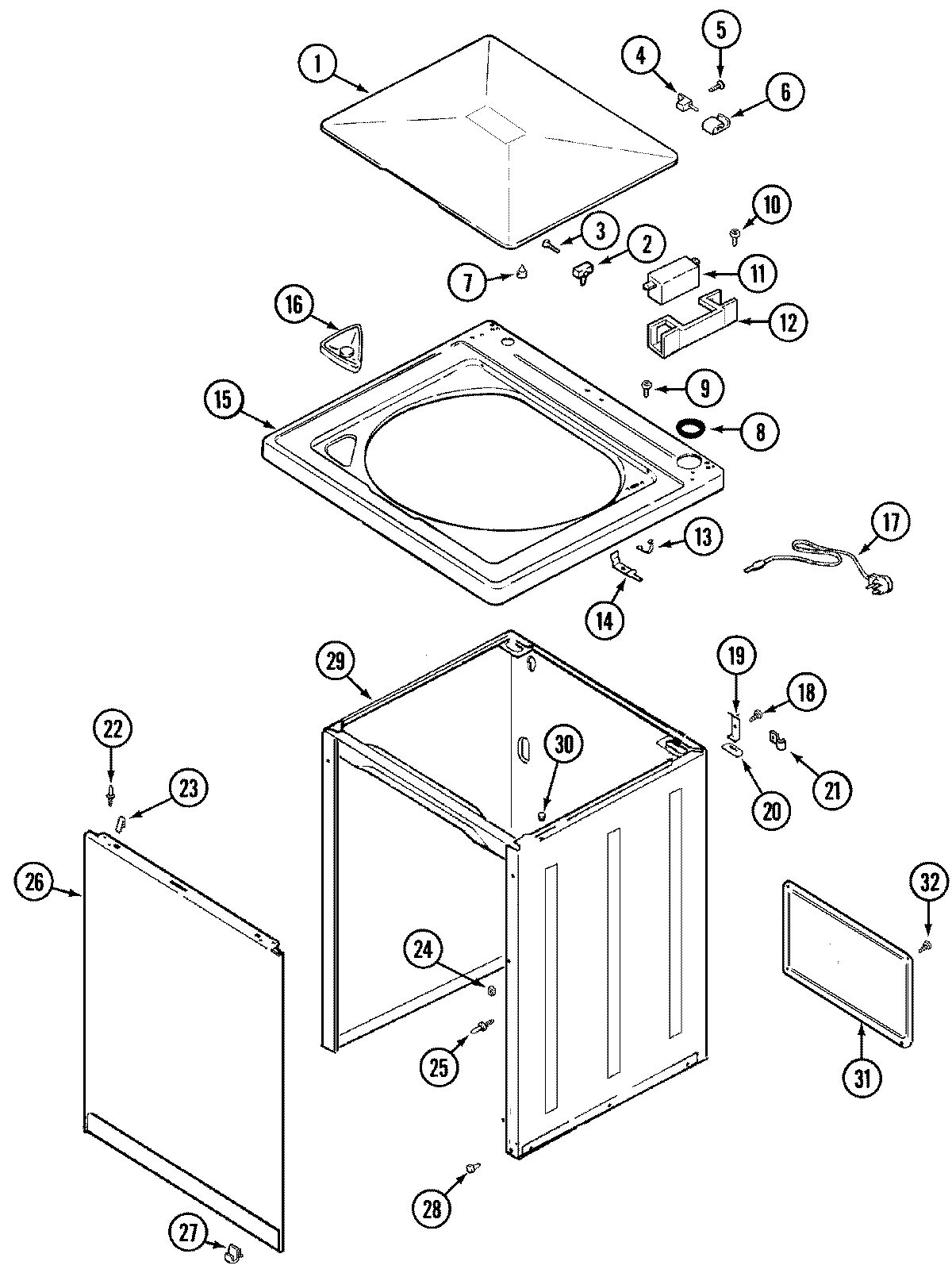

04 - TOP
06 - TRANSMISSION, DUAL DRIVE
03 - MOTOR & PUMP
05 - TRANSMISSION
07 - TUB
01 - BASE
08 - WIRING INFORMATION
Common parts from model Whirlpool CW22B5M WASHER
1
LID (ALM) WPL 35202624 Contact Us For Availability
1
``O`` RING WPL 257941 Contact Us For Availability
1
SCREW WPL 257419 Contact Us For Availability
1
AGITATOR WPL 353580 Contact Us For Availability
2
NYLITE WASHER WPL 257436 Contact Us For Availability
2
ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability
2
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
2
BEARING, CENTERPOST WPL 21001066 Contact Us For Availability
2
SCREW, SHOULDER WPL 21001063 Contact Us For Availability
2
MOTOR & PULLEY/PLATE ASSY. WPL 21001170 Contact Us For Availability
2
MOTOR/PLATE ASSEMBLY (COMPLETE WPL 21001400 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
SCREW WPL 257438 Contact Us For Availability
3
CENTERPOST WPL 352792 Contact Us For Availability
3
GASKET WPL 336032 Contact Us For Availability
3
SCREW WPL 257953 Contact Us For Availability
3
SLIDE, FOOT WPL 21001109 Contact Us For Availability
4
SCREW WPL 257435 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
PIN, HINGE WPL 352045 Contact Us For Availability
4
BEARING, AGITATOR WPL 336790 Contact Us For Availability
4
CENTERPOST ASSY. WPL 352983 Contact Us For Availability
4
BASE, PUMP WPL 352058 Contact Us For Availability
4
SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability
4
SCREW PURCHASE WPL 257418 Contact Us For Availability
5
TRIM, ENDCAP (RT)(ALM) WPL 31001056 Contact Us For Availability
5
TRIM, ENDCAP (LT)(ALM) WPL 31001057 Contact Us For Availability
5
SEAL, CENTERPOST BOTTOM WPL 352906 Contact Us For Availability
5
IMPELLER WPL 352057 Contact Us For Availability
5
GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
HINGE, LID WPL 352044 Contact Us For Availability
6
NUT, SPIN TUBE WPL 352791 Contact Us For Availability
6
HOUSING, PUMP WPL 352056 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
7
BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability
7
``O`` RING, BASKET DRIVE HUB WPL 257938 Contact Us For Availability
7
CLIP, WIRING HARNESS WPL 257430 Contact Us For Availability
7
VALVE, WATER WPL 352374N Contact Us For Availability
7
SCREW, SHOULDER WPL 257967 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
8
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
8
BUSHING, INSULATOR WPL 352063 Contact Us For Availability
8
HUB, BASKET DRIVE WPL 353647 Contact Us For Availability
8
SEAL, TUB TOP WPL 352328 Contact Us For Availability
8
WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability
9
SHIELD, CONTROL WPL 31001128 Contact Us For Availability
9
PAD, CONTROL PANEL SUPPORT WPL 31001146 Contact Us For Availability
9
SCREW WPL 257662 Contact Us For Availability
9
TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability
9
HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability
9
CAP, AGITATOR WPL 352733 Contact Us For Availability
9
PLATE, MOTOR WPL 21001111 Contact Us For Availability
10
BEARING & SEAL HOUSING ASSY. WPL 12001561 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
RETAINING RING WPL 257853 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
HOUSING, BEARING & SEAL WPL 352716 Contact Us For Availability
10
CLAMP WPL 257867 Contact Us For Availability
10
BASKET, SPIN WPL 353687 Contact Us For Availability
10
ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability
11
SEAL, TUB/HOUSING WPL 352978 No Longer Available
11
TIMER WPL 21001340 Contact Us For Availability
11
TIMER WPL 353839 Contact Us For Availability
11
LID SWITCH ASSY.-W/LEADS WPL 21001137 Contact Us For Availability
11
SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability
11
PAD, LID SWITCH WPL 352904 Contact Us For Availability
11
BEARING, SPIN WPL 352205 Contact Us For Availability
11
BEARING & SEAL HOUSING ASSY. WPL 352972 Contact Us For Availability
11
PAD, FOAM WPL 350706 Contact Us For Availability
11
SPACER WPL 257831 Contact Us For Availability
12
BEARING ASSEMBLY (LWR) WPL 12001562 Contact Us For Availability
12
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
12
RING, RETAINING (AG. SHAFT) WPL 257949 Contact Us For Availability
12
TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability
13
SKIRT & RING ASSY. WPL 21001219 Contact Us For Availability
13
CLIP WPL 257878 Contact Us For Availability
13
HOSE, DRAIN (ONE MOLDED RB) WPL 353539 Contact Us For Availability
13
SHIELD, TUB TOP WPL 352262 Contact Us For Availability
13
TOP, TUB WPL 353578 Contact Us For Availability
13
SET SCREW WPL 257117 Contact Us For Availability
14
LEVER, LID SWITCH WPL 21001134 No Longer Available
14
KNOB, TIMER WPL 21001220 Contact Us For Availability
14
HOSE, 5` INLET WPL 337046 Contact Us For Availability
14
HOSE, INLET WPL 350873 Contact Us For Availability
14
SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability
15
SCREW WPL 253092 Contact Us For Availability
15
SWITCH, WATER LEVEL WPL 353691 Contact Us For Availability
15
TOP, CABINET (ALM) WPL 35273924 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
16
KNOB, SELECTOR WPL 21001221 Contact Us For Availability
16
DISPENSER, BLEACH WPL 21001167 Contact Us For Availability
16
FLUME, WATER INLET WPL 352051 Contact Us For Availability
16
COVER, REINFORCEMENT WPL 352981 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
17
CORD, POWER WPL 350680 Contact Us For Availability
17
SEAL, SEAT & ``O`` RING WPL 350707 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
18
SCREW WPL 257893 Contact Us For Availability
18
PLUG, OIL FILL WPL 352621 Contact Us For Availability
18
TOOL, 6 POINT SPRING WPL 21001138 Contact Us For Availability
18
SPRING, SUSPENSION WPL 21001165 Contact Us For Availability
19
HINGE, CABINET TOP WPL 352846 Contact Us For Availability
19
CLAMP, HOSE WPL 256068 Contact Us For Availability
19
SCREW WPL 257758 Contact Us For Availability
20
PAD, HINGE WPL 354128 Contact Us For Availability
20
HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability
20
COVER, TRANSMISSION WPL 352620 Contact Us For Availability
20
TRANSMISSION COVER ASSY. WPL 352971 Contact Us For Availability
20
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
21
CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability
21
COUNTERWEIGHT WPL 353706 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
22
WASHER WPL 257048 Contact Us For Availability
22
GASKET, TRANSMISSION HOUSING WPL 350542 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
23
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
23
STRAINER & WASHER KIT WPL 334264N Contact Us For Availability
23
GASKET KIT WPL 334293N Contact Us For Availability
23
FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability
24
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
24
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
24
CLAMP WPL 336099 Contact Us For Availability
24
DRIVE TUBE ASSY. WPL 353702 Contact Us For Availability
25
PIN, LOCATOR WPL 530643 Contact Us For Availability
25
RESTRICTOR, FLOW WPL 352344 Contact Us For Availability
25
PUMP ASSY (COMPLETE) WPL 353834 Contact Us For Availability
25
LINKAGE ASSY. WPL 353804 Contact Us For Availability
25
BASE WPL 21001169 Contact Us For Availability
26
DAMPER, FRONT PANEL WPL 21001171 Contact Us For Availability
26
PANEL, FRONT (ALM) WPL 35208424 Contact Us For Availability
26
RETAINER WPL 339537 Contact Us For Availability
26
PLATE, REINFORCEMENT WPL 352025 Contact Us For Availability
26
SPEEDNUT WPL 257845 Contact Us For Availability
27
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
27
WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability
27
WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability
27
RING, RETAINING (CLUTCH ASSY.) WPL 257847 Contact Us For Availability
27
HEX NUT WPL 257915 Contact Us For Availability
28
BUMPER, CABINET WPL 354129 Contact Us For Availability
28
RING, RETAINING WPL 257854 Contact Us For Availability
28
WASHER, FLAT WPL 257415 Contact Us For Availability
28
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
28
FOOT & PAD ASSY WPL 353507 Contact Us For Availability
29
CABINET ASSY. (ALM) WPL 35210624 Contact Us For Availability
29
STOP, ANTIBACKUP CAM WPL 353384 Contact Us For Availability
29
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
30
BUMPER, CABINET WPL 332653 Contact Us For Availability
30
PINION, DRIVE WPL 352001 Contact Us For Availability
31
SHIELD,REAR(NLA,ORDER CAB KIT) WPL 352108 Contact Us For Availability
31
TRANSMISSION ASSY., DUAL DRIVE WPL 21001394 Contact Us For Availability
31
SPRING, CLUTCH WPL 353608 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
32
SCREW WPL 257732 Contact Us For Availability
32
DRIVE SHAFT & HUB ASSY. WPL 352692 Contact Us For Availability
32
SWITCH, MOTOR WPL 339765 Contact Us For Availability
33
WASHER, STEEL WPL 257274 Contact Us For Availability
33
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
34
SNUBBER WPL 21001161 Contact Us For Availability
34
WASHER, NYLON WPL 353825 Contact Us For Availability
35
WASHER, STEEL W/TABS WPL 352070 Contact Us For Availability
36
RING, RETAINING WPL 257933 Contact Us For Availability
37
GEAR, CLUSTER WPL 352527 Contact Us For Availability
38
GEAR, CRANK WPL 21001067 Contact Us For Availability
39
HOUSING, TRANSMISSION WPL 352812 Contact Us For Availability
40
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
41
BEARING ASSY. (LOWER) WPL 352730 Contact Us For Availability
41
TRANSMISSION HSG ASSY W/LWR BR WPL 352973 Contact Us For Availability
42
SUPPORT, TUB WPL 21001162 Contact Us For Availability
43
BRACE, TUB WPL 21001164 Contact Us For Availability
45
HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability
46
RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability
47
SPRING, BRAKE WPL 352112 Contact Us For Availability
48
SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability
49
SCREW, SUSP HSG WPL 257895 Contact Us For Availability
50
WPL 352948 WPL 352948 Contact Us For Availability
52
WPL 352018 WPL 352018 Contact Us For Availability
54
WPL 353829 WPL 353829 Contact Us For Availability
55
WPL LA2007 WPL LA2007 Contact Us For Availability
56
WPL 352007 WPL 352007 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 21001033 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 21001203 Contact Us For Availability
NI
WPL 21001168 WPL 21001168 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001240 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001894 Contact Us For Availability
× ![]()
