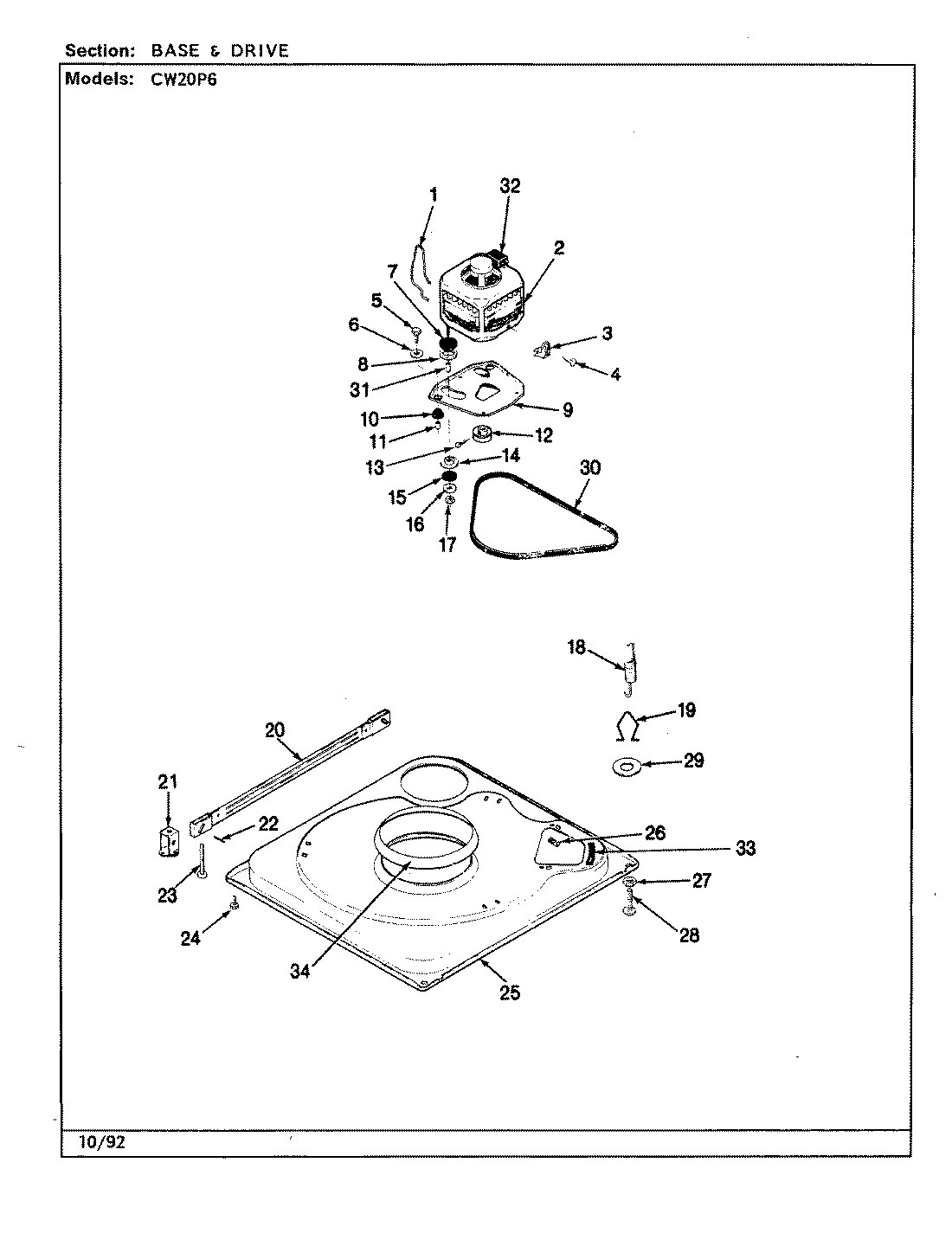

Model Whirlpool CW20P6 WASHER – Common Parts & Diagrams

1
SPRING, MOTOR PIVOT
SPRING, MOTOR PIVOT WPL 350235 Contact Us For Availability
View on Model
2
MOTOR KIT
MOTOR KIT WPL LA2002 Contact Us For Availability
View on Model
4
SCREW PURCHASE
SCREW PURCHASE WPL 257418 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 257833 Contact Us For Availability
View on Model
6
WASHER
WASHER WPL 257834 Contact Us For Availability
View on Model
7
ISOLATOR, MOTOR
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
View on Model
8
WASHER
WASHER WPL 339944 Contact Us For Availability
View on Model
9
PLATE, MOTOR
PLATE, MOTOR WPL 352810 Contact Us For Availability
View on Model
11
SPACER
SPACER WPL 257831 Contact Us For Availability
View on Model
12
PULLEY, MOTOR (60HZ)
PULLEY, MOTOR (60HZ) WPL 352124 Contact Us For Availability
View on Model
13
SET SCREW
SET SCREW WPL 257117 Contact Us For Availability
View on Model
14
MOTOR SLIDE
MOTOR SLIDE WPL 339943 Contact Us For Availability
View on Model
15
WASHER, MOTOR ISOLATOR
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
View on Model
16
WASHER, FLAT
WASHER, FLAT WPL 257047 Contact Us For Availability
View on Model
17
NUT, MOTOR PLATE ASY TO MOTOR
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
View on Model
18
SPRING, SUSPENSION
SPRING, SUSPENSION WPL 352681 Contact Us For Availability
View on Model
18
SPRING, SUSPENSION
SPRING, SUSPENSION WPL 353658 Contact Us For Availability
View on Model
19
HOOK, SUSPENSION SPRING
HOOK, SUSPENSION SPRING WPL 352976 Contact Us For Availability
View on Model
20
BAR, STABILIZER (WITH GUIDE)
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
View on Model
21
BRACKET, STABILIZER
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
View on Model
22
PIN, STABILIZER
PIN, STABILIZER WPL 352052 Contact Us For Availability
View on Model
23
FOOT, SELF STABILIZER
FOOT, SELF STABILIZER WPL 352050 Contact Us For Availability
View on Model
24
SCREW, No.10 TORQ LIMITING
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
View on Model
24
PAD, FOOT
PAD, FOOT WPL 352039 Contact Us For Availability
View on Model
25
BASE
BASE WPL 352984 Contact Us For Availability
View on Model
26
SPEEDNUT
SPEEDNUT WPL 257838 Contact Us For Availability
View on Model
27
HEX NUT
HEX NUT WPL 257915 Contact Us For Availability
View on Model
28
FOOT, FRONT
FOOT, FRONT WPL 350772 Contact Us For Availability
View on Model
28
PAD, FRONT FOOT
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
View on Model
29
WASHER, SUSPENSION HOOK
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
View on Model
30
BELT, DRIVE PULLEY
BELT, DRIVE PULLEY WPL 352320 Contact Us For Availability
View on Model
31
SPACER
SPACER WPL 257830 Contact Us For Availability
View on Model
32
SWITCH, MOTOR
SWITCH, MOTOR WPL 339765 Contact Us For Availability
View on Model
33
PAD, MOTOR PLATE
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
View on Model
34
SNUBBER
SNUBBER WPL 352357 Contact Us For Availability
View on Model
