Model Whirlpool CVG4380P GAS COOK-TOP – Common Parts & Diagrams

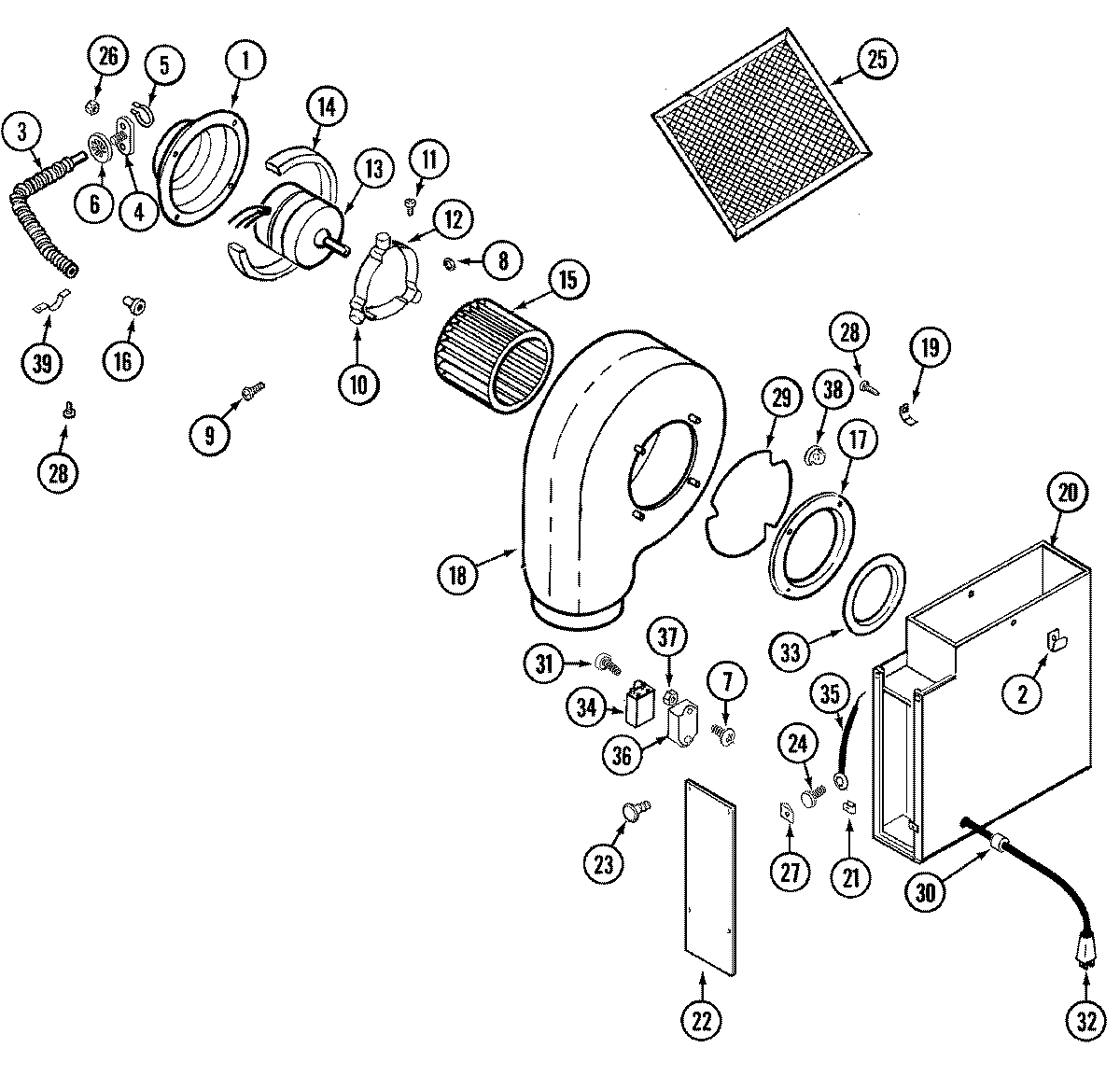

01 - BLOWER ASSEMBLY-PLENUM (CVG4380P)

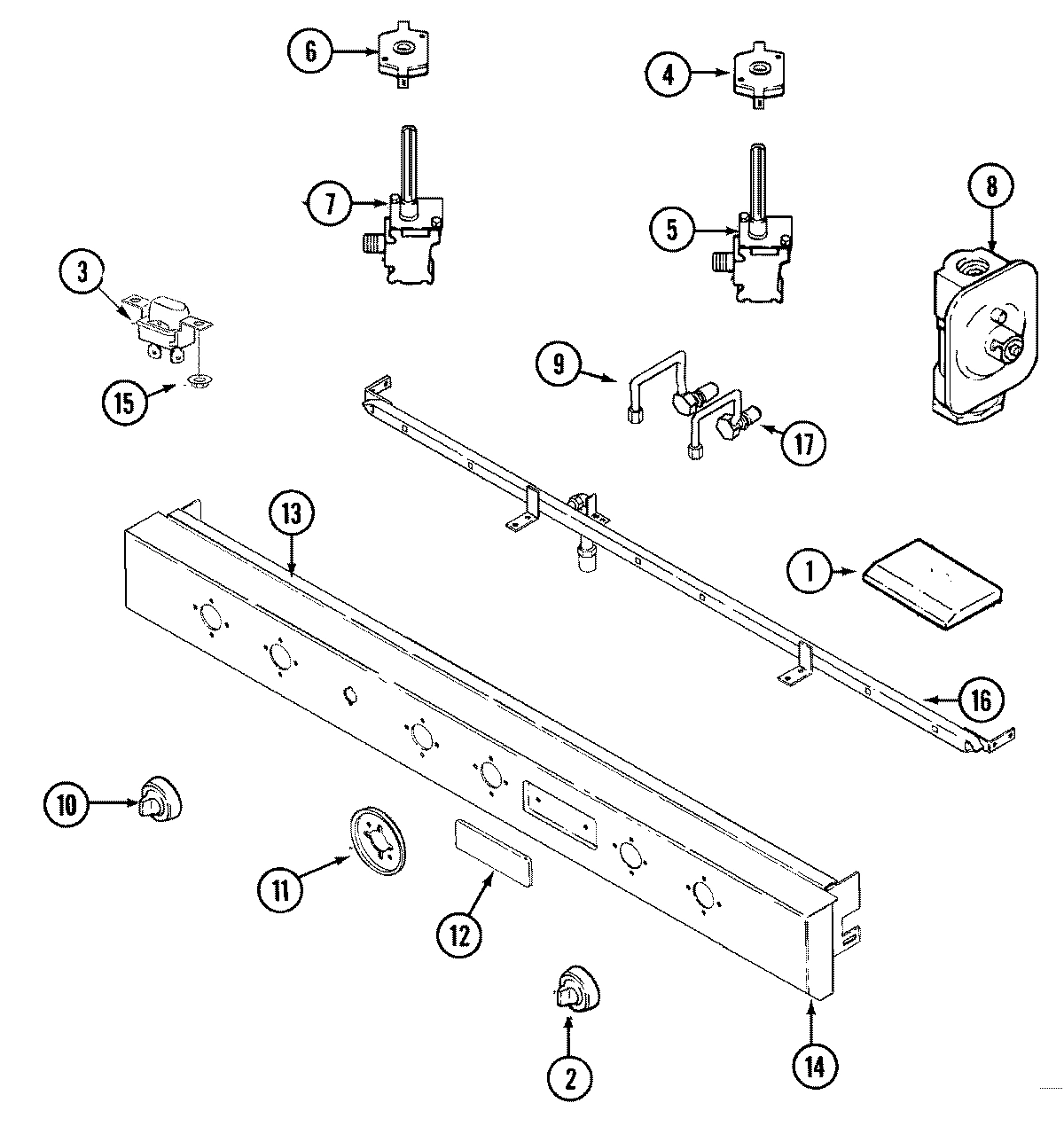

03 - CONTROL PANEL (CVG4380P)

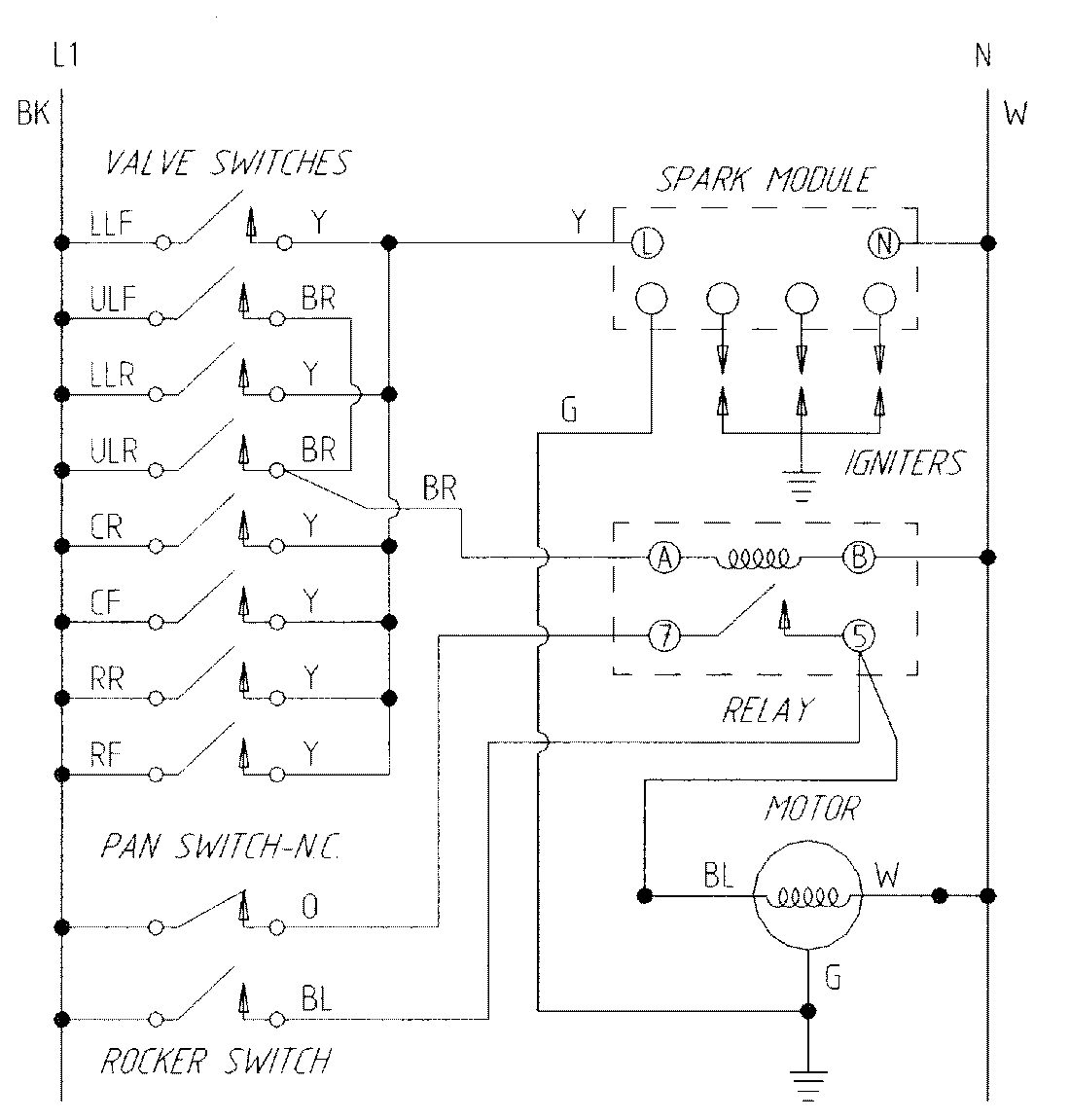

05 - WIRING INFORMATION (CVG4380P)

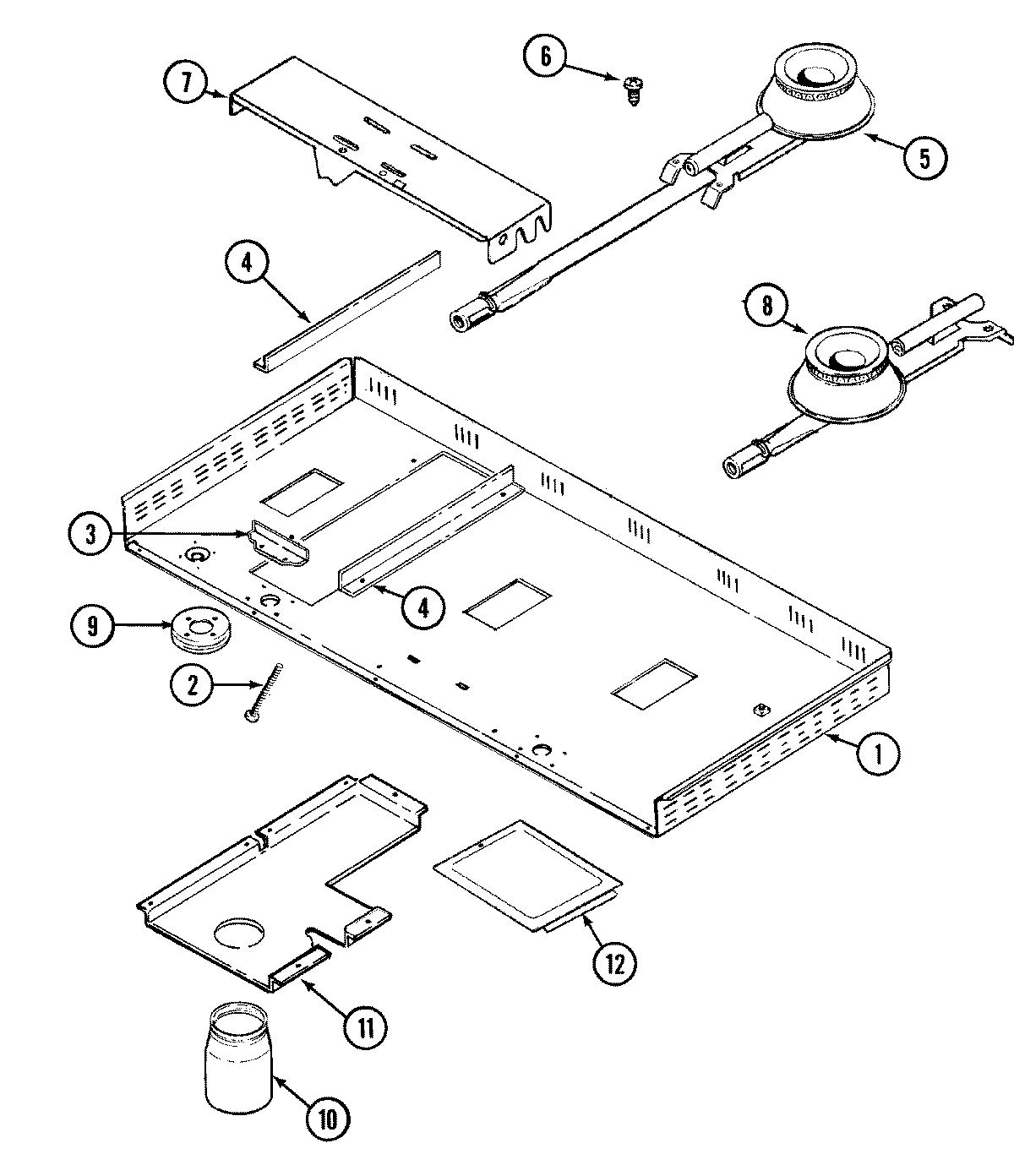

02 - BODY (CVG4380P)

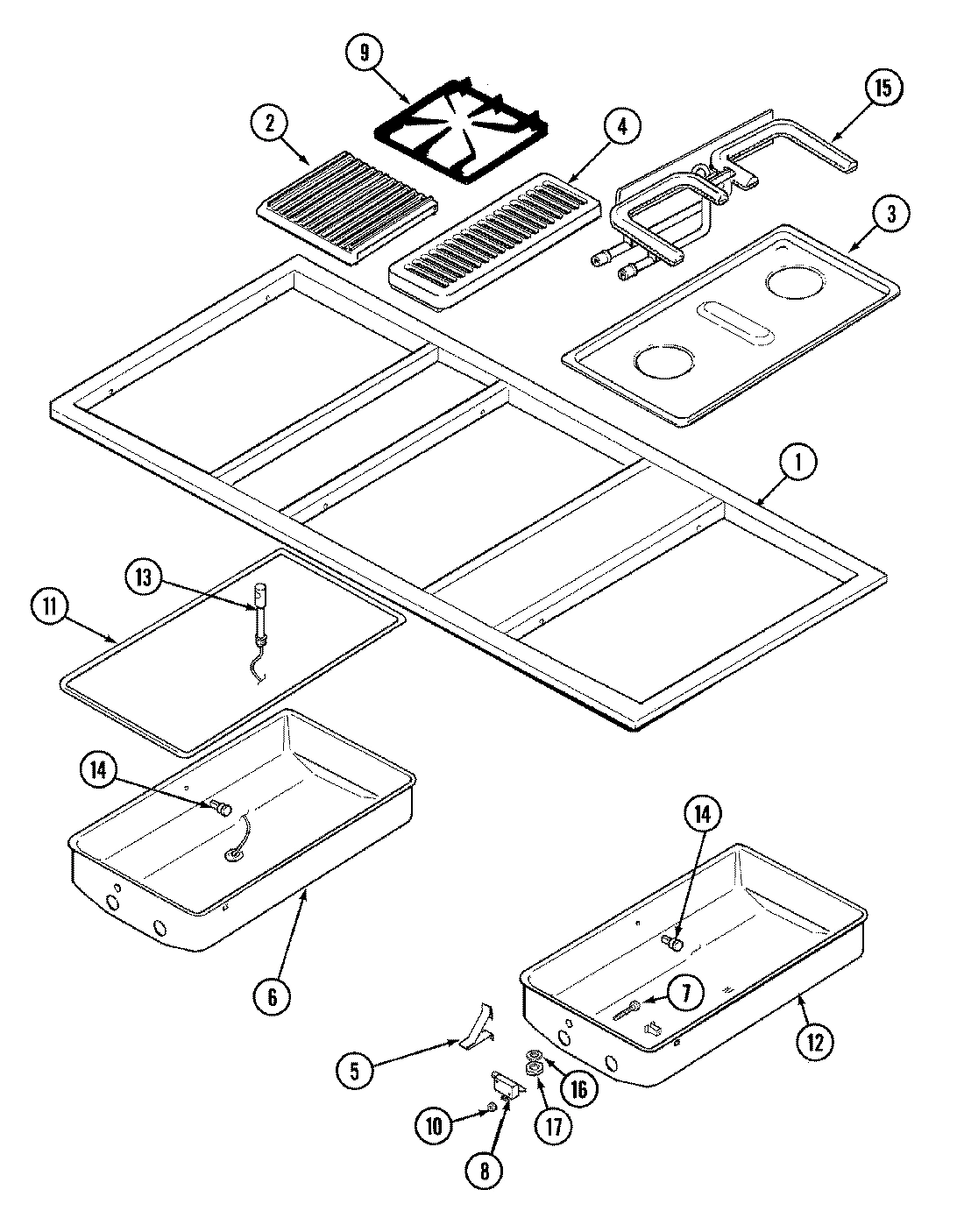

04 - TOP ASSEMBLY (CVG4380P)
Common parts from model Whirlpool CVG4380P GAS COOK-TOP
1
ESCUTCHEON WPL 71001052 Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 71001050 Contact Us For Availability
1
TOP, MAIN WPL 71001041 Contact Us For Availability
2
GRATE, GRILL WPL 71003267 Contact Us For Availability
2
GRATE, GRILL WPL Y04100054 Contact Us For Availability
3
SWITCH, ROTARY WPL 71001047 Contact Us For Availability
3
BRACKET, FRONT WPL 04100806 Contact Us For Availability
4
BRACKET, SIDE WPL 04100805 Contact Us For Availability
4
GRILL, AIR (BLK) WPL Y04100630 Contact Us For Availability
5
CLIP, STRESS WPL Y04100791 Contact Us For Availability
6
KIT GRILL PAN LH WPL 12200022 Contact Us For Availability
7
VALVE, GAS (LT) WPL Y04100187 Contact Us For Availability
7
SCREW WPL 702380 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
WASHER (TEFLON) WPL 715617 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
9
TUBE, BURNER (LR) WPL 71001045 Contact Us For Availability
9
TUBE, BURNER (LF) WPL 71001046 Contact Us For Availability
9
LID, JAR WPL Y706006 Contact Us For Availability
10
KNOB, FAN WPL 71001042 Contact Us For Availability
10
NUT WPL Y704522 Contact Us For Availability
10
INSULATOR, SWITCH WPL Y704534 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
11
BEZEL, KNOB (SS) WPL 71001056 Contact Us For Availability
11
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
11
SEAL, PAN WPL Y704979 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
NAMEPLATE (STL) WPL Y04100737 Contact Us For Availability
12
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
12
PLATE, COVER WPL 71001055 Contact Us For Availability
12
PAN, GRILL WPL Y04100517 Contact Us For Availability
13
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
13
SUPPORT, CONTROL PANEL WPL 71001048 Contact Us For Availability
13
IGNITER WPL 74004808 Contact Us For Availability
13
IGNITER WPL 74004809 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
14
PANEL, CONTROL (UPR) WPL 71001038 Contact Us For Availability
14
PANEL, CONTROL (LWR) WPL 71001039 Contact Us For Availability
16
BUSHING WPL 712311 Contact Us For Availability
16
MANIFOLD WPL 71001040 Contact Us For Availability
16
LOCKWASHER WPL 704568 Contact Us For Availability
17
RING, INLET WPL Y704758 Contact Us For Availability
17
TUBE, BURNER (CR, RR) WPL 71001043 Contact Us For Availability
17
TUBE, BURNER (CF, RF) WPL 71001044 Contact Us For Availability
17
SCREW WPL Y705019 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WELD ASSY. WPL 04100812 Contact Us For Availability
21
CLIP WPL 705463 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
27
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
30
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
32
CORD, POWER WPL Y04100253 Contact Us For Availability
33
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
34
RELAY WPL Y704541 Contact Us For Availability
35
WIRE, GROUND WPL 04100248 Contact Us For Availability
38
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
39
TINNERMAN WPL 712310 Contact Us For Availability
NI
WIRE HARNESS, GAS (RT) WPL 71001049 Contact Us For Availability
NI
WIRE HARNESS, GAS (LT) WPL 71001051 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002030 Contact Us For Availability
NI
LP CONVERSION KIT WPL Y04100687 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001434 Contact Us For Availability
× ![]()
