Model Whirlpool CVG2420B GAS COOK-TOP – Common Parts & Diagrams
01 - BLOWER PLENUM

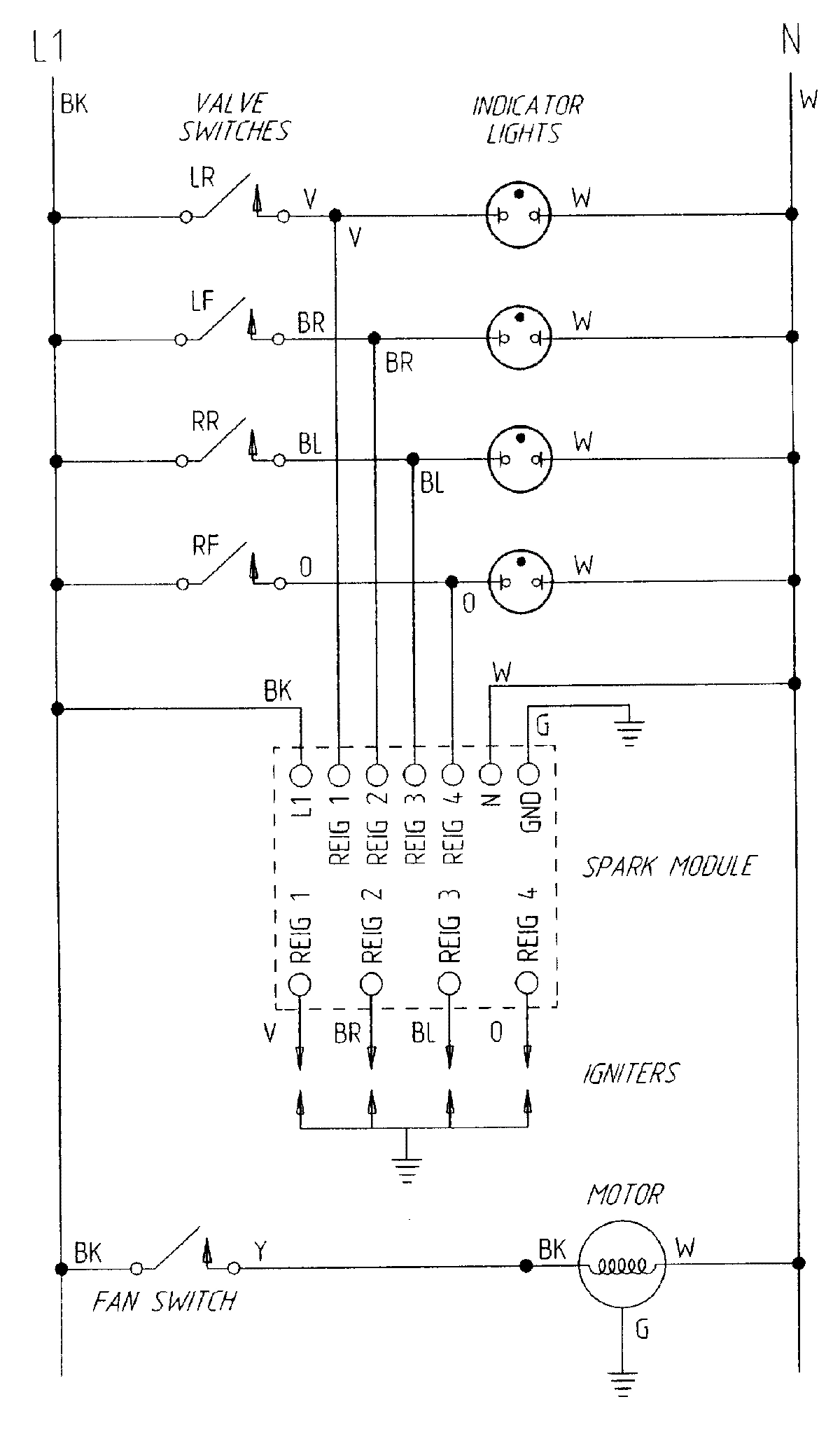

04 - WIRING INFORMATION
02 - BODY

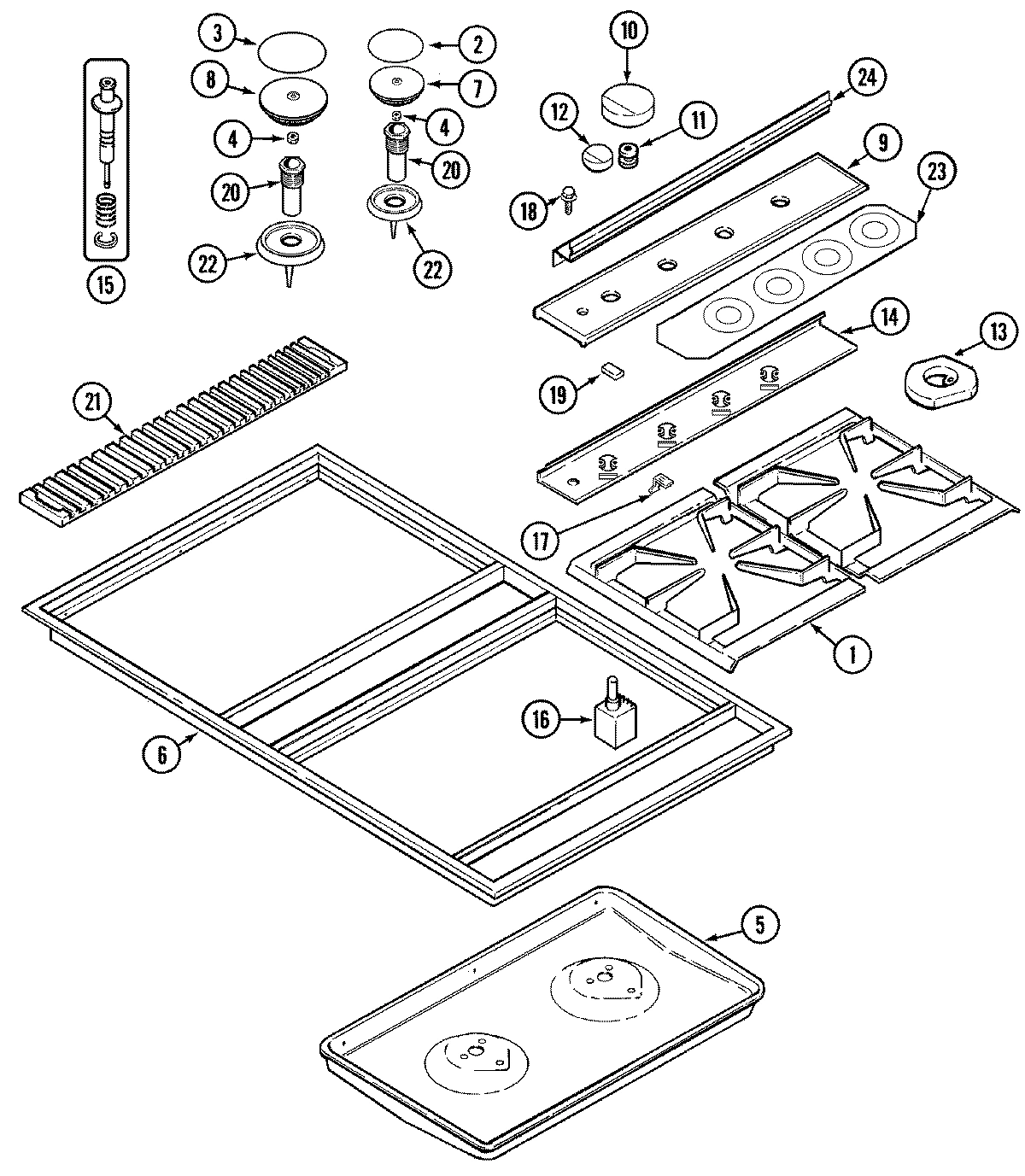

03 - TOP ASSEMBLY
Common parts from model Whirlpool CVG2420B GAS COOK-TOP
1
BOX, BURNER WPL 71001161 Contact Us For Availability
1
GRATE (BLK) WPL 71001004 Contact Us For Availability
2
BRACKET WPL 71001163 Contact Us For Availability
2
CAP, BURNER (SMR-BLK) WPL 71001072 Contact Us For Availability
3
MODULE, SPARK----NA WPL Y705823 Contact Us For Availability
3
CAP (LG-BLK) WPL 71001074 Contact Us For Availability
4
BRACKET, VALVE WPL 705859 Contact Us For Availability
5
PAN, AERATION (BLK) WPL 71001002 Contact Us For Availability
6
MANIFOLD WPL 71001008 Contact Us For Availability
6
TOP WPL 71001003 Contact Us For Availability
6
TOP WPL 71002558 Contact Us For Availability
7
RETAINER, FILTER WPL Y707688 Contact Us For Availability
7
TUBE (LF, LR) WPL 71001154 Contact Us For Availability
7
HEAD, BURNER ASSY. (SMR/BLK) WPL 71001066 Contact Us For Availability
7
HEAD, BURNER (LF) WPL 71001078 Contact Us For Availability
8
TUBE (RF)----NA WPL 71001155 Contact Us For Availability
8
HEAD, BURNER ASSY. (LG/BLK) WPL 71001069 Contact Us For Availability
8
HEAD, BURNER (LG) WPL 71001079 Contact Us For Availability
9
MOTOR, BLOWER WPL 71001304 Contact Us For Availability
9
TUBE (RR) WPL 71001156 Contact Us For Availability
9
GLASS, TOP W/SEAL (BLK) WPL 71001093 Contact Us For Availability
10
HOLDER, ORIFICE (12K) WPL 71001086 Contact Us For Availability
10
ORIFICE (12K) WPL 71001089 Contact Us For Availability
10
KNOB (BLK) WPL 705800 Contact Us For Availability
11
GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability
11
HOLDER, ORIFICE (6.5K) WPL 71001087 Contact Us For Availability
11
ORIFICE (6.5K) WPL 71001091 Contact Us For Availability
11
GROMMET (BLK) WPL Y04100306 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
HOLDER, ORIFICE (10.5K) WPL 71001088 Contact Us For Availability
12
ORIFICE (10.5K) WPL 71001090 Contact Us For Availability
13
BOX, LIGHT WPL Y706061 Contact Us For Availability
13
SCREW WPL 707407 Contact Us For Availability
13
NUT WPL 71001387 Contact Us For Availability
14
SCREW WPL Y707402 Contact Us For Availability
14
VALVE, BURNER (LG) WPL 71001060 Contact Us For Availability
14
VALVE, BURNER (LG) WPL 71001791 Contact Us For Availability
14
PLATE, SWITCH WPL 71001162 Contact Us For Availability
14
PLATE, SWITCH WPL 71002559 Contact Us For Availability
15
COVER, MOTOR WPL Y704760 Contact Us For Availability
15
SEAL, VALVE WPL 705858 Contact Us For Availability
15
SCREW, VALVE WPL 705860 Contact Us For Availability
15
VALVE, BURNER (SIMMER) WPL 71001061 Contact Us For Availability
15
VALVE, BURNER (SMR) WPL 71001790 Contact Us For Availability
15
WASHER, SILICONE WPL 71001299 Contact Us For Availability
15
IGNITER WPL 71001694 Contact Us For Availability
15
CLIP, IGNITER WPL 71001695 Contact Us For Availability
16
SWITCH, VALVE WPL 71001083 Contact Us For Availability
16
FOAM, URETHANE WPL Y715957 Contact Us For Availability
16
SCREW, SWITCH WPL 71001153 Contact Us For Availability
16
SWITCH, FAN CONTROL WPL 71001303 Contact Us For Availability
17
CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability
17
CORD, POWER WPL Y705805 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
17
CLIP, RETAINER WPL 71001059 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
18
RELIEF, STRAIN WPL 705833 Contact Us For Availability
19
PLUG, HOLE WPL Y706193 Contact Us For Availability
19
HARNESS, SUPPLY WPL 71001158 Contact Us For Availability
19
SPACER, FOAM WPL 71001297 Contact Us For Availability
19
HARNESS, WIRE (UPR) WPL 71001384 Contact Us For Availability
20
VENTURI WPL 71001082 Contact Us For Availability
21
GRILL, AIR (BLK) WPL Y706005 Contact Us For Availability
22
O-RING, BASE (SMR) WPL 71001076 Contact Us For Availability
22
O-RING, BASE (LG) WPL 71001077 Contact Us For Availability
22
BASE, BURNER (SM) WPL 71001080 Contact Us For Availability
22
BASE, BURNER (LG) WPL 71001081 Contact Us For Availability
23
LENS, LIGHT WPL 71002580 Contact Us For Availability
24
BRACKET, CONTROL PANEL WPL 71002566 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001123 Contact Us For Availability
NI
ORIFICE (LP) KIT WPL 71001780 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002006 Contact Us For Availability
× ![]()
