Model Whirlpool CVAC062XL0 AIR CONDITIONER – Common Parts & Diagrams

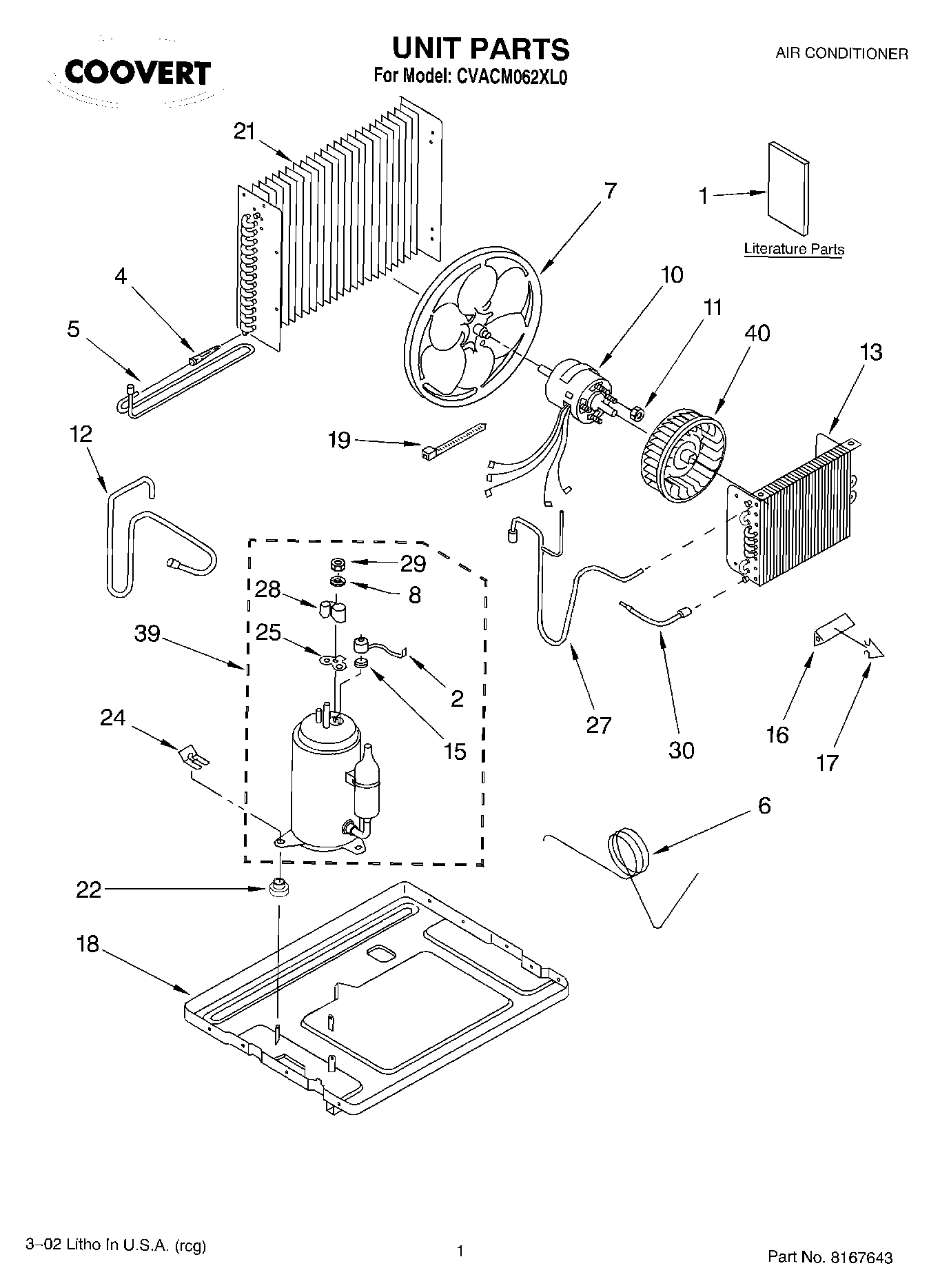

01 - UNIT, LITERATURE

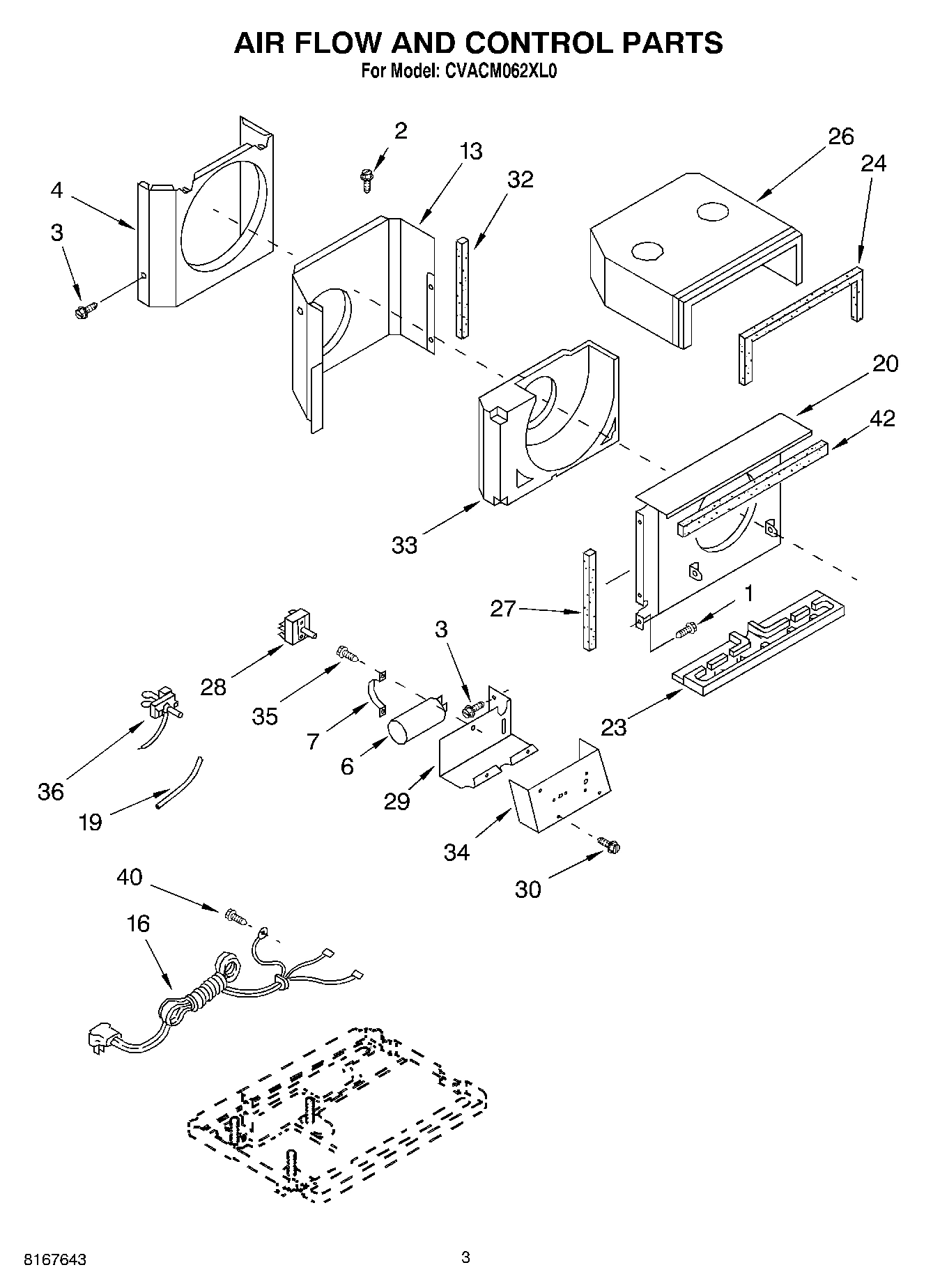

02 - AIR FLOW AND CONTROL

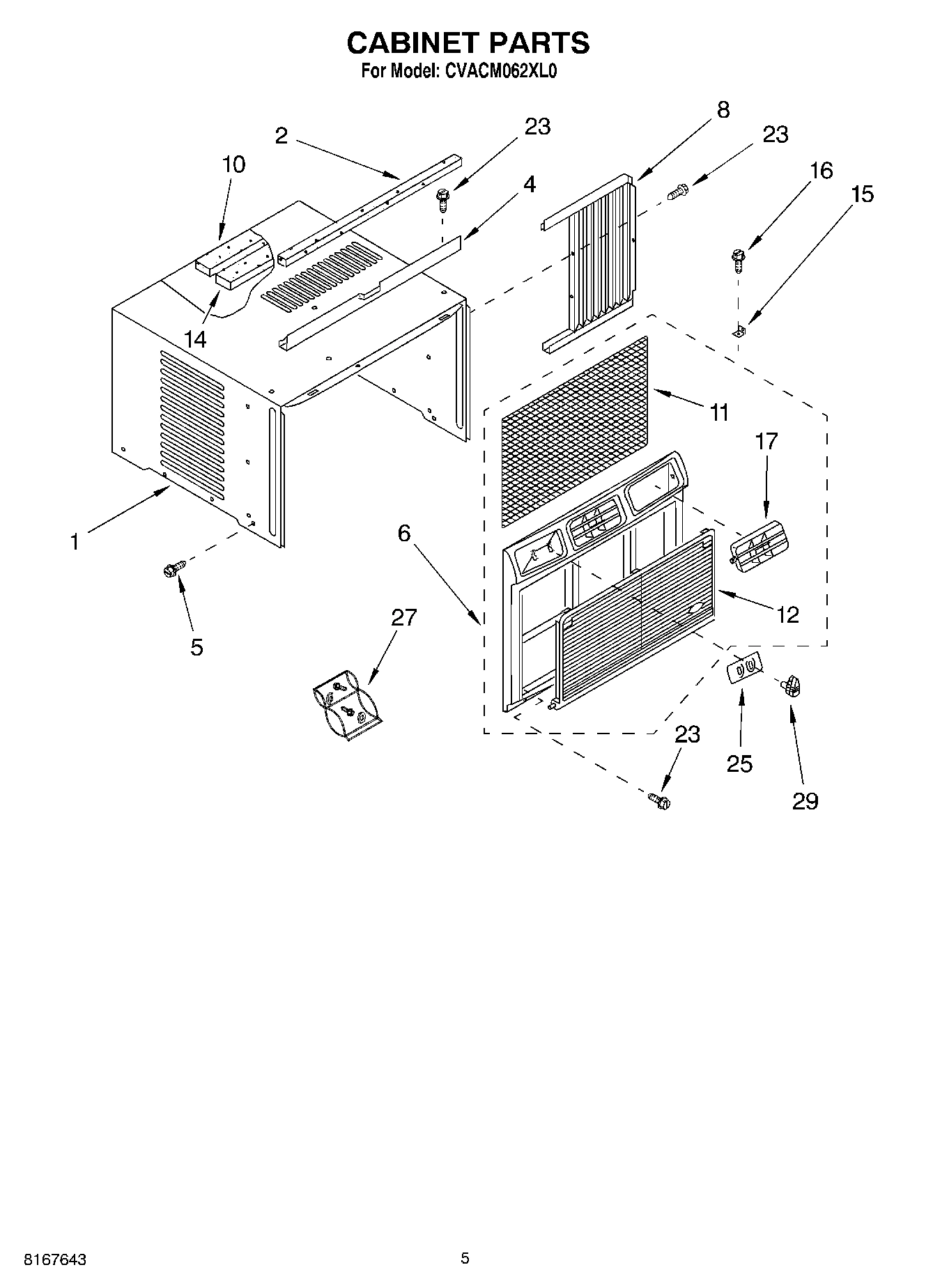

03 - CABINET

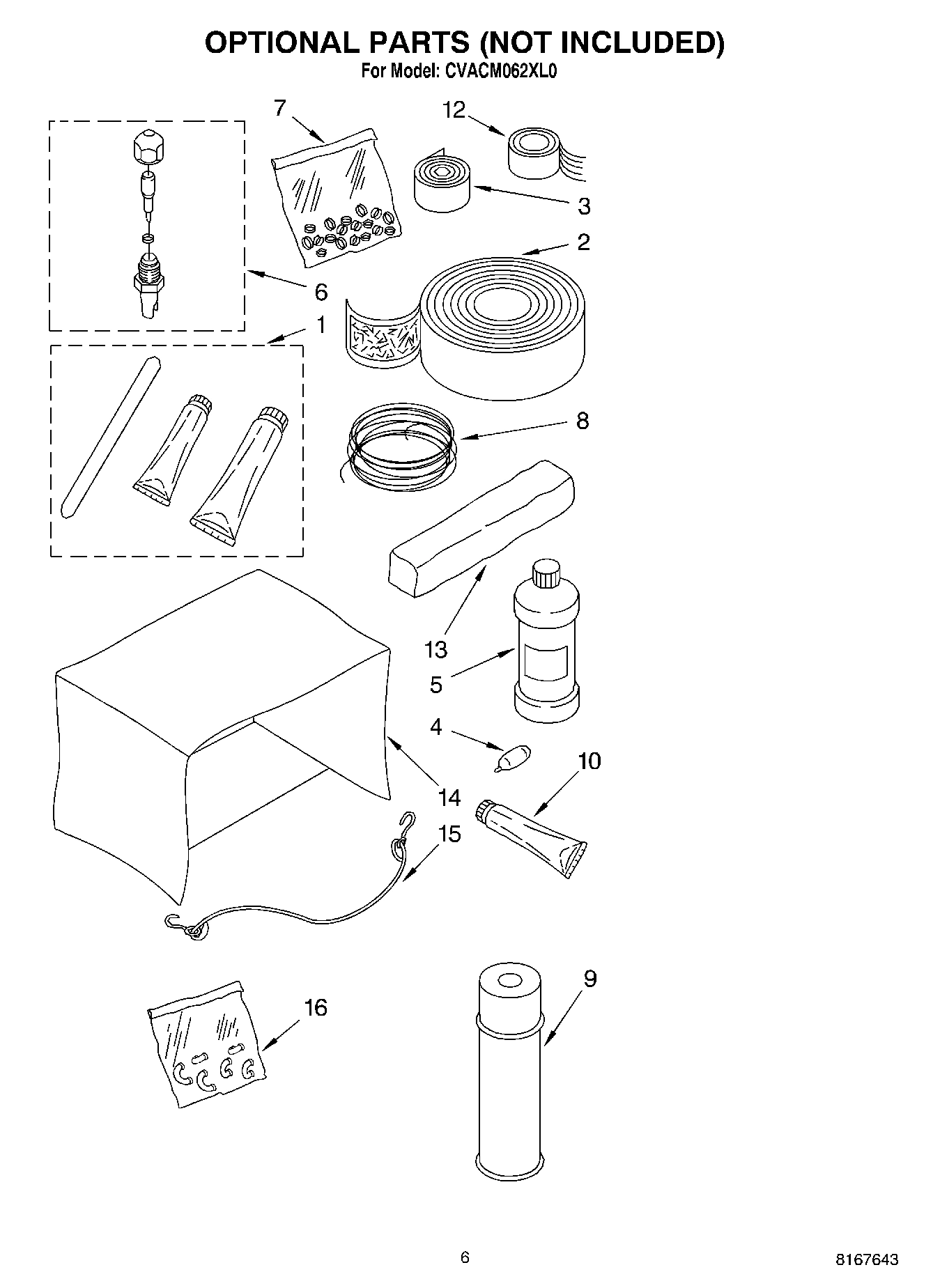

04 - OPTIONAL
Common parts from model Whirlpool CVAC062XL0 AIR CONDITIONER
1
WPL 8011107 WPL 8011107 Contact Us For Availability
1
WPL 799833 WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Screw WPL 488624 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Shroud, Condenser WPL 8011266 Contact Us For Availability
4
WPL 8011307 WPL 8011307 Contact Us For Availability
4
WPL 10943 WPL 10943 Contact Us For Availability
5
WPL 99243 WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
WPL 1186490 WPL 1186490 Contact Us For Availability
6
WPL 1186473 WPL 1186473 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
WPL 978865 WPL 978865 Contact Us For Availability
8
WPL 8011308 WPL 8011308 Contact Us For Availability
8
Curtain (L.S.) WPL 8011311 Contact Us For Availability
8
WPL 10875 WPL 10875 Contact Us For Availability
8
WPL 242820 WPL 242820 Contact Us For Availability
8
WPL 242825 WPL 242825 Contact Us For Availability
8
WPL 242826 WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
WPL 813684 WPL 813684 Contact Us For Availability
10
WPL 8011385 WPL 8011385 Contact Us For Availability
11
Filter WPL 8011314 Contact Us For Availability
12
WPL 1186474 WPL 1186474 Contact Us For Availability
13
WPL 8011422 WPL 8011422 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Foam, Condenser WPL 8011386 Contact Us For Availability
14
WPL 484067 WPL 484067 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
WPL 813610 WPL 813610 Contact Us For Availability
16
WPL 1185493 WPL 1185493 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Return Bend Replacement Kit (5/16`` Tube) WPL 4388784 Contact Us For Availability
16
Return Bend Replacement Kit (3/8`` Tube) WPL 4388785 Contact Us For Availability
17
Louver, Assembly WPL 8011189 Contact Us For Availability
19
Sleeve, Insulator WPL 8011238 Contact Us For Availability
20
WPL 8011265 WPL 8011265 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Pan, Evaporator WPL 8011133 Contact Us For Availability
23
Screw WPL 1161561 Contact Us For Availability
24
WPL 8011446 WPL 8011446 Contact Us For Availability
24
Seal Hood, Front WPL 1181735 Contact Us For Availability
25
WPL 1185793 WPL 1185793 Contact Us For Availability
25
WPL 1184590 WPL 1184590 Contact Us For Availability
26
Hood, Air Housing WPL 8011401 Contact Us For Availability
27
WPL 1185346 WPL 1185346 Contact Us For Availability
27
Seal, Left Side WPL 8011399 Contact Us For Availability
27
WPL 476180 WPL 476180 Contact Us For Availability
28
WPL 8031150 WPL 8031150 Contact Us For Availability
28
WPL 1185792 WPL 1185792 Contact Us For Availability
29
Box, Control WPL 8011188 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 8011208 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
33
Housing, Air WPL 8011400 Contact Us For Availability
34
WPL 8031113 WPL 8031113 Contact Us For Availability
36
WPL 8031115 WPL 8031115 Contact Us For Availability
39
WPL 1185908 WPL 1185908 Contact Us For Availability
40
WPL 8011324 WPL 8011324 Contact Us For Availability
40
WPL 1159222 WPL 1159222 Contact Us For Availability
42
WPL 1158515 WPL 1158515 Contact Us For Availability
× ![]()
