Model Hotpoint CTX23GHCR Refrigerator – Common Parts & Diagrams
0
1
2

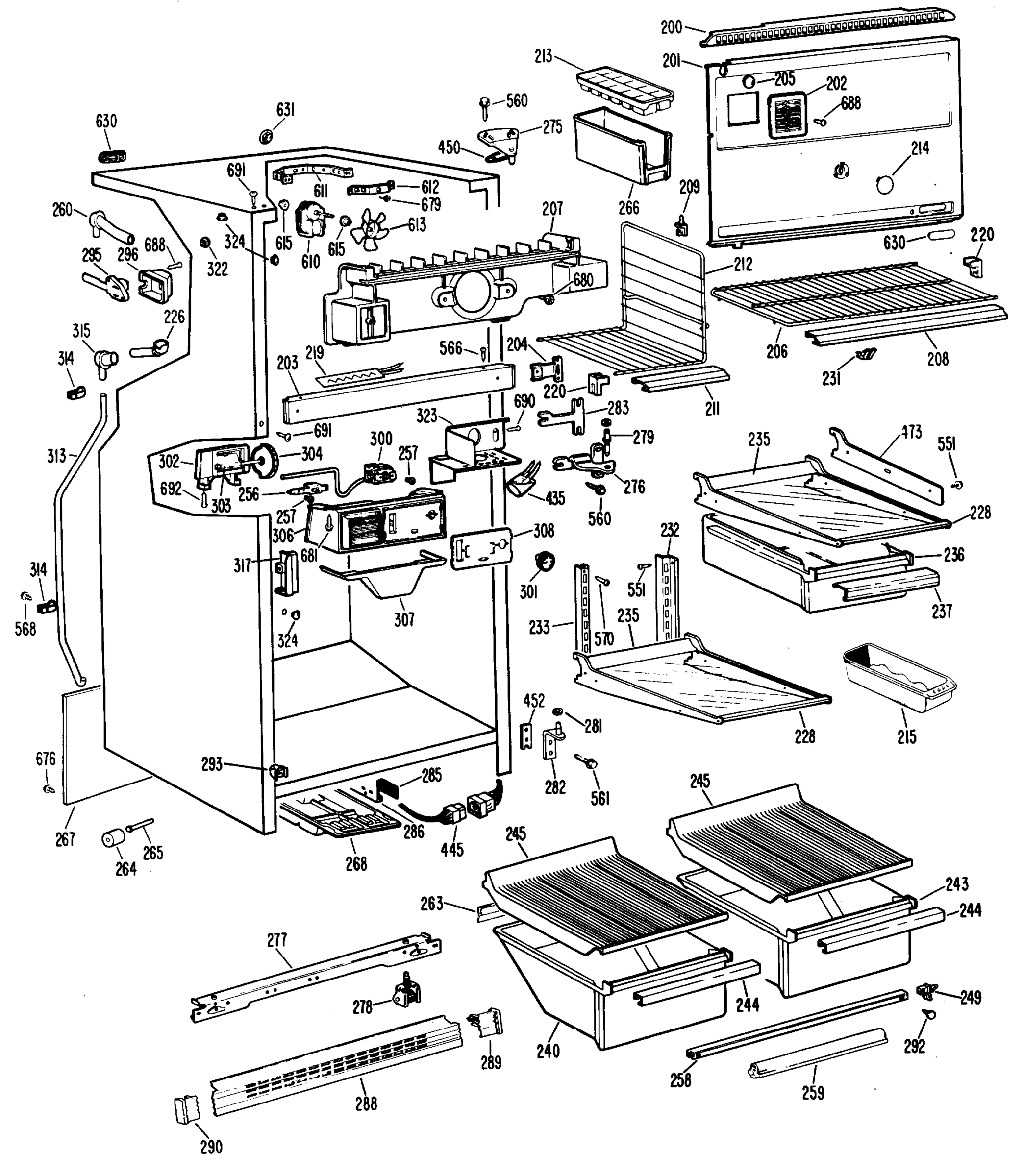

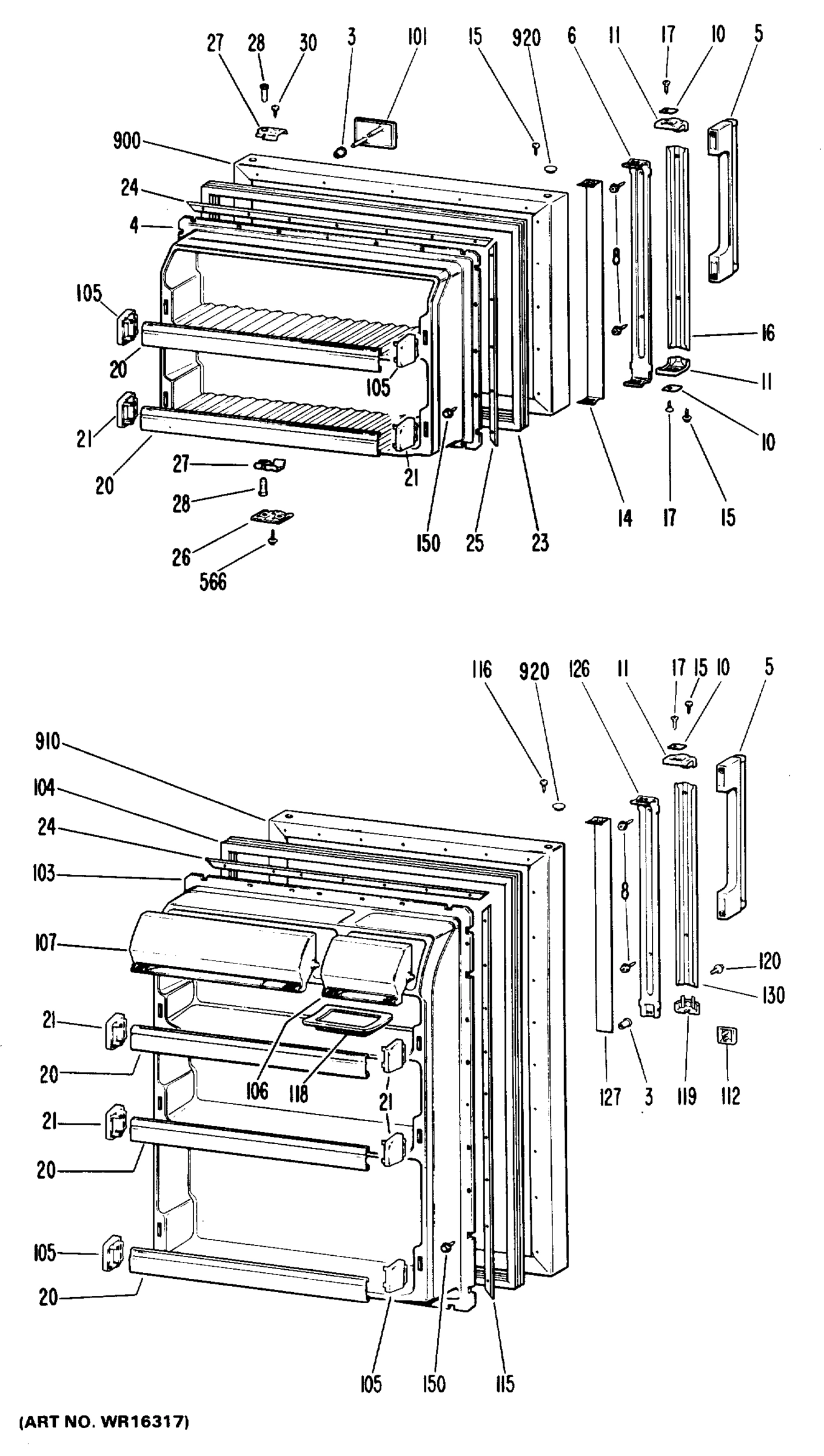

Common parts from model Hotpoint CTX23GHCR Refrigerator
5
GEN WR12X5140 GEN WR12X5140 Contact Us For Availability
6
GEN WR17X6038 GEN WR17X6038 Contact Us For Availability
8
GEN WR01X1560 GEN WR01X1560 Contact Us For Availability
10
GEN WR02X6289 GEN WR02X6289 Contact Us For Availability
11
GEN WR02X6922 GEN WR02X6922 Contact Us For Availability
14
GEN WR02X6812 GEN WR02X6812 Contact Us For Availability
15
GEN WR01X1564 GEN WR01X1564 Contact Us For Availability
16
GEN WR38X5380 GEN WR38X5380 Contact Us For Availability
17
GEN WR01X1569 GEN WR01X1569 Contact Us For Availability
20
GEN WR71X6036 GEN WR71X6036 Contact Us For Availability
21
GEN WR02X6934 GEN WR02X6934 Contact Us For Availability
23
GEN WR24X0391 GEN WR24X0391 Contact Us For Availability
24
GEN WR17X1909 GEN WR17X1909 Contact Us For Availability
25
GEN WR17X1910 GEN WR17X1910 Contact Us For Availability
26
GEN WR02X7402 GEN WR02X7402 Contact Us For Availability
27
GEN WR02X7281 GEN WR02X7281 Contact Us For Availability
28
GEN WR02X6278 GEN WR02X6278 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
101
GEN WR04X5064 GEN WR04X5064 Contact Us For Availability
103
GEN WR77X5624 GEN WR77X5624 Contact Us For Availability
104
GEN WR24X0392 GEN WR24X0392 Contact Us For Availability
105
CAP SHELF FRT GEN WR02X6932 Contact Us For Availability
106
GEN WR22X0315 GEN WR22X0315 Contact Us For Availability
107
GEN WR22X0326 GEN WR22X0326 Contact Us For Availability
112
GEN WR04X0173 GEN WR04X0173 Contact Us For Availability
115
GEN WR17X1530 GEN WR17X1530 Contact Us For Availability
116
GEN WR01X1570 GEN WR01X1570 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
119
GEN WR02X6813 GEN WR02X6813 Contact Us For Availability
120
GEN WR01X1593 GEN WR01X1593 Contact Us For Availability
126
GEN WR17X6039 GEN WR17X6039 Contact Us For Availability
127
GEN WR02X6295 GEN WR02X6295 Contact Us For Availability
130
GEN WR38X5381 GEN WR38X5381 Contact Us For Availability
150
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
176
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
200
GEN WR17X1921 GEN WR17X1921 Contact Us For Availability
201
GEN WR17X2094 GEN WR17X2094 Contact Us For Availability
202
GEN WR02X7019 GEN WR02X7019 Contact Us For Availability
203
GEN WR14X0316 GEN WR14X0316 Contact Us For Availability
203
GEN WR17X1919 GEN WR17X1919 Contact Us For Availability
204
GEN WR01X1655 GEN WR01X1655 Contact Us For Availability
204
SUPT-MULLION & NUTSTRIP GEN WR02X7014 Contact Us For Availability
206
GEN WR71X5961 GEN WR71X5961 Contact Us For Availability
207
GEN WR14X0315 GEN WR14X0315 Contact Us For Availability
207
GEN WR17X1916 GEN WR17X1916 Contact Us For Availability
208
GEN WR38X5378 GEN WR38X5378 Contact Us For Availability
209
SUPPORT TWIST FZ SHELF GEN WR02X6346 Contact Us For Availability
211
GEN WR38X5379 GEN WR38X5379 Contact Us For Availability
212
GEN WR71X6038 GEN WR71X6038 Contact Us For Availability
215
GEN WR32X5299 GEN WR32X5299 Contact Us For Availability
216
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
219
GEN WR51X0300 GEN WR51X0300 Contact Us For Availability
220
GEN WR02X7039 GEN WR02X7039 Contact Us For Availability
226
GEN WR02X7142 GEN WR02X7142 Contact Us For Availability
228
GEN WR71X5960 GEN WR71X5960 Contact Us For Availability
231
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
232
GEN WR72X0079 GEN WR72X0079 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0077 GEN WR72X0077 Contact Us For Availability
235
GEN WR38X1007 GEN WR38X1007 Contact Us For Availability
236
GEN WR32X5263 GEN WR32X5263 Contact Us For Availability
237
GEN WR17X6036 GEN WR17X6036 Contact Us For Availability
240
GEN WR32X5302 GEN WR32X5302 Contact Us For Availability
243
GEN WR32X5264 GEN WR32X5264 Contact Us For Availability
244
GEN WR17X6037 GEN WR17X6037 Contact Us For Availability
245
GEN WR32X0882 GEN WR32X0882 Contact Us For Availability
249
GEN WR02X7249 GEN WR02X7249 Contact Us For Availability
256
GEN WR23X0203 GEN WR23X0203 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X2027 GEN WR17X2027 Contact Us For Availability
259
GEN WR14X0294 GEN WR14X0294 Contact Us For Availability
260
GEN WR17X1913 GEN WR17X1913 Contact Us For Availability
263
GEN WR14X5154 GEN WR14X5154 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
266
BUCKET ICE GEN WR30X5116 Contact Us For Availability
267
GEN WR82X0248 GEN WR82X0248 Contact Us For Availability
268
PAN WATER DISPOSAL ASM GEN WR32X0717 Contact Us For Availability
275
HINGE TOP & PIN ASM GEN WR13X5198 Contact Us For Availability
276
GEN WR13X5197 GEN WR13X5197 Contact Us For Availability
277
GEN WR17X1911 GEN WR17X1911 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR13X0562 GEN WR13X0562 Contact Us For Availability
281
GEN WR01X1114 GEN WR01X1114 Contact Us For Availability
281
GEN WR01X1355 GEN WR01X1355 Contact Us For Availability
282
GEN WR13X0553 GEN WR13X0553 Contact Us For Availability
283
SHIM HINGE-.031 THK. GEN WR02X7030 Contact Us For Availability
283
NUTSTRIP HINGE GEN WR02X7143 Contact Us For Availability
283
GEN WR02X7401 GEN WR02X7401 Contact Us For Availability
285
GEN WR02X7297 GEN WR02X7297 Contact Us For Availability
285
GEN WR02X7298 GEN WR02X7298 Contact Us For Availability
286
GEN WR17X2046 GEN WR17X2046 Contact Us For Availability
288
GRILLE-O.CASE (BRN) GEN WR79X5151 Contact Us For Availability
289
GEN WR02X6810 GEN WR02X6810 Contact Us For Availability
290
GEN WR02X6811 GEN WR02X6811 Contact Us For Availability
292
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
292
PLUG BUTTON GEN WR02X7082 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
295
GEN WR23X0162 GEN WR23X0162 Contact Us For Availability
296
COVER IM RECEPTACLE GEN WR02X4512 Contact Us For Availability
300
SLEEVE VINYL GEN WR02X7010 Contact Us For Availability
300
GEN WR02X7061 GEN WR02X7061 Contact Us For Availability
300
CONTROL TEMP GEN WR09X0352 Contact Us For Availability
301
GEN WR02X7146 GEN WR02X7146 Contact Us For Availability
302
GEN WR14X0312 GEN WR14X0312 Contact Us For Availability
302
HOUSING NOZZLE GEN WR17X1533 Contact Us For Availability
303
GEN WR02X7008 GEN WR02X7008 Contact Us For Availability
304
GEN WR02X7023 GEN WR02X7023 Contact Us For Availability
306
GEN WR02X7009 GEN WR02X7009 Contact Us For Availability
306
GEN WR17X1605 GEN WR17X1605 Contact Us For Availability
306
INSUL CONTROL HSG GEN WR82X0212 Contact Us For Availability
307
GEN WR17X6035 GEN WR17X6035 Contact Us For Availability
308
GEN WR02X7147 GEN WR02X7147 Contact Us For Availability
313
TUBE DRAIN GEN WR17X1532 Contact Us For Availability
314
GEN WR02X4516 GEN WR02X4516 Contact Us For Availability
315
GROMMET DRAIN GEN WR02X7007 Contact Us For Availability
317
GEN WR02X7075 GEN WR02X7075 Contact Us For Availability
317
GEN WR02X7076 GEN WR02X7076 Contact Us For Availability
322
PLUG BUTTON (.500"DIA.) GEN WR02X6345 Contact Us For Availability
323
GEN WR17X1594 GEN WR17X1594 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
450
GEN WR02X7151 GEN WR02X7151 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
553
SCR 6-20 B TR 1/4 SS GEN WZ04X0343 Contact Us For Availability
560
SCR 12-24 AHXW 7/8 SPP GEN WR01X1249 Contact Us For Availability
562
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
566
SCR 10-16 BAT HXW 1/2SNS GEN WR01X1487 Contact Us For Availability
568
GEN WZ05 GEN WZ05 Contact Us For Availability
573
GEN WZ04X0254 GEN WZ04X0254 Contact Us For Availability
601
GEN WR17X1552 GEN WR17X1552 Contact Us For Availability
602
GEN WR82X0247 GEN WR82X0247 Contact Us For Availability
603
GEN WR17X1918 GEN WR17X1918 Contact Us For Availability
604
GEN WR17X1917 GEN WR17X1917 Contact Us For Availability
608
FOAM STRIP SE ADH GEN WR14X0313 Contact Us For Availability
608
GEN WR17X1906 GEN WR17X1906 Contact Us For Availability
619
SHIELD HEAT GEN WR17X1937 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
621
GEN WR02X7153 GEN WR02X7153 Contact Us For Availability
622
GEN WR14X0314 GEN WR14X0314 Contact Us For Availability
622
GEN WR17X1912 GEN WR17X1912 Contact Us For Availability
623
GEN WR14X0289 GEN WR14X0289 Contact Us For Availability
623
COVER DUCT FF GEN WR17X1549 Contact Us For Availability
624
GEN WR17X1914 GEN WR17X1914 Contact Us For Availability
628
GEN WR02X7026 GEN WR02X7026 Contact Us For Availability
640
BRACKET COMP MTG-R.SIDE GEN WR02X7004 Contact Us For Availability
641
BRACKET COMP MTG-L.SIDE GEN WR02X7005 Contact Us For Availability
642
BUSHING COMP MTG GEN WR02X7028 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
648
GEN WR02X7027 GEN WR02X7027 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
652
GEN WR01X1683 GEN WR01X1683 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
BRACKET COND FAN GEN WR02X4801 Contact Us For Availability
682
GEN WX06X0134 GEN WX06X0134 Contact Us For Availability
683
SCR 8-32 SPECIAL GEN WZ05X0164 Contact Us For Availability
684
SCREW GEN WZ04X0417 Contact Us For Availability
685
SCR 1/4-14 AB HX 1/2S NS GEN WR01X1596 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
725
MACHINE HIGH SIDE GEN WR87X0068 Contact Us For Availability
725
GEN WR97X0096 GEN WR97X0096 Contact Us For Availability
726
MACHINE LOW SIDE GEN WR85X0140 Contact Us For Availability
730
GEN WR84X0074 GEN WR84X0074 Contact Us For Availability
731
CLIP COND GEN WR02X4621 Contact Us For Availability
733
GEN WR07X0104 GEN WR07X0104 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
735
GEN WR08X0043 GEN WR08X0043 Contact Us For Availability
736
COVER COMP MTG BRKT GEN WR02X7029 Contact Us For Availability
743
EXT COMP MTG GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP MTG D/J GEN WR02X3904 Contact Us For Availability
746
BAFFLE-COMPRESSOR ASM GEN WR17X1915 Contact Us For Availability
900
GEN WR78X7447 GEN WR78X7447 Contact Us For Availability
901
GEN WR78X7448 GEN WR78X7448 Contact Us For Availability
902
GEN WR78X7449 GEN WR78X7449 Contact Us For Availability
903
GEN WR78X7508 GEN WR78X7508 Contact Us For Availability
904
GEN WR78X7509 GEN WR78X7509 Contact Us For Availability
910
GEN WR78X7450 GEN WR78X7450 Contact Us For Availability
911
GEN WR78X7451 GEN WR78X7451 Contact Us For Availability
912
GEN WR78X7452 GEN WR78X7452 Contact Us For Availability
913
GEN WR78X7510 GEN WR78X7510 Contact Us For Availability
914
GEN WR78X7511 GEN WR78X7511 Contact Us For Availability
920
GEN WR02X4930 GEN WR02X4930 Contact Us For Availability
921
GEN WR02X4931 GEN WR02X4931 Contact Us For Availability
922
GEN WR02X4932 GEN WR02X4932 Contact Us For Availability
923
GEN WR02X4933 GEN WR02X4933 Contact Us For Availability
924
GEN WR02X4934 GEN WR02X4934 Contact Us For Availability
9999
GEN 31-5011 GEN 31-5011 Contact Us For Availability
9999
GEN 39-6226 GEN 39-6226 Contact Us For Availability
× ![]()
