Model Hotpoint CTX22DLJRWH Refrigerator – Common Parts & Diagrams
0
1
2
3
4

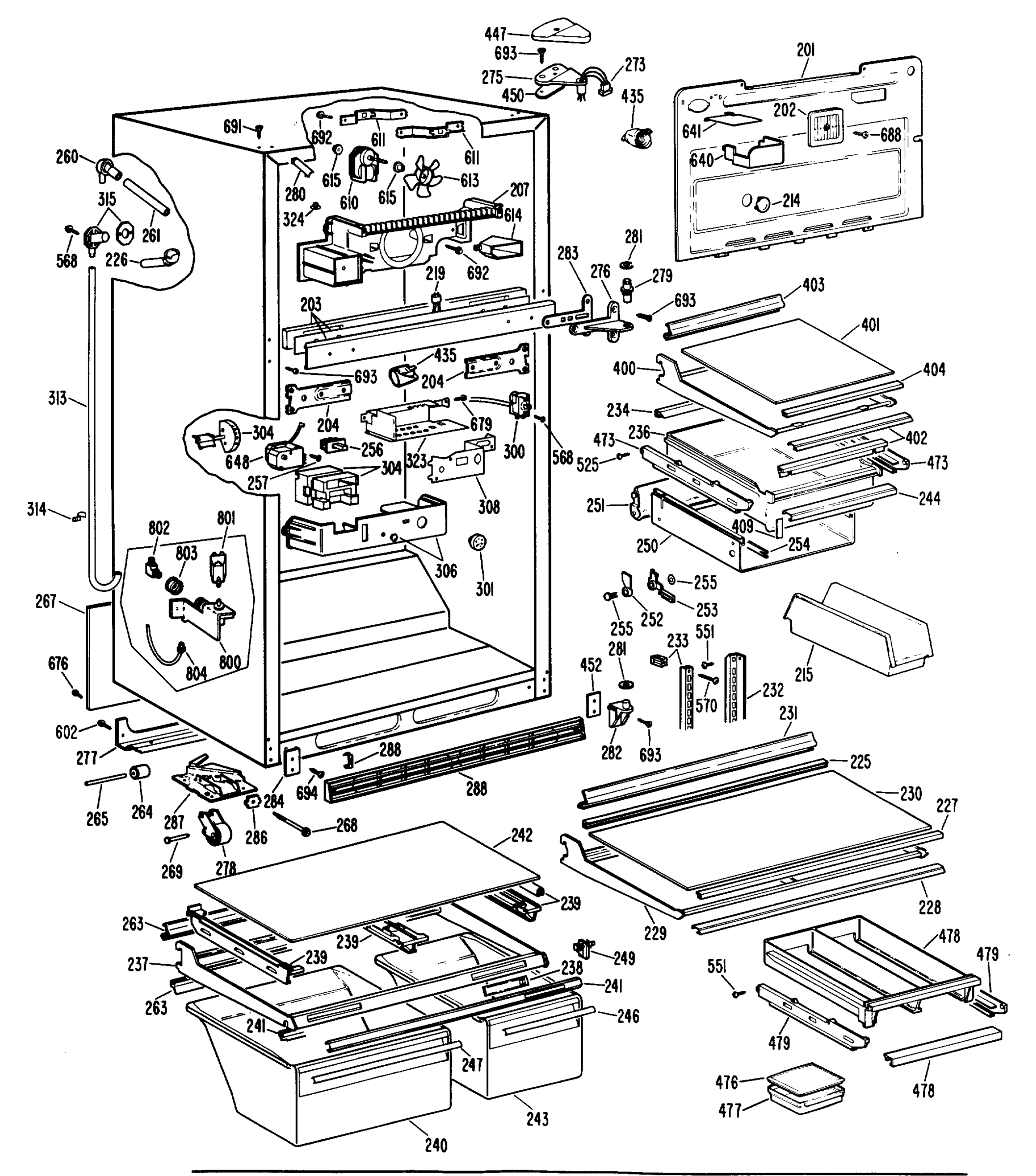

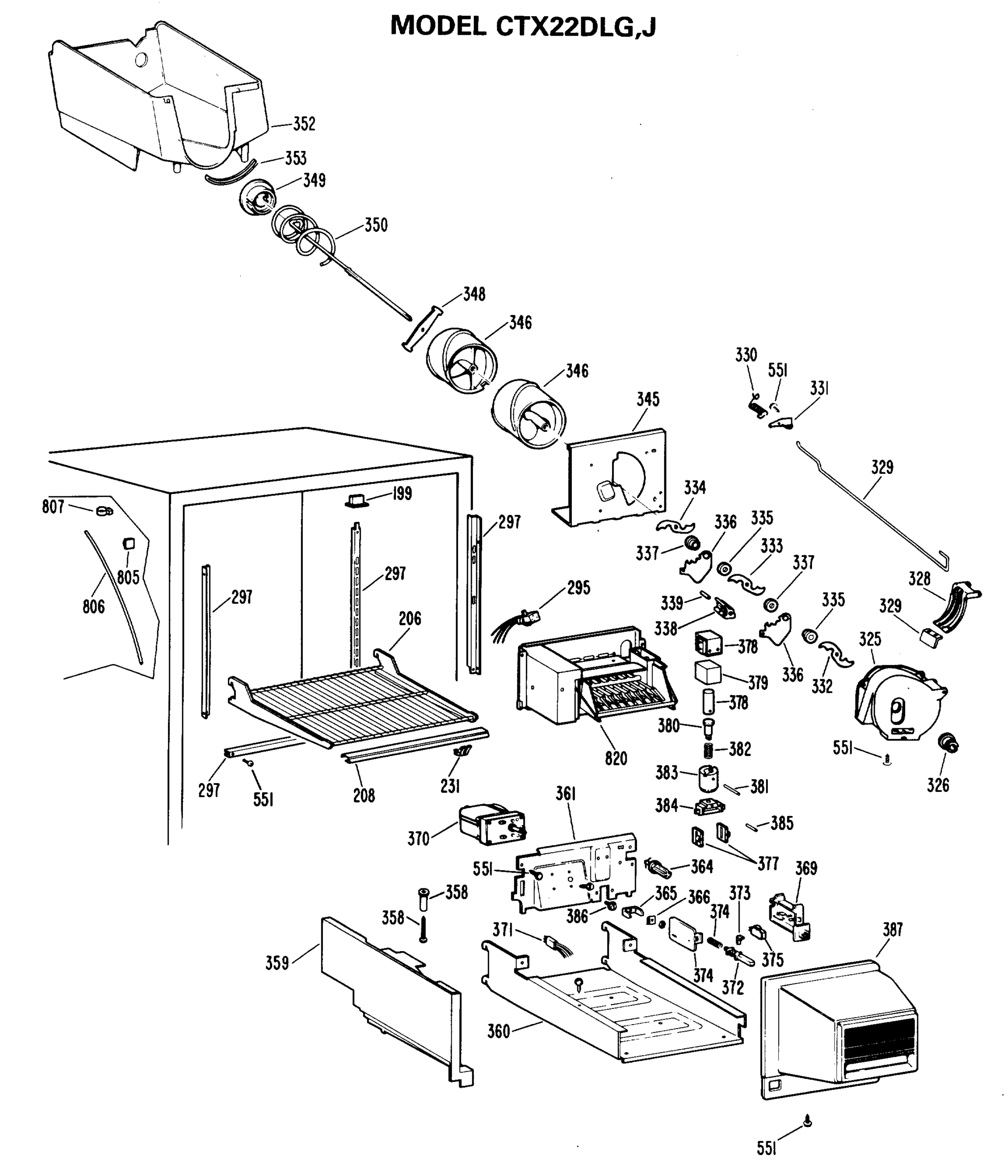

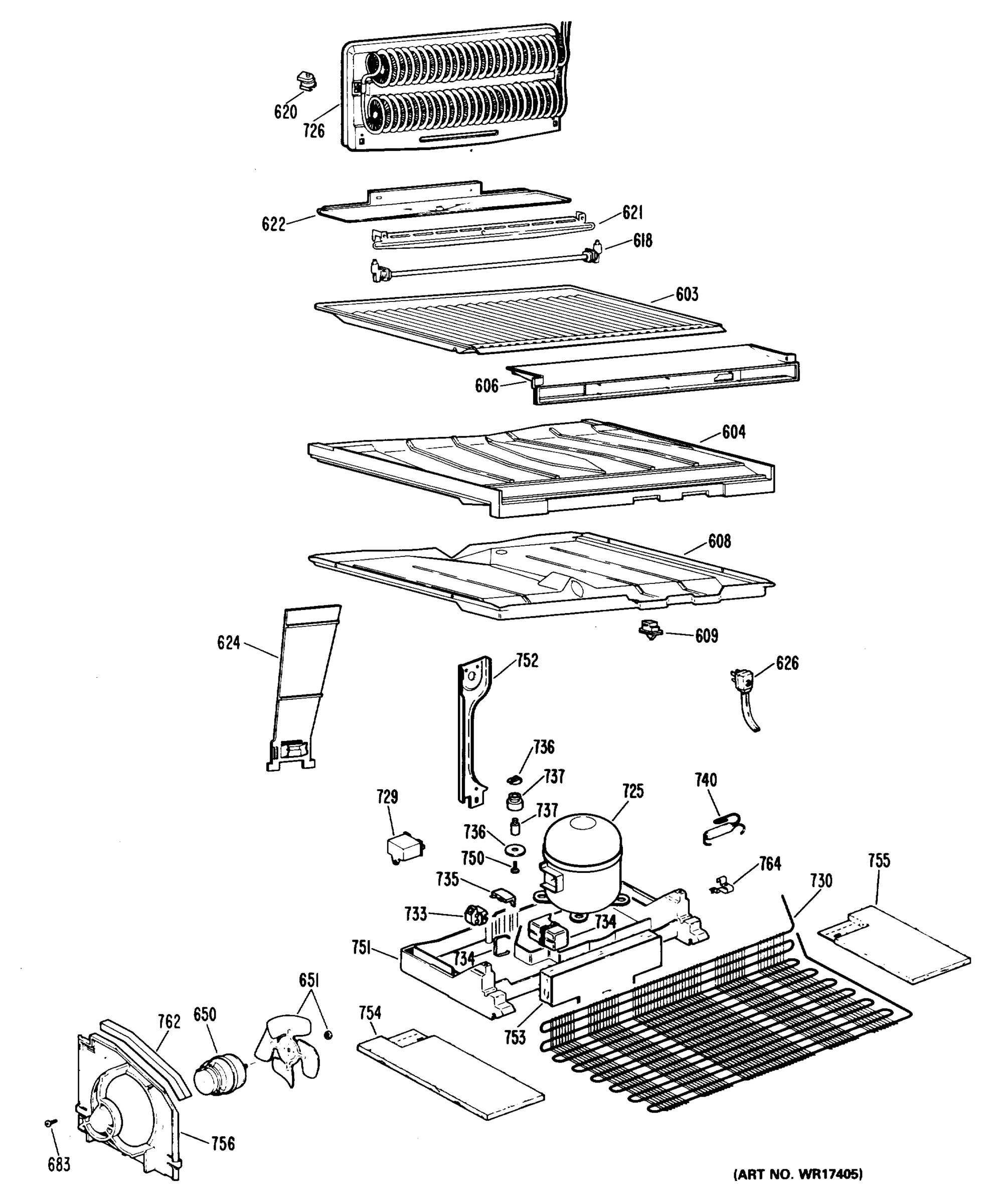

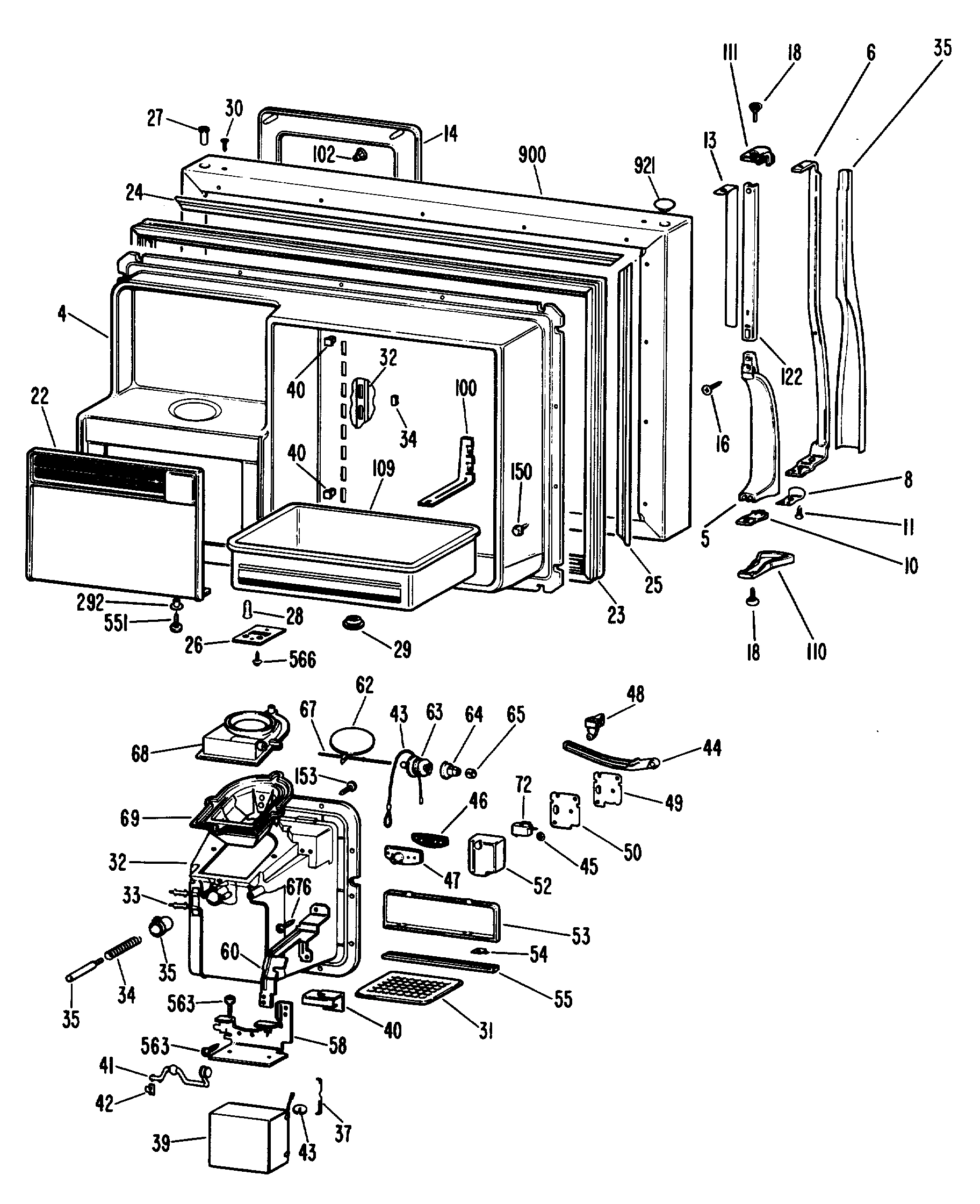

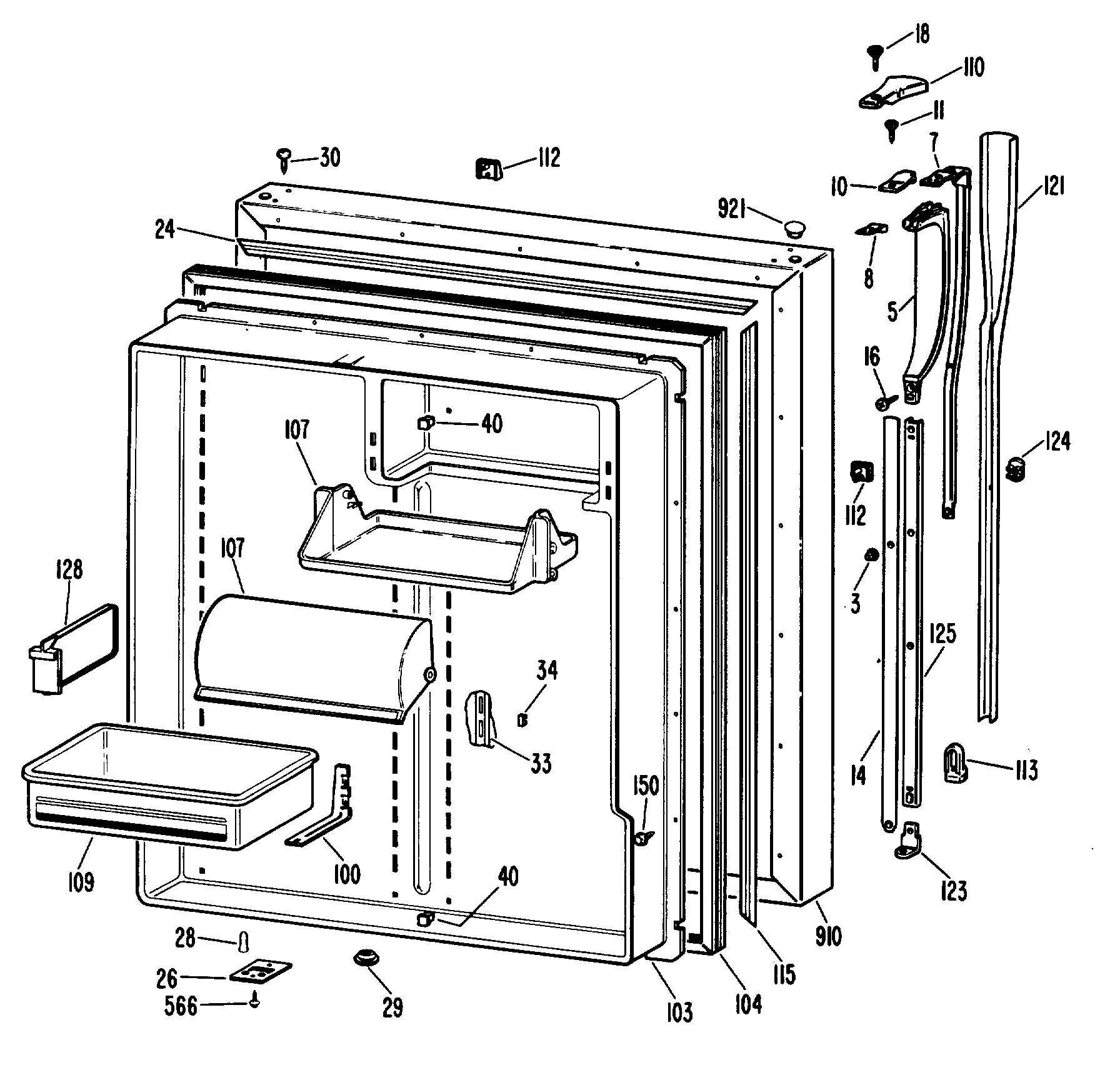

Common parts from model Hotpoint CTX22DLJRWH Refrigerator
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
7
GEN WR12X0582 GEN WR12X0582 Contact Us For Availability
8
GEN WR02X7793 GEN WR02X7793 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
11
GEN WZ04X0352 GEN WZ04X0352 Contact Us For Availability
13
GEN WR02X7794 GEN WR02X7794 Contact Us For Availability
14
GEN WR01X1551 GEN WR01X1551 Contact Us For Availability
14
GEN WR02X4946 GEN WR02X4946 Contact Us For Availability
14
GEN WR38X1254 GEN WR38X1254 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
18
GEN WR01X1569 GEN WR01X1569 Contact Us For Availability
22
GEN WR17X2306 GEN WR17X2306 Contact Us For Availability
24
GEN WR17X2237 GEN WR17X2237 Contact Us For Availability
25
GEN WR17X2239 GEN WR17X2239 Contact Us For Availability
26
GEN WR02X7681 GEN WR02X7681 Contact Us For Availability
27
GEN WR02X7781 GEN WR02X7781 Contact Us For Availability
28
DOOR THIMBLE GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
30
SCREW GEN WR01X5475 Contact Us For Availability
31
GEN WR02X5997 GEN WR02X5997 Contact Us For Availability
32
GEN WR17X2220 GEN WR17X2220 Contact Us For Availability
32
GEN WR72X0103 GEN WR72X0103 Contact Us For Availability
33
GEN WR51X0326 GEN WR51X0326 Contact Us For Availability
33
GEN WR72X0102 GEN WR72X0102 Contact Us For Availability
34
GEN WR01X1764 GEN WR01X1764 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X4822 Contact Us For Availability
35
GEN WR12X0657 GEN WR12X0657 Contact Us For Availability
37
CLIP TIME DELAY GEN WR02X4248 Contact Us For Availability
39
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
40
GEN WR02X7857 GEN WR02X7857 Contact Us For Availability
40
GEN WR02X7858 GEN WR02X7858 Contact Us For Availability
41
CRANK & RIVET ASM DISP GEN WR17X1048 Contact Us For Availability
42
BEARING CRANK DISP GEN WR02X4234 Contact Us For Availability
43
KEEPER LANYARD DISP GEN WR02X4069 Contact Us For Availability
43
GEN WR02X4749 GEN WR02X4749 Contact Us For Availability
44
GEN WR02X4685 GEN WR02X4685 Contact Us For Availability
45
GEN WR02X4240 GEN WR02X4240 Contact Us For Availability
46
GEN WR02X3950 GEN WR02X3950 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
48
GEN WR02X7951 GEN WR02X7951 Contact Us For Availability
49
GEN WR02X4592 GEN WR02X4592 Contact Us For Availability
50
GEN WR02X4591 GEN WR02X4591 Contact Us For Availability
52
GEN WR02X4593 GEN WR02X4593 Contact Us For Availability
53
GEN WR02X7867 GEN WR02X7867 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0851 GEN WR38X0851 Contact Us For Availability
57
GASKET RECESS DISP GEN WR14X0262 Contact Us For Availability
58
GEN WR17X1370 GEN WR17X1370 Contact Us For Availability
60
GEN WR02X8026 GEN WR02X8026 Contact Us For Availability
62
GEN WR17X1255 GEN WR17X1255 Contact Us For Availability
63
PULLEY TIME DELAY DISP GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR02X4751 GEN WR02X4751 Contact Us For Availability
68
GEN WR14X0260 GEN WR14X0260 Contact Us For Availability
68
GEN WR17X1355 GEN WR17X1355 Contact Us For Availability
69
SHIELD &FUNNEL ASM. DISP GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
100
GEN WR02X7688 GEN WR02X7688 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR77X0517 GEN WR77X0517 Contact Us For Availability
107
GEN WR22X0373 GEN WR22X0373 Contact Us For Availability
107
GEN WR22X0374 GEN WR22X0374 Contact Us For Availability
109
GEN WR71X1867 GEN WR71X1867 Contact Us For Availability
110
GEN WR02X7791 GEN WR02X7791 Contact Us For Availability
111
GEN WR02X7792 GEN WR02X7792 Contact Us For Availability
112
NAMEPLATE DR RSV(WH) GEN WR04X0180 Contact Us For Availability
113
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
115
GEN WR17X2238 GEN WR17X2238 Contact Us For Availability
121
GEN WR12X0656 GEN WR12X0656 Contact Us For Availability
122
GEN WR12X0579 GEN WR12X0579 Contact Us For Availability
123
GEN WR02X4950 GEN WR02X4950 Contact Us For Availability
124
GEN WR12X0612 GEN WR12X0612 Contact Us For Availability
125
GEN WR12X0583 GEN WR12X0583 Contact Us For Availability
128
GEN WR02X7866 GEN WR02X7866 Contact Us For Availability
153
SCREW GEN WZ04X0324 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
199
RECEP. CNTR TRACK GEN WR02X7670 Contact Us For Availability
201
GEN WR17X2254 GEN WR17X2254 Contact Us For Availability
203
GEN WR14X0352 GEN WR14X0352 Contact Us For Availability
204
GEN WR02X7822 GEN WR02X7822 Contact Us For Availability
204
GEN WR02X7823 GEN WR02X7823 Contact Us For Availability
206
GEN WR71X1952 GEN WR71X1952 Contact Us For Availability
207
GEN WR17X2219 GEN WR17X2219 Contact Us For Availability
208
GEN WR38X1203 GEN WR38X1203 Contact Us For Availability
215
GEN WR32X0974 GEN WR32X0974 Contact Us For Availability
219
HEATER MULLION GEN WR51X0318 Contact Us For Availability
225
GEN WR38X1128 GEN WR38X1128 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
227
GEN WR38X1127 GEN WR38X1127 Contact Us For Availability
228
GEN WR38X1202 GEN WR38X1202 Contact Us For Availability
229
GEN WR71X1809 GEN WR71X1809 Contact Us For Availability
230
GEN WR32X0990 GEN WR32X0990 Contact Us For Availability
231
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
231
GEN WR38X1200 GEN WR38X1200 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
234
GEN WR14X0368 GEN WR14X0368 Contact Us For Availability
234
GEN WR38X1201 GEN WR38X1201 Contact Us For Availability
236
MT. PAN GEN WR32X0988 Contact Us For Availability
237
GEN WR71X1801 GEN WR71X1801 Contact Us For Availability
238
GEN WR17X2302 GEN WR17X2302 Contact Us For Availability
239
GEN WR14X0343 GEN WR14X0343 Contact Us For Availability
239
GEN WR17X2153 GEN WR17X2153 Contact Us For Availability
239
GEN WR17X2154 GEN WR17X2154 Contact Us For Availability
239
GEN WR17X2155 GEN WR17X2155 Contact Us For Availability
240
GEN WR32X0987 GEN WR32X0987 Contact Us For Availability
241
GEN WR14X0349 GEN WR14X0349 Contact Us For Availability
241
GEN WR17X2336 GEN WR17X2336 Contact Us For Availability
242
GEN WR32X0989 GEN WR32X0989 Contact Us For Availability
243
GEN WR32X0975 GEN WR32X0975 Contact Us For Availability
244
GEN WR17X2334 GEN WR17X2334 Contact Us For Availability
246
GEN WR17X2540 GEN WR17X2540 Contact Us For Availability
247
GEN WR17X2544 GEN WR17X2544 Contact Us For Availability
249
GEN WR02X7770 GEN WR02X7770 Contact Us For Availability
250
GEN WR17X2446 GEN WR17X2446 Contact Us For Availability
251
GEN WR17X2255 GEN WR17X2255 Contact Us For Availability
252
GEN WR02X7692 GEN WR02X7692 Contact Us For Availability
253
GEN WR02X7690 GEN WR02X7690 Contact Us For Availability
254
GEN WR02X7691 GEN WR02X7691 Contact Us For Availability
255
GEN WR01X1741 GEN WR01X1741 Contact Us For Availability
255
GEN WR02X7689 GEN WR02X7689 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
260
GEN WR02X7773 GEN WR02X7773 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
263
GEN WR14X0350 GEN WR14X0350 Contact Us For Availability
263
GEN WR38X1198 GEN WR38X1198 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0304 GEN WR82X0304 Contact Us For Availability
268
GEN WR01X1734 GEN WR01X1734 Contact Us For Availability
269
GEN WR01X1733 GEN WR01X1733 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
273
GEN WR49X0219 GEN WR49X0219 Contact Us For Availability
275
GEN WR13X0592 GEN WR13X0592 Contact Us For Availability
276
GEN WR13X0585 GEN WR13X0585 Contact Us For Availability
277
GEN WR17X2236 GEN WR17X2236 Contact Us For Availability
278
GEN WR02X7663 GEN WR02X7663 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
GEN WR02X7656 GEN WR02X7656 Contact Us For Availability
281
GEN WR01X1748 GEN WR01X1748 Contact Us For Availability
282
GEN WR13X0588 GEN WR13X0588 Contact Us For Availability
283
GEN WR02X7629 GEN WR02X7629 Contact Us For Availability
284
CAP BTM CORNER GEN WR02X8069 Contact Us For Availability
286
GEN WR01X1732 GEN WR01X1732 Contact Us For Availability
287
GEN WR02X7665 GEN WR02X7665 Contact Us For Availability
287
GEN WR02X7666 GEN WR02X7666 Contact Us For Availability
288
CLIP GRILLE BASE GEN WR02X7646 Contact Us For Availability
288
GEN WR74X0192 GEN WR74X0192 Contact Us For Availability
292
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
297
GEN WR72X0100 GEN WR72X0100 Contact Us For Availability
297
GEN WR72X0105 GEN WR72X0105 Contact Us For Availability
297
GEN WR72X0108 GEN WR72X0108 Contact Us For Availability
297
GEN WR72X0131 GEN WR72X0131 Contact Us For Availability
300
GEN WR09X0411 GEN WR09X0411 Contact Us For Availability
301
GEN WR02X7146 GEN WR02X7146 Contact Us For Availability
304
GEN WR02X7911 GEN WR02X7911 Contact Us For Availability
304
GEN WR02X8092 GEN WR02X8092 Contact Us For Availability
306
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
306
GEN WR02X7675 GEN WR02X7675 Contact Us For Availability
306
GEN WR17X2180 GEN WR17X2180 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
313
GEN WR17X2554 GEN WR17X2554 Contact Us For Availability
314
GEN WR02X4516 GEN WR02X4516 Contact Us For Availability
315
GEN WR02X8150 GEN WR02X8150 Contact Us For Availability
315
GEN WR14X0346 GEN WR14X0346 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
GEN WR17X2215 GEN WR17X2215 Contact Us For Availability
329
GEN WR02X7784 GEN WR02X7784 Contact Us For Availability
329
GEN WR17X2246 GEN WR17X2246 Contact Us For Availability
330
GEN WR02X4759 GEN WR02X4759 Contact Us For Availability
331
GEN WR02X4758 GEN WR02X4758 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
336
GEN WR17X2216 GEN WR17X2216 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2214 GEN WR17X2214 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7783 GEN WR02X7783 Contact Us For Availability
350
GEN WR02X7782 GEN WR02X7782 Contact Us For Availability
352
GEN WR30X0264 GEN WR30X0264 Contact Us For Availability
357
GEN WR01X1750 GEN WR01X1750 Contact Us For Availability
358
GEN WR01X1749 GEN WR01X1749 Contact Us For Availability
358
GEN WR02X7778 GEN WR02X7778 Contact Us For Availability
359
GEN WR17X2221 GEN WR17X2221 Contact Us For Availability
360
GEN WR71X1788 GEN WR71X1788 Contact Us For Availability
361
GEN WR17X2223 GEN WR17X2223 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
369
GEN WR02X7169 GEN WR02X7169 Contact Us For Availability
370
GEN WR60X0111 GEN WR60X0111 Contact Us For Availability
371
GEN WR23X0317 GEN WR23X0317 Contact Us For Availability
372
GEN WR02X7776 GEN WR02X7776 Contact Us For Availability
373
GEN WR23X0290 GEN WR23X0290 Contact Us For Availability
374
GEN WR02X7171 GEN WR02X7171 Contact Us For Availability
374
GEN WR02X7172 GEN WR02X7172 Contact Us For Availability
375
GEN WR23X0288 GEN WR23X0288 Contact Us For Availability
377
GEN WR02X7774 GEN WR02X7774 Contact Us For Availability
380
GEN WR17X2224 GEN WR17X2224 Contact Us For Availability
383
GEN WR17X2217 GEN WR17X2217 Contact Us For Availability
384
GEN WR17X2225 GEN WR17X2225 Contact Us For Availability
386
GEN WZ06X0100 GEN WZ06X0100 Contact Us For Availability
387
GEN WR02X7769 GEN WR02X7769 Contact Us For Availability
387
GEN WR17X2305 GEN WR17X2305 Contact Us For Availability
400
GEN WR71X1793 GEN WR71X1793 Contact Us For Availability
401
GEN WR32X0944 GEN WR32X0944 Contact Us For Availability
402
GEN WR38X1117 GEN WR38X1117 Contact Us For Availability
402
GEN WR38X1136 GEN WR38X1136 Contact Us For Availability
403
GEN WR38X1199 GEN WR38X1199 Contact Us For Availability
404
GEN WR38X1124 GEN WR38X1124 Contact Us For Availability
409
GEN WR02X7865 GEN WR02X7865 Contact Us For Availability
447
GEN WR02X7777 GEN WR02X7777 Contact Us For Availability
450
GEN WR02X7630 GEN WR02X7630 Contact Us For Availability
452
GEN WR02X8077 GEN WR02X8077 Contact Us For Availability
473
GEN WR17X2170 GEN WR17X2170 Contact Us For Availability
473
GEN WR17 GEN WR17 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
566
GEN WR01X1487 GEN WR01X1487 Contact Us For Availability
603
GEN WR17X2234 GEN WR17X2234 Contact Us For Availability
604
GEN WR17X2402 GEN WR17X2402 Contact Us For Availability
606
GEN WR17X2401 GEN WR17X2401 Contact Us For Availability
608
GEN WR17X2403 GEN WR17X2403 Contact Us For Availability
621
GEN WR02X7785 GEN WR02X7785 Contact Us For Availability
622
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X2229 GEN WR17X2229 Contact Us For Availability
635
GEN WR01X1684 GEN WR01X1684 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0167 GEN WR60X0167 Contact Us For Availability
683
SCREW GEN WR01X1716 Contact Us For Availability
684
GEN WR01X1758 GEN WR01X1758 Contact Us For Availability
685
GEN WR01X1730 GEN WR01X1730 Contact Us For Availability
726
MACHINE LOW SIDE GEN WR85X0214 Contact Us For Availability
730
CONDENSER ASM GEN WR84X0132 Contact Us For Availability
733
GEN WR07X0197 GEN WR07X0197 Contact Us For Availability
734
GEN WR02X7921 GEN WR02X7921 Contact Us For Availability
734
GEN WR02X7922 GEN WR02X7922 Contact Us For Availability
736
GEN WR01X1780 GEN WR01X1780 Contact Us For Availability
736
GEN WR02X7228 GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
739
GEN WR01X1746 GEN WR01X1746 Contact Us For Availability
751
GEN WR17X2418 GEN WR17X2418 Contact Us For Availability
752
GEN WR17X2417 GEN WR17X2417 Contact Us For Availability
753
BAFFLE-CENTER GEN WR17X2084 Contact Us For Availability
754
GEN WR17X2437 GEN WR17X2437 Contact Us For Availability
755
GEN WR17X2227 GEN WR17X2227 Contact Us For Availability
756
GEN WR17X2161 GEN WR17X2161 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X7667 GEN WR02X7667 Contact Us For Availability
815
GEN WR57X0073 GEN WR57X0073 Contact Us For Availability
820
GEN WR30X0280 GEN WR30X0280 Contact Us For Availability
900
FZ O.DOOR RH WH GEN WR78X7973 Contact Us For Availability
910
FF O.DOOR WH GEN WR78X7968 Contact Us For Availability
921
GEN WR02X7624 GEN WR02X7624 Contact Us For Availability
32767
GEN 39-6244 GEN 39-6244 Contact Us For Availability
× ![]()
