Model Hotpoint CTX18DABBRWW Refrigerator – Common Parts & Diagrams

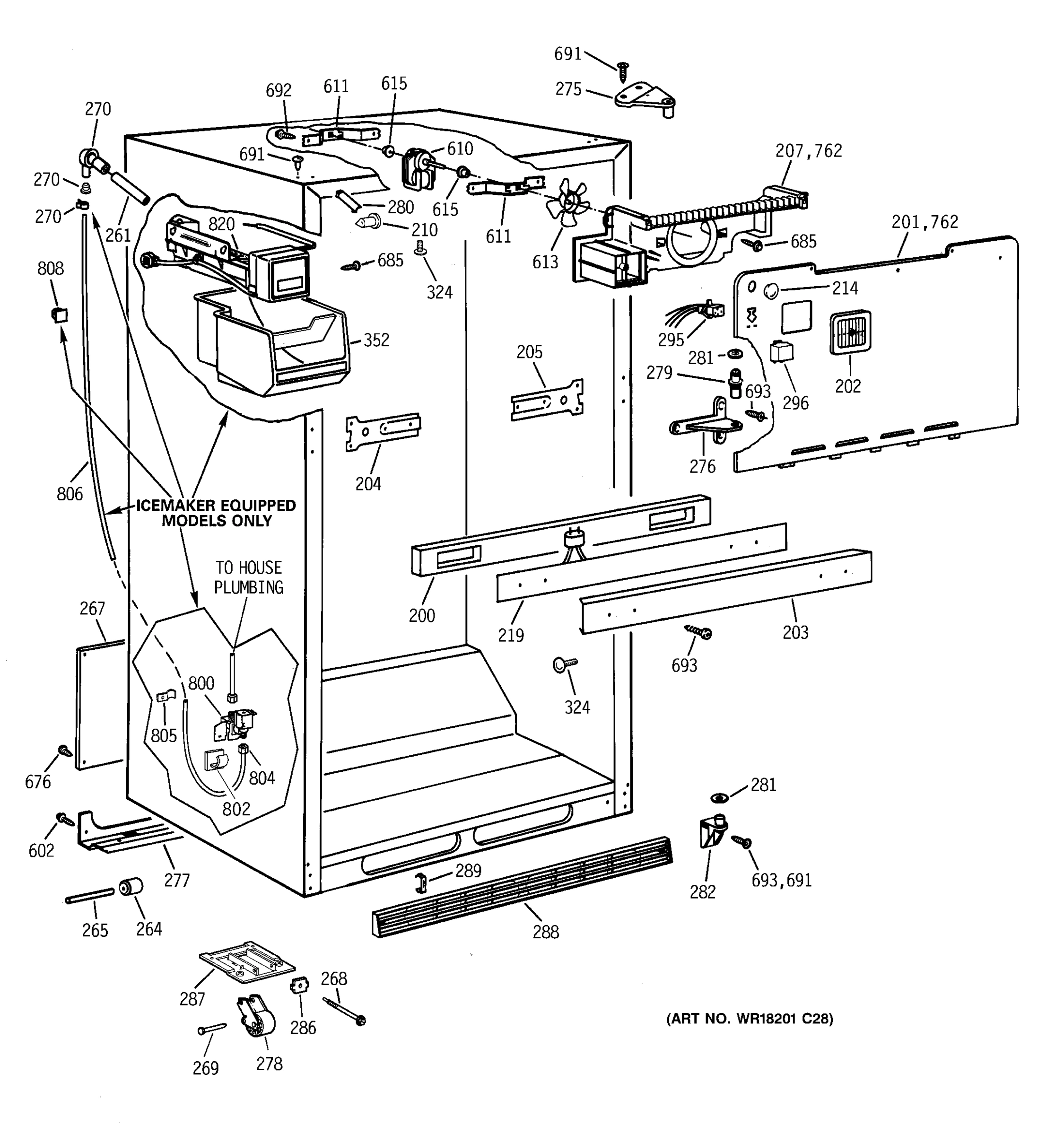

CABINET PARTS
COMPARTMENT SEPARATOR PARTS

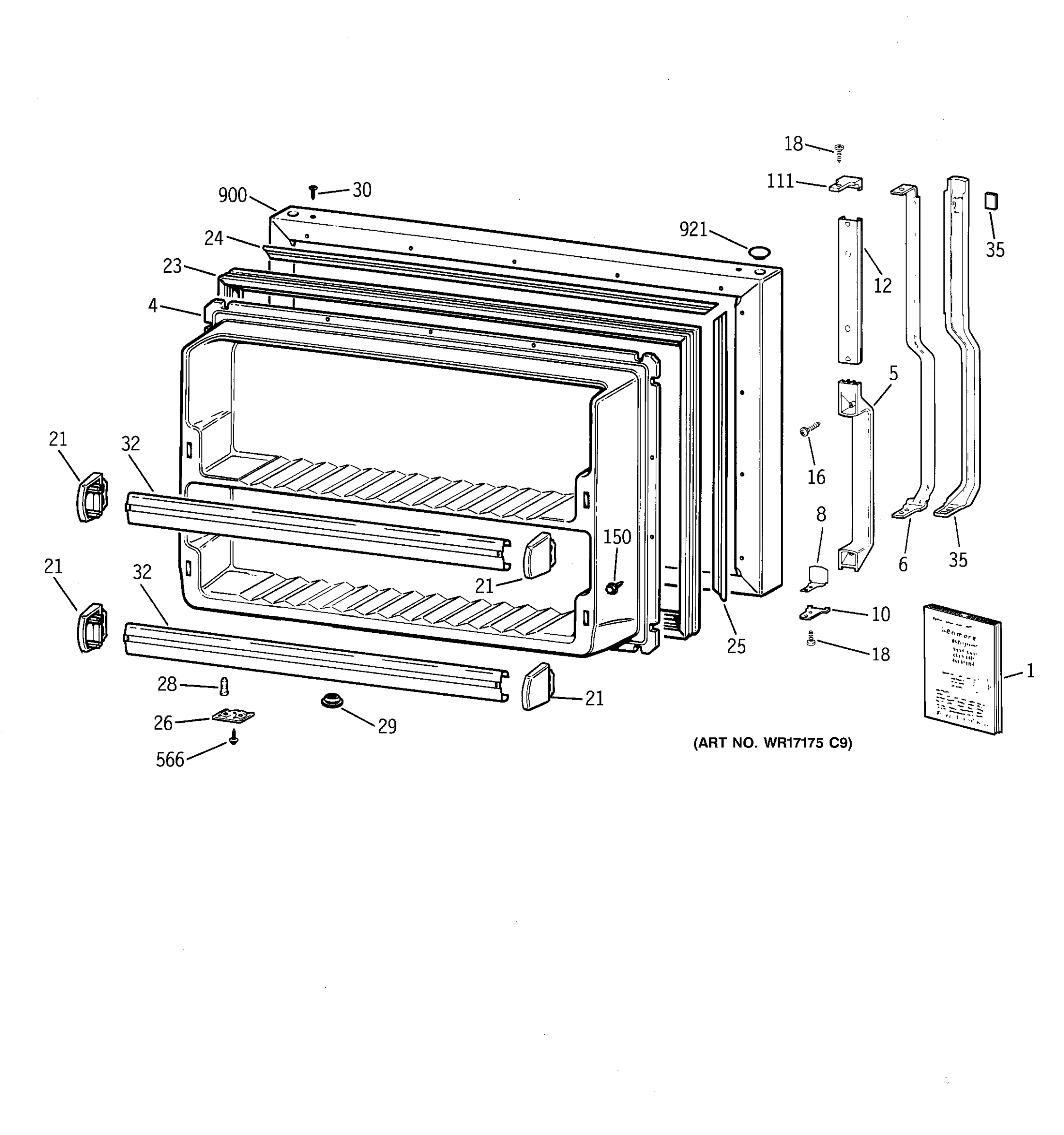

FREEZER DOOR

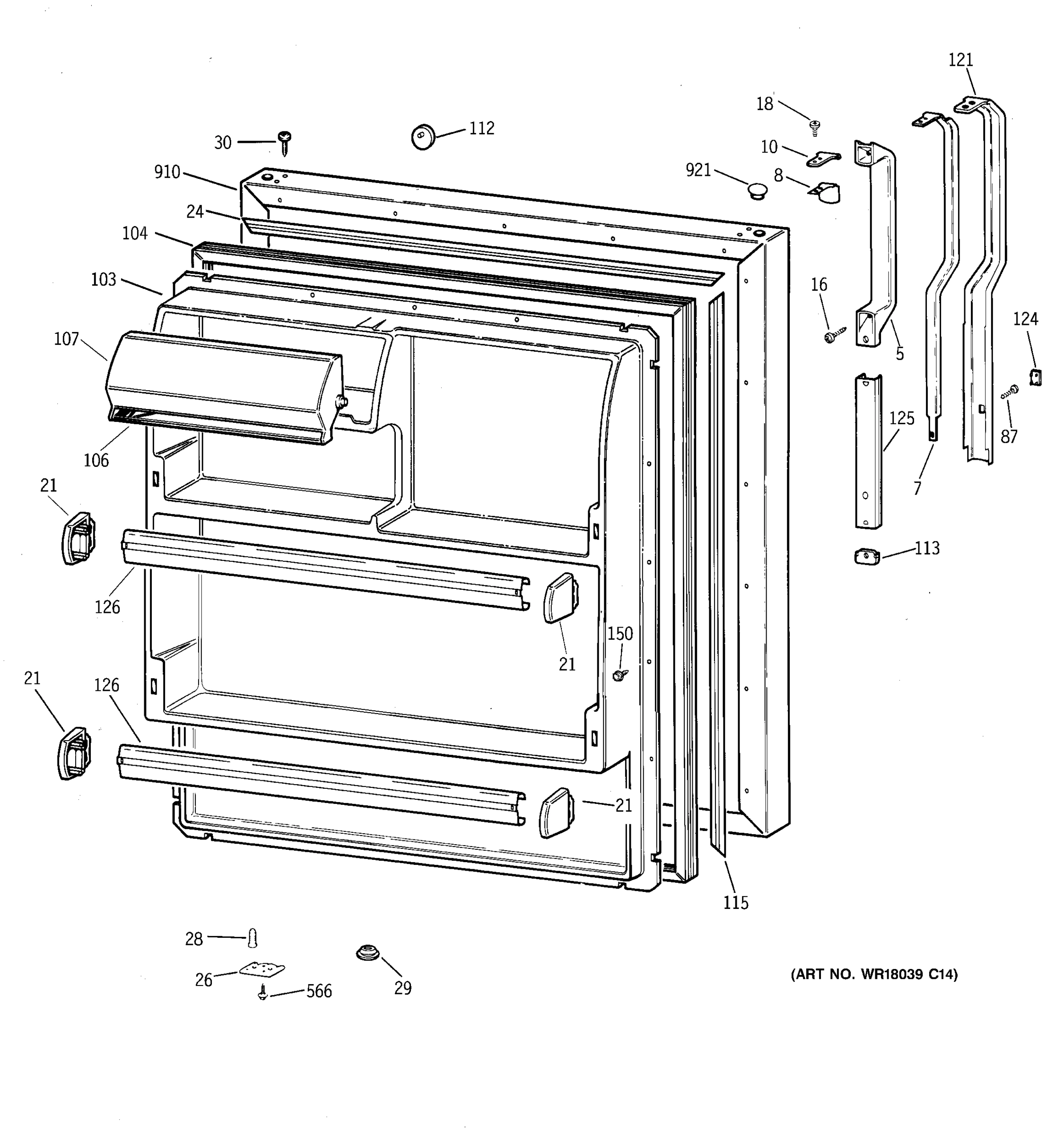

FRESH FOOD DOOR

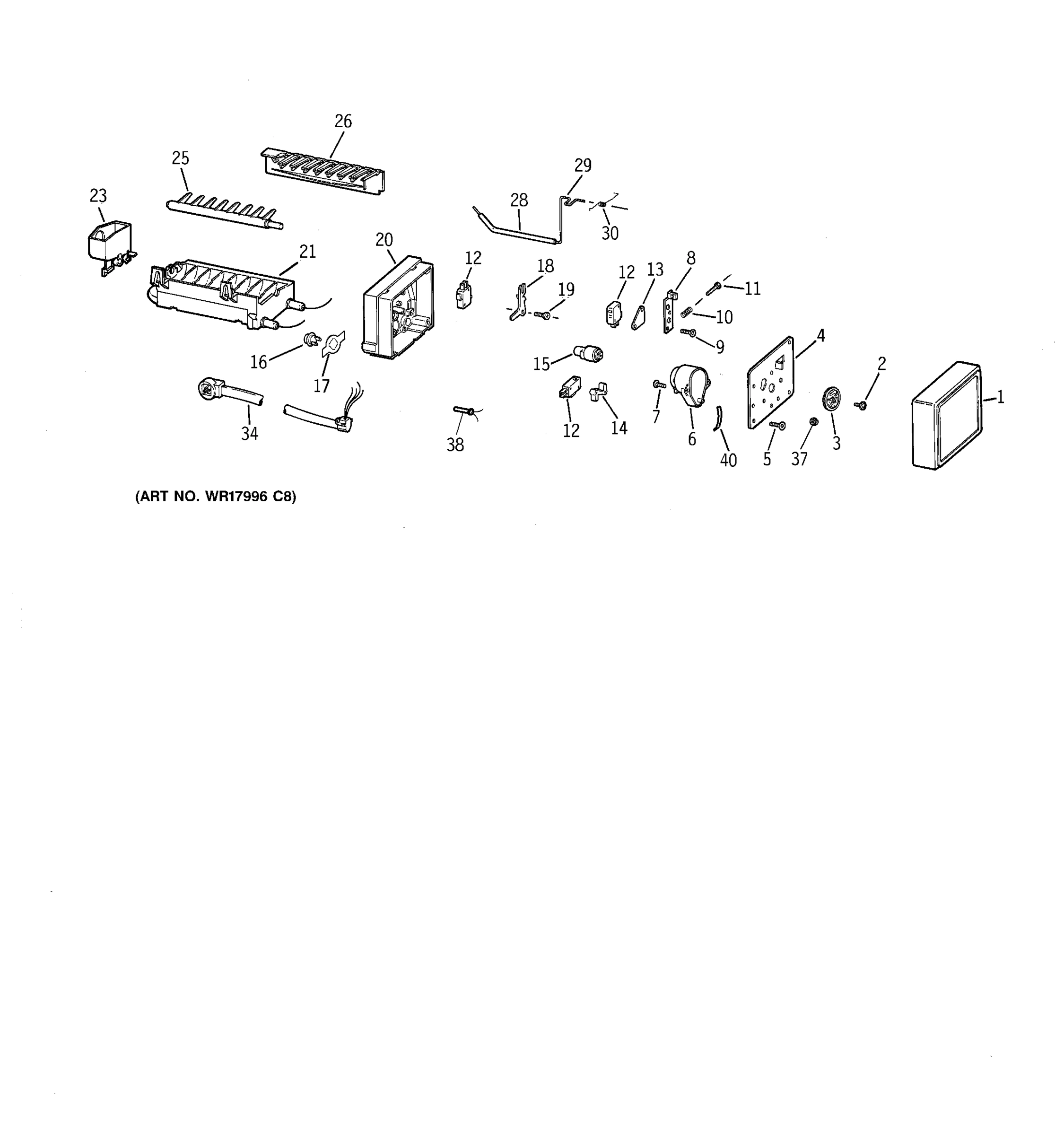

ICEMAKER WR30X0327

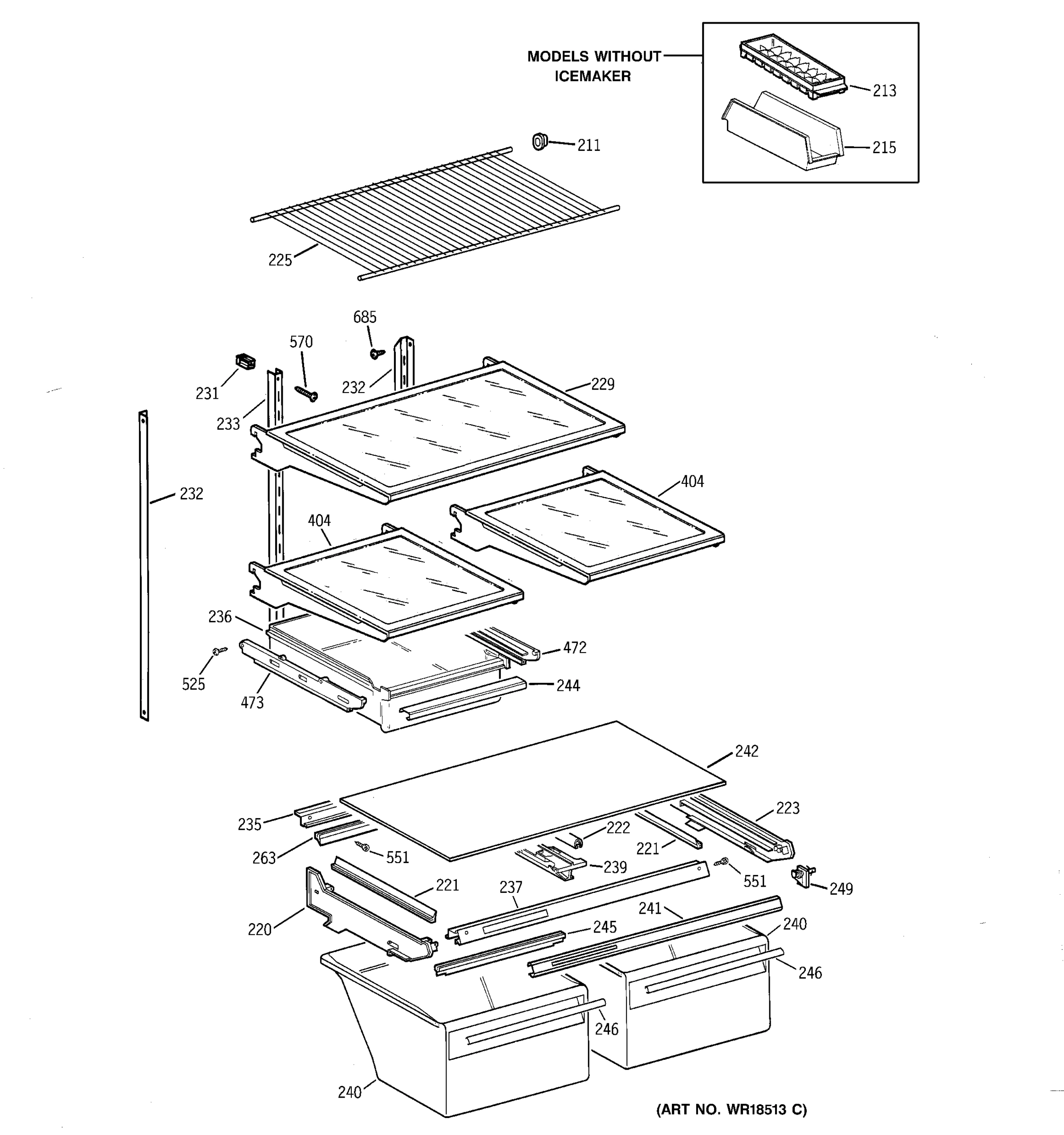

SHELF PARTS

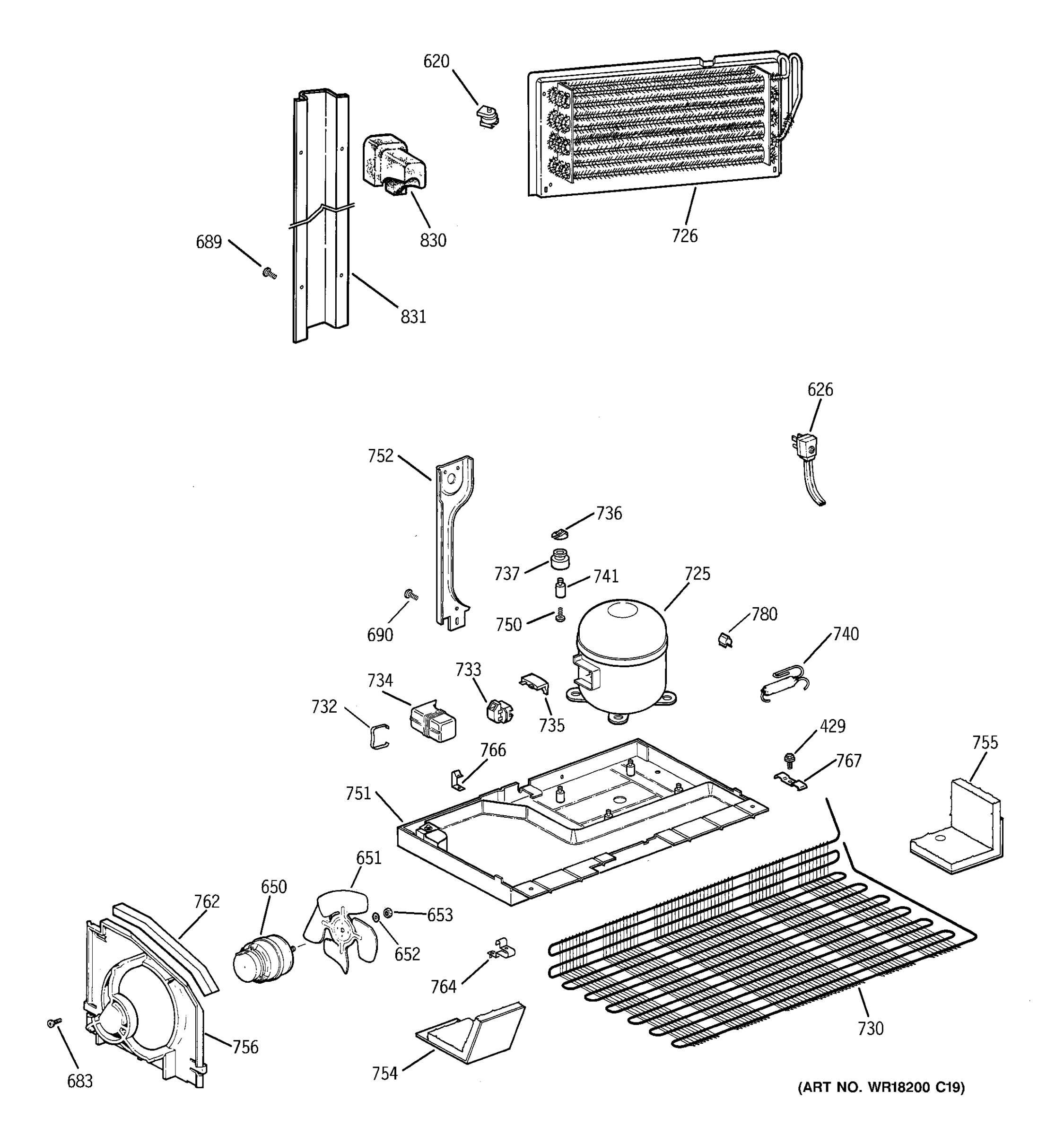

UNIT PARTS
Common parts from model Hotpoint CTX18DABBRWW Refrigerator
1
GEN 31-5036 GEN 31-5036 Contact Us For Availability
1
GEN 31-51124 GEN 31-51124 Contact Us For Availability
1
MINI MANUAL WIRING GEN 31-51177 Contact Us For Availability
1
GEN 39-6413 GEN 39-6413 Contact Us For Availability
1
GEN 39-6414 GEN 39-6414 Contact Us For Availability
1
COVER-WHITE GEN WR29X0182 Contact Us For Availability
2
SCREW GEN WR29X5109 Contact Us For Availability
4
GEN WR77X0610 GEN WR77X0610 Contact Us For Availability
4
GEN WR77X0648 GEN WR77X0648 Contact Us For Availability
4
PLATE-MTG GEN WR29X5163 Contact Us For Availability
5
GEN WR12X0553 GEN WR12X0553 Contact Us For Availability
5
SCREW-PLATE TO SUPPORT GEN WR29X5112 Contact Us For Availability
6
GEN WR12X2845 GEN WR12X2845 Contact Us For Availability
7
GEN WR12X0598 GEN WR12X0598 Contact Us For Availability
7
SCREW-MOTOR TO PLATE GEN WR29X5135 Contact Us For Availability
8
GEN WR02X8089 GEN WR02X8089 Contact Us For Availability
9
SCREW ARM TO SWITCH GEN WR29X5140 Contact Us For Availability
10
GEN WR02X7613 GEN WR02X7613 Contact Us For Availability
11
SCREW GEN WR29X5139 Contact Us For Availability
12
SWITCH GEN WR29X5171 Contact Us For Availability
12
GEN WR12X0587 GEN WR12X0587 Contact Us For Availability
13
GEN WR29X5188 GEN WR29X5188 Contact Us For Availability
14
SCREW FAN MTR/BRKT GEN WZ05X0164 Contact Us For Availability
14
GEN WR29X5186 GEN WR29X5186 Contact Us For Availability
15
GEN WR29X5167 GEN WR29X5167 Contact Us For Availability
16
GEN WR01X1724 GEN WR01X1724 Contact Us For Availability
18
GEN WR29X5183 GEN WR29X5183 Contact Us For Availability
19
SCREW-ARM GEN WR29X5122 Contact Us For Availability
21
MOLD & HEATER ASM GEN WR29X0204 Contact Us For Availability
23
FILL CUP GEN WR29X0153 Contact Us For Availability
24
GEN WR02X8235 GEN WR02X8235 Contact Us For Availability
24
GEN WR17X2279 GEN WR17X2279 Contact Us For Availability
25
GEN WR17X2281 GEN WR17X2281 Contact Us For Availability
25
GEN WR29X5174 GEN WR29X5174 Contact Us For Availability
26
GEN WR02X7628 GEN WR02X7628 Contact Us For Availability
26
GEN WR02X9219 GEN WR02X9219 Contact Us For Availability
27
GEN WR02X9220 GEN WR02X9220 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
28
GEN WR29X5178 GEN WR29X5178 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
29
GEN WR02X8236 GEN WR02X8236 Contact Us For Availability
29
GEN WR29X5179 GEN WR29X5179 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
34
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
35
GEN WR04X10020 GEN WR04X10020 Contact Us For Availability
35
GEN WR12X10088 GEN WR12X10088 Contact Us For Availability
37
GEN WR29X5153 GEN WR29X5153 Contact Us For Availability
85
GEN WR01X2008 GEN WR01X2008 Contact Us For Availability
96
GEN WR01X2009 GEN WR01X2009 Contact Us For Availability
99
TRIM BRIGHT D DOOR GEN WR38X10001 Contact Us For Availability
103
GEN WR77X0651 GEN WR77X0651 Contact Us For Availability
103
GEN WR77X0609 GEN WR77X0609 Contact Us For Availability
106
GEN WR38X10004 GEN WR38X10004 Contact Us For Availability
107
GEN WR22X0518 GEN WR22X0518 Contact Us For Availability
108
GEN WR17X3881 GEN WR17X3881 Contact Us For Availability
111
GEN WR02X7610 GEN WR02X7610 Contact Us For Availability
113
GEN WR02X7611 GEN WR02X7611 Contact Us For Availability
115
GEN WR17X2280 GEN WR17X2280 Contact Us For Availability
115
GEN WR02X9221 GEN WR02X9221 Contact Us For Availability
121
GEN WR12X0708 GEN WR12X0708 Contact Us For Availability
124
GEN WR12X0721 GEN WR12X0721 Contact Us For Availability
125
GEN WR12X0557 GEN WR12X0557 Contact Us For Availability
201
GEN WR17X2628 GEN WR17X2628 Contact Us For Availability
210
GEN WR02X8999 GEN WR02X8999 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
215
GEN WR32X1560 GEN WR32X1560 Contact Us For Availability
220
SLIDE VEG PAN LH GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
223
SLIDE VEG PAN RH GEN WR17X2769 Contact Us For Availability
225
GEN WR71X1955 GEN WR71X1955 Contact Us For Availability
229
GEN WR32X10043 GEN WR32X10043 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0142 GEN WR72X0142 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X2780 GEN WR17X2780 Contact Us For Availability
236
GEN WR32X1073 GEN WR32X1073 Contact Us For Availability
237
GEN WR17X2779 GEN WR17X2779 Contact Us For Availability
237
GEN WR38X2036 GEN WR38X2036 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
239
GEN WR17X3164 GEN WR17X3164 Contact Us For Availability
240
GEN WR32X1132 GEN WR32X1132 Contact Us For Availability
241
GEN WR38X2016 GEN WR38X2016 Contact Us For Availability
241
GEN WR17X10222 GEN WR17X10222 Contact Us For Availability
242
GEN WR32X1497 GEN WR32X1497 Contact Us For Availability
242
GEN WR32X10041 GEN WR32X10041 Contact Us For Availability
244
GEN WR38X10092 GEN WR38X10092 Contact Us For Availability
245
GEN WR14X0358 GEN WR14X0358 Contact Us For Availability
246
GEN WR38X10107 GEN WR38X10107 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
263
GEN WR14X0418 GEN WR14X0418 Contact Us For Availability
264
GEN WR02X8214 GEN WR02X8214 Contact Us For Availability
265
GEN WR02X8245 GEN WR02X8245 Contact Us For Availability
267
GEN WR82X0322 GEN WR82X0322 Contact Us For Availability
269
GEN WR02X8949 GEN WR02X8949 Contact Us For Availability
275
GEN WR13X0694 GEN WR13X0694 Contact Us For Availability
276
GEN WR13X0693 GEN WR13X0693 Contact Us For Availability
277
GEN WR17X3188 GEN WR17X3188 Contact Us For Availability
278
WHEEL MOBILITY FRT GEN WR02X8244 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
279
GEN WR02X8232 GEN WR02X8232 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
280
GEN WR02X8465 GEN WR02X8465 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
282
GEN WR13X0690 GEN WR13X0690 Contact Us For Availability
283
GEN WR02X9212 GEN WR02X9212 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
287
GEN WR02X9210 GEN WR02X9210 Contact Us For Availability
287
GEN WR02X9211 GEN WR02X9211 Contact Us For Availability
288
GEN WR74X0220 GEN WR74X0220 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
294
GEN WR02X9148 GEN WR02X9148 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X8444 GEN WR02X8444 Contact Us For Availability
296
GEN WR02X9159 GEN WR02X9159 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
301
GEN WR02X8231 GEN WR02X8231 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR17X2629 GEN WR17X2629 Contact Us For Availability
305
GEN WR02X9298 GEN WR02X9298 Contact Us For Availability
305
GEN WR02X9158 GEN WR02X9158 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
307
GEN WR02X8463 GEN WR02X8463 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
308
GEN WR02X8248 GEN WR02X8248 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
309
GEN WR02X8246 GEN WR02X8246 Contact Us For Availability
313
TUBE DRAIN GEN WR17X2647 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GEN WR02X10068 GEN WR02X10068 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
404
GEN WR32X10042 GEN WR32X10042 Contact Us For Availability
427
GEN WR23X0358 GEN WR23X0358 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
452
GEN WR02X8870 GEN WR02X8870 Contact Us For Availability
472
GEN WR72X0273 GEN WR72X0273 Contact Us For Availability
473
GEN WR72X0274 GEN WR72X0274 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
573
GEN WZ04X0254 GEN WZ04X0254 Contact Us For Availability
603
GEN WR17X2630 GEN WR17X2630 Contact Us For Availability
603
LINER BOTTOM FZ GEN WR17X2275 Contact Us For Availability
604
GEN WR17X3494 GEN WR17X3494 Contact Us For Availability
606
GEN WR17X2385 GEN WR17X2385 Contact Us For Availability
608
GEN WR17X10028 GEN WR17X10028 Contact Us For Availability
610
GEN WR60X203 GEN WR60X203 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
611
GEN WR02X8216 GEN WR02X8216 Contact Us For Availability
612
GEN WR02X8217 GEN WR02X8217 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
618
HEATER & BRKT ASM GEN WR51X0 Contact Us For Availability
622
GEN WR17X2283 GEN WR17X2283 Contact Us For Availability
623
GEN WR14X0357 GEN WR14X0357 Contact Us For Availability
624
GEN WR17X3883 GEN WR17X3883 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
653
NUT COND. MOTOR GEN WR01X1715 Contact Us For Availability
679
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCREW 12-24 WH GEN WR01X2136 Contact Us For Availability
726
GEN WR85X0311 GEN WR85X0311 Contact Us For Availability
730
GEN WR84X0194 GEN WR84X0194 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0169 GEN WR08X0169 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
BRACE BUMPER ASM GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3771 GEN WR17X3771 Contact Us For Availability
755
GEN WR17X2268 GEN WR17X2268 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
910
GEN WR78X8726 GEN WR78X8726 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
