Model GE CTW900P3P1D1 Microwave Or Advantium – Common Parts & Diagrams

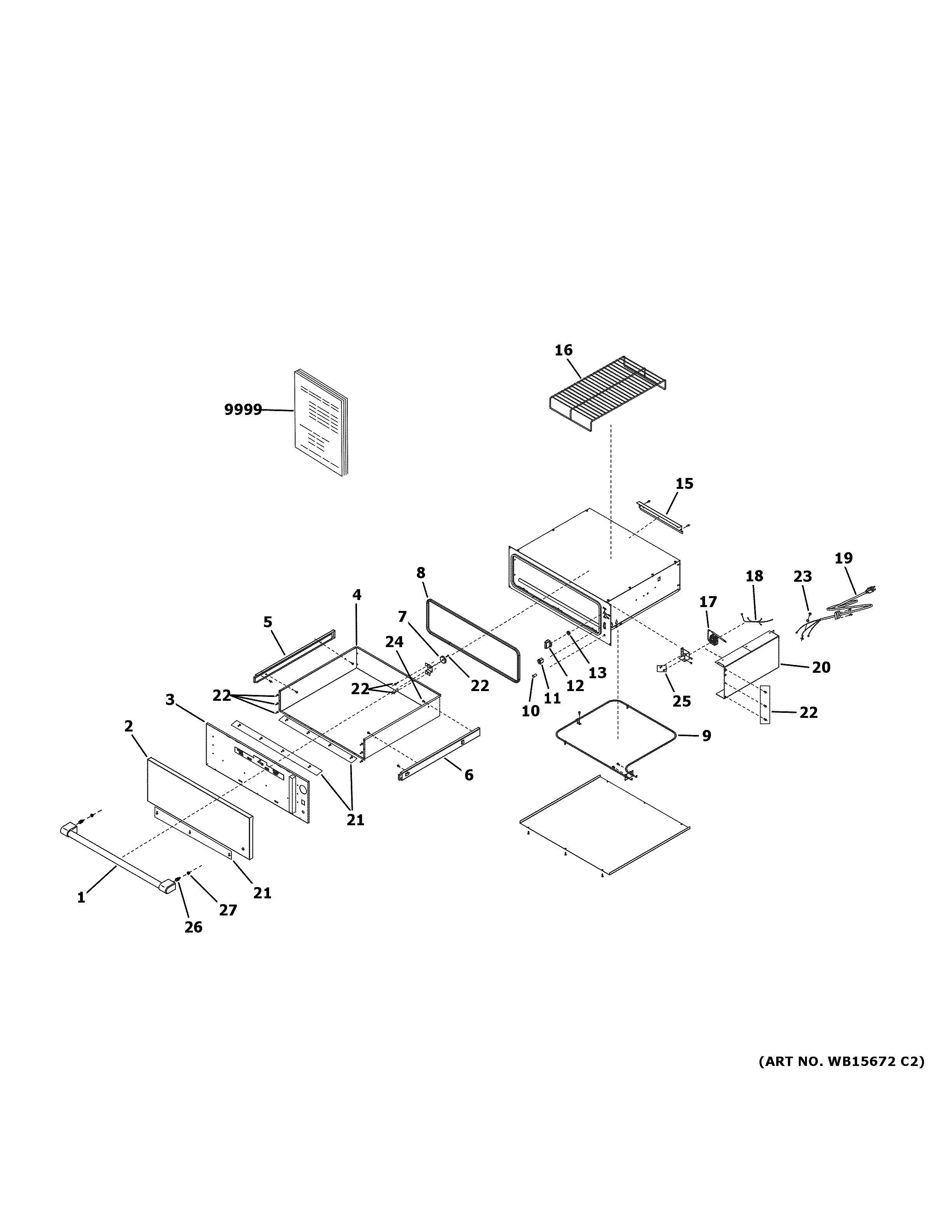

WARMING DRAWER
Common parts from model GE CTW900P3P1D1 Microwave Or Advantium
3
DOOR BACK PANEL GEN WB56X39021 Contact Us For Availability
4
DRAWER FRAME GEN WB63X41406 Contact Us For Availability
5
SLIDE LH GEN WB39X39038 Contact Us For Availability
6
SLIDE RH GEN WB39X39039 Contact Us For Availability
7
MAGNET AND COVER GEN WB02X39047 Contact Us For Availability
8
GASKET SEAL GEN WB02X39040 Contact Us For Availability
9
HEATER ELEMENT WITH BRACKET GEN WB44X40566 Contact Us For Availability
10
INDICATOR GEN WB02X39050 Contact Us For Availability
11
SWITCH GEN WB02X39051 Contact Us For Availability
13
KNOB SEAL GEN WB03X39034 Contact Us For Availability
15
ANTI - TIP BRACKET GEN WB02X41408 Contact Us For Availability
16
RACK GEN WB48X39031 Contact Us For Availability
17
TEMPERATURE CONTROL WITH SENSOR GEN WB20X39045 Contact Us For Availability
18
WIRING HARNESS GEN WB20X39042 Contact Us For Availability
19
POWER CORD GEN WB20X39043 Contact Us For Availability
20
CONTROL COVER GEN WB56X41409 Contact Us For Availability
21
FRONT APRON SCREW GEN WD02X25589 Contact Us For Availability
22
SCREW PAN HEAD M4*10 GEN WB02X39006 Contact Us For Availability
24
SLIDE SCREW GEN WB02X39027 Contact Us For Availability
25
SCREW FOR SENSOR GEN WB02X39030 Contact Us For Availability
26
HANDLE STUD HEAD 13mm LONG 24 mm GEN WB02X39049 Contact Us For Availability
27
HANDLE MOUNTING NUT GEN WB02X39071 Contact Us For Availability
9999
PM MINI MANUAL AND WIRING GEN 312000749 Contact Us For Availability
9999
PM OWNERS AND INSTALL GEN 492000685 Contact Us For Availability
× ![]()
