Model Hotpoint CTK18GAXSRWW Refrigerator – Common Parts & Diagrams
CABINET PARTS
COMPARTMENT SEPARATOR PARTS

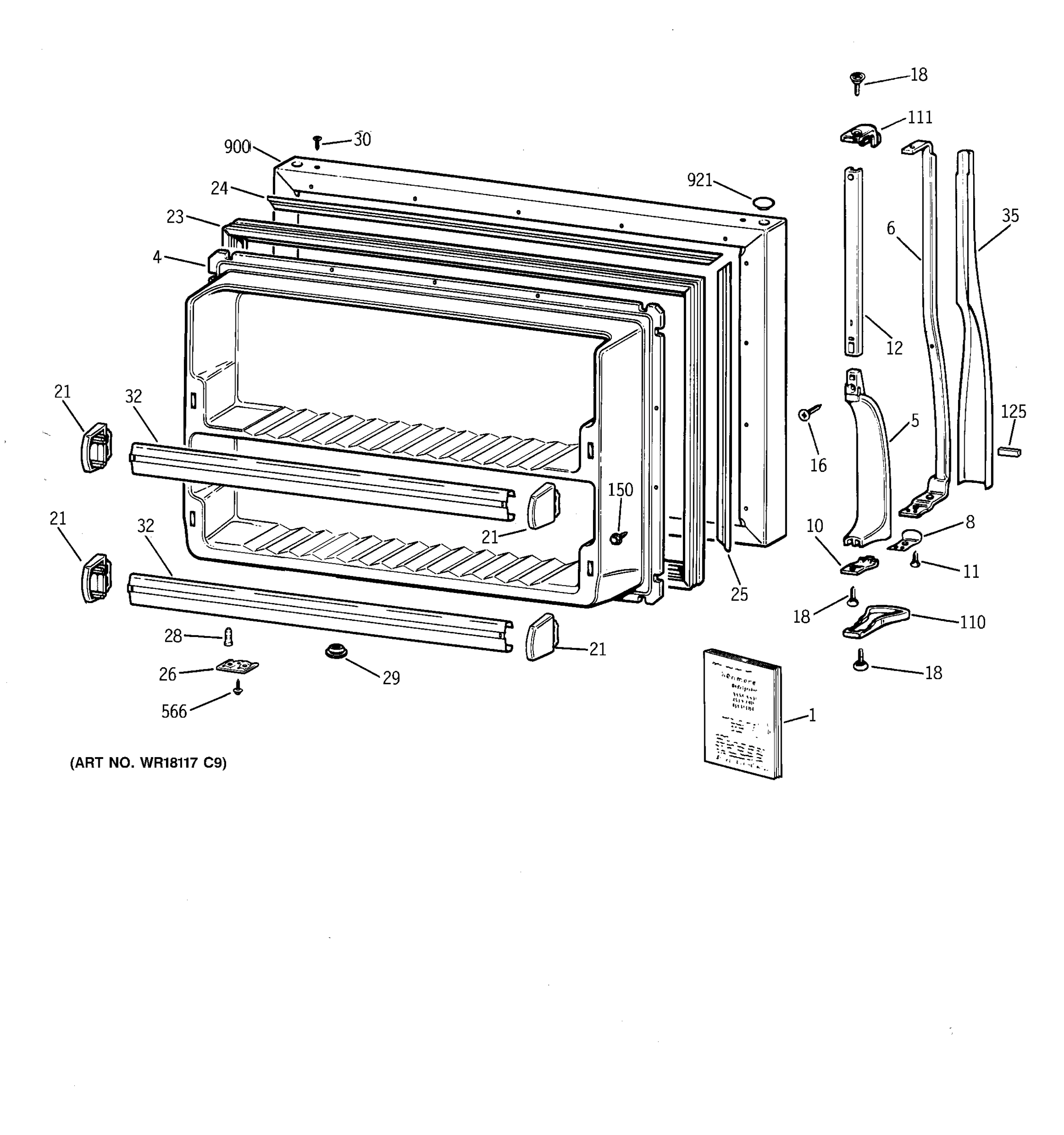

FREEZER DOOR

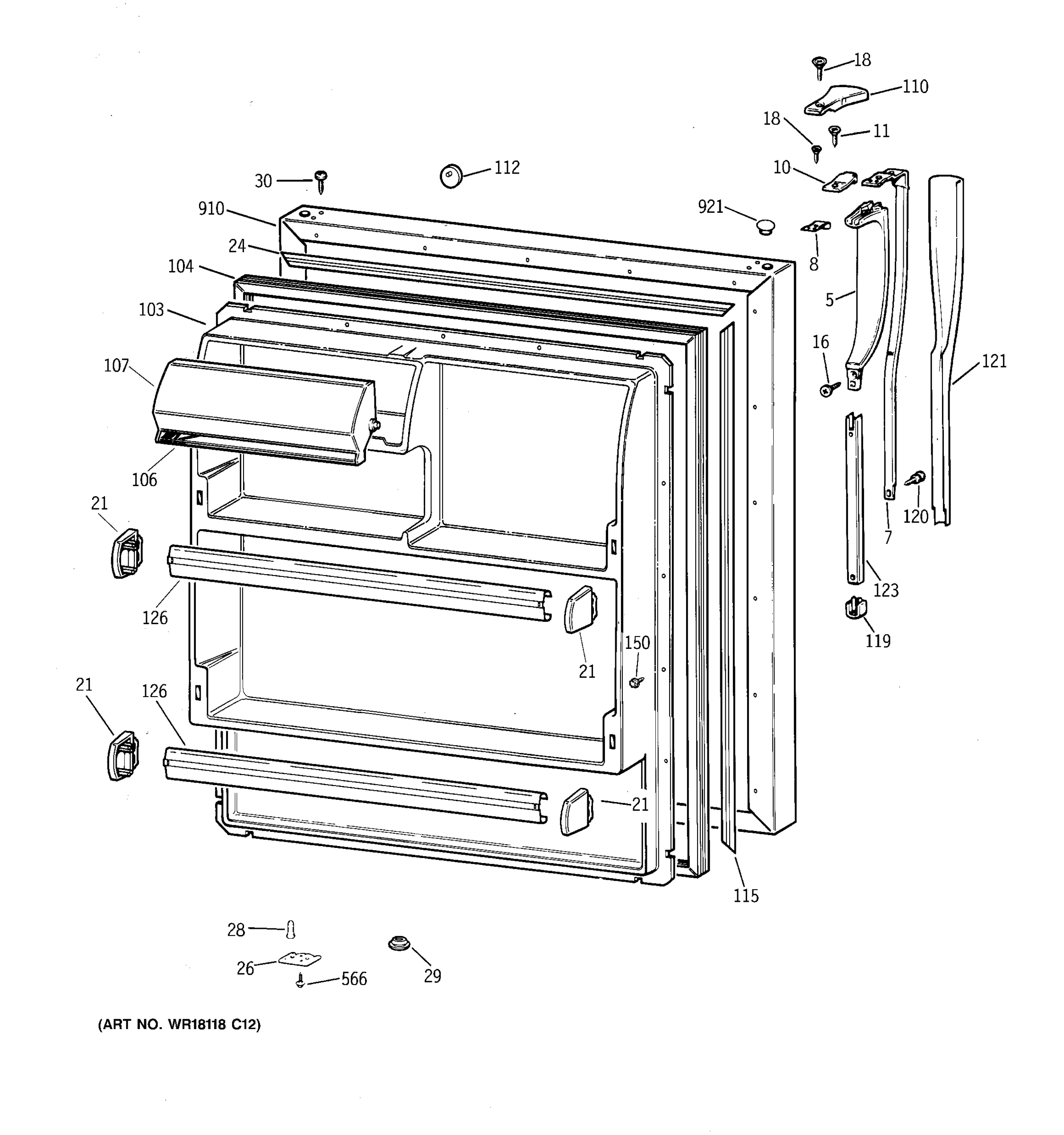

FRESH FOOD DOOR

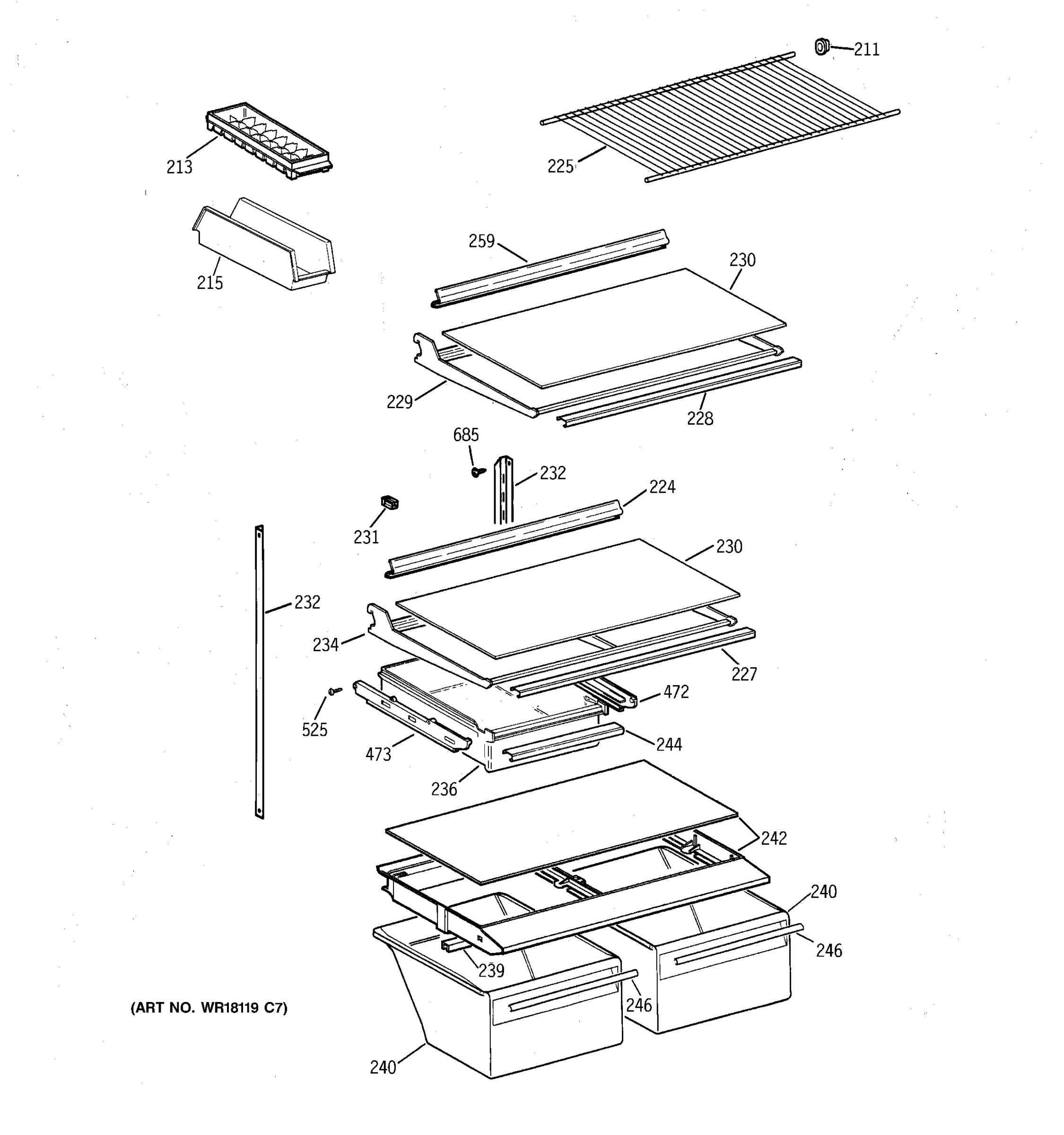

SHELF PARTS

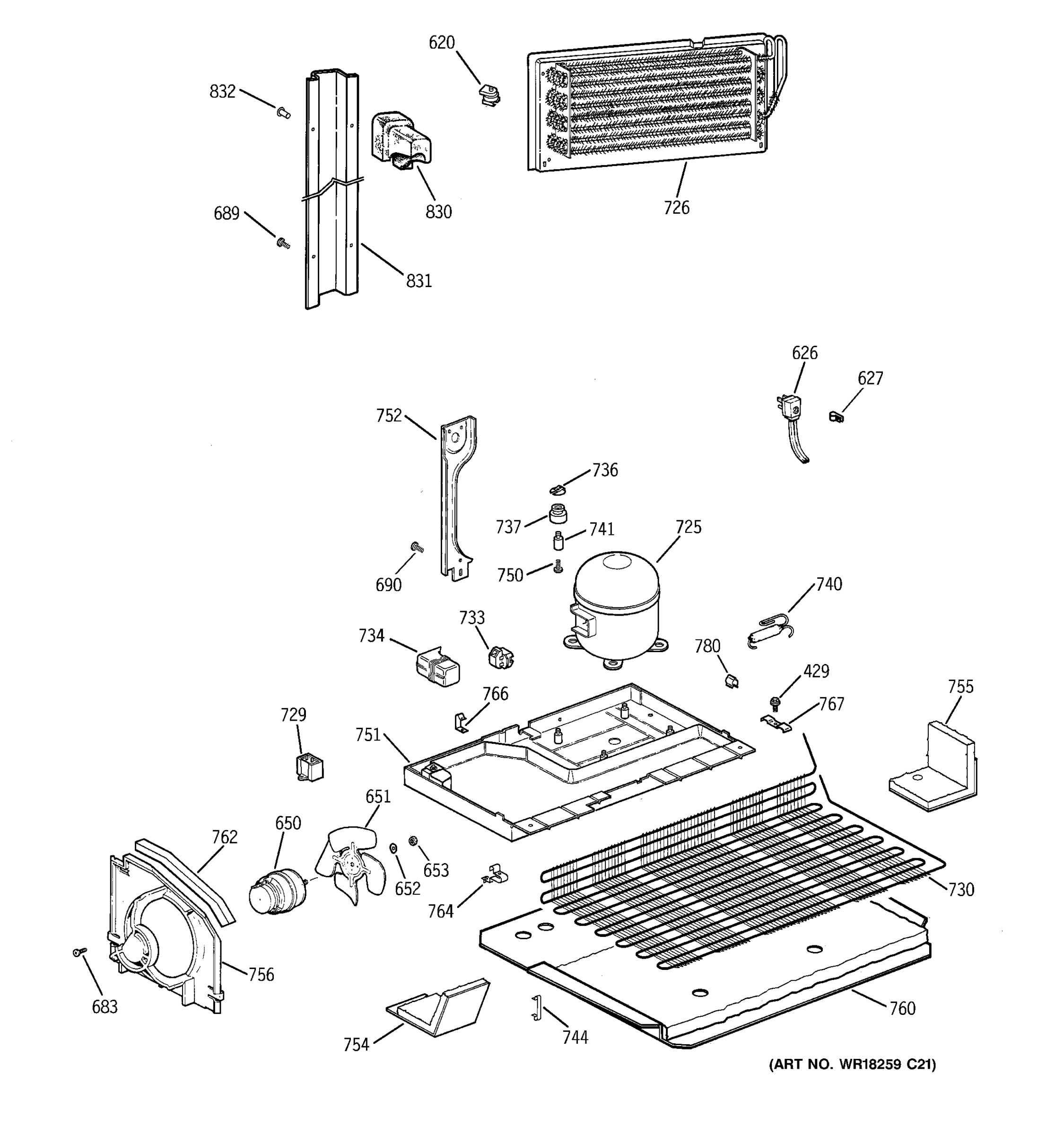

UNIT PARTS
Common parts from model Hotpoint CTK18GAXSRWW Refrigerator
1
MINI MANUAL WIRING GEN 31-45506 Contact Us For Availability
1
GUIDE OWNER GEN 49-6842 Contact Us For Availability
4
GEN WR77X0610 GEN WR77X0610 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0645 GEN WR12X0645 Contact Us For Availability
7
GEN WR12X0582 GEN WR12X0582 Contact Us For Availability
8
GEN WR02X7793 GEN WR02X7793 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
11
GEN WZ04X0352 GEN WZ04X0352 Contact Us For Availability
12
GEN WR12X0643 GEN WR12X0643 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
24
GEN WR17X2279 GEN WR17X2279 Contact Us For Availability
25
GEN WR17X2281 GEN WR17X2281 Contact Us For Availability
26
GEN WR02X9009 GEN WR02X9009 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
35
GEN WR12X0963 GEN WR12X0963 Contact Us For Availability
103
GEN WR77X0609 GEN WR77X0609 Contact Us For Availability
106
GEN WR38X2161 GEN WR38X2161 Contact Us For Availability
107
GEN WR22X0522 GEN WR22X0522 Contact Us For Availability
110
GEN WR02X7791 GEN WR02X7791 Contact Us For Availability
111
GEN WR02X7792 GEN WR02X7792 Contact Us For Availability
115
GEN WR17X2280 GEN WR17X2280 Contact Us For Availability
119
GEN WR02X4928 GEN WR02X4928 Contact Us For Availability
120
GEN WR01X1755 GEN WR01X1755 Contact Us For Availability
121
GEN WR12X1004 GEN WR12X1004 Contact Us For Availability
123
GEN WR12X0471 GEN WR12X0471 Contact Us For Availability
125
GEN WR04X0199 GEN WR04X0199 Contact Us For Availability
194
GEN WR02X8380 GEN WR02X8380 Contact Us For Availability
197
GEN WR02X9013 GEN WR02X9013 Contact Us For Availability
202
GRILLE ICE SERVICE GEN WR02X8629 Contact Us For Availability
203
GEN WR17X4195 GEN WR17X4195 Contact Us For Availability
204
GEN WR02X7823 GEN WR02X7823 Contact Us For Availability
205
GEN WR02X7822 GEN WR02X7822 Contact Us For Availability
207
GEN WR17X4052 GEN WR17X4052 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
215
BUCKET UTILITY GEN WR32X1560 Contact Us For Availability
219
GEN WR51X0454 GEN WR51X0454 Contact Us For Availability
225
GEN WR71X7644 GEN WR71X7644 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
227
GEN WR38X2163 GEN WR38X2163 Contact Us For Availability
228
GEN WR38X2162 GEN WR38X2162 Contact Us For Availability
229
GEN WR71X2179 GEN WR71X2179 Contact Us For Availability
230
GEN WR32X1507 GEN WR32X1507 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
234
GEN WR71X2191 GEN WR71X2191 Contact Us For Availability
236
GEN WR32X1355 GEN WR32X1355 Contact Us For Availability
239
SCREW BAFFLE COND GEN WR01X1737 Contact Us For Availability
239
GEN WR17X2282 GEN WR17X2282 Contact Us For Availability
240
GEN WR32X1351 GEN WR32X1351 Contact Us For Availability
242
GEN WR32X1508 GEN WR32X1508 Contact Us For Availability
244
GEN WR17X4185 GEN WR17X4185 Contact Us For Availability
246
GEN WR38X2160 GEN WR38X2160 Contact Us For Availability
255
GEN WR02X9152 GEN WR02X9152 Contact Us For Availability
256
GEN WR23X0408 GEN WR23X0408 Contact Us For Availability
258
GEN WR02X9369 GEN WR02X9369 Contact Us For Availability
259
GEN WR38X1636 GEN WR38X1636 Contact Us For Availability
260
GEN WR02X9001 GEN WR02X9001 Contact Us For Availability
261
GEN WR02X9015 GEN WR02X9015 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0365 GEN WR82X0365 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
272
GEN WR17X3699 GEN WR17X3699 Contact Us For Availability
274
GEN WR13X0717 GEN WR13X0717 Contact Us For Availability
275
HINGE TOP PIN ASM WH GEN WR13X0715 Contact Us For Availability
276
GEN WR13X0714 GEN WR13X0714 Contact Us For Availability
277
GEN WR17X3743 GEN WR17X3743 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0716 GEN WR13X0716 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
284
GEN WR02X9367 GEN WR02X9367 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0220 GEN WR74X0220 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X9011 GEN WR02X9011 Contact Us For Availability
300
GEN WR09X0563 GEN WR09X0563 Contact Us For Availability
301
GEN WR02X9151 GEN WR02X9151 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
305
GEN WR02X9565 GEN WR02X9565 Contact Us For Availability
306
HSG CONT LABEL ASM GEN WR17X4178 Contact Us For Availability
307
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET DRAIN & TUBE GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
PLUG BUTTON GEN WR02X7051 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
472
GEN WR72X0273 GEN WR72X0273 Contact Us For Availability
473
GEN SLIDE MEAT PAN LH WH GEN SLIDE MEAT PAN LH WH Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
603
GEN WR17X2275 GEN WR17X2275 Contact Us For Availability
604
GEN WR17X3494 GEN WR17X3494 Contact Us For Availability
606
GEN WR17X2385 GEN WR17X2385 Contact Us For Availability
607
GEN WR51X0455 GEN WR51X0455 Contact Us For Availability
608
GEN WR17X2774 GEN WR17X2774 Contact Us For Availability
610
GEN WR60X0260 GEN WR60X0260 Contact Us For Availability
611
GEN WR02X9225 GEN WR02X9225 Contact Us For Availability
613
GEN WR60X0258 GEN WR60X0258 Contact Us For Availability
615
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
618
GEN WR51X10004 GEN WR51X10004 Contact Us For Availability
622
GEN WR17X2283 GEN WR17X2283 Contact Us For Availability
623
GEN WR14X0357 GEN WR14X0357 Contact Us For Availability
624
GEN WR17X3883 GEN WR17X3883 Contact Us For Availability
625
GEN WR17X4050 GEN WR17X4050 Contact Us For Availability
625
GEN WR17X4051 GEN WR17X4051 Contact Us For Availability
626
GEN WR23X0413 GEN WR23X0413 Contact Us For Availability
627
GEN WR01X1930 GEN WR01X1930 Contact Us For Availability
648
GEN WR09X0572 GEN WR09X0572 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
653
NUT COND MOTOR GEN WR01X1715 Contact Us For Availability
679
SCR 8-18 B HXW 7/16 GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
692
SCR 8-18 HXW 3/4 GEN WZ04X0416 Contact Us For Availability
693
SCREW 12-24 WH GEN WR01X2136 Contact Us For Availability
694
GEN WR01X2120 GEN WR01X2120 Contact Us For Availability
725
GEN WR87X0478 GEN WR87X0478 Contact Us For Availability
726
GEN WR85X0311 GEN WR85X0311 Contact Us For Availability
729
GEN WR62X0085 GEN WR62X0085 Contact Us For Availability
730
GEN WR84X0201 GEN WR84X0201 Contact Us For Availability
733
GEN WR07X0247 GEN WR07X0247 Contact Us For Availability
734
GEN WR02X9291 GEN WR02X9291 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
744
GEN WR02X9209 GEN WR02X9209 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
BRACE BUMPER ASM GEN WR17X3858 Contact Us For Availability
754
GEN WR17X4048 GEN WR17X4048 Contact Us For Availability
755
GEN WR17X2268 GEN WR17X2268 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
760
GEN WR82X0366 GEN WR82X0366 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
900
GEN WR78X8727 GEN WR78X8727 Contact Us For Availability
910
GEN WR78X8726 GEN WR78X8726 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
