Model Hotpoint CTG21GAXDRWW Refrigerator – Common Parts & Diagrams

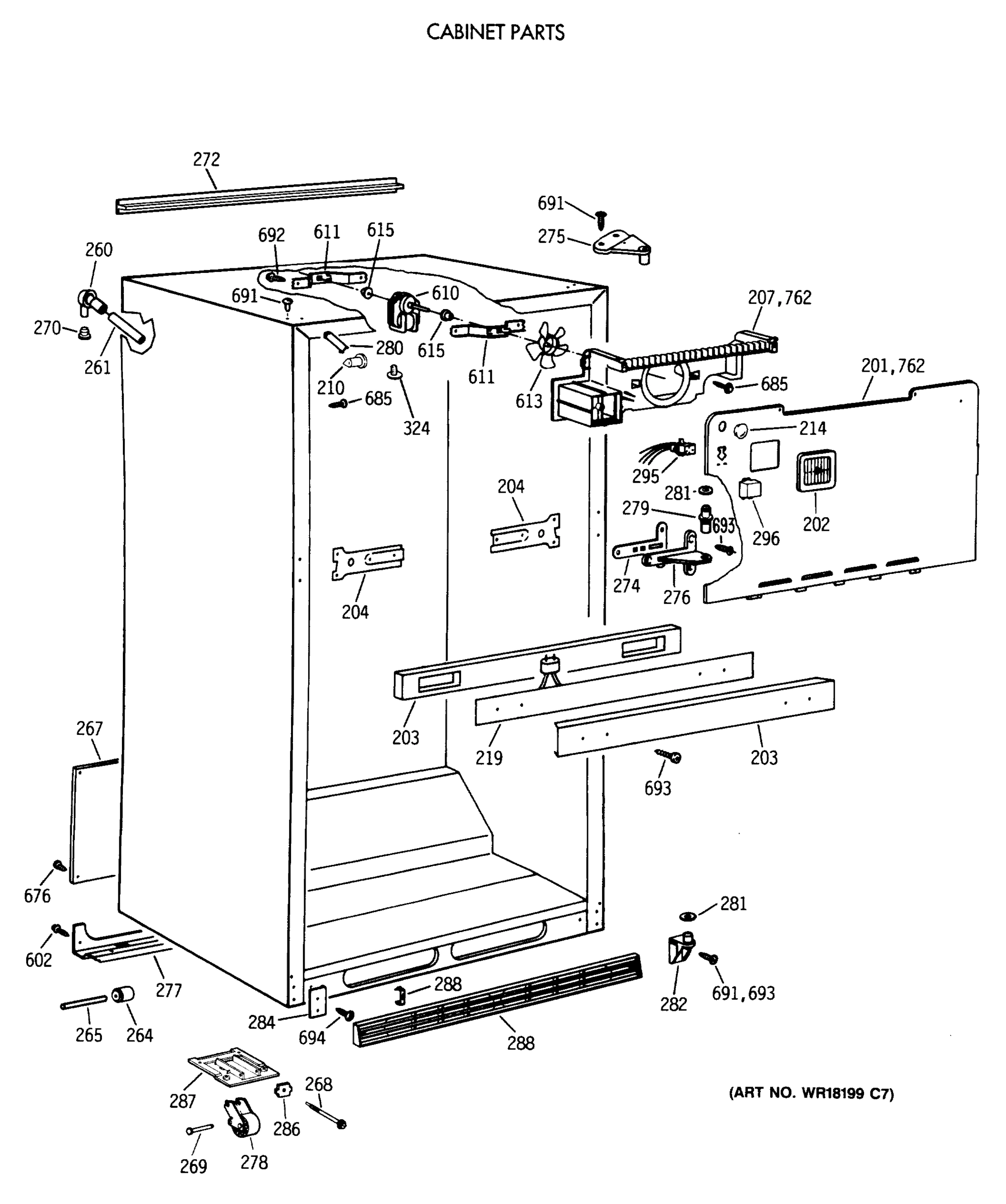

CABINET PARTS

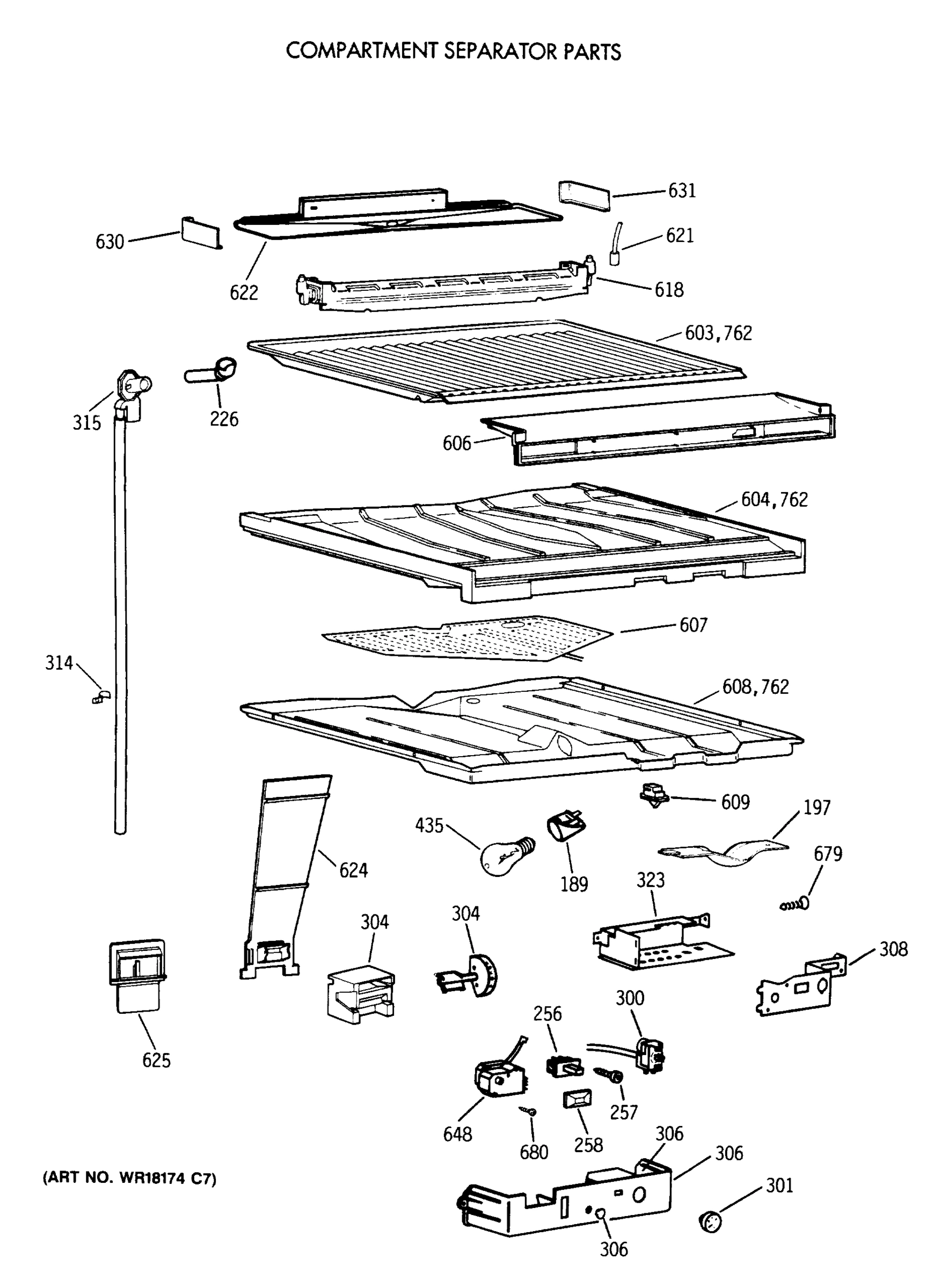

COMPARTMENT SEPARATOR PARTS

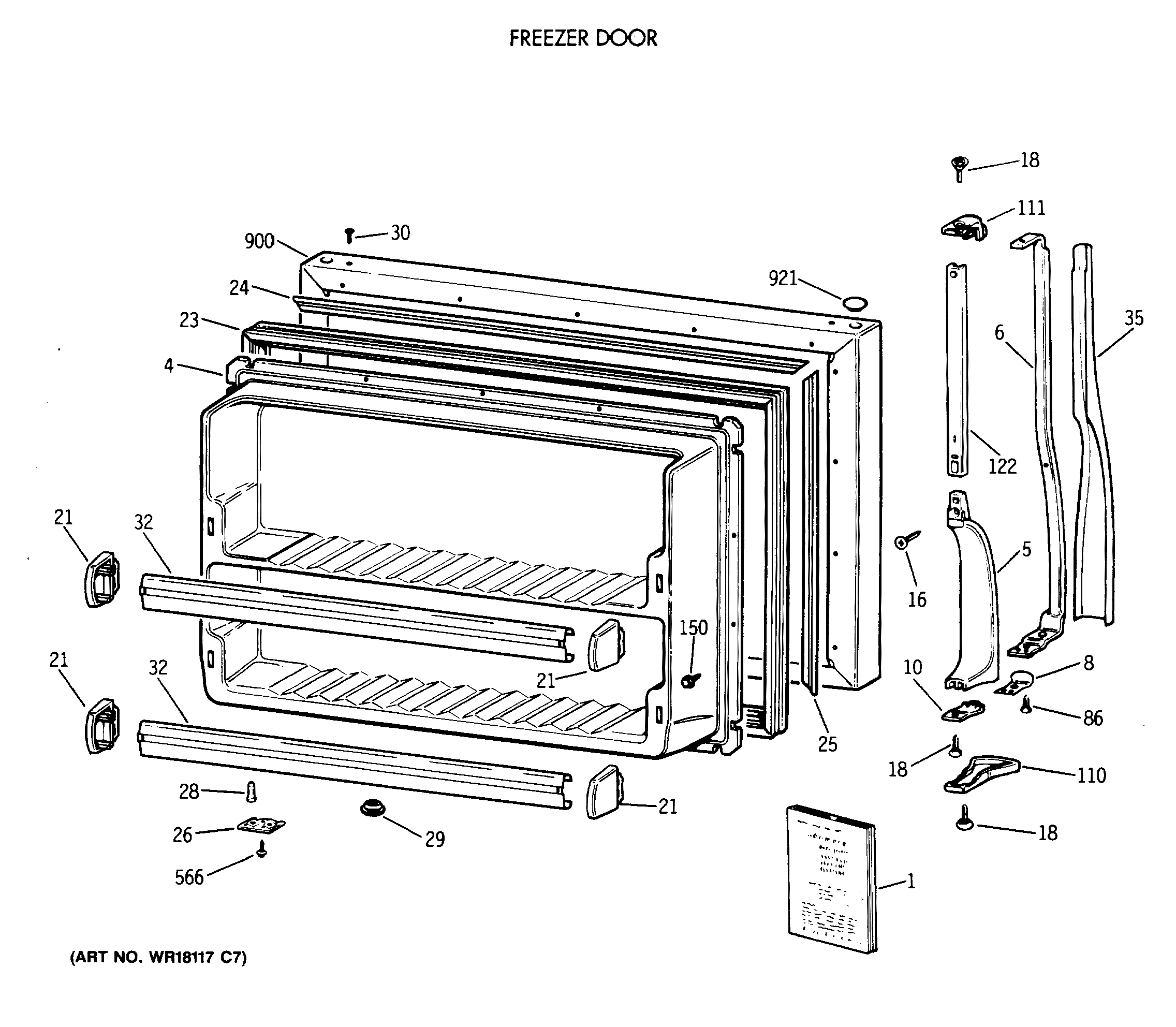

FREEZER DOOR

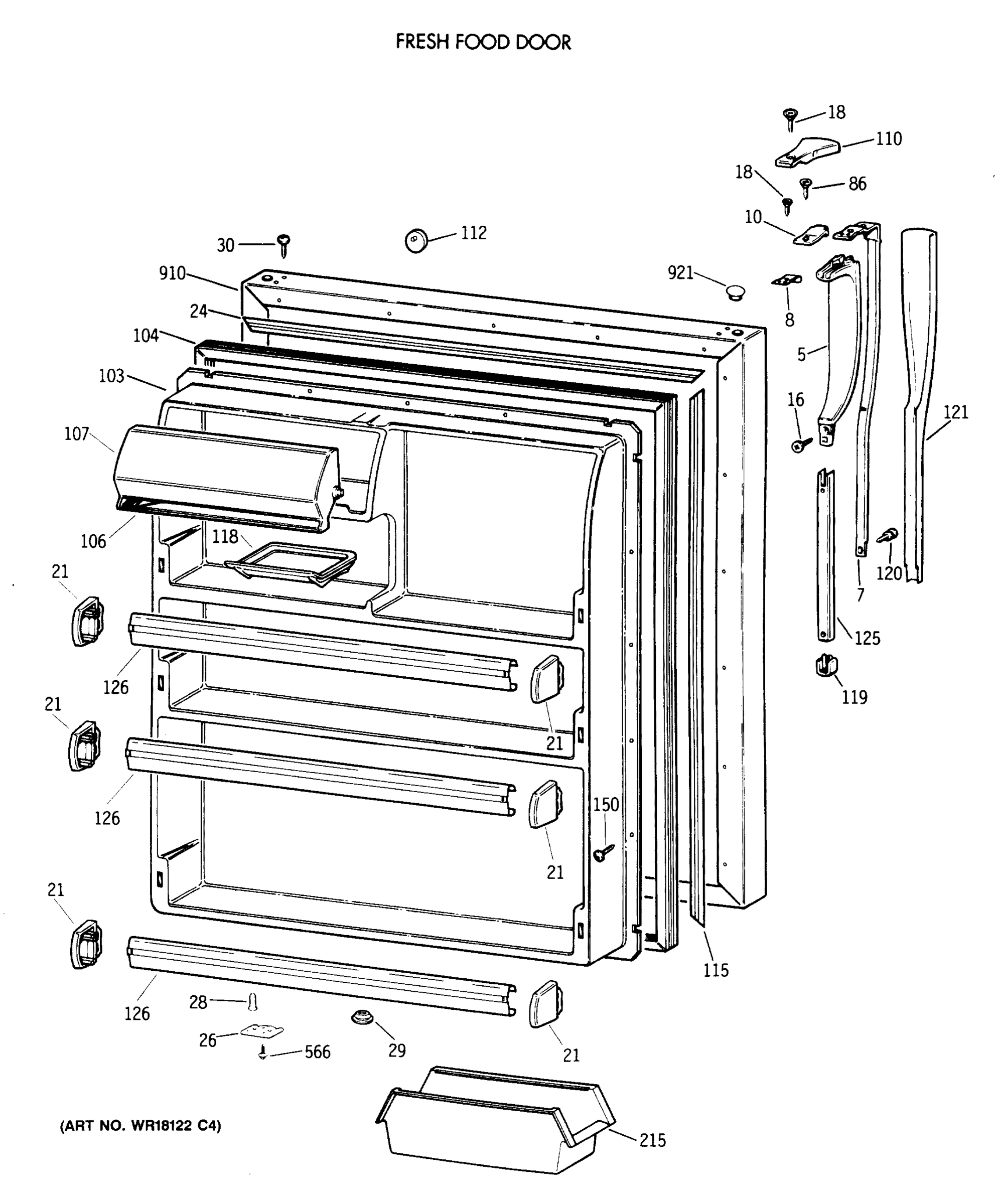

FRESH FOOD DOOR

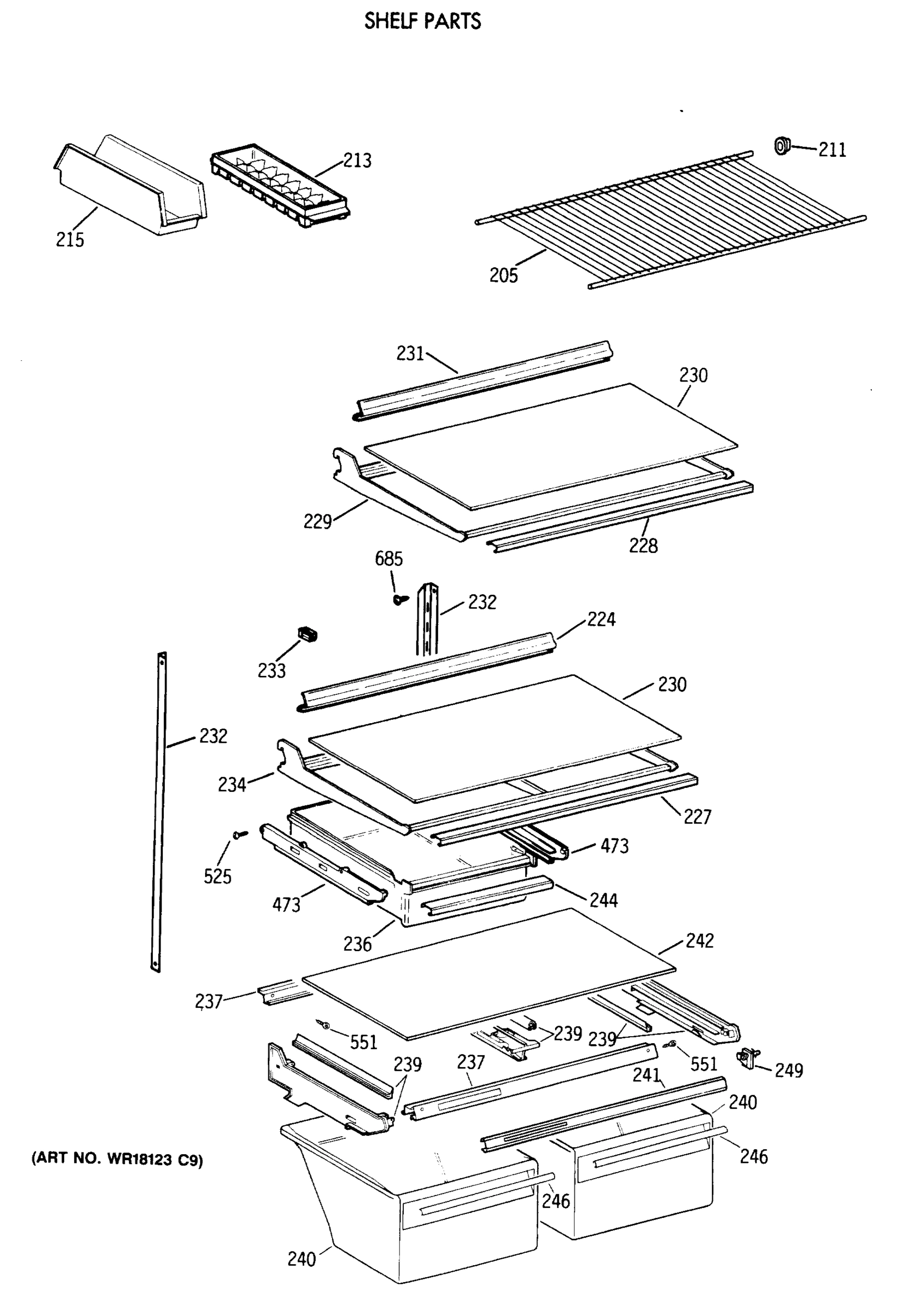

SHELF PARTS

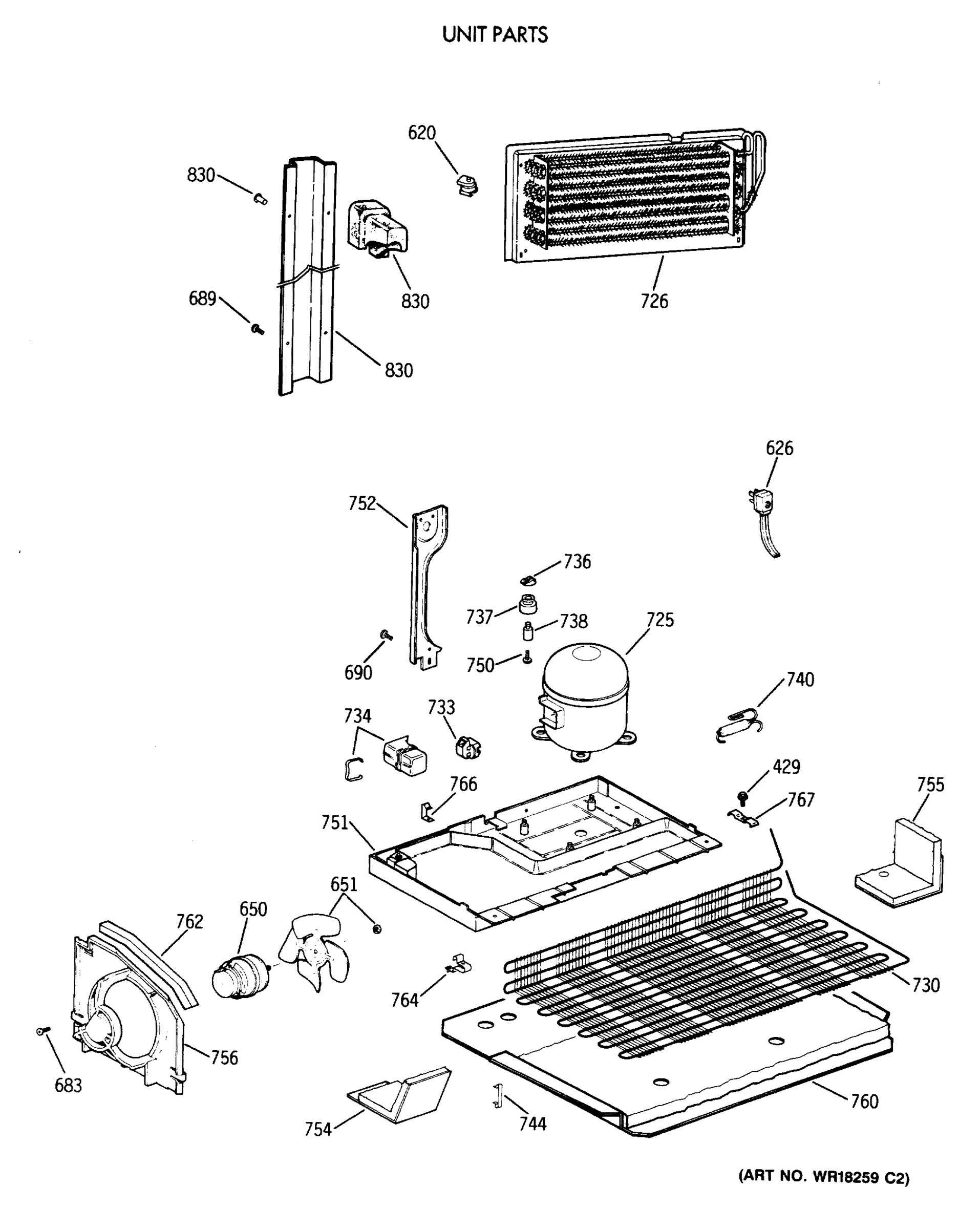

UNIT PARTS
Common parts from model Hotpoint CTG21GAXDRWW Refrigerator
1
GEN 31-45184 GEN 31-45184 Contact Us For Availability
1
GEN 49-6813 GEN 49-6813 Contact Us For Availability
4
GEN WR77X0603 GEN WR77X0603 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0581 GEN WR12X0581 Contact Us For Availability
7
GEN WR12X0582 GEN WR12X0582 Contact Us For Availability
8
GEN WR02X7793 GEN WR02X7793 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
24
GEN WR17X2237 GEN WR17X2237 Contact Us For Availability
25
GEN WR17X2239 GEN WR17X2239 Contact Us For Availability
26
GEN WR02X9009 GEN WR02X9009 Contact Us For Availability
28
GEN WR02X7627 GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
30
SCREW GEN WR01X5475 Contact Us For Availability
35
GEN WR12X0950 GEN WR12X0950 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
103
GEN WR77X0602 GEN WR77X0602 Contact Us For Availability
106
GEN WR38X2161 GEN WR38X2161 Contact Us For Availability
107
GEN WR22X0504 GEN WR22X0504 Contact Us For Availability
110
GEN WR02X7791 GEN WR02X7791 Contact Us For Availability
111
GEN WR02X7792 GEN WR02X7792 Contact Us For Availability
115
GEN WR17X2238 GEN WR17X2238 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
119
GEN WR02X4928 GEN WR02X4928 Contact Us For Availability
120
GEN WR01X1755 GEN WR01X1755 Contact Us For Availability
121
GEN WR12X1004 GEN WR12X1004 Contact Us For Availability
122
GEN WR12X0579 GEN WR12X0579 Contact Us For Availability
125
GEN WR12X0471 GEN WR12X0471 Contact Us For Availability
197
GEN WR02X9013 GEN WR02X9013 Contact Us For Availability
205
GEN WR71X7645 GEN WR71X7645 Contact Us For Availability
207
GEN WR17X4052 GEN WR17X4052 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
215
GEN WR32X0897 GEN WR32X0897 Contact Us For Availability
219
GEN WR51X0456 GEN WR51X0456 Contact Us For Availability
224
GEN WR38X1659 GEN WR38X1659 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
227
GEN WR38X2168 GEN WR38X2168 Contact Us For Availability
228
GEN WR38X2167 GEN WR38X2167 Contact Us For Availability
229
GEN WR71X2189 GEN WR71X2189 Contact Us For Availability
230
GEN WR32X1511 GEN WR32X1511 Contact Us For Availability
231
GEN WR38X1653 GEN WR38X1653 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
234
GEN WR71X2183 GEN WR71X2183 Contact Us For Availability
236
GEN WR32X1393 GEN WR32X1393 Contact Us For Availability
237
GEN WR17X3288 GEN WR17X3288 Contact Us For Availability
237
GEN WR17X2798 GEN WR17X2798 Contact Us For Availability
239
GEN WR17X2769 GEN WR17X2769 Contact Us For Availability
239
GEN WR17X2770 GEN WR17X2770 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
239
GEN WR14X0366 GEN WR14X0366 Contact Us For Availability
239
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
240
GEN WR32X1363 GEN WR32X1363 Contact Us For Availability
241
GEN WR17X3984 GEN WR17X3984 Contact Us For Availability
242
GEN WR32X1510 GEN WR32X1510 Contact Us For Availability
244
GEN WR38X2169 GEN WR38X2169 Contact Us For Availability
246
GEN WR38X2165 GEN WR38X2165 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
255
GEN WR02X9152 GEN WR02X9152 Contact Us For Availability
256
GEN WR23X0408 GEN WR23X0408 Contact Us For Availability
258
GEN WR02X9369 GEN WR02X9369 Contact Us For Availability
260
GEN WR02X9001 GEN WR02X9001 Contact Us For Availability
261
GEN WR02X9015 GEN WR02X9015 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0367 GEN WR82X0367 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
272
GUARD ASM WH GEN WR17X3702 Contact Us For Availability
274
GEN WR13X0717 GEN WR13X0717 Contact Us For Availability
275
HINGE TOP & PIN ASM WH GEN WR13X0715 Contact Us For Availability
276
GEN WR13X0714 GEN WR13X0714 Contact Us For Availability
277
GEN WR17X3744 GEN WR17X3744 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0716 GEN WR13X0716 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
284
GEN WR02X9367 GEN WR02X9367 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
288
GEN WR74X0219 GEN WR74X0219 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X9011 GEN WR02X9011 Contact Us For Availability
300
GEN WR09X0562 GEN WR09X0562 Contact Us For Availability
301
GEN WR02X9151 GEN WR02X9151 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR02X9298 GEN WR02X9298 Contact Us For Availability
306
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
306
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
306
GEN WR17X3696 GEN WR17X3696 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET&TUBE DRAIN GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
473
GEN WR72X0124 GEN WR72X0124 Contact Us For Availability
473
GEN WR72X0179 GEN WR72X0179 Contact Us For Availability
525
SCREW GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
603
GEN WR17X2234 GEN WR17X2234 Contact Us For Availability
604
GEN WR17X3495 GEN WR17X3495 Contact Us For Availability
606
GEN WR17X2401 GEN WR17X2401 Contact Us For Availability
607
GEN WR51X0455 GEN WR51X0455 Contact Us For Availability
608
GEN WR17X2796 GEN WR17X2796 Contact Us For Availability
610
GEN WR60X0248 GEN WR60X0248 Contact Us For Availability
611
GEN WR02X9225 GEN WR02X9225 Contact Us For Availability
613
GEN WR60X0258 GEN WR60X0258 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
618
GEN WR51X0440 GEN WR51X0440 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
622
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3910 GEN WR17X3910 Contact Us For Availability
625
GEN WR17X4056 GEN WR17X4056 Contact Us For Availability
625
GEN WR17X4057 GEN WR17X4057 Contact Us For Availability
626
GEN WR01X1930 GEN WR01X1930 Contact Us For Availability
626
GEN WR23X0413 GEN WR23X0413 Contact Us For Availability
630
GEN WR17X3694 GEN WR17X3694 Contact Us For Availability
631
GEN WR17X3695 GEN WR17X3695 Contact Us For Availability
636
GEN WH02X0765 GEN WH02X0765 Contact Us For Availability
648
GEN WR09X0555 GEN WR09X0555 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
679
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
691
SCR 12-24 TT BHT .700 GEN WR01X1753 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
694
GEN WR01X2120 GEN WR01X2120 Contact Us For Availability
725
GEN WR87X0469 GEN WR87X0469 Contact Us For Availability
726
GEN WR85X0310 GEN WR85X0310 Contact Us For Availability
730
GEN WR84X0202 GEN WR84X0202 Contact Us For Availability
733
GEN WR07X0239 GEN WR07X0239 Contact Us For Availability
734
GEN WR02X9291 GEN WR02X9291 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
744
GEN WR02X9209 GEN WR02X9209 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
GEN WR17X3858 GEN WR17X3858 Contact Us For Availability
754
GEN WR17X4055 GEN WR17X4055 Contact Us For Availability
755
GEN WR17X2227 GEN WR17X2227 Contact Us For Availability
756
GEN WR17X3760 GEN WR17X3760 Contact Us For Availability
760
GEN WR82X0368 GEN WR82X0368 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
830
GEN WR01X1841 GEN WR01X1841 Contact Us For Availability
830
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
900
GEN WR78X8737 GEN WR78X8737 Contact Us For Availability
910
GEN WR78X8736 GEN WR78X8736 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
