Model Whirlpool CT19Y6A REFRIGERATOR – Common Parts & Diagrams

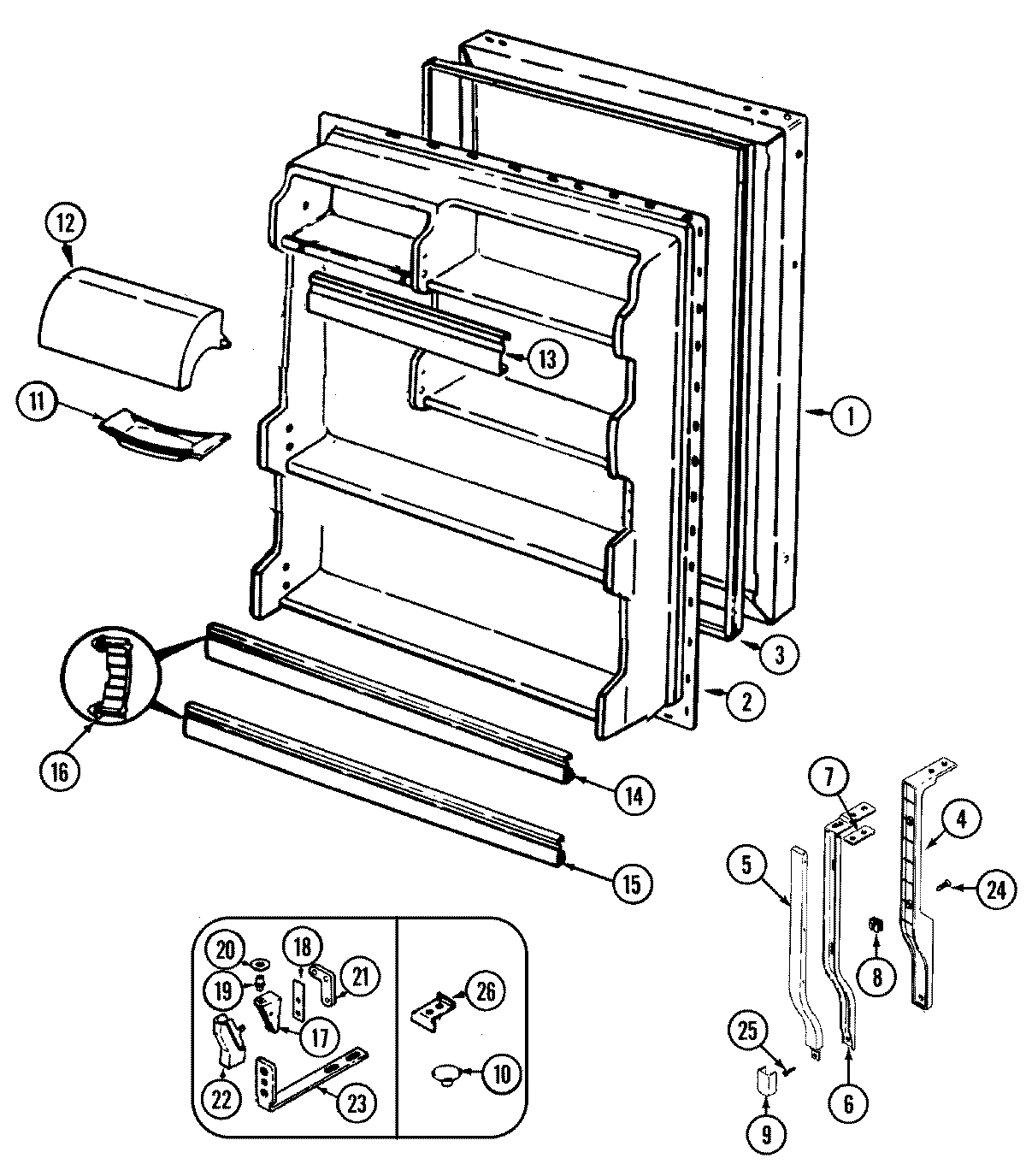

04 - FRESH FOOD DOOR

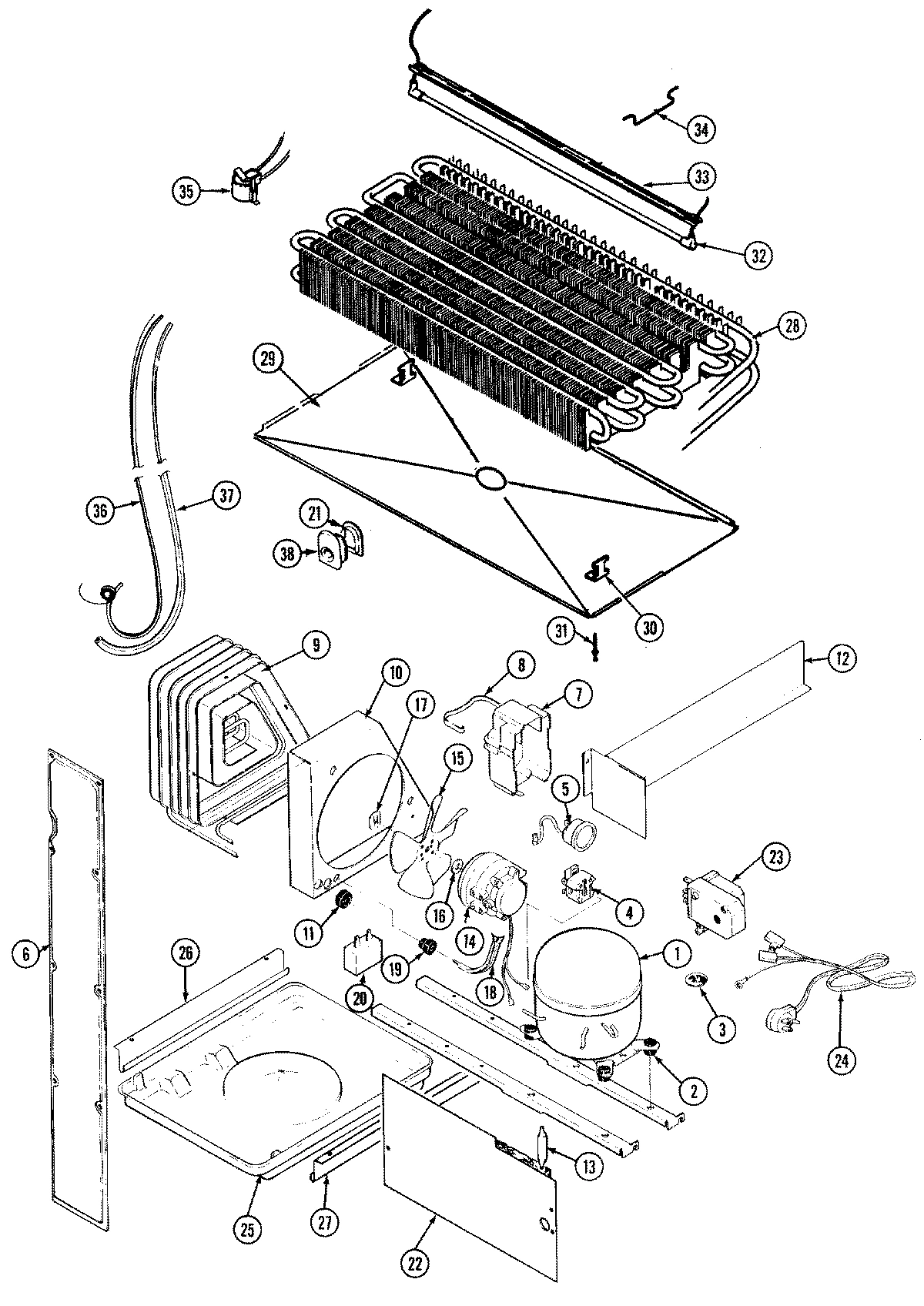

06 - UNIT COMPARTMENT & SYSTEM

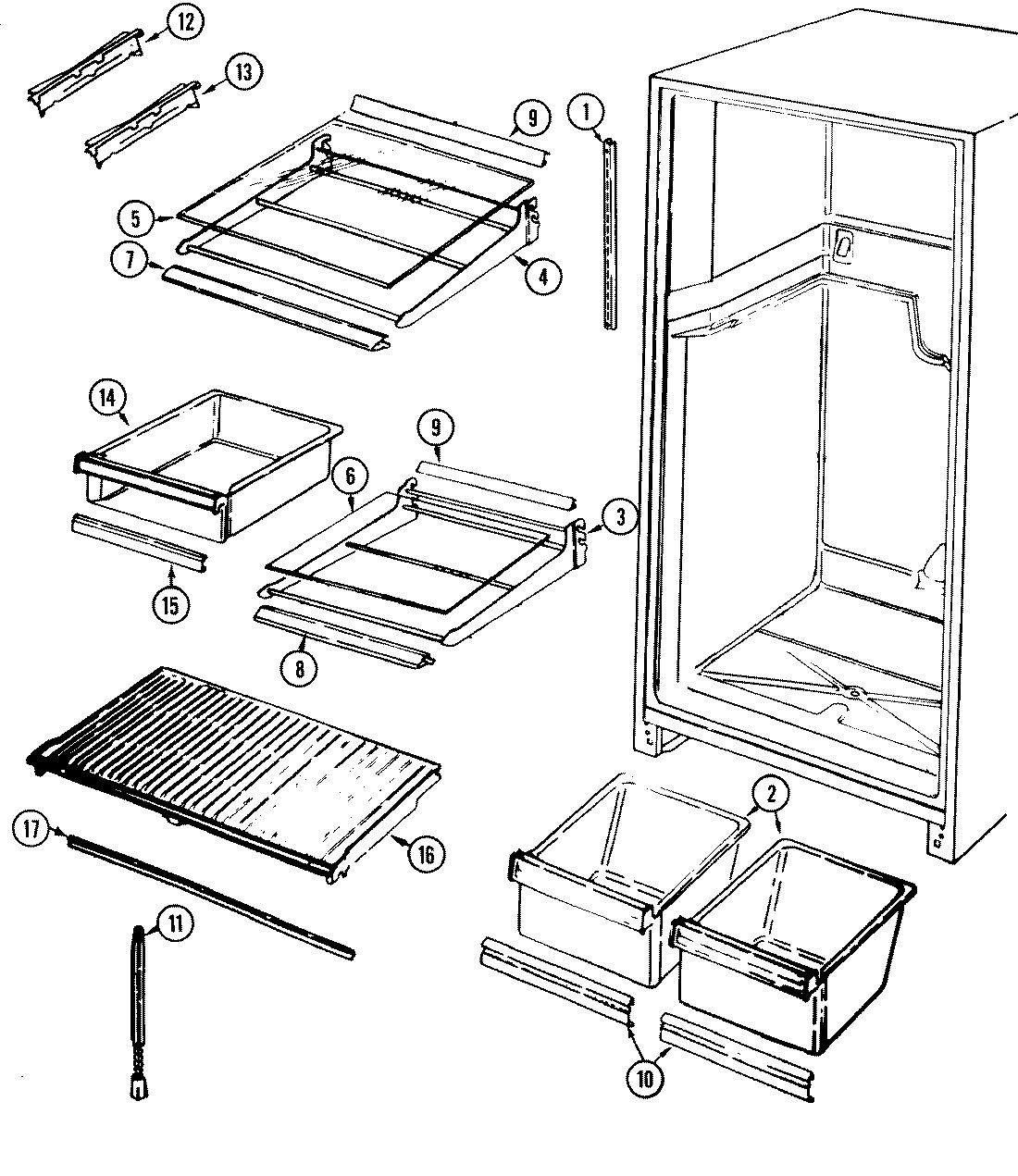

05 - SHELVES & ACCESSORIES

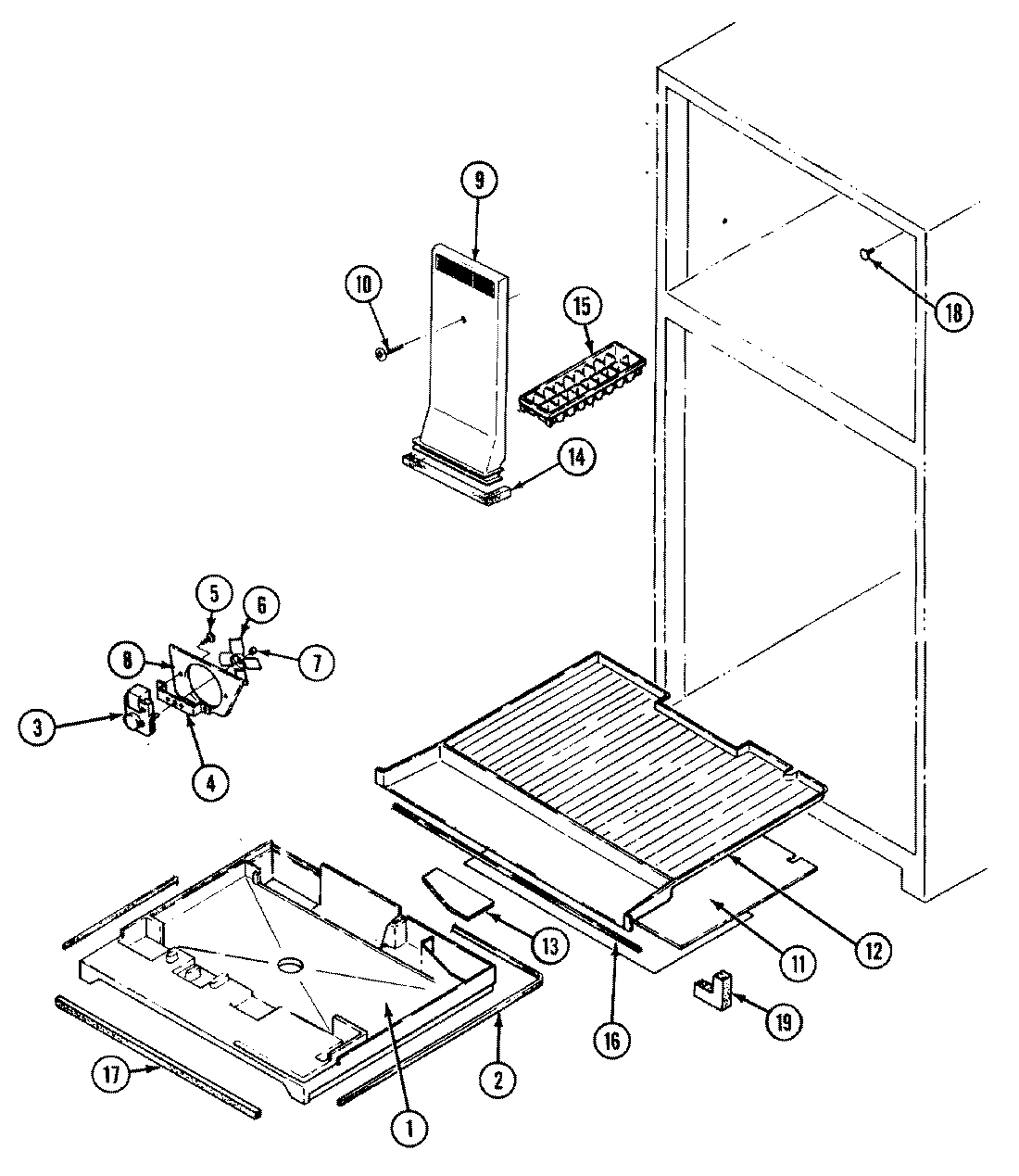

01 - FREEZER COMPARTMENT

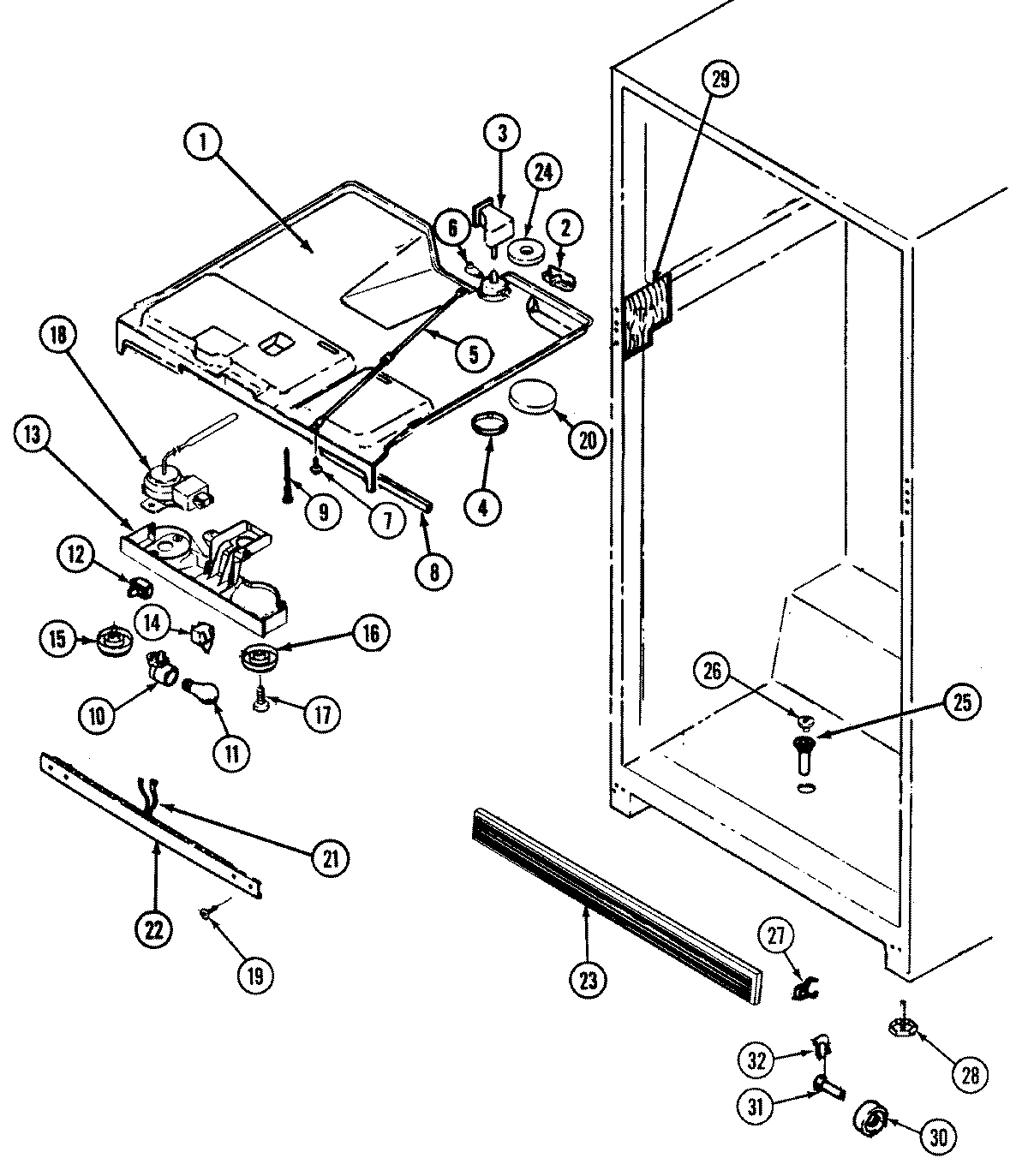

03 - FRESH FOOD COMPARTMENT

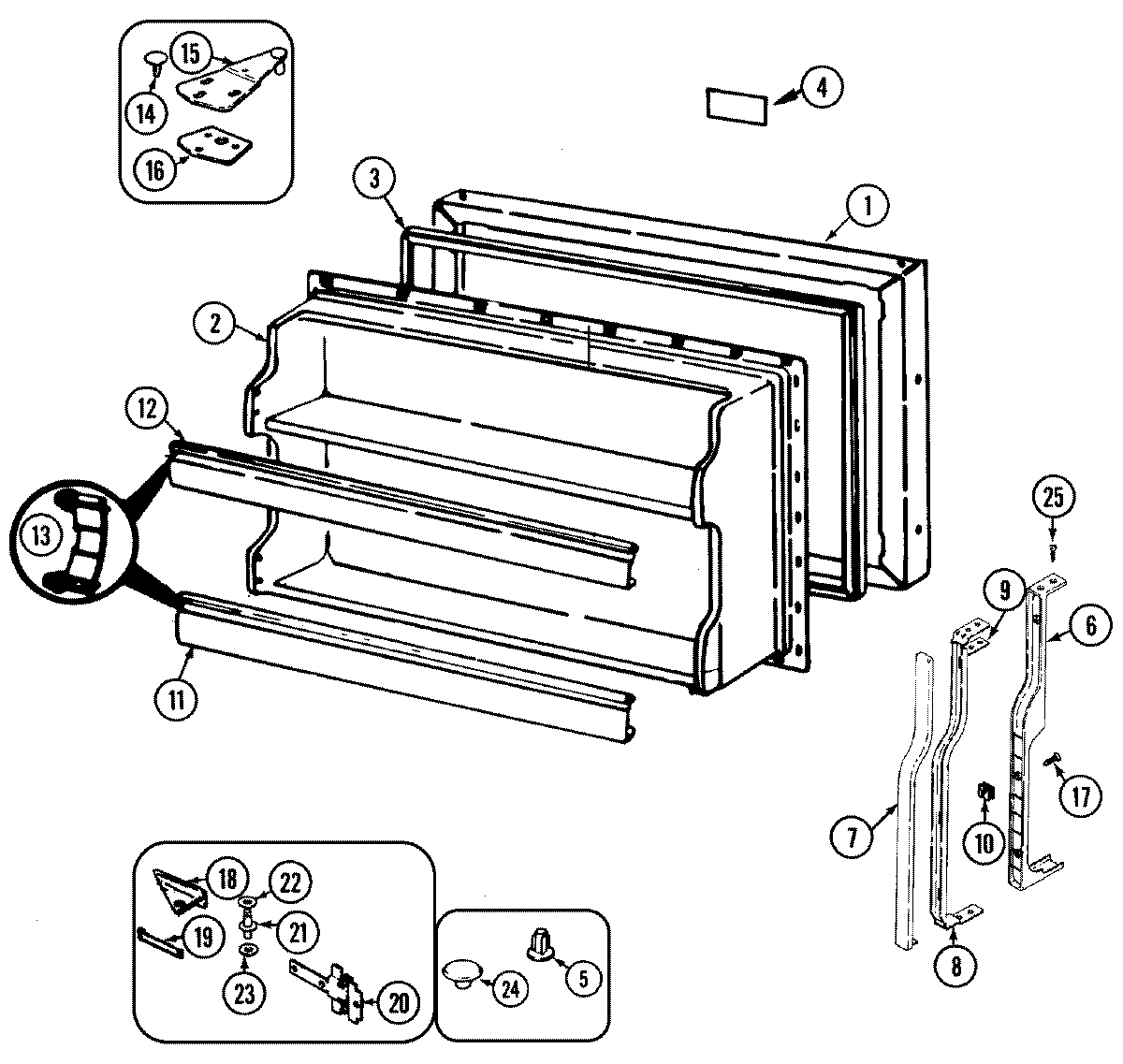

02 - FREEZER DOOR
Common parts from model Whirlpool CT19Y6A REFRIGERATOR
1
PANEL, F.F. DOOR (ALM) WPL 723421AM Contact Us For Availability
1
COMPRESSOR WPL RA10111 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72342100AM Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694541 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PAN, CRISPER WPL 68222136 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 694701 Contact Us For Availability
3
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability
3
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
4
HANDLE, F.F. DOOR (ALM) WPL 700514 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
FRAME, SPLIT SHELF WPL 701062 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BEZEL, NAMEPLATE (ALM) WPL 669816 Contact Us For Availability
4
INSERT, NAMEPLATE WPL 6698234 Contact Us For Availability
5
INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
6
FRAME, HANDLE WPL 700521 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
GLASS, MEAT SHELF WPL 6813921 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
HANDLE (ALM) WPL 700505 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
TRIM, SPLIT SHELF (FRONT) WPL 701072 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
INSERT, HANDLE (ALM) WPL 700539 Contact Us For Availability
8
SCREW WPL 6527522 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TRIM, MEAT PAN (FRT.) WPL 701082 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
FRAME, HANDLE WPL 700524 Contact Us For Availability
9
SHIM, HANDLE WPL 679341 Contact Us For Availability
9
END CAP, HANDLE (ALM) WPL 700581 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
TRIM, SPLIT SHELF (REAR) WPL 701102 Contact Us For Availability
9
TUNNEL, AIR WPL 702083 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
10
GROMMET WPL 697431 Contact Us For Availability
10
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
TRIM, CRISPER PAN WPL 703159 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
TRIM, SHELF WPL 7011121 Contact Us For Availability
12
DOOR, DAIRY WPL 690582 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
TRIM, SHELF WPL 7011122 Contact Us For Availability
13
TRIM, SHELF (14 1/16``) WPL 7011111 Contact Us For Availability
13
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
13
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
13
COVER, PLENUM WPL 61664805 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMP. CONTROL WPL 704202 Contact Us For Availability
14
TRIM, SHELF WPL 7011120 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
PAN, MEAT WPL 6663637 Contact Us For Availability
14
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
15
TRIM, SHELF WPL 7011123 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
TRIM, MEAT PAN WPL 703158 Contact Us For Availability
15
TRAY, ICE WPL 592812 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
HINGE, UPPER WPL 5370920 Contact Us For Availability
15
SCREW WPL 6527552 Contact Us For Availability
16
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
SHELF, CRISPER WPL 600196 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
17
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
17
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
17
SCREW WPL 4150331 Contact Us For Availability
17
TRIM, CRISPER SHELF WPL 6045411 Contact Us For Availability
17
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
18
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
PLUG BUTTON (ALM) WPL 701463 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability
18
SCREW WPL 6527555 Contact Us For Availability
18
HINGE, CENTER WPL 695142 Contact Us For Availability
19
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
21
SCREW WPL 6527559 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 61001566 Contact Us For Availability
21
HARNESS, WIRE WPL 701641 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
21
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
22
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663383 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
WASHER WPL 674836 Contact Us For Availability
23
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (ALM) WPL 701284 Contact Us For Availability
23
WASHER WPL 542332 Contact Us For Availability
24
SCREW WPL 6527548 Contact Us For Availability
24
STOP, DOOR WPL 692562 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
25
SCREW WPL 6527565 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
25
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501326 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
× ![]()
Login and Registration Form
