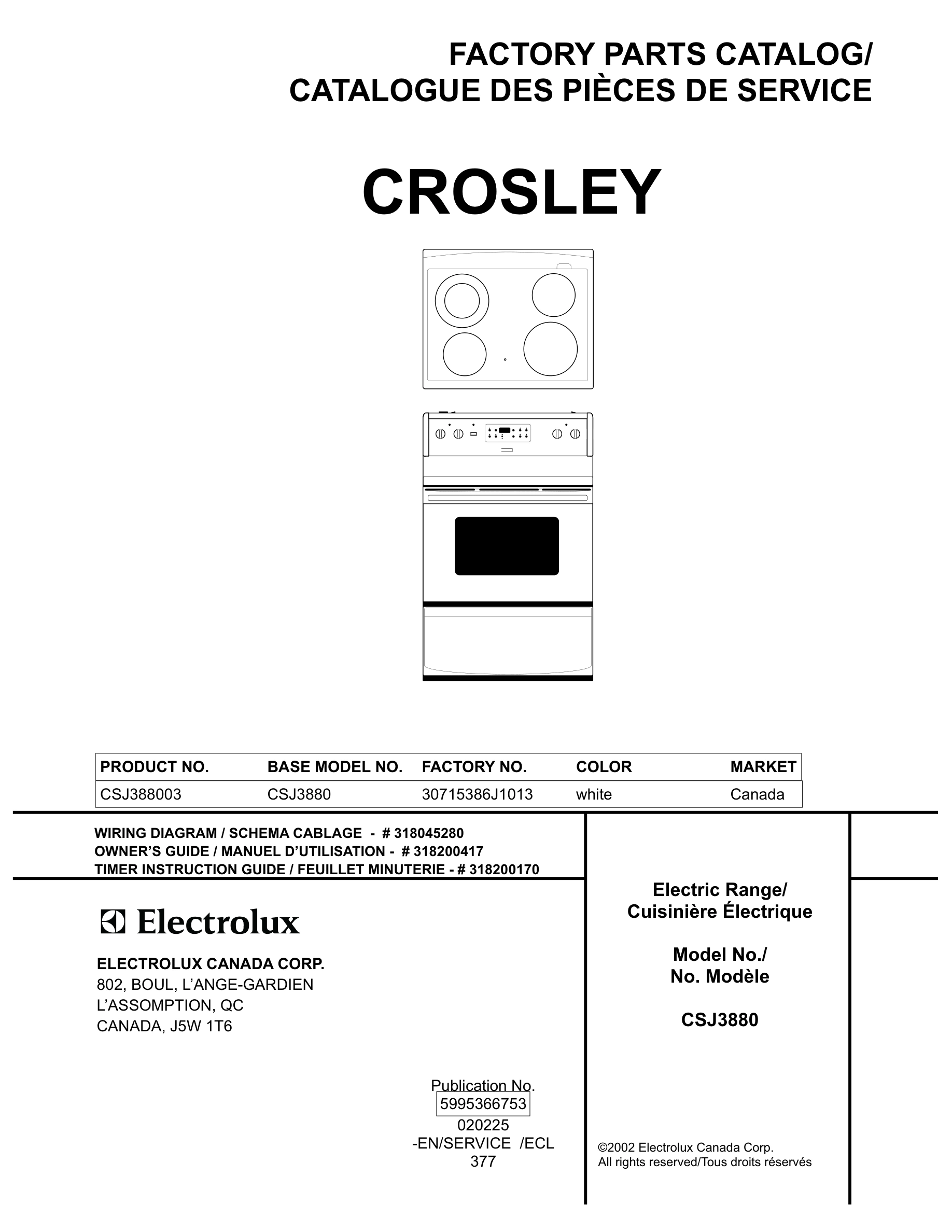

Model Crosley CSJ388003 RANGE – Common Parts & Diagrams
01 - COVER

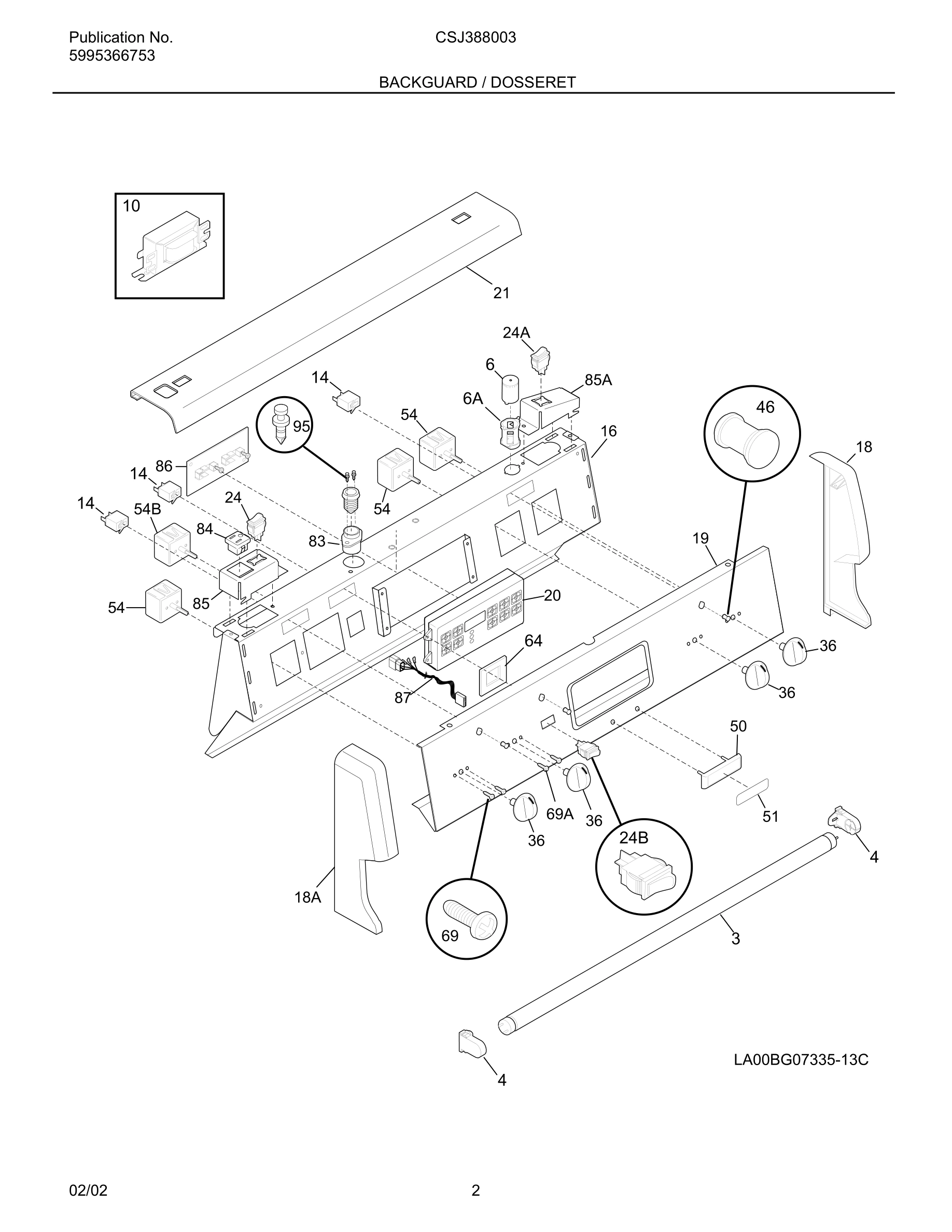

03 - BACKGUARD / DOSSERET
05 - BODY / STRUCTURE
07 - TOP & DRAWER / TABLE DE CUISSON & TIROIR
09 - DOOR / PORTE
10 - WIRING DIAGRAM
11 - WIRING DIAGRAM
Common parts from model Crosley CSJ388003 RANGE
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Screw,shoulder head ,8-15A x 0.125 WCI 5304400428 Contact Us For Availability
1
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
1
Panel,main back WCI 318108101 Contact Us For Availability
1
Drawer WCI 318107103 Contact Us For Availability
1*
Bracket,trim mtg WCI 318180310 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
3
Panel,bodyside ,white ,(2) WCI 318025601 Contact Us For Availability
3
Support,main top WCI 318144321 Contact Us For Availability
3
Trim,door ,white ,RH side WCI 318187810 Contact Us For Availability
3A
Trim,door ,white ,LH side WCI 318187811 Contact Us For Availability
3B
Trim,door ,white ,top WCI 318176642 Contact Us For Availability
4
Panel,drawer ,white ,front WCI 318044301 Contact Us For Availability
4
Panel,door front assy ,glass ,white ,with low WCI 318187706 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
6#
Starter,lamp WCI 5308068062 Contact Us For Availability
7
Spacer WCI 318014800 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Pan,broiler WCI 5303317977 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10
Insert,broiler pan WCI 5303317976 Contact Us For Availability
11
Bracket,light switch WCI 318086100 Contact Us For Availability
11
Bracket,drawer support ,(2) WCI 318107500 Contact Us For Availability
12#
Switch,door ,oven light WCI 318089801 Contact Us For Availability
13
Channel,drawer ,RH WCI 318018100 Contact Us For Availability
13A
Channel,drawer ,LH WCI 318018101 Contact Us For Availability
15#
Element,surface ,small/6" ,1200 W WCI 318198800 Contact Us For Availability
15A#
Element,surface ,6/9 inches ,1000/2000w WCI 318198901 Contact Us For Availability
15B#
Element,surface ,large/8" ,2100 W WCI 318198801 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Panel,main top ,glass ,white ,assembly WCI 318043898 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Hinge,main top panel ,(2) WCI 318074400 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
20
Spacer,handle ,white ,(2) WCI 318014301 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
25
Shield,heat ,lower WCI 318108702 Contact Us For Availability
30
Bracket,hinge ,main top ,(2) WCI 318110800 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
39
Handle,oven door ,white WCI 316091119 Contact Us For Availability
39#
Cord,electric WCI 318113104 Contact Us For Availability
52B
Spring,element mtg ,large WCI 318122007 Contact Us For Availability
54
Housing,oven light WCI 5303310514 Contact Us For Availability
54#
Switch,surface element ,infinite WCI 318120500 Contact Us For Availability
57
Cover,access WCI 318036500 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072522 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
71
Cover,wire WCI 318086600 Contact Us For Availability
74
Bumper,bodyside WCI 318141900 Contact Us For Availability
76
Frame,front ,wheels incl WCI 318108500 Contact Us For Availability
80
Plate,oven mtg WCI 5303320846 Contact Us For Availability
83
Liner,oven WCI 318109410 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
87
Wiring Harness WCI 318092410 Contact Us For Availability
88
Rod,latch WCI 318118902 Contact Us For Availability
89#
Motor,latch assy ,w/brkt & switch WCI 318095931 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
89*#
Switch,latch WCI 318120704 Contact Us For Availability
95
Clip,fuse holder mtg WCI 5303324521 Contact Us For Availability
99
Deflector,heat ,side WCI 318126101 Contact Us For Availability
107
Cover,fan WCI 318119600 Contact Us For Availability
109
Blade,fan WCI 5303311203 Contact Us For Availability
112#
Relay WCI 318112700 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
165
Plate,heat shield WCI 318003100 Contact Us For Availability
166
Bracket,base support WCI 318111000 Contact Us For Availability
167
Screw,socket head cap ,lock WCI 318147800 Contact Us For Availability
168
Roller WCI 08011155 Contact Us For Availability
169
Bracket,roller housing WCI 318147700 Contact Us For Availability
171
Terminal board WCI 5308007985 Contact Us For Availability
172
Rivet,roller shaft ,0.250 x 1.500 WCI 08011131 Contact Us For Availability
173
Spacer,lock ,nylon WCI 5304400434 Contact Us For Availability
174
Spacer,roller WCI 5303324511 Contact Us For Availability
177
Gasket,vent WCI 5303324040 Contact Us For Availability
178
Bracket,vent WCI 318125702 Contact Us For Availability
180
Screw,lock bracket ,10-24 x 2.00 WCI 5303285443 Contact Us For Availability
222
Plate,oven temp probe WCI 318080000 Contact Us For Availability
272
Tube,protector WCI 5303311207 Contact Us For Availability
× ![]()
