Model Hotpoint CSF24KMD Refrigerator – Common Parts & Diagrams
0
1

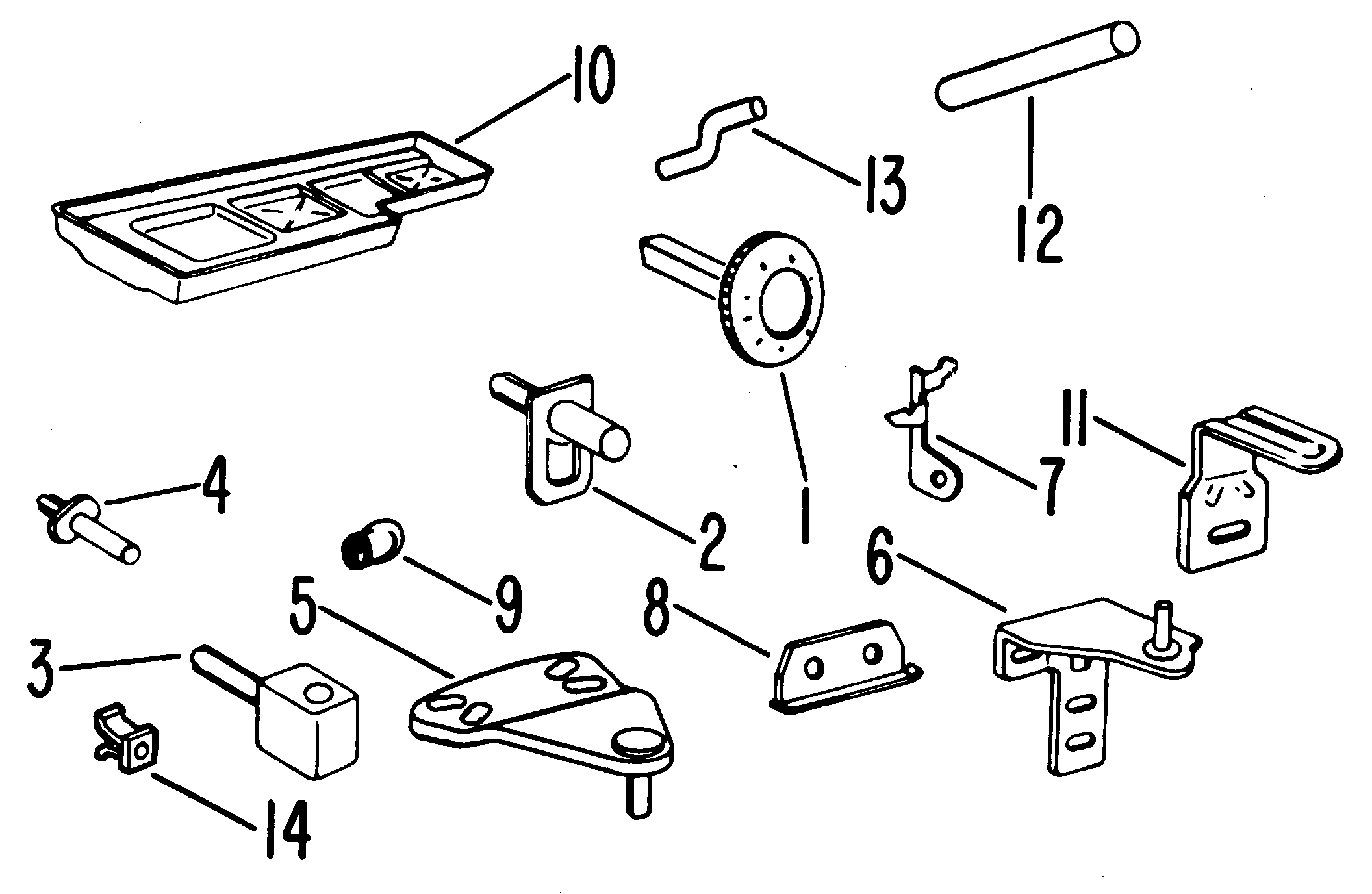

2

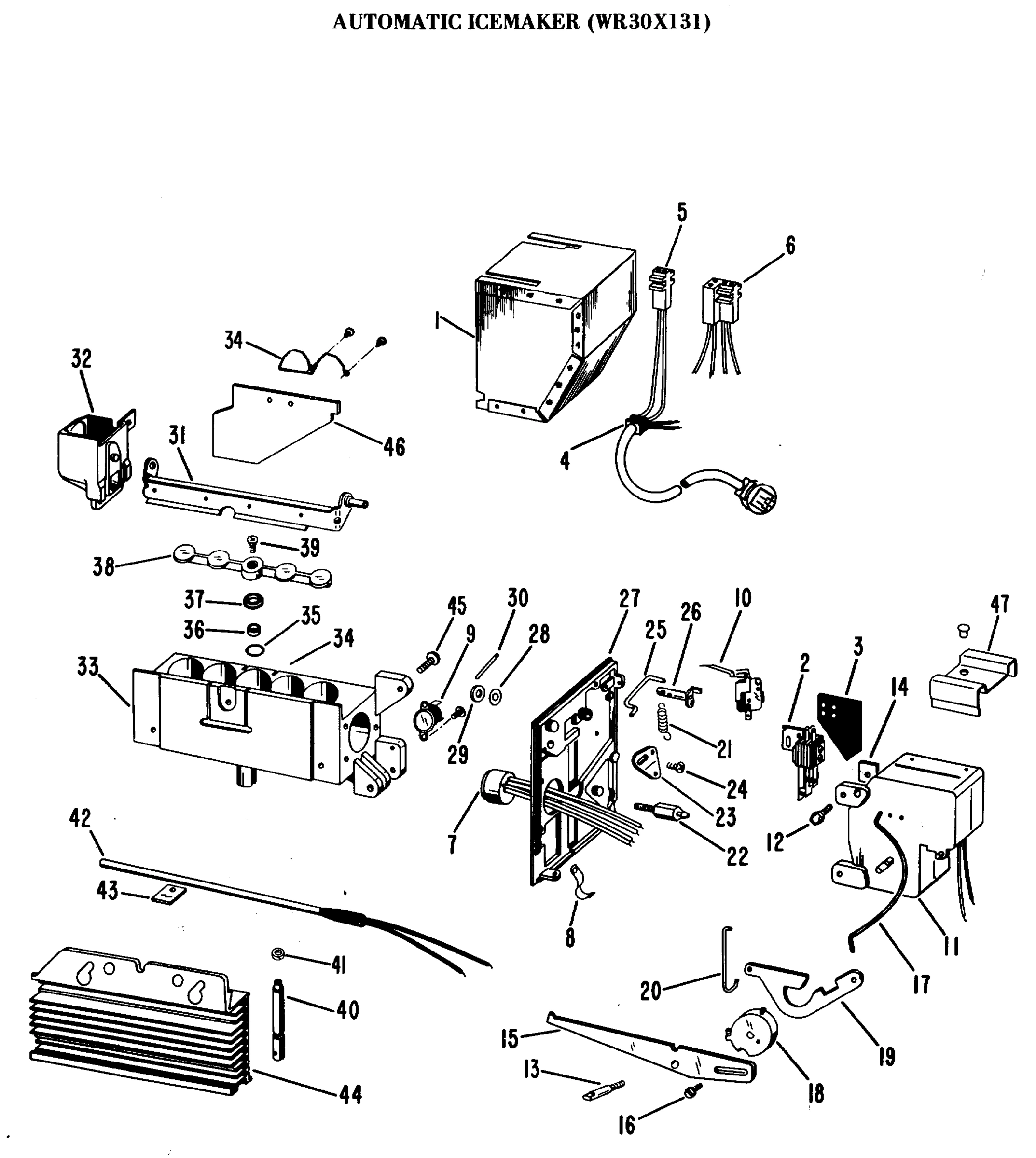

3

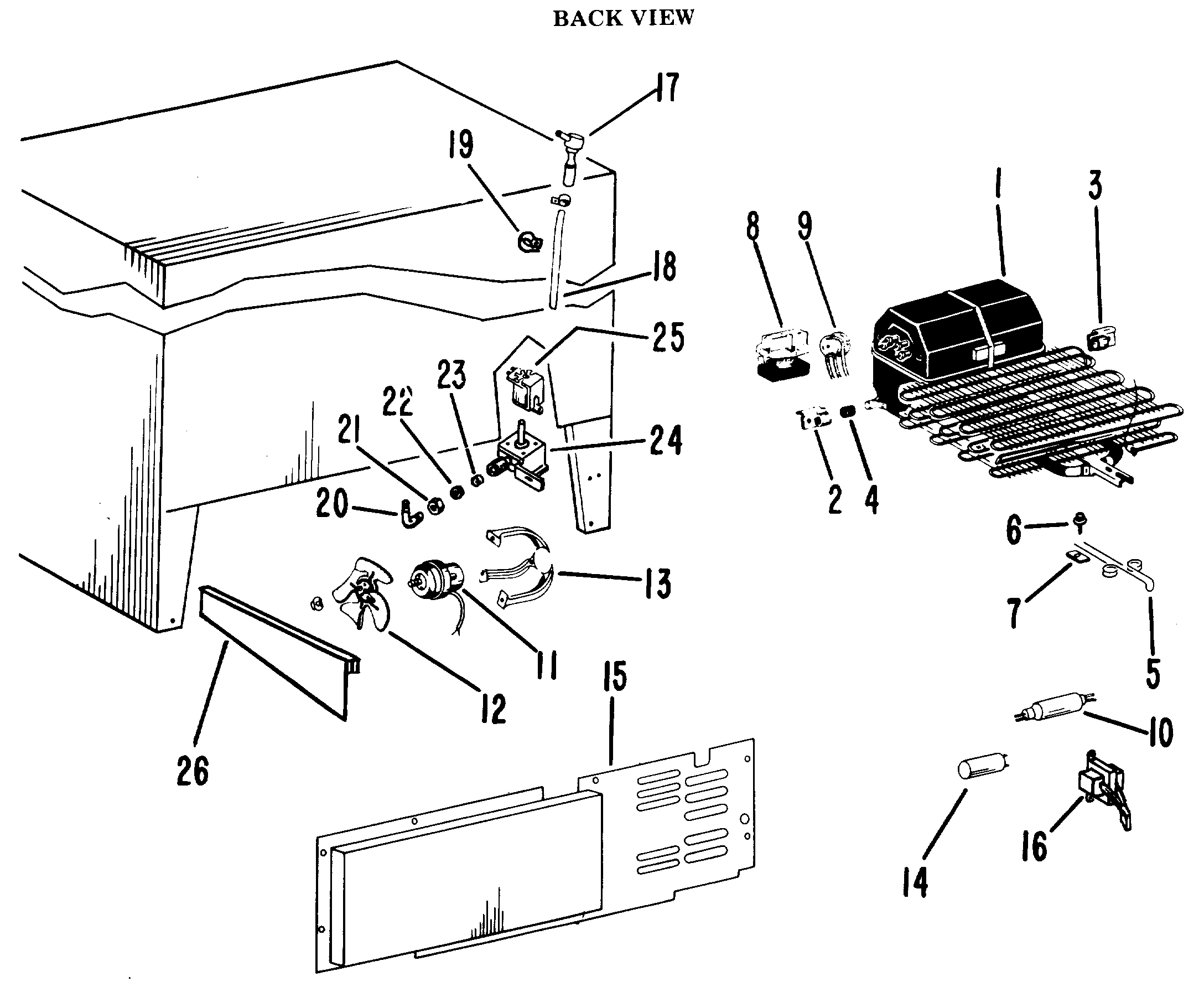

BACK VIEW

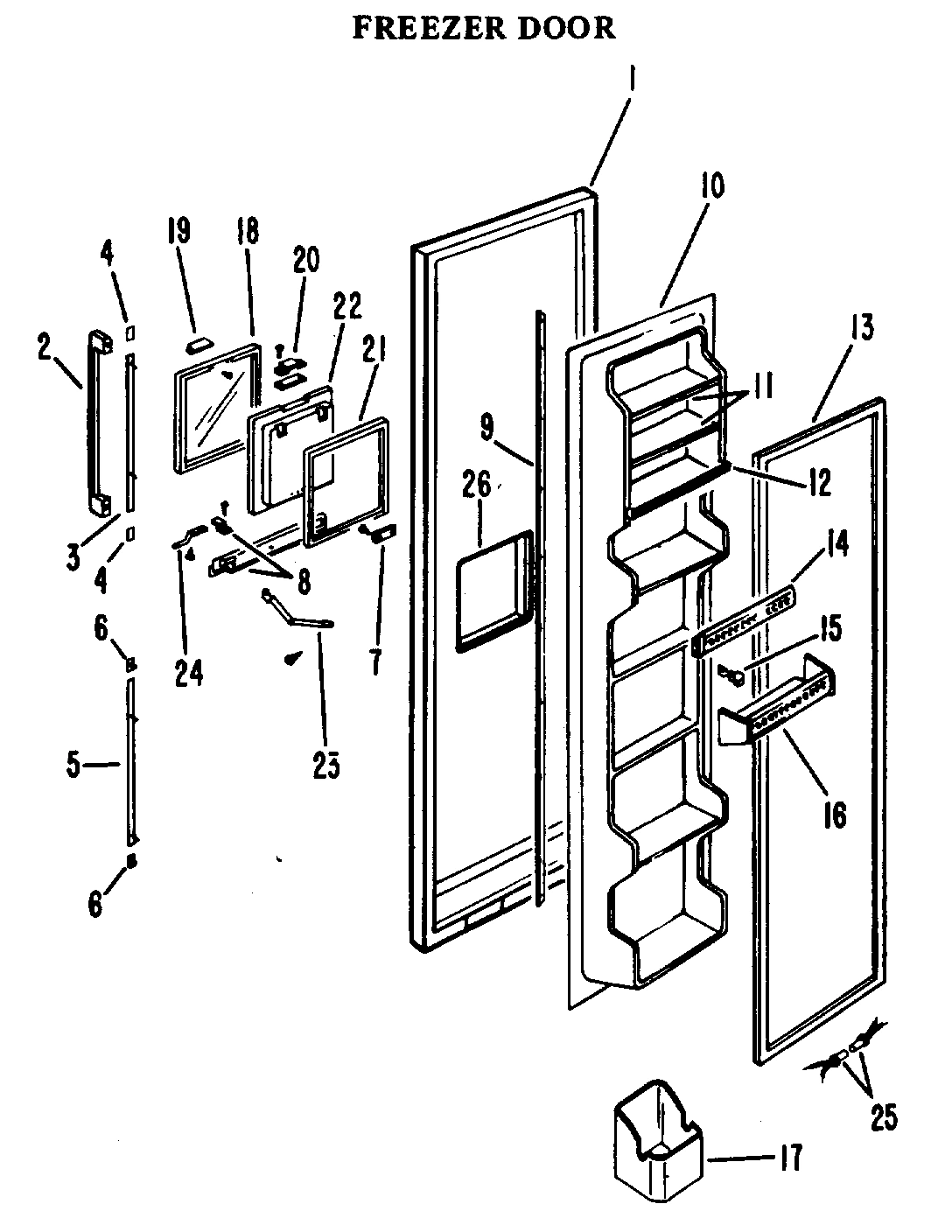

FREEZER DOOR

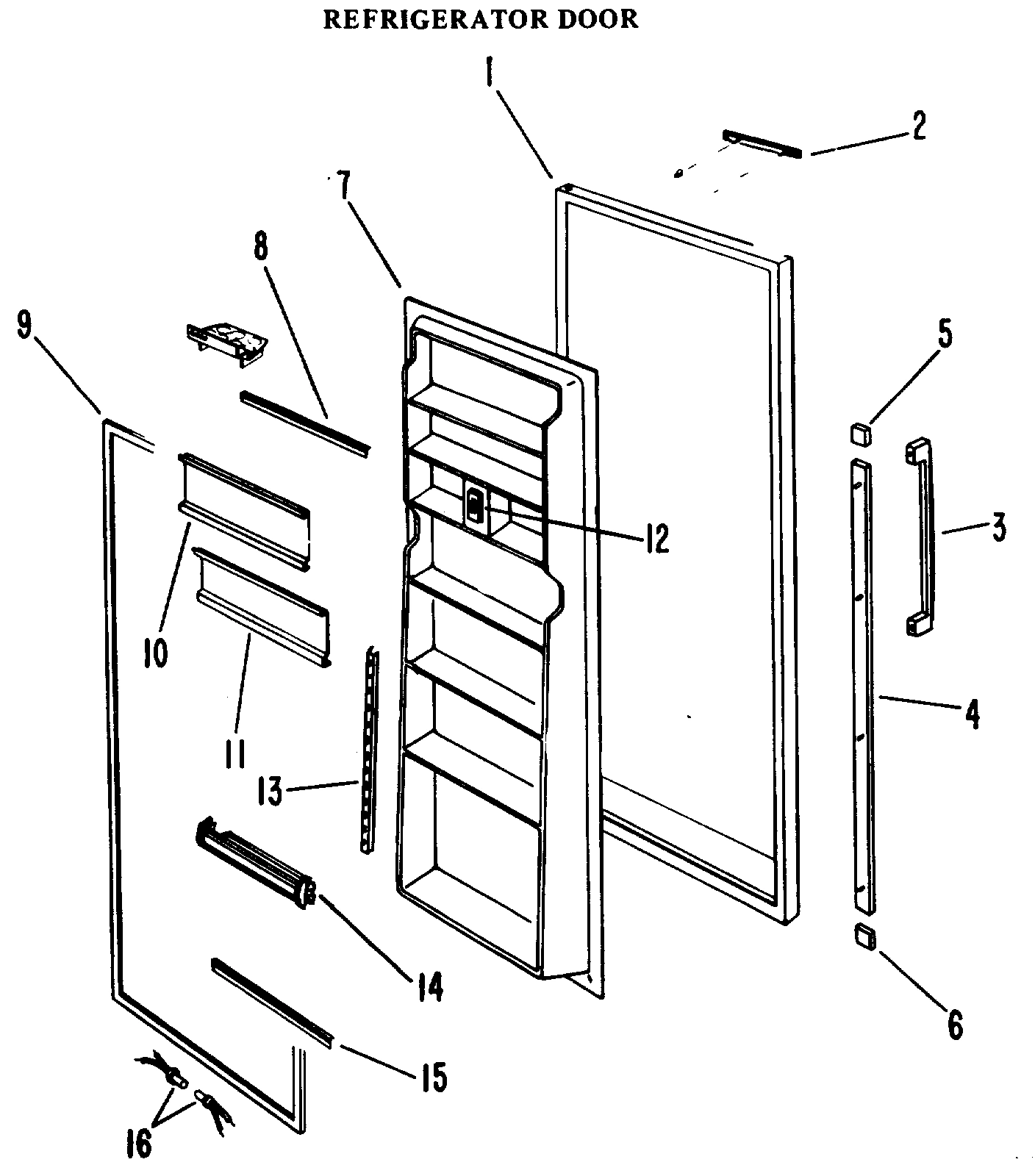

REFRIGERATOR DOOR
Common parts from model Hotpoint CSF24KMD Refrigerator
1
REAR TRIM GEN WR38X5002 Contact Us For Availability
1
FRONT TRIM GEN WR38X5003 Contact Us For Availability
1
CANTILEVER SHELF (KMB) GEN WR71X5001 Contact Us For Availability
1
GEN WR71X5761 GEN WR71X5761 Contact Us For Availability
1
LOW SIDE KIT GEN WR85X5001 Contact Us For Availability
1
GEN WR02X5825 GEN WR02X5825 Contact Us For Availability
1
CLIP -COVER GEN WR01X1332 Contact Us For Availability
1
GEN WR02X5955 GEN WR02X5955 Contact Us For Availability
1
GEN WR97X0086 GEN WR97X0086 Contact Us For Availability
1
GEN WR78X5998 GEN WR78X5998 Contact Us For Availability
1
GEN WR78X5999 GEN WR78X5999 Contact Us For Availability
1
GEN WR78X6000 GEN WR78X6000 Contact Us For Availability
1
GEN WR78X6001 GEN WR78X6001 Contact Us For Availability
1
GEN WR78X6010 GEN WR78X6010 Contact Us For Availability
1
GEN WR78X6011 GEN WR78X6011 Contact Us For Availability
1
GEN WR78X6012 GEN WR78X6012 Contact Us For Availability
1
GEN WR78X6013 GEN WR78X6013 Contact Us For Availability
2
GEN WR01X5038 GEN WR01X5038 Contact Us For Availability
2
SHELF LADDER (KMB) GEN WR72X5001 Contact Us For Availability
2
GEN WR72X5035 GEN WR72X5035 Contact Us For Availability
2
SHELF SUPPORT - FRZ. SIDE GEN WR02X5040 Contact Us For Availability
2
LEAF SWITCH GEN WR23X0103 Contact Us For Availability
2
CUP & BRACKET (RH) GEN WR02X3734 Contact Us For Availability
2
GEN WR01X5344 GEN WR01X5344 Contact Us For Availability
2
GEN WR04X5037 GEN WR04X5037 Contact Us For Availability
3
STORAGE PAN (KMB-KMC) GEN WR32X5004 Contact Us For Availability
3
STORAGE PAN (KMD) GEN WR32X5127 Contact Us For Availability
3
PLUG BUTTON GEN WR02X4212 Contact Us For Availability
3
GEN WR02X5958 GEN WR02X5958 Contact Us For Availability
3
GEN WR17X5630 GEN WR17X5630 Contact Us For Availability
3
SUPPORT - FAN ORIFICE GEN WR02X2880 Contact Us For Availability
3
GEN WR01X1201 GEN WR01X1201 Contact Us For Availability
3
GEN WR01X1235 GEN WR01X1235 Contact Us For Availability
3
GEN WR02X3754 GEN WR02X3754 Contact Us For Availability
3
CUP & BRACKET (LH) GEN WR02X3735 Contact Us For Availability
3
SCREW - HANDLE GEN WR01X5345 Contact Us For Availability
3
GEN WR12X5099 GEN WR12X5099 Contact Us For Availability
3
GEN WR03X5071 GEN WR03X5071 Contact Us For Availability
3
GEN WR01X5347 GEN WR01X5347 Contact Us For Availability
4
STORAGE PAN COVER (KMB-KMC) GEN WR32X5111 Contact Us For Availability
4
STORAGE PAN COVER (KMD) GEN WR32X5128 Contact Us For Availability
4
GEN WR02X5031 GEN WR02X5031 Contact Us For Availability
4
GEN WR01X5354 GEN WR01X5354 Contact Us For Availability
4
GEN WR02X5334 GEN WR02X5334 Contact Us For Availability
4
GEN WR02X5853 GEN WR02X5853 Contact Us For Availability
4
GEN WR17X5631 GEN WR17X5631 Contact Us For Availability
4
GEN WR23X5104 GEN WR23X5104 Contact Us For Availability
4
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
4
GEN WZ06X0062 GEN WZ06X0062 Contact Us For Availability
4
CAP - TRIM GEN WR12X5104 Contact Us For Availability
4
GEN WR01X5356 GEN WR01X5356 Contact Us For Availability
4
GEN WR01X5346 GEN WR01X5346 Contact Us For Availability
4
GEN WR01X5355 GEN WR01X5355 Contact Us For Availability
4
GEN WR03X5072 GEN WR03X5072 Contact Us For Availability
5
FRONT RAIL GEN WR02X6000 Contact Us For Availability
5
SUPPORT-RS GEN WR02X6001 Contact Us For Availability
5
SUPPORT-LS GEN WR02X6002 Contact Us For Availability
5
GEN WR02X5845 GEN WR02X5845 Contact Us For Availability
5
GEN WR01X5011 GEN WR01X5011 Contact Us For Availability
5
TOP HINGE SHIM GEN WR02X4194 Contact Us For Availability
5
TOP HINGE ASM. GEN WR13X0462 Contact Us For Availability
5
GEN WR23X0104 GEN WR23X0104 Contact Us For Availability
5
SPRING-FRONT UNIT MOUNTING GEN WR02X5203 Contact Us For Availability
5
CLIP - TRIM TO DOOR GEN WR01X5349 Contact Us For Availability
5
GEN WR03X5075 GEN WR03X5075 Contact Us For Availability
5
GEN WR12X5102 GEN WR12X5102 Contact Us For Availability
6
REAR RAIL GEN WR02X6003 Contact Us For Availability
6
GEN WR02X5846 GEN WR02X5846 Contact Us For Availability
6
SCREW - HINGE TO CABINET GEN WR01X1188 Contact Us For Availability
6
WASHER GEN WR01X1299 Contact Us For Availability
6
GEN WR13X0450 GEN WR13X0450 Contact Us For Availability
6
GEN WR13X0453 GEN WR13X0453 Contact Us For Availability
6
GEN WR13X5120 GEN WR13X5120 Contact Us For Availability
6
GEN WR23X0130 GEN WR23X0130 Contact Us For Availability
6
SCREW-UNIT TO CHANNEL GEN WZ06X0080 Contact Us For Availability
6
CAP - TRIM GEN WR12X5106 Contact Us For Availability
6
GEN WR12X5105 GEN WR12X5105 Contact Us For Availability
7
HANDLE-STORAGE PAN (KMB-KMC) GEN WR17X5616 Contact Us For Availability
7
RETAINER RING GEN WR01X5397 Contact Us For Availability
7
GEN WR02X5847 GEN WR02X5847 Contact Us For Availability
7
SCREW - SUPPORT TO CABINET GEN WR01X1194 Contact Us For Availability
7
BASE PANEL SUPPORT - RH GEN WR02X4098 Contact Us For Availability
7
BASE PANEL SUPPORT - LH GEN WR02X4099 Contact Us For Availability
7
GEN WR50X5027 GEN WR50X5027 Contact Us For Availability
7
GEN WR02X3904 GEN WR02X3904 Contact Us For Availability
7
GEN WR02X5831 GEN WR02X5831 Contact Us For Availability
7
GEN WZ05X0190 GEN WZ05X0190 Contact Us For Availability
7
SCREW GEN WR01X5348 Contact Us For Availability
7
GEN WR77X5379 GEN WR77X5379 Contact Us For Availability
8
HANDLE-STORAGE PAN GEN WR17X5617 Contact Us For Availability
8
GEN WR23X5099 GEN WR23X5099 Contact Us For Availability
8
GEN WR01X1300 GEN WR01X1300 Contact Us For Availability
8
GEN WR02X3404 GEN WR02X3404 Contact Us For Availability
8
GEN WR02X3405 GEN WR02X3405 Contact Us For Availability
8
CLIP-RELAY COVER GEN WR02X3583 Contact Us For Availability
8
COVER-RELAY GEN WR02X3867 Contact Us For Availability
8
RELAY (KMB-KMC) GEN WR07X0105 Contact Us For Availability
8
RELAY (KMD) GEN WR07X0124 Contact Us For Availability
8
CLIP - HINGE TO DOOR GEN WR01X5351 Contact Us For Availability
8
GEN WR02X5832 GEN WR02X5832 Contact Us For Availability
8
GEN WR02X5833 GEN WR02X5833 Contact Us For Availability
8
GEN WZ04X0250 GEN WZ04X0250 Contact Us For Availability
8
GEN WR02X5699 GEN WR02X5699 Contact Us For Availability
8
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
8
GEN WR71X5665 GEN WR71X5665 Contact Us For Availability
9
SLIDE-RH GEN WR72X5002 Contact Us For Availability
9
SLIDE-LH GEN WR72X5003 Contact Us For Availability
9
GEN WR23X5115 GEN WR23X5115 Contact Us For Availability
9
LIGHT SOCKET - FRZ. GEN WR02X4049 Contact Us For Availability
9
GEN WR01X1205 GEN WR01X1205 Contact Us For Availability
9
GEN WR02X5852 GEN WR02X5852 Contact Us For Availability
9
GEN WR50X0008 GEN WR50X0008 Contact Us For Availability
9
GEN WR08X0034 GEN WR08X0034 Contact Us For Availability
9
GUARDETTE (KMD) GEN WR08X0044 Contact Us For Availability
9
GASKET RETAINER - HANDLE GEN WR17X5021 Contact Us For Availability
9
GASKET RETAINER - HINGE GEN WR17X5022 Contact Us For Availability
9
RETAINER - TOP & BTM. GEN WR17X5396 Contact Us For Availability
9
GEN WR17X5019 GEN WR17X5019 Contact Us For Availability
9
GEN WR17X5020 GEN WR17X5020 Contact Us For Availability
9
GEN WR24X5112 GEN WR24X5112 Contact Us For Availability
10
MEAT PAN GEN WR32X5097 Contact Us For Availability
10
DRAIN TROUGH GASKET - RH GEN WR14X5004 Contact Us For Availability
10
DRAIN TROUGH GASKET - LH GEN WR14X5005 Contact Us For Availability
10
GEN WR14X5006 GEN WR14X5006 Contact Us For Availability
10
GEN WR17X5007 GEN WR17X5007 Contact Us For Availability
10
GEN WR01X1213 GEN WR01X1213 Contact Us For Availability
10
GEN WR01X1237 GEN WR01X1237 Contact Us For Availability
10
GEN WR01X1337 GEN WR01X1337 Contact Us For Availability
10
GEN WR23X5105 GEN WR23X5105 Contact Us For Availability
10
SCREW - INNER TO OUTER PANEL GEN WR01X1464 Contact Us For Availability
10
GEN WR77X5413 GEN WR77X5413 Contact Us For Availability
10
GEN WR02X5823 GEN WR02X5823 Contact Us For Availability
11
COVER-MEAT PAN GEN WR32X5118 Contact Us For Availability
11
SCREW -COVER TO COIL GEN WR01X5033 Contact Us For Availability
11
BRACKET - HEATER MTG. GEN WR02X3894 Contact Us For Availability
11
COVER - HEATER GEN WR02X3895 Contact Us For Availability
11
COVER - HEATER SHIED GEN WR02X3896 Contact Us For Availability
11
GEN WR02X4336 GEN WR02X4336 Contact Us For Availability
11
GEN WR02X4338 GEN WR02X4338 Contact Us For Availability
11
GEN WR51X5149 GEN WR51X5149 Contact Us For Availability
11
GEN WR02X5849 GEN WR02X5849 Contact Us For Availability
11
GEN WR02X5957 GEN WR02X5957 Contact Us For Availability
11
GEN WR29X0052 GEN WR29X0052 Contact Us For Availability
11
GEN WR02X5732 GEN WR02X5732 Contact Us For Availability
11
END CAP GEN WR02X5991 Contact Us For Availability
11
DOOR SHELF FRONT GEN WR71X5734 Contact Us For Availability
11
GEN WR02X5054 GEN WR02X5054 Contact Us For Availability
11
GEN WR02X5055 GEN WR02X5055 Contact Us For Availability
11
GEN WR02X5056 GEN WR02X5056 Contact Us For Availability
11
GEN WR02X5797 GEN WR02X5797 Contact Us For Availability
11
GEN WR02X5798 GEN WR02X5798 Contact Us For Availability
11
GEN WR02X5824 GEN WR02X5824 Contact Us For Availability
11
BUTTER DISH GEN WR19X5003 Contact Us For Availability
12
GEN WR02X5817 GEN WR02X5817 Contact Us For Availability
12
GEN WR23X5118 GEN WR23X5118 Contact Us For Availability
12
TUBE FILLER GEN WR02X5807 Contact Us For Availability
12
GEN WR02X5808 GEN WR02X5808 Contact Us For Availability
12
GEN WR01X1198 GEN WR01X1198 Contact Us For Availability
12
NUT-BLADE GEN WR01X1308 Contact Us For Availability
12
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
12
END CAP GEN WR02X5992 Contact Us For Availability
12
FRONT - JUICE RACK GEN WR71X5736 Contact Us For Availability
12
GEN WR01X5044 GEN WR01X5044 Contact Us For Availability
12
GEN WR02X6004 GEN WR02X6004 Contact Us For Availability
12
GEN WR23X0152 GEN WR23X0152 Contact Us For Availability
13
SCREW GEN WR01X5342 Contact Us For Availability
13
NOZZLE HOUSING GEN WR02X3880 Contact Us For Availability
13
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
13
FAN MOUNTING BRACKET-REAR GEN WR02X3897 Contact Us For Availability
13
FAN MOUNTING BRACKET-FRONT GEN WR02X3898 Contact Us For Availability
13
MOTOR & LEAD ASM. GEN WR60X0100 Contact Us For Availability
13
SCREW GEN WZ04X0287 Contact Us For Availability
13
GEN WR02X4095 GEN WR02X4095 Contact Us For Availability
13
GEN WR01X1199 GEN WR01X1199 Contact Us For Availability
13
GEN WR01X1349 GEN WR01X1349 Contact Us For Availability
13
GEN WR02X2413 GEN WR02X2413 Contact Us For Availability
13
GEN WR24X5113 GEN WR24X5113 Contact Us For Availability
13
GEN WR01X5341 GEN WR01X5341 Contact Us For Availability
13
GEN WR72X5026 GEN WR72X5026 Contact Us For Availability
14
GEN WR02X5840 GEN WR02X5840 Contact Us For Availability
14
SCREW GROMMET GEN WR01X5043 Contact Us For Availability
14
GEN WR14X5091 GEN WR14X5091 Contact Us For Availability
14
FREEZER FAN ORIFICE & TAPE ASM. GEN WR17X5004 Contact Us For Availability
14
GEN WR02X3642 GEN WR02X3642 Contact Us For Availability
14
CLAMP (KMB-KMC) GEN WR01X5326 Contact Us For Availability
14
CAPACITOR (KMB-KMC) GEN WR62X0021 Contact Us For Availability
14
END CAP GEN WR02X4100 Contact Us For Availability
14
DOOR SHELF FRONT (1ST, 3RD, & 4TH) GEN WR71X5670 Contact Us For Availability
14
GEN WR71X5671 GEN WR71X5671 Contact Us For Availability
15
GEN WR02X5685 GEN WR02X5685 Contact Us For Availability
15
GEN WR17X5005 GEN WR17X5005 Contact Us For Availability
15
GEN WR29X0045 GEN WR29X0045 Contact Us For Availability
15
GEN WR01X5325 GEN WR01X5325 Contact Us For Availability
15
COVER-ACCESS GEN WR82X5001 Contact Us For Availability
15
GEN WR01X5358 GEN WR01X5358 Contact Us For Availability
15
GEN WR02X5834 GEN WR02X5834 Contact Us For Availability
15
GEN WR02X5835 GEN WR02X5835 Contact Us For Availability
15
GEN WR02X5800 GEN WR02X5800 Contact Us For Availability
15
GEN WR02X5801 GEN WR02X5801 Contact Us For Availability
15
GEN WR71X5667 GEN WR71X5667 Contact Us For Availability
16
GEN WR02X5013 GEN WR02X5013 Contact Us For Availability
16
RIVET-GASKET TO LINER GEN WR01X5337 Contact Us For Availability
16
GEN WR02X3543 GEN WR02X3543 Contact Us For Availability
16
GEN WR02X5959 GEN WR02X5959 Contact Us For Availability
16
GASKET-FAN COVER GEN WR14X5003 Contact Us For Availability
16
GEN WR01X1200 GEN WR01X1200 Contact Us For Availability
16
GEN WR62X5009 GEN WR62X5009 Contact Us For Availability
16
ADJUSTABLE SHELF GEN WR71X5669 Contact Us For Availability
16
RECEPTACLE AND PLUG - B GEN WR02X3925 Contact Us For Availability
17
GEN WR01X5028 GEN WR01X5028 Contact Us For Availability
17
GEN WR01X5039 GEN WR01X5039 Contact Us For Availability
17
CONTROL GEN WR09X5054 Contact Us For Availability
17
GEN WR01X5035 GEN WR01X5035 Contact Us For Availability
17
GASKET-COIL COVER-RH GEN WR14X5095 Contact Us For Availability
17
GASKET-COIL COVER-LH GEN WR14X5096 Contact Us For Availability
17
GEN WR17X5633 GEN WR17X5633 Contact Us For Availability
17
GEN WR29X0046 GEN WR29X0046 Contact Us For Availability
17
GROMMET-WATER INLET GEN WR17X0988 Contact Us For Availability
17
GEN WR30X5076 GEN WR30X5076 Contact Us For Availability
18
SCREW-EXTENSION TO LINER GEN WR01X5027 Contact Us For Availability
18
GEN WR02X5032 GEN WR02X5032 Contact Us For Availability
18
GEN WR02X5809 GEN WR02X5809 Contact Us For Availability
18
GEN WR17X5634 GEN WR17X5634 Contact Us For Availability
18
GEN WR29X0015 GEN WR29X0015 Contact Us For Availability
18
GEN WR17X0750 GEN WR17X0750 Contact Us For Availability
18
GEN WR17X5624 GEN WR17X5624 Contact Us For Availability
18
GEN WR17X5625 GEN WR17X5625 Contact Us For Availability
18
GEN WR17X5626 GEN WR17X5626 Contact Us For Availability
18
GEN WR17X5627 GEN WR17X5627 Contact Us For Availability
19
GEN WR17X5570 GEN WR17X5570 Contact Us For Availability
19
SCREW-CLAMP TO CABINET GEN WR01X5034 Contact Us For Availability
19
SHELF-TOP GEN WR71X5672 Contact Us For Availability
19
GEN WR29X0016 GEN WR29X0016 Contact Us For Availability
19
GEN WR02X5836 GEN WR02X5836 Contact Us For Availability
19
GEN WZ05X0191 GEN WZ05X0191 Contact Us For Availability
20
SCREW-LATCH TO DOOR GEN WZ04X0244 Contact Us For Availability
20
DUCT GEN WR02X5033 Contact Us For Availability
20
GEN WR02X6007 GEN WR02X6007 Contact Us For Availability
20
SUPPORT - L.H. GEN WR02X5810 Contact Us For Availability
20
SUPPORT - R.H. GEN WR02X5811 Contact Us For Availability
20
GEN WR38X5148 GEN WR38X5148 Contact Us For Availability
20
GEN WR38X5149 GEN WR38X5149 Contact Us For Availability
20
SHELF - SOLID GEN WR71X5673 Contact Us For Availability
20
GEN WR29X0001 GEN WR29X0001 Contact Us For Availability
20
ELBOW GEN WR57X0052 Contact Us For Availability
20
GEN WR02X5837 GEN WR02X5837 Contact Us For Availability
20
SHIM-LATCH GEN WR02X5838 Contact Us For Availability
21
CLIP - TRIM TO SHELF GEN WR02X3440 Contact Us For Availability
21
GEN WR02X5034 GEN WR02X5034 Contact Us For Availability
21
GEN WR71X5699 GEN WR71X5699 Contact Us For Availability
21
GEN WR29X0018 GEN WR29X0018 Contact Us For Availability
21
FITTING GEN WR57X0050 Contact Us For Availability
21
GEN WR17X5628 GEN WR17X5628 Contact Us For Availability
21
GEN WR17X5629 GEN WR17X5629 Contact Us For Availability
21
GEN WR24X5117 GEN WR24X5117 Contact Us For Availability
21
SCREWS-RETAINERS TO I.D. PANEL GEN WZ05X0124 Contact Us For Availability
22
GEN WR17X5006 GEN WR17X5006 Contact Us For Availability
22
GEN WR38X5004 GEN WR38X5004 Contact Us For Availability
22
GEN WR38X5005 GEN WR38X5005 Contact Us For Availability
22
SHELF (TURNED UP) GEN WR71X5003 Contact Us For Availability
22
GEN WR29X5099 GEN WR29X5099 Contact Us For Availability
22
WASHER GEN WR57X0046 Contact Us For Availability
22
CLIPS-HINGES, STOPS & LATCH GEN WR01X5359 Contact Us For Availability
22
GEN WR77X5378 GEN WR77X5378 Contact Us For Availability
22
GEN WR82X5031 GEN WR82X5031 Contact Us For Availability
23
GEN WR02X5828 GEN WR02X5828 Contact Us For Availability
23
BASKET SLIDE - RH GEN WR17X0842 Contact Us For Availability
23
BASKET SLIDE - LH GEN WR17X0843 Contact Us For Availability
23
GEN WR29X0019 GEN WR29X0019 Contact Us For Availability
23
GEN WR57X0049 GEN WR57X0049 Contact Us For Availability
23
SCREW STOPS GEN WR01X5360 Contact Us For Availability
23
DOOR STOPS-RH GEN WR13X5110 Contact Us For Availability
23
DOOR STOPS-LH GEN WR13X5111 Contact Us For Availability
24
GEN WR01X5390 GEN WR01X5390 Contact Us For Availability
24
GEN WR02X5841 GEN WR02X5841 Contact Us For Availability
24
GEN WR02X5842 GEN WR02X5842 Contact Us For Availability
24
GEN WR02X5954 GEN WR02X5954 Contact Us For Availability
24
GEN WZ04X0223 GEN WZ04X0223 Contact Us For Availability
24
CLIP - HANDLE TO BASKET GEN WR02X5008 Contact Us For Availability
24
GEN WR02X6005 GEN WR02X6005 Contact Us For Availability
24
GEN WR21X5072 GEN WR21X5072 Contact Us For Availability
24
GEN WR01X1236 GEN WR01X1236 Contact Us For Availability
24
SCREW-BRACKET TO CABINET GEN WZ05X0164 Contact Us For Availability
24
GEN WR57X0047 GEN WR57X0047 Contact Us For Availability
24
GEN WR13X5112 GEN WR13X5112 Contact Us For Availability
24
GEN WR13X5113 GEN WR13X5113 Contact Us For Availability
24
SCREW-HINGE TO PANEL GEN WZ06X0093 Contact Us For Availability
25
GEN WR23X0153 GEN WR23X0153 Contact Us For Availability
25
TIMER MOUNTING BRACKET GEN WR02X3755 Contact Us For Availability
25
DEFROST TIMER (KMB-KMC) GEN WR09X0253 Contact Us For Availability
25
GEN WR09X0267 GEN WR09X0267 Contact Us For Availability
25
GEN WR29X5100 GEN WR29X5100 Contact Us For Availability
25
GEN WR62X0023 GEN WR62X0023 Contact Us For Availability
26
GEN WR02X3389 GEN WR02X3389 Contact Us For Availability
26
GEN WR40X5023 GEN WR40X5023 Contact Us For Availability
26
FAN & LIGHT SWITCH GEN WR23X0142 Contact Us For Availability
26
GEN WR29X5101 GEN WR29X5101 Contact Us For Availability
26
GEN WR02X3862 GEN WR02X3862 Contact Us For Availability
26
HEATER GEN WR51X5156 Contact Us For Availability
27
GEN WR51X0176 GEN WR51X0176 Contact Us For Availability
27
END CAP-RH GEN WR02X5776 Contact Us For Availability
27
END CAR-LH GEN WR02X5777 Contact Us For Availability
27
GEN WR79X5106 GEN WR79X5106 Contact Us For Availability
27
GEN WR01X1207 GEN WR01X1207 Contact Us For Availability
27
SCREW - PLATE TO MOLD GEN WR01X1208 Contact Us For Availability
27
GEN WR29X0041 GEN WR29X0041 Contact Us For Availability
28
BREAKER STRIP-TOP GEN WR40X5377 Contact Us For Availability
28
GEN WR01X5353 GEN WR01X5353 Contact Us For Availability
28
HOUSING & WHEEL GEN WR02X4083 Contact Us For Availability
28
GEN WR01X1240 GEN WR01X1240 Contact Us For Availability
29
BREAKER STRIP-SIDES GEN WR40X5376 Contact Us For Availability
29
CLAMP GEN WR01X5042 Contact Us For Availability
29
GEN WR02X5022 GEN WR02X5022 Contact Us For Availability
29
GEN WR02X5814 GEN WR02X5814 Contact Us For Availability
29
GEN WR01X1241 GEN WR01X1241 Contact Us For Availability
30
BREAKER STRIP-BOTTOM GEN WR40X5378 Contact Us For Availability
30
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
30
AXLE-ROLLER GEN WR02X5812 Contact Us For Availability
30
GEN WR29X0029 GEN WR29X0029 Contact Us For Availability
31
RETAINER-HINGE SIDE GEN WR02X5926 Contact Us For Availability
31
RETAINER-MULLI GEN WR02X6159 Contact Us For Availability
31
GEN WR40X5404 GEN WR40X5404 Contact Us For Availability
31
GEN WR40X5405 GEN WR40X5405 Contact Us For Availability
31
RIVET - EXTENSION GEN WR01X1254 Contact Us For Availability
31
GEN WR29X0037 GEN WR29X0037 Contact Us For Availability
31
GEN WR29X0058 GEN WR29X0058 Contact Us For Availability
32
GEN WR02X5872 GEN WR02X5872 Contact Us For Availability
32
GEN WR02 GEN WR02 Contact Us For Availability
32
GEN WR01X1351 GEN WR01X1351 Contact Us For Availability
32
GEN WR29X0007 GEN WR29X0007 Contact Us For Availability
33
GEN WR01X1126 GEN WR01X1126 Contact Us For Availability
33
GEN WR01X1219 GEN WR01X1219 Contact Us For Availability
33
GEN WR30X5077 GEN WR30X5077 Contact Us For Availability
34
GEN WR01X1204 GEN WR01X1204 Contact Us For Availability
34
GEN WR29X5102 GEN WR29X5102 Contact Us For Availability
35
GEN WR29X0040 GEN WR29X0040 Contact Us For Availability
36
GEN WR29X0039 GEN WR29X0039 Contact Us For Availability
37
GEN WR29X0038 GEN WR29X0038 Contact Us For Availability
38
GEN WR29X0031 GEN WR29X0031 Contact Us For Availability
40
ROD ASSEMBLY - EJECTOR GEN WR29X0047 Contact Us For Availability
41
GEN WR29X0033 GEN WR29X0033 Contact Us For Availability
42
GEN WR51X0164 GEN WR51X0164 Contact Us For Availability
43
GEN WR01X1212 GEN WR01X1212 Contact Us For Availability
43
GEN WR02X3653 GEN WR02X3653 Contact Us For Availability
44
GEN WR17X0970 GEN WR17X0970 Contact Us For Availability
45
GEN WR01X1352 GEN WR01X1352 Contact Us For Availability
45
GEN WR01X1353 GEN WR01X1353 Contact Us For Availability
46
SCREW - SHIELD GEN WR01X5366 Contact Us For Availability
46
GEN WR02X1242 GEN WR02X1242 Contact Us For Availability
46
GEN WR29X5103 GEN WR29X5103 Contact Us For Availability
47
GEN WR02X5956 GEN WR02X5956 Contact Us For Availability
47
GEN WR97X0110 GEN WR97X0110 Contact Us For Availability
47
GEN WR97X0161 GEN WR97X0161 Contact Us For Availability
47
LOW TEMP. LUBRICANT - MOTOR ASM., ETC. GEN WR97X0162 Contact Us For Availability
47
GEN WR97X0164 GEN WR97X0164 Contact Us For Availability
47
GEN WR97X0165 GEN WR97X0165 Contact Us For Availability
47
GEN WR97X0166 GEN WR97X0166 Contact Us For Availability
47
GEN WR97X0167 GEN WR97X0167 Contact Us For Availability
47
GEN WZ04X0243 GEN WZ04X0243 Contact Us For Availability
× ![]()
