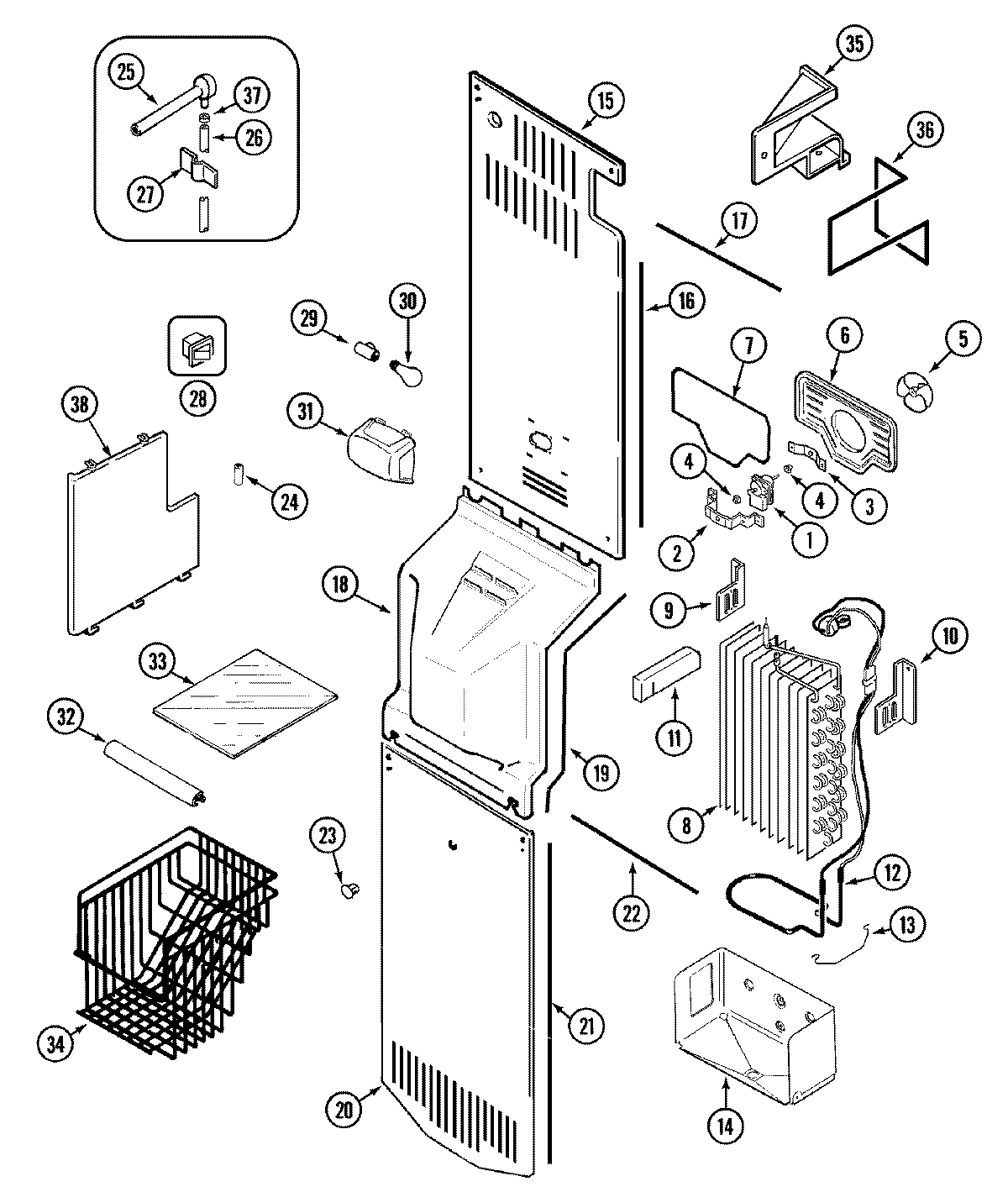

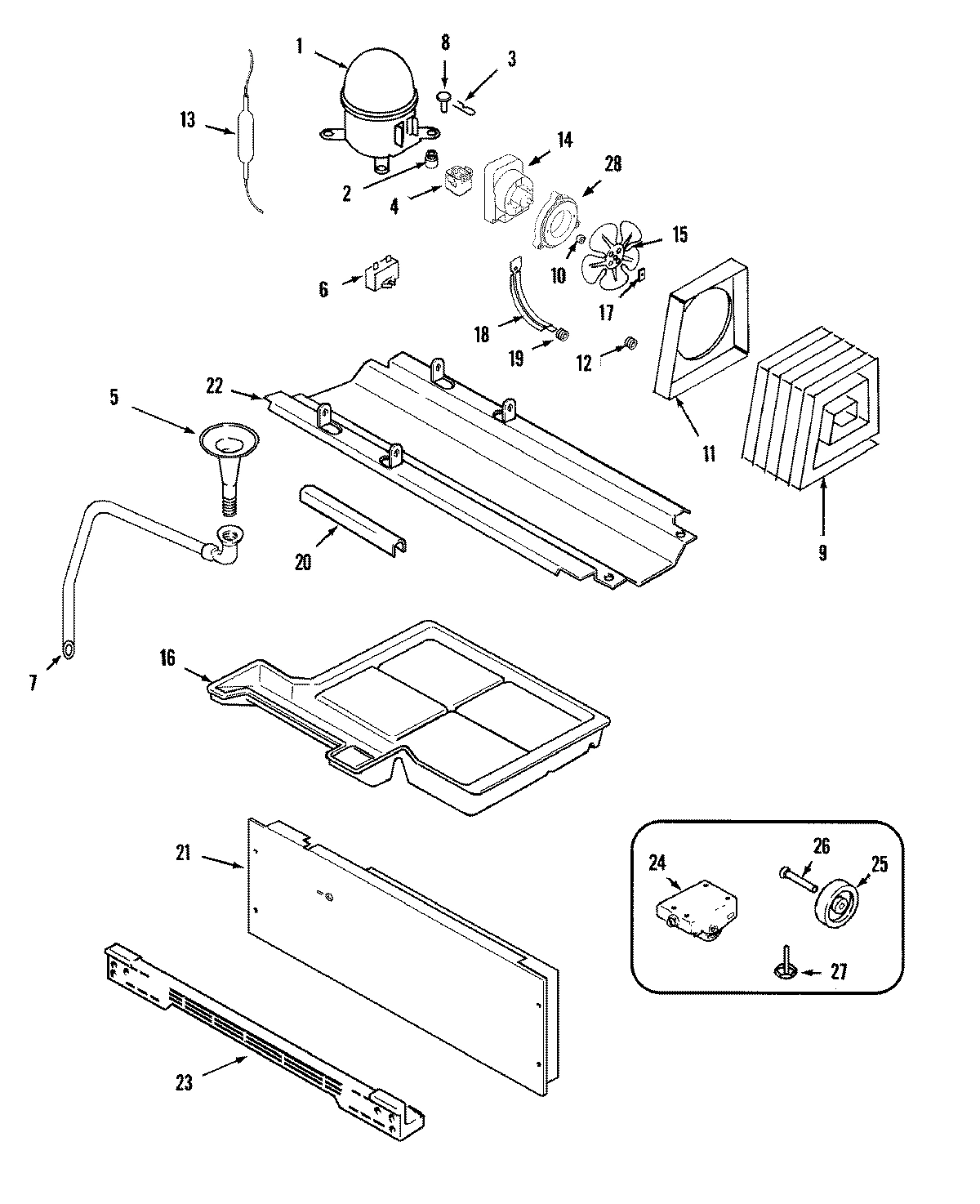

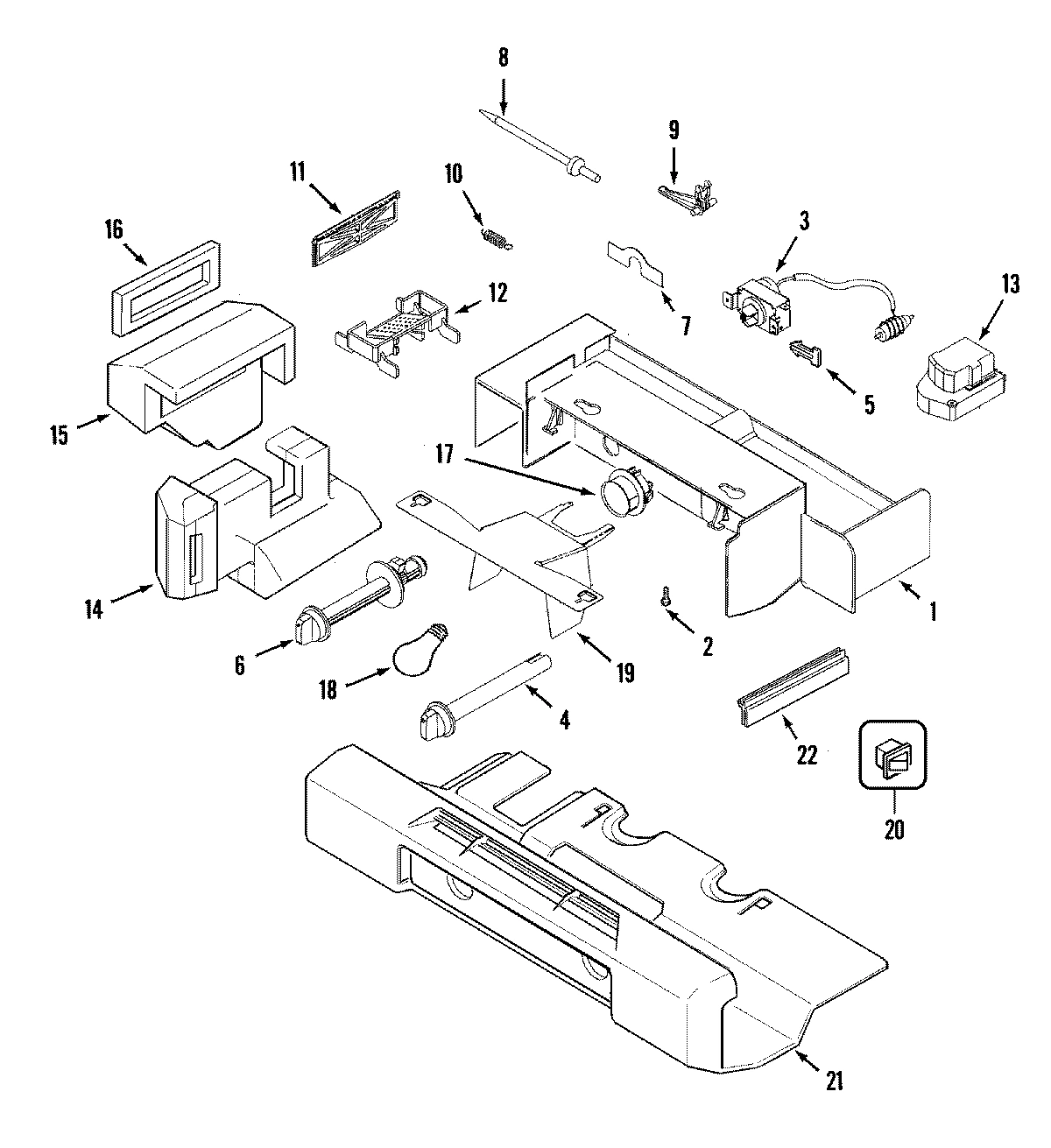

Model Whirlpool CS27G6DW REFRIGERATOR – Common Parts &amp; Diagrams

1

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $64.53

1

WIRE HARNESS, COMPRESSOR WPL 61005322 Contact Us For Availability

1

SCREW WPL 4000171 Contact Us For Availability

1

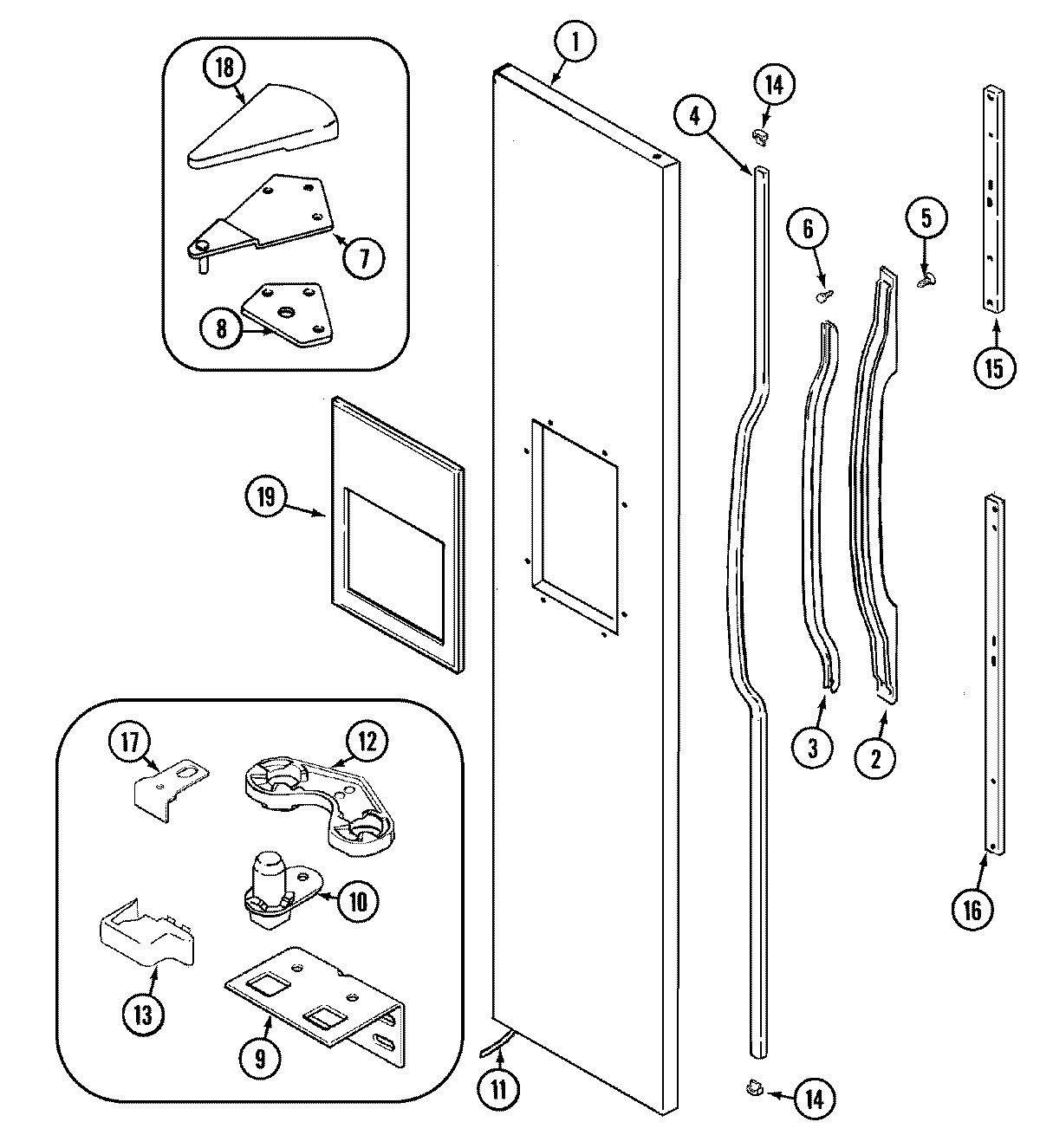

PANEL, FRZ. DOOR (WHT) WPL 61003851 Contact Us For Availability

1

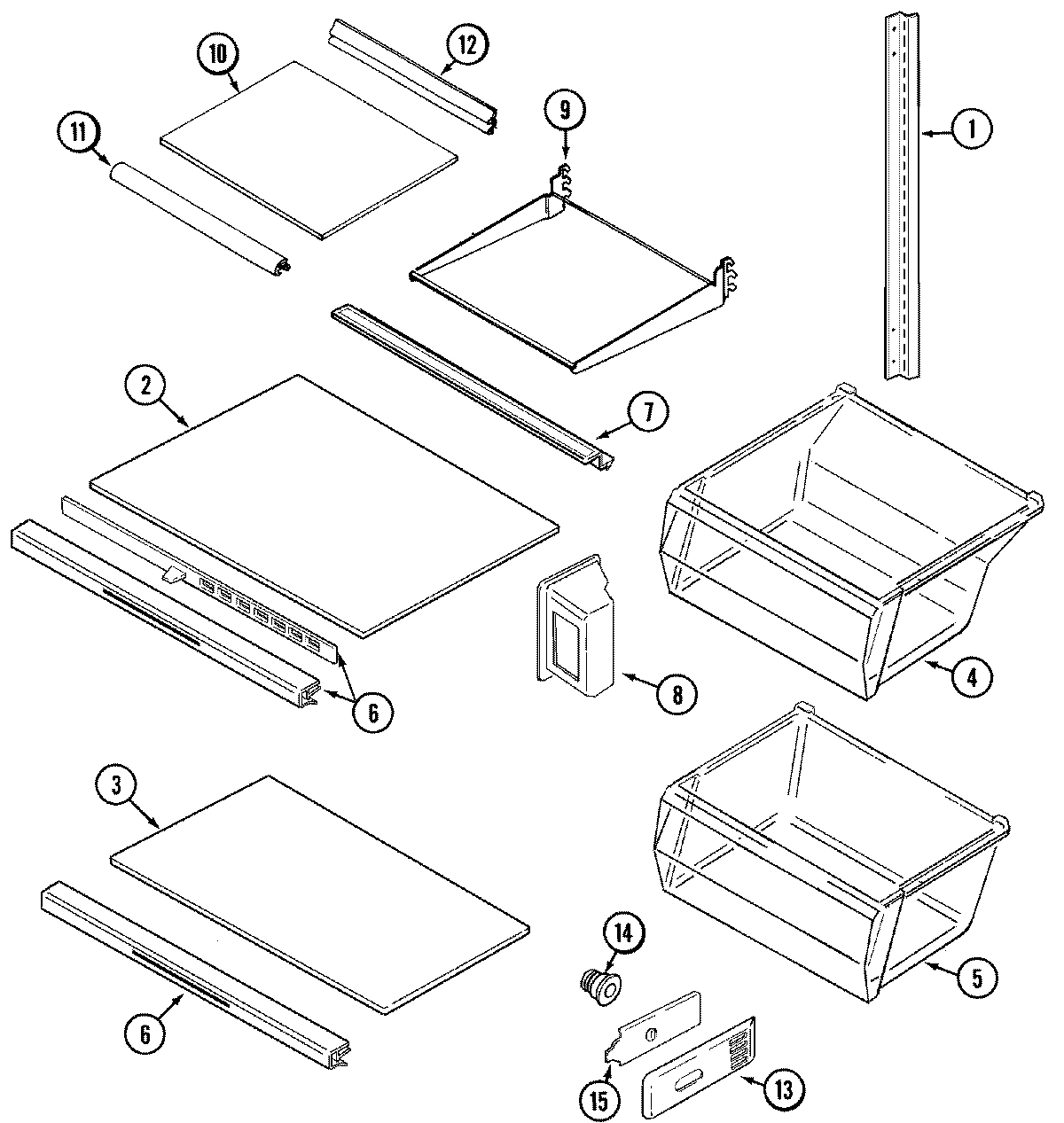

RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability

1

SCREW WPL 61003307 Contact Us For Availability

1

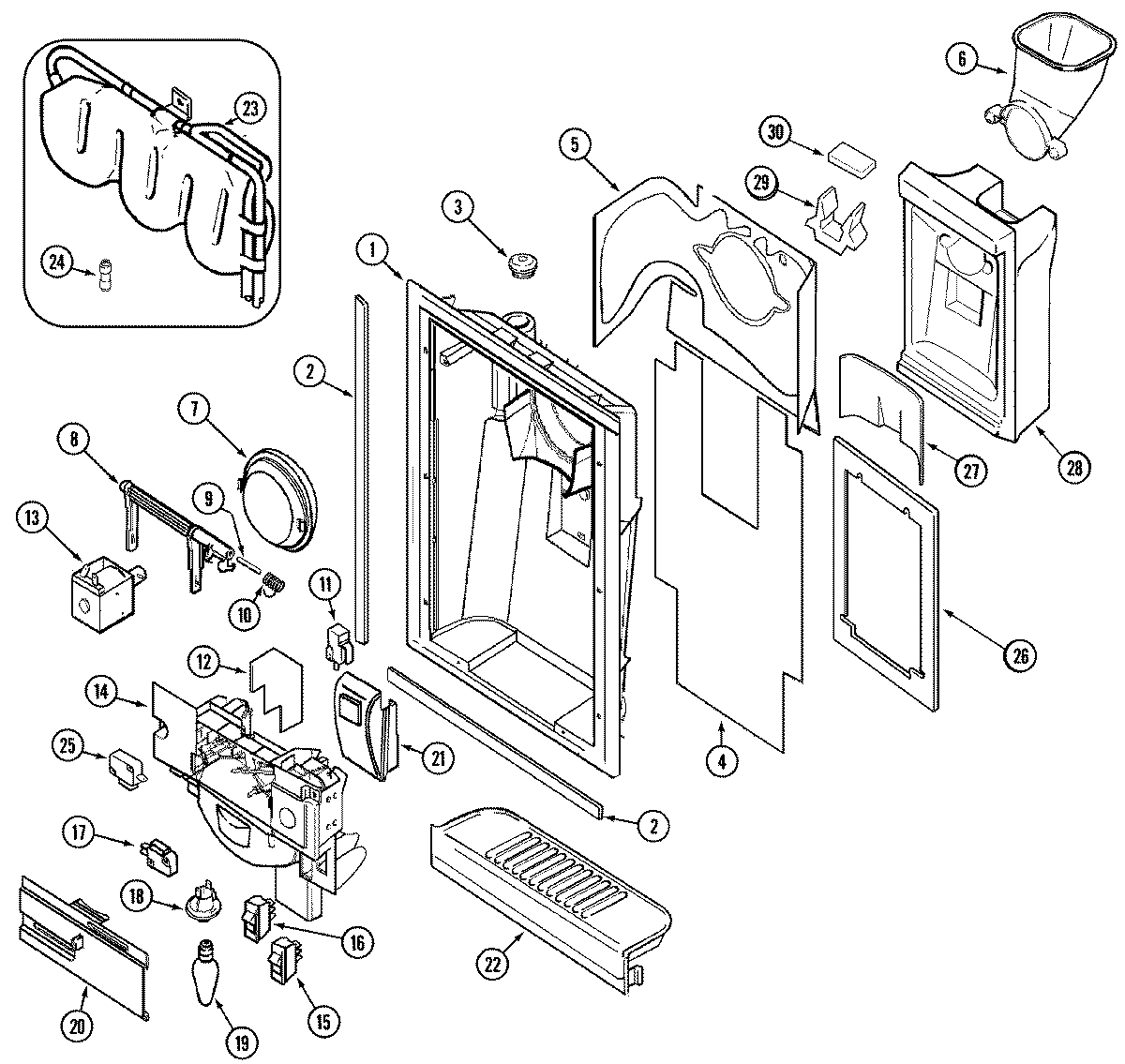

HOUSING, FOUNTAIN (WHT) WPL 61004675 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDES) WPL 61003979 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61003980 Contact Us For Availability

1

SCREW WPL 61005388 Contact Us For Availability

1

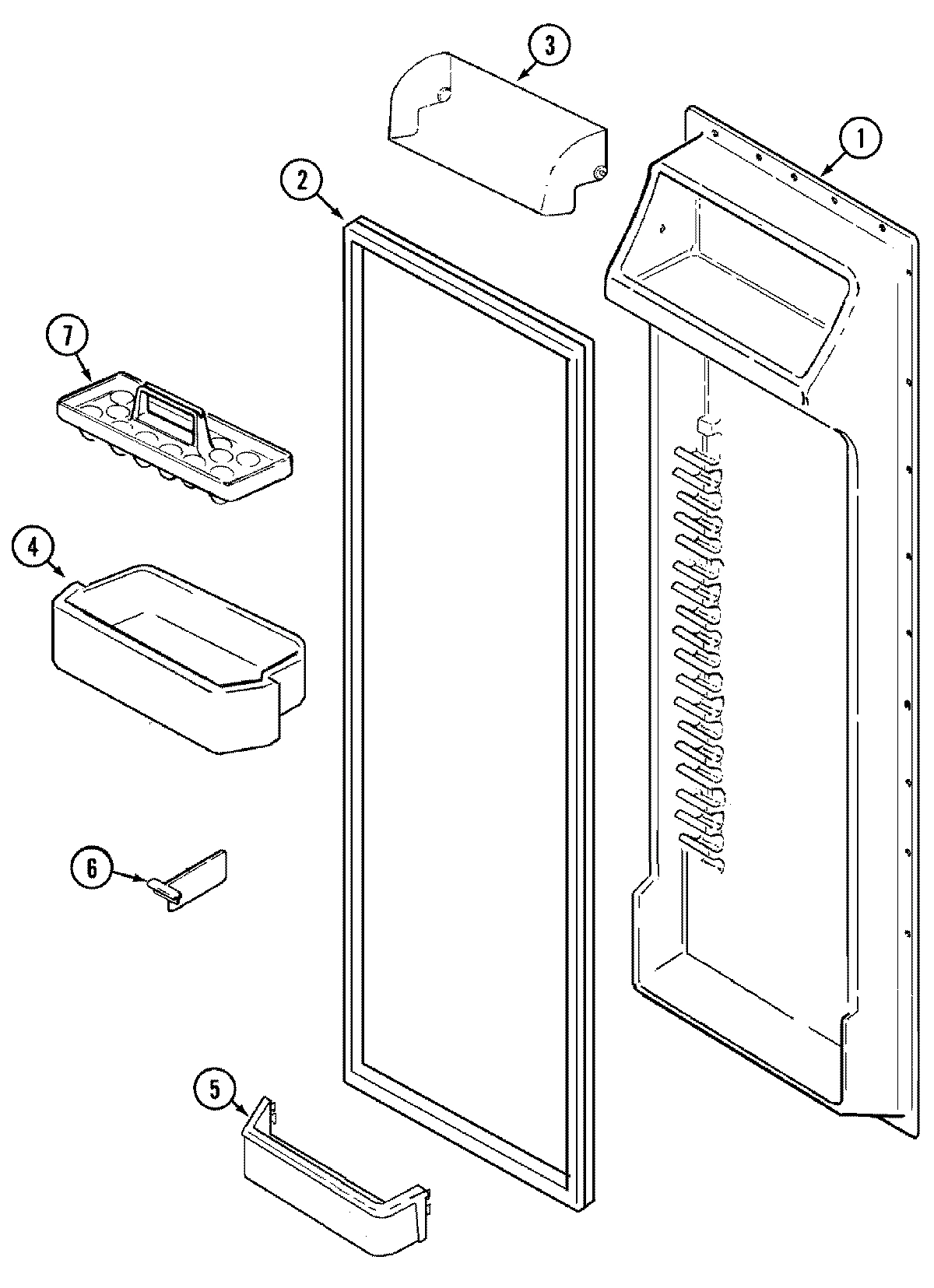

LINER, F.F. DOOR WPL 61005413 Contact Us For Availability

1

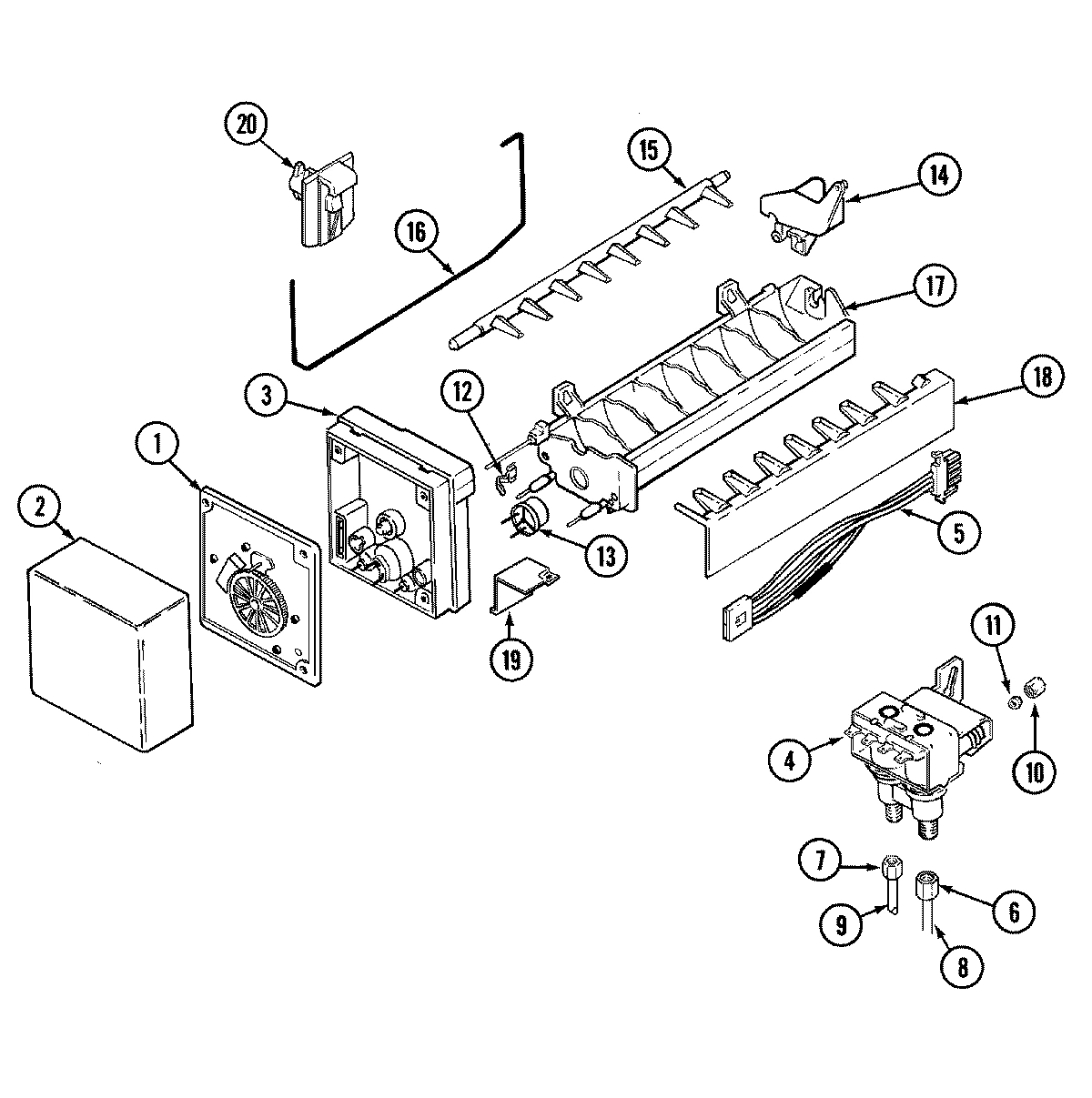

ICEMAKER WPL 951091 Contact Us For Availability

1

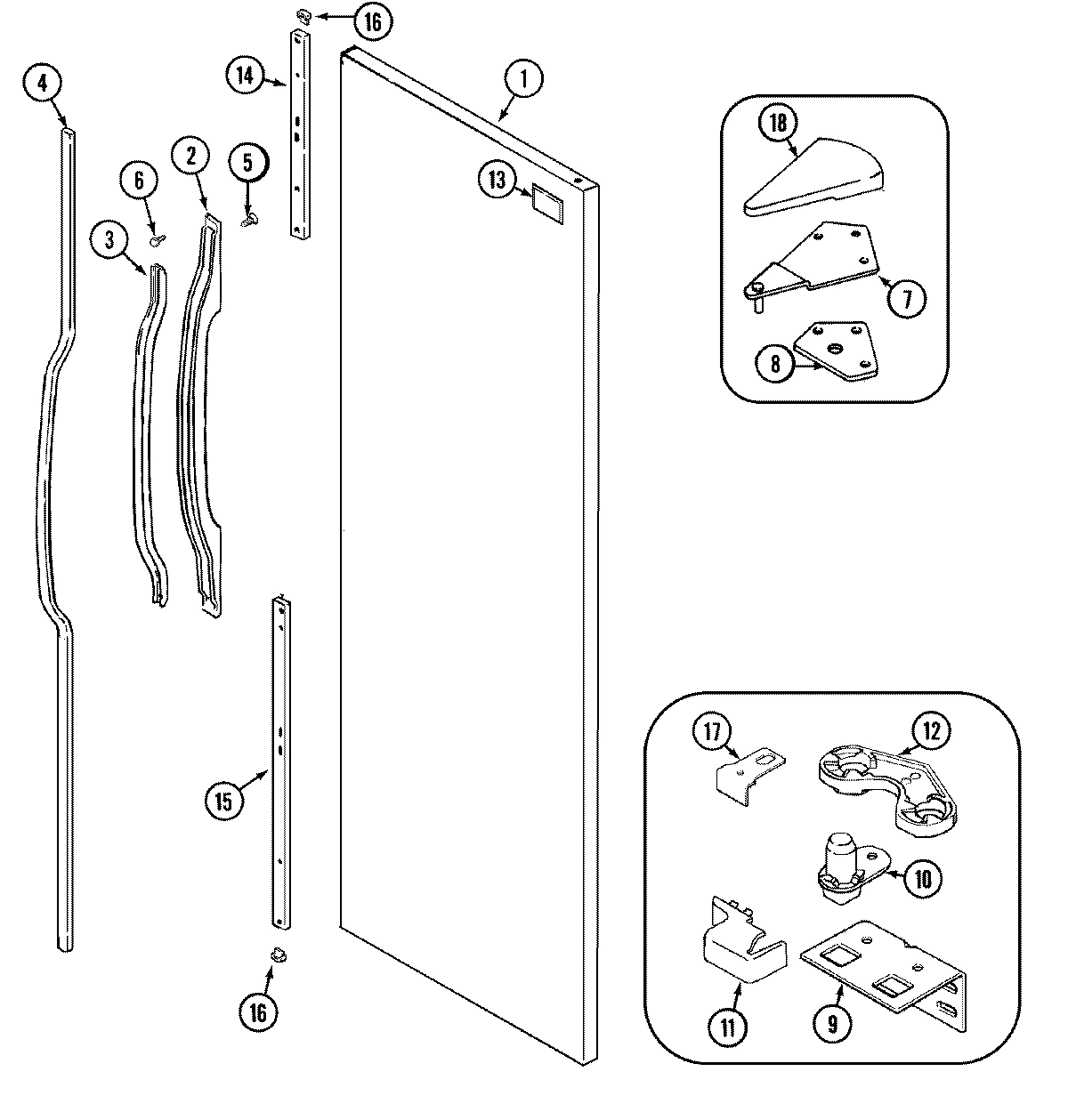

PANEL, F.F. DOOR (WHT) WPL 61004595 Contact Us For Availability

1

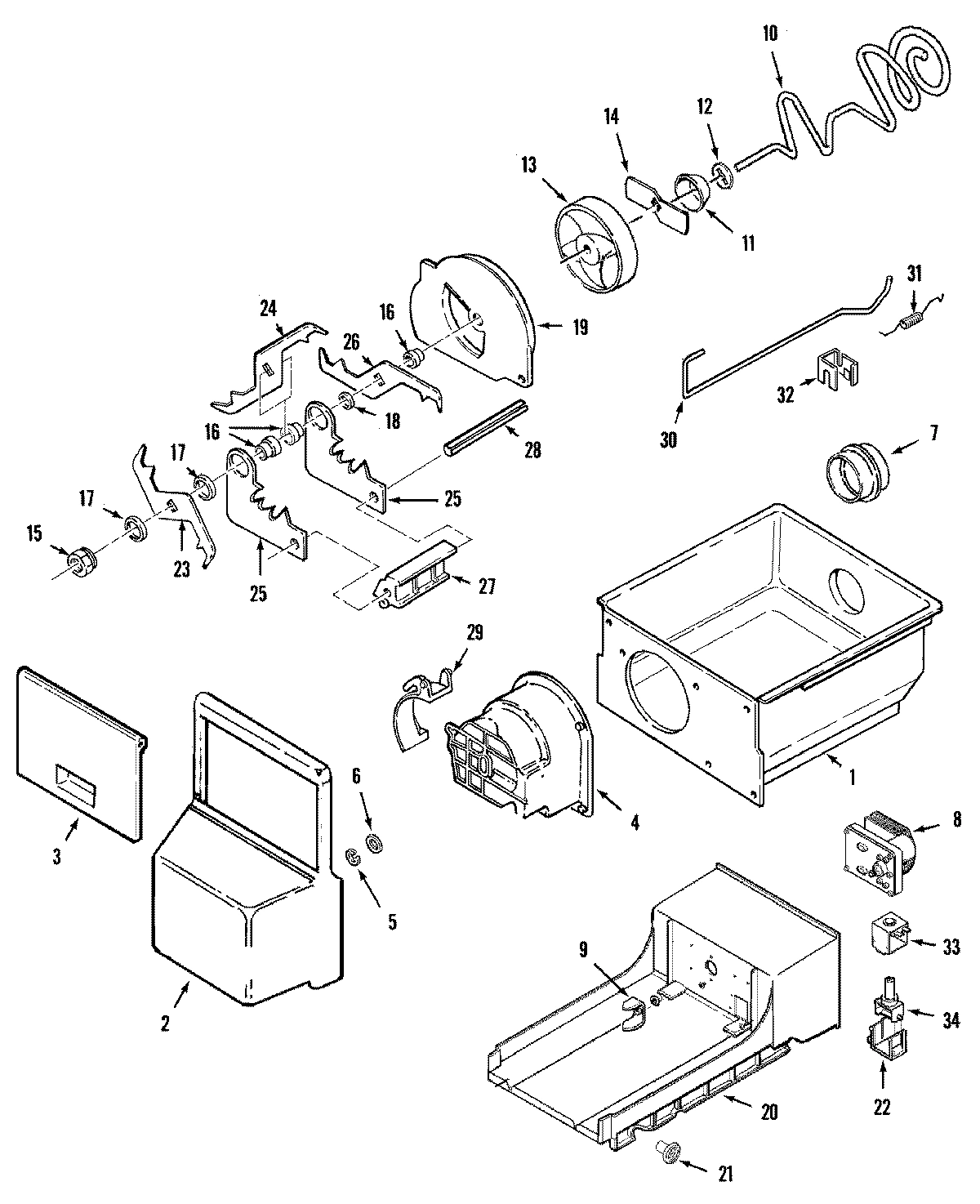

BIN, ICE WPL 61004802 Contact Us For Availability

1

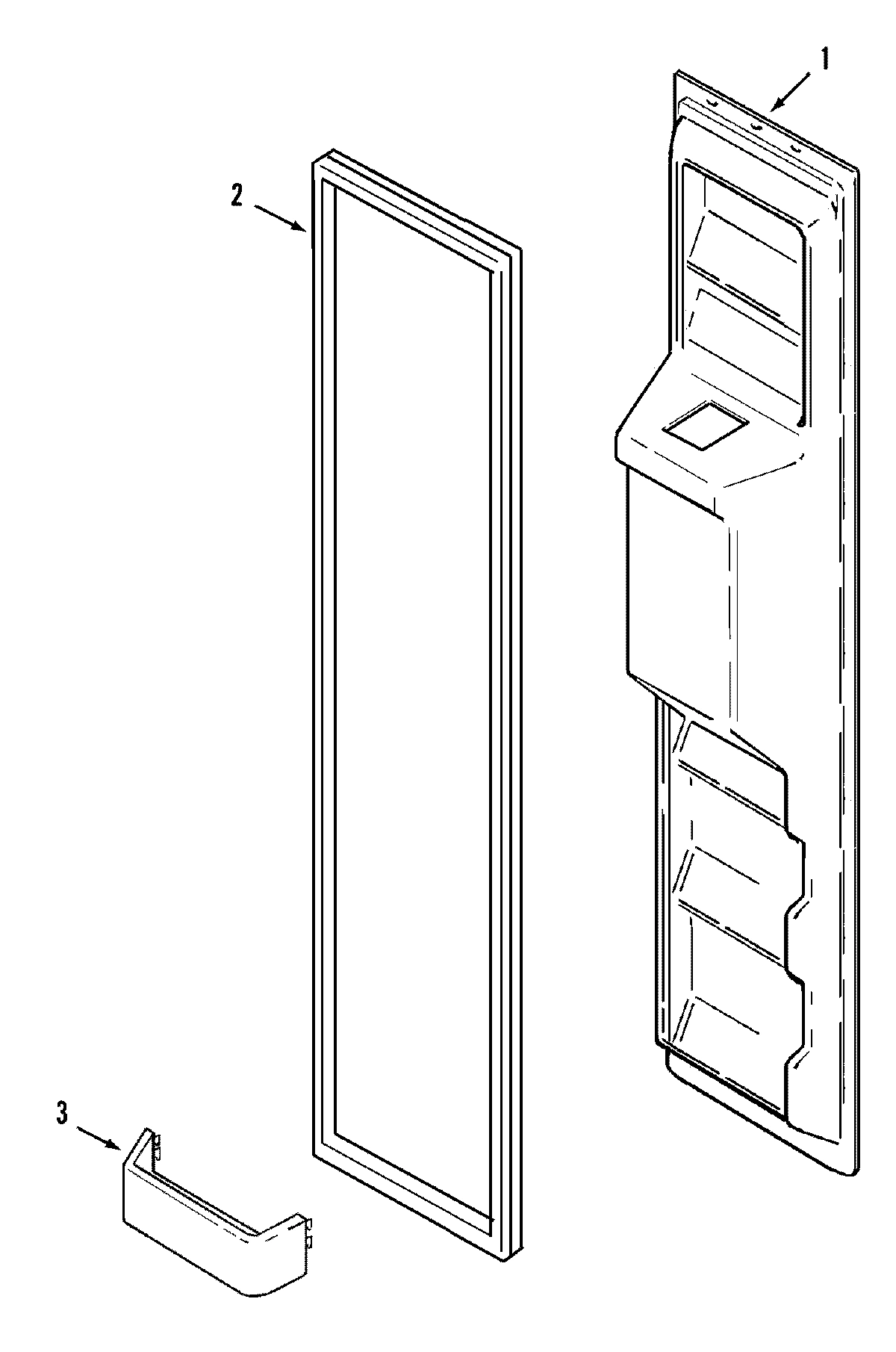

LINER, FRZ. DOOR WPL 61003854 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61003917 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDE) WPL 61004741 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.76

2

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

HANDLE (WHT) WPL 61003262 Contact Us For Availability

2

GLASS, CRISPER SHELF (UPR) WPL 61003822 Contact Us For Availability

2

TAPE (1FT.) WPL 61003286 Contact Us For Availability

2

SEAL, F.F. DOOR (WHT) WPL 61003847 Contact Us For Availability

2

COVER, ICE MAKER WPL 61005374 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61003855 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

3

FRAME, HANDLE WPL 61003168 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61003823 Contact Us For Availability

3

GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability

3

DOOR, DAIRY WPL 61003995 Contact Us For Availability

3

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

3

SCREW WPL 951061 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61005534 Contact Us For Availability

4

12002784 Whirlpool Refrigerator Compressor St Backorder WPL 12002784 $94.12

4

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $56.48

4

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

4

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

4

INSERT, HANDLE (WHT) WPL 61003844 Contact Us For Availability

4

SCREW WPL 41501335 Contact Us For Availability

4

PAN, CRISPER WPL 61003892 Contact Us For Availability

4

FOIL, FTN. BACK WPL 61003304 Contact Us For Availability

4

SHELF, PICK-OFF WPL 61005532 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

5

TUBE, DRAIN WPL 61004751 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

SCREW WPL 4000611 Contact Us For Availability

5

PAN, MEAT WPL 61003893 Contact Us For Availability

5

HEATER, FOUNTAIN WPL 61003125 Contact Us For Availability

5

FRONT, PICK-OFF WPL 61005533 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61003912 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

6

KNOB, FRZ. CONTROL WPL 61003423 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

SHROUD, FAN WPL 61003898 Contact Us For Availability

6

TRIM, FRONT SHELF GLASS----NA WPL 61003879 Contact Us For Availability

6

TRIM, SHELF (CRISPER) WPL 61003894 Contact Us For Availability

6

CHUTE, ICE WPL 61004677 Contact Us For Availability

6

ORGANIZER WPL 61002640 Contact Us For Availability

6

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

7

12001991 Whirlpool Ice Door Kit In Stock WPL 12001991 $119.49

7

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.55

7

RETAINER, FRZ. KNOB WPL 61003139 Contact Us For Availability

7

CLAMP WPL 535169 Contact Us For Availability

7

HOSE, DRAIN WPL 61003133 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

SEAL,CRISPER SHELF----NA WPL 61003895 Contact Us For Availability

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $145.42

8

ROD, DAMPER CAM WPL 61003155 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

EVAP/HEAT EXCH,ASSY27,29,CDSXS WPL 12001641 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

SEE NOTE (MUST ORDER TANK ASSY. PART NO. WPL Y00000000 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61004805 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $32.59

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.51

9

WP9705445 Whirlpool Refrigerator Roll Pin Backorder WPL WP9705445 $3.76

9

FOLLOWER, CAM WPL 61003140 Contact Us For Availability

9

CONDENSER WPL 61005452 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

9

TUBING WPL 6757926 Contact Us For Availability

9

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

9

FRAME, SHELF WPL 61003896 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

SPRING, FTN. RETURN WPL 61004388 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

GLASS, SHELF WPL 61003897 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

DOOR, DAMPER WPL 61003424 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

TUBING, FOUNTAIN WPL 61004569 Contact Us For Availability

TRIM, EXT. GLASS SHELF (FRONT) WPL 61003867 Contact Us For Availability

SWITCH, LIMIT WPL 61005520 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

COVER, LOWER HINGE (WHT) WPL 61003220 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $6.37

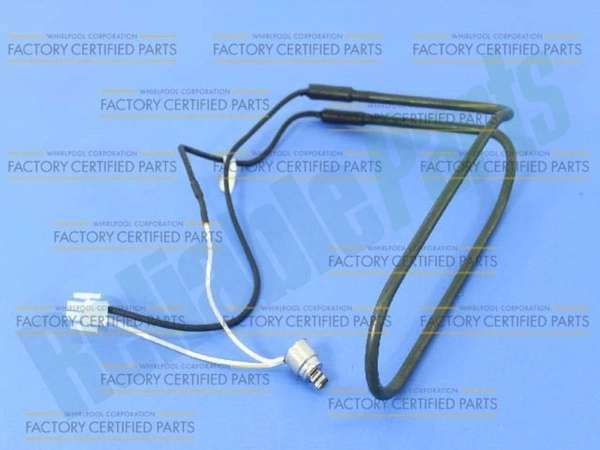

WP61006197 Whirlpool Refrigerator Defrost Hea Backorder WPL WP61006197 $77.76

BRACKET, MASS HOLDER WPL 61004278 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

TRIM, EXT. GLASS SHELF (REAR) WPL 61003866 Contact Us For Availability

BOARD, DELAY WPL 61003288 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

WASHER, CONE STOP WPL 696981 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.14

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $4.67

COVER, LOWER HINGE (WHT) WPL 61003219 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

NAMEPLATE (WHT) WPL 61002078 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

INSULATION, DISCHARGE (LT) WPL 61003144 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61004279 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 61005323 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003830 Contact Us For Availability

TRIM, HANDLE EXT. (WHT) WPL 61003266 Contact Us For Availability

TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability

BRACKET, FOUNTAIN (WHT) WPL 61003292 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

SEAL, TUNNEL (DOUBLE-SIDED) WPL 61005075 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61005531 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

COVER, COIL (UPR) WPL 61004028 Contact Us For Availability

TRIM, HANDLE EXT. (LOWER-WHT) WPL 61003909 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability

SWITCH, SAFETY WPL 699041 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

END CAP, HANDLE (WHT) WPL 61003271 Contact Us For Availability

SWITCH, LIGHT WPL 61003290 Contact Us For Availability

ARM, SENSOR WPL 61004136 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.55

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $38.22

SEAL, UPPER COVER (TOP) WPL 61003834 Contact Us For Availability

STOP, DOOR WPL 61003273 Contact Us For Availability

SWITCH WPL 554403 Contact Us For Availability

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.18

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.76

COVER, UPPER HINGE (WHT) WPL 61004642 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003835 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

COVER, UPPER HINGE (WHT) WPL 61004640 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.80

SHIELD, HEAT WPL 61003149 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

ESCUTCHEON (WHT) WPL 61005501 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

PLATE, IMPELLER WPL 697011 Contact Us For Availability

61005625 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005625 $143.53

SWITCH, LIGHT WPL 669871 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability

SCREW WPL 61004424 Contact Us For Availability

COVER, COIL (LWR) WPL 61003836 Contact Us For Availability

SCREW WPL 61004052 Contact Us For Availability

SELECTOR, SLIDE (WHT) WPL 61005064 Contact Us For Availability

SHIELD, LIGHT WPL 61003889 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004778 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

PAD, ACTUATOR (GRY) WPL 61003802 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61005080 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.76

TRIM, CONTROL HSG. WPL 61003919 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005269 Contact Us For Availability

SEAL, LOWER COVER WPL 61003837 Contact Us For Availability

GRILL (WHT) WPL 61003309 Contact Us For Availability

SCREW WPL 40002612 Contact Us For Availability

GUIDE, YOKE WPL 697151 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

KICKPLATE (WHT) WPL 61004053 Contact Us For Availability

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

BLADE, CRUSHER WPL 697023 Contact Us For Availability

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.49

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

SPACER, DIVIDER WPL 688231 Contact Us For Availability

BLADE, CRUSHER WPL 697022 Contact Us For Availability

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.76

GROMMET, FILL TUBE WPL 61005233 Contact Us For Availability

SCREW WPL 41504135 Contact Us For Availability

SWITCH, CRUSHER WPL 554401 Contact Us For Availability

BLADE, CRUSHER WPL 697061 Contact Us For Availability

26

BLADE, CRUSHER WPL 697021 Contact Us For Availability

LEG, LEVELING WPL 61002014 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

INSULATION WPL 61003340 Contact Us For Availability

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.76

ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability

SCREW WPL 61005326 Contact Us For Availability

INSULATION, FTN. (STYROFOAM) WPL 61004724 Contact Us For Availability

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

29

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

29

INSULATION WPL 61003308 Contact Us For Availability

29

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

30

BULB, LIGHT WPL 319561 Contact Us For Availability

30

INSULATION WPL 61003343 Contact Us For Availability

30

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

31

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

31

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

32

TRIM, SHELF (FRT) WPL 61003838 Contact Us For Availability

32

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $9.75

SHELF, FRZ. (SHALLOW) WPL 61003839 Contact Us For Availability

SHELF, FRZ. (DEEP) WPL 61003840 Contact Us For Availability

SOLENOID WPL 61005253 Contact Us For Availability

34

BASKET, FRZ. WPL 61003841 Contact Us For Availability

34

YOKE ASSY. WPL 61003539 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.89

38

DIVIDER, DISPENSER ENCLOSURE WPL 61003900 Contact Us For Availability

WIRE HARNESS, FRZ./F.F. WPL 61003890 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61004280 Contact Us For Availability

YODER LOOP HTR(115V)27,29,23CD WPL 12001548 Contact Us For Availability

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

MANUAL, USE & CARE WPL 61003134 Contact Us For Availability

WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability

WIRE HARNESS, FRZ. WPL 61003259 Contact Us For Availability

WIRE HARNESS, FTN. SWITCHES WPL 61003455 Contact Us For Availability

WIRE HARNESS, FTN. SLIDE WPL 61003468 Contact Us For Availability

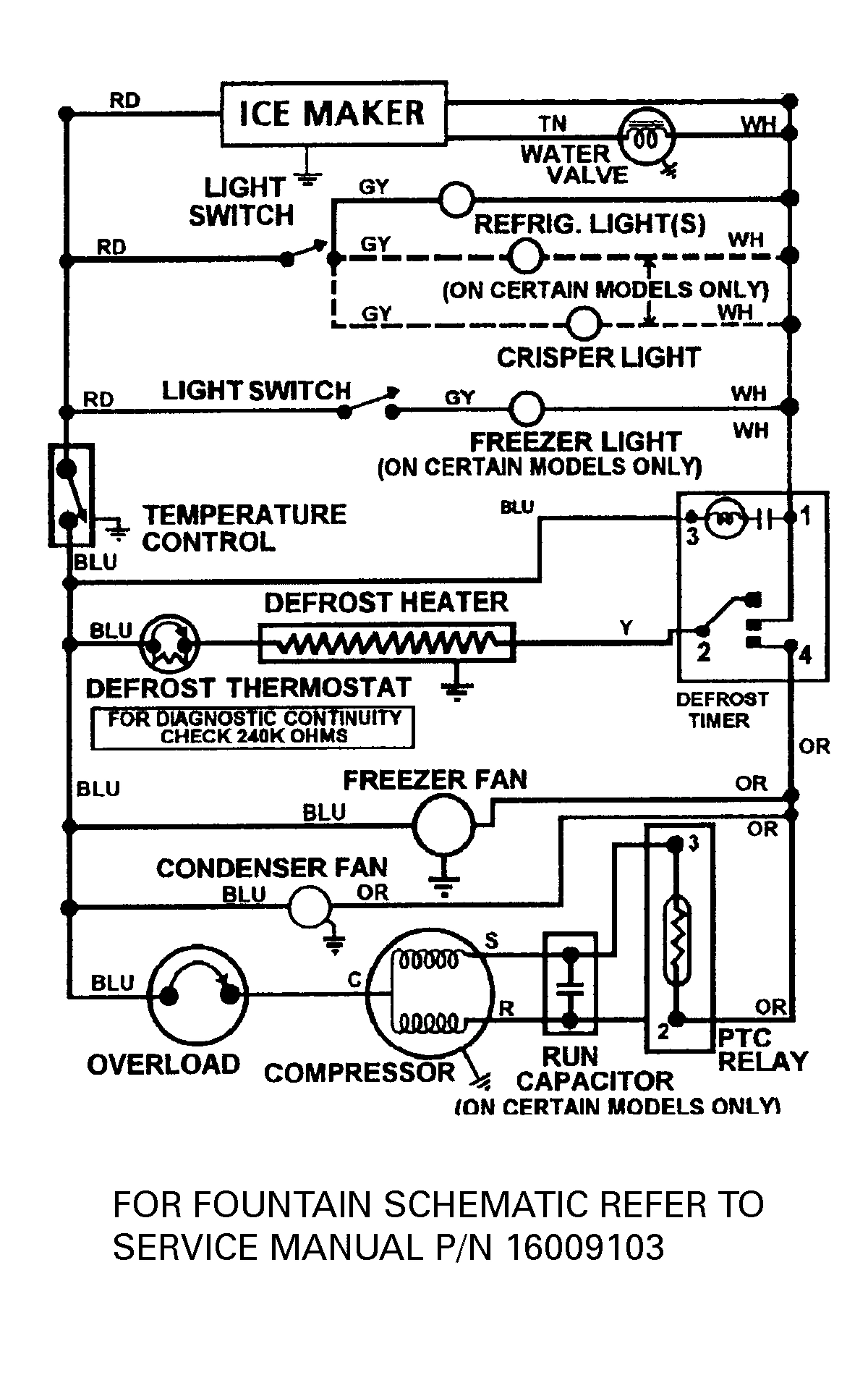

WIRING INFORMATION WPL 15002403 Contact Us For Availability
