Model CRSH238MW5 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

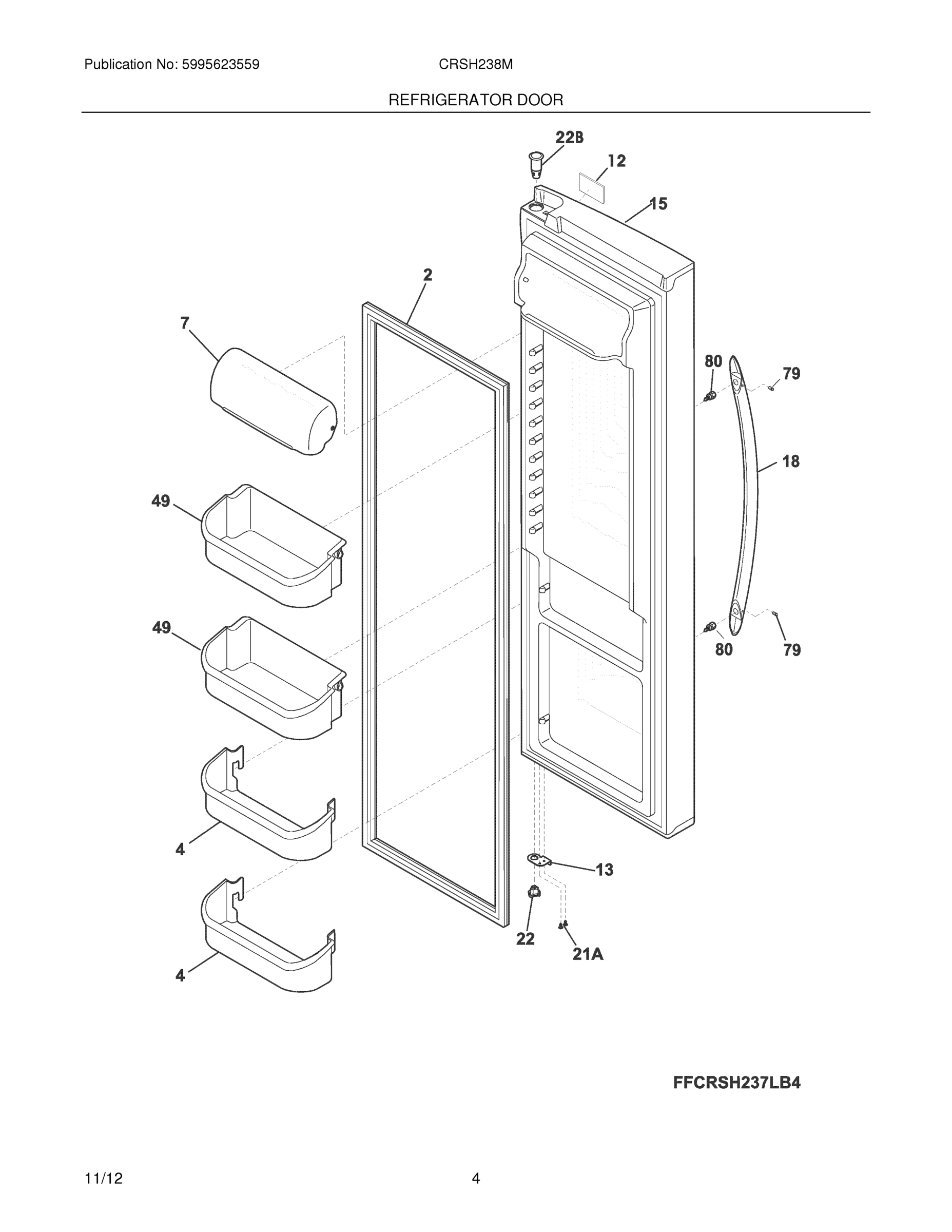

05 - REFRIGERATOR DOOR
07 - CABINET

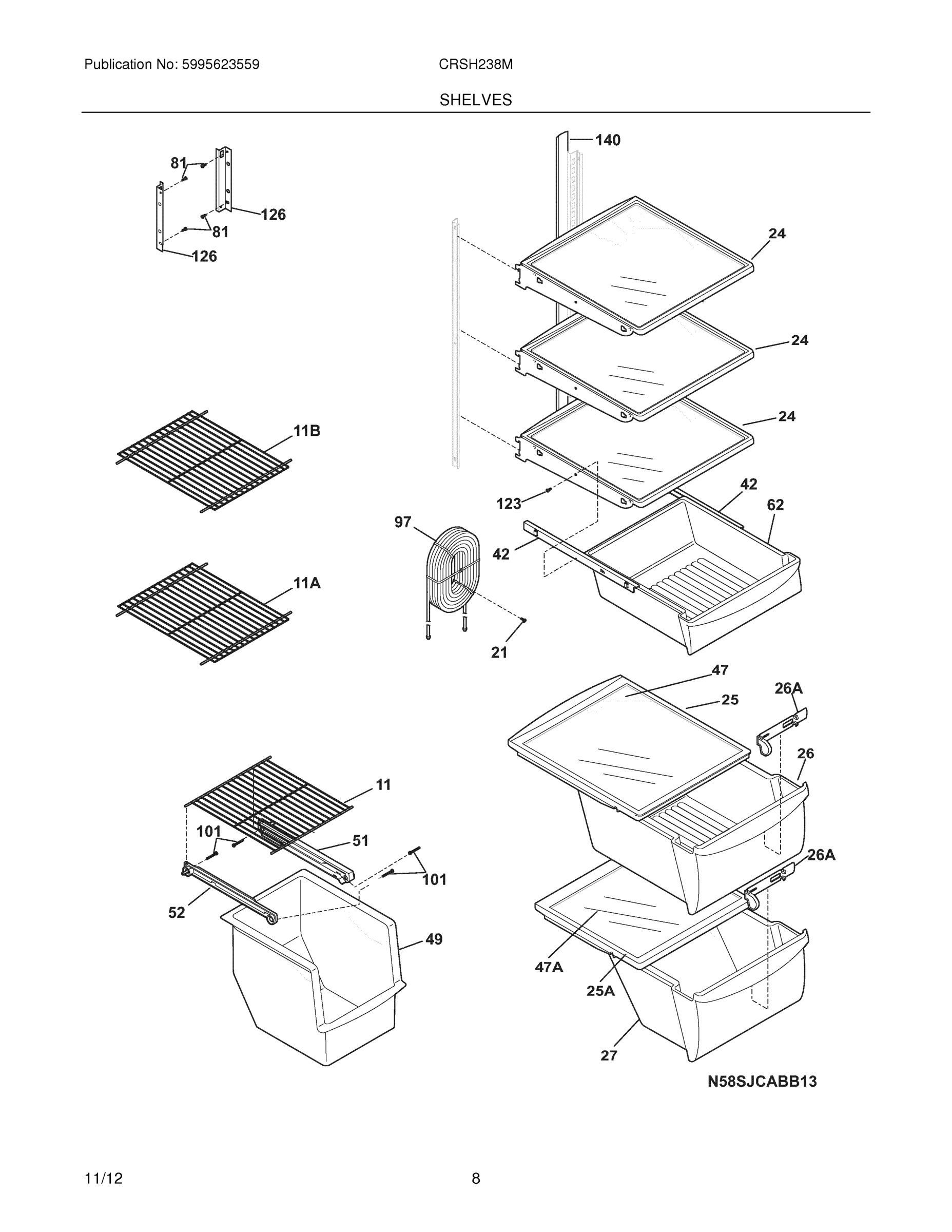

09 - SHELVES
11 - CONTROLS

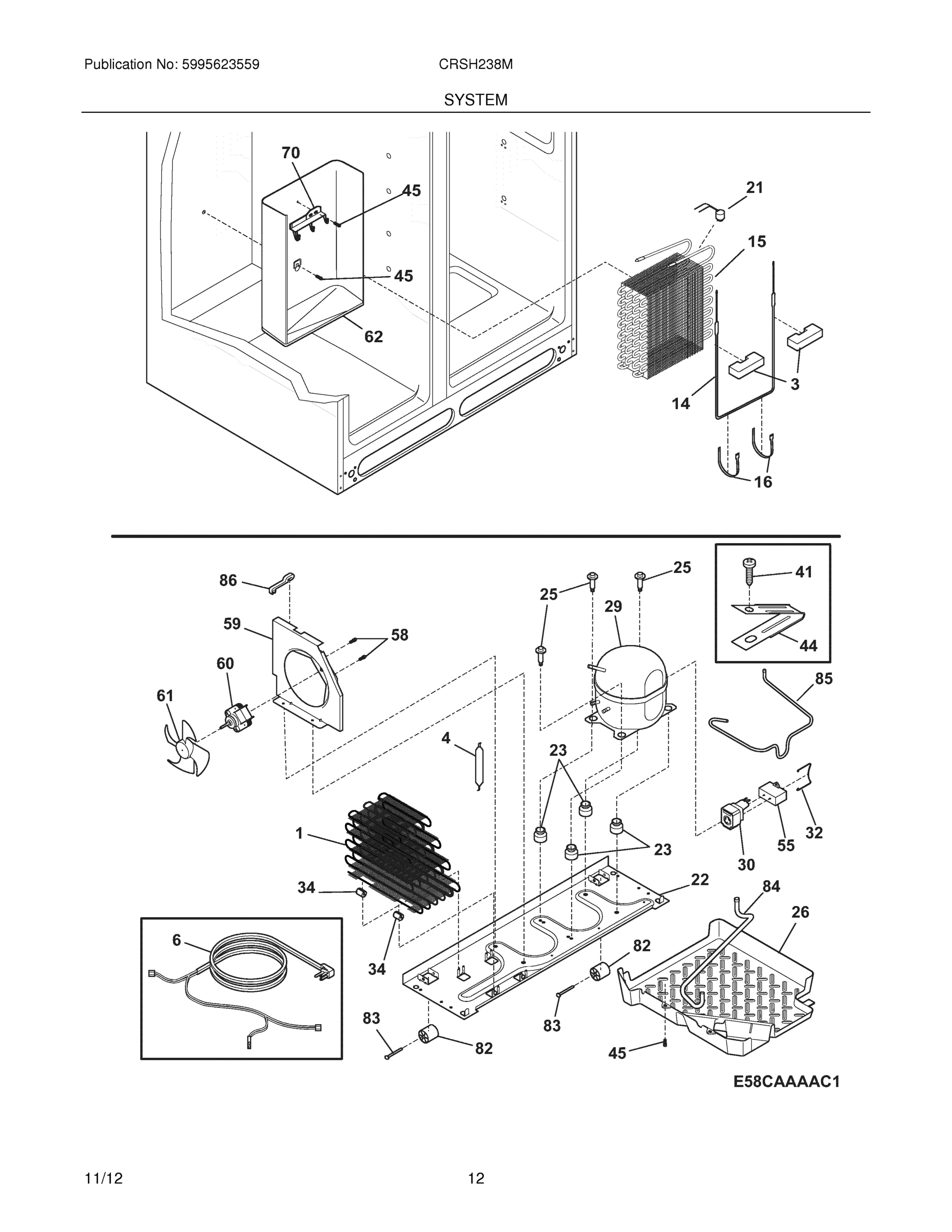

13 - SYSTEM

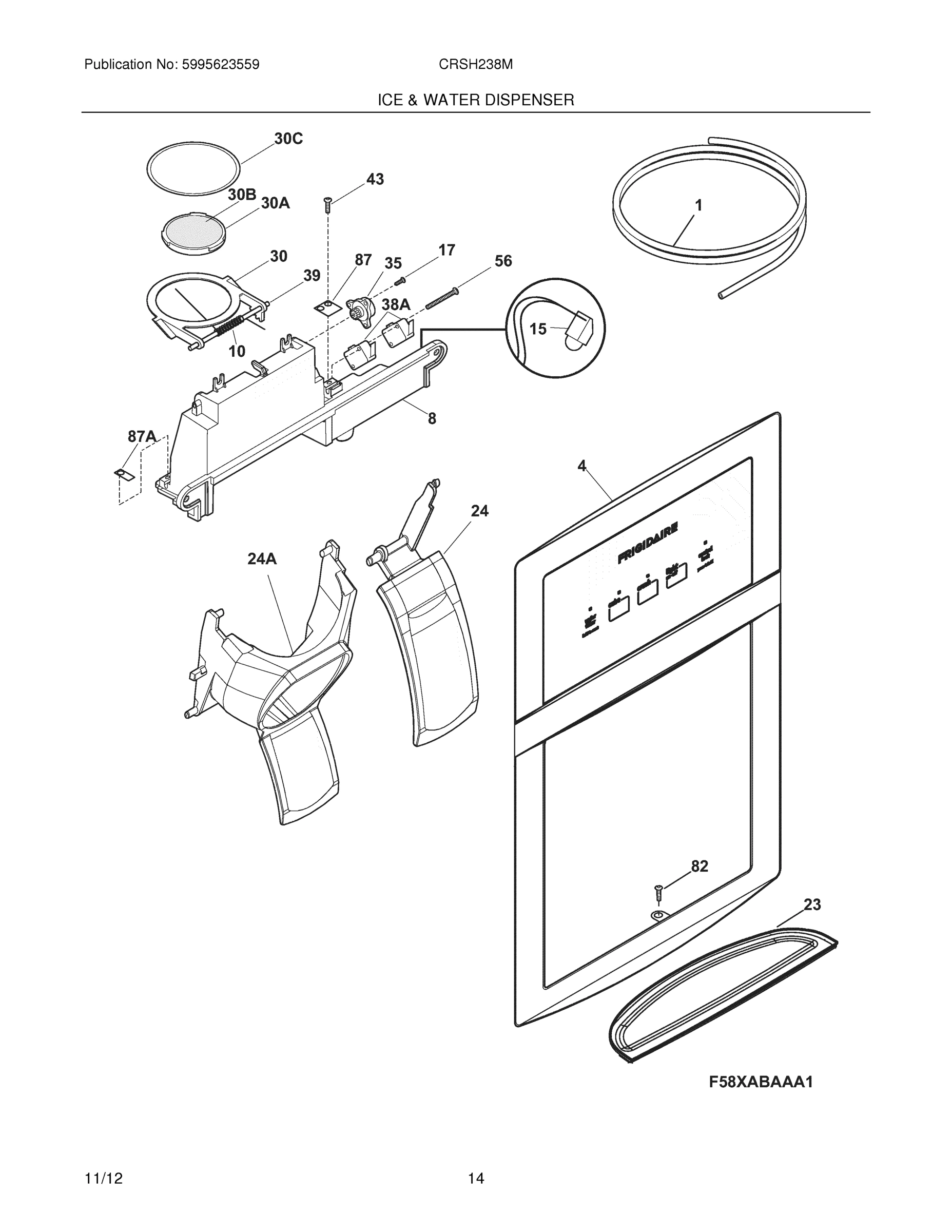

15 - ICE AND WATER DISPENSER
17 - ICE CONTAINER
19 - ICE MAKER

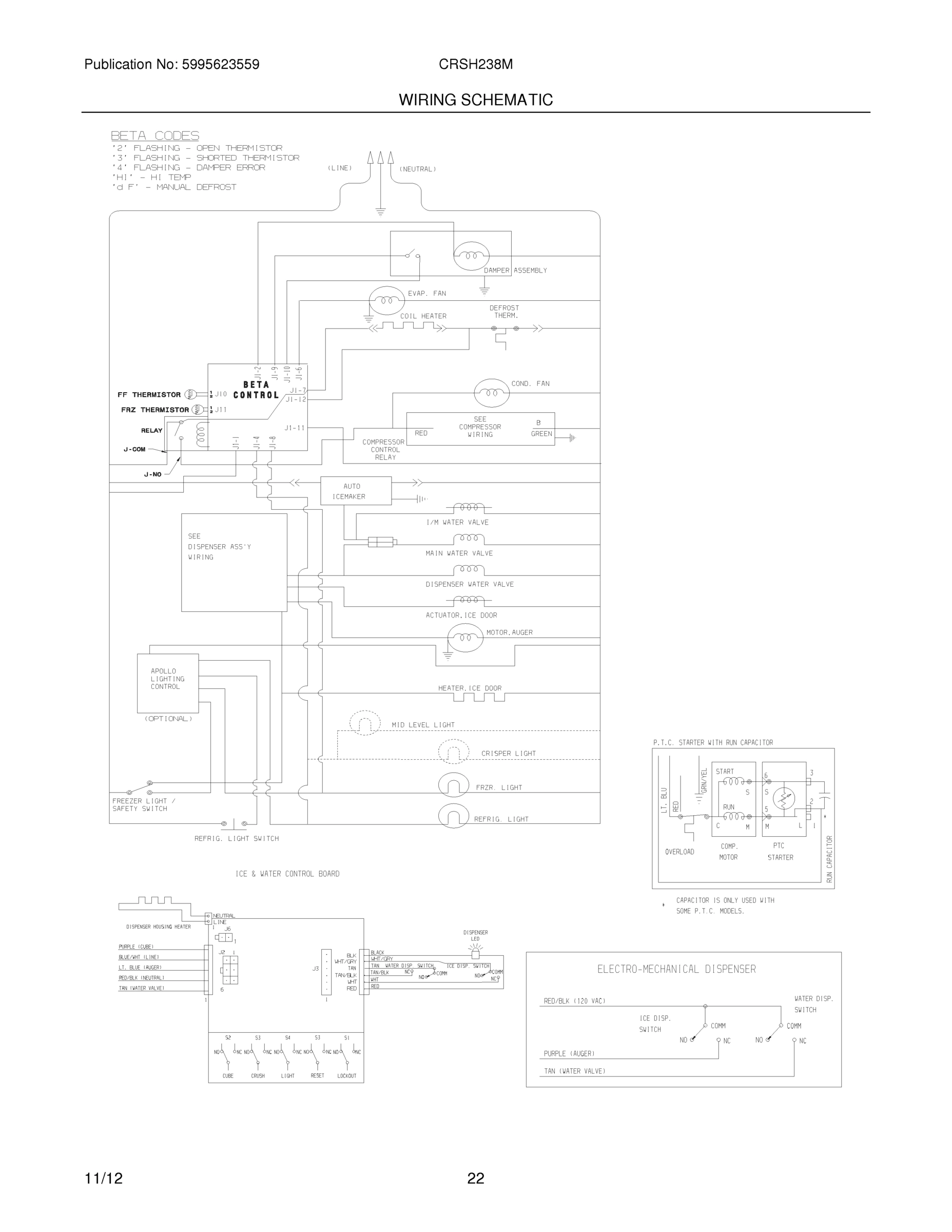

20 - WIRING SCHEMATIC
21 - WIRING DIAGRAM
