Model Electrolux CRSH232PWEA REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

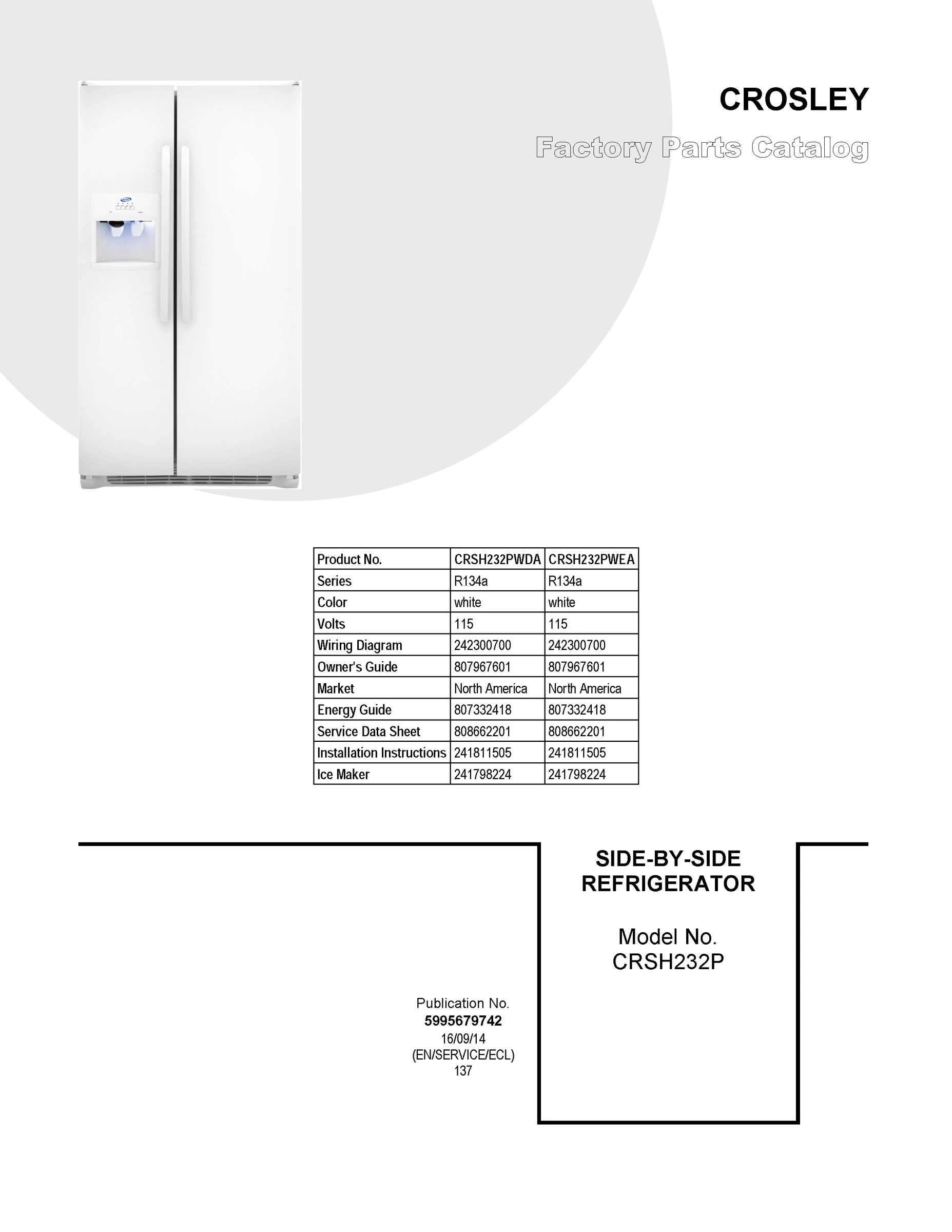

01 - COVER SHEET

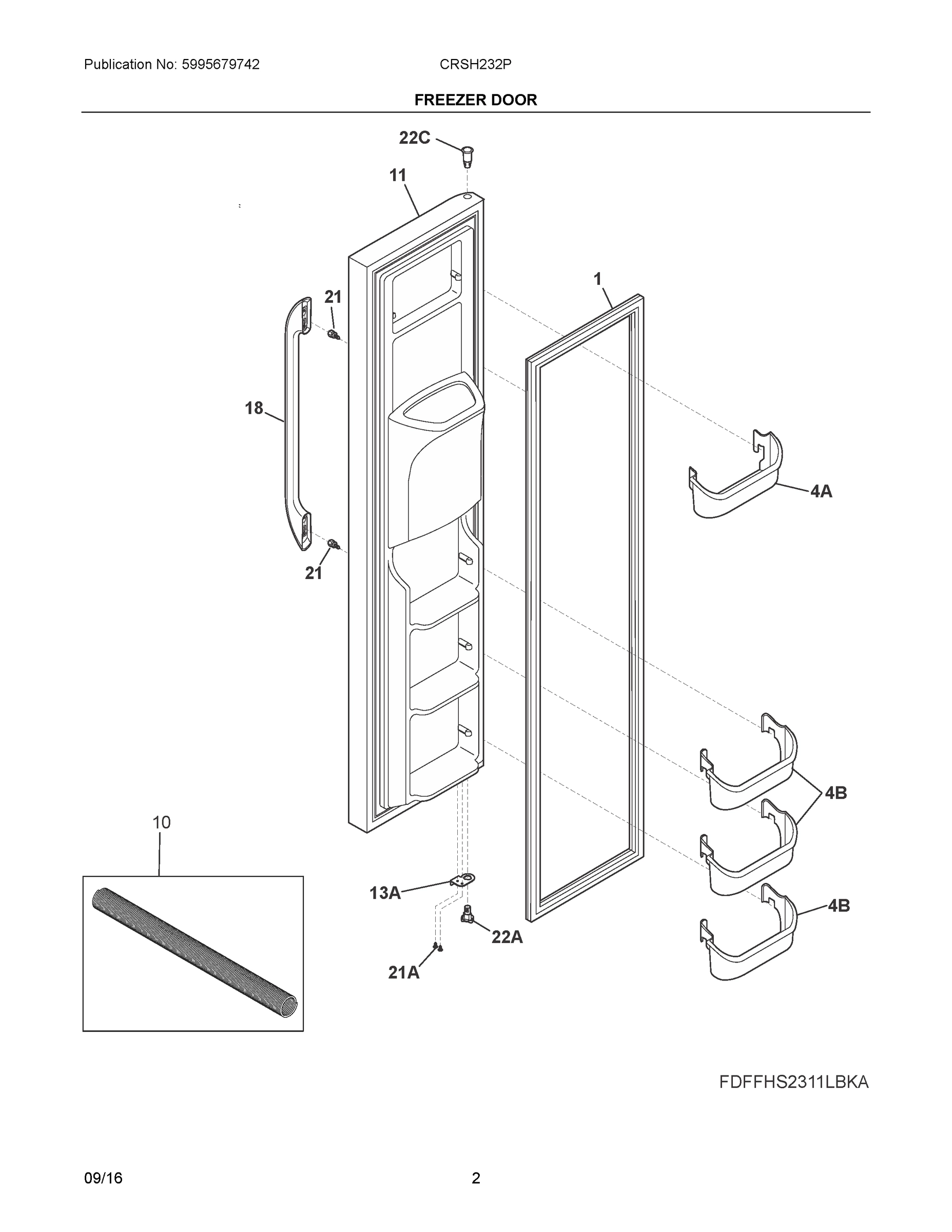

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE & WATER DISPENSER
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING SCHEMATIC
12 - WIRING DIAGRAM
Common parts from model Electrolux CRSH232PWEA REFRIGERATOR, SIDE-BY-SIDE
1
WCI 218976438 WCI 218976438 Contact Us For Availability
1
WCI 242106606 WCI 242106606 Contact Us For Availability
2
WCI 241716101 WCI 241716101 Contact Us For Availability
3
WCI 241685201 WCI 241685201 Contact Us For Availability
4
BIN-DOOR, 2-LITER WCI 240363701 Contact Us For Availability
4
CONTAINER-ICE, BUCKET ONLY WCI 241734001 Contact Us For Availability
4
COVER-MODULE, WHITE WCI 241679001 Contact Us For Availability
4A
BIN-DOOR, FRZR-UPPER WCI 240367301 Contact Us For Availability
4B
WCI 240359001 WCI 240359001 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
7
WCI 241734201 WCI 241734201 Contact Us For Availability
8
WCI 241680505 WCI 241680505 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
WCI 241563601 WCI 241563601 Contact Us For Availability
10
WCI 241726501 WCI 241726501 Contact Us For Availability
10
WCI 241688901 WCI 241688901 Contact Us For Availability
10
WCI 807688301 WCI 807688301 Contact Us For Availability
10
WCI 240435911 WCI 240435911 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241719710 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
SHELF, FLIP UP, WIRE WCI 241657601 Contact Us For Availability
11
FREEZER DOOR, COMPLETE, WHITE WCI 807460002 Contact Us For Availability
13
DOOR STOP, WHITE, REFR WCI 240581901 Contact Us For Availability
13A
DOOR STOP, WHITE, FRZR WCI 240581902 Contact Us For Availability
14
WCI 242044113 WCI 242044113 Contact Us For Availability
14
SWITCH, LIGHT/LAMP WCI 240505801 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
15
WCI 5303918286 WCI 5303918286 Contact Us For Availability
16
WCI 218906802 WCI 218906802 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
WCI 240548901 WCI 240548901 Contact Us For Availability
17
WCI 241679801 WCI 241679801 Contact Us For Availability
18
WCI 242221501 WCI 242221501 Contact Us For Availability
18
WCI 242059101 WCI 242059101 Contact Us For Availability
18
WCI 242059103 WCI 242059103 Contact Us For Availability
20
WCI 241734802 WCI 241734802 Contact Us For Availability
20
WCI 241604012 WCI 241604012 Contact Us For Availability
21
THERMOSTAT-DEFROST, KIT WCI 5303918214 Contact Us For Availability
21
WCI 241695904 WCI 241695904 Contact Us For Availability
21A
THERMISTOR ASSEMBLY, REFRIG/FREEZER, W/CONNEC WCI 242278801 Contact Us For Availability
22
PLATE-DOOR CLOSER, NATURAL WCI 241856501 Contact Us For Availability
22
BEARING-HINGE (REF), NATURAL, CLOSER WCI 242015301 Contact Us For Availability
22
WCI 240330013 WCI 240330013 Contact Us For Availability
22A
BEARING-HINGE, NATURAL, LOWER WCI 242000501 Contact Us For Availability
22B
BEARING-HINGE, NATURAL, UPPER WCI 240328402 Contact Us For Availability
23
WCI 241684001 WCI 241684001 Contact Us For Availability
24
ACTUATOR-WATER, WHITE WCI 241682001 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24
SHELF-"SPILL-SAFE", CANTILEVER, FIXED WCI 240355277 Contact Us For Availability
24A
ACTUATOR-ICE, WHITE WCI 241681901 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 240354502 Contact Us For Availability
25
WCI 242037702 WCI 242037702 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 240354602 Contact Us For Availability
30
WCI 241688401 WCI 241688401 Contact Us For Availability
30
WCI 242034601 WCI 242034601 Contact Us For Availability
30A
WCI 241688501 WCI 241688501 Contact Us For Availability
30A
WCI 242034604 WCI 242034604 Contact Us For Availability
30B
WCI 241688601 WCI 241688601 Contact Us For Availability
30C
WCI 241688701 WCI 241688701 Contact Us For Availability
32
CLIP, CONTROLLER WCI 216954300 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
WCI 241689301 WCI 241689301 Contact Us For Availability
37
WCI 242161201 WCI 242161201 Contact Us For Availability
38
WCI 240327207 WCI 240327207 Contact Us For Availability
39
WCI 241688801 WCI 241688801 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 240327005 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
WCI 241689001 WCI 241689001 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
WCI 218515403 WCI 218515403 Contact Us For Availability
43
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
45
SOLENOID ASSY, 115V WCI 241675704 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
45A
WCI 241675902 WCI 241675902 Contact Us For Availability
45B
WCI 241676001 WCI 241676001 Contact Us For Availability
45C
WCI 241676101 WCI 241676101 Contact Us For Availability
46
WCI 241716002 WCI 241716002 Contact Us For Availability
47
WCI 241731801 WCI 241731801 Contact Us For Availability
48
WCI 241684602 WCI 241684602 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 240324501 Contact Us For Availability
49
WCI 240564301 WCI 240564301 Contact Us For Availability
49
WCI 241734401 WCI 241734401 Contact Us For Availability
50
WCI 241675601 WCI 241675601 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796405 Contact Us For Availability
51
HANGER-BASKET, RH WCI 240343002 Contact Us For Availability
51
WCI 241676301 WCI 241676301 Contact Us For Availability
52
HANGER-BASKET, LH WCI 240343102 Contact Us For Availability
52
WCI 241684901 WCI 241684901 Contact Us For Availability
53
WCI 241608902 WCI 241608902 Contact Us For Availability
53
PIN-SPIRAL, FIXED BLADES WCI 241690402 Contact Us For Availability
54
WCI 241685001 WCI 241685001 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
55
WCI 241690306 WCI 241690306 Contact Us For Availability
56
WCI 241690201 WCI 241690201 Contact Us For Availability
56
SCREW-MICRO SWITCH, PAN HEAD WCI 241689201 Contact Us For Availability
57
WCI 241734101 WCI 241734101 Contact Us For Availability
58
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
82
WCI 240335202 WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
WCI 241830905 WCI 241830905 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
WCI 241688302 WCI 241688302 Contact Us For Availability
87A
WCI 241688301 WCI 241688301 Contact Us For Availability
88
WCI 241686101 WCI 241686101 Contact Us For Availability
89
COVER-ACCESS, W/LABEL WCI 241733901 Contact Us For Availability
91
WCI 240380101 WCI 240380101 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
97
WCI 242220208 WCI 242220208 Contact Us For Availability
100
WCI 241993101 WCI 241993101 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101
SCREW, HEX SEMS HEAD, 8-18AB X 1-3/4 WCI 241637202 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 242303001 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
140
CHANNEL, WTR TUBE COVER WCI 240430501 Contact Us For Availability
151
WCI 242069701 WCI 242069701 Contact Us For Availability
210
WCI 241983814 WCI 241983814 Contact Us For Availability
NI
ICE CONTAINER ASSY, W/MOVING PARTS WCI 241860803 Contact Us For Availability
NI
PAINT, TOUCH-UP, WHITE WCI 5303321319 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918328 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
WCI 240507202 WCI 240507202 Contact Us For Availability
NI
NAMEPLATE, CROSLEY WCI 242115801 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NIA
WCI 241993001 WCI 241993001 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
TUBE-WATER INLET, 5/16 - 32", YELLOW, VALVE T WCI 218976439 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NIA
GROMMET-SHELF MTG, .96" LONG WCI 241550701 Contact Us For Availability
NIA
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIAA
WCI 241679201 WCI 241679201 Contact Us For Availability
NIB
WCI 242200102 WCI 242200102 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
WCI 240363602 WCI 240363602 Contact Us For Availability
NIC
SEAL-WATER INLET, INLET VALVE, TO ICE MAKER WCI 240561701 Contact Us For Availability
NIC
WCI 240542901 WCI 240542901 Contact Us For Availability
NID
TUBE-WATER INLET, .315 - 97.50", BROWN/TAN WCI 242220206 Contact Us For Availability
× ![]()
