Model Electrolux CRSH232PBFA REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET

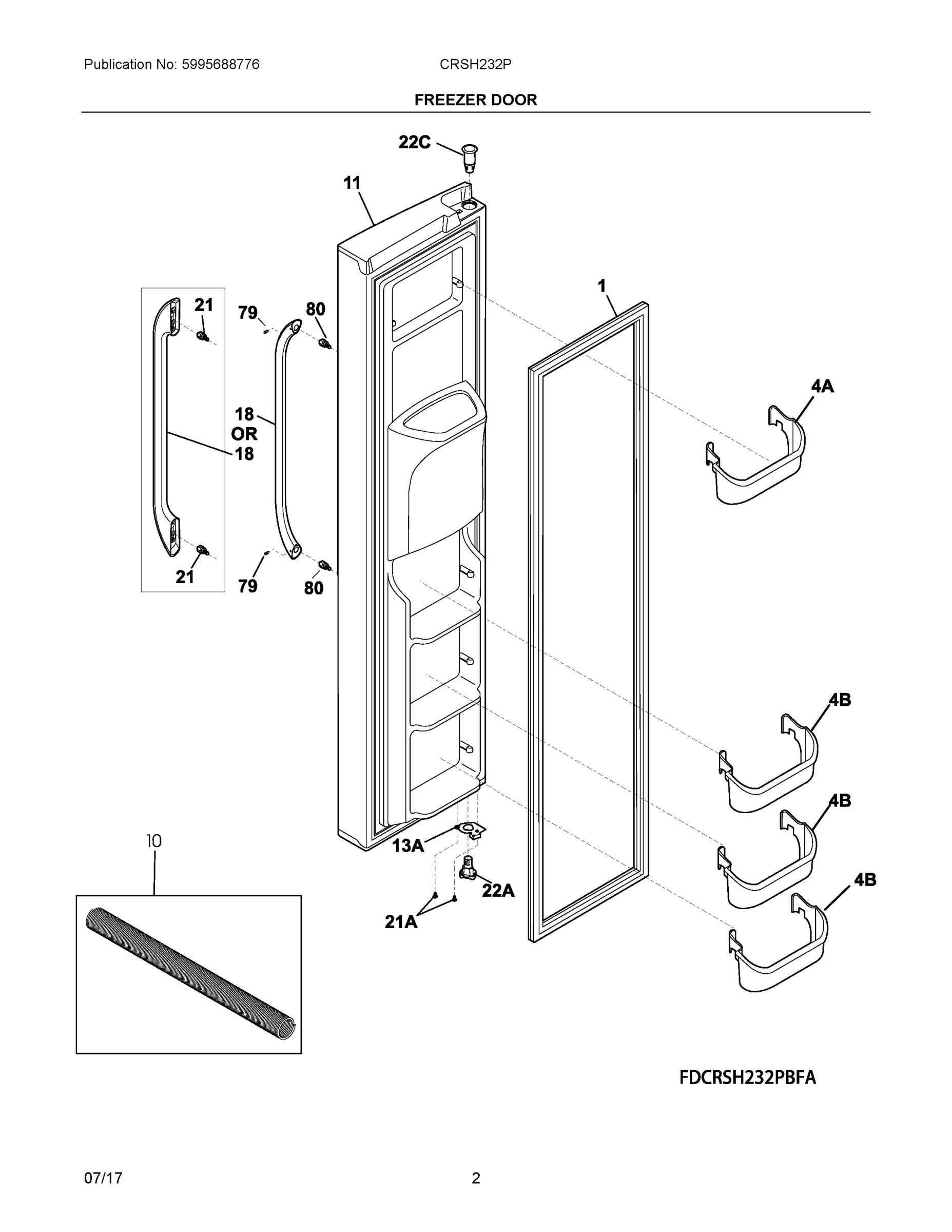

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE & WATER DISPENSER
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING SCHEMATIC
12 - WIRING DIAGRAM
Common parts from model Electrolux CRSH232PBFA REFRIGERATOR, SIDE-BY-SIDE
1
TUBE, WATER, 60", NATURAL, DOOR WCI 218976409 Contact Us For Availability
1
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 241786008 Contact Us For Availability
1
CONDENSER WCI 242106606 Contact Us For Availability
2
AUGER-ICE WCI 241716101 Contact Us For Availability
3
CAM-DRIVE WCI 241685201 Contact Us For Availability
4
BIN-DOOR, 2-LITER WCI 240363701 Contact Us For Availability
4
CONTAINER-ICE, BUCKET ONLY WCI 241734001 Contact Us For Availability
4
COVER-MODULE, BLACK WCI 241679003 Contact Us For Availability
4A
BIN-DOOR, FRZR-UPPER WCI 240367301 Contact Us For Availability
4B
BIN-DOOR WCI 240359001 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
7
FRONT-ICE CONTAINER WCI 241734201 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING-MOTOR MTG WCI 241563601 Contact Us For Availability
10
BAR-DRIVE WCI 241726501 Contact Us For Availability
10
SPRING, WATER HOSE, FRZ DOOR WCI 807688301 Contact Us For Availability
10
COVER-AIR DUCT WCI 240435911 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241719710 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
SHELF, FLIP UP, WIRE WCI 241657601 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 240581905 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240581906 Contact Us For Availability
14
HEATER-DEFROST WCI 242044113 Contact Us For Availability
14
SWITCH, LIGHT/LAMP WCI 240505801 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
14
LABEL-MODULE COVER, BLACK WCI 240570232 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918286 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 218906802 Contact Us For Availability
16
SOCKET-LIGHT WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
18
MOTOR-AUGER WCI 242221501 Contact Us For Availability
18
HANDLE-DOOR, BLACK WCI 242059102 Contact Us For Availability
18
HANDLE-DOOR, BLACK WCI 242059104 Contact Us For Availability
20
COVER-MOTOR WCI 241734802 Contact Us For Availability
20
LABEL-CONTROL BOX WCI 241604012 Contact Us For Availability
21
THERMOSTAT-DEFROST, KIT WCI 5303918214 Contact Us For Availability
21
SCREW, TYPE AB, #10-16 X .5 WCI 241695904 Contact Us For Availability
21A
THERMISTOR ASSEMBLY, REFRIG/FREEZER, W/CONNEC WCI 242278801 Contact Us For Availability
22
PLATE-DOOR CLOSER, BLACK WCI 241856502 Contact Us For Availability
22
BEARING-HINGE(REF), BLACK, CLOSER WCI 242015302 Contact Us For Availability
22
BASE-COMPRESSOR WCI 240330013 Contact Us For Availability
22A
BEARING-HINGE, BLACK, LOWER WCI 242000502 Contact Us For Availability
22C
BEARING-HINGE, BLACK, UPPER WCI 240328404 Contact Us For Availability
23
DRIP TRAY, BLACK WCI 241649003 Contact Us For Availability
23
PLATE-FRONT WCI 241684001 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24
SHELF-"SPILL-SAFE", CANTILEVER, FIXED WCI 240355277 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 240354502 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 240354602 Contact Us For Availability
30
BRACKET-LOWER HINGE WCI 242034601 Contact Us For Availability
30A
BRACKET-LOWER HINGE WCI 242034604 Contact Us For Availability
32
CLIP, CONTROLLER WCI 216954300 Contact Us For Availability
33
SPACER WCI 241684802 Contact Us For Availability
34
SPACER WCI 241689802 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
37
TRIM-CABINET CORNER, BLACK, (2) WCI 242161202 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 240327207 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240327007 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
CLIP-GRILLE WCI 218515401 Contact Us For Availability
43
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
45
SOLENOID ASSY, 115V WCI 241675704 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
45A
SPRING-SOLENOID WCI 241675902 Contact Us For Availability
45B
E-RING-SOLENOID WCI 241676001 Contact Us For Availability
45C
ACTUATOR-SOLENOID WCI 241676101 Contact Us For Availability
46
CONTROL ROD WCI 241716002 Contact Us For Availability
47
SPRING-CONTROL ROD WCI 241731801 Contact Us For Availability
48
BRACKET-CONTROL ROD WCI 241684602 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 240324501 Contact Us For Availability
49
BASKET-SLIDING WCI 240564301 Contact Us For Availability
49
RAIL ASSY WCI 241734401 Contact Us For Availability
50
GUIDE-SOLENOID WCI 241675601 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796405 Contact Us For Availability
51
HANGER-BASKET, RH WCI 240343002 Contact Us For Availability
51
ROTATION STOP WCI 241676301 Contact Us For Availability
52
HANGER-BASKET, LH WCI 240343102 Contact Us For Availability
52
SPACER-FIXED BLADES WCI 241684901 Contact Us For Availability
53
BOX-CONTROL WCI 241608902 Contact Us For Availability
53
PIN-SPIRAL, FIXED BLADES WCI 241690402 Contact Us For Availability
54
NUT-AUGER WCI 241685001 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
55
WASHER WCI 241690306 Contact Us For Availability
56
E-RING WCI 241690201 Contact Us For Availability
57
DOOR-ACCESS WCI 241734101 Contact Us For Availability
58
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
66B
DIFFUSER-AIR WCI 240374301 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, LOWER WCI 241830905 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
89
COVER-ACCESS, W/LABEL WCI 241733901 Contact Us For Availability
91
DUCT-ICE MAKER WCI 240380101 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
97
TUBE-WATER INLET, .315 - 97.50", NATURAL WCI 242220208 Contact Us For Availability
100
SUPPORT-CRISPER CVR WCI 241993101 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101
SCREW, HEX SEMS HEAD, 8-18AB X 1-3/4 WCI 241637202 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 242303001 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
140
CHANNEL, WTR TUBE COVER WCI 240430501 Contact Us For Availability
151
COVER-WATER FILTER WCI 242069701 Contact Us For Availability
210
HOUSING-WATER FILTR WCI 241983814 Contact Us For Availability
NI
ICE CONTAINER ASSY, W/MOVING PARTS WCI 241860803 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918328 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
PAINT, TOUCH-UP, BLACK WCI 5303321321 Contact Us For Availability
NI
DEFLECTOR-ICE CONTAINER WCI 240507202 Contact Us For Availability
NI
NAMEPLATE, CROSLEY WCI 242115801 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NI
CLIP-GRILLE WCI 218515403 Contact Us For Availability
NIA
SUPPORT-CRISPER CVR WCI 241993001 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NIA
GROMMET-SHELF MTG, .96" LONG WCI 241550701 Contact Us For Availability
NIA
TUBE-WATER INLET, 5/16 - 34", YELLOW, VALVE T WCI 218976419 Contact Us For Availability
NIA
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIB
TUBE-WATER INLET, 5/16 - 97.50", BROWN/TAN WCI 218976429 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
NIBA
PIN-PUSH, PUSH-IN, PLASTIC WCI 240518802 Contact Us For Availability
NIC
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
NID
SEAL-WATER INLET, INLET VALVE, TO ICE MAKER WCI 240561701 Contact Us For Availability
× ![]()
