Model Maytag CRGA800AAE GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

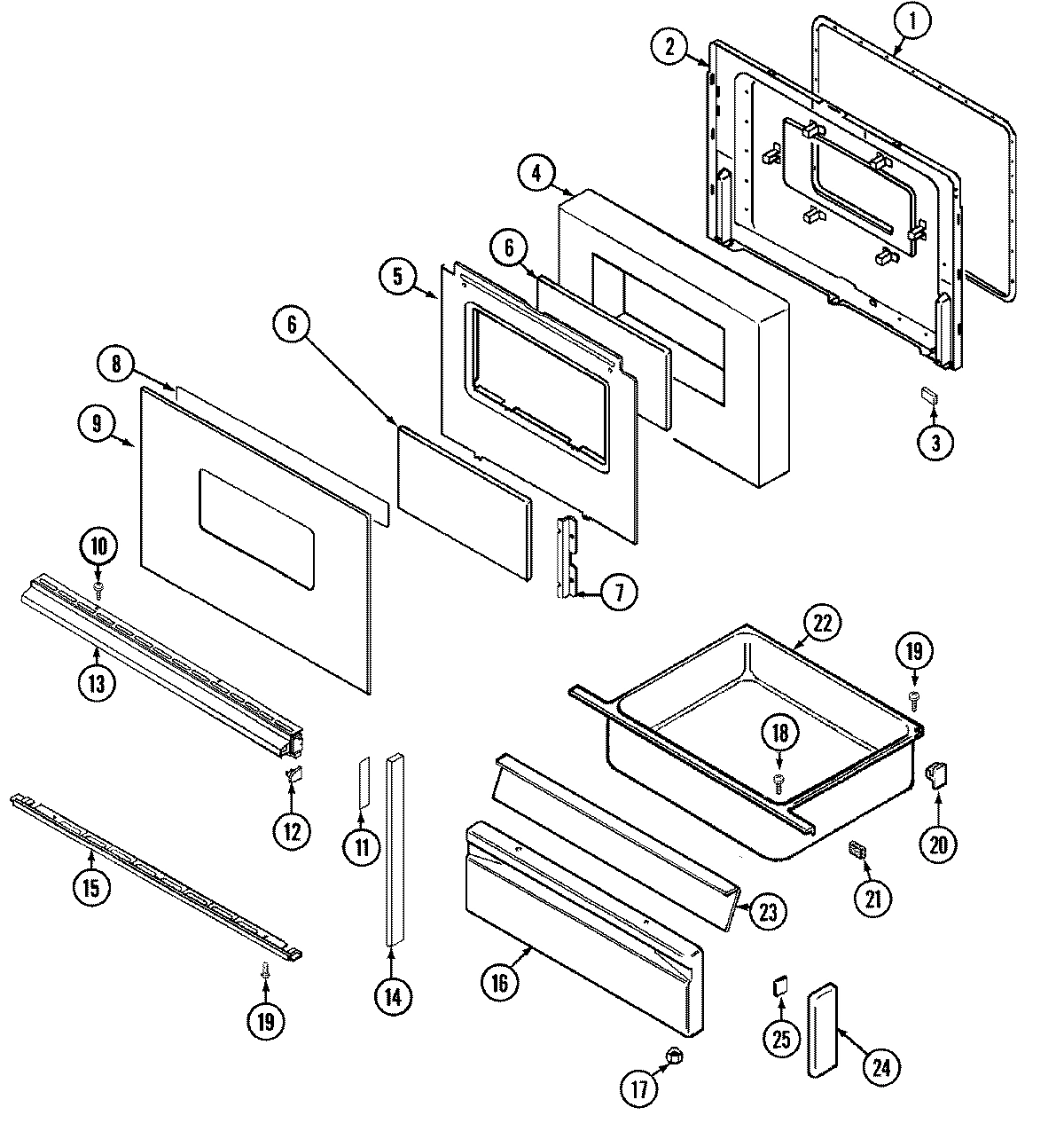

03 - DOOR/DRAWER (CRGA800AAE SER. PRE. 15)

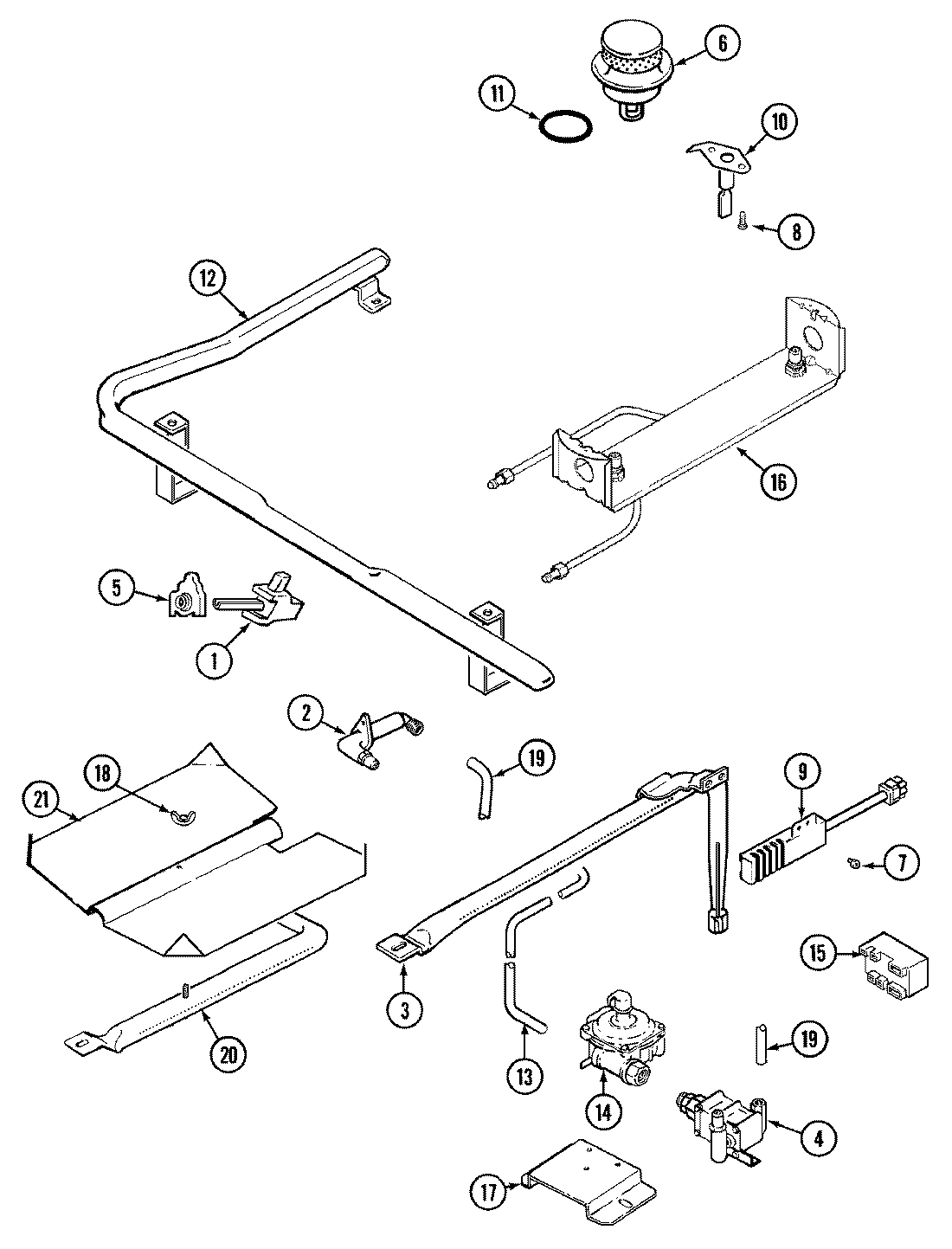

04 - GAS CONTROLS
05 - OVEN/BASE

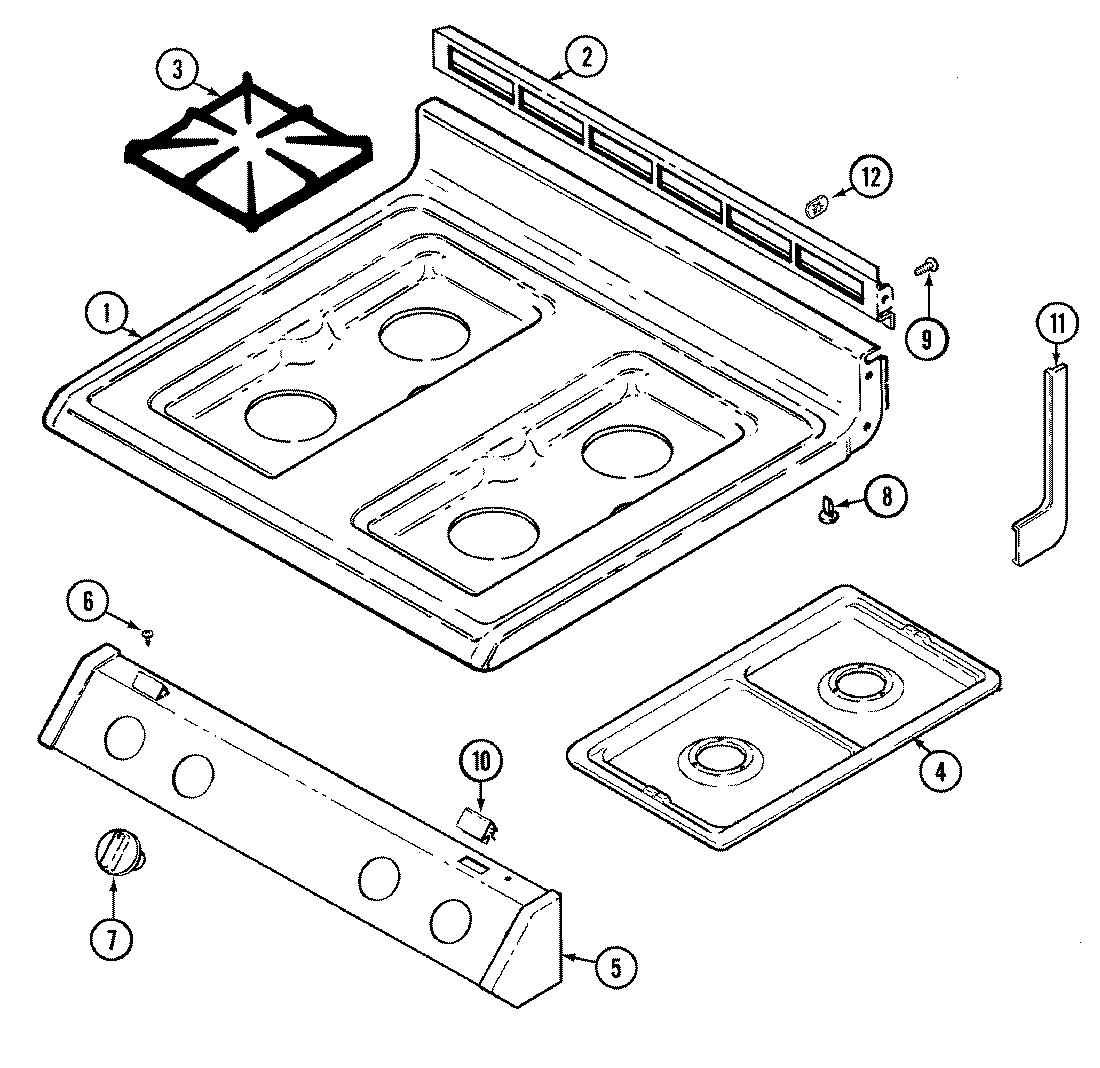

06 - TOP ASSEMBLY

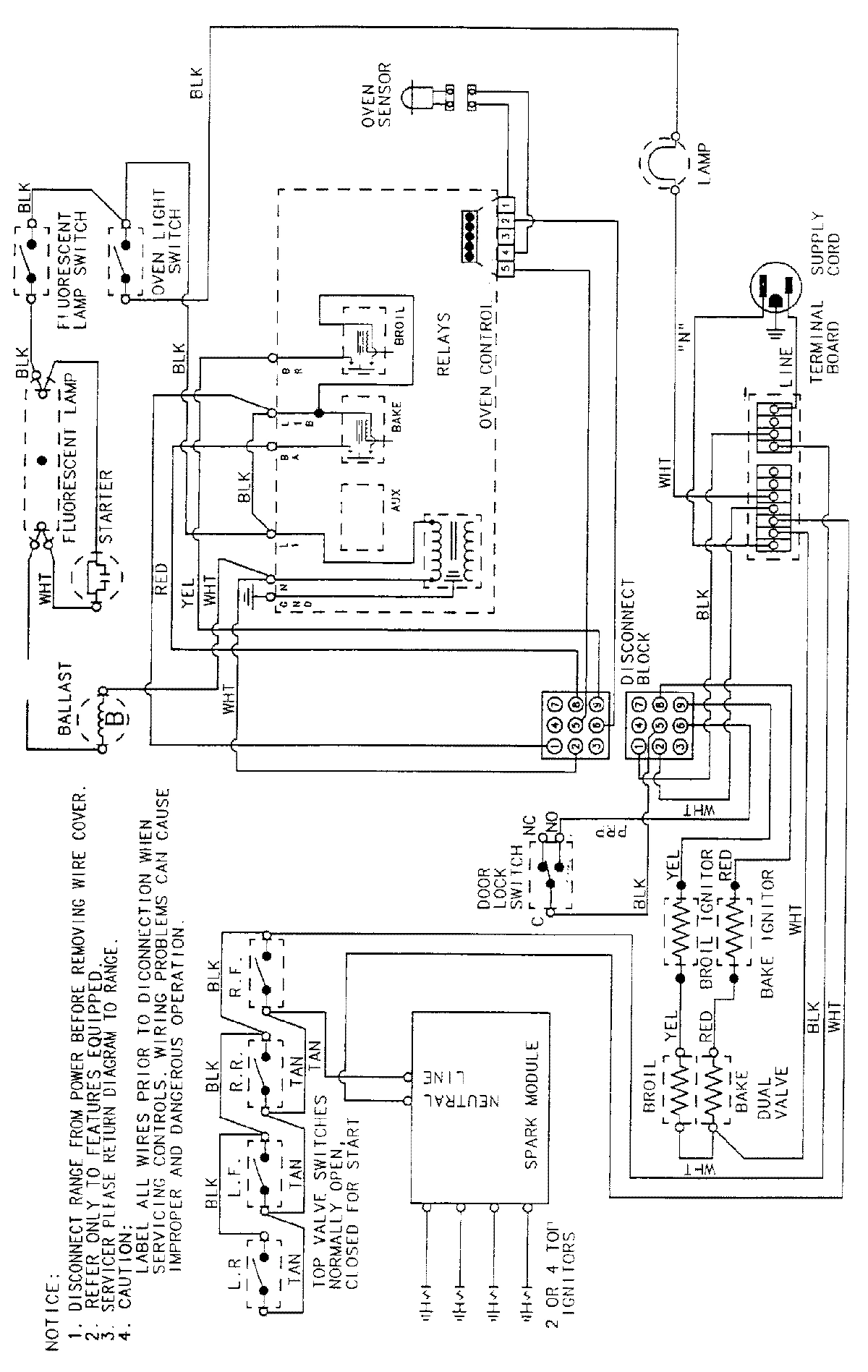

07 - WIRING INFORMATION
Common parts from model Maytag CRGA800AAE GAS RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 4005F448-45 MAY 4005F448-45 Contact Us For Availability
1
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
1
MAY 7502P250-60 MAY 7502P250-60 Contact Us For Availability
1
MAY 4020W015-80 MAY 4020W015-80 Contact Us For Availability
1
MAY 2001W085-81 MAY 2001W085-81 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
2
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
MAY 3608F042-26 MAY 3608F042-26 Contact Us For Availability
3
MAY 74001311 MAY 74001311 Contact Us For Availability
3
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
3
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
3
MAY 2003W027-26 MAY 2003W027-26 Contact Us For Availability
4
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
4
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
5
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
5
MAY 7712P189-60 MAY 7712P189-60 Contact Us For Availability
6
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
6
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
6
MAY 74001508 MAY 74001508 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY 3412D018-26 MAY 3412D018-26 Contact Us For Availability
6
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
6
MAY 7101P329-60 MAY 7101P329-60 Contact Us For Availability
7
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
7
MAY 74001506 MAY 74001506 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
7
MAY 7733P077-60 MAY 7733P077-60 Contact Us For Availability
8
MAY 8009P029-60 MAY 8009P029-60 Contact Us For Availability
8
MAY 8009P023-60 MAY 8009P023-60 Contact Us For Availability
8
MAY 7601P240-60 MAY 7601P240-60 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
8
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
8
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
9
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
9
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
9
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
10
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
10
MAY 7701P133-60 MAY 7701P133-60 Contact Us For Availability
10
MAY 7711P493-60 MAY 7711P493-60 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
10
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
11
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
11
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
11
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
11
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
11
MAY 7746P032-60 MAY 7746P032-60 Contact Us For Availability
11
MAY 7746P033-60 MAY 7746P033-60 Contact Us For Availability
11
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
12
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
12
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
13
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
13
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
13
MAY 7701P105-60 MAY 7701P105-60 Contact Us For Availability
13
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
13
MAY 7103P121-60 MAY 7103P121-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
14
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
14
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
14
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
15
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
15
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
15
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
15
MAY 3807F447-51 MAY 3807F447-51 Contact Us For Availability
16
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
16
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
16
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
16
MAY 7724P062-60 MAY 7724P062-60 Contact Us For Availability
16
MAY 2416F038-62 MAY 2416F038-62 Contact Us For Availability
16
MAY 5187D034-60 MAY 5187D034-60 Contact Us For Availability
16
MAY 5187D035-60 MAY 5187D035-60 Contact Us For Availability
16
MAY 3804F112-47 MAY 3804F112-47 Contact Us For Availability
17
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
17
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
17
MAY 7726P073-60 MAY 7726P073-60 Contact Us For Availability
17
MAY 7726P074-60 MAY 7726P074-60 Contact Us For Availability
17
MAY 8020P007-60 MAY 8020P007-60 Contact Us For Availability
17
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
18
MAY 3801F267-45 MAY 3801F267-45 Contact Us For Availability
18
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
18
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
18
MAY 7403P363-60 MAY 7403P363-60 Contact Us For Availability
18
MAY 7724P059-60 MAY 7724P059-60 Contact Us For Availability
18
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
19
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
19
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
19
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
20
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
20
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
21
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
21
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
21
MAY 3401F025-47 MAY 3401F025-47 Contact Us For Availability
22
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
22
MAY 3601F208-45 MAY 3601F208-45 Contact Us For Availability
22
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
23
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
23
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
23
MAY 74001159 MAY 74001159 Contact Us For Availability
24
MAY 7744P067-60 MAY 7744P067-60 Contact Us For Availability
24
MAY 3807F473-51 MAY 3807F473-51 Contact Us For Availability
25
TAPE MAY 8270P098-60 Contact Us For Availability
25
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
26
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
27
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
28
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
29
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
NI
MAY 16002079 MAY 16002079 Contact Us For Availability
NI
MAY 5125A353-60 MAY 5125A353-60 Contact Us For Availability
NI
MAY 5170P204-60 MAY 5170P204-60 Contact Us For Availability
NI
MAY 5180D151-60 MAY 5180D151-60 Contact Us For Availability
NI
MAY 8113P066-60 MAY 8113P066-60 Contact Us For Availability
NI
MAY 5120D019-60 MAY 5120D019-60 Contact Us For Availability
NI
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
NI
MAY 5140D035-60 MAY 5140D035-60 Contact Us For Availability
NI
MAY 15001191 MAY 15001191 Contact Us For Availability
× ![]()
