Model Whirlpool CRGA300AAL GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - DOOR/DRAWER

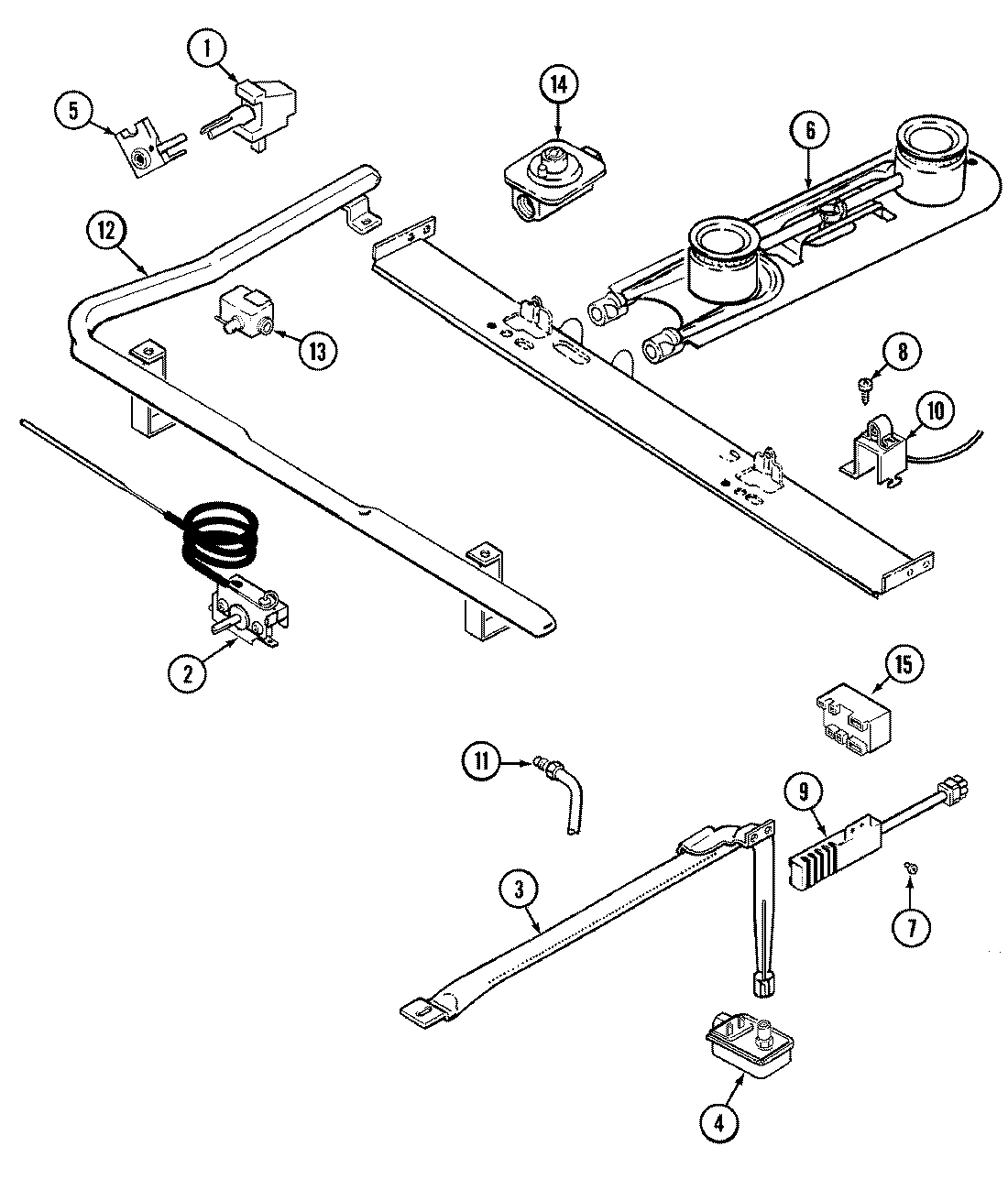

03 - GAS CONTROLS

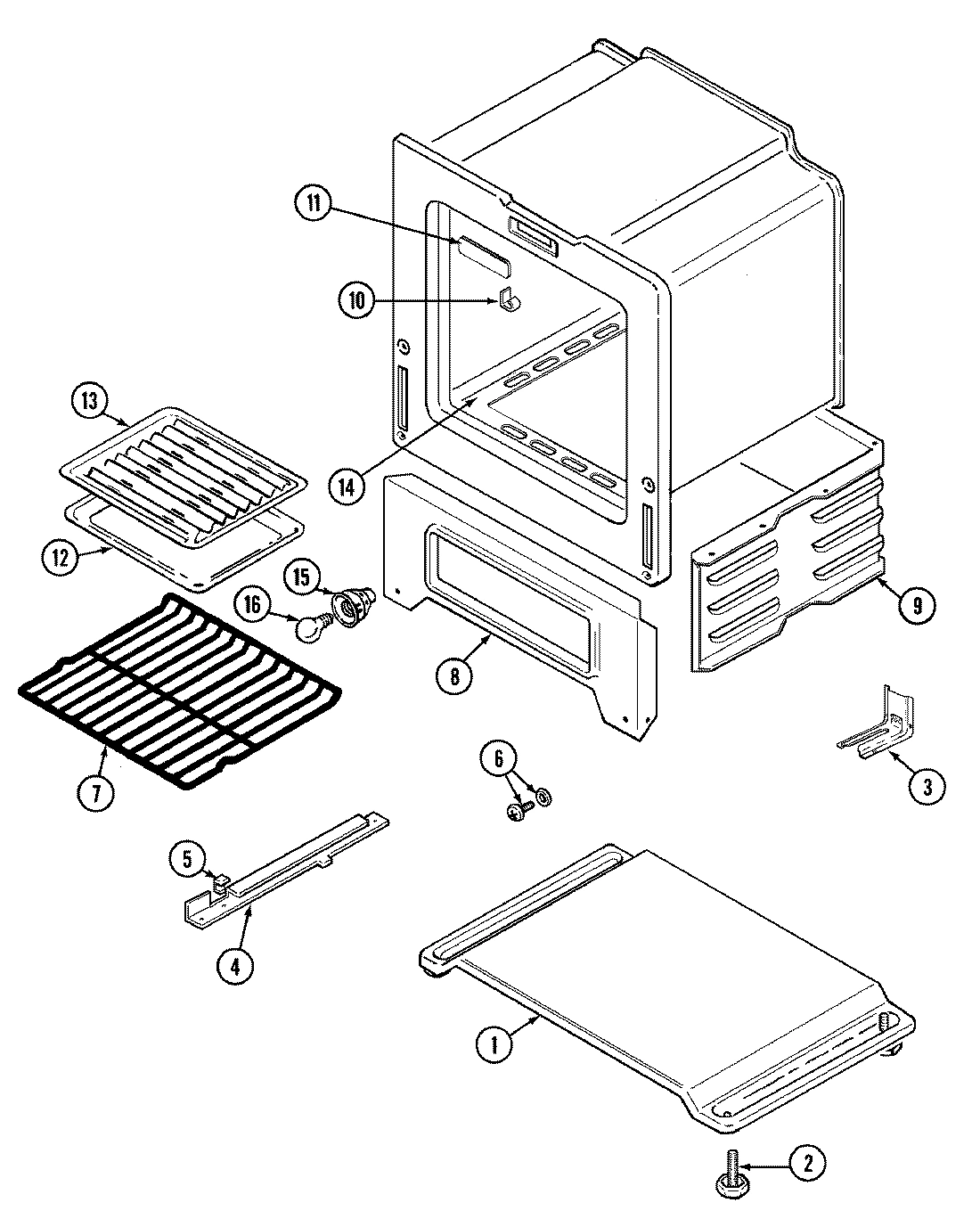

04 - OVEN/BASE

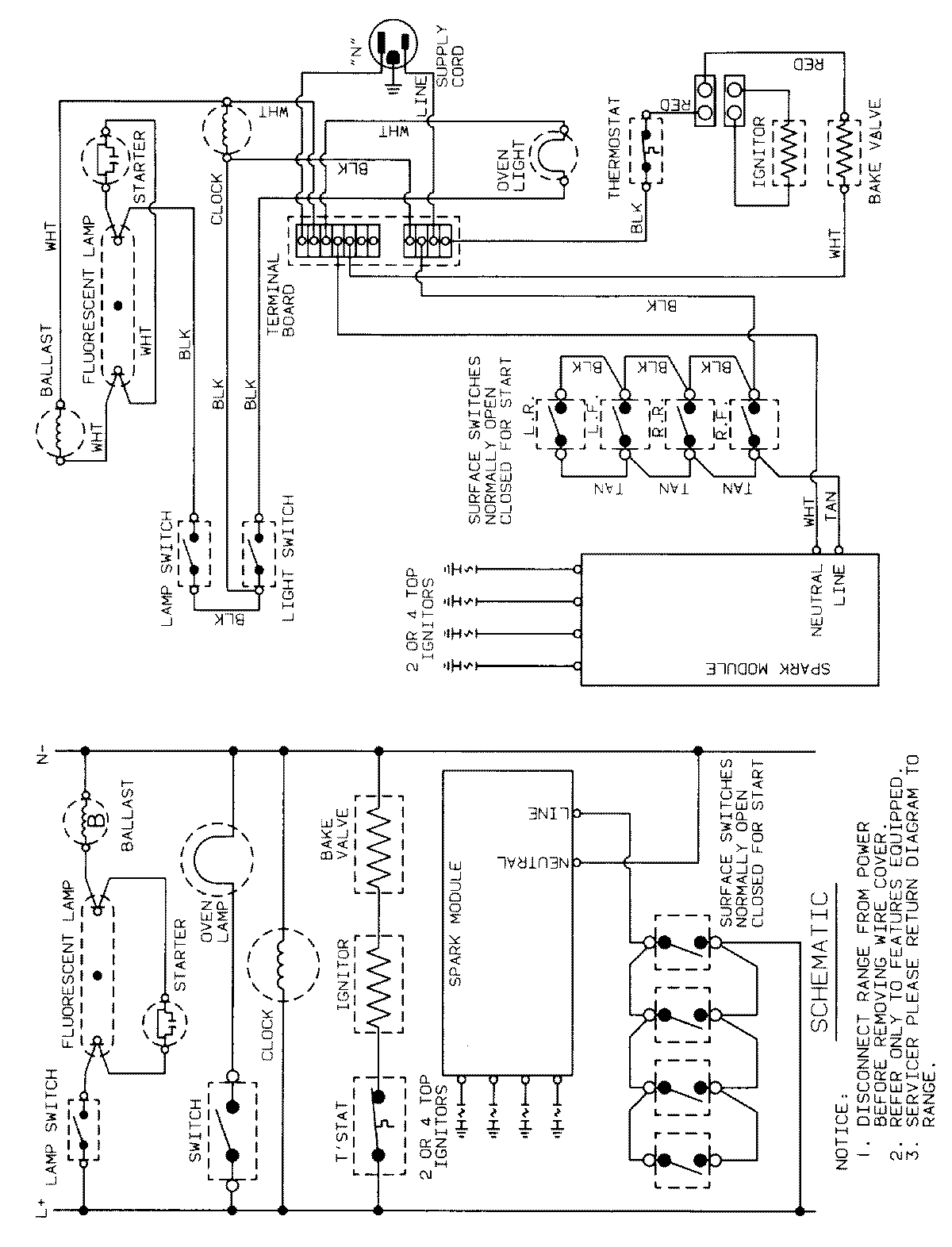

06 - WIRING INFORMATION

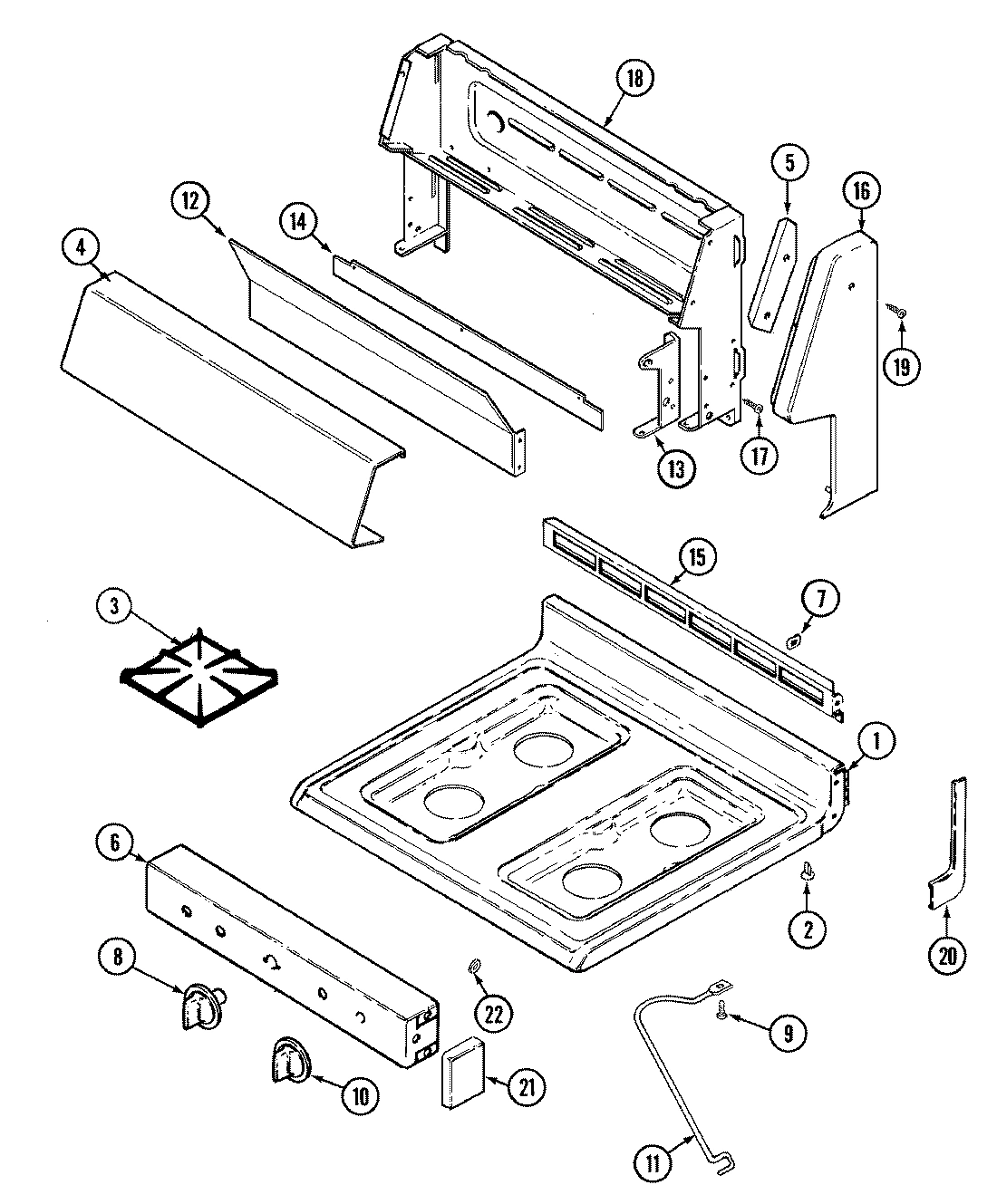

05 - TOP ASSEMBLY/CONTROL PANEL
Common parts from model Whirlpool CRGA300AAL GAS RANGE
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
1
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
1
BASE WPL 4003W02980 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 2001W08684 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
2
BAFFLE, DOOR WPL 3601F21847 Contact Us For Availability
2
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
2
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
LEG, LEVELING WPL 74001311 Contact Us For Availability
2
GLIDE WPL 8016P01560 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
NUT, GRIP WPL 7103P02260 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
4
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
4
SCREW WPL 7101P29060 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P14460 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
PANEL, CONTROL WPL 4851S04359 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
5
GLIDE WPL 8016P01360 Contact Us For Availability
5
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
6
PANEL, MANIFOLD (BLK) WPL 2616F10209 Contact Us For Availability
6
SCREW WPL 7101P32960 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
NUT, SPEED WPL 7103P04460 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 7731P08560 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
9
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SIDES, BROILER WPL 4016F04445 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
LINING, DOOR WPL 2402W21119 Contact Us For Availability
10
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
10
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7733P06260 Contact Us For Availability
11
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
11
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
11
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING WPL 3414F11444 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
SUPPORT, PROP TOP WPL 7809P02060 Contact Us For Availability
12
HINGE WPL 7106P05560 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P15960 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
13
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
13
SCREW WPL 7101P29160 Contact Us For Availability
13
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
13
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
13
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
14
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
15
SCREW WPL 7101P30060 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
16
CORD, POWER WPL 7402P04360 Contact Us For Availability
16
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
SCREW WPL 7101P31760 Contact Us For Availability
16
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
16
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
INSULATION WPL 4804F02560 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
18
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
18
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
18
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
18
COVER, WIRE WPL 4005F44845 Contact Us For Availability
19
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
19
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
20
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
20
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
20
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
20
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
21
END CAP, PANEL (BLK) WPL 7713P01860 Contact Us For Availability
22
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
22
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
23
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
24
END CAP (RT) WPL 7744P07560 Contact Us For Availability
24
END CAP (LT) WPL 7744P07660 Contact Us For Availability
25
NUT, NYLON WPL 7103P04560 Contact Us For Availability
26
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001339 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
× ![]()
